SPECIFICATIONS

>>>Features

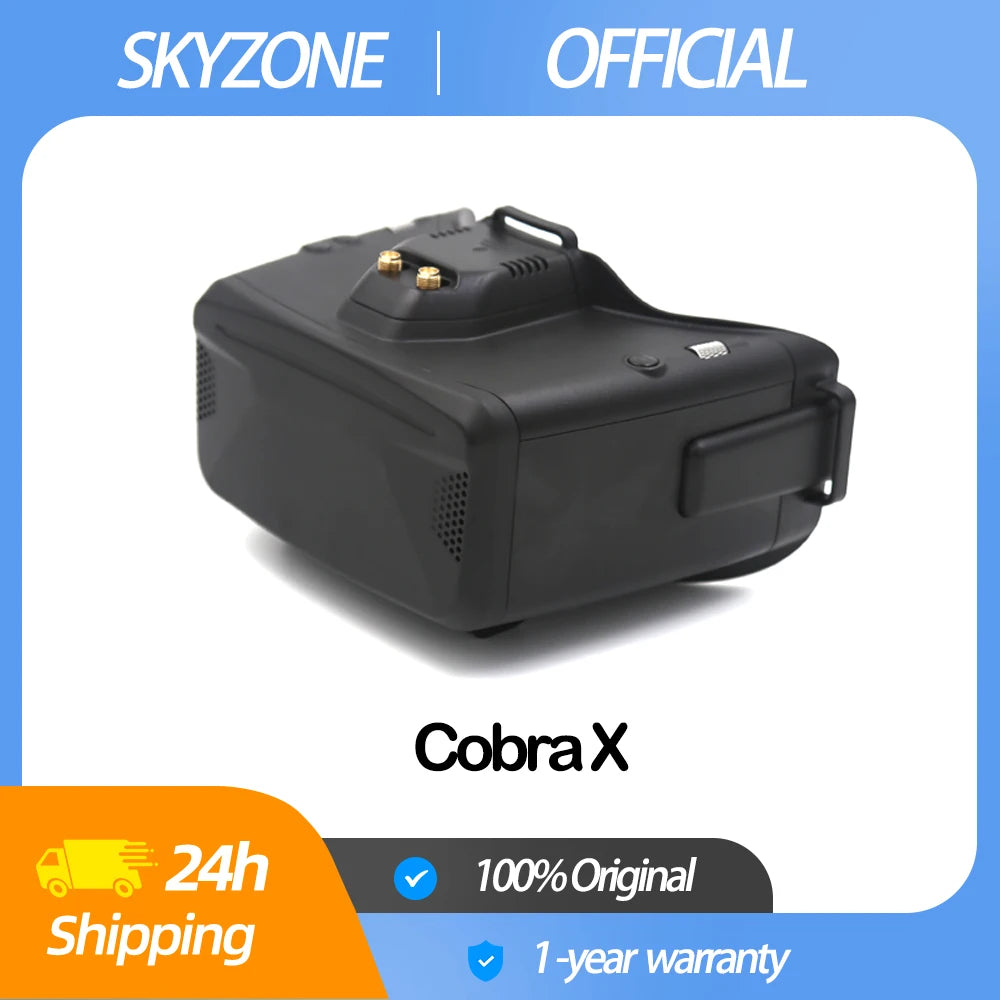

The SKYZONE Cobra X * is a FPV goggle with 1280*720 high resolution LCD screen , the screen have vivid color and high Luminance , pilot can see more details in the racing . With SteadyView receiver ,the receiver merge two signal to one, avoid image tearing and rolling when signal is weak, make image more stable and clear in challenging condition. The goggle support pilot wear glass while fling. The new OS with 10 languages* to set select, pilot have no trouble with the menu system, with shuttle wheel and

new user interface, pilot can set all the setting just by rolling the wheel without take off the goggle. the goggles can power by 1 cell 18650 battery or 2~6s lipo battery, the USB charging and DC charging make goggle simple to use in the filed.

1.Install the receiver and antenna.

2.Plug the battery into battery bay or use power cables to connect battery to the goggle, goggle can

power by 2~6cells lipo battery, hold the power button to turn on.

Model:Cobra X V2

Screen:LCD

Resolution:1280X720

FOV(Diagonal):50°

Aspect Ratio:4:3/16:9

Receiver:5.8Ghz 48 CH SteadyView Receiver

Language:10 Language

Power Supply:1Cell 18650/DC 6.5-25.2V/USB 5V

Power Consumption:12V 0.63A 5V 1.5A

DVR:H264, 60fps,MOV 6Mbps, SD up to 128Gb

Head Tracker:3-axis Accelerometer, 3-axis gyroscope

Dimentions:122*165*100mm

Weight:332g

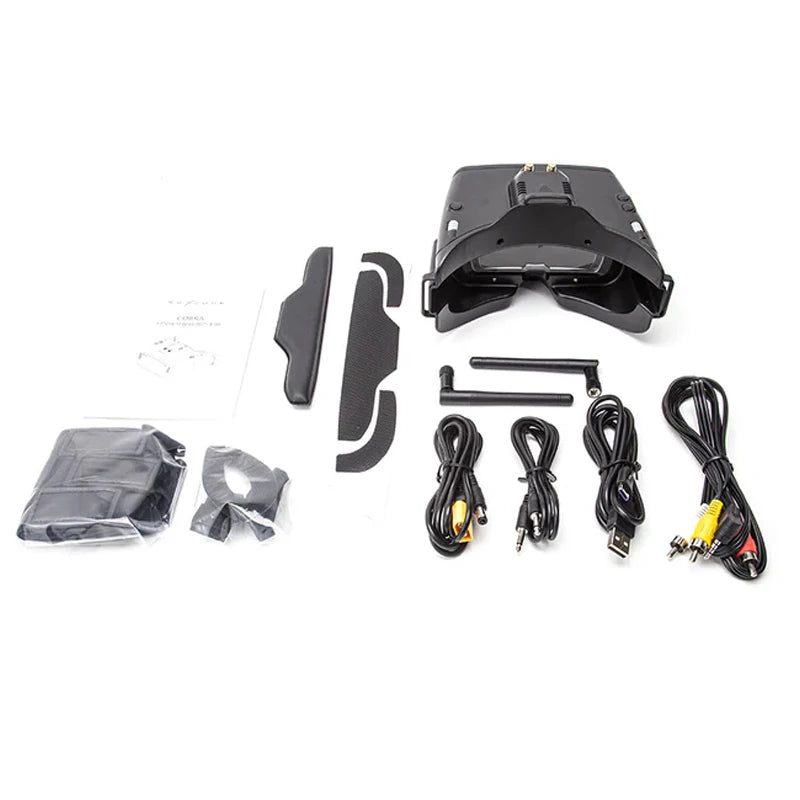

1. Goggles*1

2. Receiver Module*1

3. Head Strap *1

4. Power Cable*1

5. Headtracker cable*1

6. 5.8GHz 2dD antennas*2

7. Video/Audio Cable*1

8. USB-C Cable*1

9. User Manual*1
