Description

SPECIFICATIONS

Brand Name: other

Choice: yes

Display Mode: 0

High-concerned chemical: None

Model Number: 123

Origin: Mainland China

Resolution: 128*64

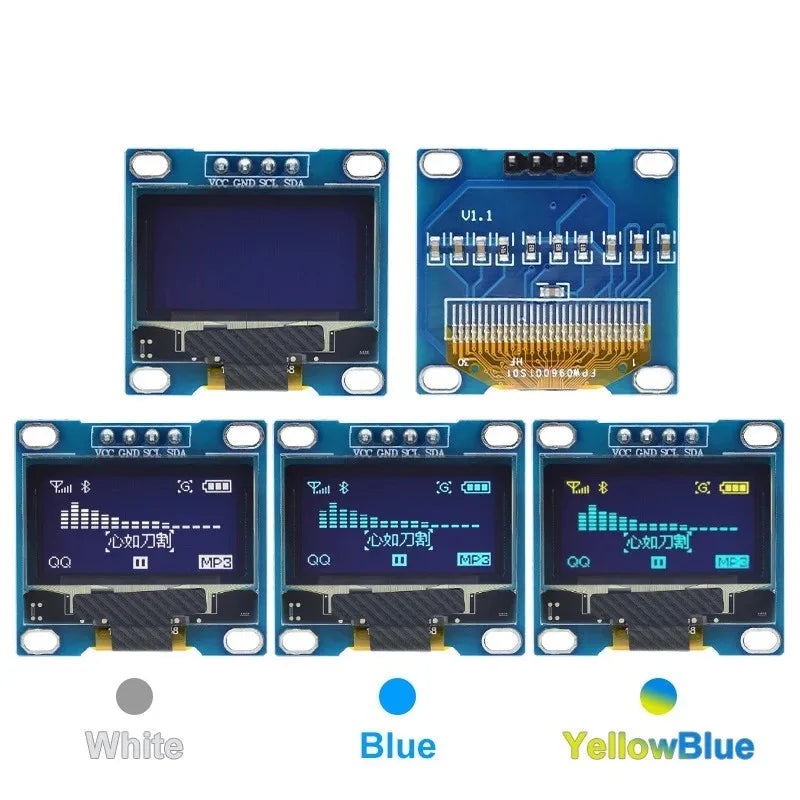

Interface definition:
VCC(positive power source)
GND(power supply negative pole)
SCL(IIC clock line)
SDA(IIC data line)
Note: Pin 1 and pin 2 can be changed in order through the jumper points on the back of the board.

Product description:
Resolution: 128*64 (no backlight is needed, the display unit shines)
Viewing angle: greater than 160C
Low power consumption: 0.06W during normal display
Wide power supply range: DC 3.3V-5V can be used for both sets of voltages
Industrial grade: Working temperature-40℃-80℃

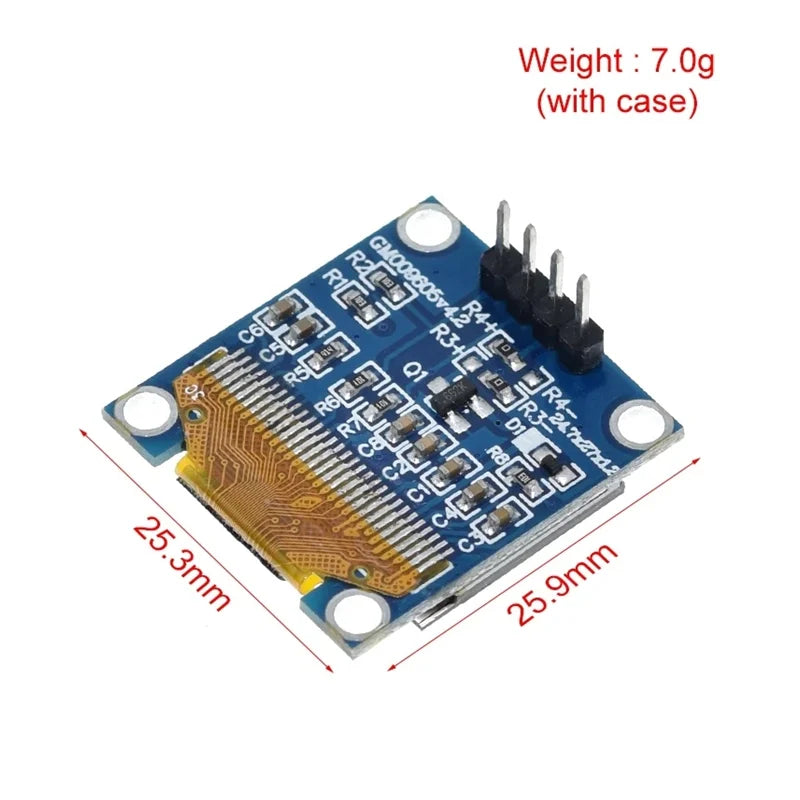

Small size (length and width): 27.mm*27.9mm*3.9mm
Communication method: II or call (12C)
Brightness and contrast can be controlled by program instructions
The service life is not less than 16000 hours
0LED screen built-in driver chip: SSD1306

Supports many control chips: fully compatible with Arduino, 51 series, MSP430 series, STM32/, CSR chips, etc.
Important note: OLED displays are different from LCD;OLED is self-luminous; so there is no backlight, and the screen will not respond when only power is added; there must be a program to operate correctly to display, which everyone needs to pay attention to!
