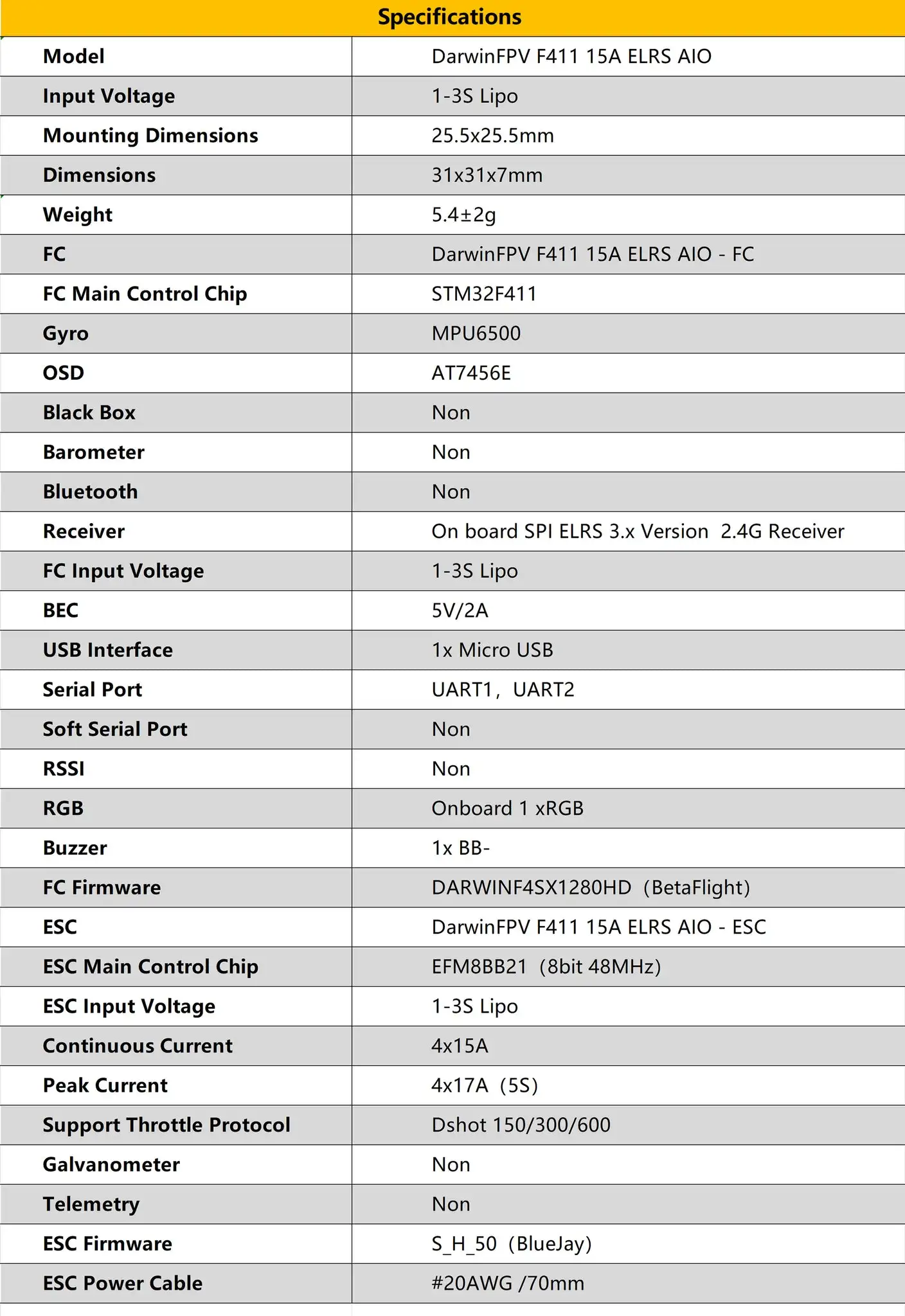

SPECIFICATIONS

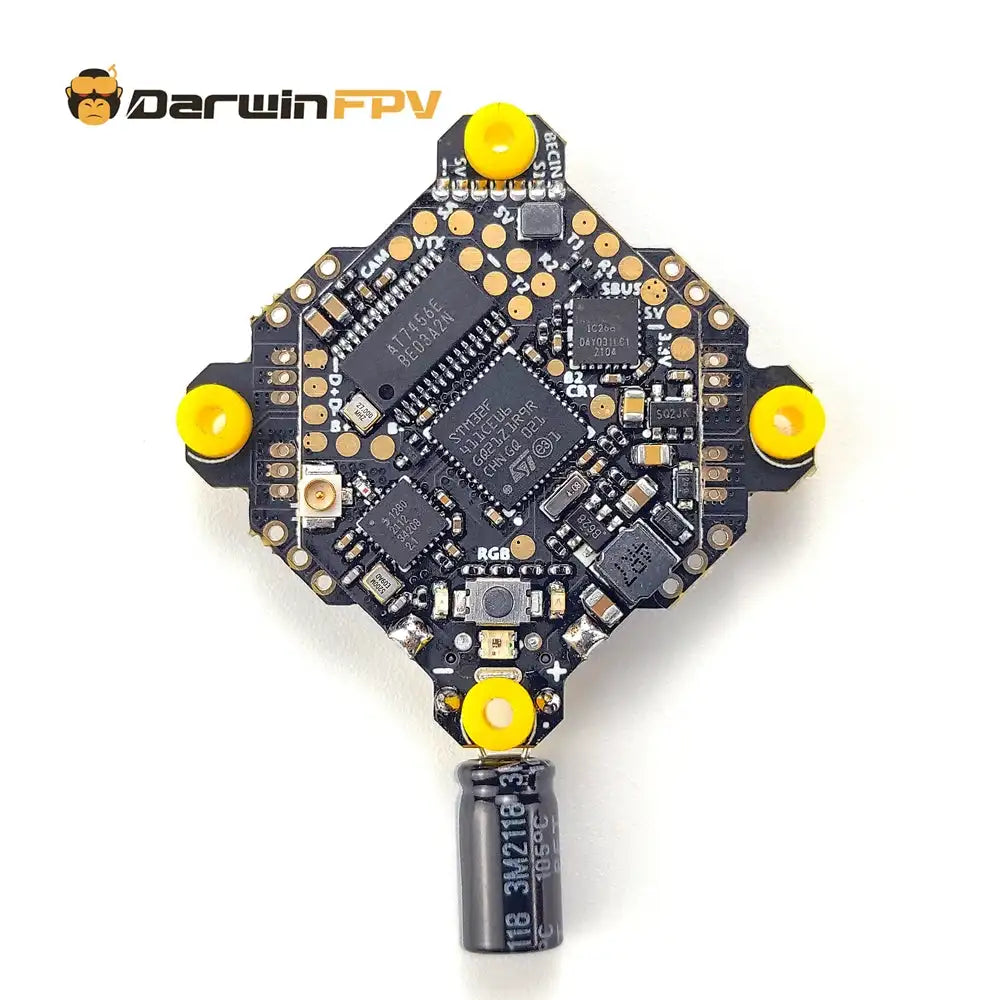

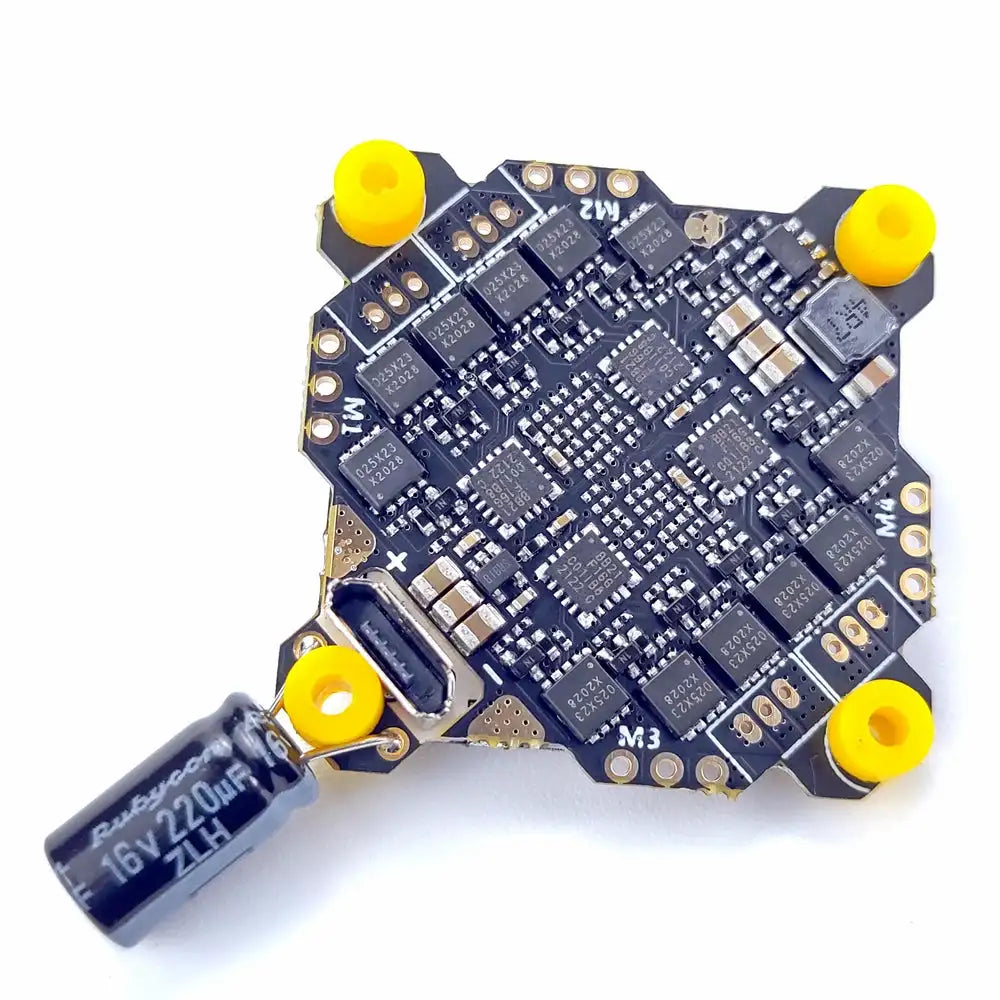

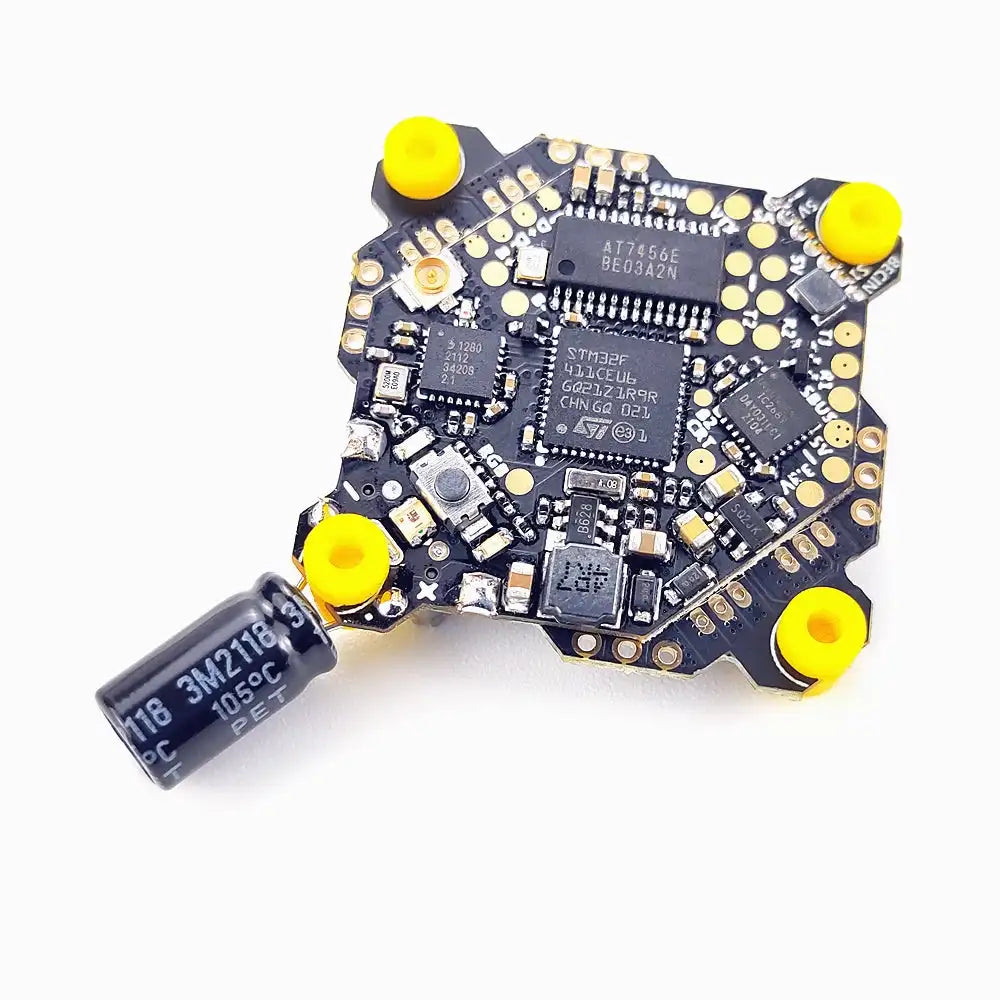

This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.

Learn about ExpressLRS:

ExpressLRS is an open source Radio Link for Radio Control applications, all of you can find these projects on GitHub.
it is based on the fantastic Semtech SX127x/SX1280 LoRa hardware combined with an Espressif or STM32 Processor. Using LoRa modulation as well as reduced packet size it achieves best in class range and latency. It achieves this using a highly optimized over-the-air packet structure, giving simultaneous range and latency advantages. It supports both 900 MHz and 2.4 GHz links, each with their own benefits. 900 MHz supports a maximum of 200 Hz packet rate, with higher penetration. Under 2.4GHz frequency bands,OpenTX system supports amazing 500Hz.

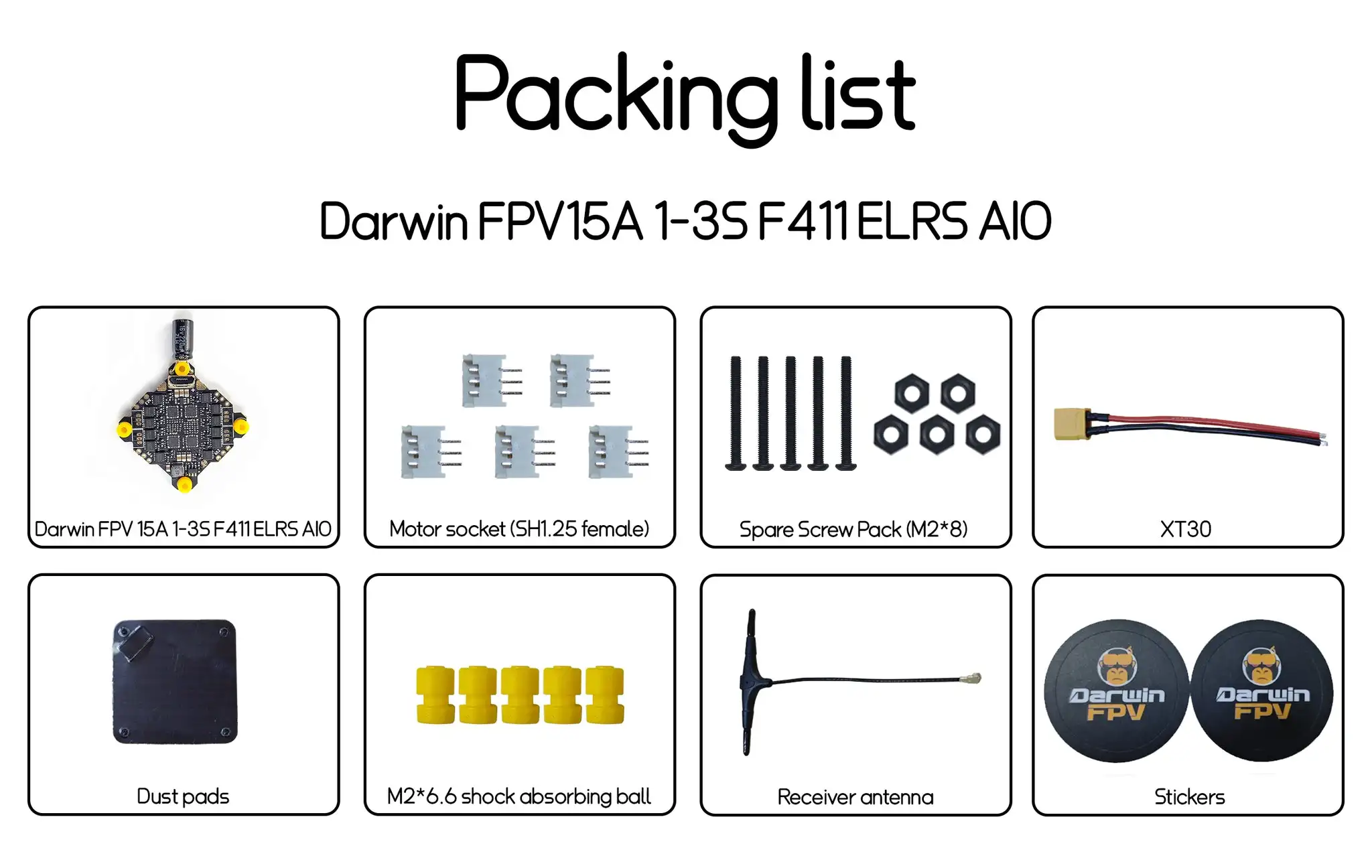

Packing List

1 × DarwinFPV F411 15A ELRS AIO
5 × Motor socket (SH1.25 female)
1 × Power cord (#20AWG /70mm)
1 × XT30
5 × M2*6.6 shock absorber ball
1 × 2.4G RF113 IPEX1 86mm silver-plated antenna
1 × Spare screw package (M2*8)
1 × Sticker
