Summary
The GEPRC team has redesigned the Vapor series for optimal compatibility with the O4 Air Unit Pro VTX.
New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The O4 Air Unit Pro's larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.
Available in two models, Wide X and DC, to suit different flight needs.
Feature--X5 Version
O4 Air Unit Pro features a larger CMOS sensor for improved image clarity and enhanced light sensitivity.
CNC aluminum lens housing for a durable, bold design.
GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
Front lip design provides extra lens protection for confident flying.

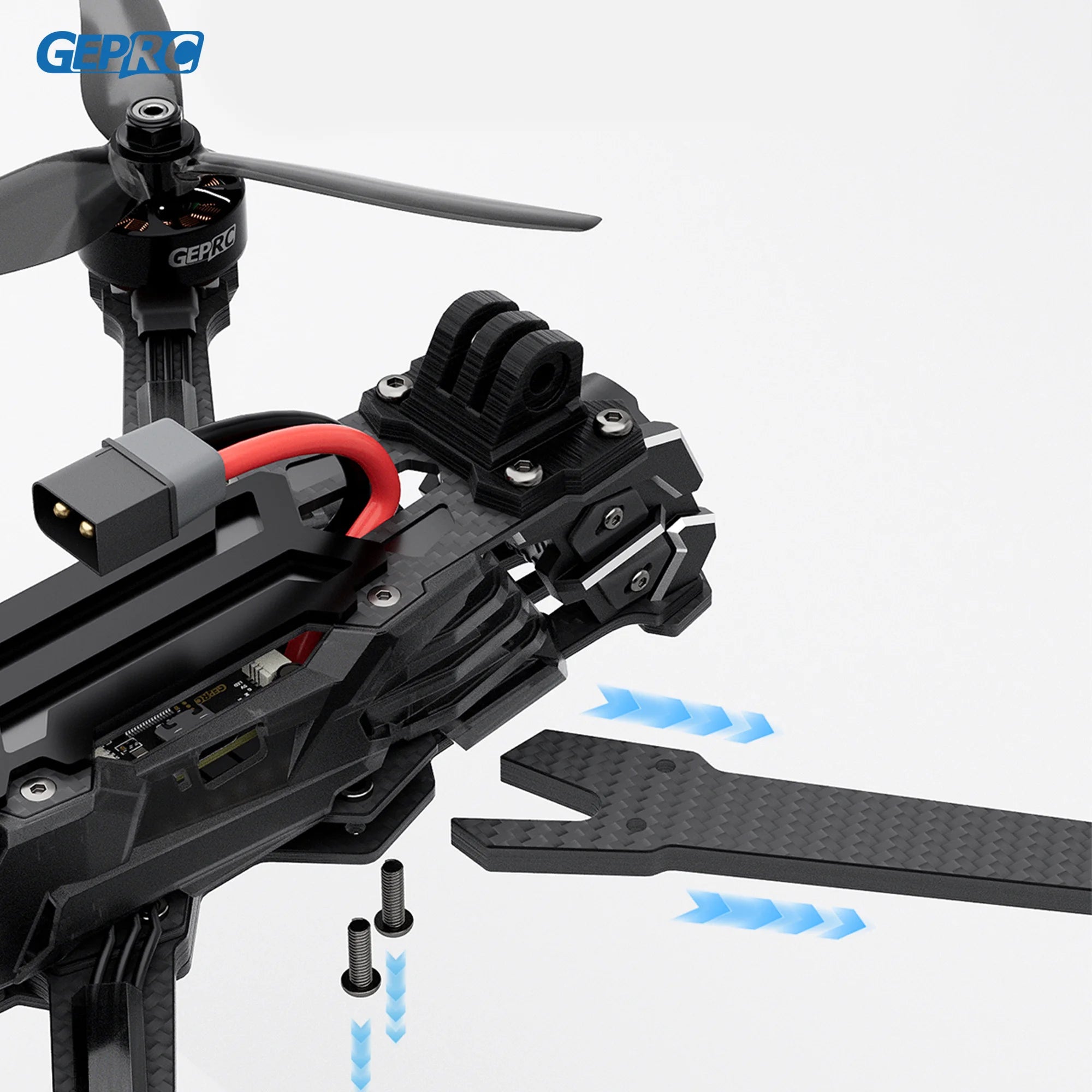

Wider 5mm carbon fiber arms for increased durability and a sleek build.
Feature--D5 Version
O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
CNC aluminum lens housing for a durable, bold design.
GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
Front lip design provides extra lens protection for confident flying.
Wider 5mm carbon fiber arms for increased durability and a sleek build.
Specfication---Vapor-X5 O4 Pro
Model: Vapor-X5 O4 Pro
Frame: GEP-Vapor-X5 O4 Pro frame
Wheelbase: 230 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: YES
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: O4 Air Unit Por
Camera: O4 Pro Camera
Antenna: O4 Pro original antenna
Connector: XT60
Optional GPS: GEP-M10 GPS
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-X5 O4 PNP Version Weight: 409g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX
Recommended Battery: 6S LiPo1300mAh - 1800mAh
Flight Time: 14-19min

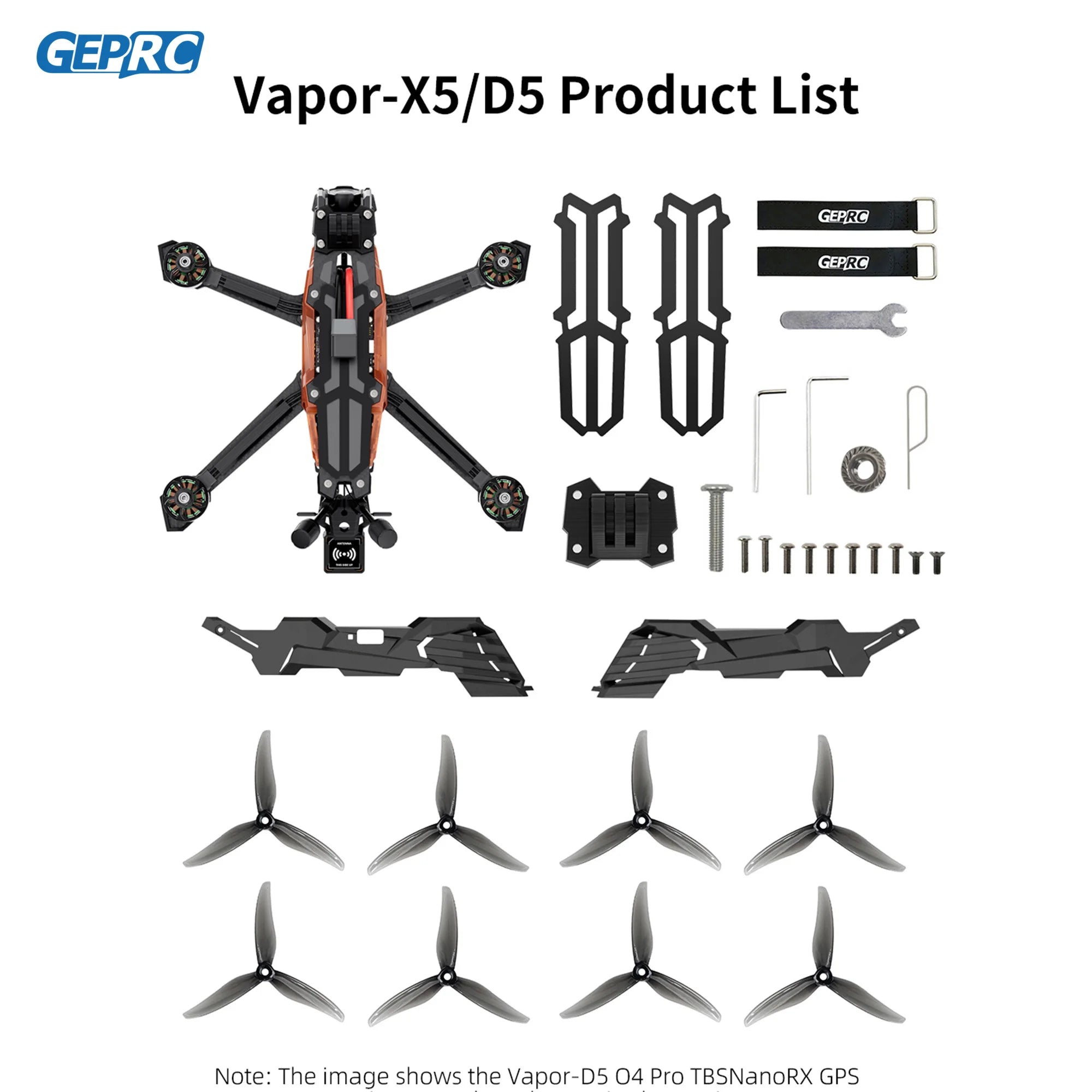

Product List:
1 x Vapor-X5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
The spare screws include:
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts
Specfication---Vapor-D5 O4 Pro
Model: Vapor-D5 O4 Pro
Frame: GEP-Vapor-D5 O4 Pro frame
Wheelbase: 230 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: YES
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: O4 Air Unit Por
Camera: O4 Pro Camera
Antenna: O4 Pro original antenna
Connector: XT60
Optional GPS: GEP-M10 GPS
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-X5 O4 Pro PNP Version Weight: 428 g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX
Recommended Battery: 6S LiPo1300mAh - 1800mAh
Flight Time: 14-19 min
Product List
1 x Vapor-D5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
The spare screws include:
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts
