SPECIFICATIONS

Characteristic and Function

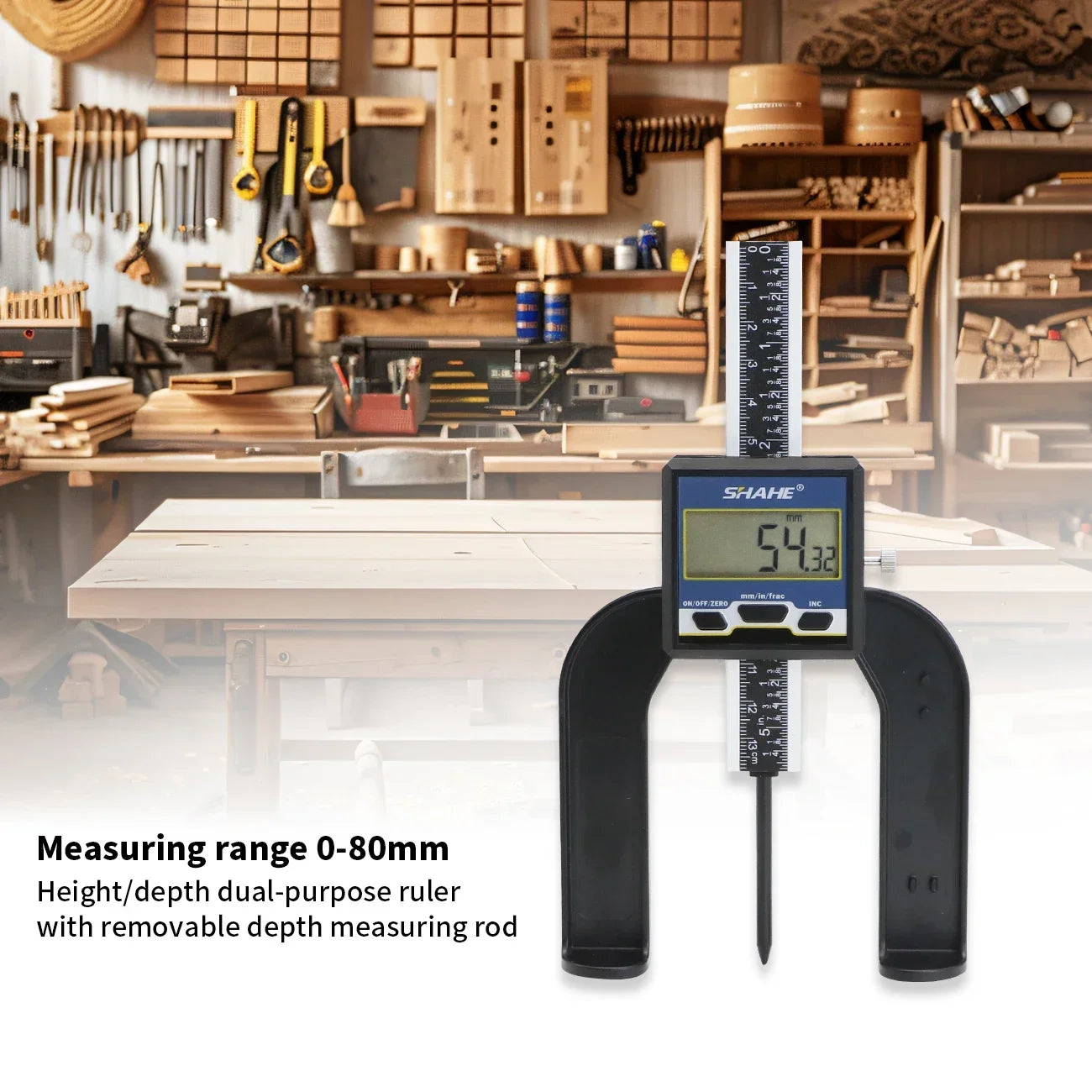

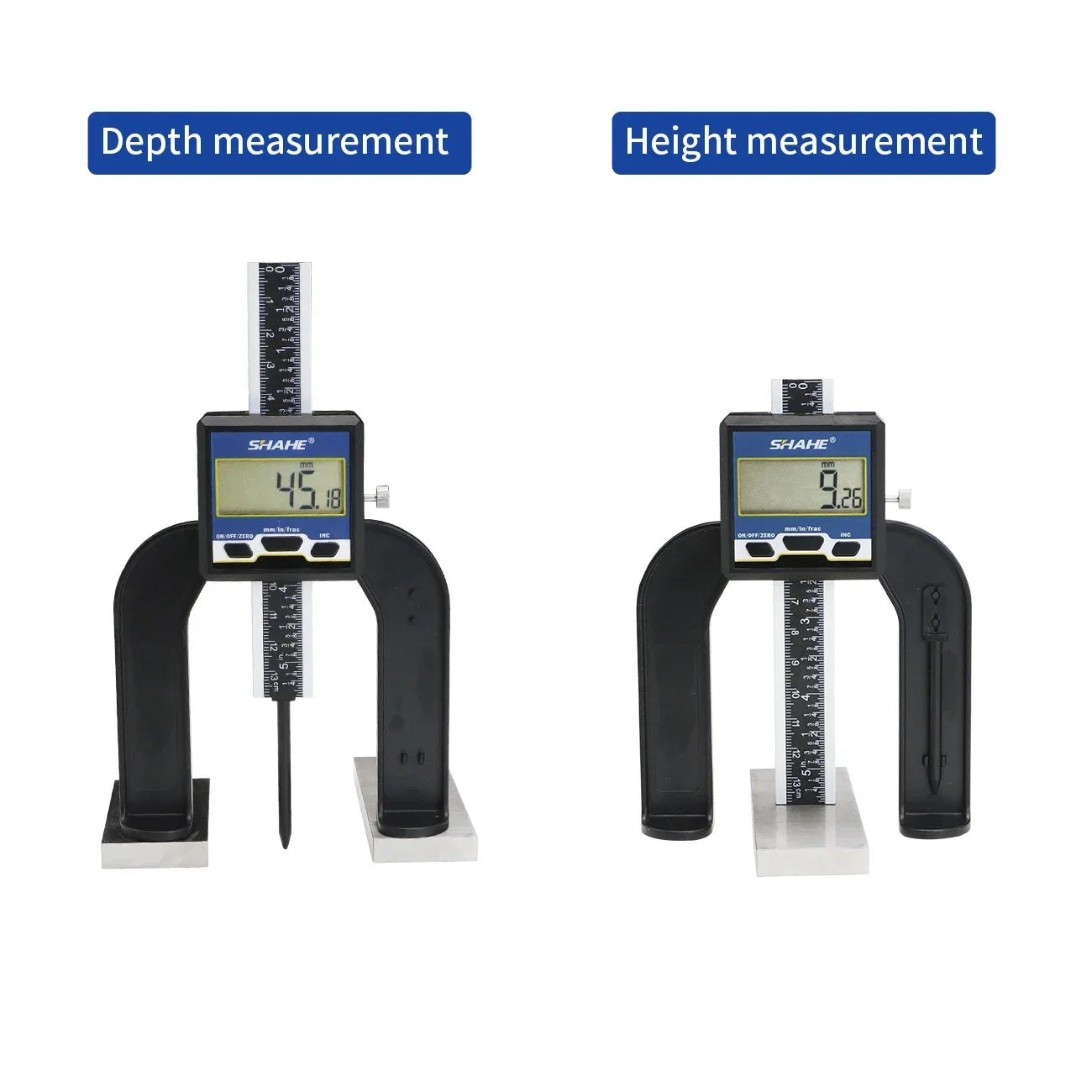

1.The depth caliper has a measuring range of 0-80mm, a detachable depth measuring rod, and a height/depth dual-purpose ruler.
2.This depth gauge is designed for precise height and depth measurements, providing convenience in various applications.
3.Equipped with a digital display screen, this depth gauge offers easy-to-read measurements
4.Unit switch between metric /inch/fractic, easy adaptation to different working environments
5.The magnetic base on bottom ensures secure attachment to iron equipment, providing stability and accuracy during measurement.
6.Automatic power off
7.Measuring ruler with locking screw,the steel locking screw can help to lock the ruler to maintain the measurement
8.Wide application:made of tough Plastic, long-lasting for woodworking, construction, home Decoration, table saws, jand routers

Specification

Measuring Range: 80mm; 3 1/8 in
Resolution: 0.01mm / 0.0004 in
Accuracy: 0.1mm / 0.004 in (<100mm)
Battery:3V CR2032 (not included)

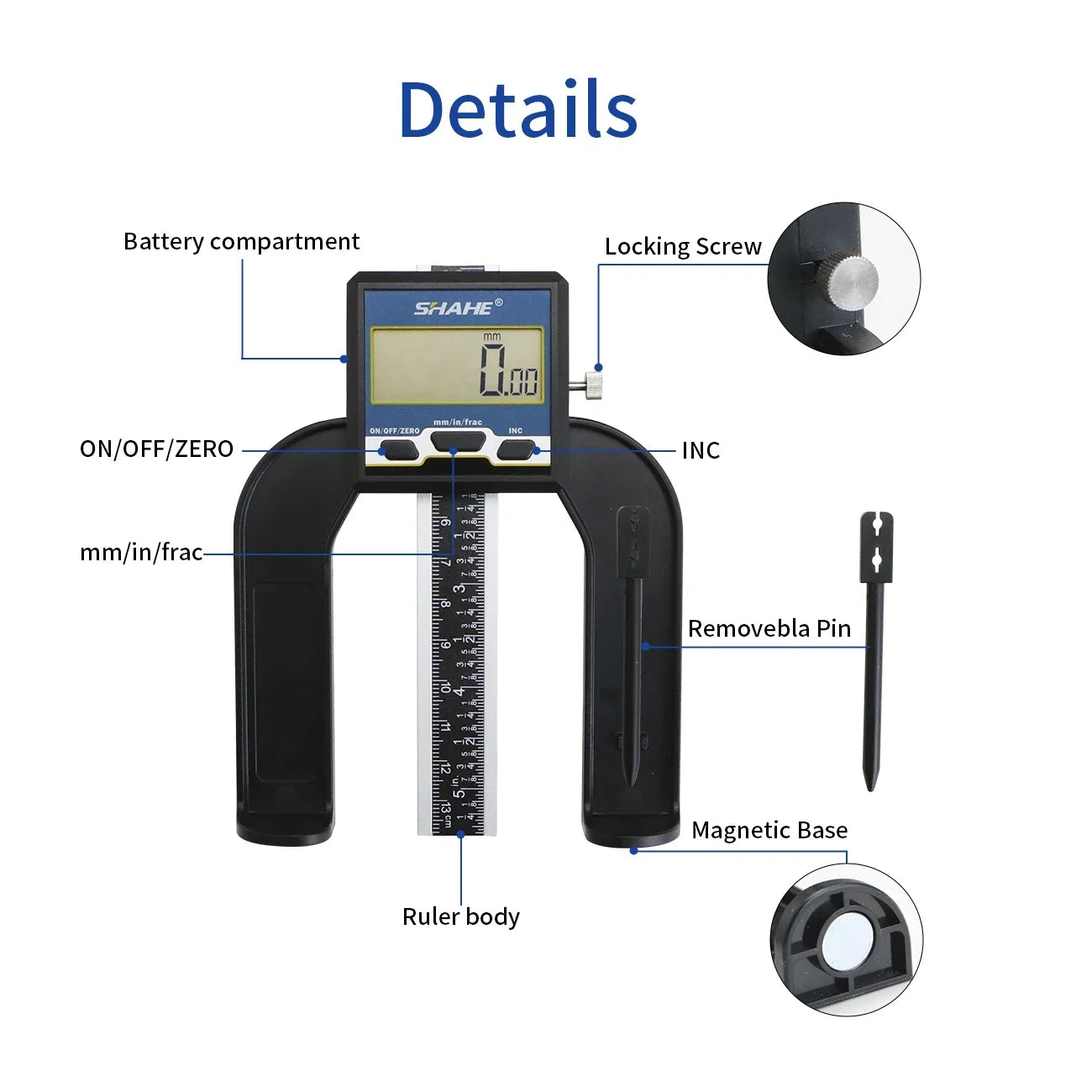

Button function

ON/OFF/ZERO :short press to turn on,reset to zero,and long press to turn off
mm/in/frac:metric/inch/fraction conversion
INC:short press for relative measurement
