Description

SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Display Mode: 128x64

High-concerned chemical: None

Model Number: 0.96 Inch OLED Display Module

Origin: Mainland China

Resolution: 128*64

Type: OLED

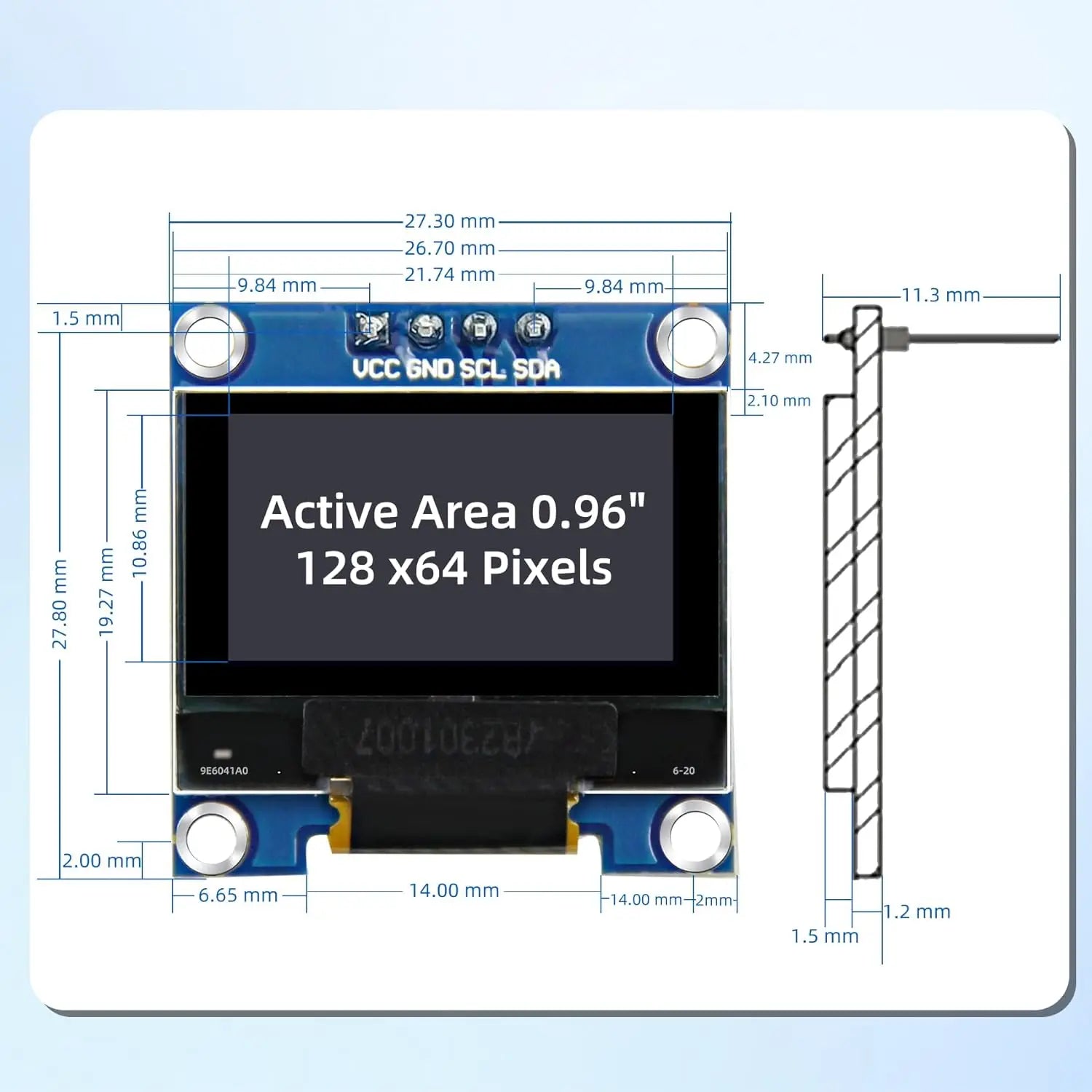

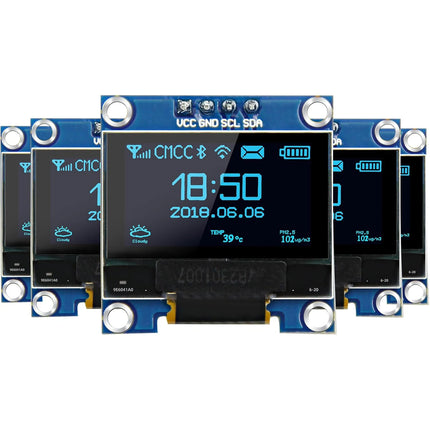

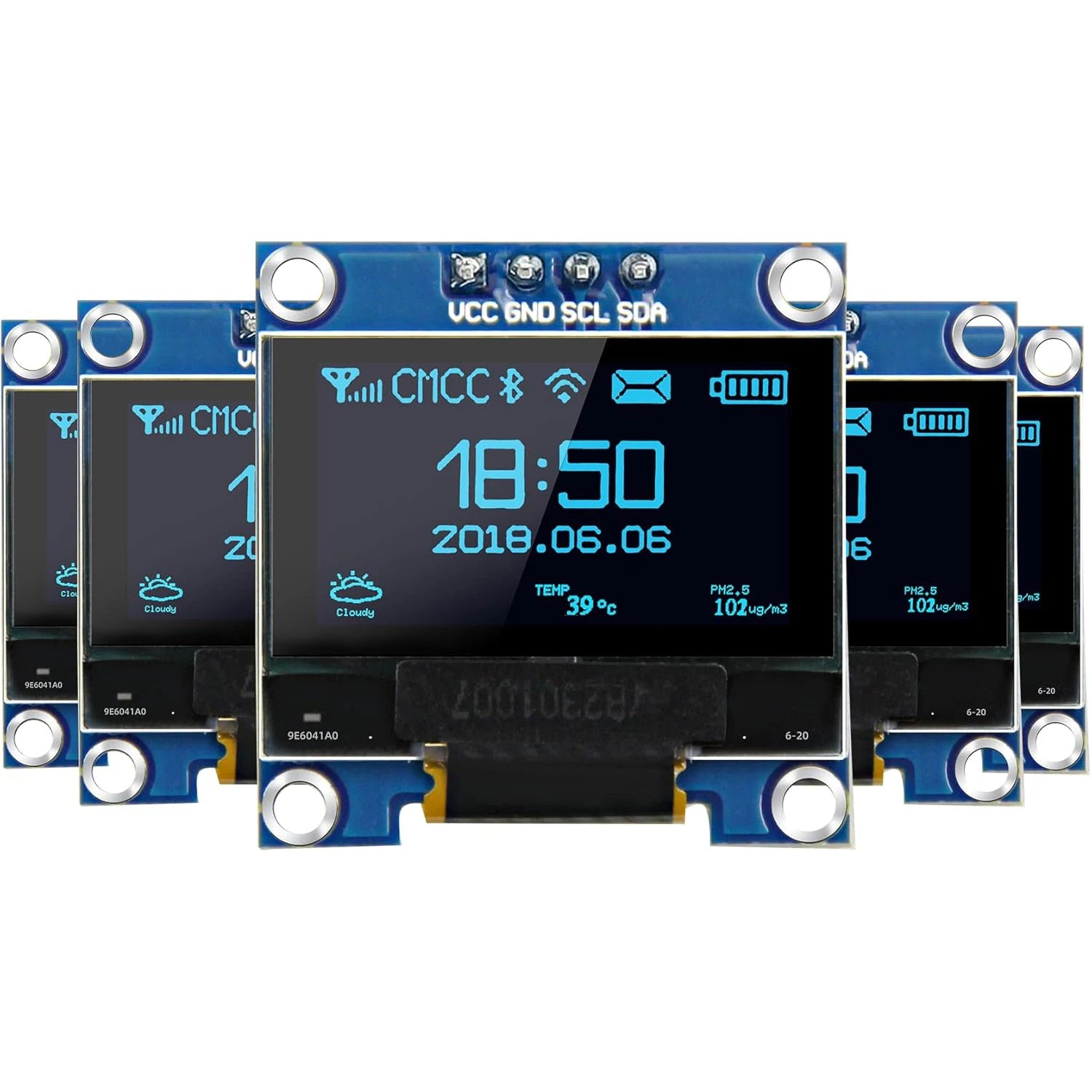

• 0.96 inch OLED display with a resolution of 128 x 64 and a viewing angle greater than 160°. It supports a voltage range from 3.3V to 5V DC, with a normal operating power consumption of 0.04W and a power consumption of 0.08W when the screen is fully lit.

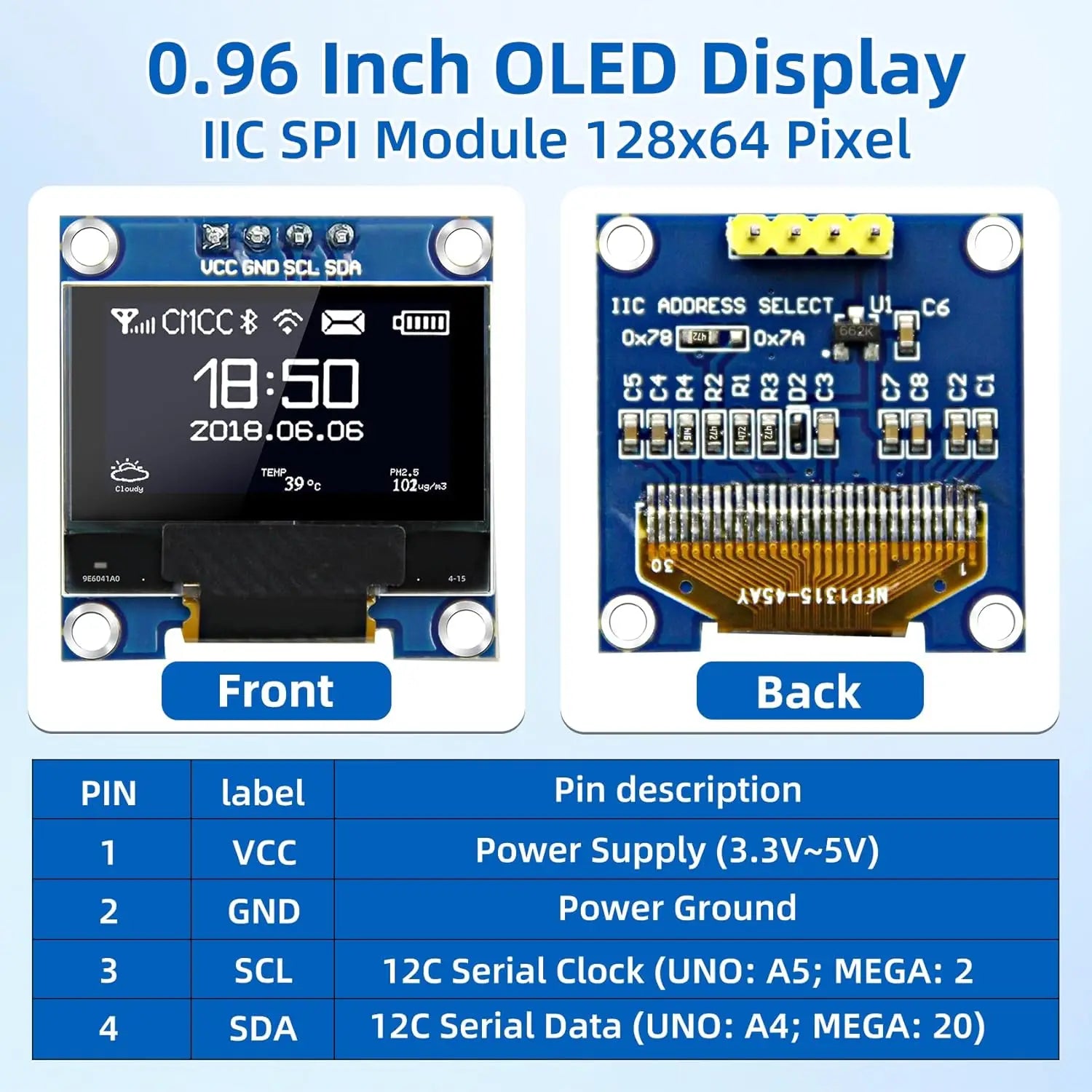

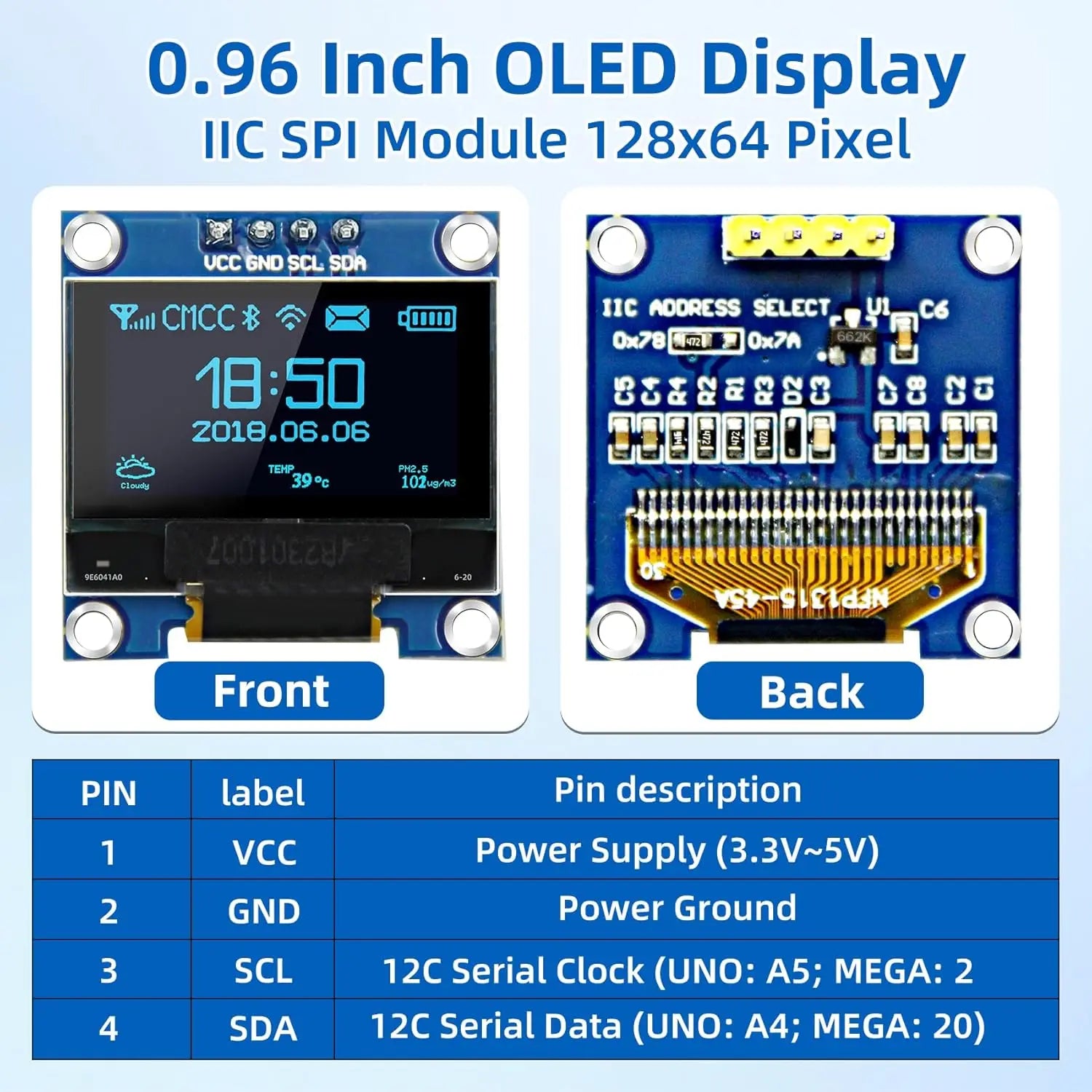

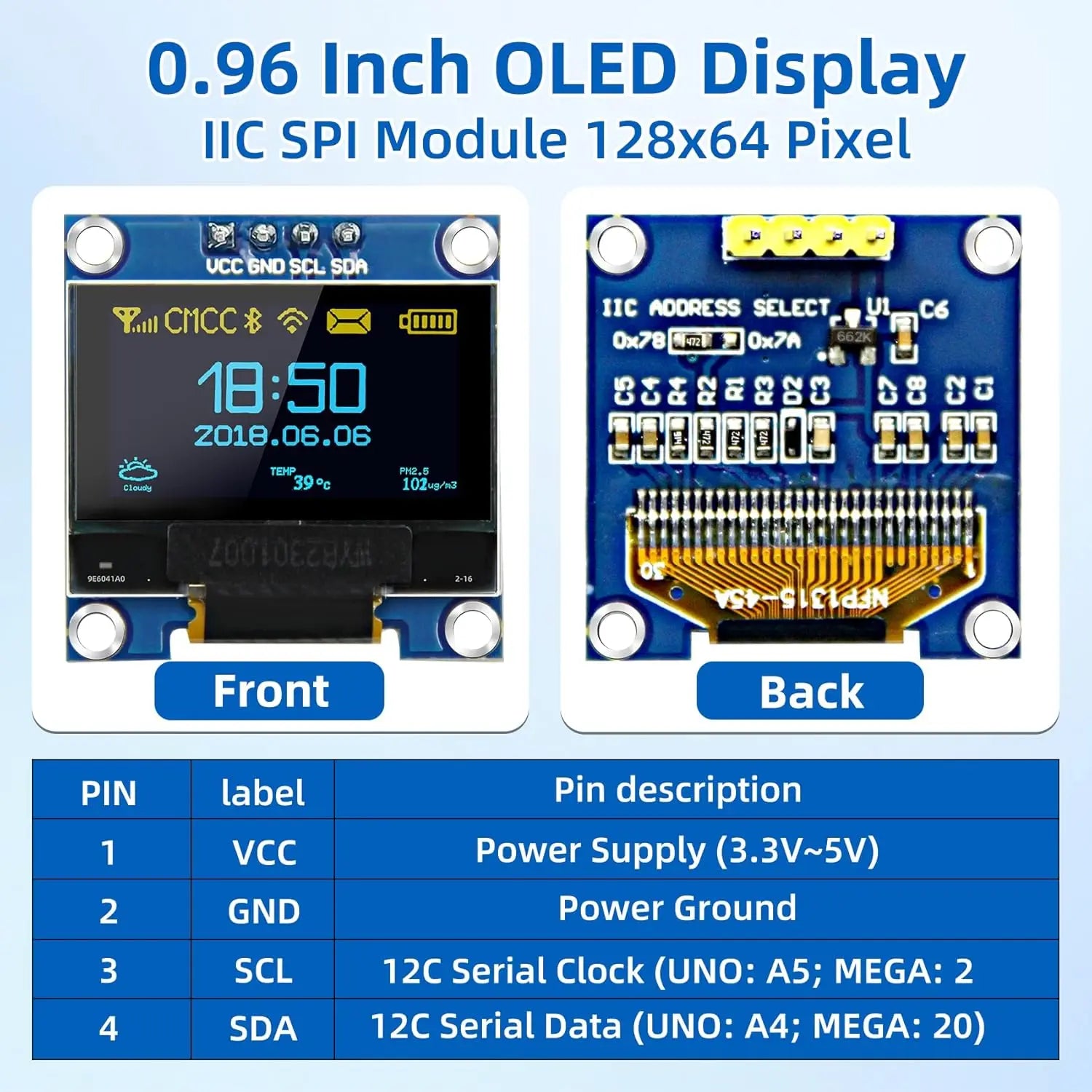

• The I2c OLED display module uses an SSD1306 embedded driver IC and communicates via the I2C/IIC interface, requiring only two I/O ports. The I2C address can be changed for easy compatibility with different devices.

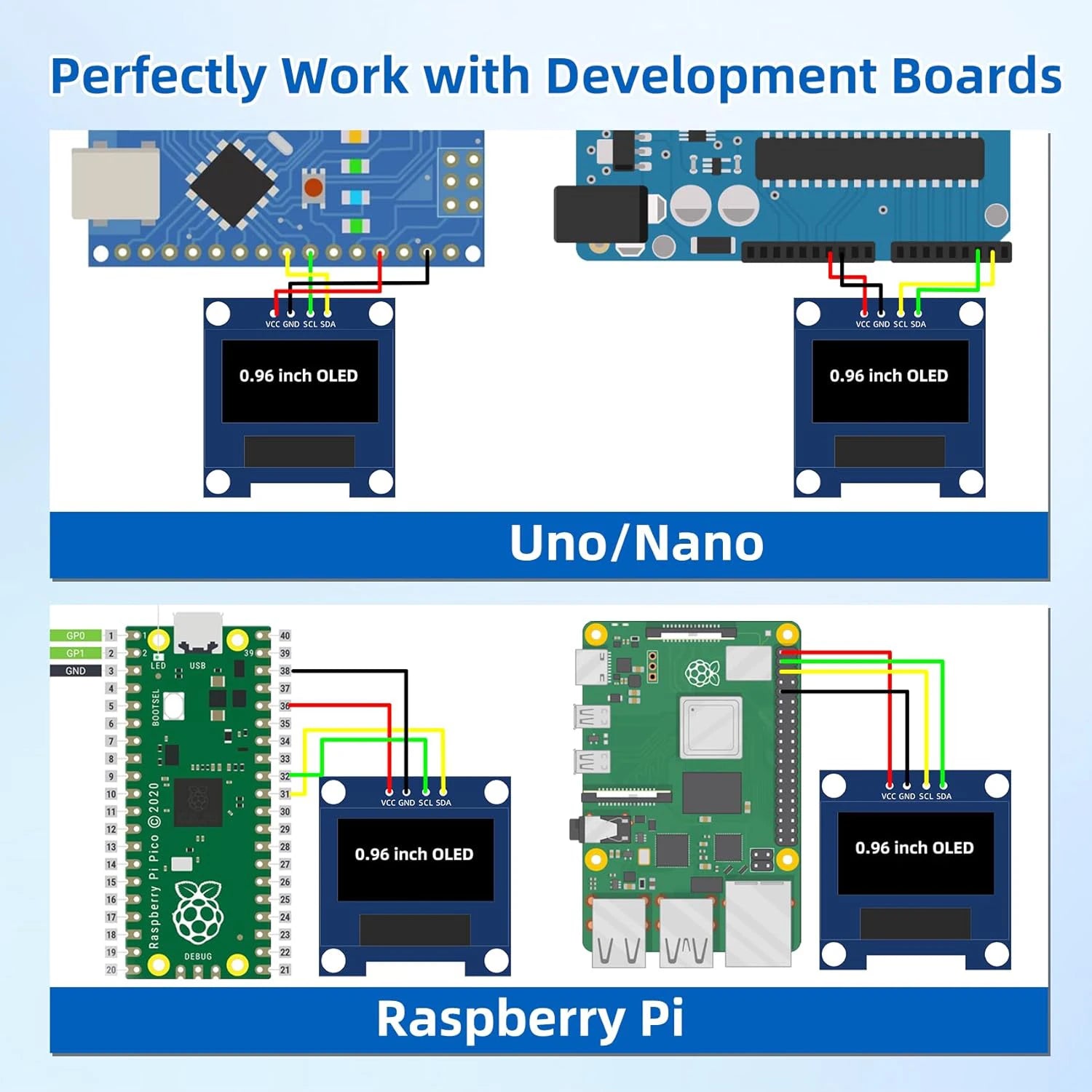

• The OLED display module is compatible with Raspberry Pi, Beagle Bone Black, Arduino Nano, UNO, R3, Mega, 51 MCU, and STM 32.

• Raspberry Pi screen module does not require a backlight and has an ultra-high contrast ratio, making small fonts clear and easy to read. There are no embedded fonts in the module; users can create fonts using font generation software.

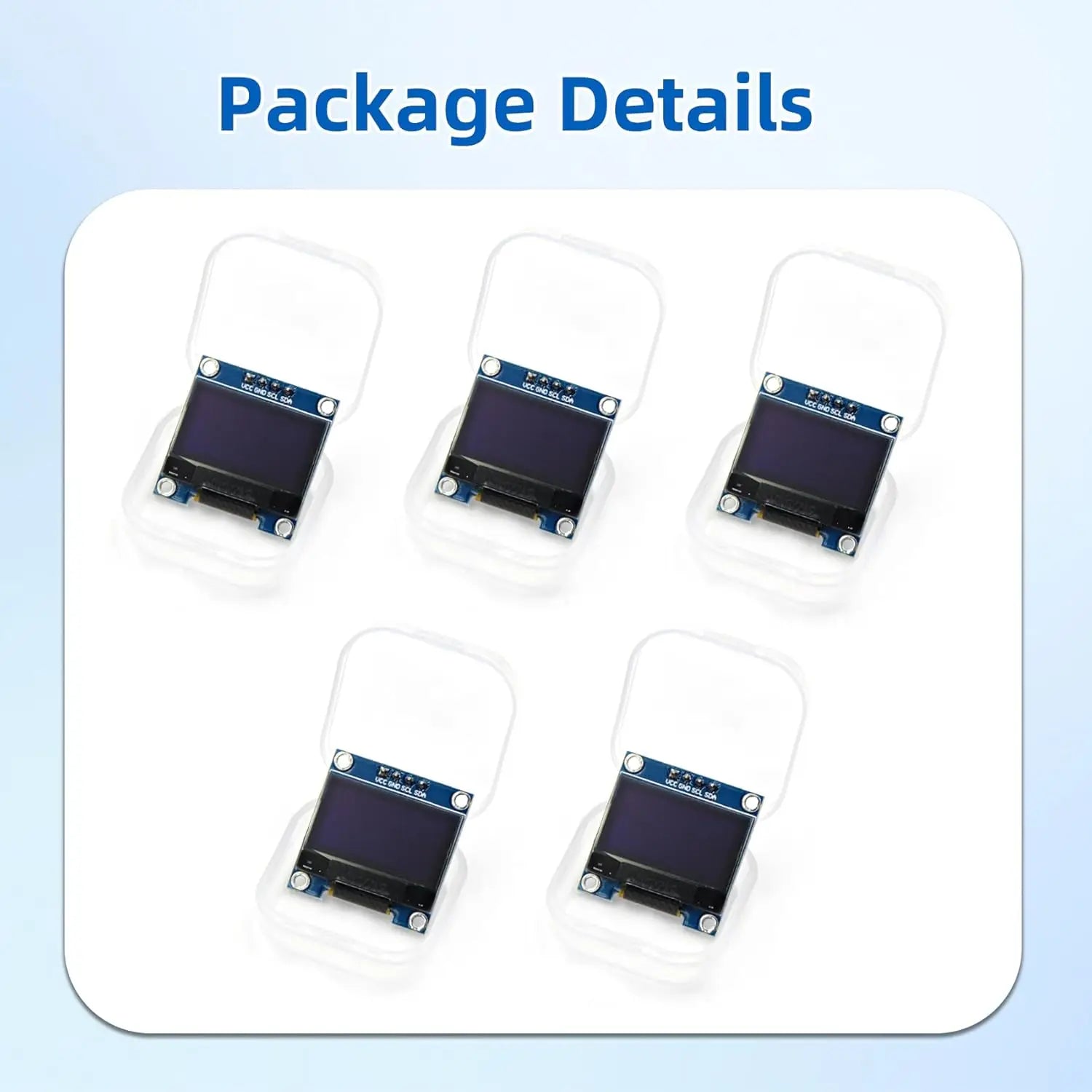

• The module pins are soldered and housed in a small box to prevent them from falling off during transportation. The OLED glass surface is covered with a removable transparent scratch-resistant film.

• NOTE: THE VCC and GND will send randomly

•

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
