Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Color Night Vision: no
Connectivity: Closed System/CCTV Wired
High Definition: 2.0 Megapixels
High-concerned chemical: None
Installation: Normal,Pendant Mount
Lens (mm): 2.8-12mm
Lens Quantity: Single Lens
Megapixels: 1.3MP
Model Number: IMX291--2MP
Origin: Mainland China
Power Supply: Normal
Power Supply(V): DC 5V
Scene: Indoor and outdoor
Style: Mini Camera
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
Video Compression Format: MJPEG
Whether or Not 50Vac or 75Vdc or Higher Power Supply: Yes
Zoom: NONE
Zoom type: Digital zoom

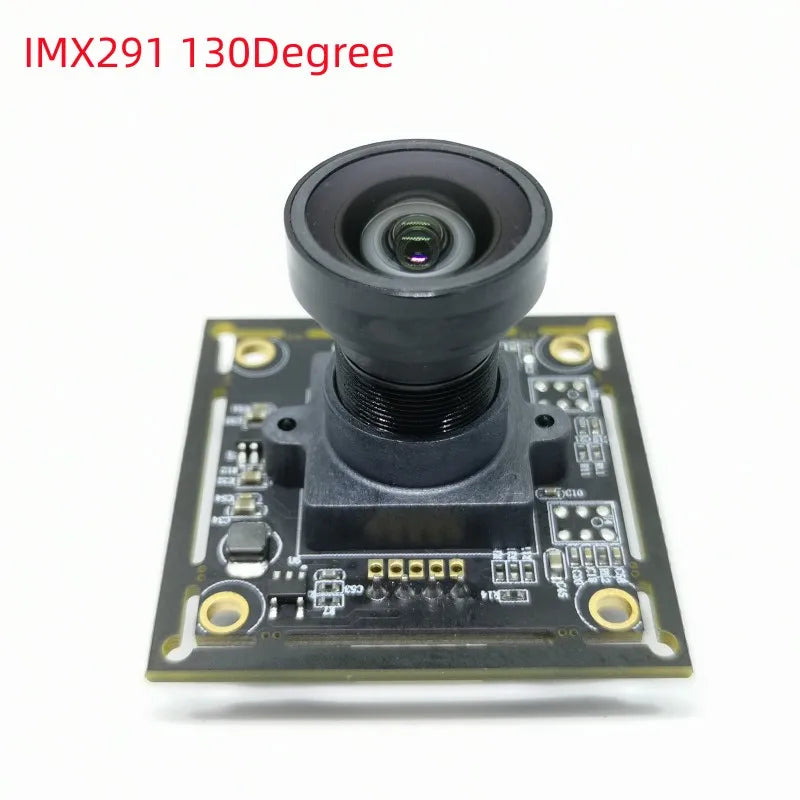

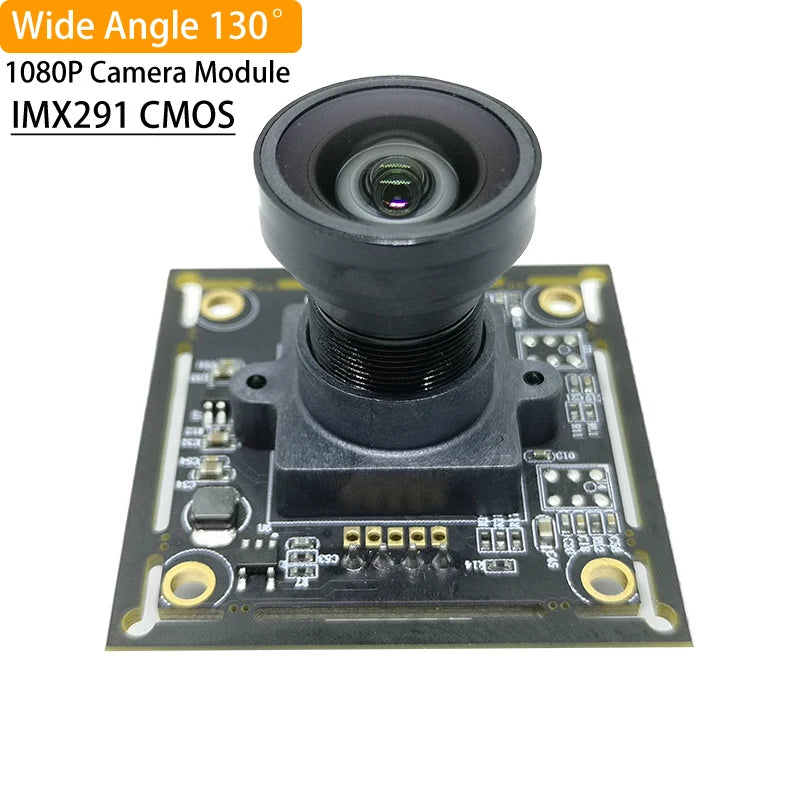

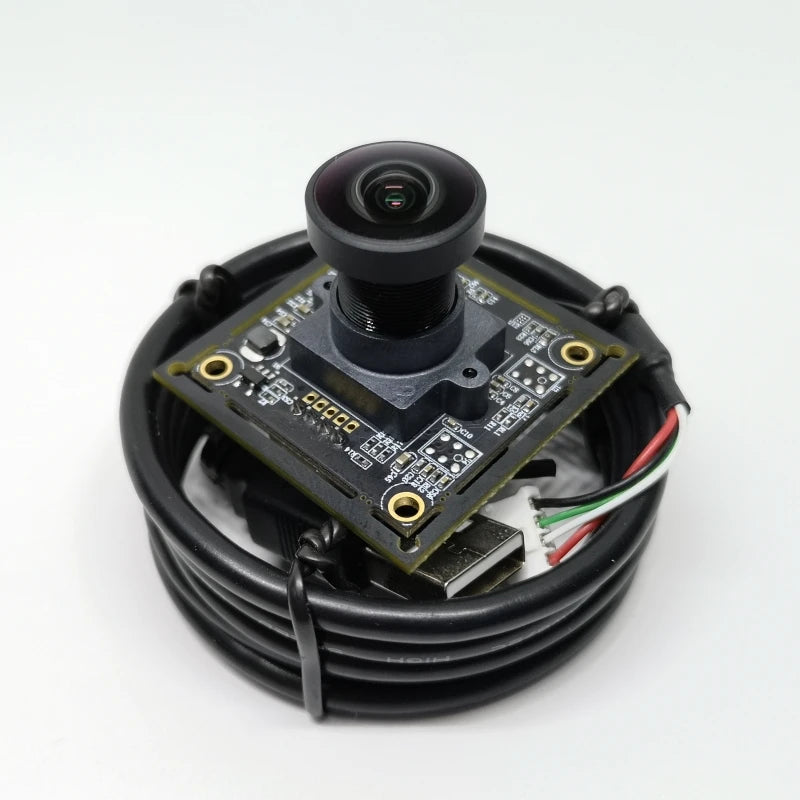

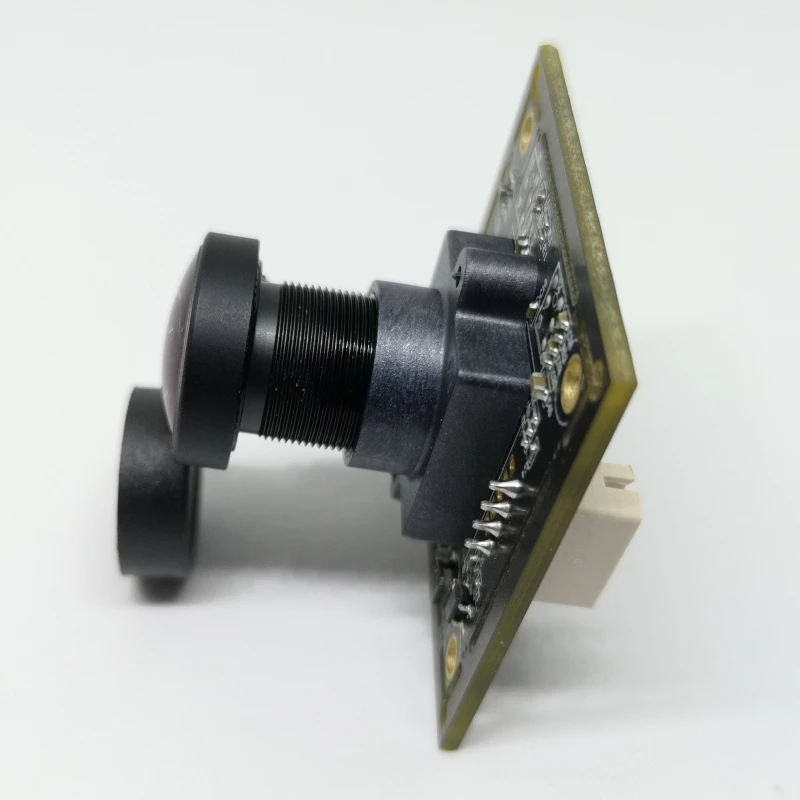

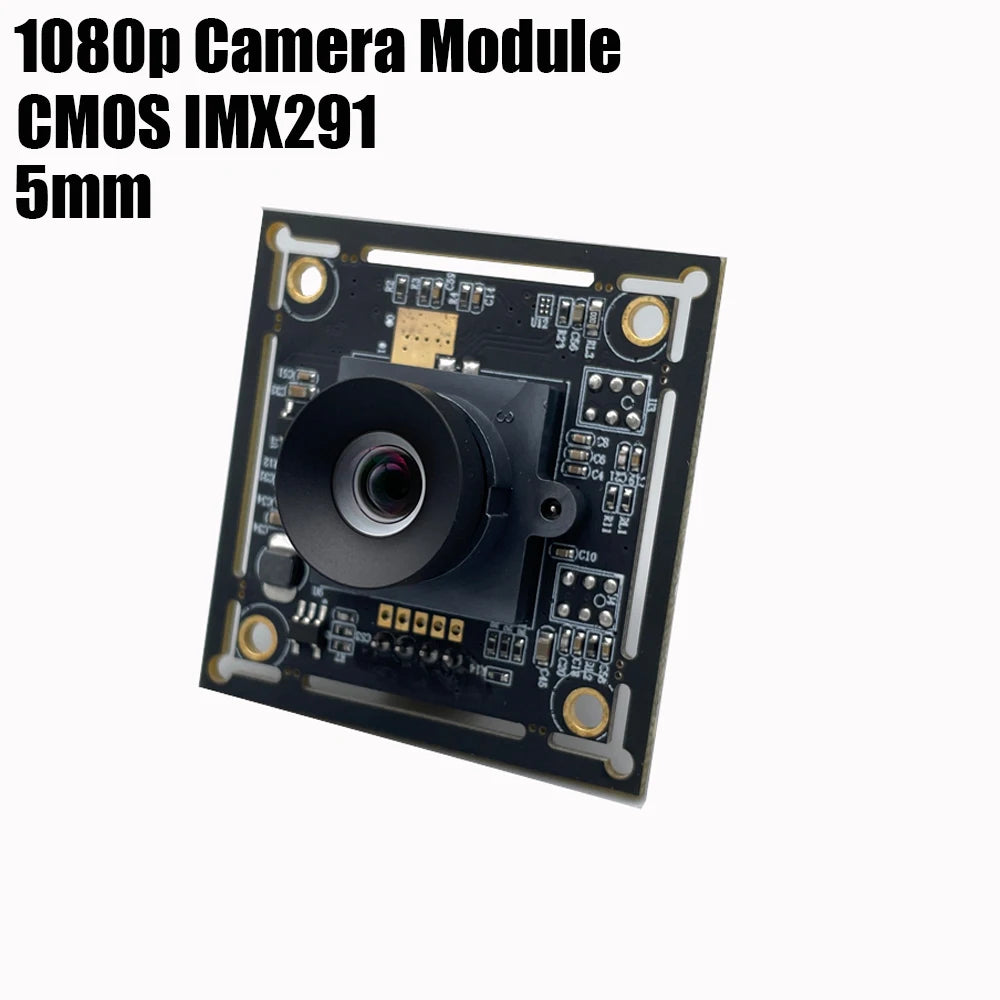

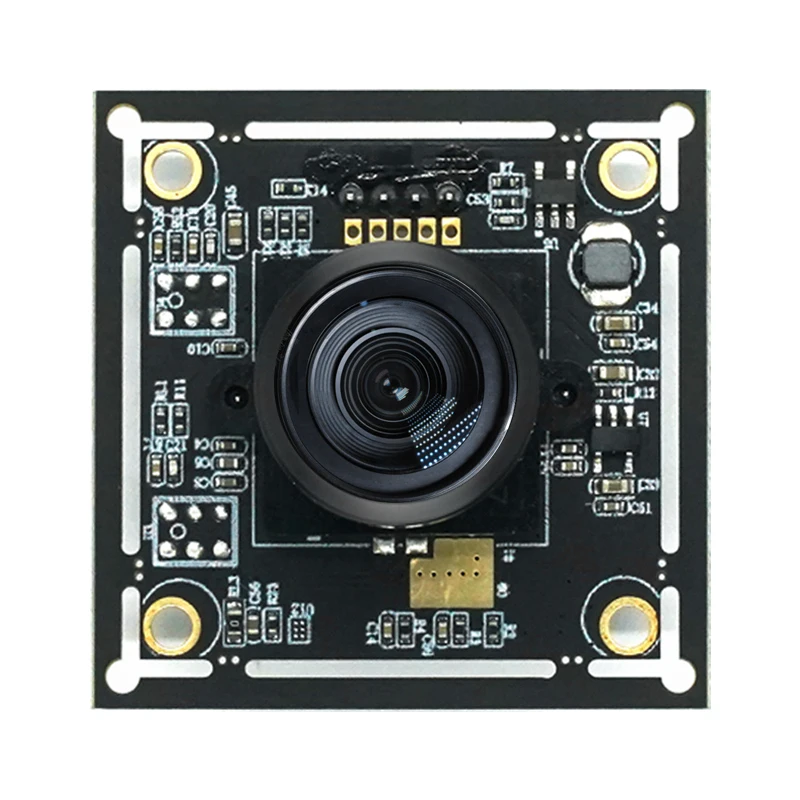

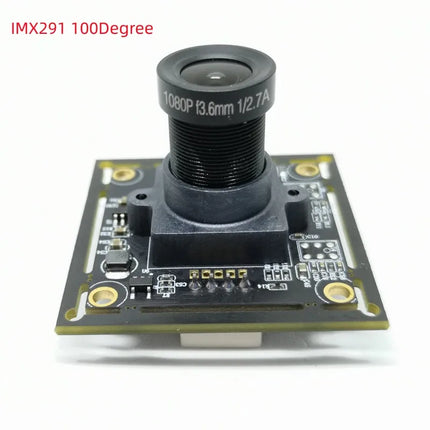

1080p Camera Module 2MP CMOS IMX291 Wide Angle 130 Degree No Distortion USB2.0 UVC Plus And Play For Usb industrial Vision
Support OEM Order, Drop Shipping and wholesale order:
1.Customizable USB Camera Module,DVP Camara Module and MIPI Camara Module;
2.Pixel Optional : 0.3MP，1MP，2MP，5MP，8MP and 13MP;

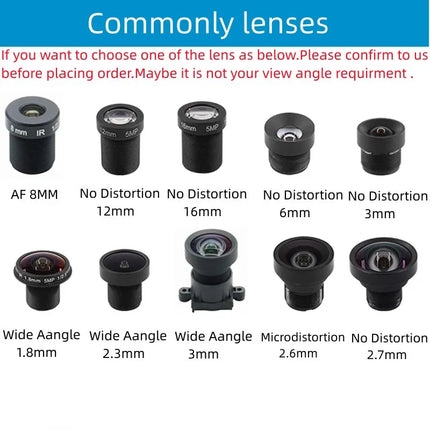

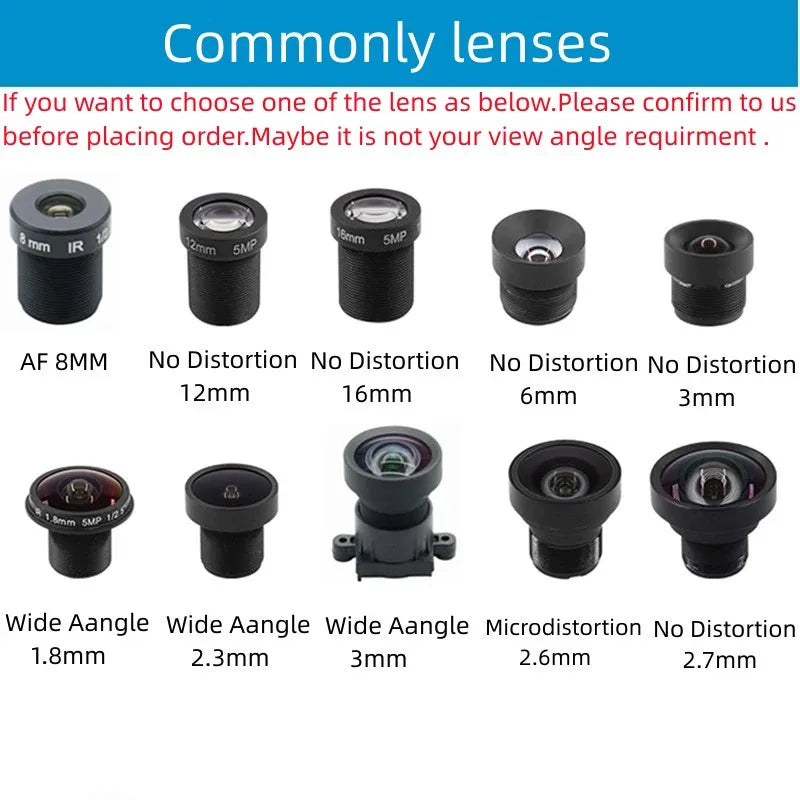

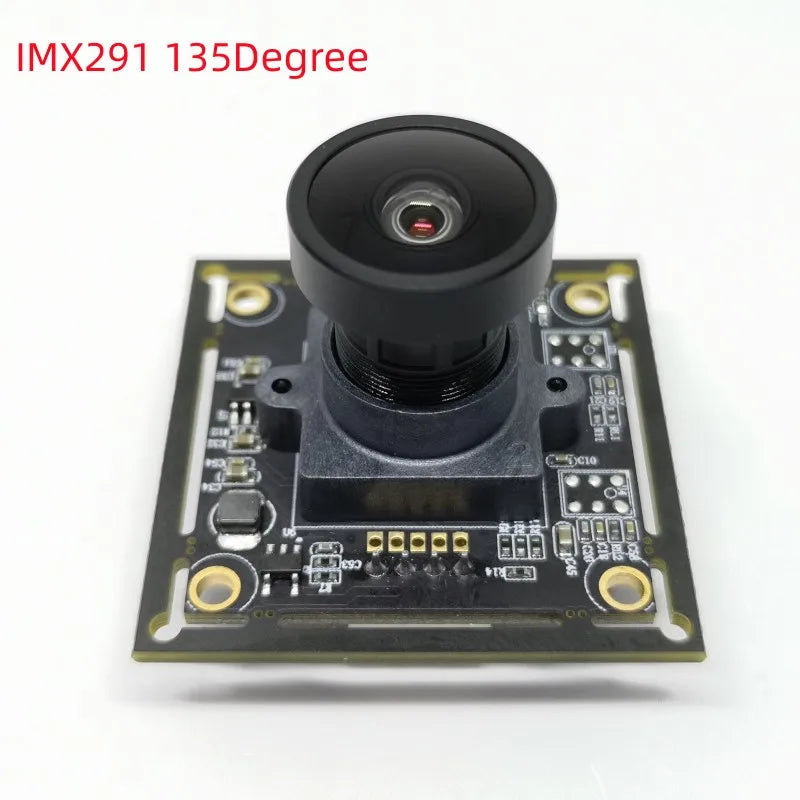

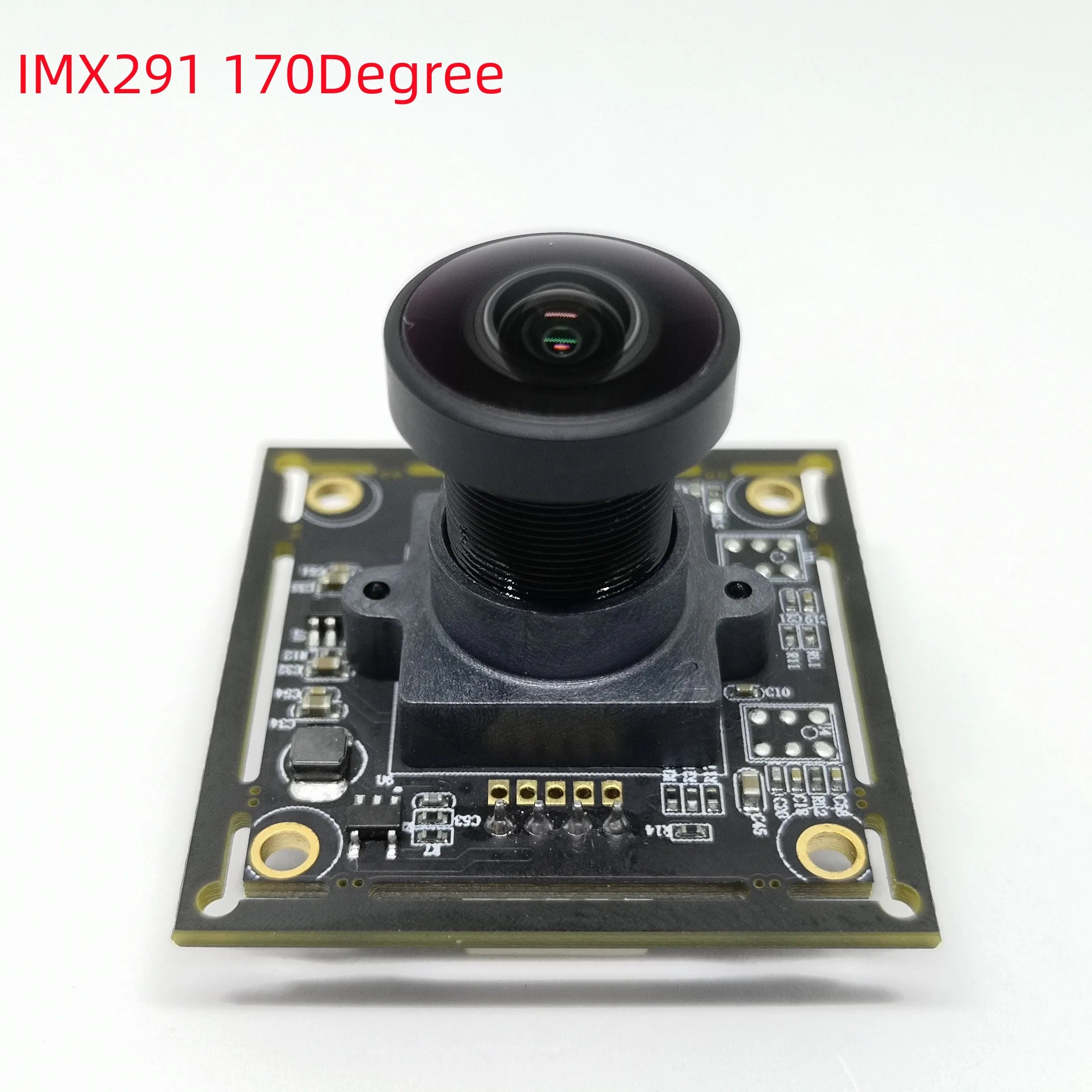

3.Viewing angle Optional: 68°，80°，90°，100°, 120°, 150°, 170° or as per your request;

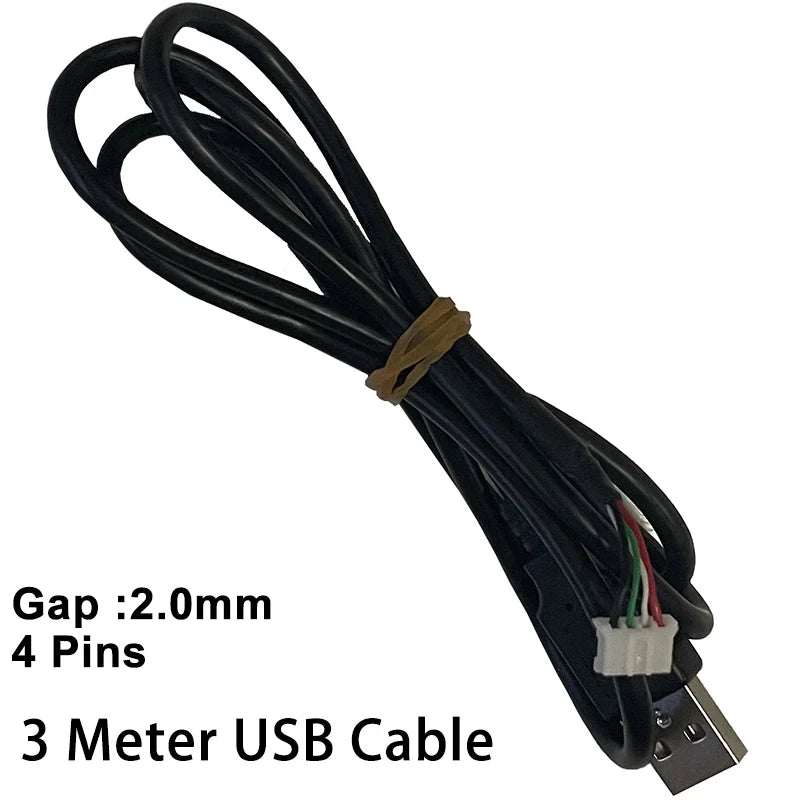

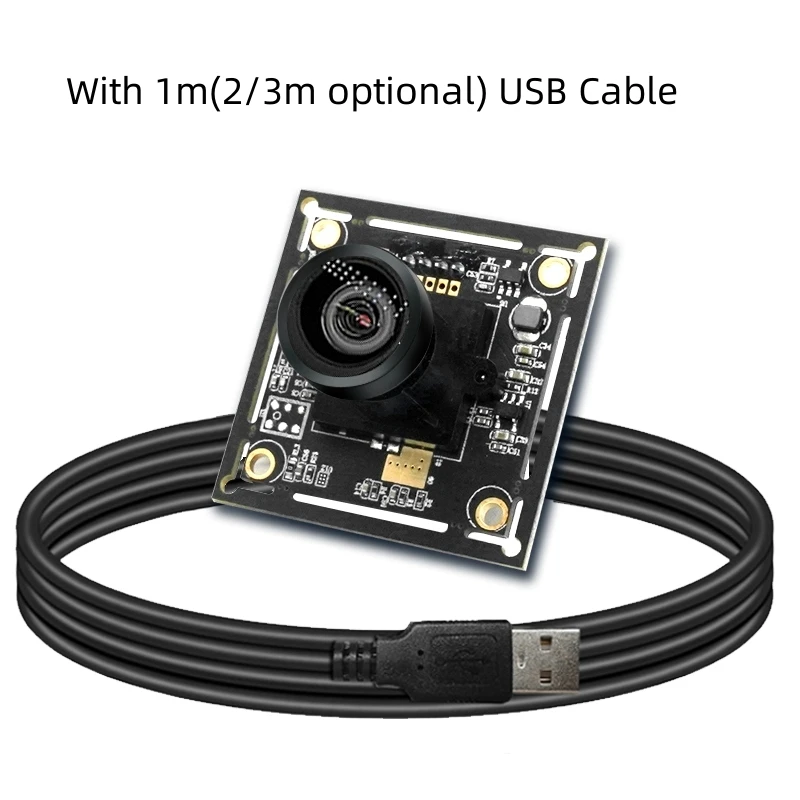

4.With 1m(2/3m optional) USB Cable;
5.Customized logo ≥100PCS
6.Customized packaging ≥100PCS;
7.Graphic customizationb≥100PCS.
Product parameters:

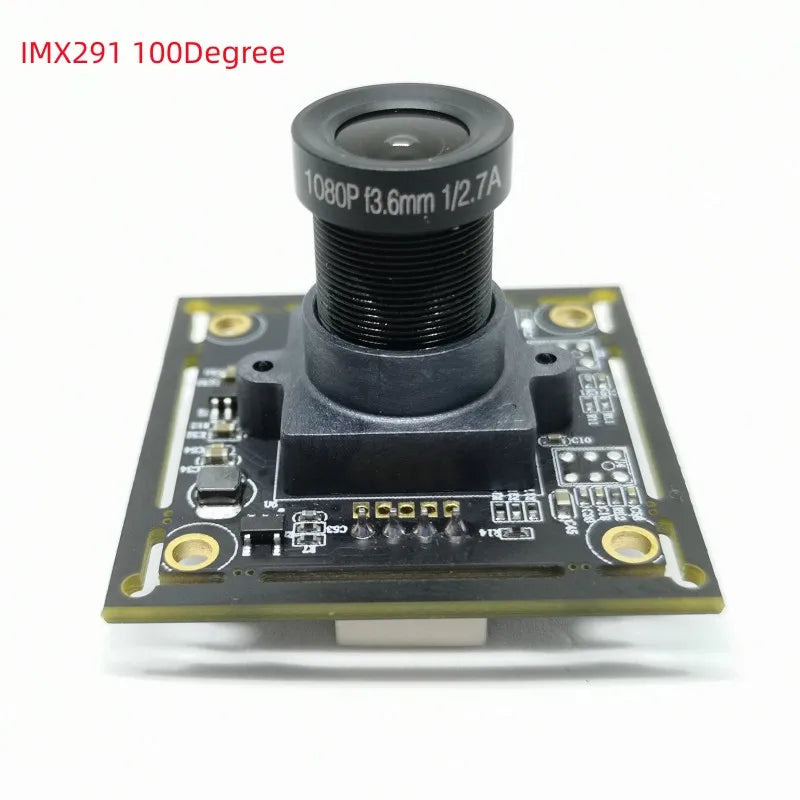

CMOS/photosensitive model: IMX291
Photosensitive size: 1/2.8 inch
Single pixel size: 2.9um*2.9um
Photosensitive signal-to-noise ratio: TBD
USB interface type: USB2.0
Common Resolutions & Frame Rates:
1920*1080/30fps;MJPG 1920*1080/3 fps/YUV
1280*960/30fps;MJPG 1280*960 /8 fps/YUV
1280*720/30fps;MJPG 1280*720 /8 fps/YUV
800*600/30fps;MJPG 960*540 /15 fps/YUV
640*480/30fps;MJPG 800*600/20 fps/YUV
320*240/30fps;MJPG 640*480/30fps/YUV
Working voltage and current: 110mA-280mA
Adapt to the working environment temperature: 0 to 60 degrees
Storage temperature, humidity: minus 30 to plus 80 degrees
Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.
Mac-OSx10.4.8 or above (Compliant with UVC protocol)
Linux,Android, etc. (Compliant with UVC protocol)
Application fields: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Dishes identification. USB Raspberry Pi camera. Etc...
Support driver-free protocol: USB Video Class (UVC)
Support OTG protocol: USB 2.0 OTG

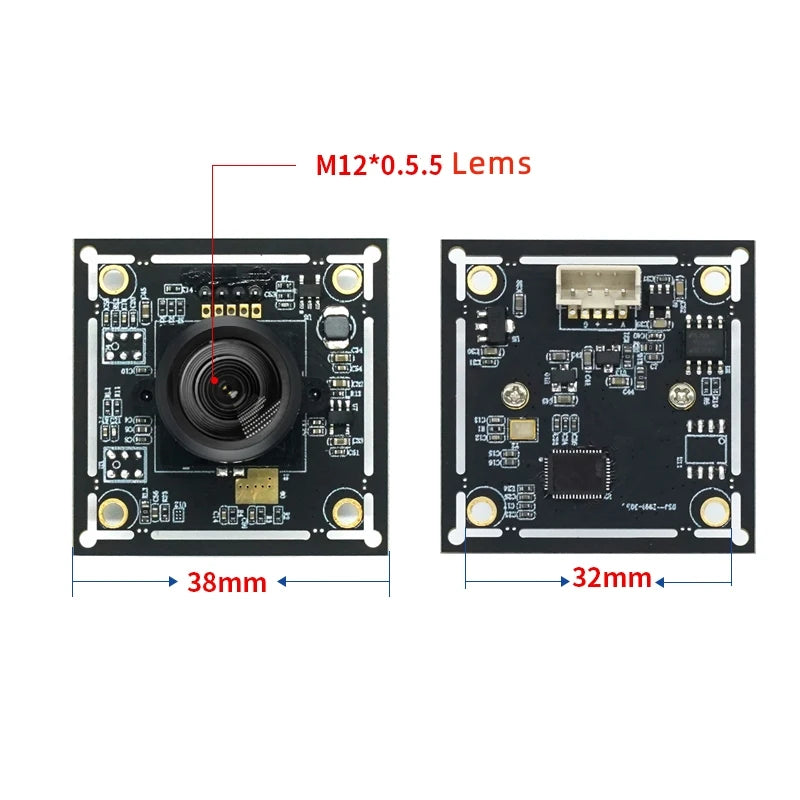

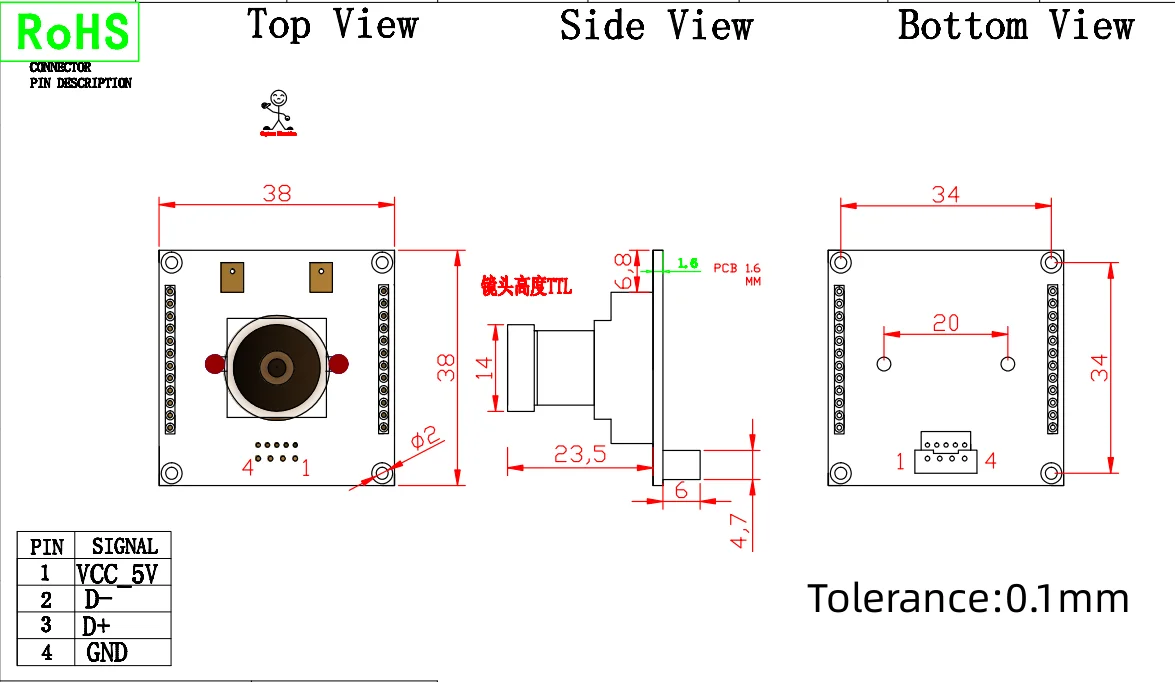

PCB (board frame) size: 38*38mm(compatible with 32*32)
Power supply mode: USB BUS POWER (DC 5V)
