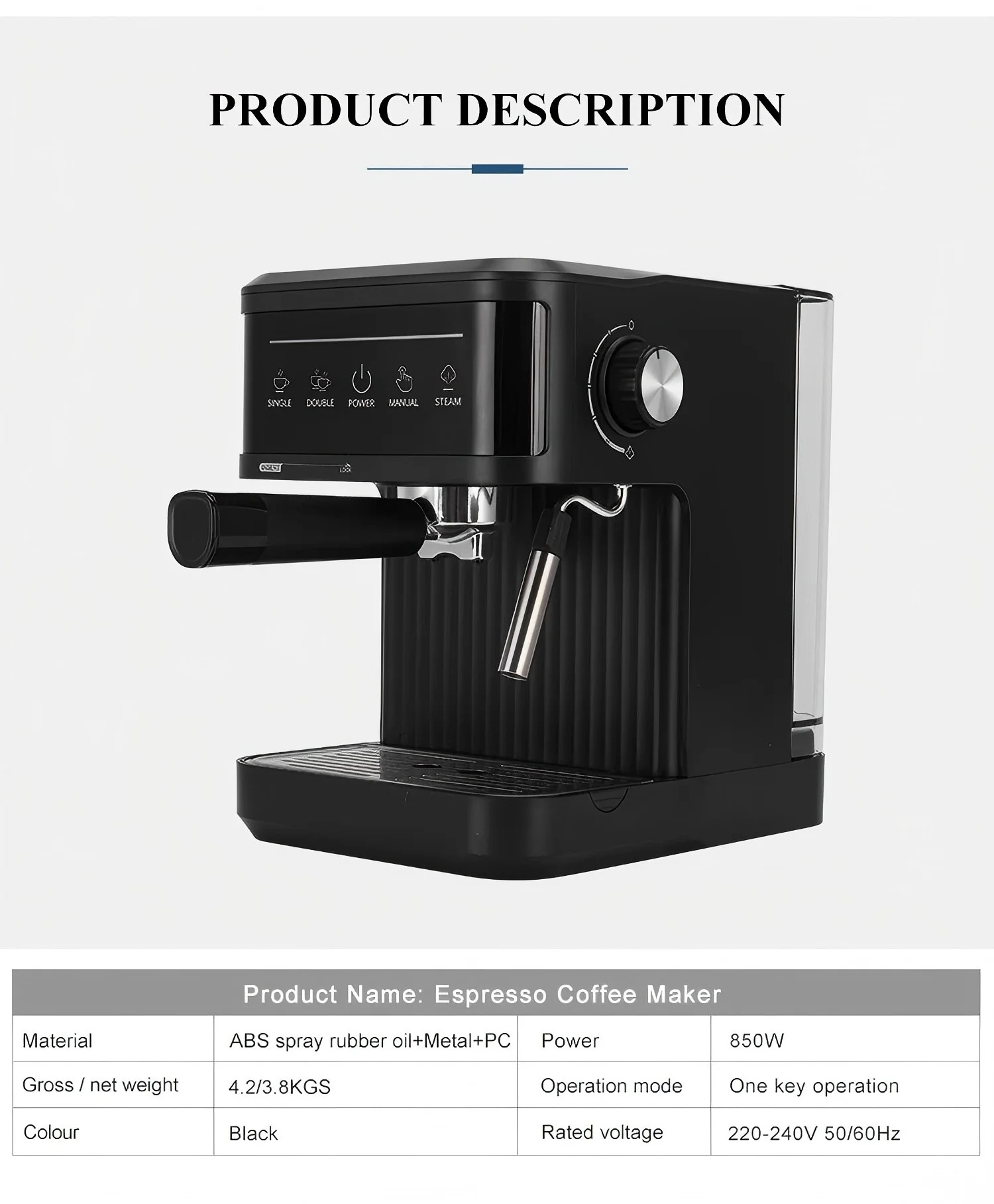

Rated Voltage/Frequency: 220-240 V～ 50/60 Hz
Rated Power: 850 W
Water Pump Pressure: 15 bar / 20 bar (dual speed selectable)
Water Tank Capacity: 1.8 L (removable, transparent)
Boiler Material: Die-cast aluminum alloy
Handle Material: Aluminum alloy + double stainless steel filters
Suitable Coffee Type: Coffee powder / Coffee capsules (E.S.E. Pod)

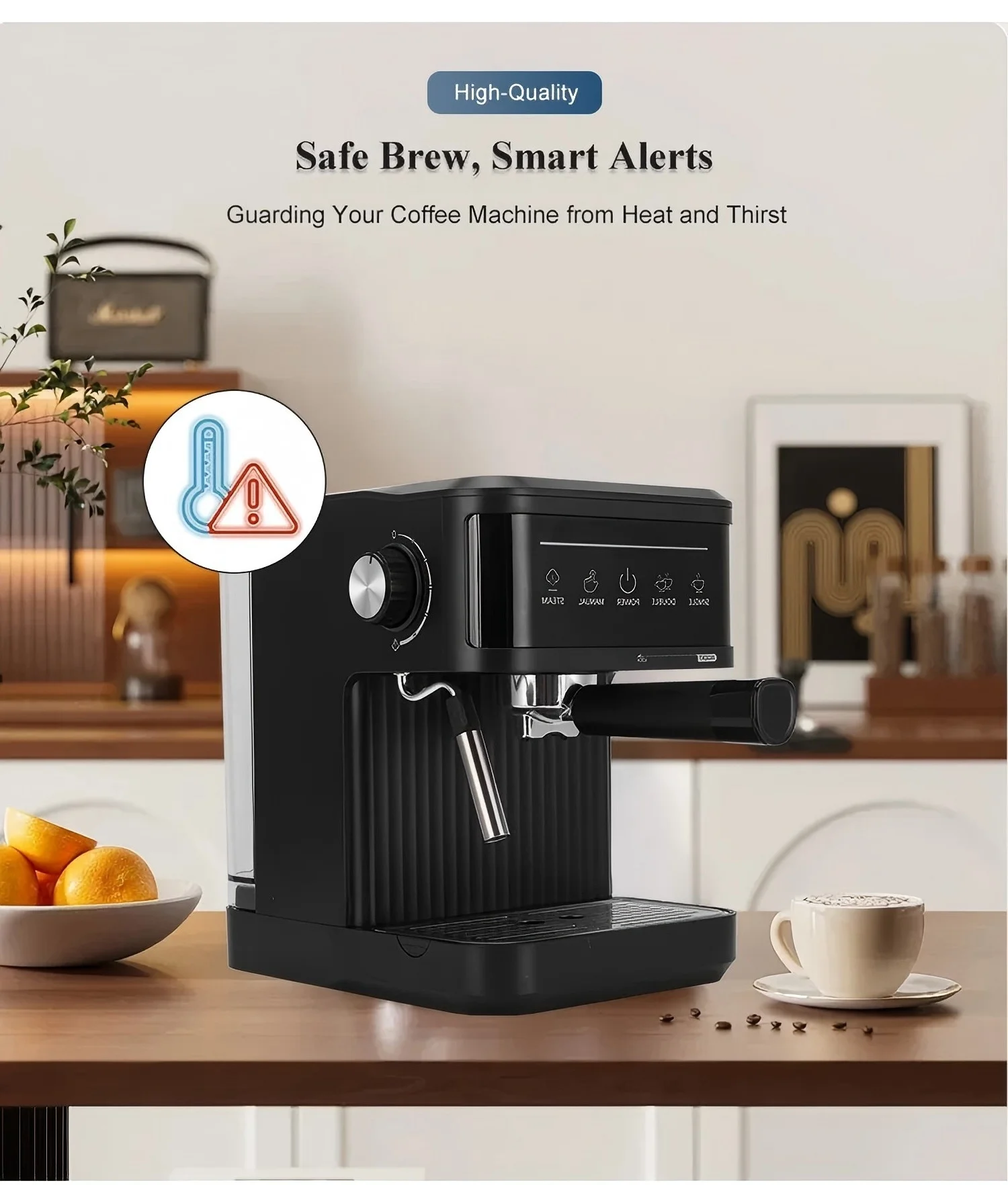

Safety Protection: Overheat protection, overpressure protection, automatic pressure relief safety valve
II. Product Features
High-Pressure Extraction: 15/20 bar Italian pump, rich in crema, Italian aroma.
Dual Cup Selection: Single/double filter, one-button dispensing, professional-grade stability.

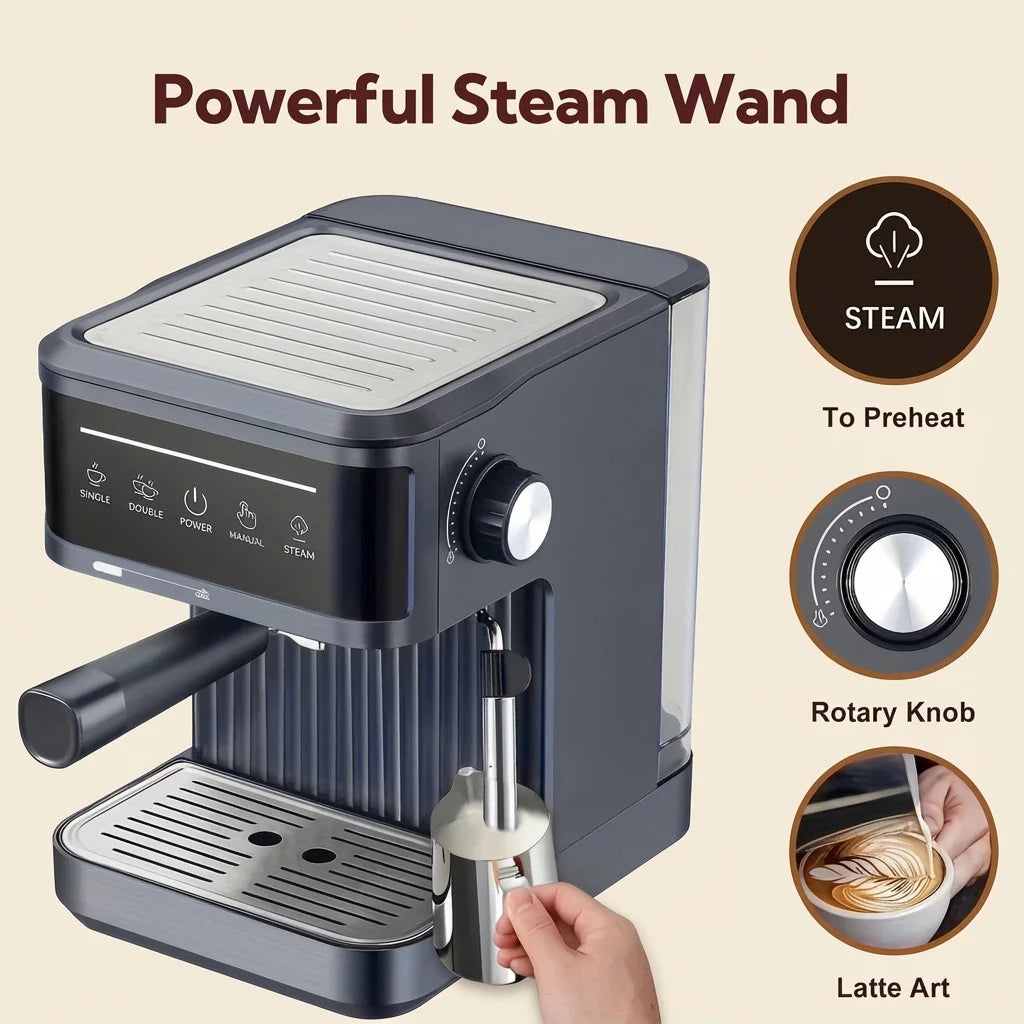

Milk Frothing System: 360° rotating steam wand, creates dense milk foam in 30 seconds.
Convenient Operation: Knob-style "Coffee/Steam/Off" three-speed switch. Rapid preheating: Aluminum alloy boiler, preheating complete in approximately 45 seconds.

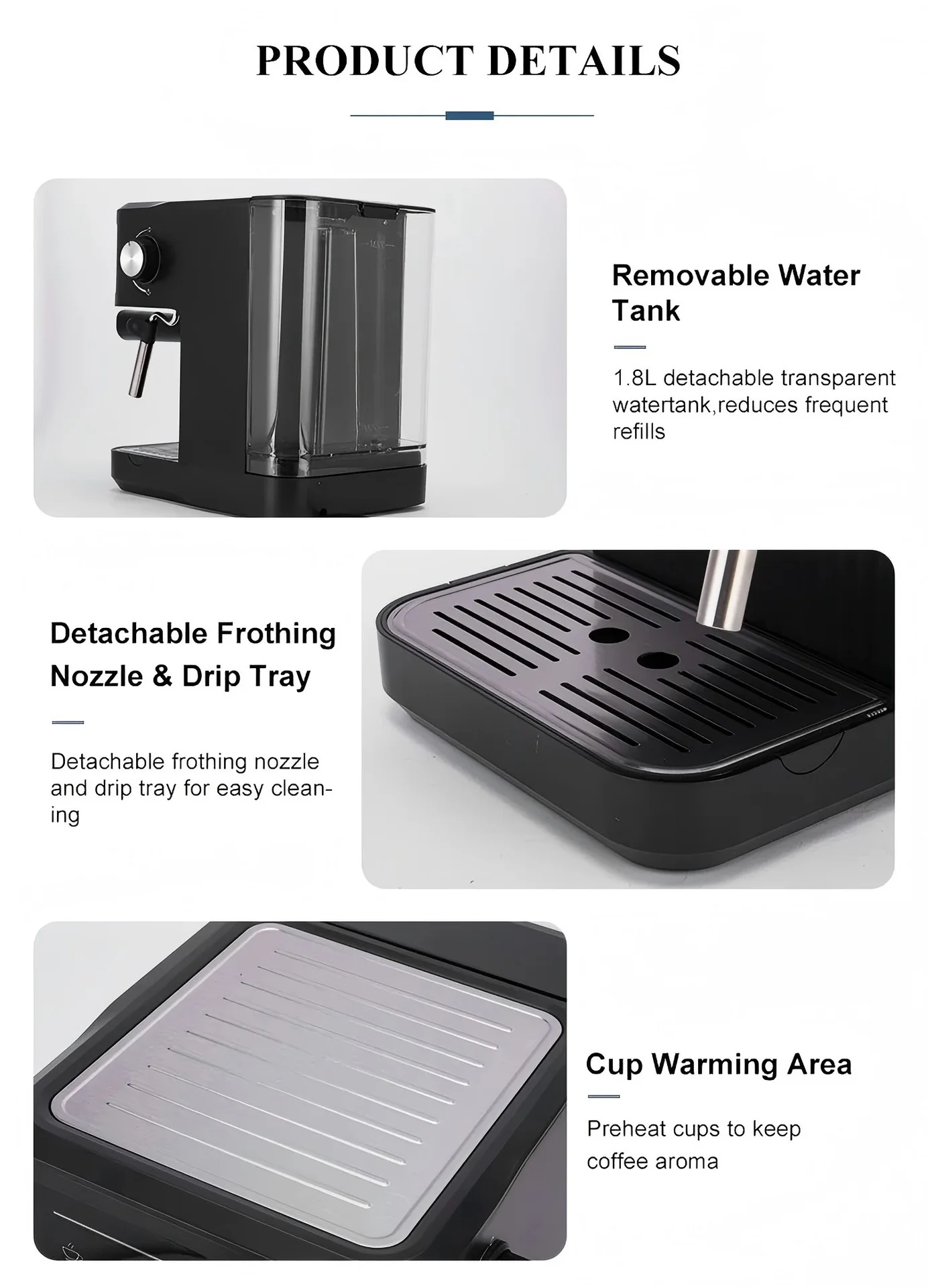

Easy cleaning: Removable water tank, drip tray, and steam nozzle; easy to clean with a simple rinse.
Coaster preheating: Stainless steel coaster on top preheats the cup and locks in aroma.

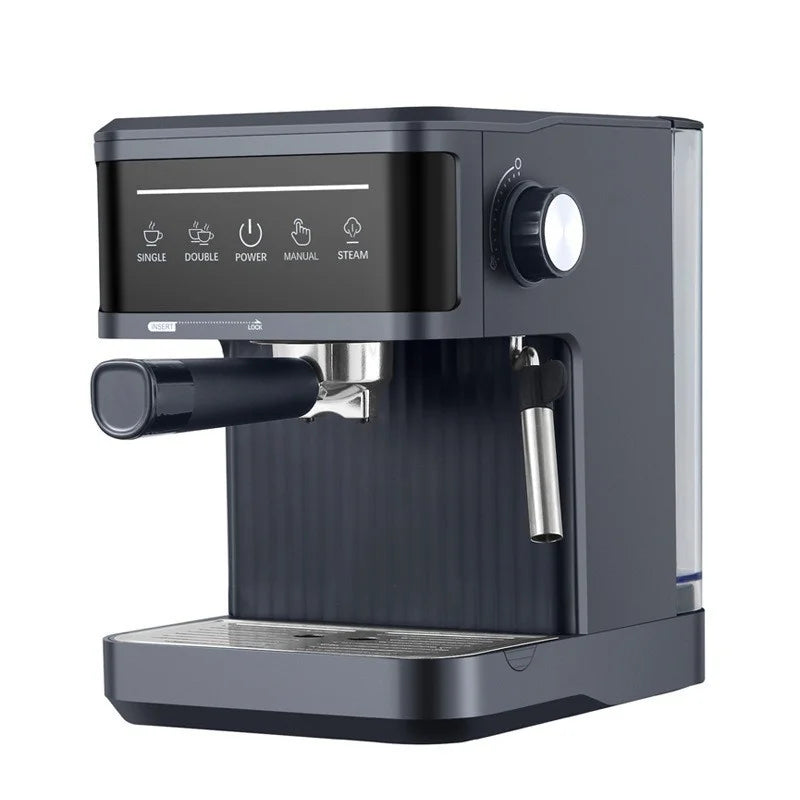

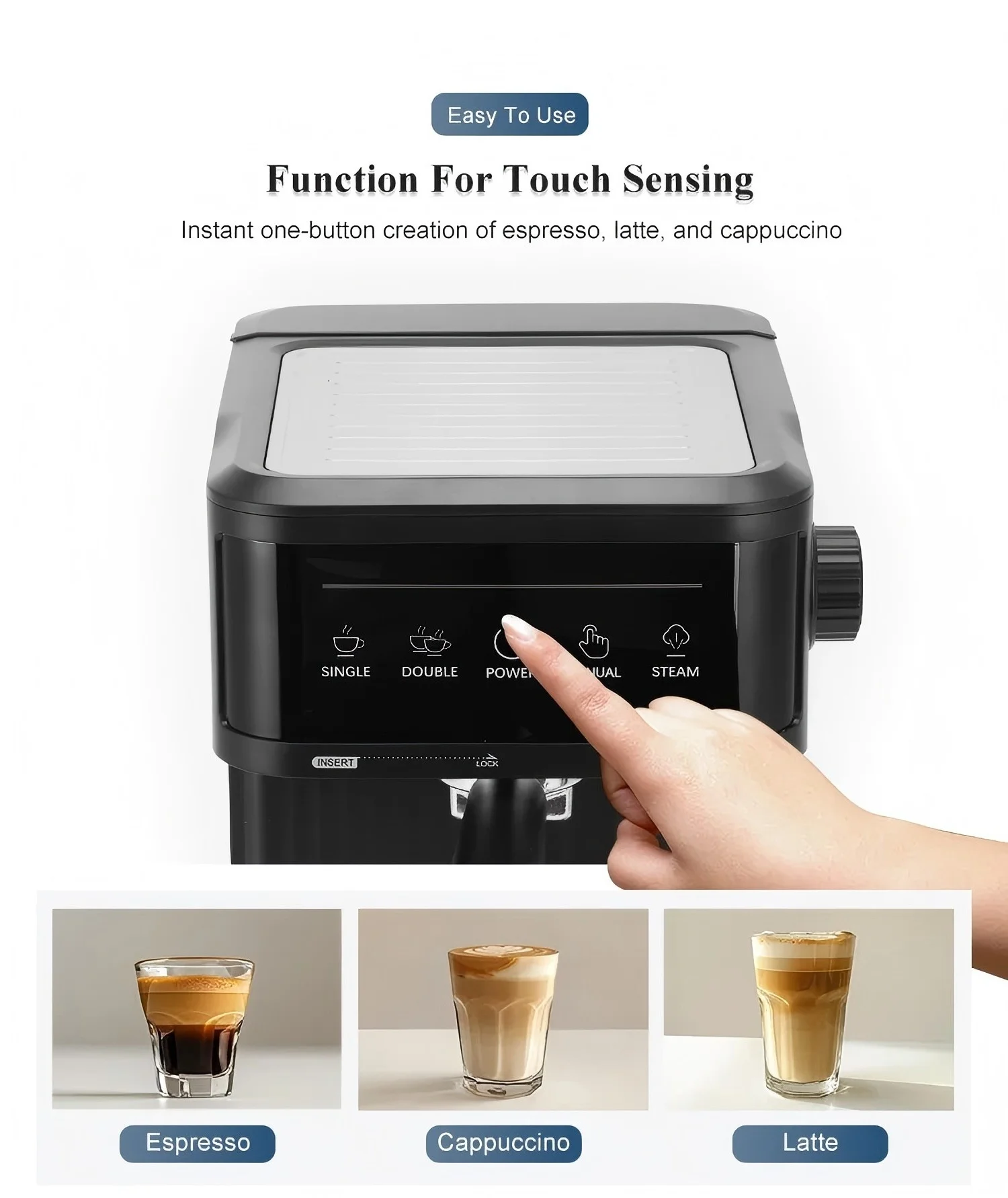

III. Control Panel and Component Names
(Illustrations and corresponding text)
① Power Switch (with indicator light)
② Mode Knob: Coffee / Steam / Off
③ Steam Knob (controls milk frothing steam output)
④ Steam Nozzle (removable)
⑤ Handle (locks clockwise)
⑥ Dual Stainless Steel Filters (7g per cup / 14g per cup)
⑦ Drip Tray (with float indicator for full water)
⑧ Water Tank (handle design, 1.8 L MAX marking)
⑨ Safety Valve (automatic pressure relief, do not obstruct)
⑩ Stainless Steel Coaster (preheating area, prevents burns)
IV. Preparation Before Use
Remove all packaging, clean and dry the water tank, filter, and drip tray.
Fill the water tank with cold water to the MAX line and reinstall the main unit.
Plug in the power; the indicator light will illuminate. Turn the knob to the "Coffee" setting and preheat for 45 seconds until the indicator light remains constantly on.
First Use:
Note: Vacuum extraction is required for first use.
After powering on, click "Start," turn the right knob counter-clockwise to the steam indicator, wait 15 seconds, then return to the original position: "0."

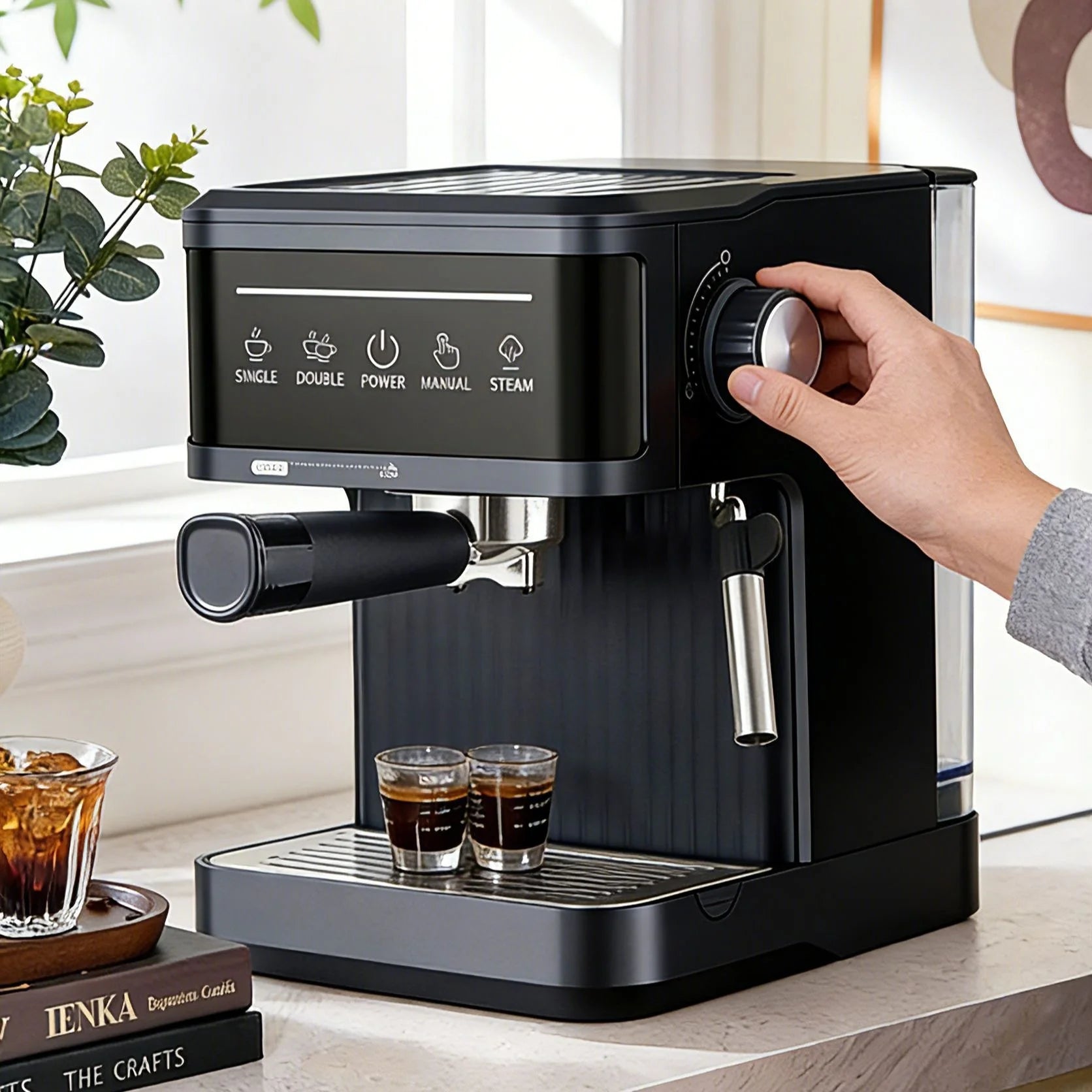

V. Making Espresso
Remove the portafilter and add an appropriate amount of coffee grounds (7g for a single cup / 14g for a double cup).
Tamp down the grounds with the tamper, wiping away any remaining grounds from the edges.
Reinstall the portafilter and tighten it clockwise.
Place the preheated coffee cup under the spout.
Turn the knob to the "Coffee" setting to begin extraction; approximately 25 seconds for a single cup and approximately 30 seconds for a double cup, yielding 25-30 ml / 50-60 ml of espresso.
After extraction, turn the knob back to "Off" to avoid over-extraction.

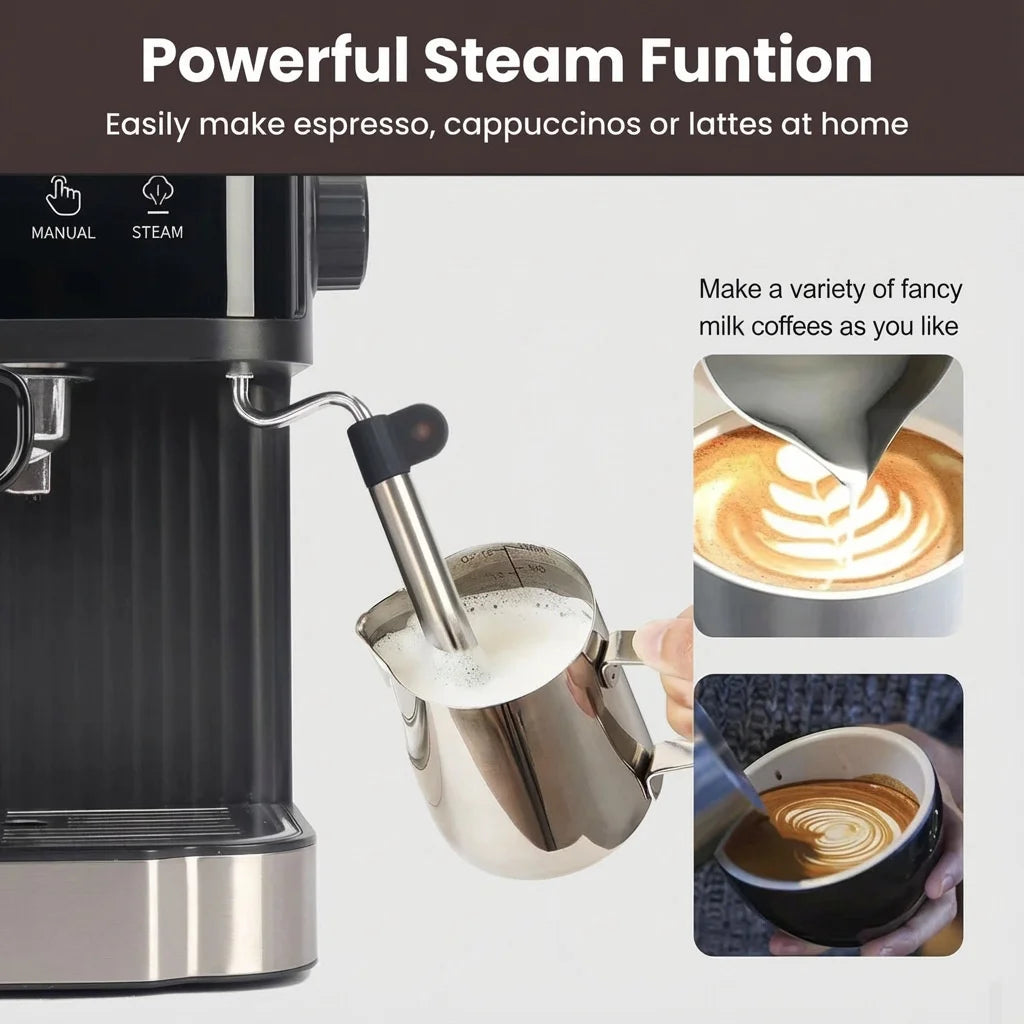

VI. Making Cappuccino
Complete the espresso extraction as described in step five.
Pour chilled whole milk into the latte art cup until it's 1/3 full.
After preheating, turn the knob to the "Steam" setting and wait for the steam light to stay on.
Turn on the steam knob and spray for 2 seconds to expel condensation.
Insert the steam nozzle at an angle 1 cm below the milk surface and turn on the steam knob. You should hear a hissing sound and see a vortex form; turn it off when the temperature reaches approximately 65°C.
Wipe the nozzle with a towel and spray for 1 second to clean it.
Slowly pour the frothed milk into the espresso to complete a classic cappuccino with 1/3 coffee, 1/3 milk, and 1/3 milk foam.
VII. Cleaning and Maintenance
Daily: Remove the drip tray, water tank, and steam nozzle; rinse with water and let dry.
ekly: Clean the filter and handle with a soft brush and check the safety valve for blockages.
Monthly: Perform a "descaling procedure" using a 1:10 white vinegar solution—fill the water tank to MAX, turn the knob to "Coffee," let two cups of water drain, then let it stand for 15 minutes. Rinse three times consecutively with clean water.
Long-term storage: Drain the water tank and any remaining water in the boiler, and store in a dry, well-ventilated area.
VIII. Safety Warnings
-
A grounded power outlet must be used.
-
The boiler is very hot during operation; do not touch metal parts to avoid steam burns.
-
Do not immerse in water for cleaning; the main unit can only be wiped with a damp cloth.
-
If you find a damaged power cord, the machine has been dropped, or there is abnormal noise, immediately disconnect the power and contact after-sales service.
-
Children and people with disabilities must use the machine under the supervision of a guardian.
