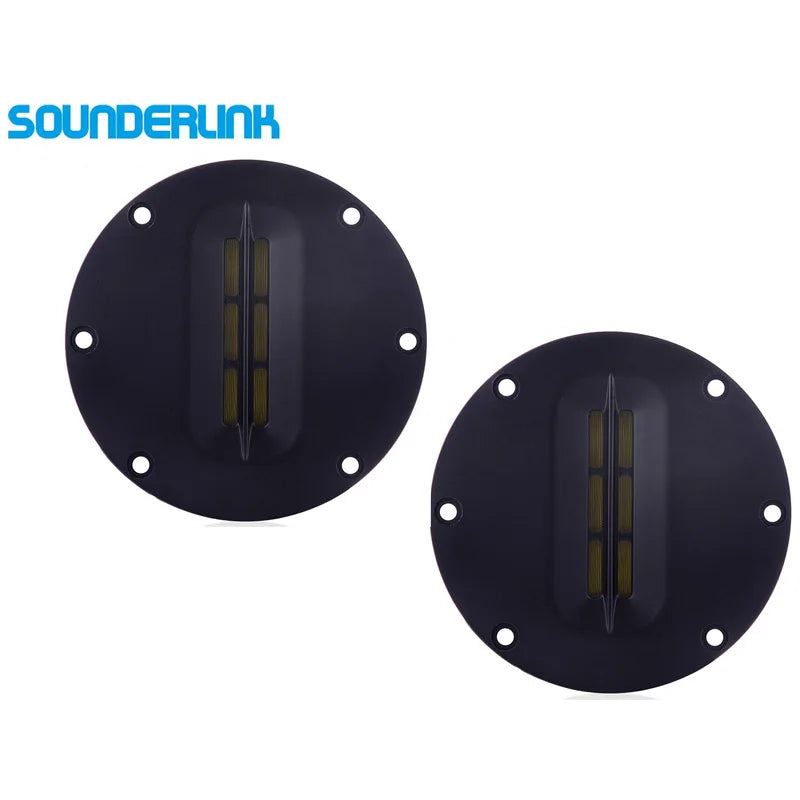

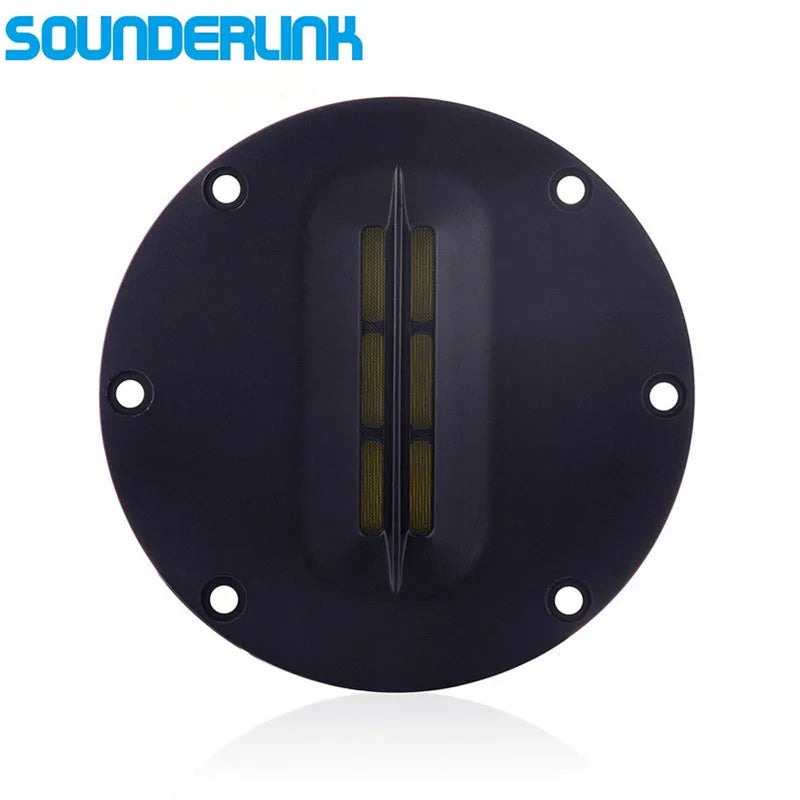

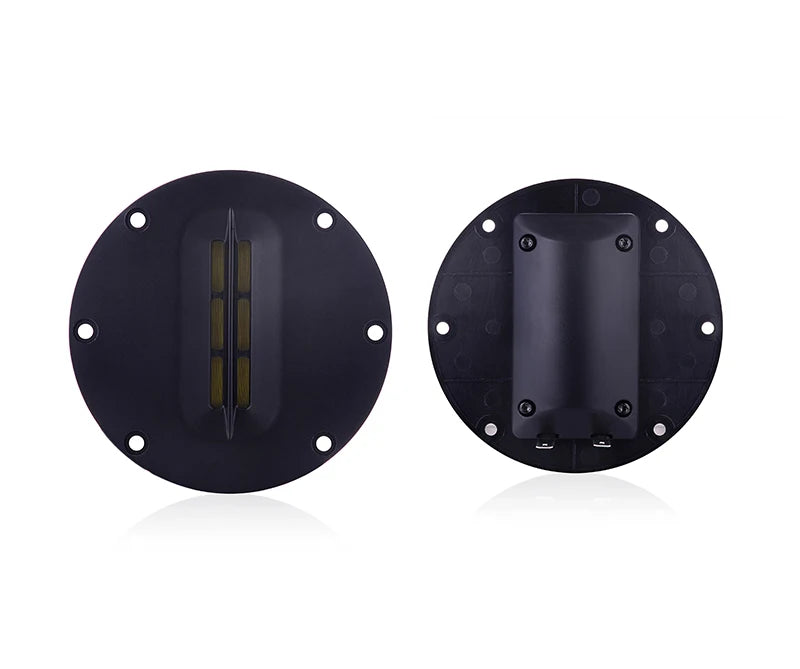

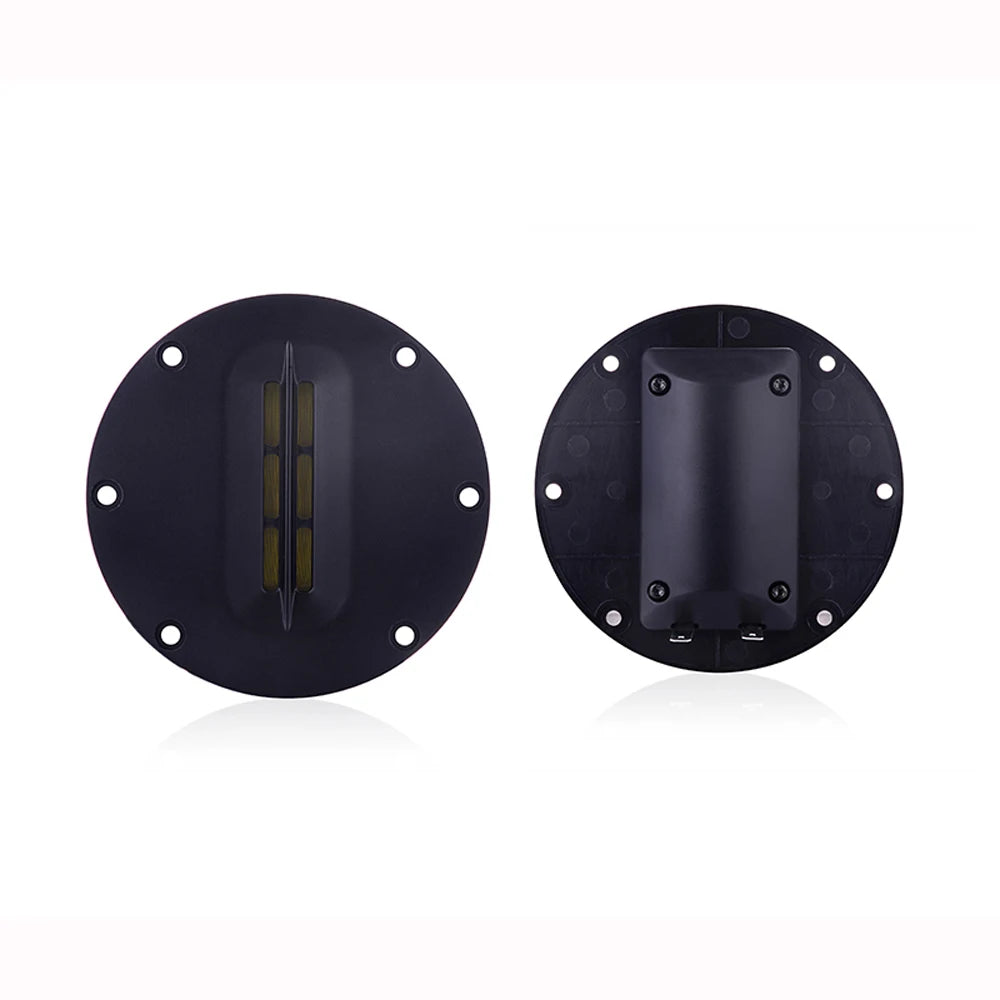

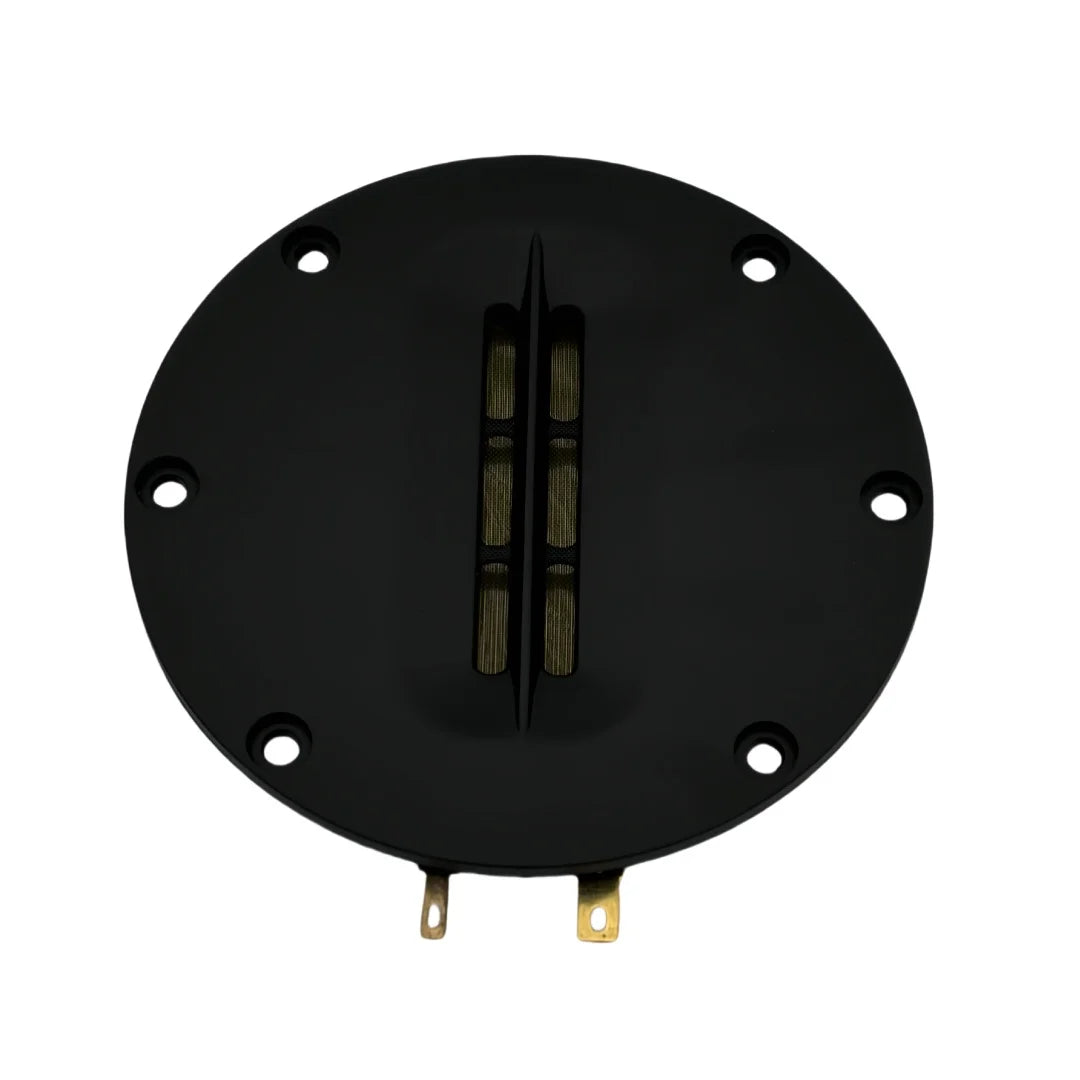

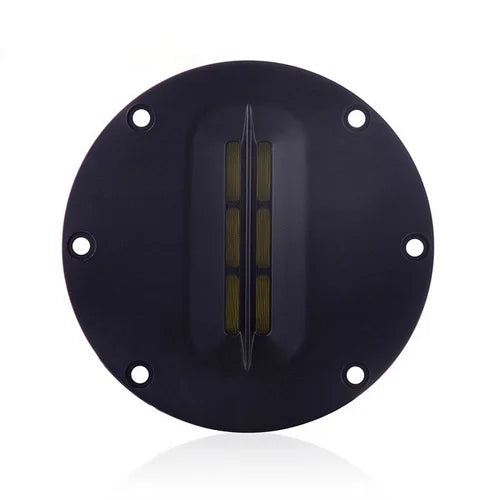

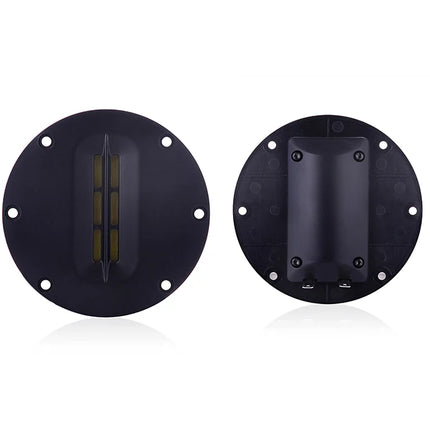

Planar AMT Ribbon tweeter Updated
Some loudspeaker designers use a planar-magnetic tweeter, sometimes called a quasi-ribbon. Planar magnetic tweeters are generally less expensive than true ribbon tweeters, but are not precisely equivalent as a metal foil ribbon is lighter than the diaphragm in a planar magnetic tweeter and the magnetic structures are different. Usually a thin piece of PET film or plastic with a voice coil wire running numerous times vertically on the material is used. The magnet structure is less expensive than for ribbon tweeters
|
|
|
|
|
|
|
|
Rated Impedance |
8Ω |
|
|
Front Panel |
Aluminum like plastic |
|
Sensitivity |

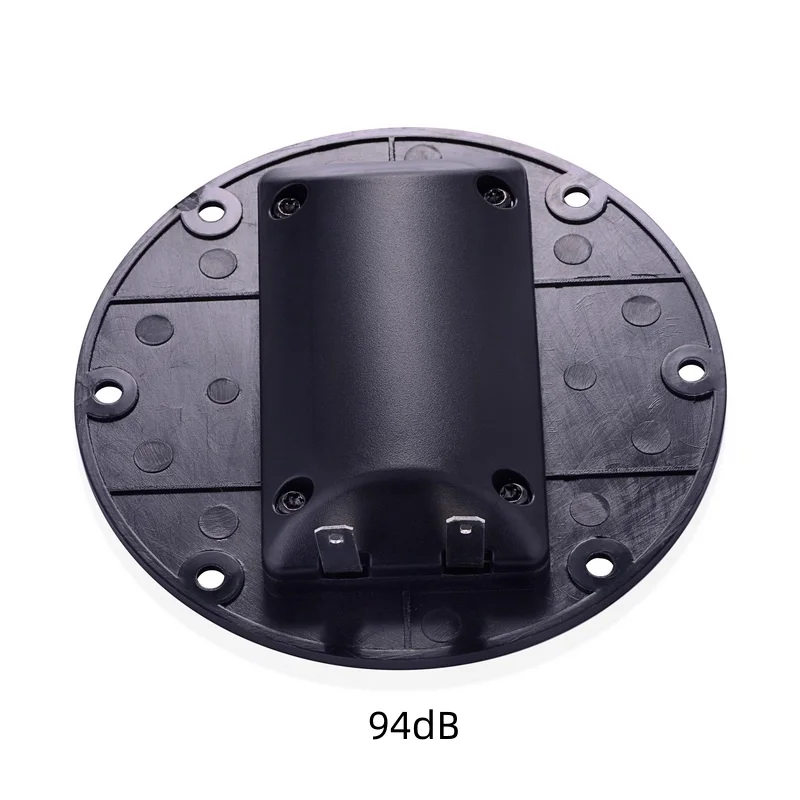

94dB |
|
|
Finish of Panel |
Powder coat |
|
Frequency Range |
1500k~40k Hz |
|
|
Diaphram |
KAPTON |
|
RMS Power |
15W |
|
|
Conductive Line |
Alumium foil |
|
Max Power |
30W |
|
|
Magnet |
Neodymium |
|
Lowest crossover |
3.5k Hz(recommend) |
|
|
Terminal (mm) |
5.5*0.5(+,-) |
FEATURES
• ABS Plastic faceplate provides secure, stable mounting
• Low- mass pleated Kapton diaphragm
• Very fast transition, high power handling with Strong Neodymium
• High detailed and dynamic output, very low distortion
•Linear impedance
• Clear & Nature high frequency
PARAMETER |
Impedance |
8ohms |
Power Handling |
15watts(RMS),30watts( max) |
Sensitivity |
92dB@1W/1m |

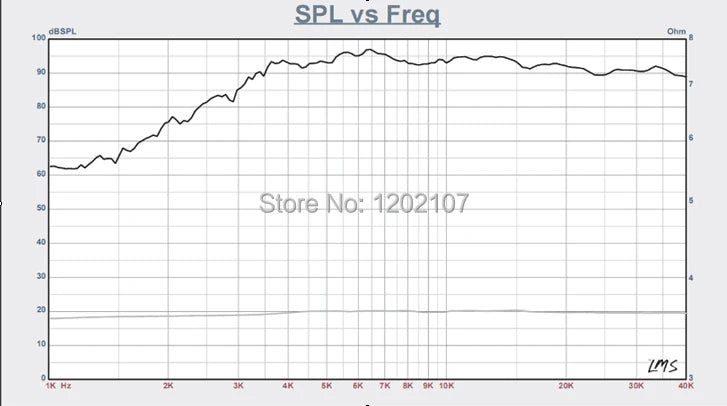

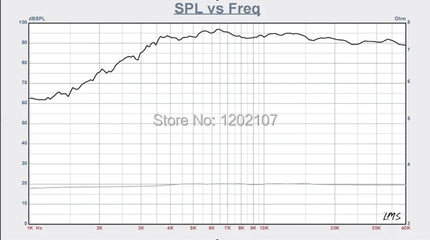

Frequency Response |
1,500 - 33,000Hz |
Diaphragm |
Kapton&Alumium foil |
Magnet System |
Neodymium |

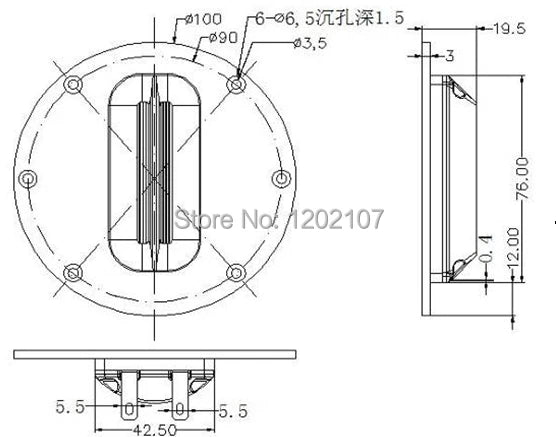

Dimensions |
Overall Outside Diameter4" x 0.76" |
Net. Weight |
115gram |
Recommend Crossover Frequency |
2,300Hz |
