Description
SPECIFICATIONS
3D: No
Android Version: Android Tv12(GTV)
Ansi Lumens: 1200
Battery: no
Bluetooth-compatible: Yes
Brand Name: yinzam
Brightness: 5000 Lumens
Built-in Speaker: Yes
Category: Projectors
Certification: CE,RoHS
Contrast Ratio: 1000:1-2000:1
Display IC: DMDFHD ,0.23"
Display Size: ＞13.5
Display Technology: DLP
Display Uniformity: >90%
Focus/Keystone: Auto Focus and Keystone
Function: Video Playback
High-concerned chemical: None
Home Theater Projector: yes
Inbox adaptor: Yes
Input voltage: 100-240V 50/60Hz
Input/Output: Type-C,HDMI,USB
Keystone Correction: Manual Correction,Auto Correction
Laser eye protection: human body sensor detection
Light Source: Laser+LED
Light Technology: 3*Laser solid-state
Optical Resolution: 1920x1080dpi
Origin: Mainland China
Portable: Yes
Power (W): 20W
Power Source: Ac,Ac
Projected Dimension: 40-160inch
Projection Distance: 10-45cm
Projection Technology: DLP
Projective Mode: T4,Throwing,Ceiling,Back Projection
RAM/ROM: 2GB+16GB
Remote controller included: Yes
Resolution: 1080P, max 8k
Screen Scale: 4:3/16:9
Speaker: support BT audio mode
Speaker sound: 2pcs 7W dolbyspeaker
Structure: Without display device
System: Android
Throw Ratio: 0.19:1
Type: Short-Focus
Use: Home
Voltage range: USB (5-20V DC)
Weight: 1.8kg
Zoom: Focus
network: 802.1lac 2.4G+5.8G WI-FI BT5.0
operating language: Mult Language

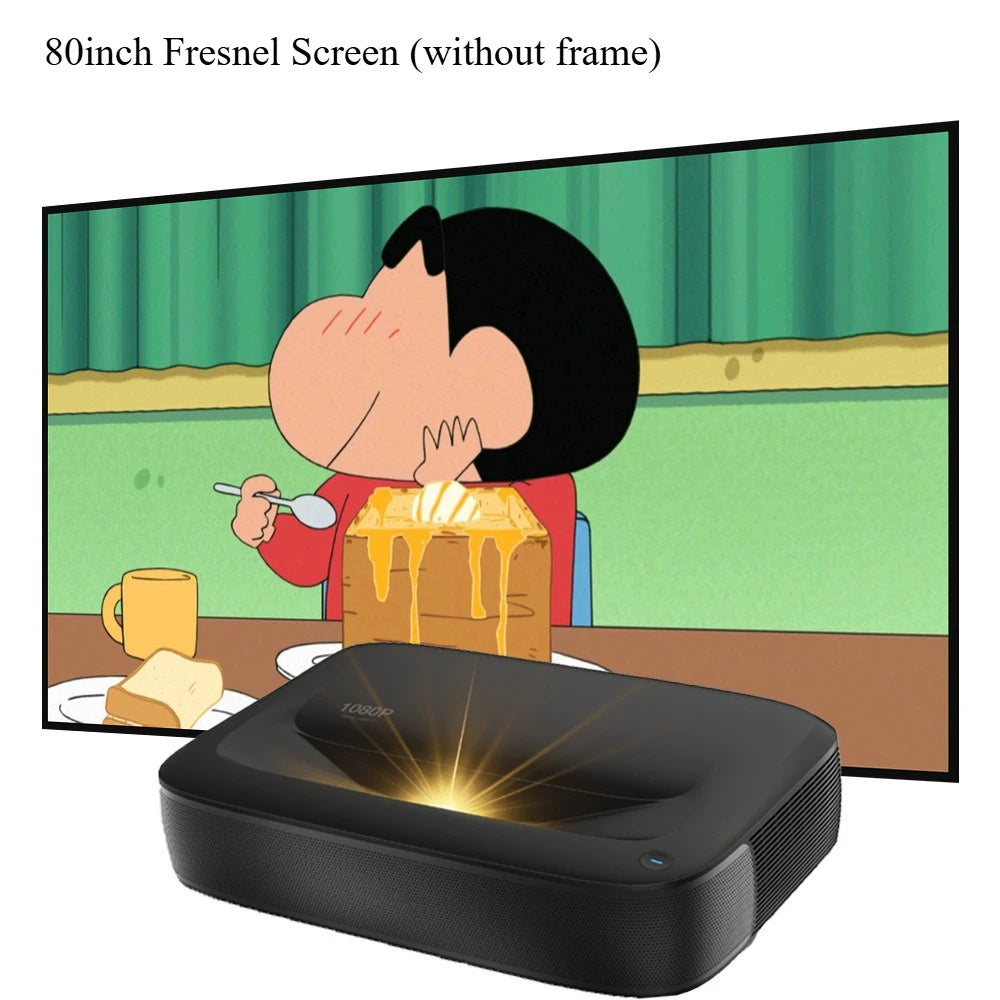

Fresnel screen real picture（without frame):
Basic Information
Product model: H2
Product size: 280*185*66mm
Product net weight: 1.8kg
Optical parameters
Display Technology: dlp
Light source technology: 3*Laser solid-state
Standard Resolution: 1920 x 1080P, MAX 8K
Brightness Specifications: 1200 ANSI Lumens, 5000 lumens
Throw ratio: 0.19:1
Focus/Keystone: Auto focus and keystone, support 4 point keystone.
3D: No
OS
RAM: 2GB
Built-in storage: 16GB
wifi: dual wifi.
BT: BT4.2
Audio
Speaker: support BT audio mode
Speaker sound: 2pcs 7W dolbyspeaker
Interface:

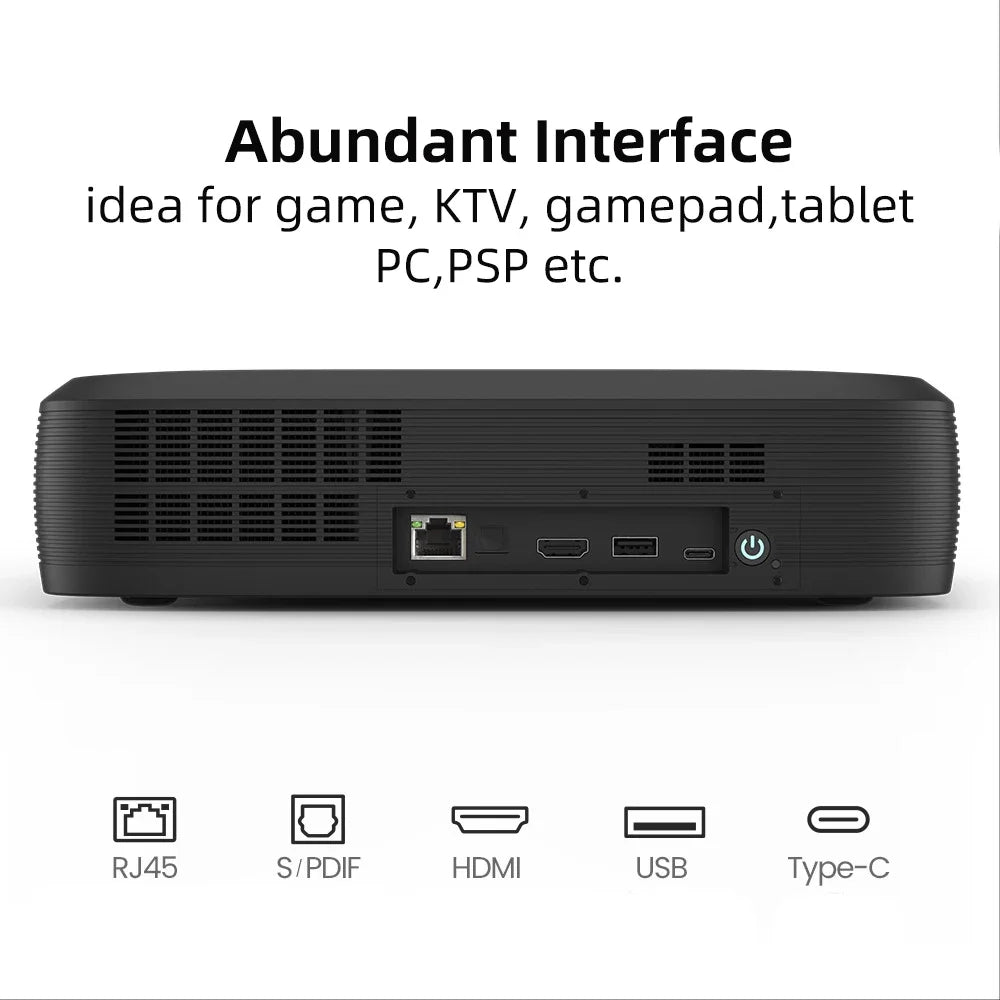

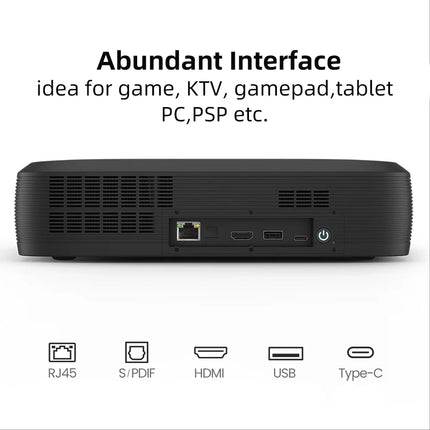

HDMI2.0 x1, RJ45 x1, Type-C x1, SPDIF x1, USD2.0 x1
Power supply
Power: 110-240V, 50/60HZ.
Safety protection
Intelligent temperature control: intelligently adjust the fan speed
Temperature switch: automatic shutdown over temperature
Laser eye protection: human body sensor detection (can be turned off manually)
other
Noise: <32dB/ambient temperature 25°C/distance 1m
Remote control: BT remote control
Indicator light: white light
Storage temperature: -20°C~55°C
Operating temperature: 0°C~40°C
Working humidity: 20%~80%
Packing List
projector, power cable,user manual,BT RC,warranty card.
