SPECIFICATIONS

STARRY SKY CAR

20W TWINKLE STARRY SKY CAR FIBER OPTIC LIGHT FOR CAR /HOME DECOR

Parameter:
Power: 20W
Input voltage: DC12V
LED: RGBW LED
Color: RGBW (14 colors)

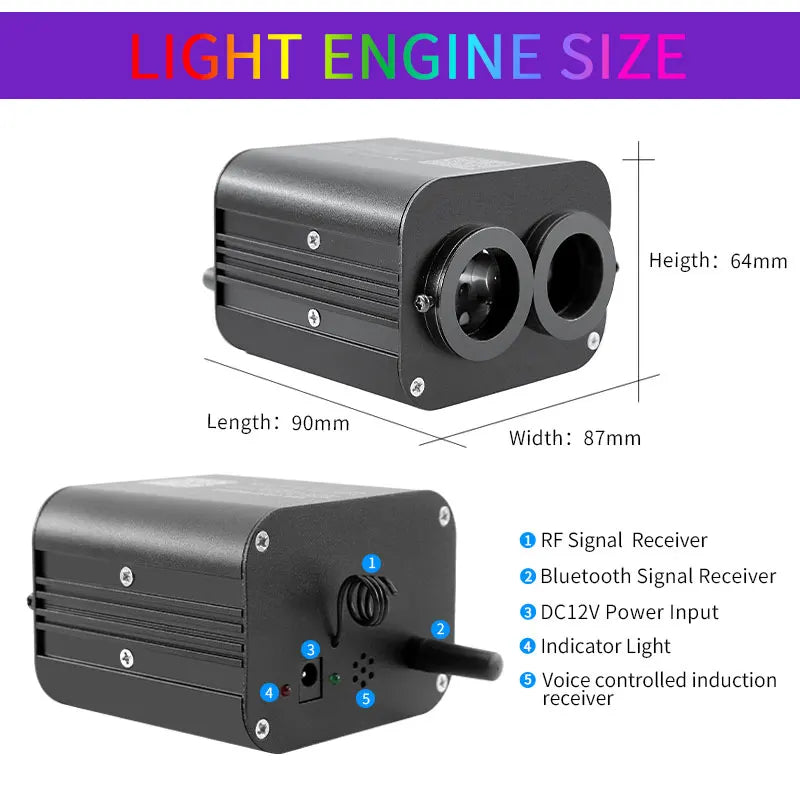

Light source device size: L 91xW87 xH64 mm
Fiber head inner diameter: 20mm* 2 （each connect head can install optical fiber 550pcs of 0.75mm ,or 300pcs of 1.0mm optical fiber , or 135pcs of 1.5mm ）
Remote: RF/Bluetooth
Warranty: 2 years
Lifetime: 50,000 hours
NOTE: If you use the light in car, please choose Car cigarette plug. The EU/US/UK/AU power plug is for indoor use.

Feature:

1. AUTO-SENSING MUSIC CONTROL FUNCTION
It can automatically sense the rhythm of the music in the car to flash and change colors with frequency.
2. POWERFUL REMOTE CONTROL
Function:16 static colors, 6 dynamic effects, jump,fade,four-speed twinkle ,music switch button, music control sensitivity adjustment, dynamic speed adjustment, static brightness adjustment. APP has the same powerful functions.

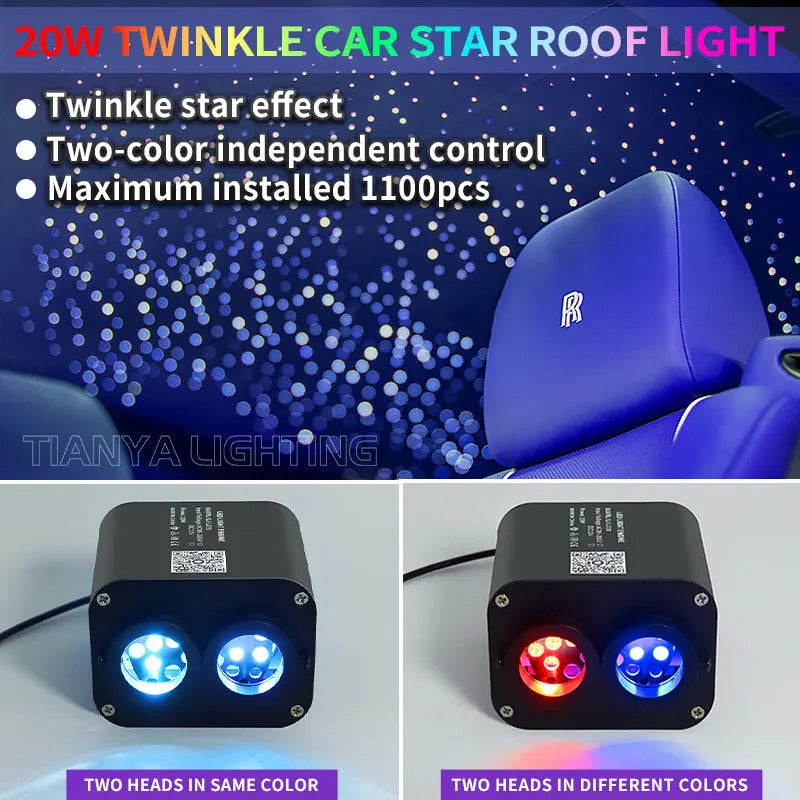

3.DUAL-HEAD INDEPENDENT CONTROL.Using this function, you can make 2 heads the same color, or you can make them in different colors. You can make richer and more interesting patterns. In addition, you can then one of them is a static color, and the other is a dynamically changing color.
4. RGBW four LED lamp beads：High brightness, low energy consumption, long life and stable effect. With the RGBW mixed light, the colors are more abundant.
5.twinkle effect.Built-in irregular round hole turntable，when it moves, the light received by the optical fiber is uneven.Part of the fiber is bright and the other is dark, so the fiber can show the TWINKLE effect.
6.The 20W light engine can be installed 1100pcs fibers (diameter 0.75mm) , or 600 fibers (1mm diameter ) .

Instructions for use of Dual-head control:

1. Two heads in same color
step 1. press the button ALL in the remote
step 2. select the static color or dynamic mode

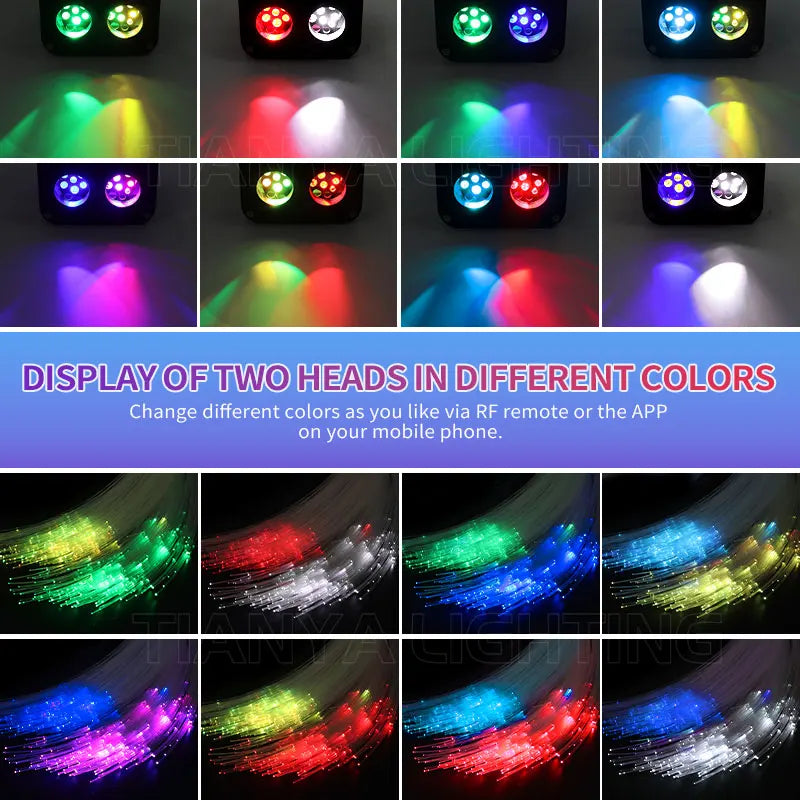

2. Two heads in different static colors
step1.press button 1
step2. choose static color
step3. press button 2
step4. choose static color

3. One head in static color , one head in dynamic change color
step1. press button 1
step2. choose static color
step3. press button 2
step4.choose dynamic color
Notes:must select static color first and then dynamic color

Smartphone APP Control:

1. Please download the“My smart LED”APP （the QR code on the product manual）
2. Connect to the light
(1) open the mobile phone bluetooth;（If the phone is Android, some phones need to turn on the phone's GPS location after turning on Bluetooth as well so that the app can be connected.）
(2) power on the light; then open the APP;
(3) at this time, the app will automatically connect to light
****Note: The most important is that you need to wait for it to connect automatically, and you don't need to click its name and do not need to enter any passward
(4) When the number 1 appear in left top corner,and show "LED light connected" the APP successfully connects to the machine.

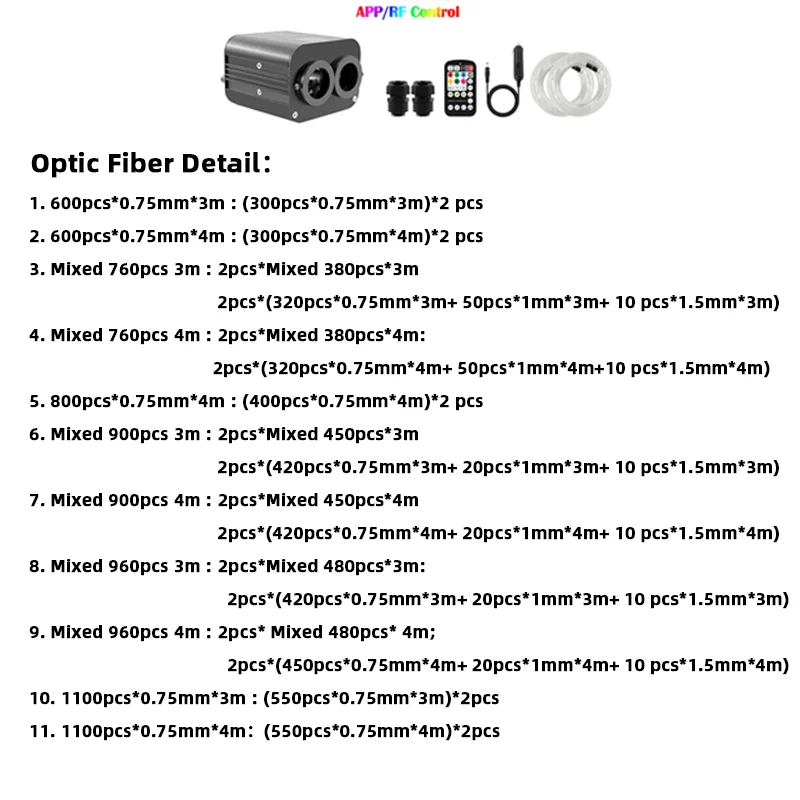

Fiber optic package parameters：

Set 1: 600pcs 0.75mm 4m:(300pcs 0.75mm 4m)*2pcs
Set 2: Mixed 760pcs 4m : (Mixed 380 pcs 4m)*2 pcs
Mixed 380pcs 4m include: 320pcs*0.75mm*4m+50pcs*1mm*4m+10 pcs*1.5mm*4m

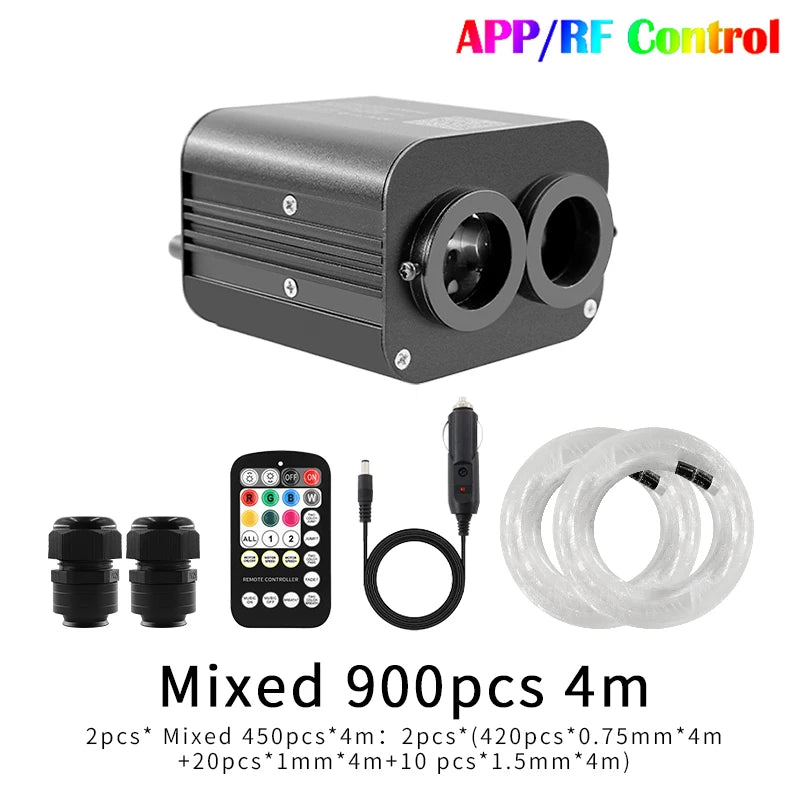

Set 3: Mixed 900 pcs 4m（Mixed 450 pcs 4m） * 2 pcs
Mixed 450pcs 4m include： 420pcs*0.75mm*4m+20pcs*1mm*4m+10 pcs*1.5mm*4m

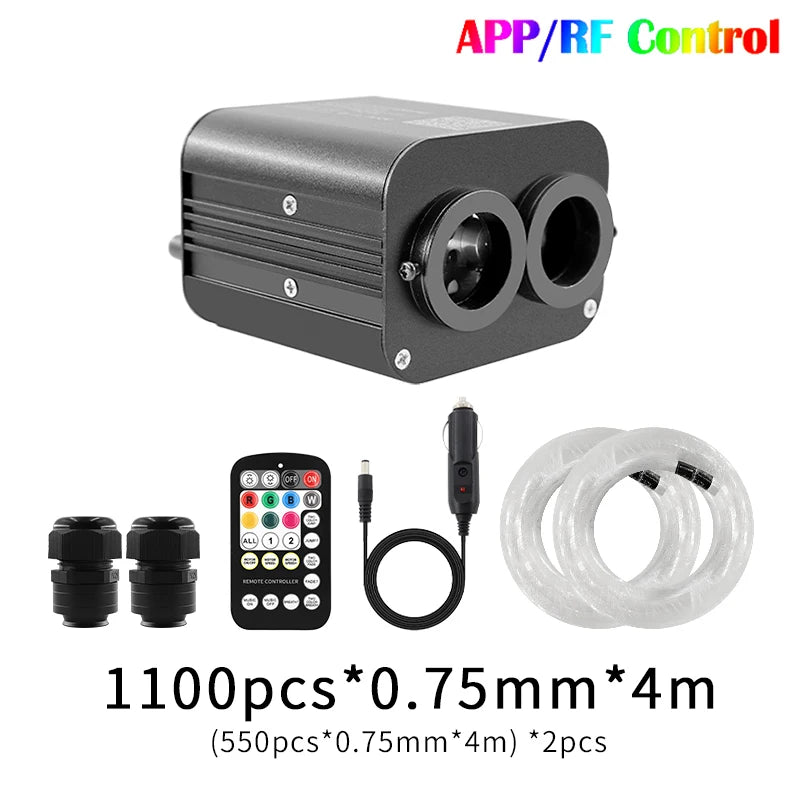

Set 4:1100pcs 0.75mm 4m: (550 0.75mm 4m) * 2 pcs
Set 5: 600pcs 0.75mm 3m:（300pcs 0.75mm 3m）*2pcs

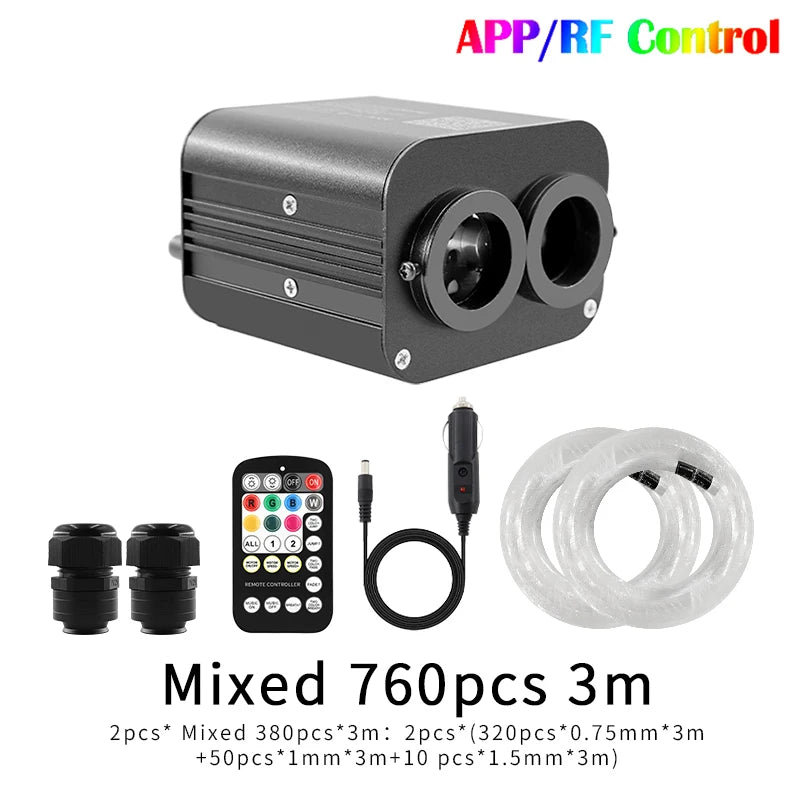

Set 6: Mixed 760pcs 3m : （Mixed 380 pcs 3m）*2 pcs
Mixed 380pcs 3m include： 320pcs*0.75mm*3m+50pcs*1mm*3m+10 pcs*1.5mm*3m
Set 7: Mixed 900 pcs 3m:（Mixed 450 pcs 3m） * 2 pcs
Mixed 450pcs 3m include： 420pcs*0.75mm*3m+20pcs*1mm*3m+10 pcs*1.5mm*3m
Set 8: 1100pcs 0.75mm 3m: (550 0.75mm 3m) * 2 pcs

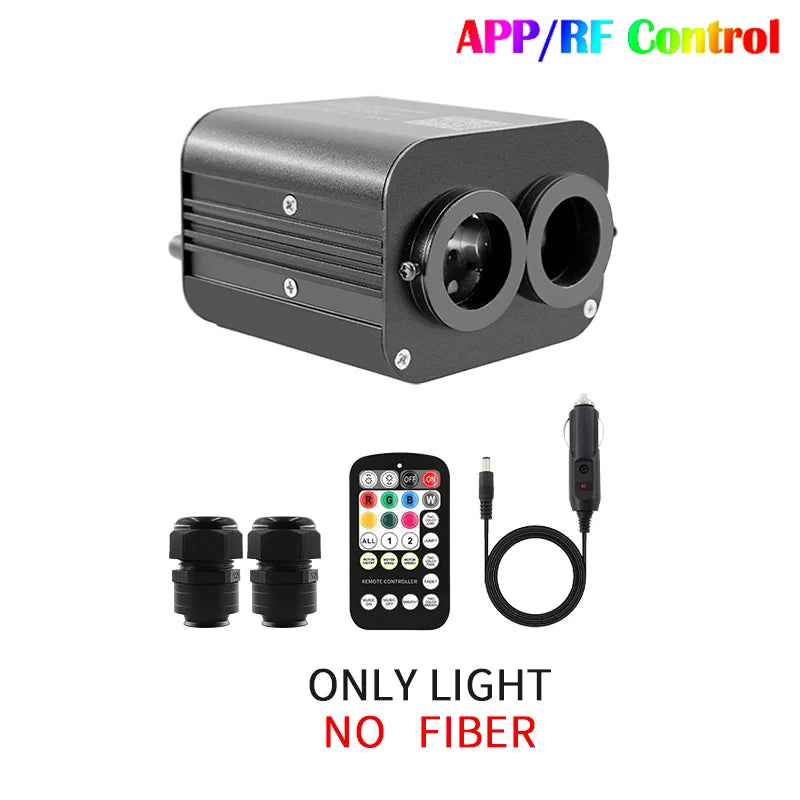

Package included :

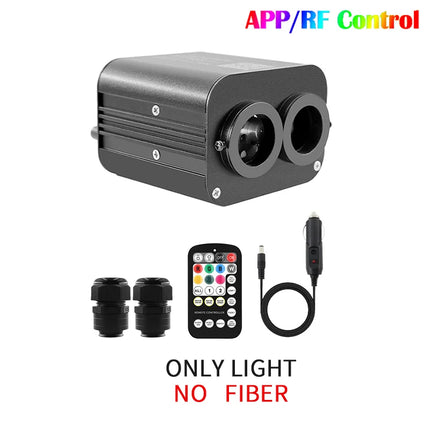

1 x 20w light engine with twinkle effect
1 x RF controller ( NOT included Battery of Remote : CR2025 3V button battery )
1 x Car cigarette plug or EU /US / UK /AU plug
2 x Connectors
2 x Fiber optics
1 x User Manual
**If you use the light in car, please choose Car cigarette plug. The EU/US/UK/AU power plug is for indoor use.

Tax payment reminders for EU customers：

Because of the new tax reform in Europe from July 1, 2021, all imported parcels will be subject to tax. If the goods are under 150 Euros, the platform will collect the tax on behalf of the buyer and then forward it to EU tax office, the buyer does not need to pay additional tax when receiving the goods. If it is more than 150 Euros, the platform does not collect tax on behalf of the buyer, and the buyer has to pay vat and customs duty on his own when receiving the parcel.

INSTALLATION TUTORIAL

1.Remove the car roof
Remove the roof of the car first(Overturn Copilot or seat,remove it from the back door)
2. Drill holes
you can use the pen to draw the point ,then use a 0.5mm-1.5mm twist drill bit to drill holes.
lf you want to make complex patterns, such as stars, galaxies, etc., you can paste a pattern on the back of the ceiling then Punch holes according to the pattern . Simple patterns can be directly Just draw holes in the ceiling.
3. Insert fiber
4. Fixed fiber
Use hot melt glue or kafuter K-5905 glue to fix.
5. Straighten the fiber
Straighten the optical fiber lines(ens of small bundles), and the concentrated parts can be rolled with black electric tape so tha tthey will not be scattered.
6. Stick sponge or leather
Stick sponge or leather to isolate the iron sheet to extend the life of the optical fiber.
7. Cut the fiber
Cut off the excess fibers in thecar, usually cut it flat to the roof.You can also cut the fiber after installing the roof.
8. Electrical connection
The power supply can be connected to the cigarette lighter plug，low beam, driving light, ACC, and the required power supply voltage is 12V. The LED light source can be hidden in the C-pillar or the trunk. Finally, Put the car roof back on .
