Description
SPECIFICATIONS
Brand Name: FutureTrace
Feature 10: Coupling DC motor
Feature 11: Aluminum Alloy
Feature 12: Clamping Coupling for DC Moto
Feature 13: All-DirectionalWheels
Feature 14: with Flange Coupling Robot

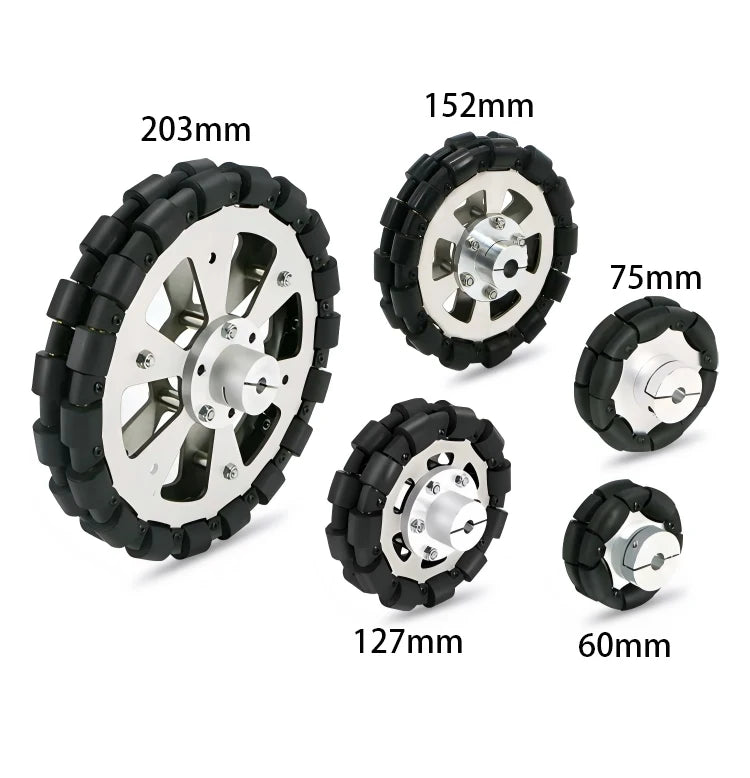

Feature 15: 127mm 152mm 203mm Omni Wheel
Feature 16: Caster Tires
Feature 17: 40KG Load Omnidirectional Wheel
Feature 2: ROS Platform Robot Wheel
Feature 3: Universal Wheel
Feature 4: ROS Platform Omnidirectional Movement
Feature 5: Ros Platform
Feature 6: Robot Smart Car
Feature 7: 127mm,152mm,203mm
Feature 8: Omni Robot
Feature 9: Metal Fulai Wheel
Feature1: Omnidirectional wheels
High-concerned chemical: None
Is Electric: No Battery
Model Number: Omnidirectional Wheel
Origin: Mainland China
Power Source: Electric
Recommend Age: 14+y
Theme: Animals & Nature,Transportation,Fantasy & Sci-Fi,Occupations,Sports,Music
Warning: Can not get water
Future Robot Store
Welcome to our store. We not only provide high-quality products, but also have perfect after-sales service to ensure that the problems you encounter are solved in time. Follow us!You can get our New arrival and Discount information in time
By the way, if you like our store, Please add our store to your Favorite Stores, You can getour New arrival and Discount information in time

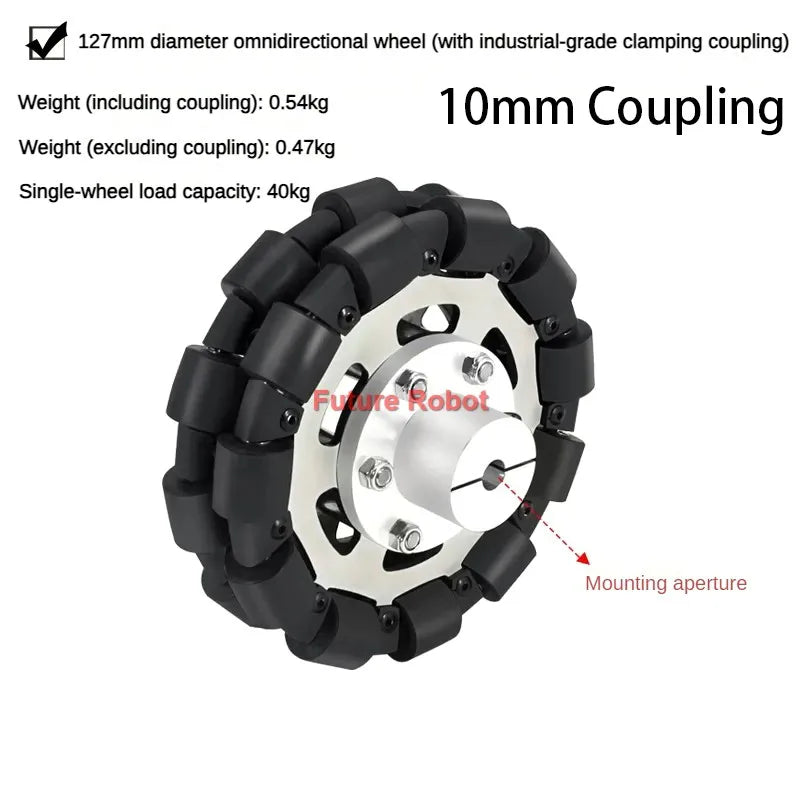

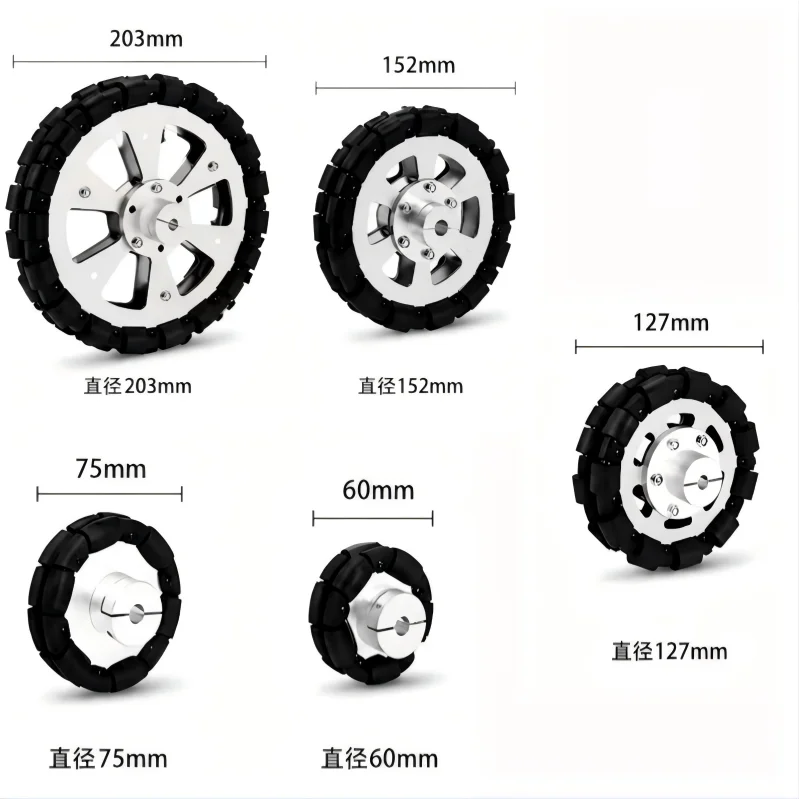

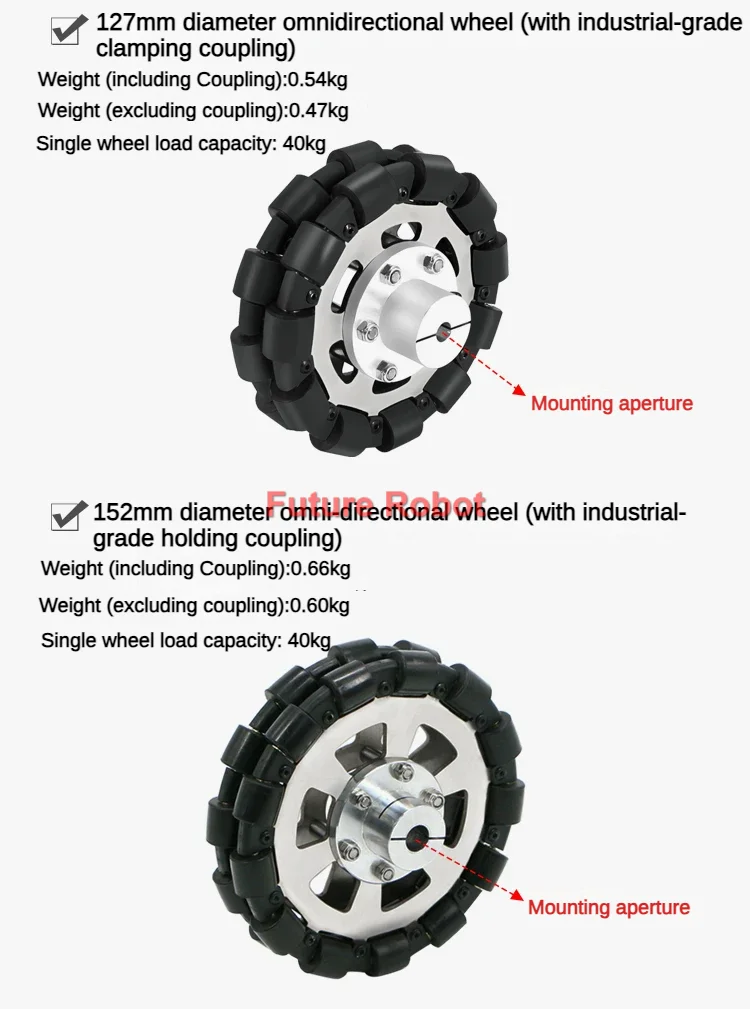

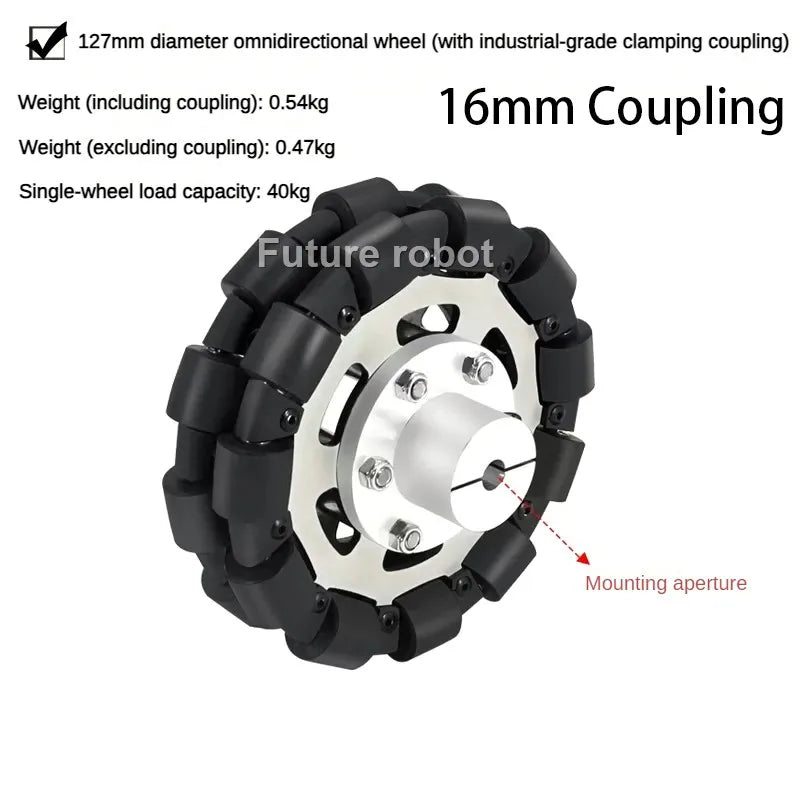

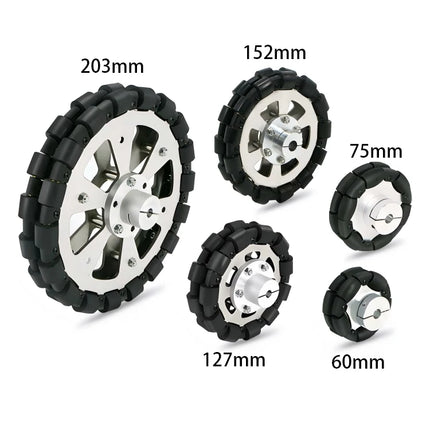

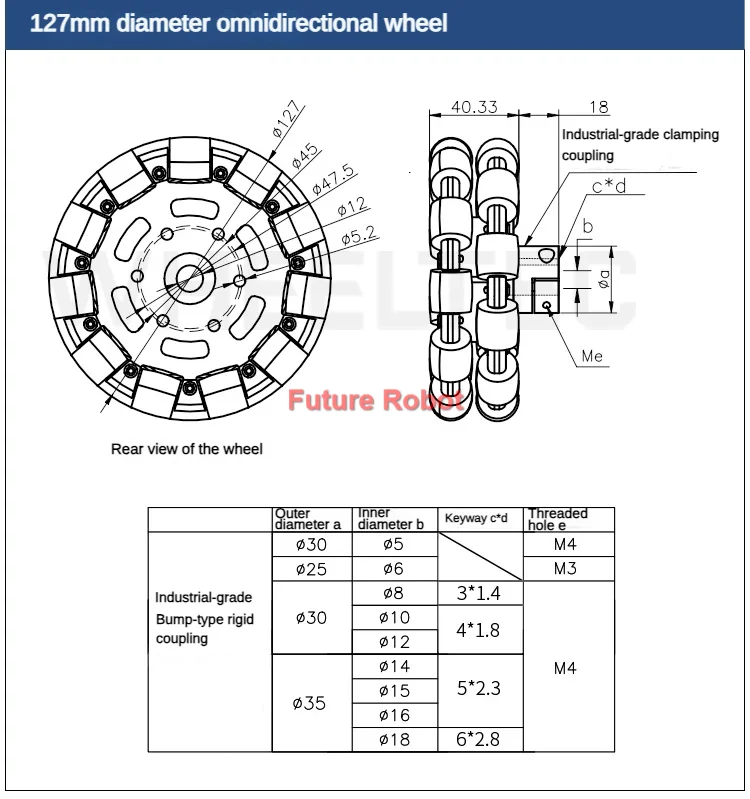

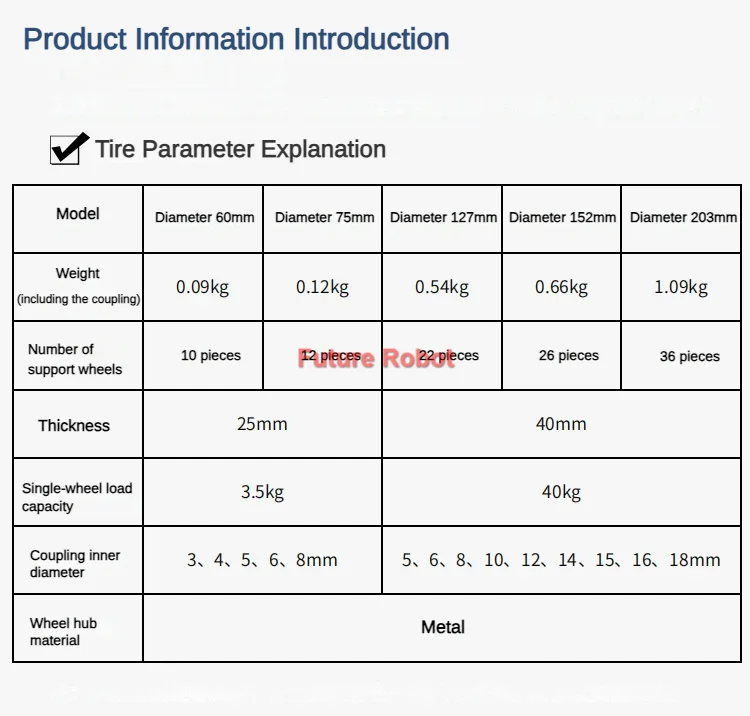

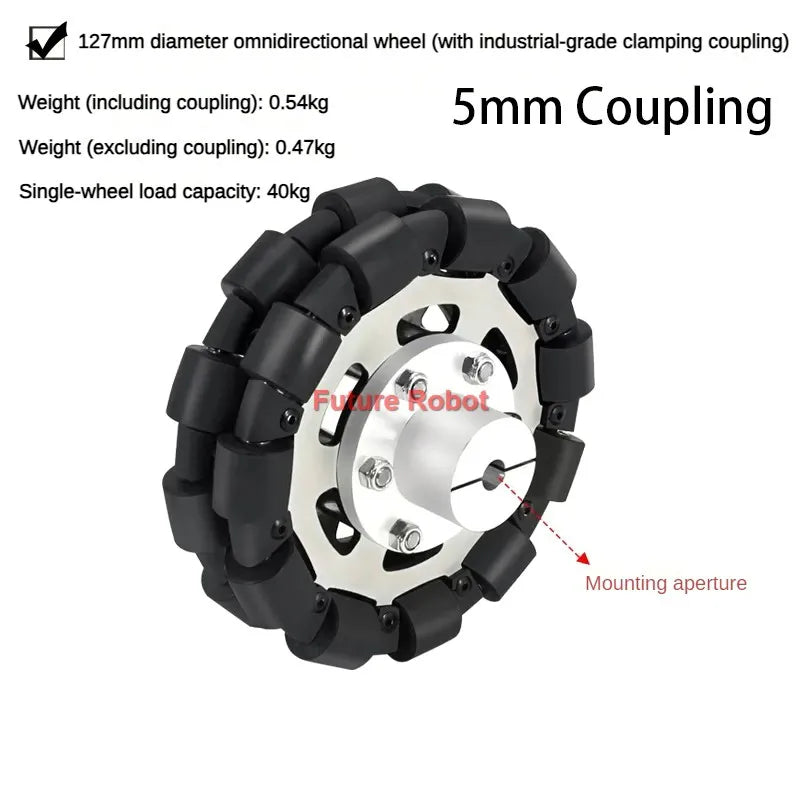

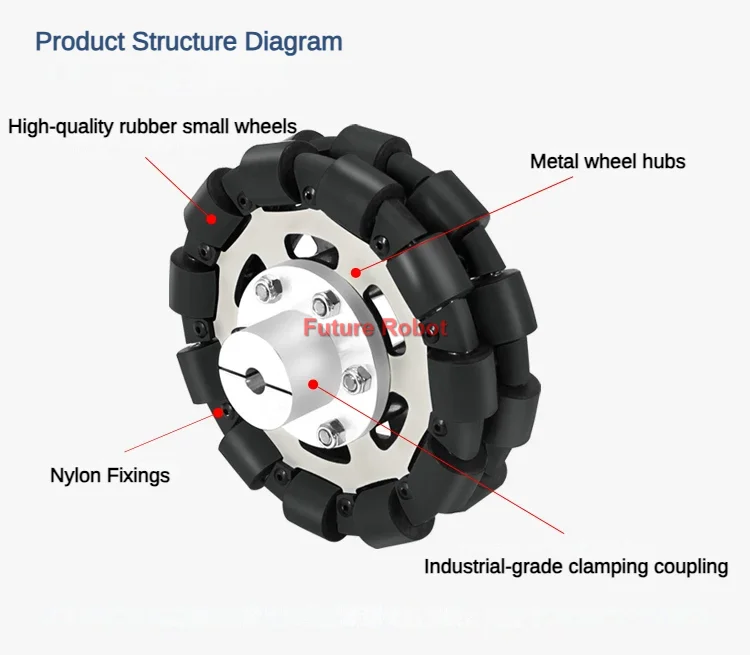

Model Diameter 127mm: Weight (including coupling) 0.54kg, number of support rollers 22 pcs, thickness 40mm, load capacity per roller 40kg, optional coupling inner diameters 5, 6, 8, 10, 12, 14, 15, 16, 18mm, hub material: metal.

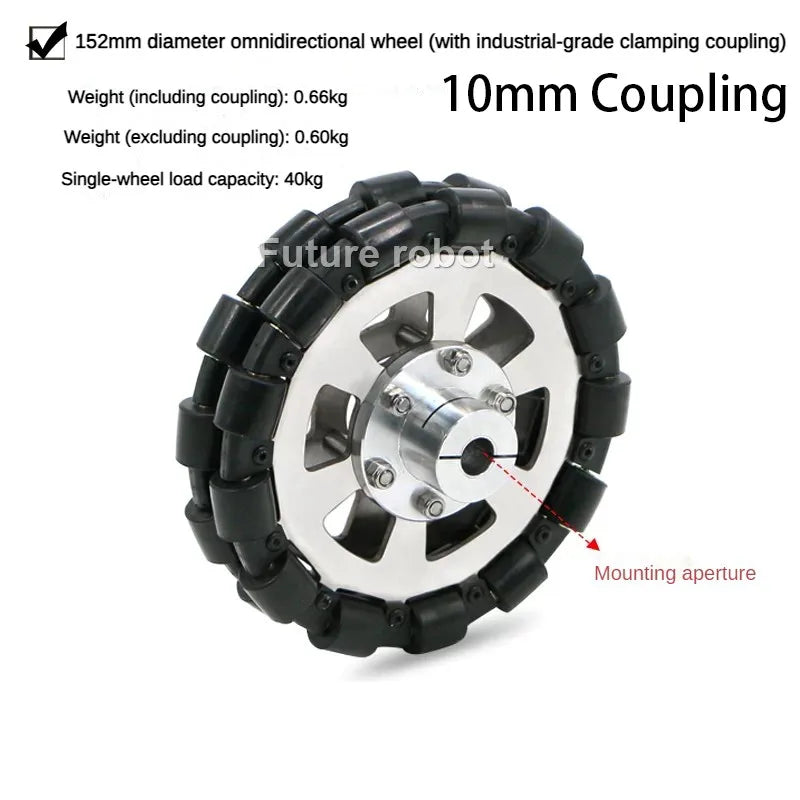

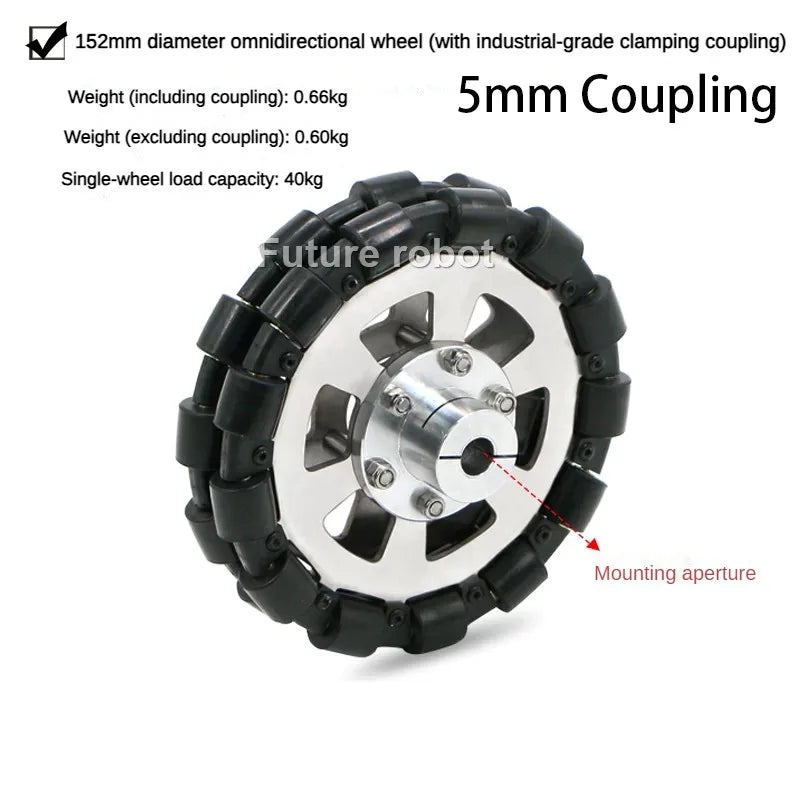

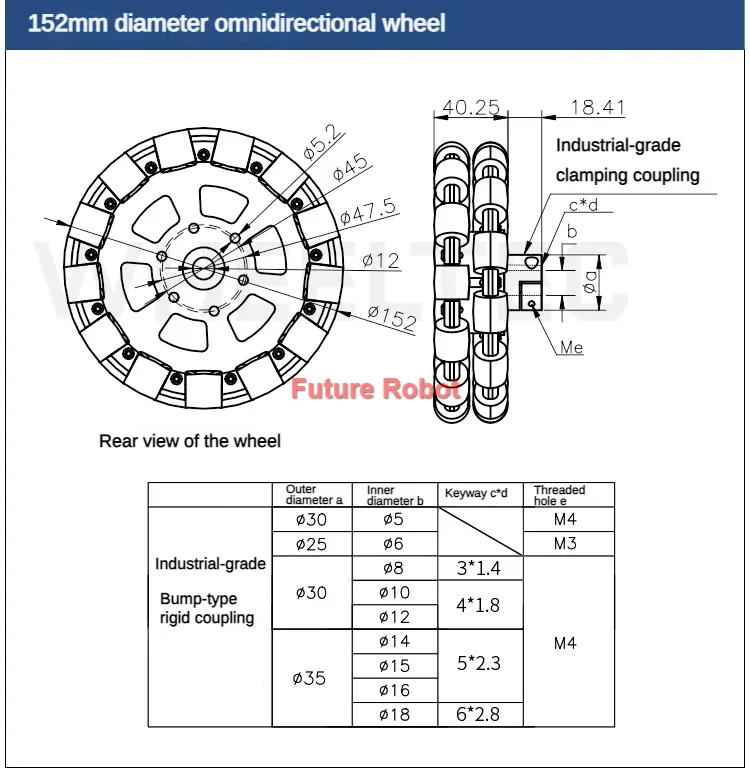

Model Diameter 152mm: Weight (including coupling) 0.66kg, number of support rollers 26 pcs, thickness 40mm, load capacity per roller 40kg, optional coupling inner diameters 5, 6, 8, 10, 12, 14, 15, 16, 18mm, hub material: metal.

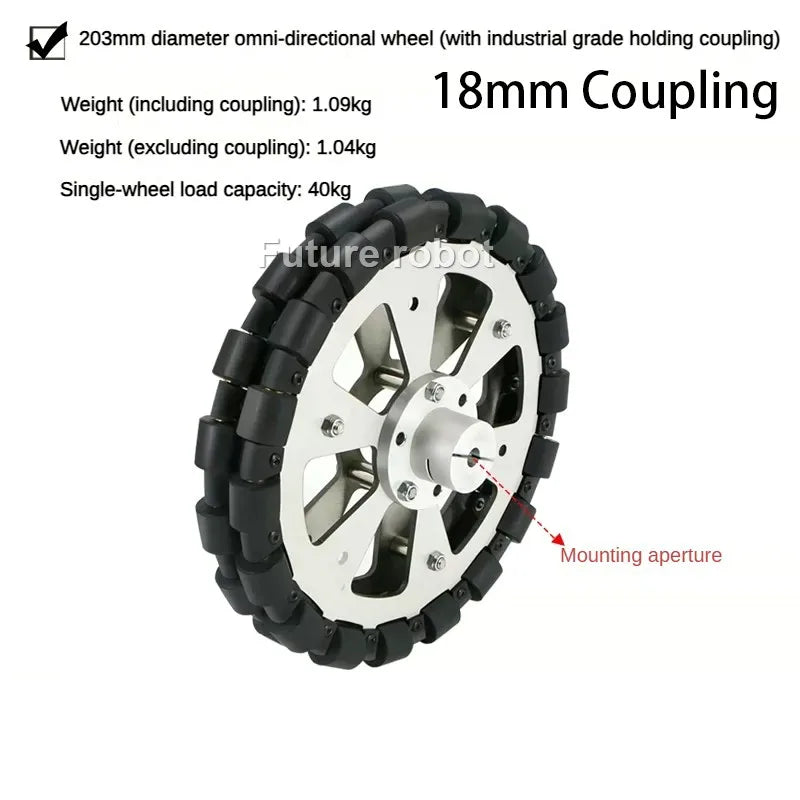

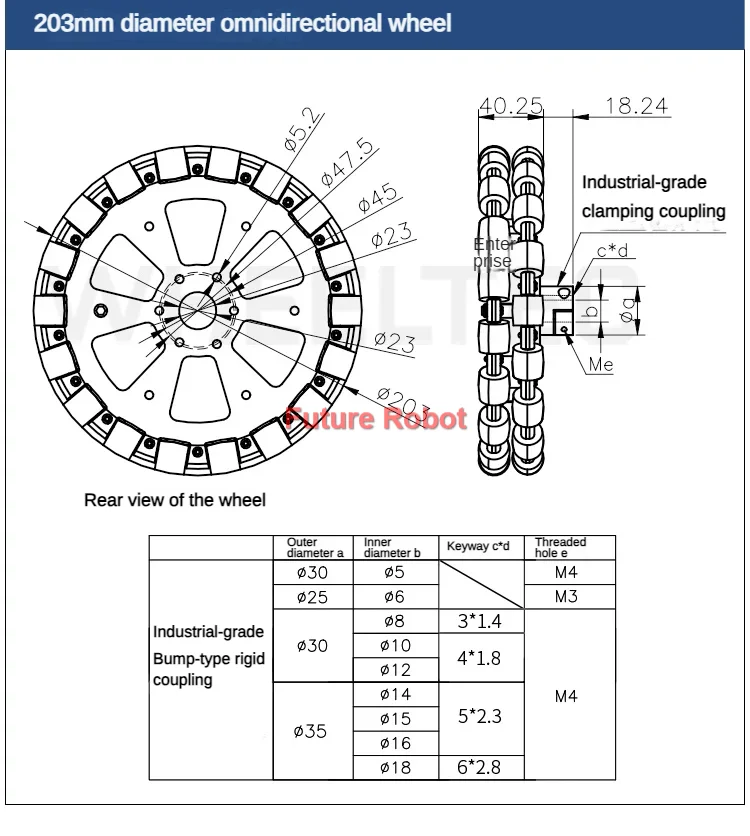

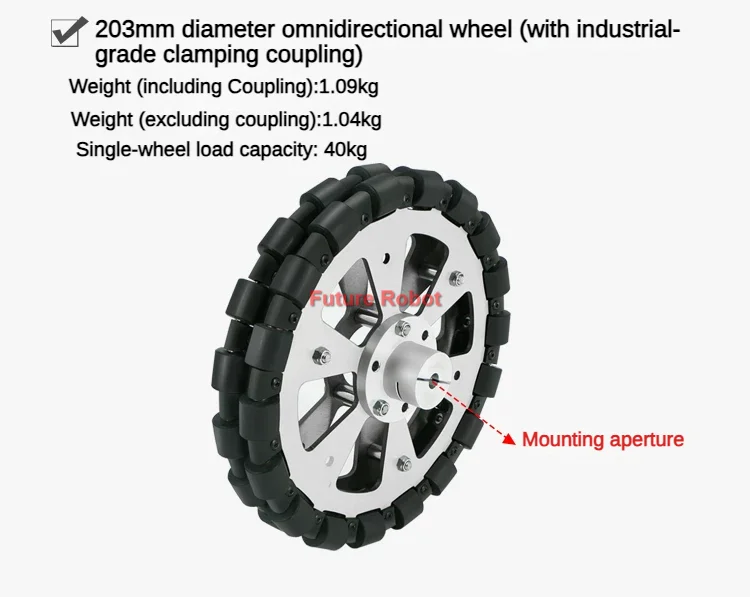

Model Diameter 203mm: Weight (including coupling) 1.09kg, number of support rollers 36 pcs, thickness 40mm, load capacity per roller 40kg, optional coupling inner diameters 5, 6, 8, 10, 12, 14, 15, 16, 18mm, hub material: metal.
Note: Due to manufacturing tolerances, there may be slight deviations in tire diameter. The actual product shall prevail.

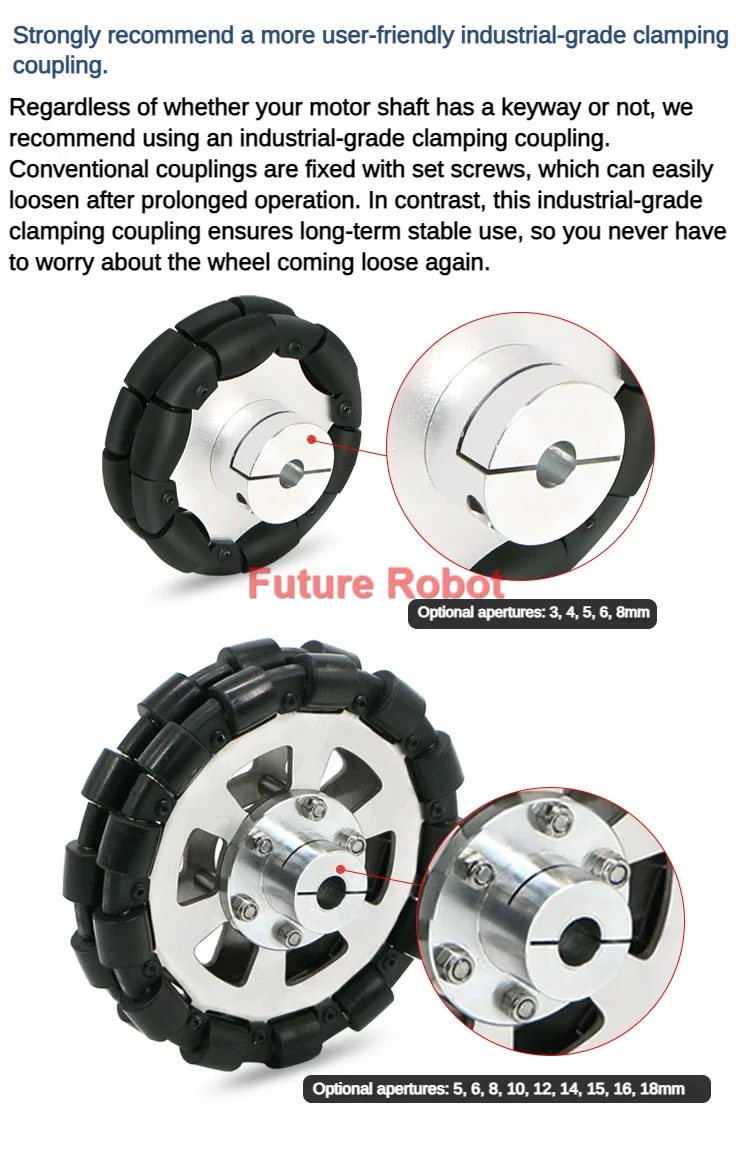

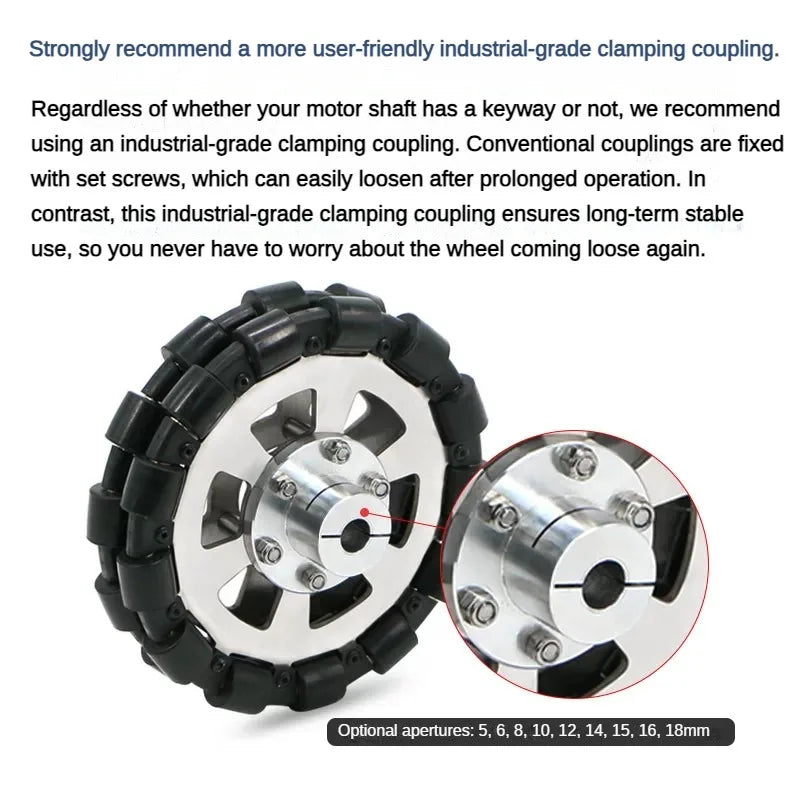

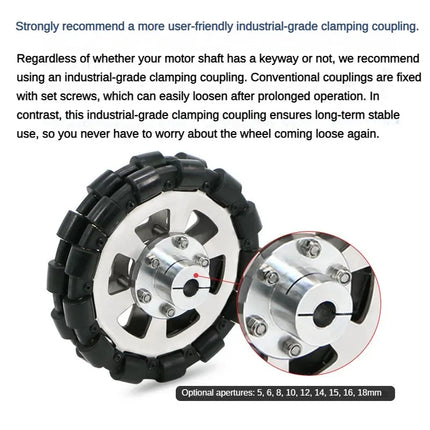

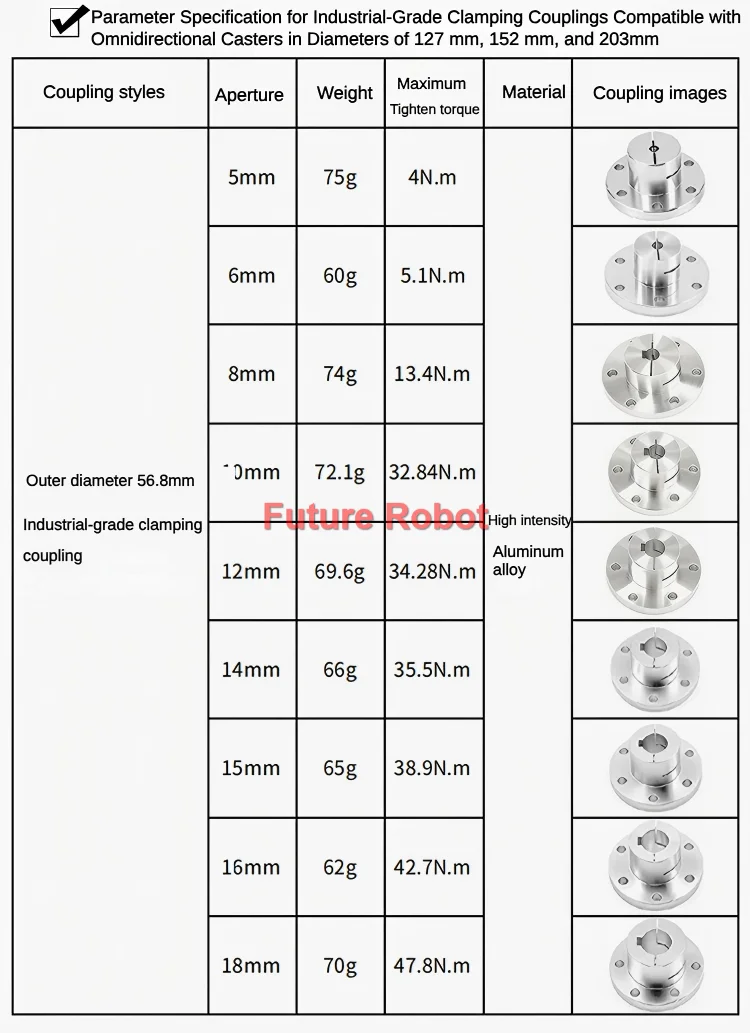

III. Industrial Clamping Coupling Parameters for 127/152/203mm Diameter Omni-wheels
This coupling has an outer diameter of 56.8mm and is made of high-strength aluminum alloy. The weight and maximum clamping torque for each bore diameter are as follows:
Flange coupling 5mm: Weight 75g, maximum clamping torque 4.0N·m.
Flange coupling 6mm: Weight 60g, maximum clamping torque 5.1N·m.
Flange coupling 8mm: Weight 74g, maximum clamping torque 13.4N·m.
Flange coupling 10mm: Weight 72.1g, maximum clamping torque 32.84N·m.
Flange coupling 12mm: Weight 69.6g, maximum clamping torque 34.28N·m.
Flange coupling 14mm: Weight 66g, maximum clamping torque 35.5N·m.
Flange coupling 15mm: Weight 65g, maximum clamping torque 38.9N·m.
Flange coupling 16mm: Weight 62g, maximum clamping torque 42.7N·m.
Flange coupling 18mm: Weight 70g, maximum clamping torque 47.8N·m.
