Description:
Operation:

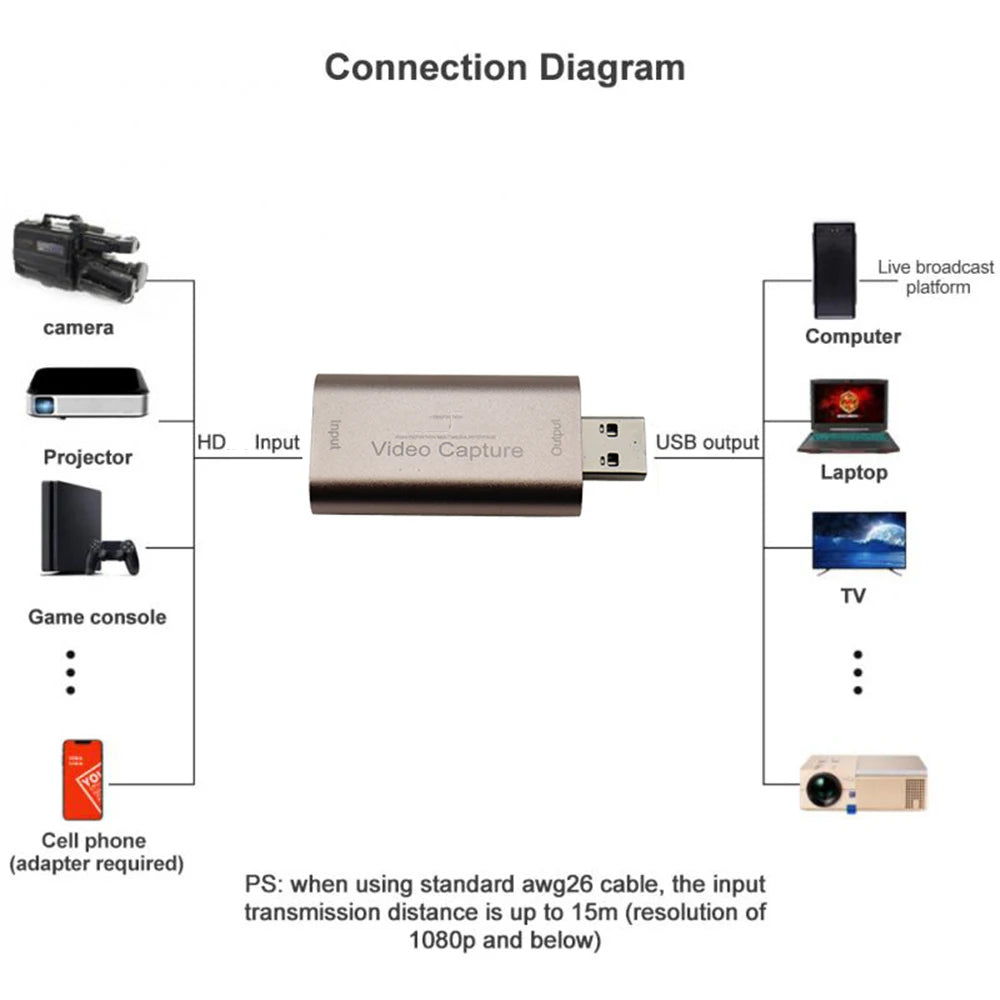

1: use an HDMI-compatible line to connect the UHD signal source of USB acquisition card and HDMI-compatible input port.
2. Insert the USB card of the USB acquisition card into the USB port of the computer.

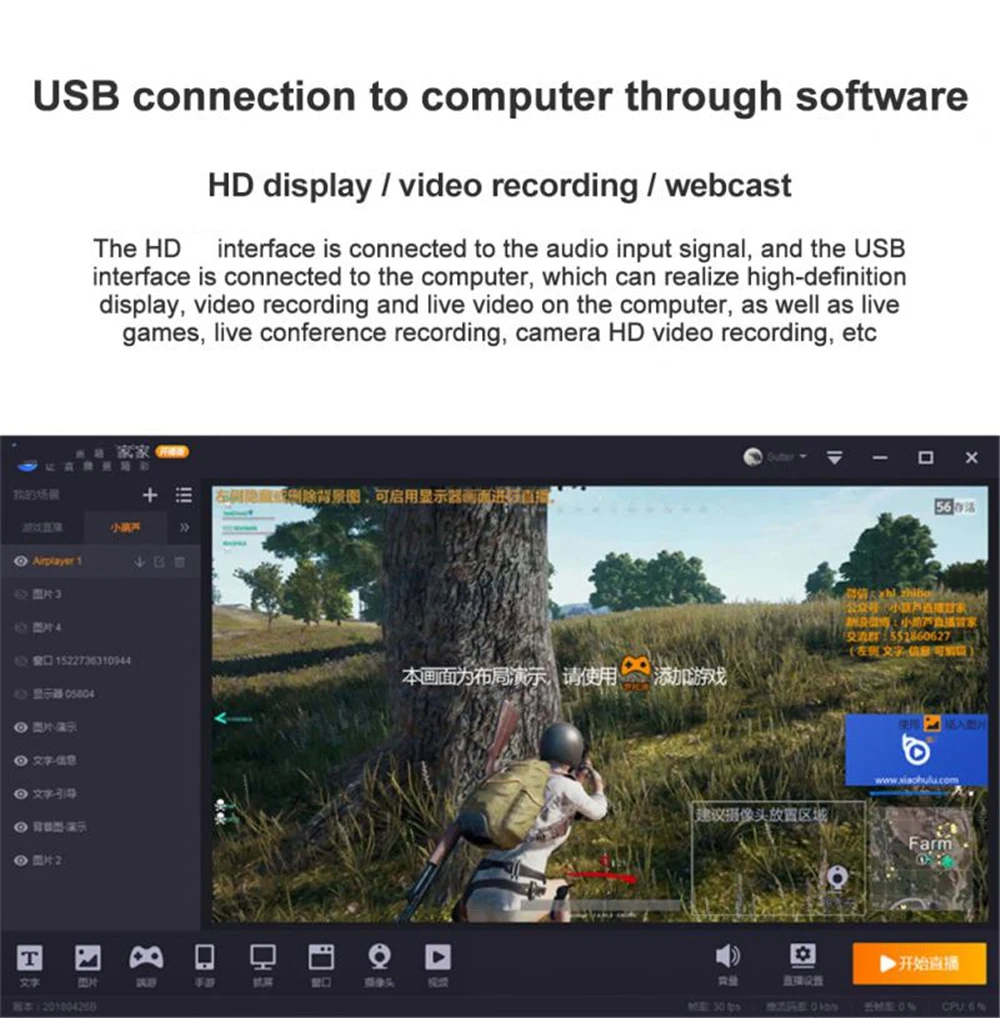

3: Collection operation steps (OBS): open the software-add a new source-select "video capture device"-set the screen size-select "studio mode" (double window)-click "start recording"
Hardware configuration requirements of computer:
CPU: PCi5-3400 or above; NB i7-3537u 2.0GHz or above
Display card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM Note:
Due to the different display and light effects, the actual color of the project may be slightly different. Please refer to the user's manual for details.
Product specifications:
HDMI-compatible resolution ........................................... maximum input can support 4K/1080P.
Input video format ............................................................ 8/10/12 bit color depth
Video output mode ............................................................... YUV, JPEG
The maximum output resolution of video output resolution ............................................ is 1080P.
Support audio format ........................................................................ L-PCM
Input cable length ................................ ≤ 15m, AWG26 HDMI-compatible standard cable
The maximum working current ................................................................. is 0.4A/5VDC.
Operating temperature range ............................................................. (-10 to 55℃)
......................................... size 64x28x13 (mm)/2.52x1.1x0.51 inch
The weight of ......................................................................................... is 21.4g
Specifications:
Product description:

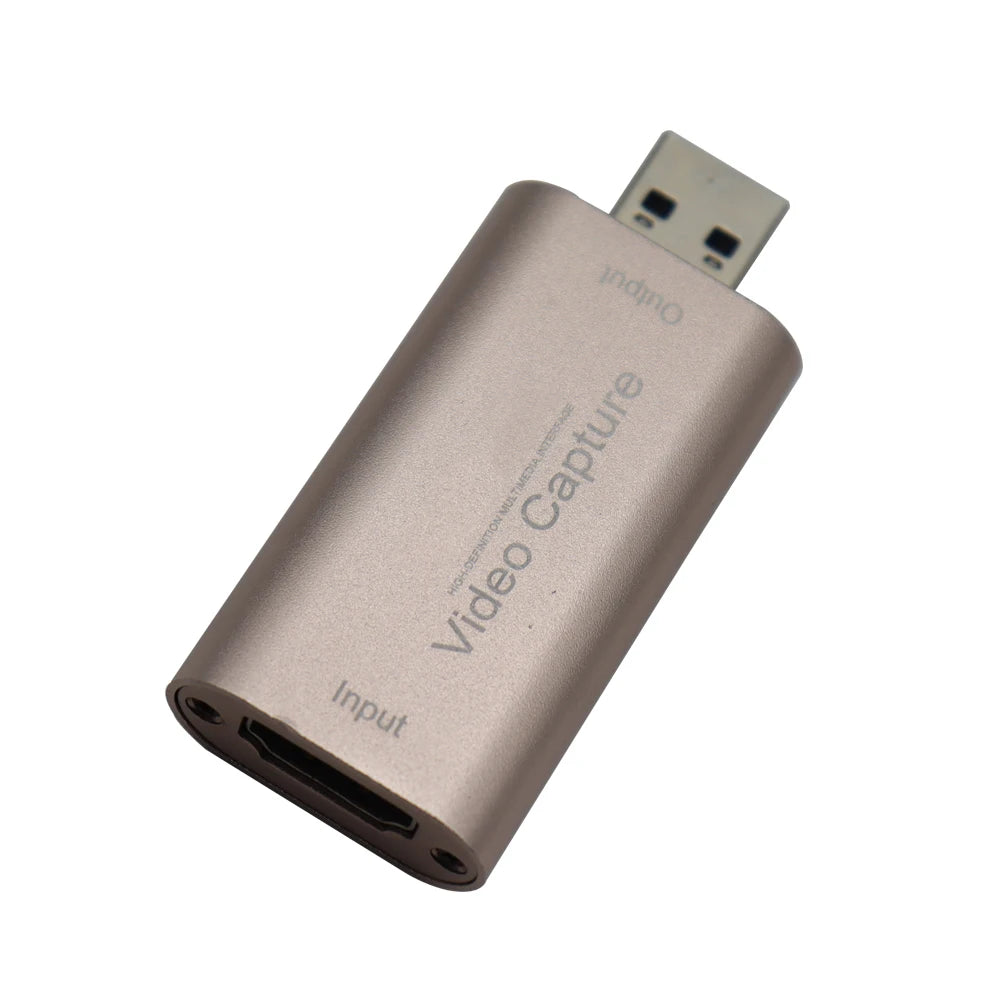

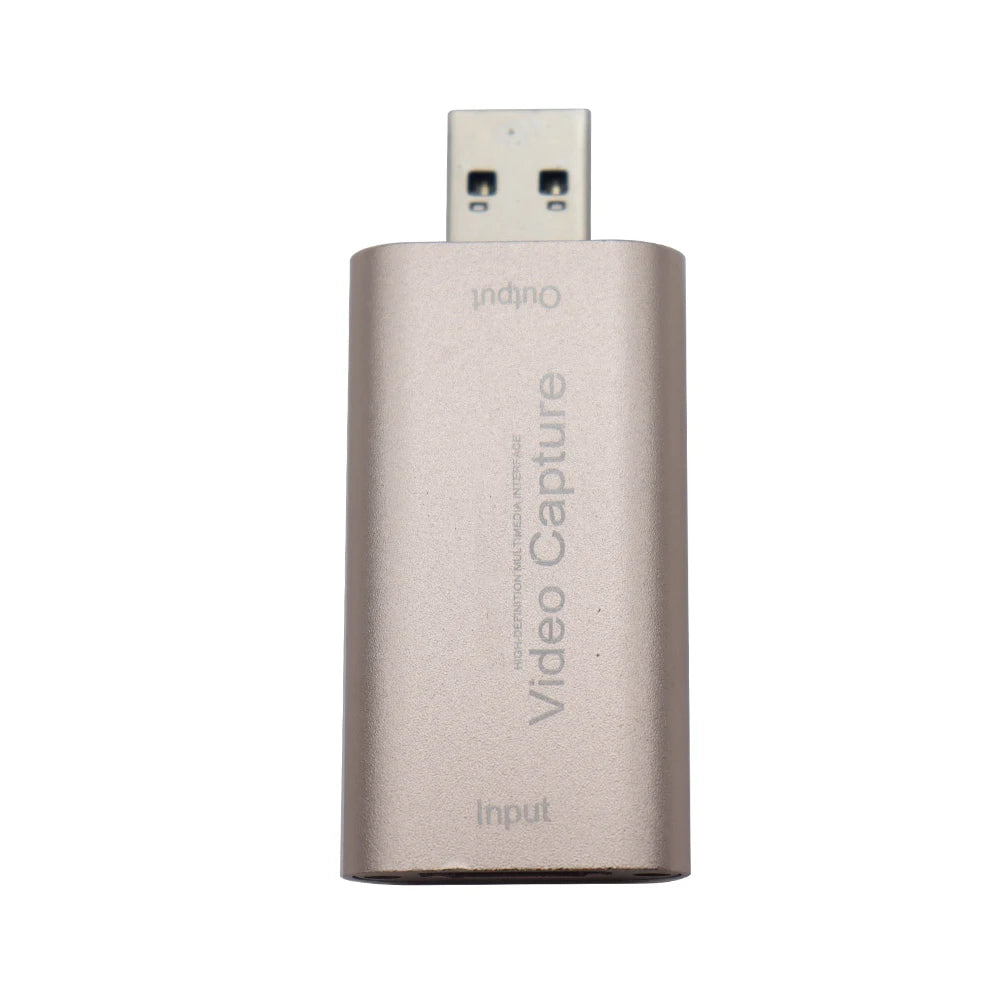

This USB 2.0/3.0 acquisition card can collect both HDMI-compatible video and HDMI-compatible audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.
Product features:
* Support the maximum input resolution of 4K/1080P;
* Support 8/10/12 bit color depth;
* Support the input transmission distance of 15m (1080P and below) when using standard AWG26 cable;
* Support most acquisition software, such as VLC, OBS, Amcap,switch,Xbox One etc.
* Support Windows, Android and MacOS;
* Comply with USB video UVC specification;
* comply with USB audio UAC specification;
* No need for external power supply, small size and easy to carry.
Package Included:
1*Video Capture
1* instructions
