SPECIFICATIONS

Description

This is a small continuos servo compatible with technical parts, the output axle is cross axles. It is mainly used to drive wheels or gears.

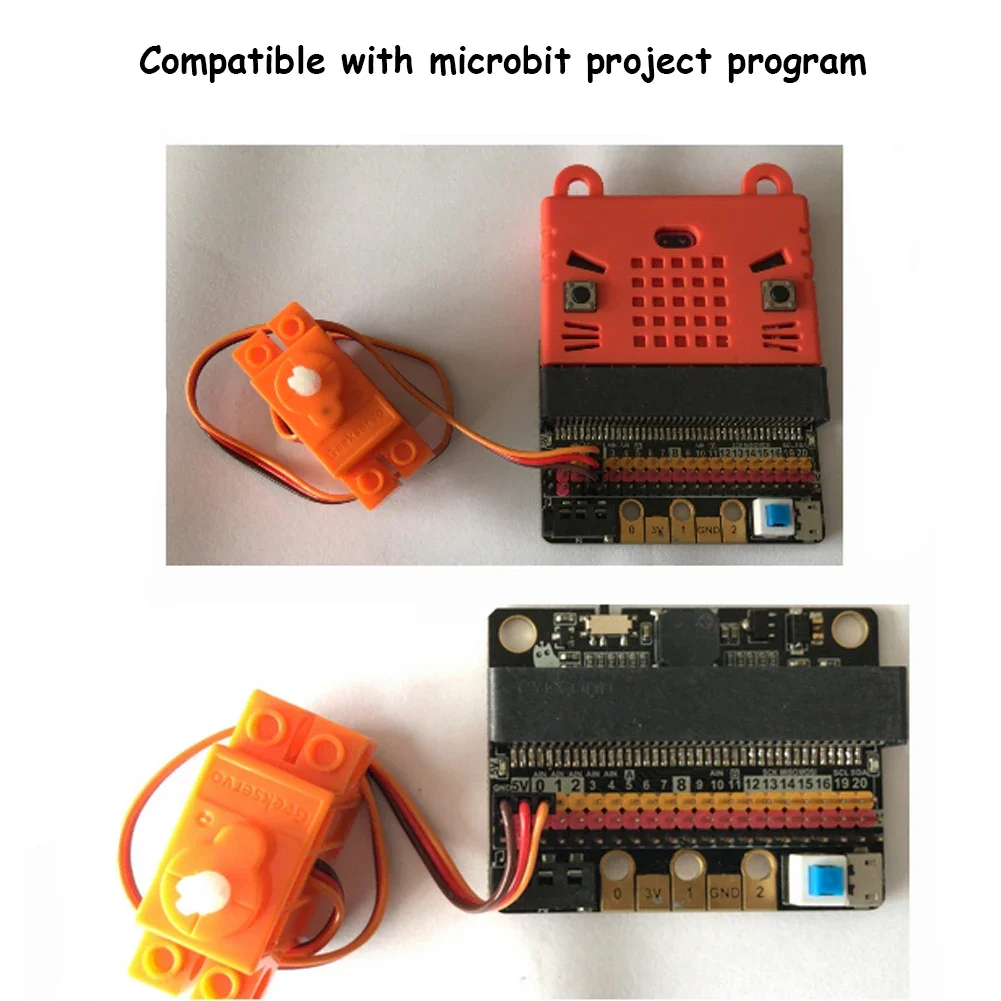

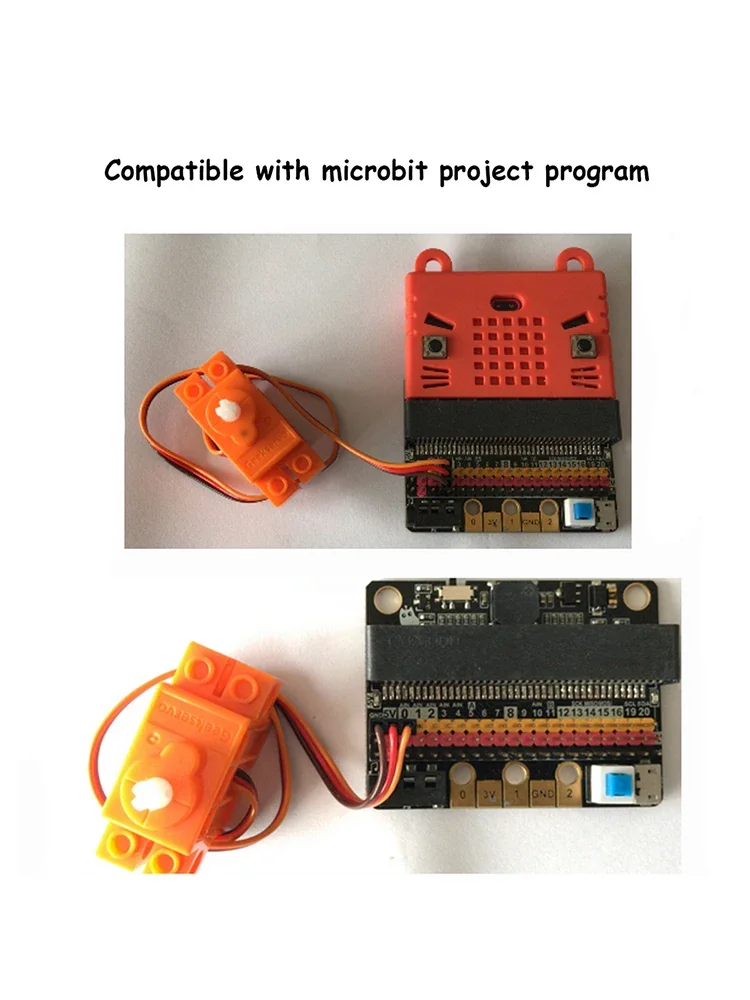

This is a special servo because it can be used as a motor for boards that lack a motor drivers, for example IOBit. They can be controlled simply with IO pins.

Specifications

Operating Voltage: 3.3V~6V

Rated Voltage: 4.8V

Rated Current: 200ma

Blocked Rotor Current: 700ma

Slipping Current: 450ma

Maximum torque: 500g/cm(4.8V)

Maximum RPM: 70rpm

Weight: 12.4g

Connector: Orange-Red-Brown Servo Connector

Geekservo Features

Clutch Protection:

▪ In case of violent turning of the output axle, the clutch is enabled to protect the gears from damage.

Flexible Installation:

▪ Can be mounted on standard bricks or with Technical elements, providing a lot of possibilities for installation.

Small and lightweight:

▪ Suitable for small robotic projects.

Does not require motor driver:

▪ Suitable for expansion boards that lack a motor driver.

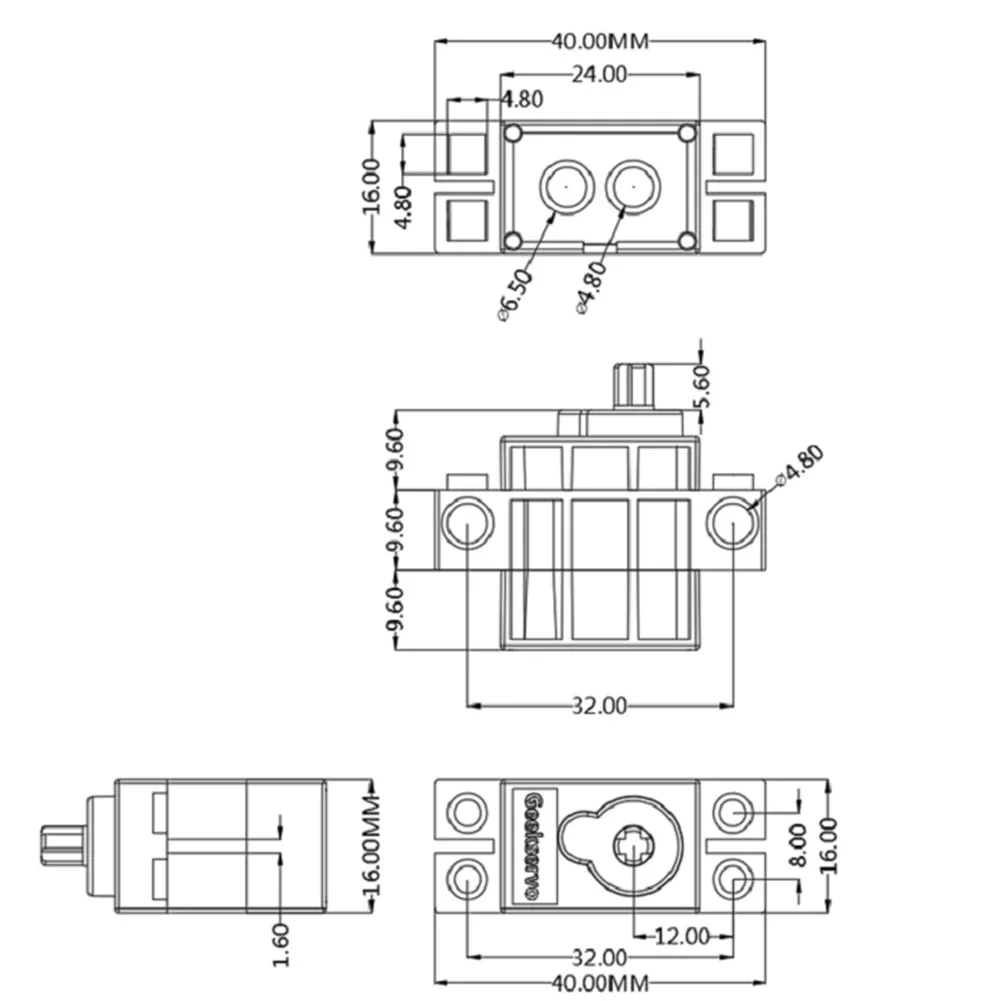

Dimensions:

Length: 5L

Width: 2L

Height: 3L

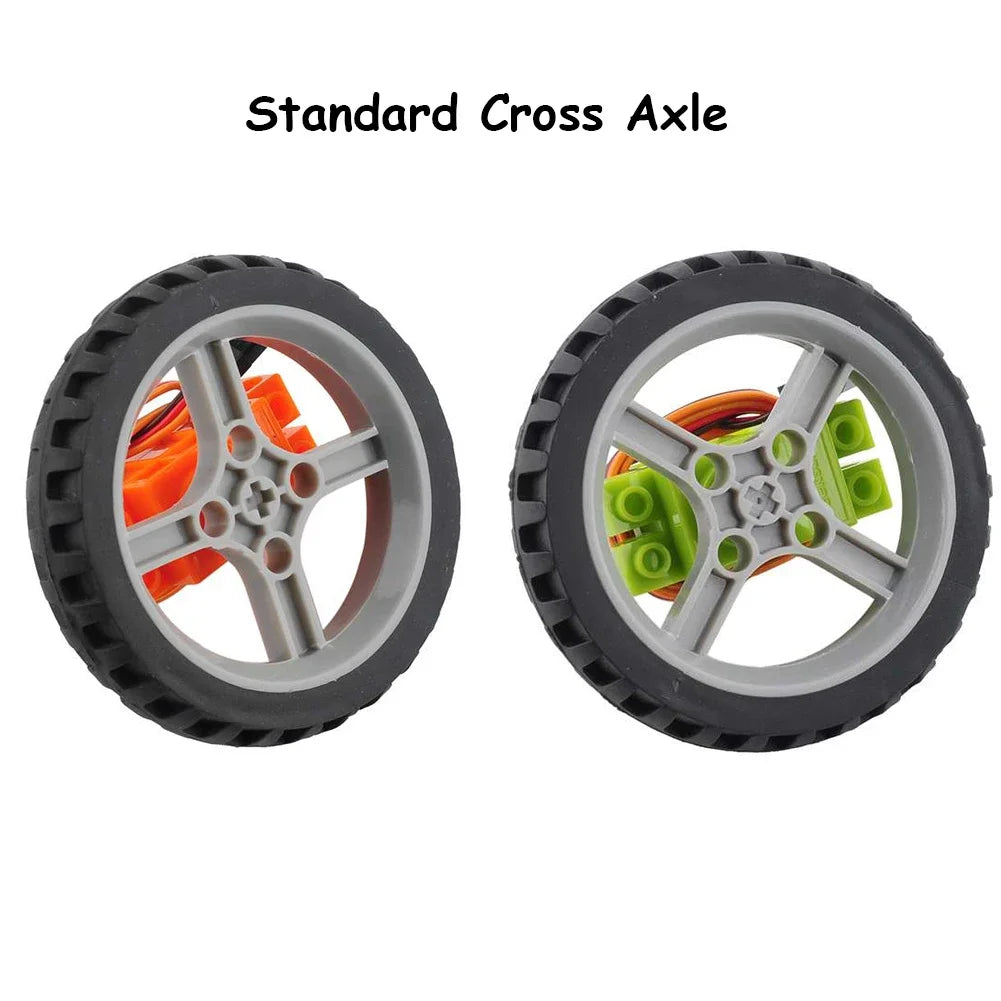

Output axle: Cross Axle

In mm units:

Length: 40mm

Width: 16mm

Height: 34.4mm

Output axle: Corss Axle

Package Included:

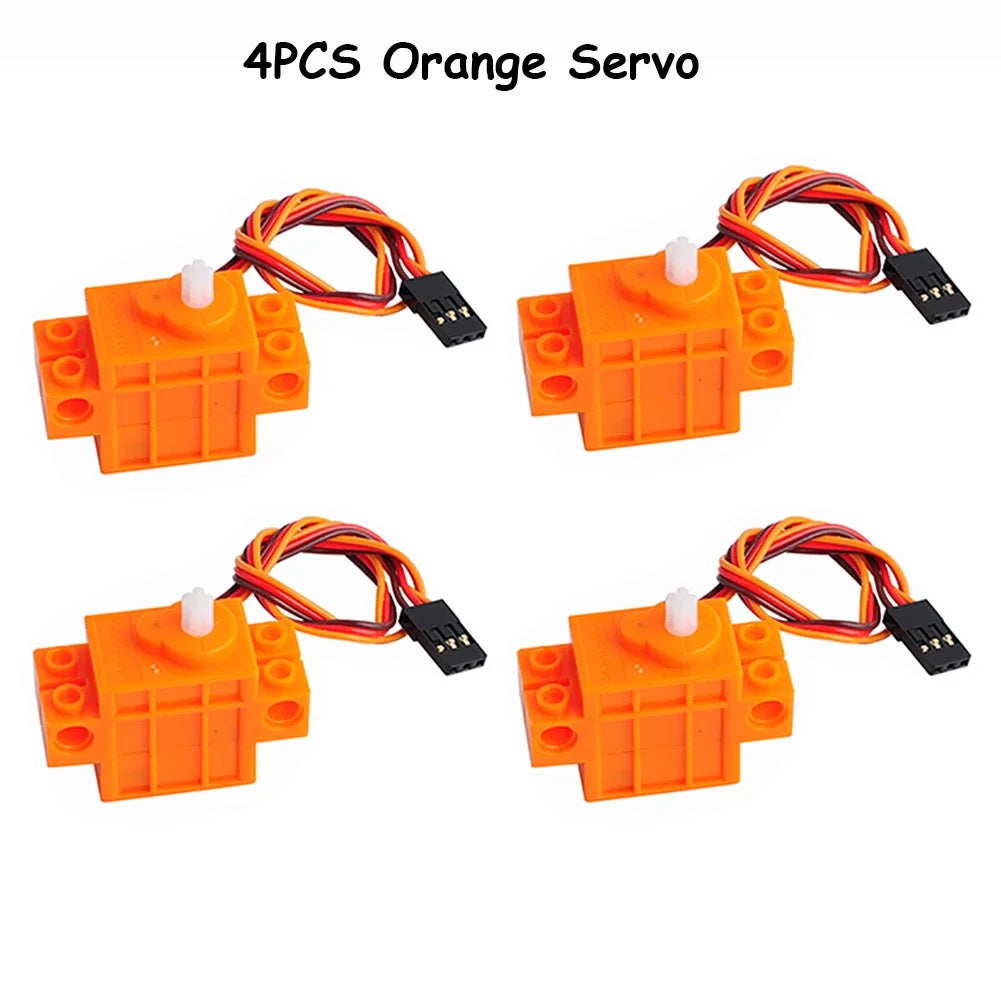

Bundle 1 - 4PCS Orange Servo

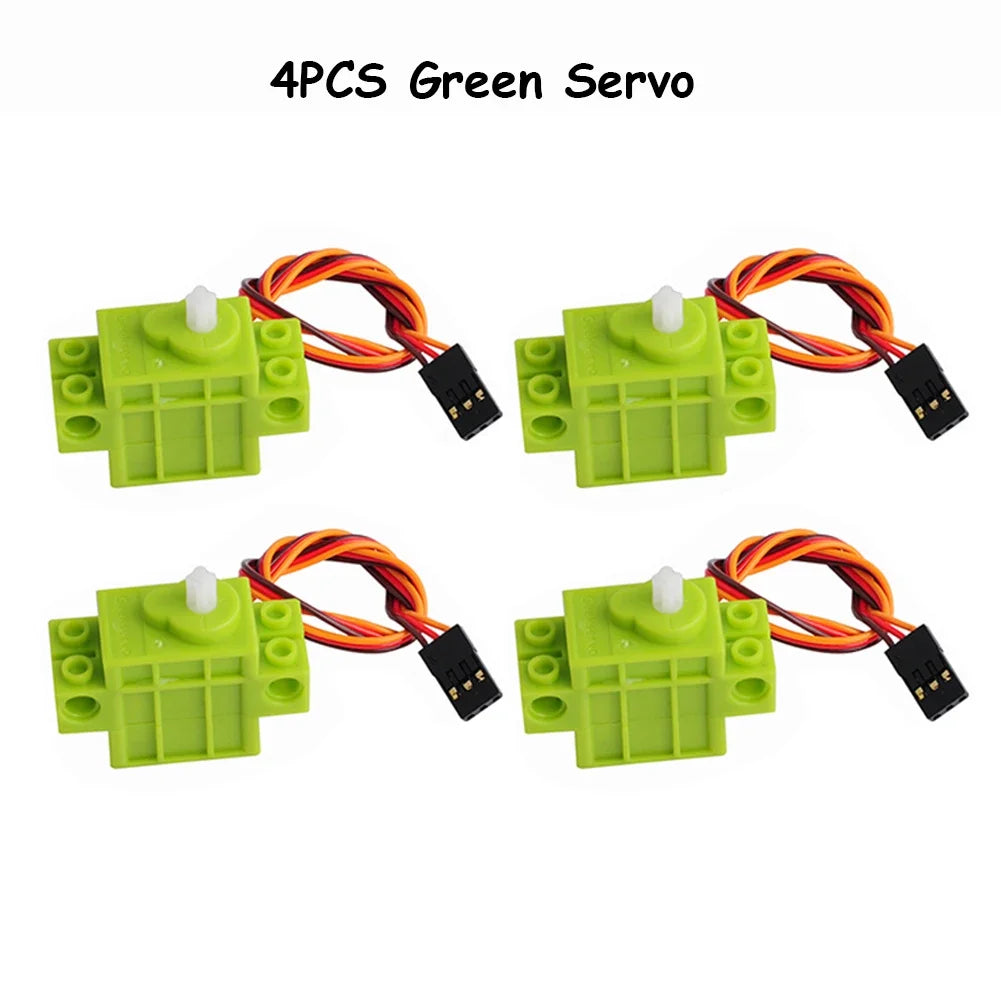

Bundle 2 - 4PCS Green Servo

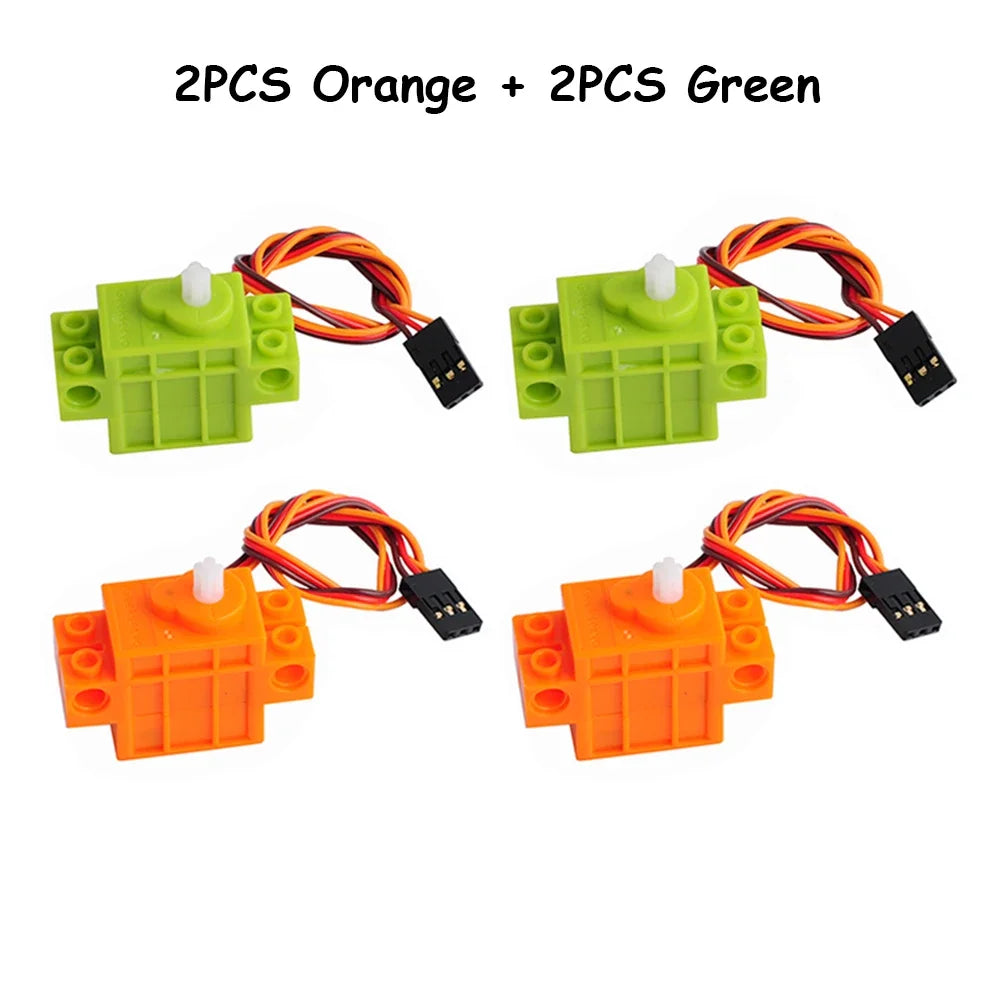

Bundle 3 - 2PCS Orange Servo + 2PCS Green Servo

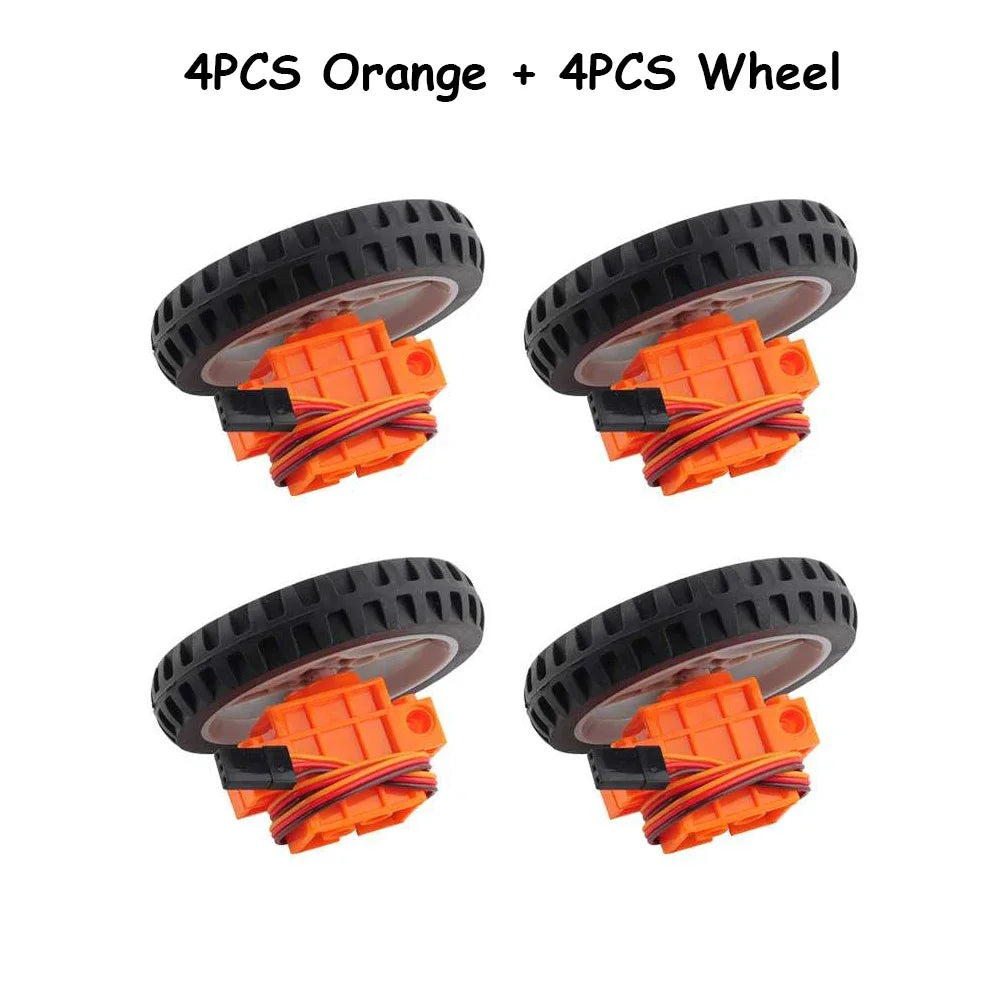

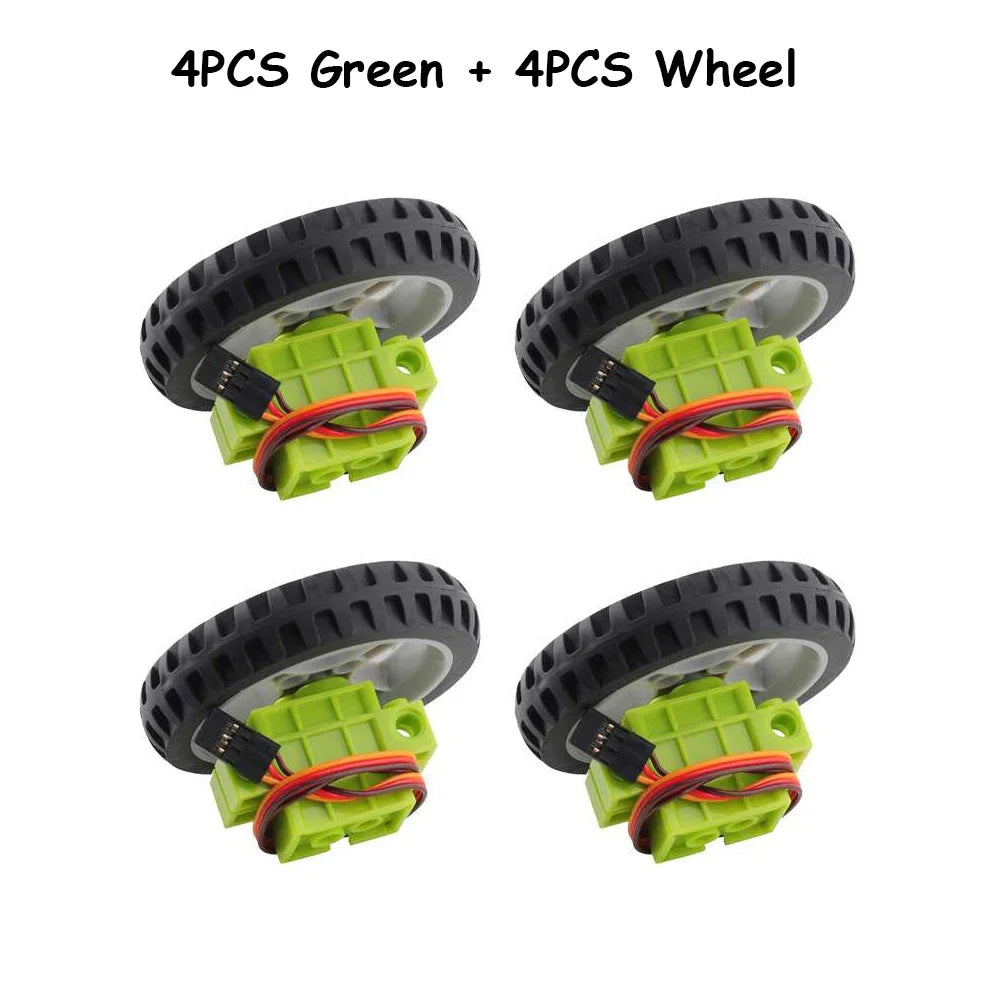

Bundle 4 - 4PCS Orange Servo + 4PCS Wheel

Bundle 5 - 4PCS Orange Servo + 4PCS Wheel

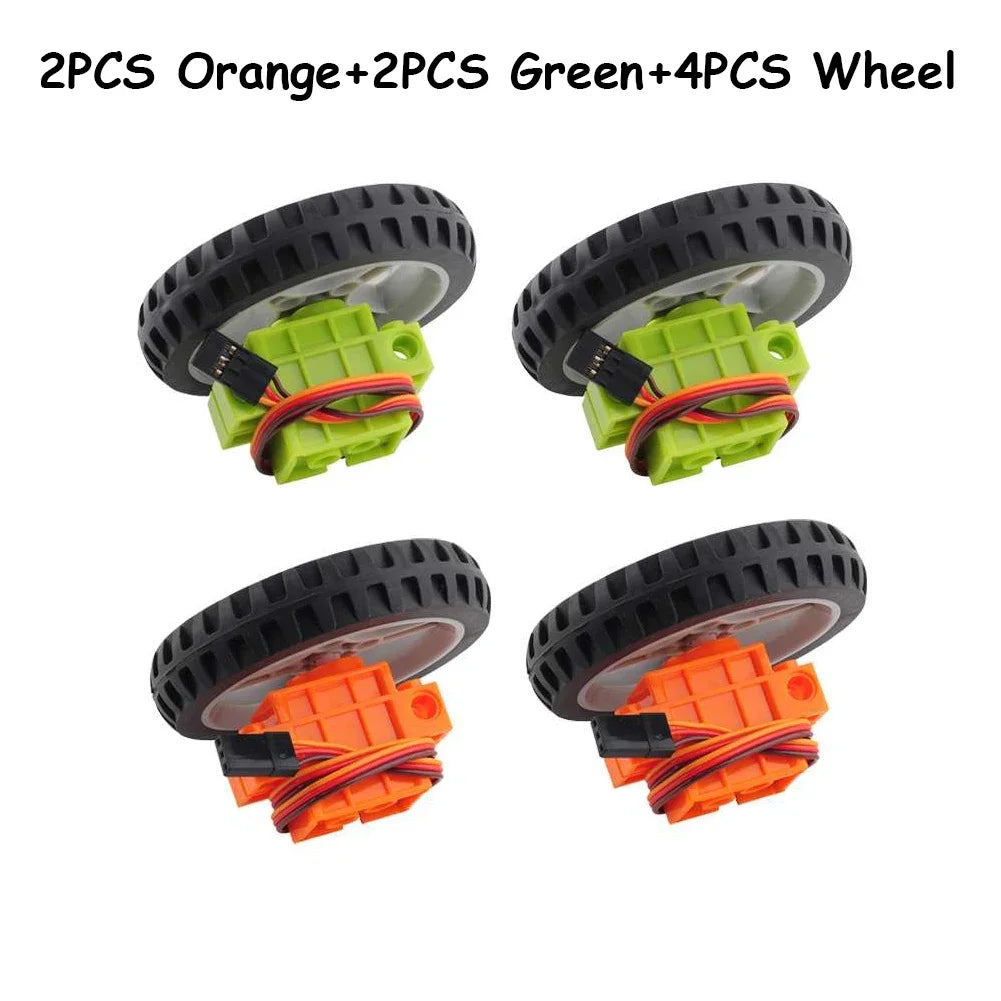

Bundle 6 - 2PCS Orange Servo + 2PCS Green Servo + 4PCS Wheel

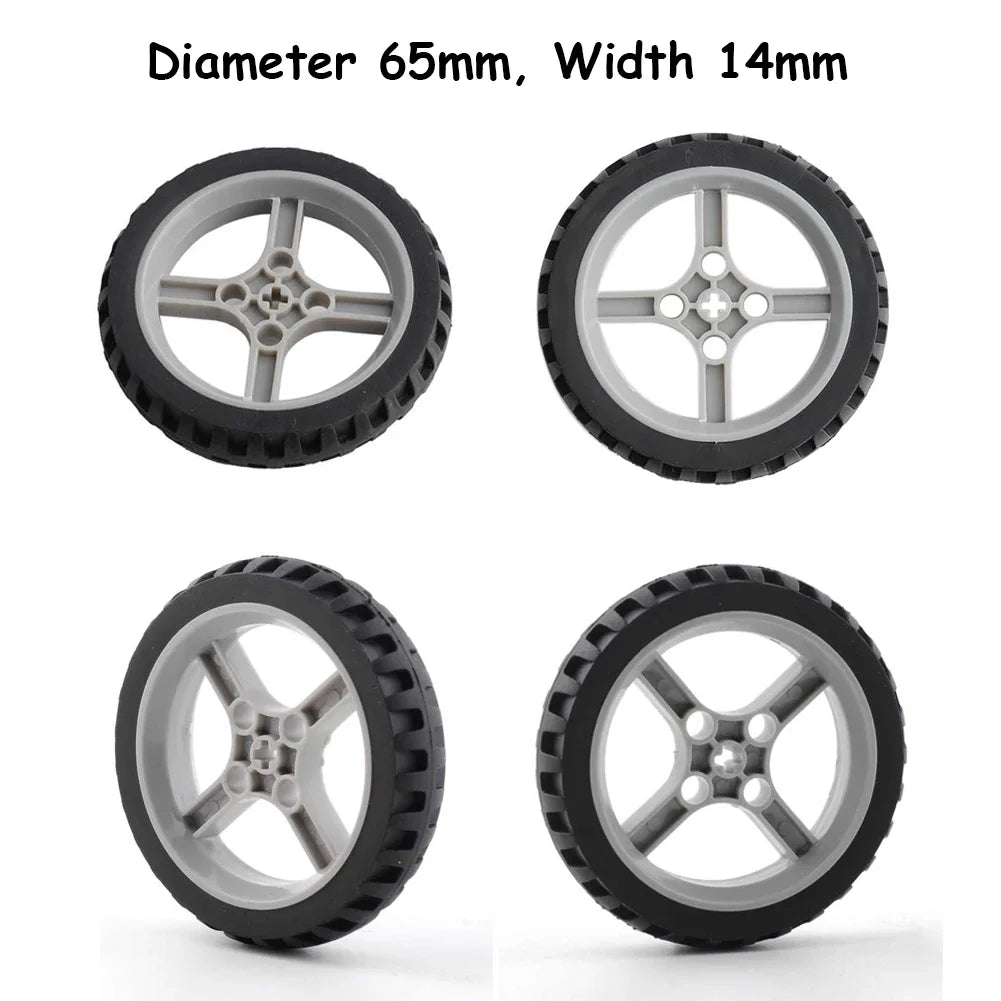

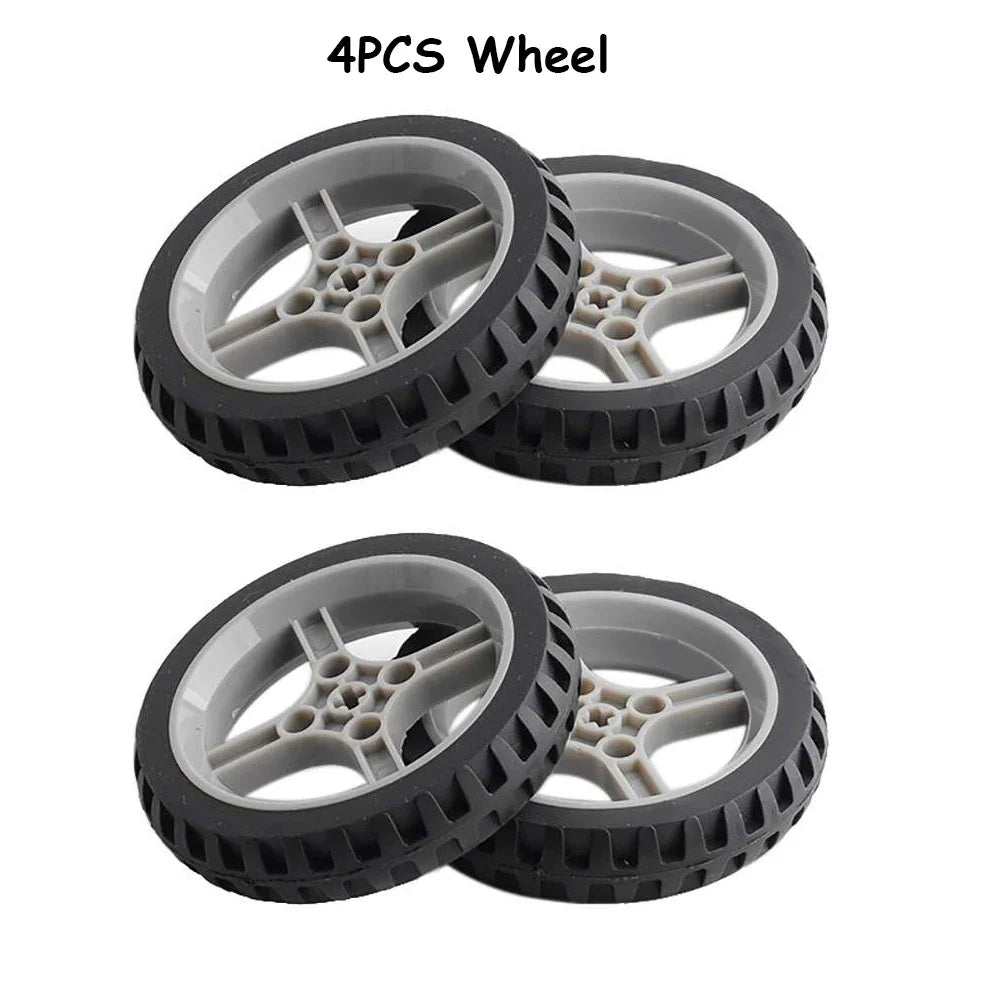

Bundle 7 - 4PCS Wheel
