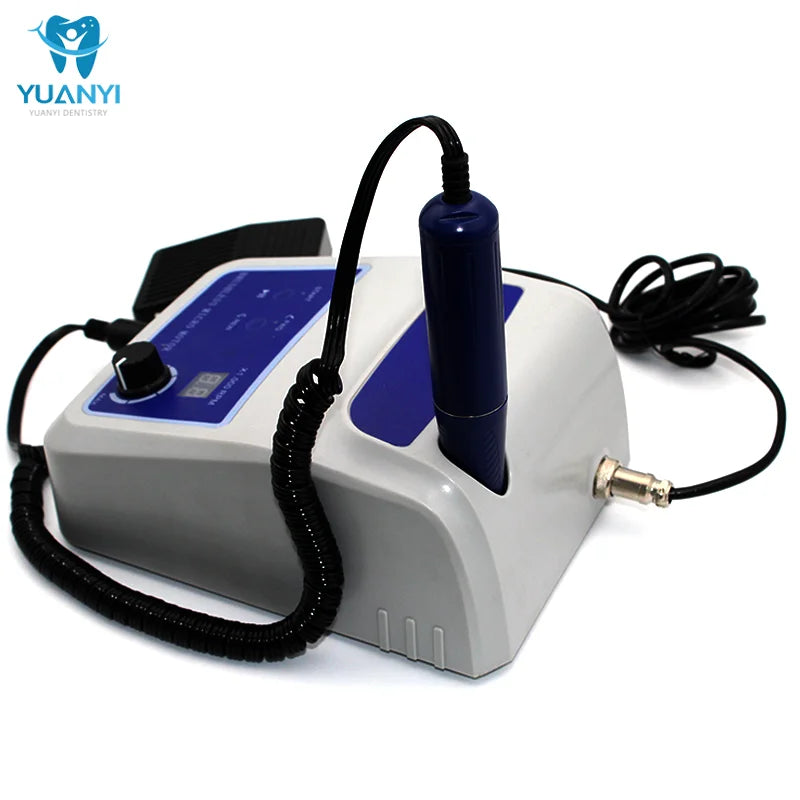

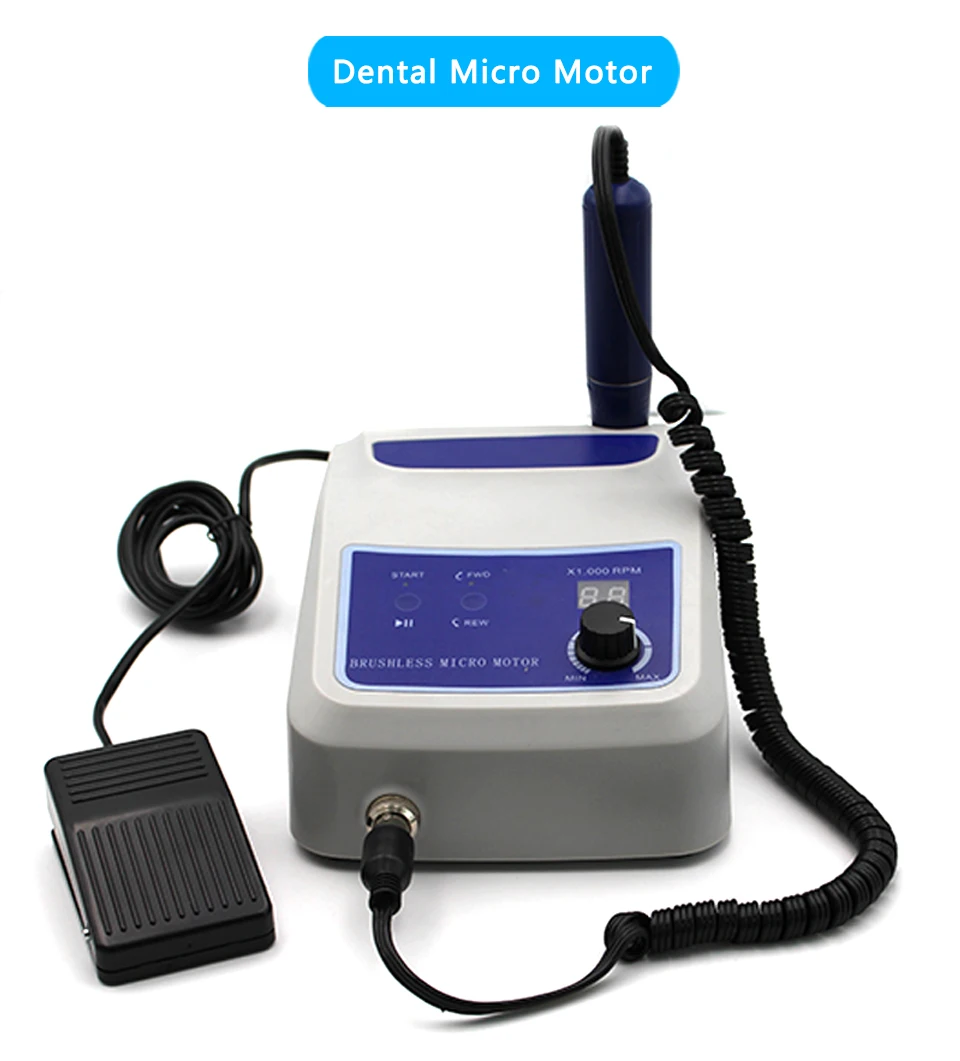

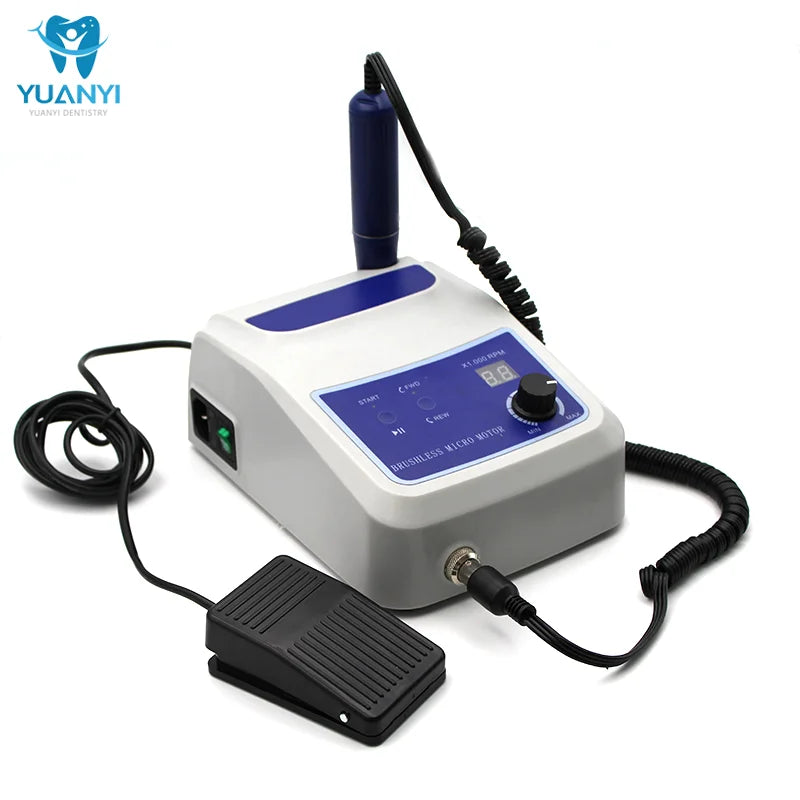

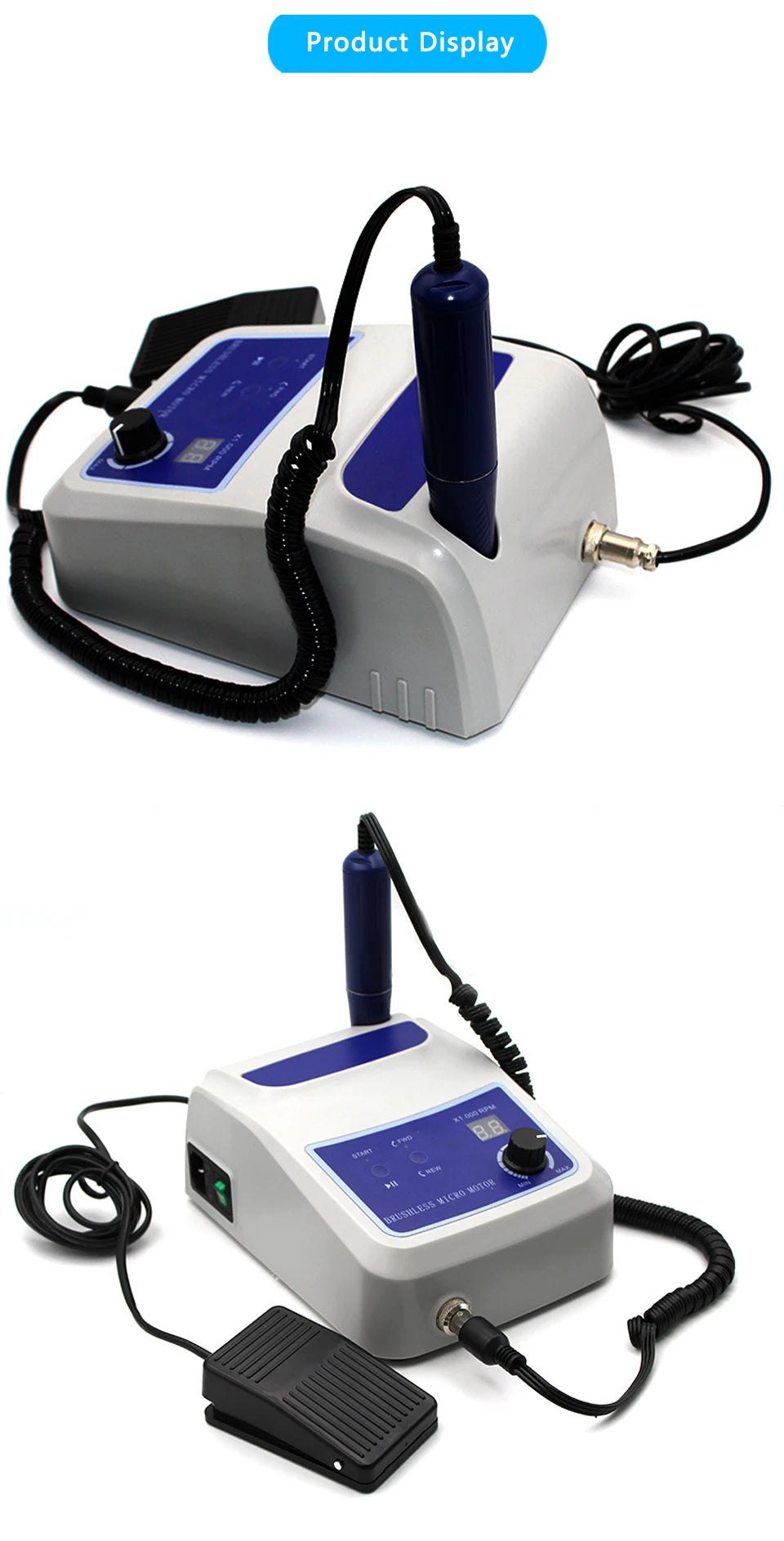

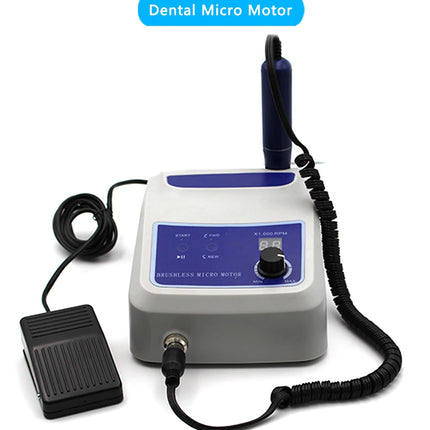

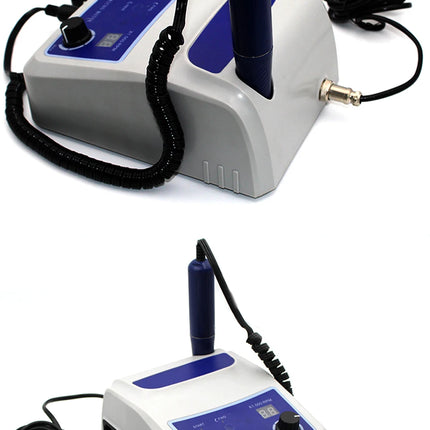

Micro motor N5
Application
lab equipment, jewelry engraving, nail art, wood carving..etc.
Voltage: AC220-240V 50HZ/60HZ
Power: 100W
Rotating Speed: 1000-50000rpm
Collet: 2.35mm
Fuse: 2A(220V)
maximum current: 1.2A
Torque: 6N/cm
Advantage
1. Mini-compact design, easy to carry

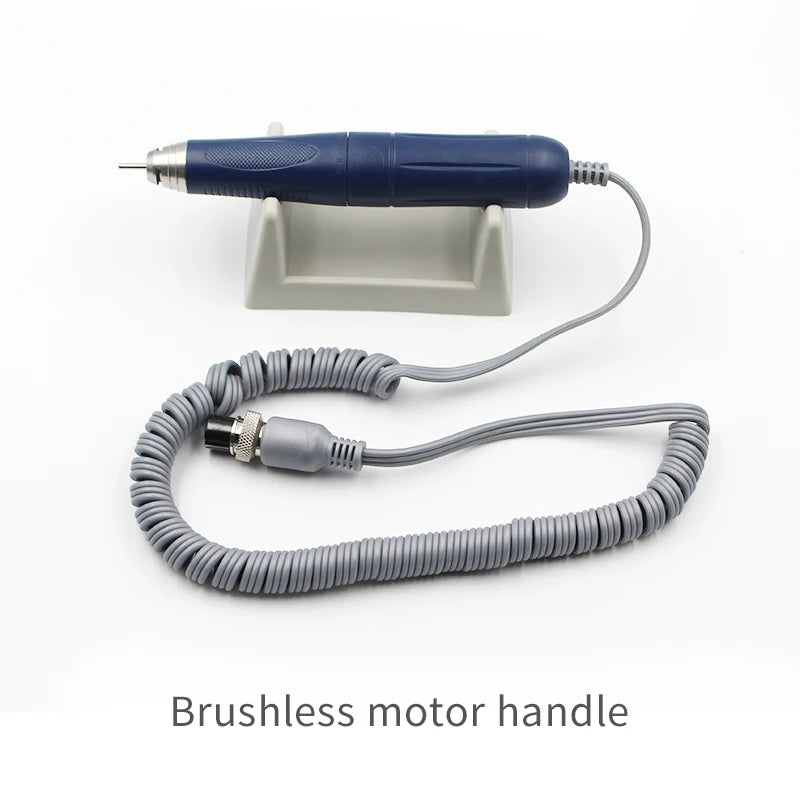

2. Less-vibration standard brushless motor
3. Non stage speed control system
4. Rotating converts forward and reverse control ability
5. Easy maintenance of brushless motor, no sparkle
6. disturbance and have better torque and durability

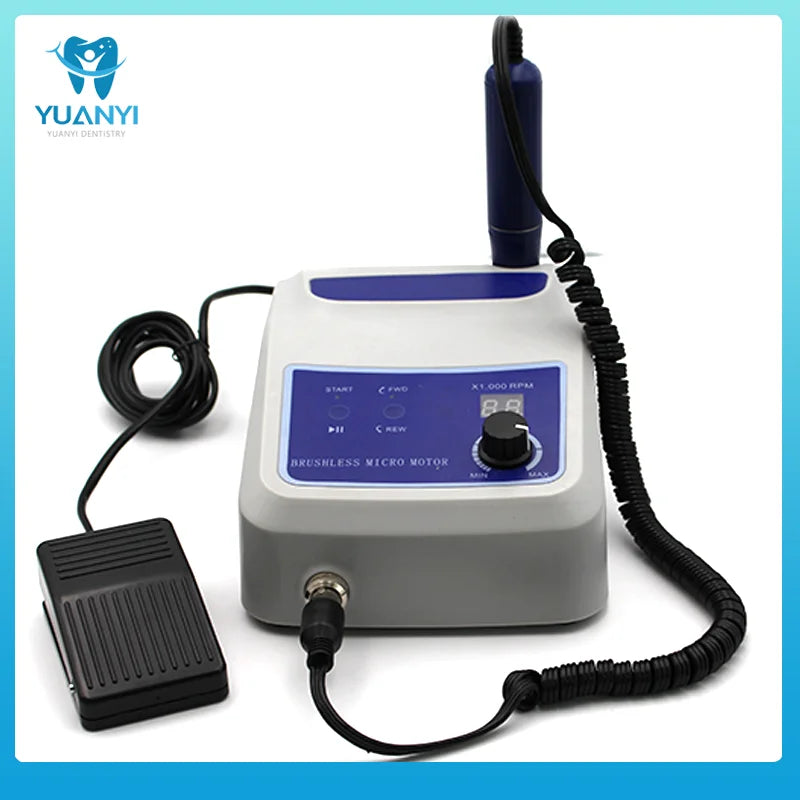

7. Foot pedal for On/off switch
8. High speed bearings, low heat, low noise and low vibration.
Safety Instructions
1.A Micromotor Handpiece is a high speed rotary power tool which can be dangerous and cause serious injury if it is not used properly. NEVER operate it without wearing eye protection.
2.ONLY use accessories rated for 50,000 rpm or higher speeds when operating this micromotor.
3.ALWAYS observe the manufacturer's maximum speed rating when using any accessory.
4.NEVER use or continue to use any accessory which appears to be damaged, loose, vibrating, bent, or out of balance. Inspect each accessory for cracks or flaws before use.
5.ALWAYS insert the shank or arbor of an accessory or mandrel into the collet or chuck of the handpiece as far as possible in order to provide proper support and close the collet or chuck securely.
6.NEVER use excessive side pressures which may tend to bend or break the shank or arbor of an accessory. Let the speed of the accessory do the work.
7. DO NOT stall the motor by jamming or using excessive pressure on the mounted point, buff, wheel or accessory. This can result in damage to the motor.
8.WEAR a dust protector, mask or respirator to prevent the inhalation of harmful dust or debris from grinding, carving or other operations performed with this power tool.
9.NEVER operate with a damaged power cord. If the power cord or plug to the handpiece is damaged, repair or replace immediately.
10.USE a dust collector (vacuum system) to pull sawdust, grinding dust, or other debris away from the work area and the micromotor intake vents.
11.NEVER turn on or start the Handpiece while chuck is in open (unlocked) position. This can damage the handpiece. Make sure that a bur is installed and secured in the collet, that the spindle is NOT locked and that the bur can spin freely. Always operate and store it with a bur or other accessory in the chuck and with the chuck in the closed position.
12.DO NOT operate the handpiece in the presence of any flammable liquid or gas.
