Description
SPECIFICATIONS
Brand Name: LEICTORY
Choice: yes
High-concerned chemical: None
Material: Plastic
Model Number: FYX06
Origin: Mainland China
Timer Type: Ac Pro
Type: Garden Water Timers
Installation
1. Select a location
Choose a location near power and away from direct sunlight.This location should have a good WiFi signal, you can check the signal using asmartphone.

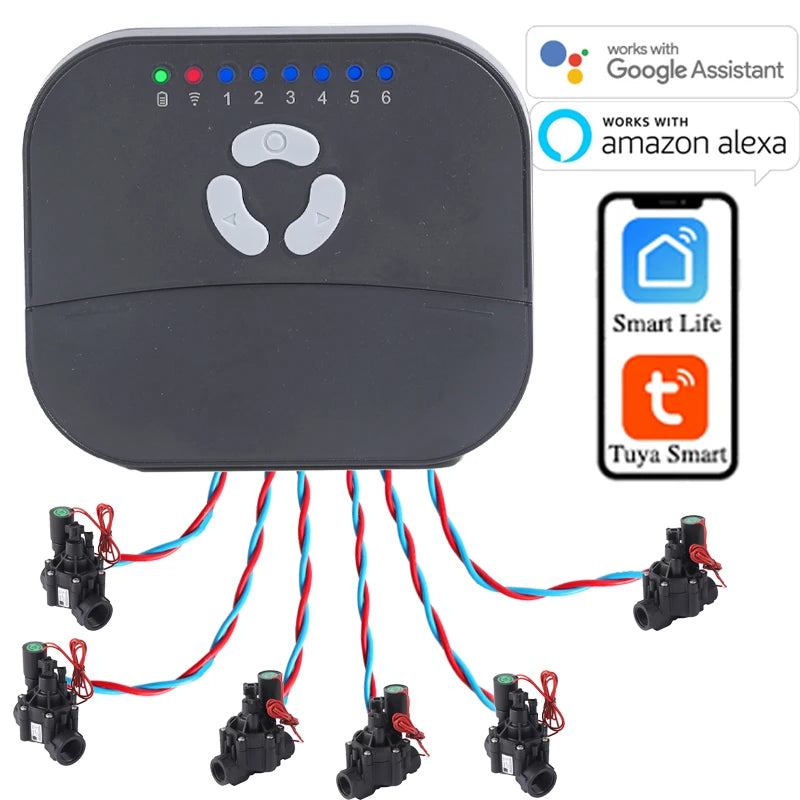

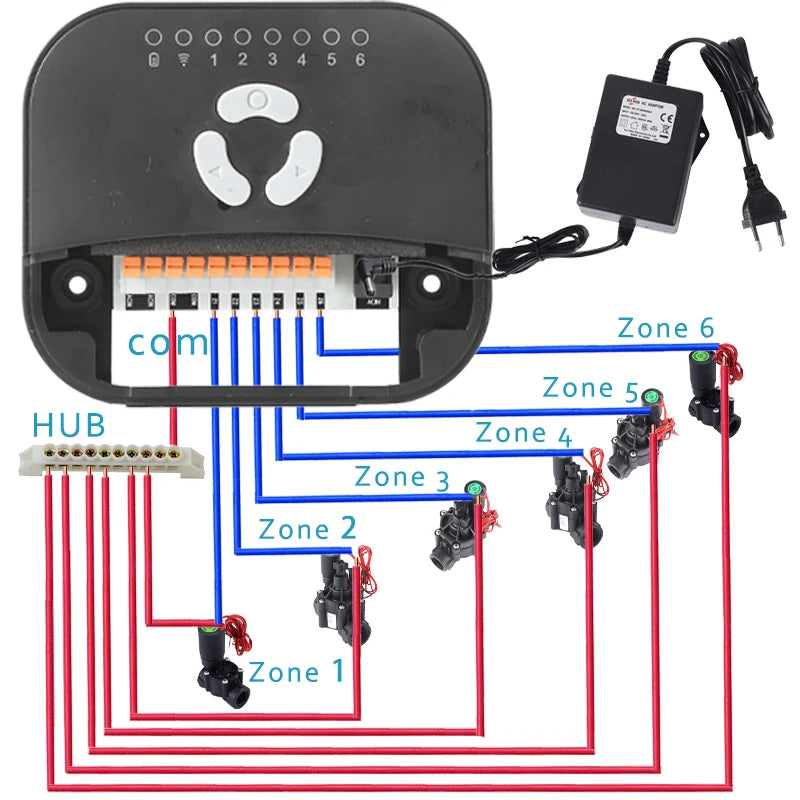

2. Connect valve wires
Strip about 10mm of insulation from each wire, attach one wire from each valve to a"Common"(COM) terminal and the other wires to a numbered terminalone wire perterminal)
Note: to prevent damage to the controller, connect only one valve to each terminal.

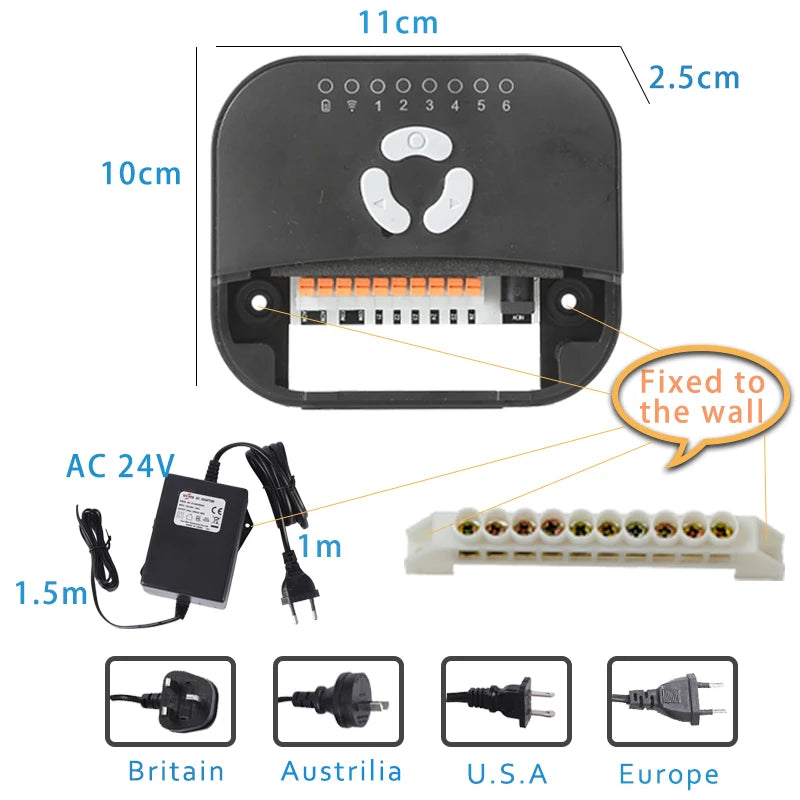

3. Power on the controller
Insert the power connector into the controller's power port, plug the transformer into awall outlet.
4. Mount the controllerSecure the bracket into the wall with the included screws and anchors, and then hangthe controller on the bracket.
5. Connect the controller to WiFi
(1) Connect your mobile device to the Wi-Fi network that the controller will connect to.Only 2.4G network is supported.
(2) Press and hold the "Select" button for about 5s and release until the WiFi indicatorlight is rapidly flashing that indicates the controller is ready to configure.
(3) Tap the + button on the top right corner, the nearby devices will pop upautomatically, choose the device you want to set up.
(4) Enter the password of the WlFl network that your mobile device connected, then itwil start registering the device to the cloud.
(5) Once the device was added successfully, you will be able to remote water your lawnfrom anywhere.

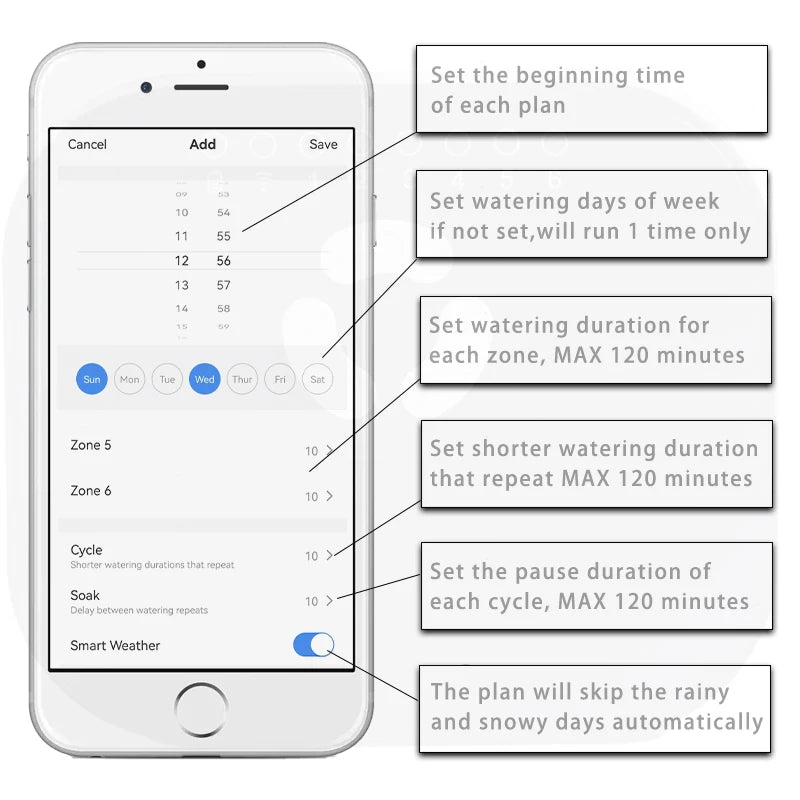

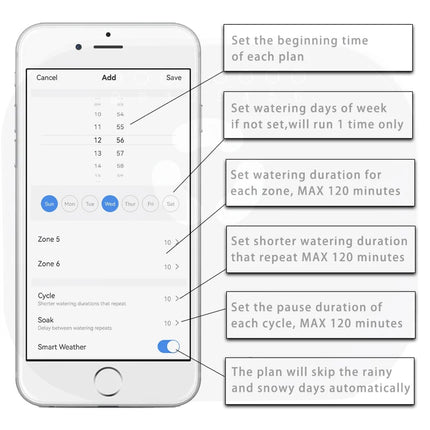

Create a timer /watering schedule
(1) Tap "Timer" on the bottom.
(2} Tap "Add" and set watering start times.
(3) Set watering days of the week. lf not set, the Timer will run one time.
(4) Select the zones and set the run times for each zone.
(5) Set Cycle and Soak, it will break up the run times you set for each zone andallow water to soak into the soil before adding more. This method preventswasteful and harmful water runoff while increasing plant health by encouragingdeeper root growth.Cycle: Split up watering durations into multiple shorter watering durationsSoak: Dlay between watering durations.
For example:
If you set 10 Mins for zone 1, 15 Mins for zone 2,5 Mins for the cycle watering time,and 10 Mins for the soak time, when the timer starts, each zone wil circularly runfor 5 Mins and stop for 10 Mins until the watering duration of each zone runs out.

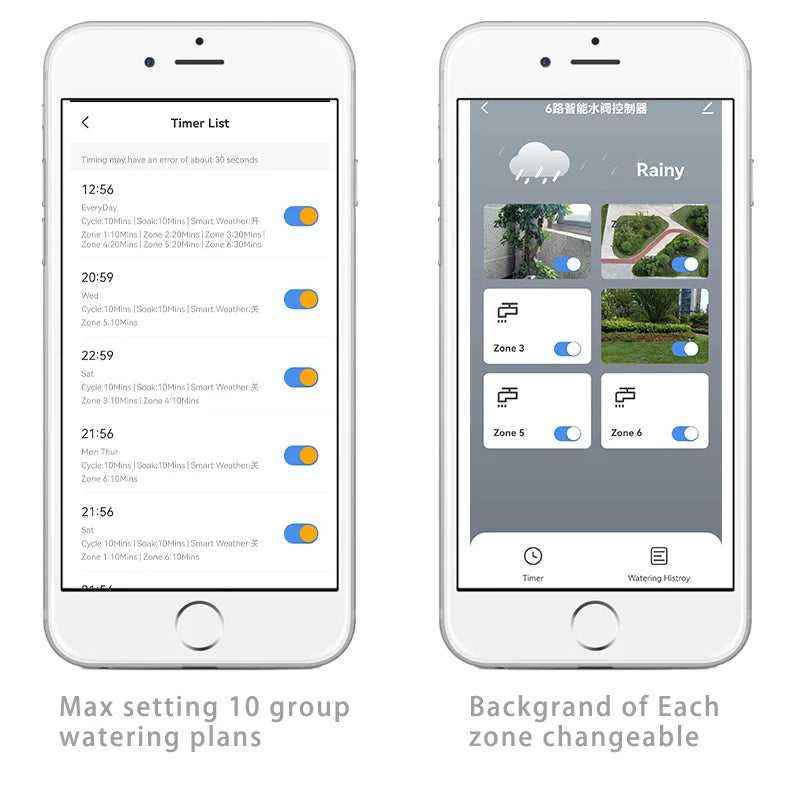

Maximally it allows you to create 10 watering timers, each timer can includemultiple zones and the
watering duration of each zone can be set separately.Please note that the zones in the timer wil run in sequence, and only one zone canrun at a time. The zone's indicator will always be on when watering and turn offwhen the watering duration runs out
For example:
Timer 1 includes zone 1 and 2, the watering time of zone 1 is 20m, zone 2 is 15m, 10Mins for the cycle watering time and 5 Mins for the soak time, and starts from9:00am on Monday. The timer wil run as below:
9:00-9:10 ----Zone 1 is watering
9:10-9:15 -----Zone 1 stops for soaking
9:15-9:25 -----Zone 1 is watering
9:25-------Zone1stops
9:25-9:35 -------Zone 2 is watering
9:35-9:40 ------Zone 2 stops for soaking
9:40-9:45 ------Zone 2 is watering
9:45-------Zone 2 stops
Since only one zone can run at a time, when you set another timer, you should skirun time during 9:00-9:45am on Monday.
(6) lf you turn on the Smart Weather, the timer will skip the rainy and snowy daysautomatically.
How to link to Google Assistant
1. Open the Google Home App, tap "Home Control" on the menu.
2. Tap the add icon "+" on the bottom right.
3. Find "Smart Life" from the list.
4. Type in your information of the Smart Life App account to fnish the account linking
5. Once the linking was successful, you can assign the devices to rooms,then yourdevices will be listed in the Home Control list.
We split our irrigation controller into 9 individual devices, 1 for controlling all the zoneson/off, the rest of 8 are corresponding to the 8 zones of the controller.Now you can use the below voice commands to control all the zones or each zoneseparately.
"Hey Google, turn on/off DEVICENAME"The device name can be assigned from both the Smart Life App and the Google HomeApp.
Troubleshooting
1,Problem:Connection issues between mobile device and controller
Possible cause:
①WiFi signal strengthis low
Verify with your phone, the WiFi signalis at least 2 bars of strength at thelocation of the controller. lf it is not, tryto relocate the WiFi router so it is closeand does have as much interference. fthis is not possible, Use a WiFi rangeextender to boost the signal strength.
②The App shows that the controller is offine andWiFi indicator on the controller is blinking
Check your local network, are otherconnected devices working propery?Try to re-connect the controler to youiWiFi router.
③Failed to connect the controller to WiFi network
Make sure that the WiFi network is2.4Ghz
2,Programmed schedulesand manual wateringfunctions don't start
①,Water source notsupplying water
Verify there is not disruption to the mainwater line and that all other water suppllines are open and functioning propery
②,Wiring is loose or notpropery connected
Check that valve wiring is securelyconnected at the controller and in the field
③,Valve wires arecorroded or damaged
Check valve wiring for damage andreplace if necessary.Check wiring connections and replace with watertight splice connectors if needed
