Description
SPECIFICATIONS
Battery Included: Yes
Brand Name: CHNSpec
Certification: CE
Choice: yes
High-concerned chemical: None
Origin: Mainland China
semi_Choice: yes

Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metals, ceramics, building materials and so on. Our gloss meter conform to the DIN 67530, ISO 2813, ASTM D 523, JIS Z8741, BS 3900 Part D5, JJG696 standards and so on.
Product Introduction
1). High Precision
Our gloss meter adopts sensor from Japan, and processor chip from the US to ensure highly precise of the measured data.
Our gloss meters conform to JJG 696 standard for first class gloss meters. Every instrument has verification certificate from National Modern Metrology and Instruments Testing Laboratory and the Education Engineering Ministry in China.
2).Super Stability
Every gloss meter made by us has done the followingtest:
412 calibration tests;
43200 stability tests;
110 hours of accelerated aging test;
17000 vibration test.
3).ComfortableGrab Feeling
The shell is made by Dow Corning TiSLV material, a desirable elastic material. It is resistant to UV and bacteria and do not cause allergy. This design is for better userexperience.
4).Large Battery Capacity
We fully utilized every space of the device and specially custom made advanced high density lithium batteryin 3000mAH , whichensures continuous testingfor 54300 times.

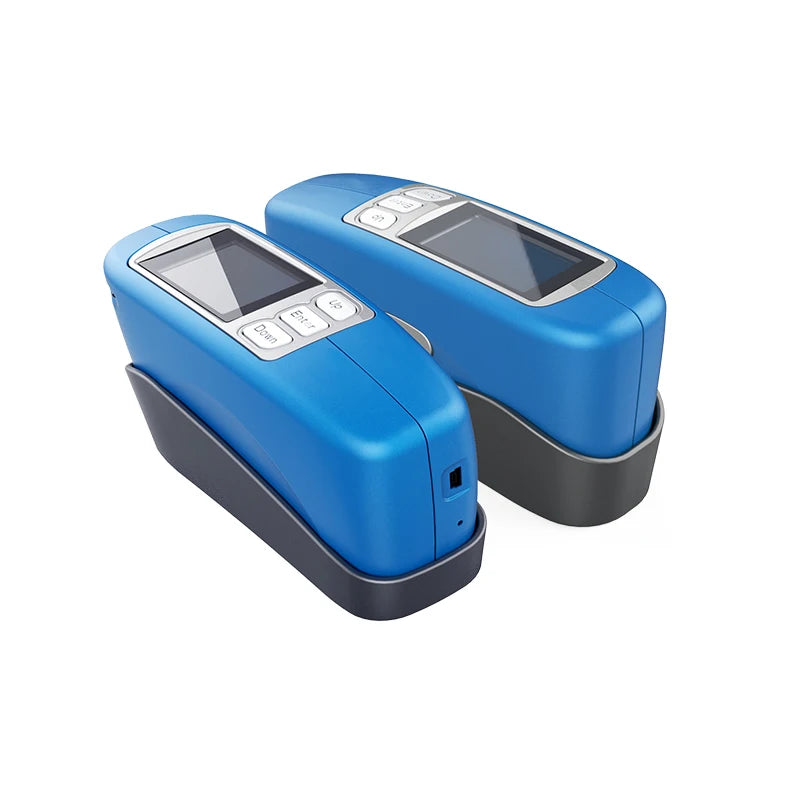

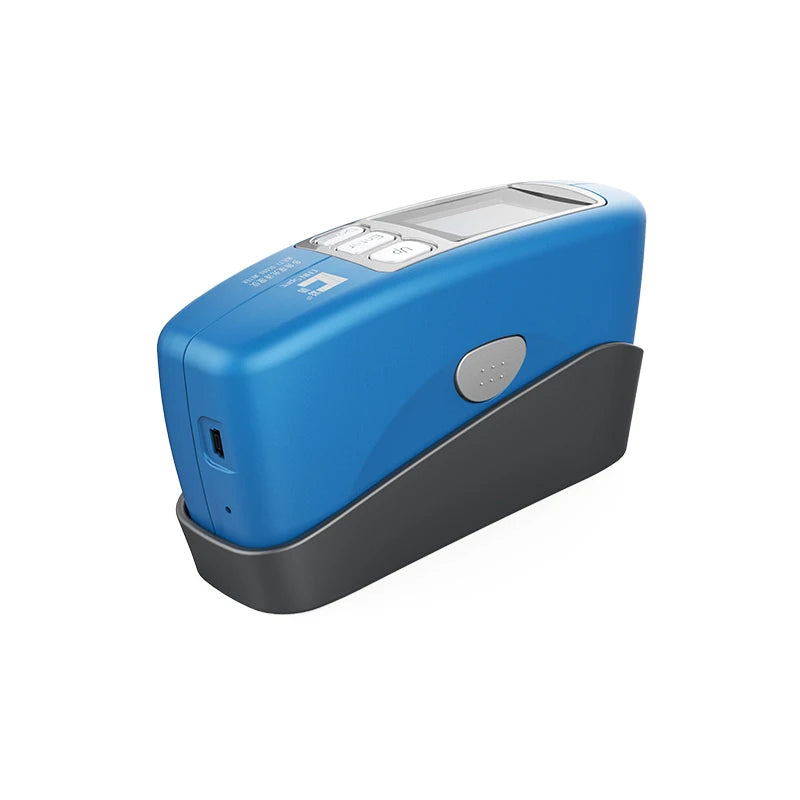

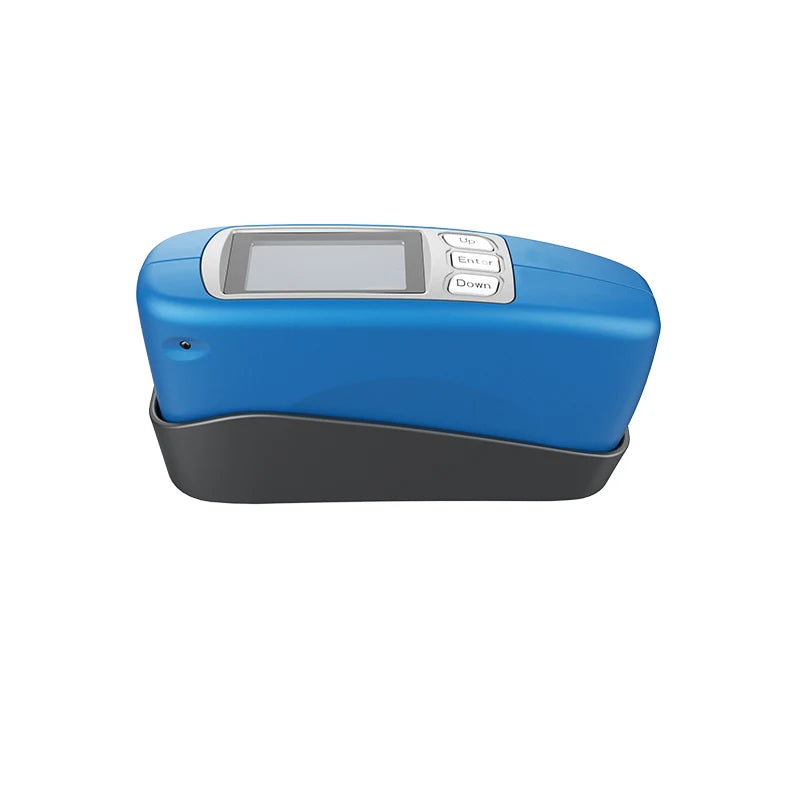

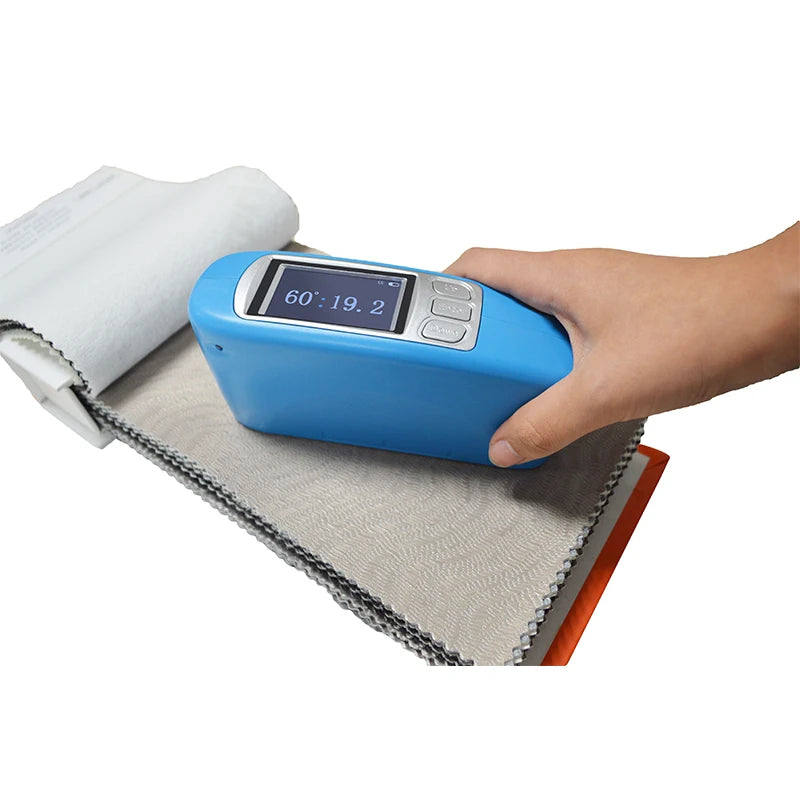

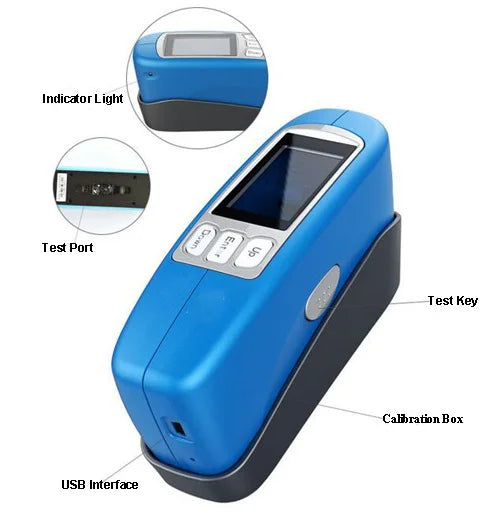

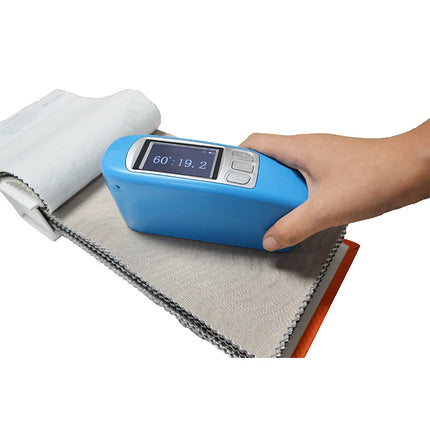

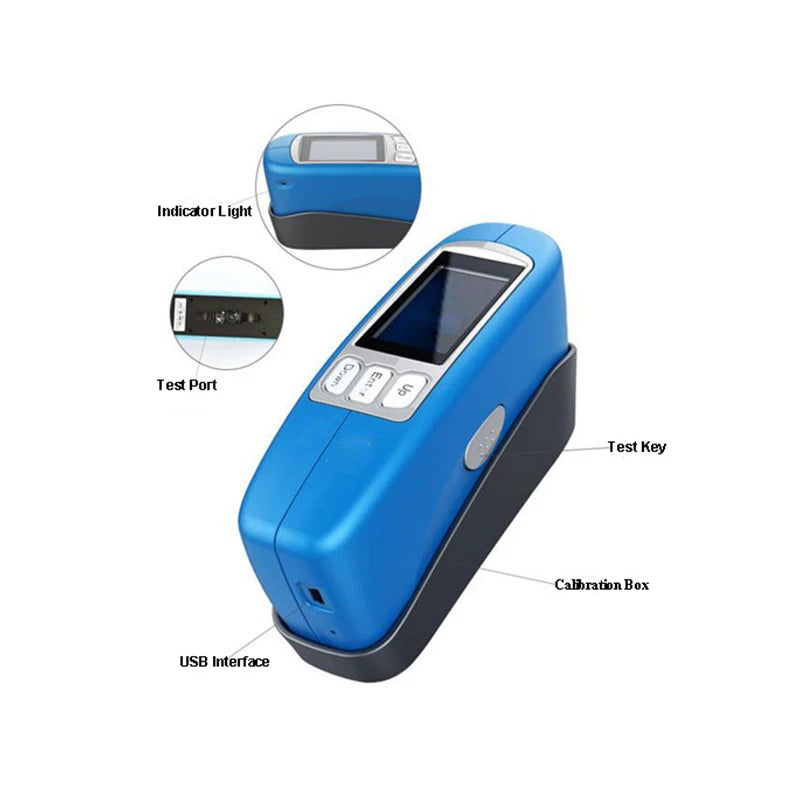

5).More Product Pictures


6).Technical Data
Model |
CS-300 |
Test Angle |
60° |
Test light spot(mm) |
60°:9*15 |
Test range |
60°:0-1000GU |
Resolution |
0.1GU |
Test modes |
Simple mode, standard mode and sample testing mode |
Repeatability |
0-100GU:0.2GU |
100-2000GU:0.2%GU |
Accuracy |
Conform to JJG 696 standard for first class gloss meter |
Test time |
0.5s |
Data storage |
100 standard samples; 10000 test samples |

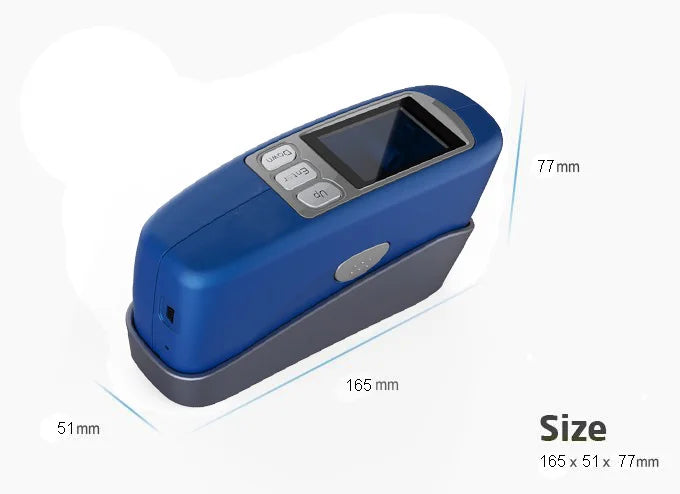

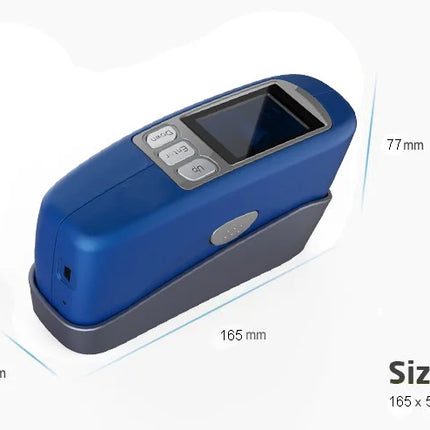

Size(mm) |
165*51*77 (L*W*H) |
Weight |
About 400g |
Language |
Chinese and English |
Battery capacity |
3000mAh lithium battery |
Port |
USB, Bluetooth (optional) |
Upper-PC Software |
Include |
Working Temperature |
0-40C |
Working Humidity |
<85%, no condensation |
Accessories |
5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology certification |

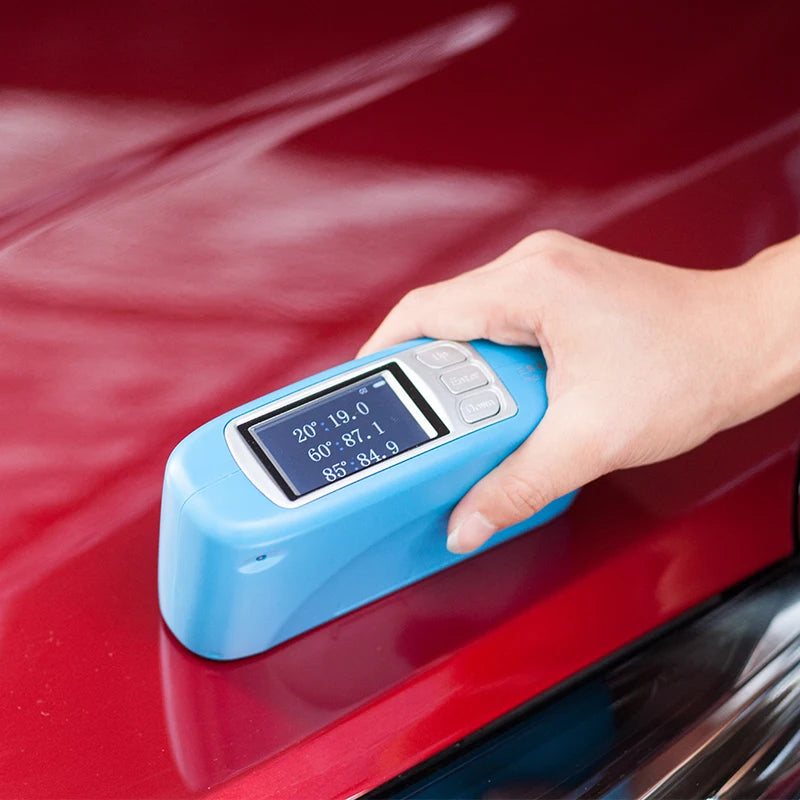

7). Application Example
