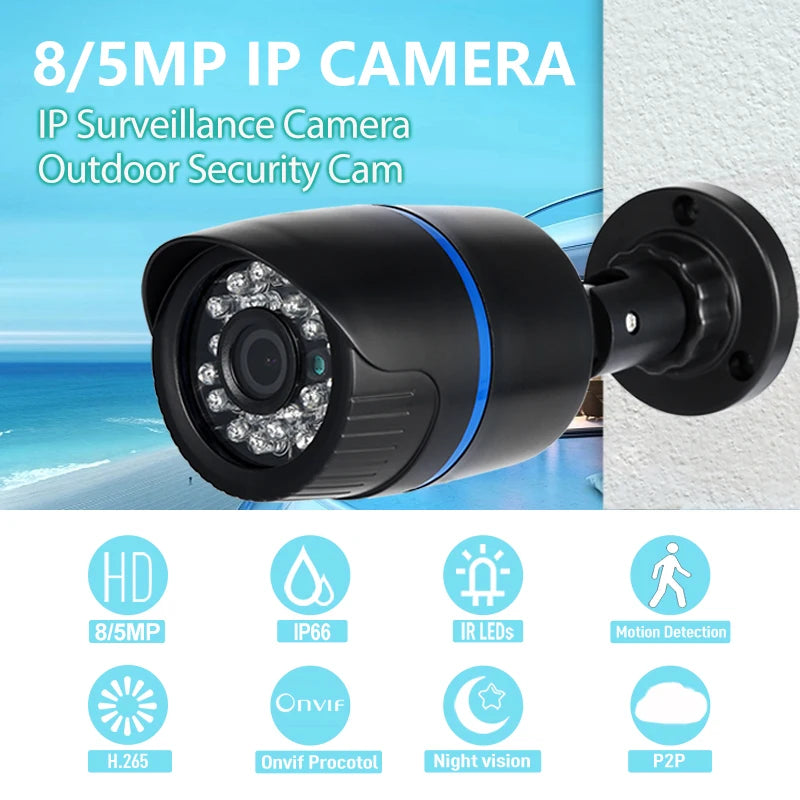

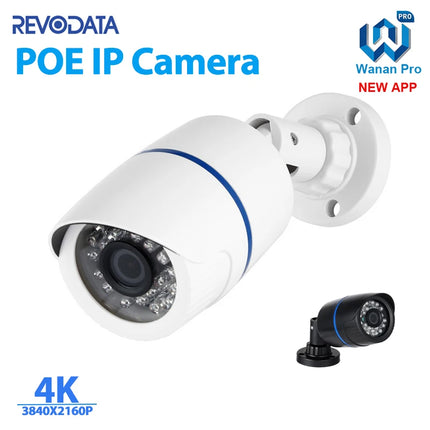

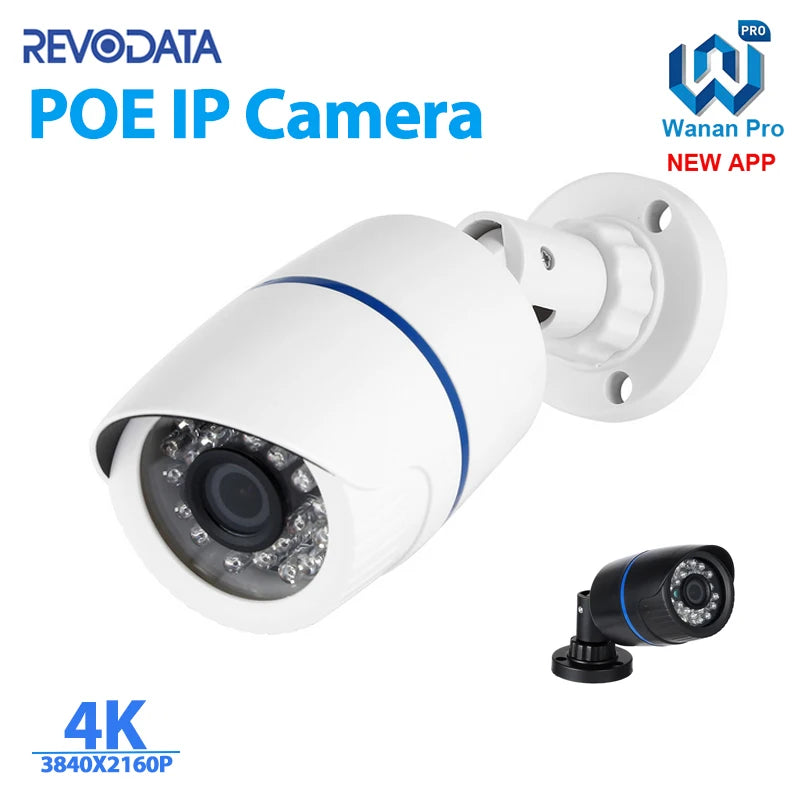

8MP Hi3516CV610+GC5053 IP66 Waterproof Bullet Outdoor POE Camera, IP Surveillance Camera Security Night CCTV System Cam
- 5MP 2880*1616P resolution / 8MP 3180*2160P resolution
- Support H.265 encode, compare with H.264, transit same quality image only need half of the bandwidth; Record same quality image only need half of the storage;
- Also support H.264 encode, so it can be compatible with both H.264 and H.265 device.
- Support POE, reduce the trouble of cable arrangement.
- Have auxiliary power supply, can use like a Non-POE IP camera.
- Support iPhone, Android smart phone
- Waterproof IP66
- P2P Cloud Function
- Support Motion detection,Email Alarm function.
- Support web interface of IE6.0 and above browser.
- Day & Night vision
- Net weight: 0.3KG
- ABS Plastic Material Shell
- Simple Operation and Easy to Use
NOTE:
1. This camera default 8/5MP & H.265, if your NVR do not support 8/5MP or H.265, you can change our camera into 1080P (2MP) and H.264.
2."POE 48V" Option mean the camera support POE, can power from POE, need to connect with a802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera).
3."DC 12V" Option mean the camera is regular version, do not support POE and it can only with with a 12V regular power.
4. This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Wanan Pro” app.
Camera
8MP:
Model: I6032-HS82
Resolution:3840 x 2160P 5.0 Mega Pixels camera
Sensor: HI3516CV610+GC8613
Frame rate: 20fps
Min illumination: 0.01Lux @(F1.2,AGC ON)
Shutter: 1/25 seconds -1/100,000 seconds
Lens: 2.8mm, 3.6mm, 6mm, 8mm
Lens interface type: M12
Day and night conversion: Auto
Compression Format: H.264 / H.265
Compression rate output: 128 Kbps~8Mbps
Storage: NVR or Computer. This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Wanan Pro” app.
IP address:Dynamic (Default) / Static
Smart alarm: Motion detection, Email alarm
Support protocol: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP
Input protocol: The standard ONVIF
Onvif Port: 80
General function: A key recovery, dual stream, password protection, video hiding
Ethernet: 10M / 100M mbps Ethernet (RJ-45)
Model: I6032-HSWA
Resolution:2880 x 1616P 5.0 Mega Pixels camera
Sensor: Hi3516CV610+GC5053
Min illumination: 0.01Lux @(F1.2,AGC ON)
Shutter: 1/25 seconds -1/100,000 seconds
Lens: 2.8mm, 3.6mm, 6mm, 8mm
Lens interface type: M12
Day and night conversion: Auto
Compression Format: H.264 / H.265
Compression rate output: 128 Kbps~8Mbps
Storage: NVR or Computer. This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Wanan Pro” app.
IP address:Dynamic (Default) / Static
Smart alarm: Motion detection, Email alarm
Support protocol: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP
Input protocol: The standard ONVIF
Onvif Port: 80
General function: A key recovery, dual stream, password protection, video hiding
Ethernet: 10M / 100M mbps Ethernet (RJ-45)
General
Operating Temperature:-25°C~60°C
Operating Humidity: 10%~90%
Power Supply:
POE 48V option support POE 48V(802.3af) & DC12V/2A
DC 12V option support DC12V/2A
Infrared lamp: 24PCS LED
Night Vision Distance: 10-15m

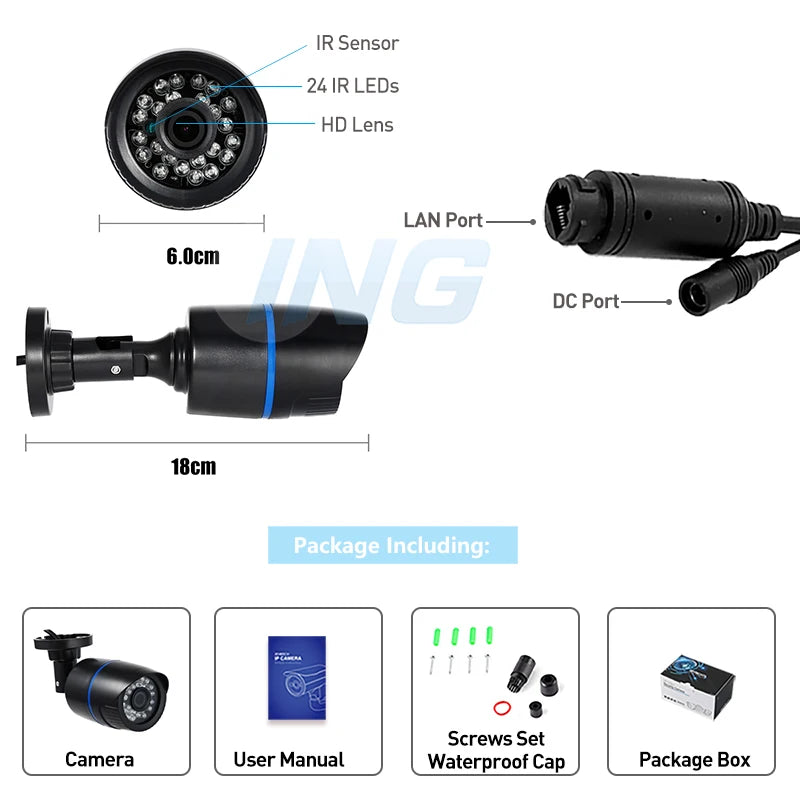

Dimension: 18cm x 6cm x 6cm
Weight: 0.3kg
Package Content
1 x Camera
1 x User Manual
1 x Screws Set
1 x Waterproof Cap
Power Supply Note:
1.POE 48V version can power from POE, need to connect with a802.3AF Standard 48V POE Switch. if you need one, please click the picture to buy.
2.Both POE 48V version and DC 12V version have not include power adapter, if you need one, please click the picture to buy.
5MP Pictures:
Browser View
Software View
App Views
Important Notice: This device do not support Cloud Storage, please do not purchase the Cloud Storage from the
“Wanan Pro” app.
NOTE:System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
