Description
SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: 1
Barcode: No
Brand Name: U-Angel-1988
Camera Mount Type: Fixed Camera Mount
Control Channels: 4 channels
Controller Battery: NO
Controller Mode: MODE2
Drone Weight: 100g
Equipped with Aerosol Spray System/Equipment Capacity: drone
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Carbon Fiber
Model Number: 2 inch FPV Freestyle
Motor: Brushless Motor
Operator Skill Level: Beginner
Origin: Mainland China
Package Includes: Original Box
Power Source: NITRO
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: 50M
Set specification: Single battery (total weight 332g)
State of Assembly: Ready-to-Go
Takeoff Weight: 200g
Transit Time (Days): 50M
Type: HELICOPTER
U-ANGEL-1988 Model: EZ-Pilot
Video Capture Resolution: 1080p FHD
Warranty: NO

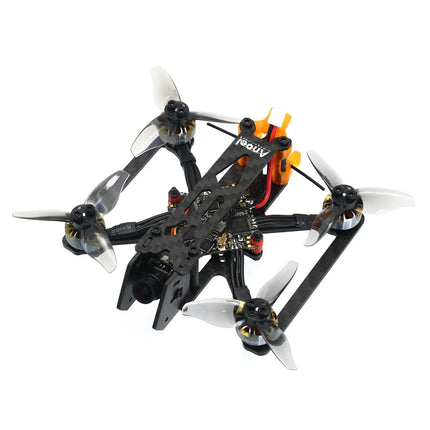

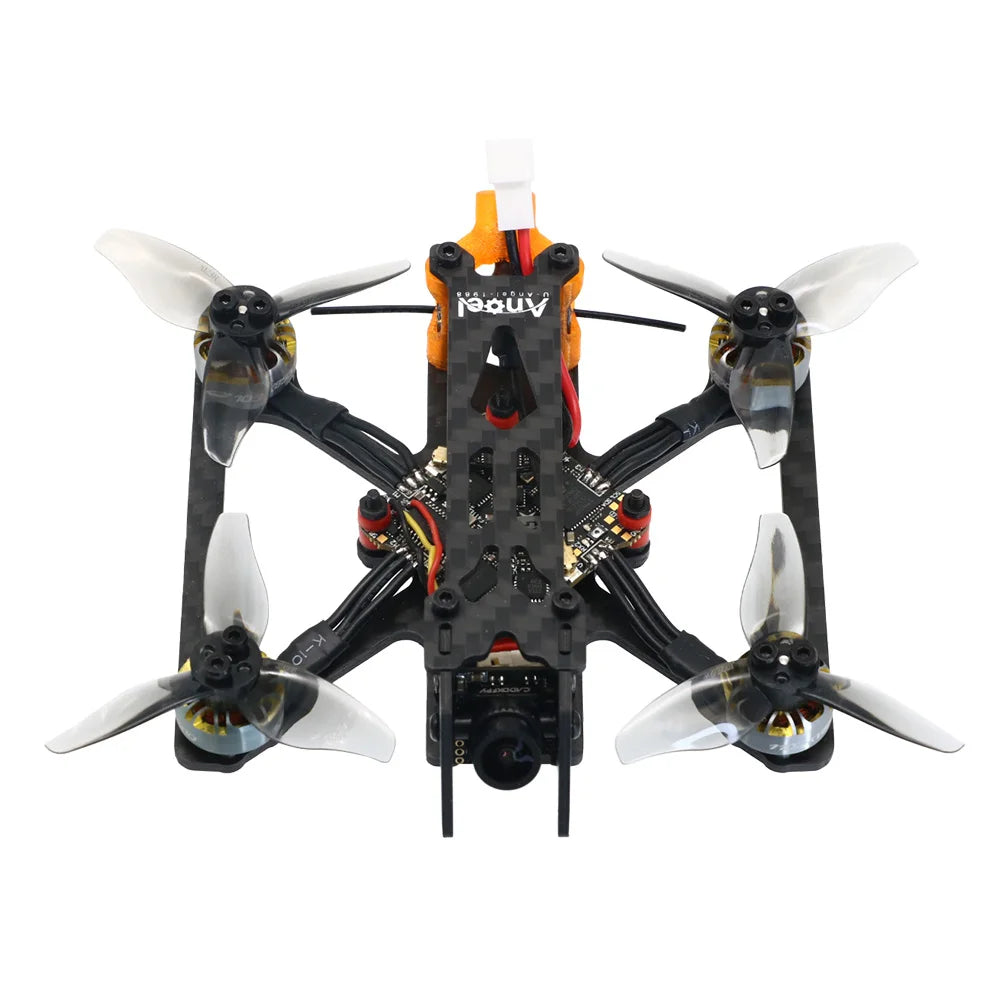

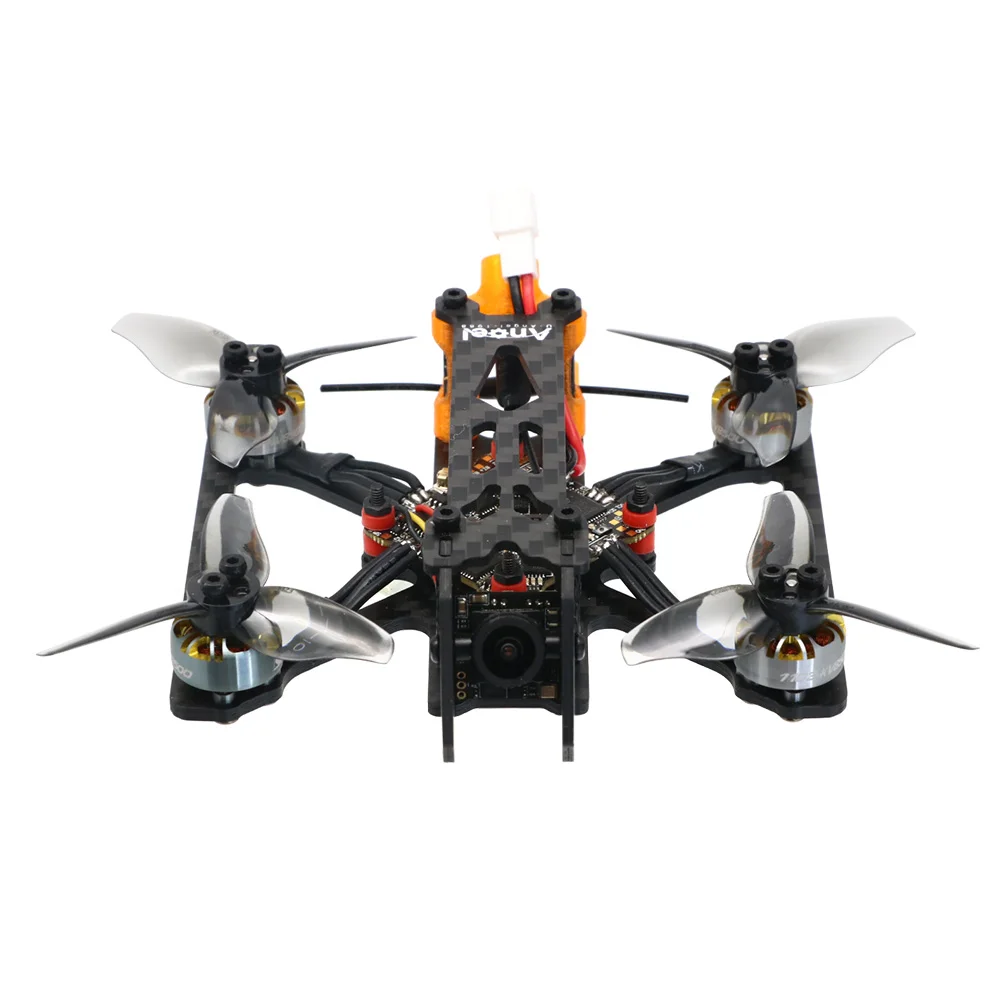

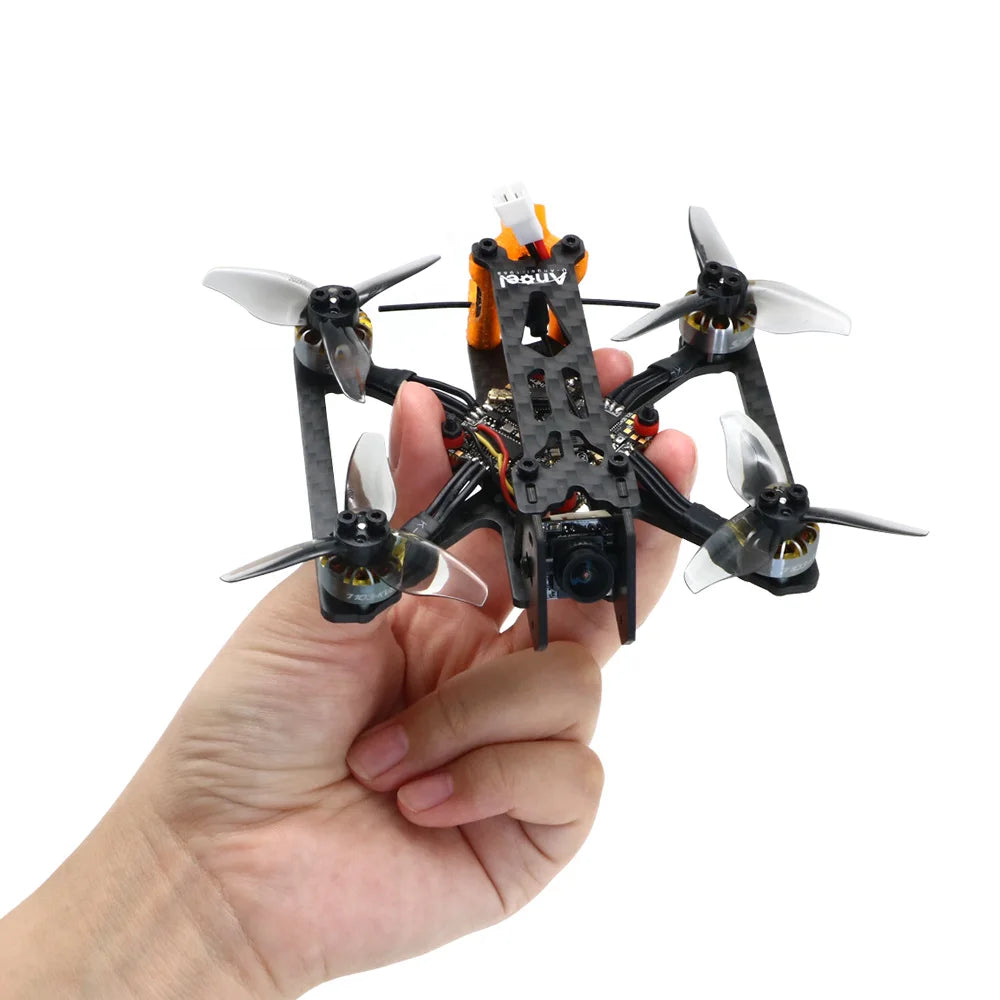

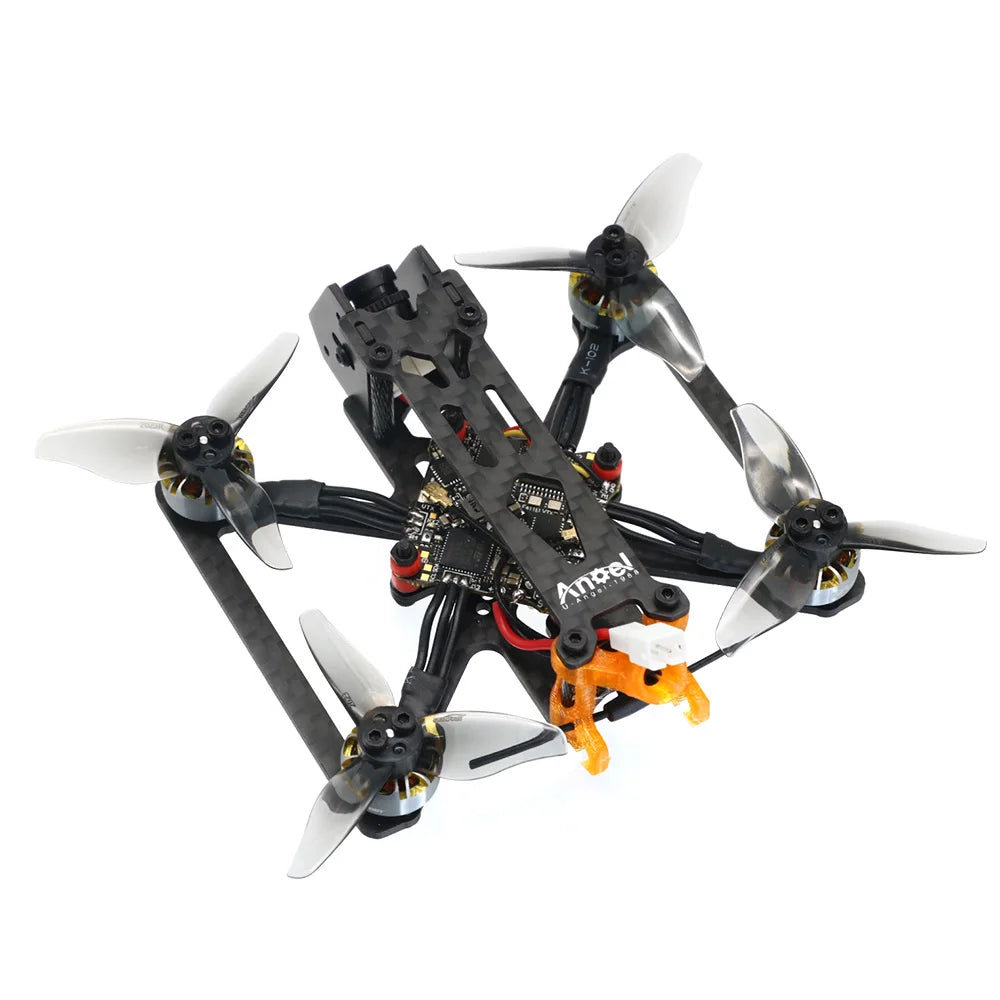

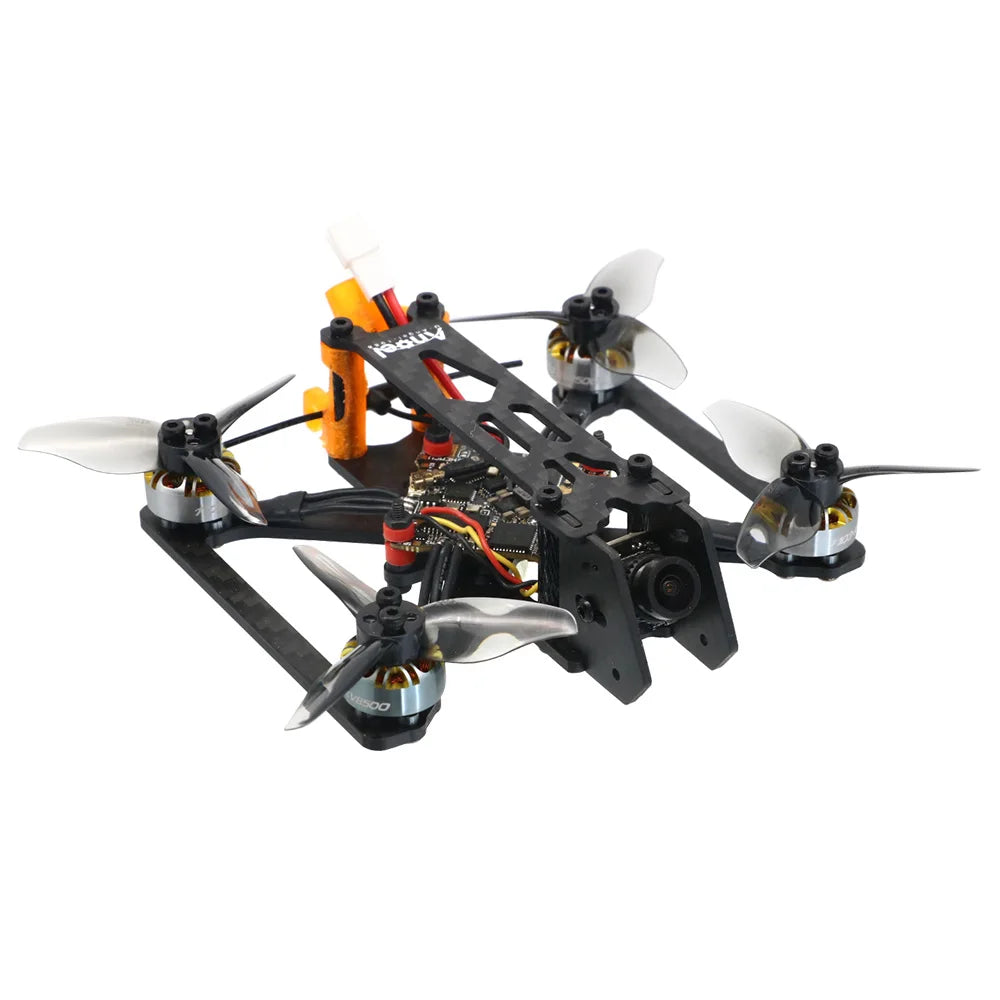

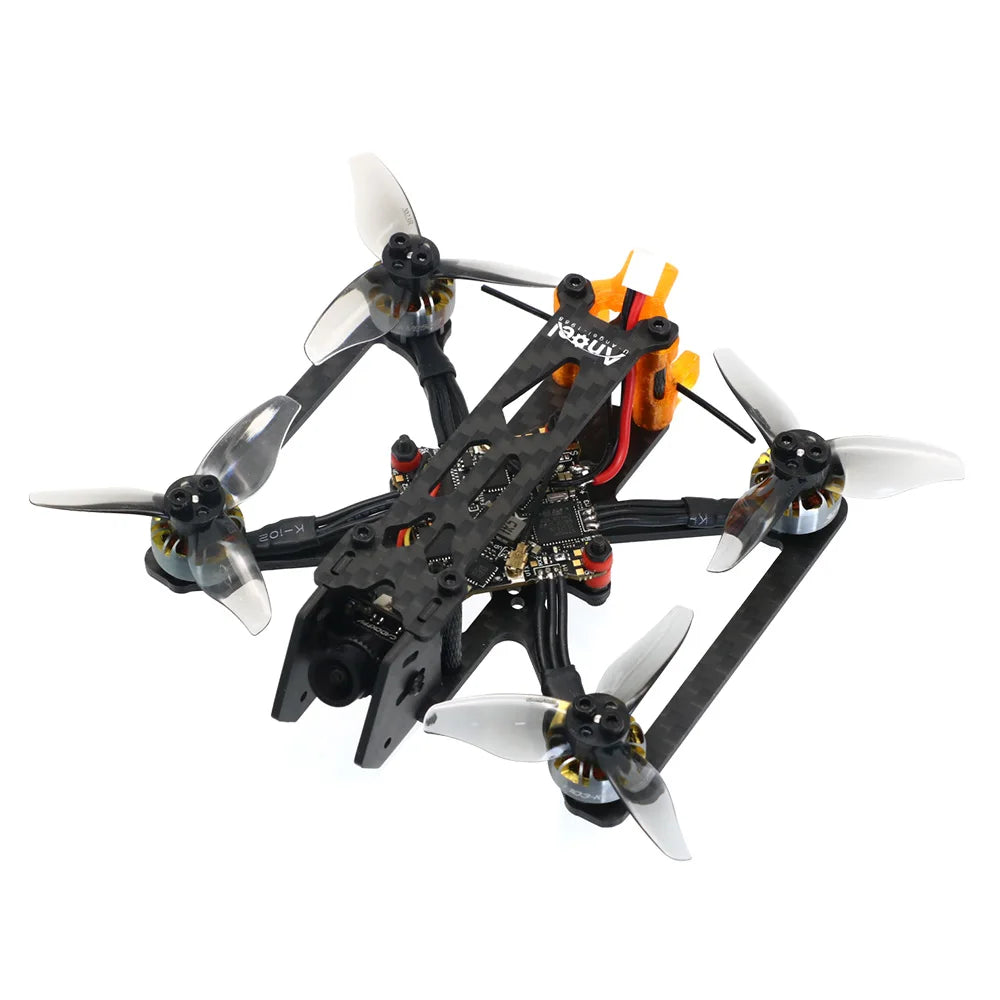

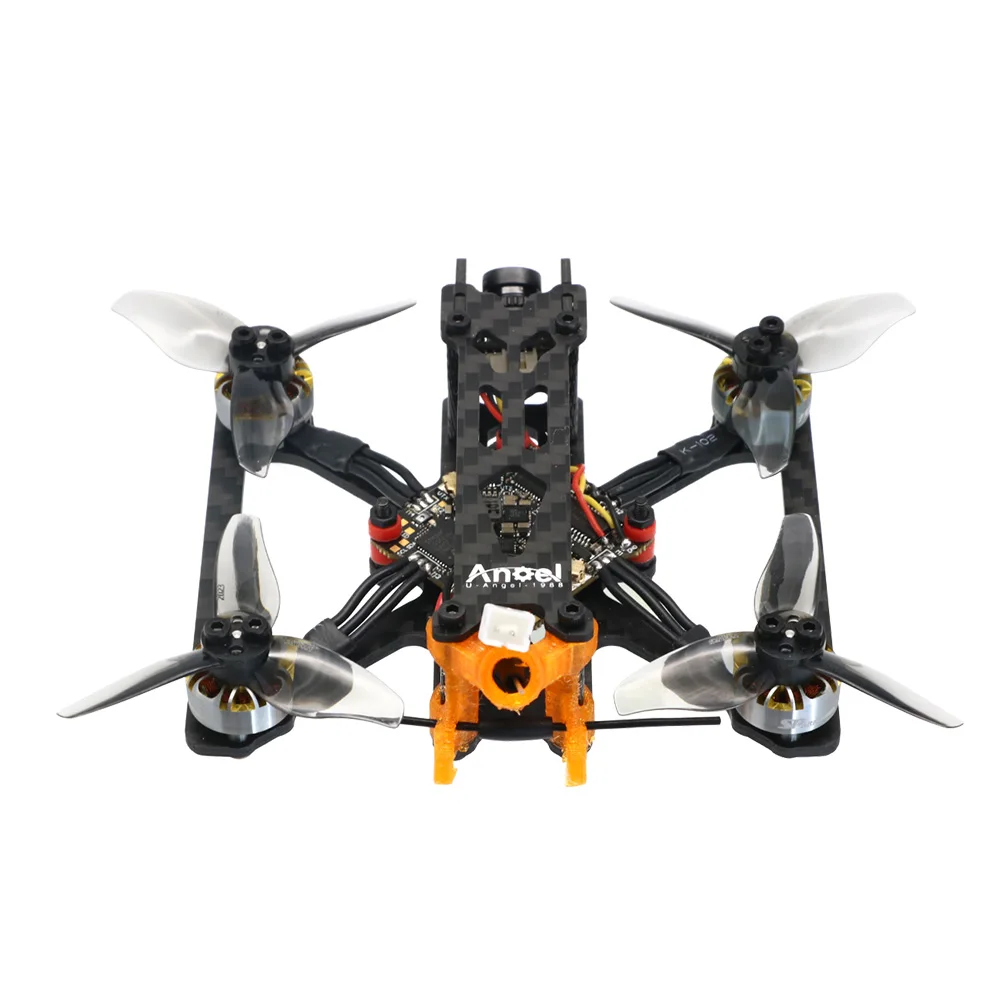

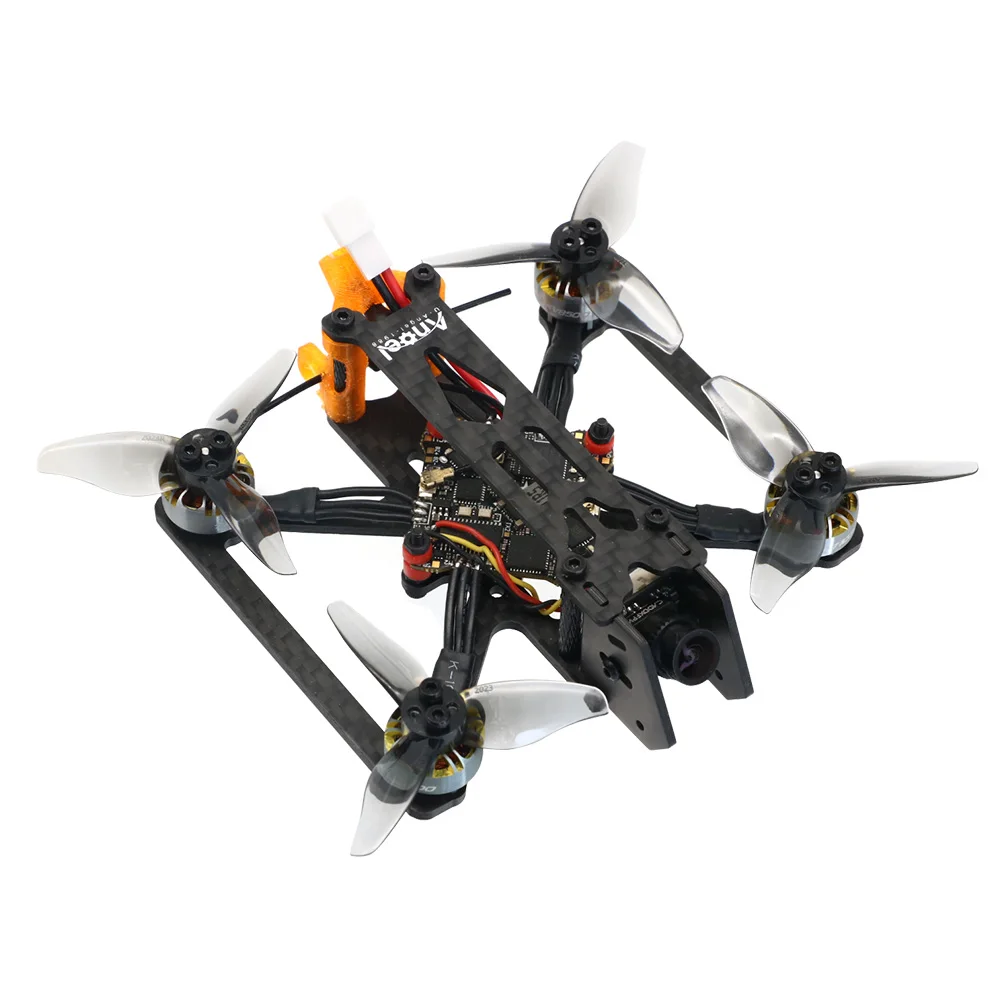

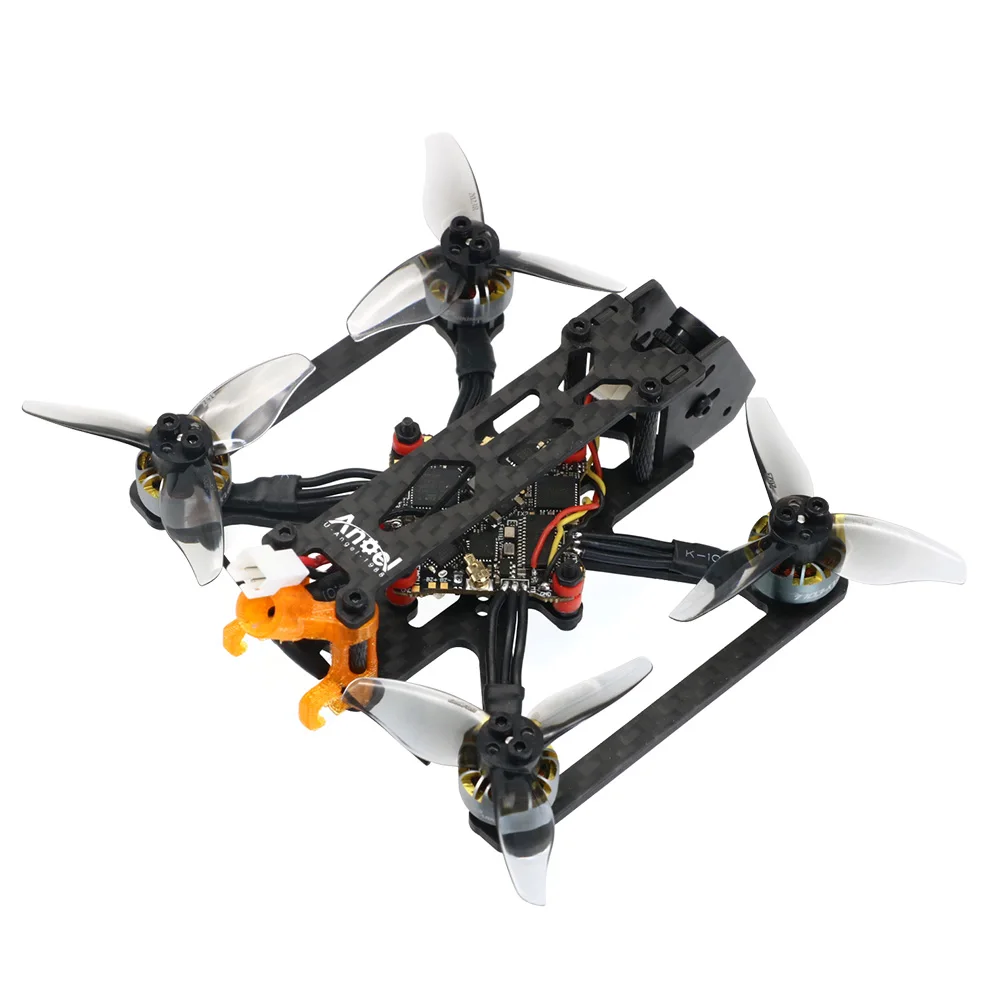

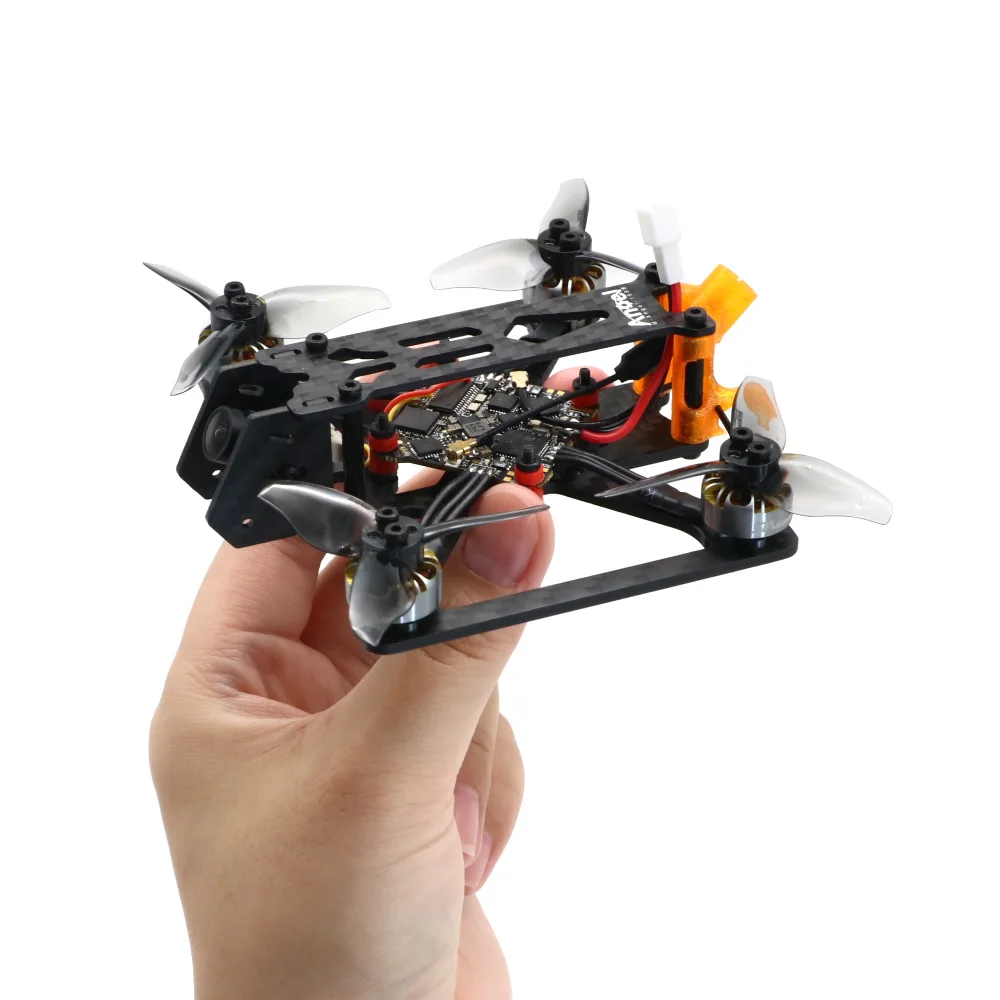

angel20 2-inch FPV 2S Huafei flying machine elrs2.4 "Battery life: 4-6min (2S 450mah)
Image transmission distance: about 500m (the actual distance depends on the environment)
Speed: 30-50km/h
Support battery: 2S (xt30 or PH2.0 plug)
Single aircraft weight: 55g"

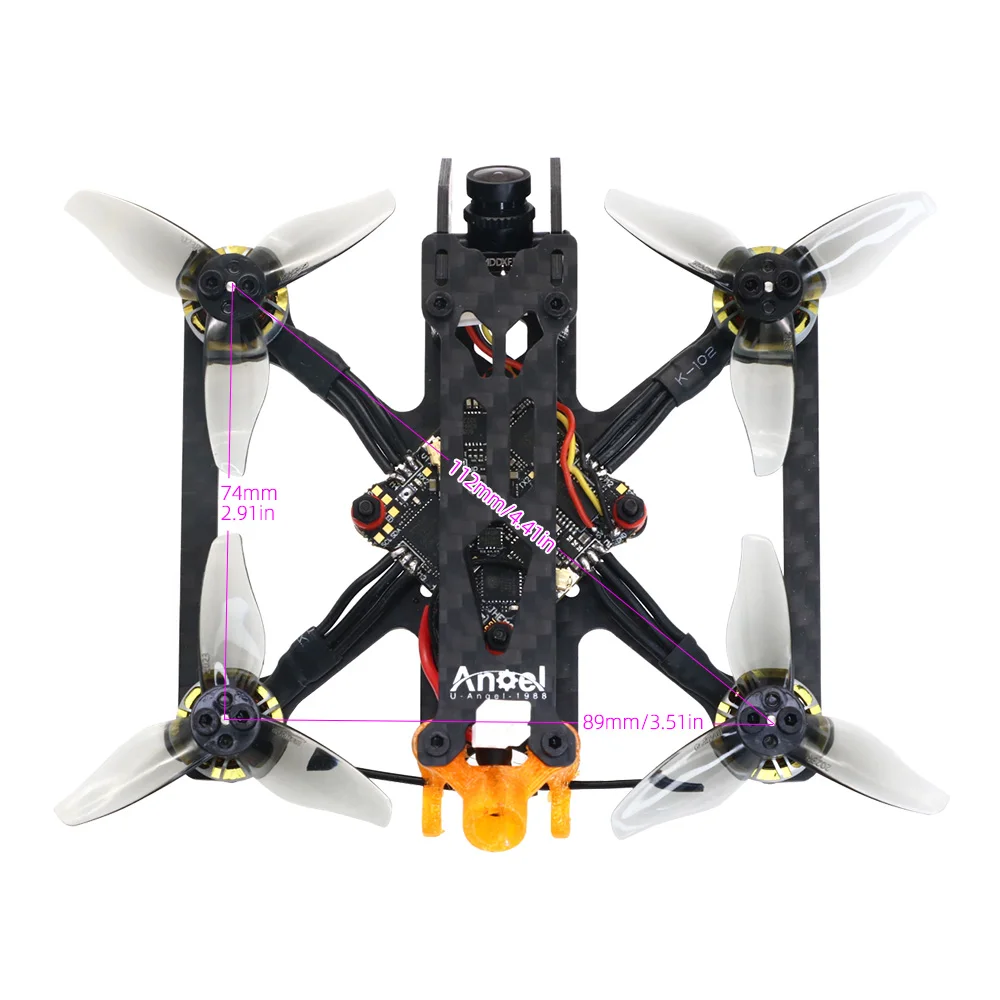

angel20 "Wheelbase: 95mm
Base plate thickness: 2mm
Thickness of remaining boards: 1.5mm
Flight control mounting holes: 16x16, 20x20, 25.5x25.5mm
Motor mounting hole position: 9mm
Camera installation size: 14mm
Aluminum column height: 20mm
Weight: 19g"
2023 "Propeller diameter: 2inch
Thread pitch: 2.3inch
Blades: 3
Material: PC
Weight: 0.88g
Paddle disc thickness: 5mm
Center hole diameter: 1.5mm"
1103 8500kv "Motor size: φ14.8xH9.8mm
KV value: 8500
Slot pole: 9N12P
Paddle fixed shaft diameter: 1.5mm
Maximum power: 130w
Silicone wire specifications: 24AWG
Phase resistance: 170mΩ
Support battery: 2-3S
Weight (including wire): 4.8g"
F411ELVTX "FC
Main control chip: STM32F411CEU6
Gyroscope: ICM-42688-P
Barometer: None
OSD chip: AT7456E
Black box: none
LED programming: support
BB ring: support
Input voltage: 1-2S
I2C: support
BEC: 5V/1.5A
Serial control port: two channels (uart1 is used for internal ELRS receiver and external SBUS, uart2 is used for internal 5.8G VTX Smart Audio)
Flight control firmware: Betaflight JHEF411.HEX
ESC
ESC current: 12A*4
Galvanometer: Yes
Firmware: BLHELI_S Z-H-30.HEX
Whether to support Bluebird: support 24K 48K 96K
Flight controller default ESC drive protocol: DSHOT300
receiver
Receiver type: ELRS
Receiver frequency: 2.4G
Receiver signaling protocol: CRSF
Receiver firmware: JHEMCU EP24 V3.0.0
Whether to support WIFI update ELRS firmware: Yes
VTX
Image transmission frequency: 5.8G
Image transmission channel: 48CH
Image transmission power: 25mw, 100mw, 200mw, 300mw, 400mw
Image transmission OSD parameter adjustment protocol: Smart Audio
Conversion between hole position and shock-absorbing ball hole position: M3, 25.5*25.5mm
Maximum overall size: 30*30mm
Weight: 4.4g"
caddx ant "Sensor: 1/3""CMOS sensor
Horizontal resolution: 1200TVL
Video format: NTSC&PAL
Image ratio: 16:9&4:3
Electronic shutter: PAL: 1/50""100000; NTSC: 1/60~100000
Signal-to-noise ratio: >52db (AGC OFF)
Video output: CVBS
Lens:1.8mm
Low illumination: 0.001Lux@F1.2
Automatic gain control:YES
BLC:YES
Wide dynamic range: Global WDR
Noise reduction: 3DNR
Overall dimensions: 14*14mm
Wide voltage input: 3.7-18
Working temperature: -20℃~+60℃
Working humidity: 20%-80%
Weight: 2g"
