Description
SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: 1
Barcode: No
Brand Name: Mitoot
Camera Mount Type: 3-Axis Gimbal
Choice: yes
Control Channels: 6 channels
Controller Battery: no
Controller Mode: MODE2
Drone Weight: 300G
Features: App-Controlled
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Carbon Fiber
Model Number: Freestyle 2.5inch
Motor: Brush Motor

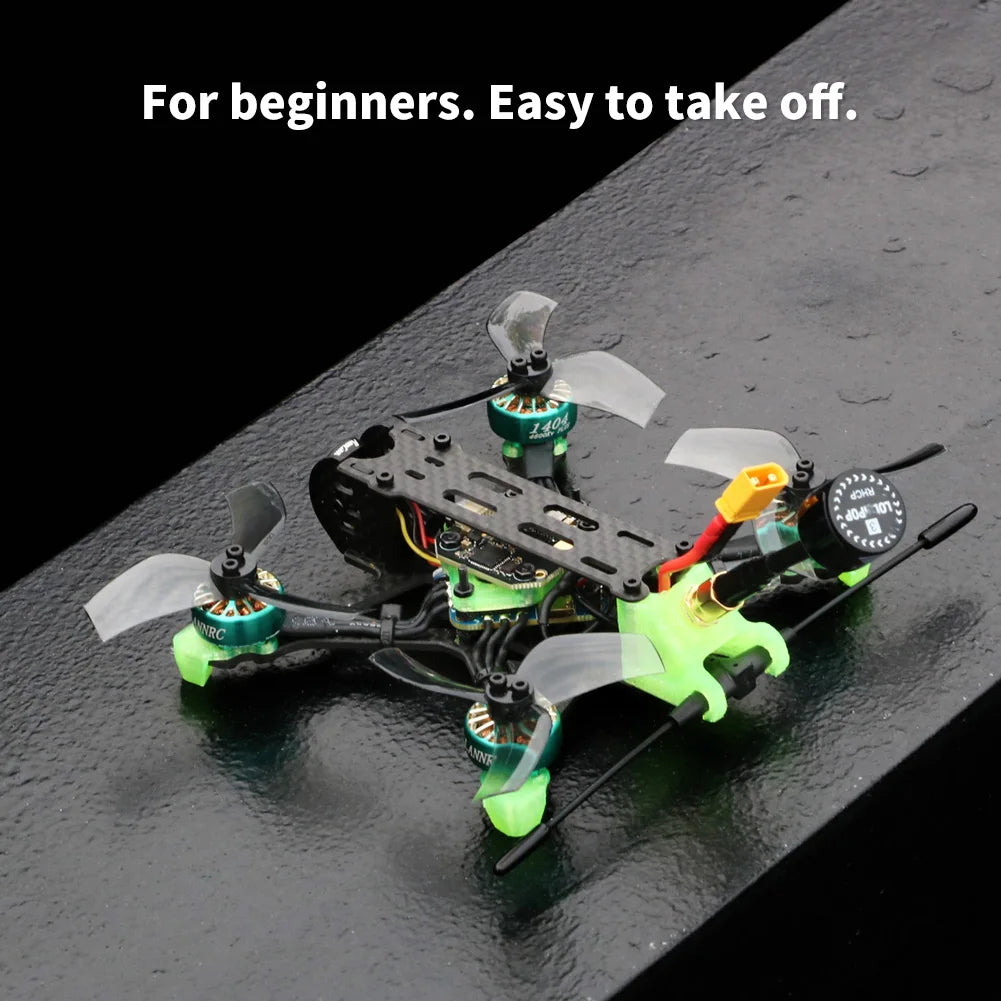

Operator Skill Level: Beginner
Origin: Mainland China
Package Includes: Original Box,Camera
Recommend Age: 14+y,6-12Y
Remote Control: Yes
Remote Distance: /
State of Assembly: Ready-to-Go
Takeoff Weight: 300g
Transit Time (Days): ///
Type: HELICOPTER
Video Capture Resolution: 720P HD
Warranty: NO

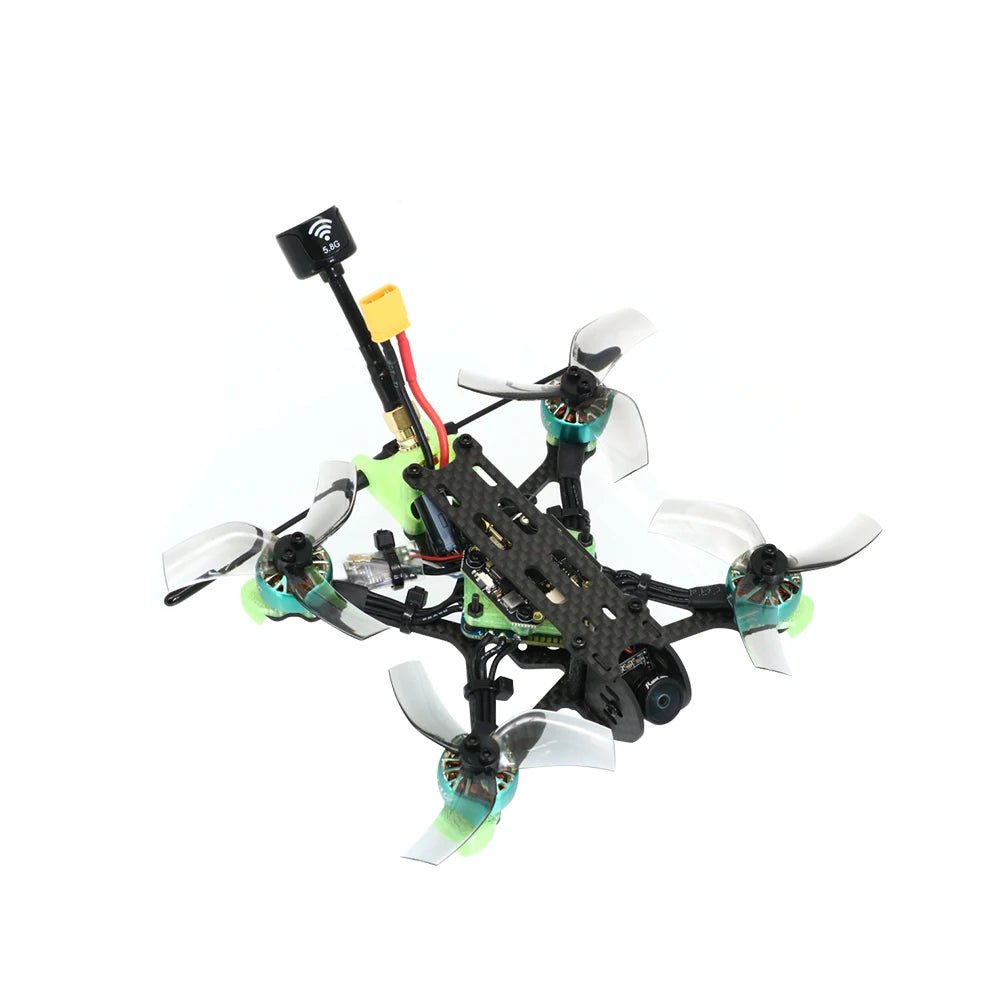

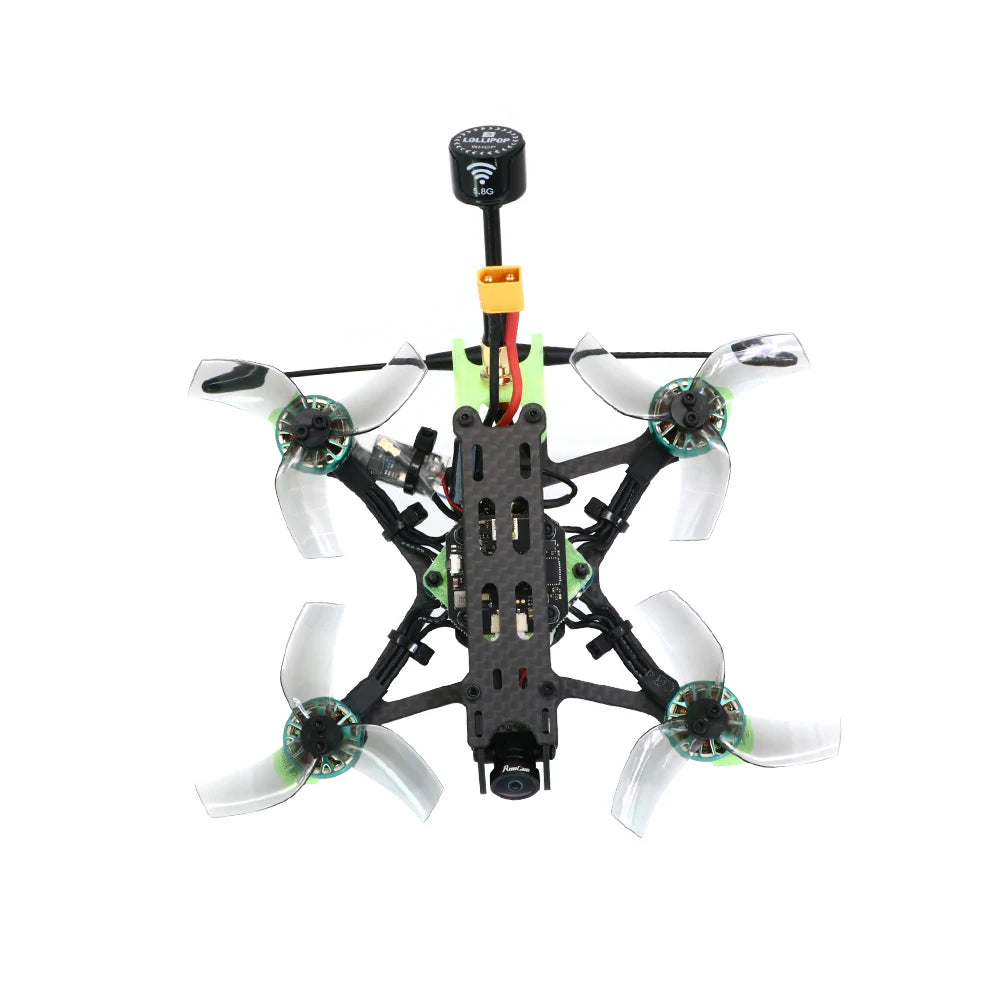

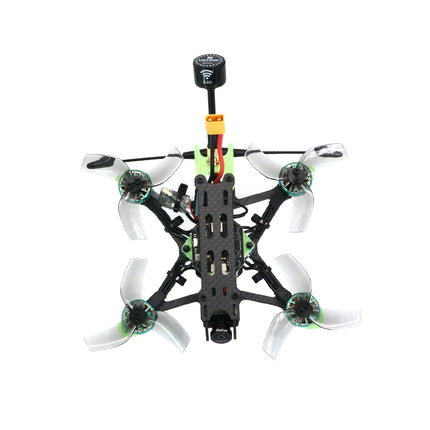

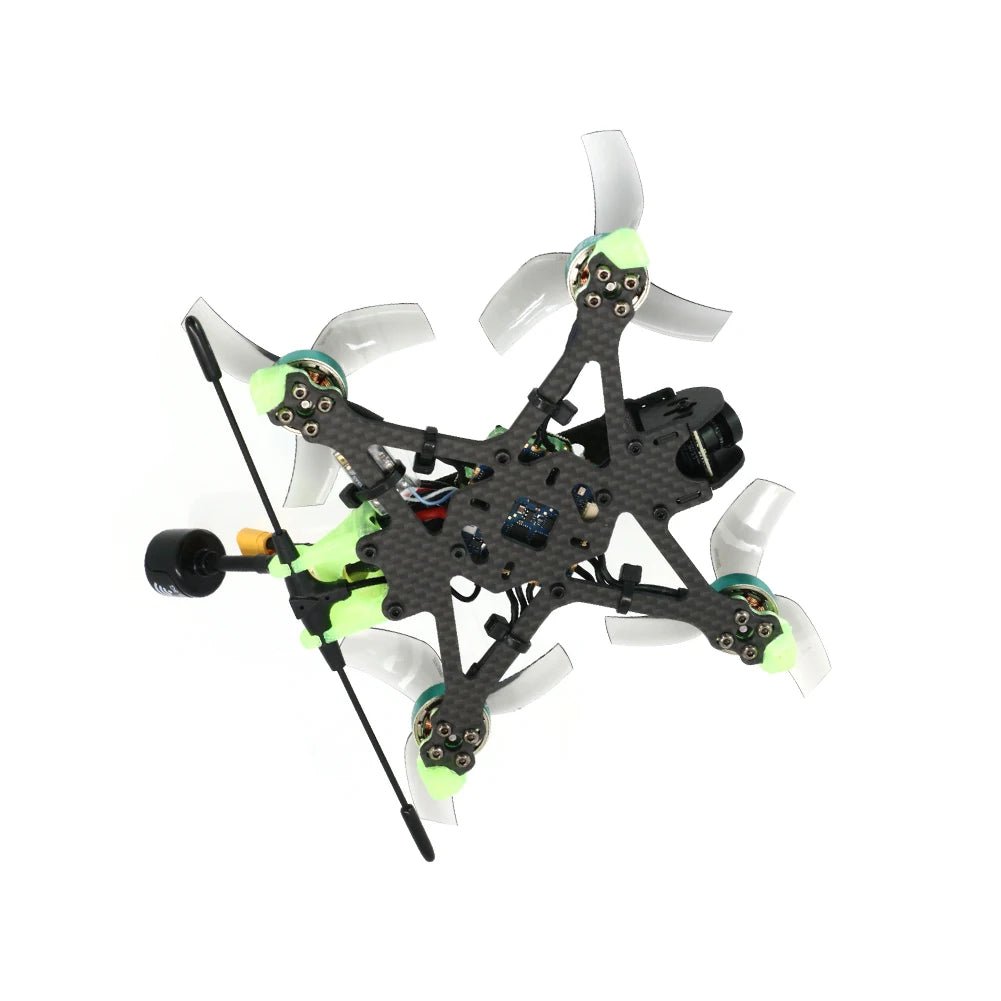

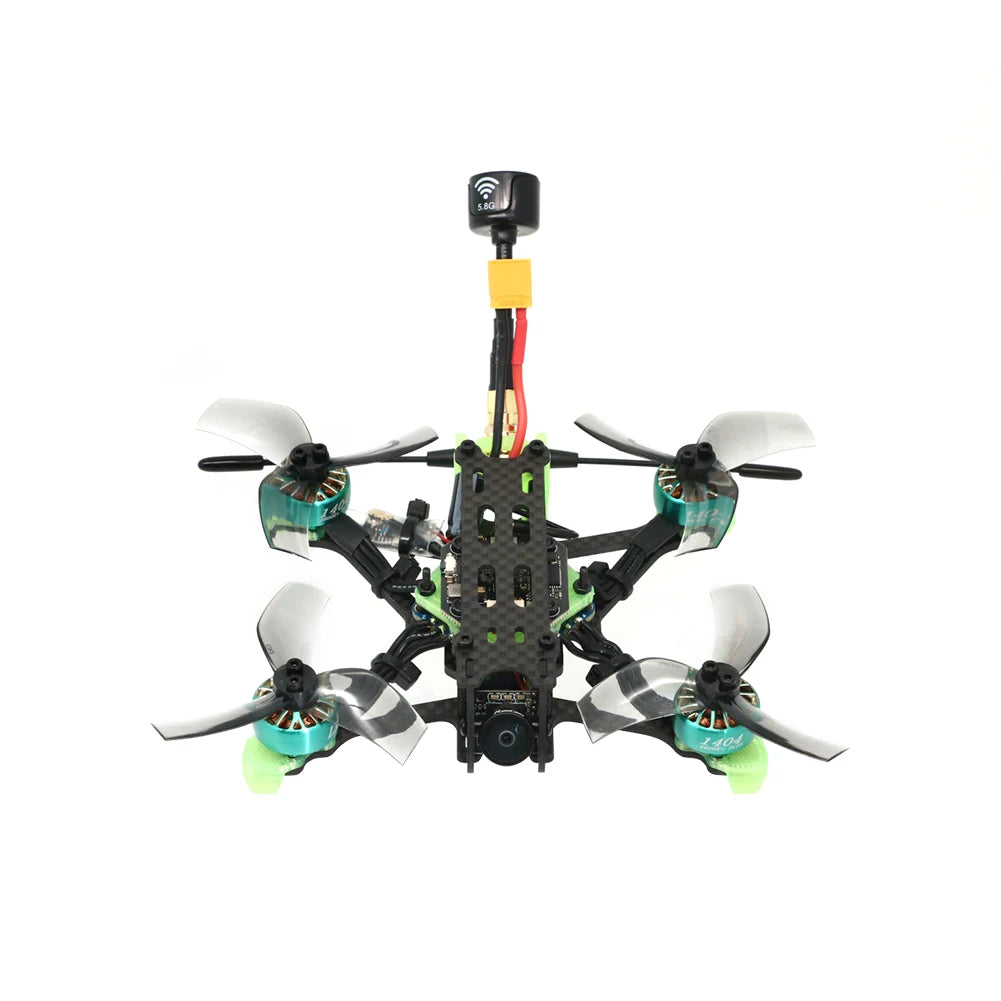

2.5-inch FPV drone angel25 PNP/BNF
Battery life: 4-6 minutes (4S, 450mah)(battery not include)
Image transmission distance: About 1km (the actual distance is related to the environment)
Speed: 50-80km/h
Battery support: 3-4S
Single aircraft weight: 115g
The Angel 25 has a wheelbase of 118mm
Base plate thickness: 2.5mm
The thickness of the remaining plates: 1.5mm
Flight control installation hole positions: 16x16,20x20,25.5x25.5
Motor installation hole positions: 9x9,12x12
Camera installation size: 14mm
Aluminum column height: 20mm
blade (2pair)
D63 "Material:PC
Diameter:63mm
Pitch:2.5inch
Inner shaft diameter:2mm
Hub Thickness:4.9mm
Weight:1.36g/PC
Mounting Type:T-Mount"
Motor (4pcs)
1404 4600kv
"Configu-ration:9N12P
Stator diameter:14mm
Stator Length:4mm
Staft Diameter:2mm
Size:φ19.3*14.8mm
Weight:10.3g
Idle current(10)@10V:≤0.72A
No.of cells(Lipo):3-4S
Max continuous power(W)60S:287.8W
Internal Resistance:159mΩ
Max current(60S):17.99A
Cable:22AWG# 150mm Cable"
ESC+FC(1set)
20A+F411 "Size: 33.* 33.mm (25.5mm-26.5mm mounting hole)
Packing size: ø63*32mm
Product net weight: 7g
Package weight: 25g
Flight control parameters:
CPU: STM32F411CEU6
IMU: ICM42688
OSD: AT7456E
Barometer
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Firmware version: HAKRCF411D
Receiver: Frsky/ Futaba/ Flysky/ TBS Crossfire/ DSMX: DSM2 receiver
ESC parameters:
Firmware support: BLHELI_S
Protocol support: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo (20A 2-4S)"

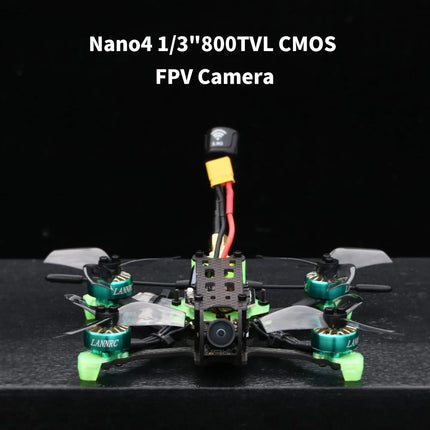

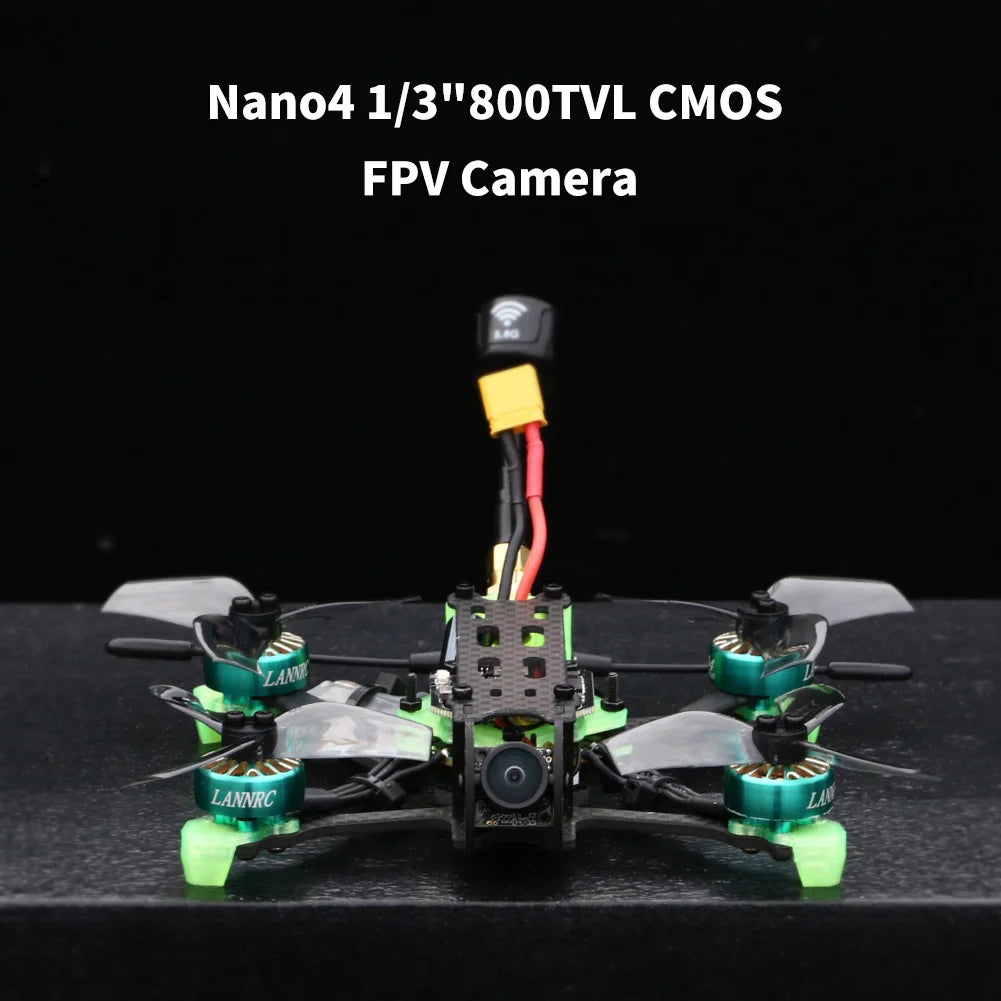

Camera(1pcs)
nano4 800tvl "image sensor: 1/3 coms
Horizontal Resolution：800tvl
lens:2.1mm(M8)FOV155°
signal System:NTSC
S/N Ratio:>50dB
Electronic Shutter Speed:Auto
Auto Gain Control(AGC):Auto
Min.IIIUMination:0.01Lux@1.2F
D-WDR:Auto
Day/Night:color
Power:DC3.3-5.5V
Current:160mA@5V 180mA@3.3V
Housing Material:ABS
Net Weight:2.9g
Dimensions:L14mm*W14mm*H14mm"
VTX(1pcs)
5.8g 25-1000mw可调 "Input Voltage:7-26V
On-Board BEC Output:5V
Number of Transmission Channels:48
Transmitting Power:25/100/200/400/1000mw
Video Format:PAL/NTSC
Working Temperature:-25℃-105℃
Control Protocol:TBS SmartAudio
Antenna Connector:MMCX
Connection Mode:SH1.0-8P
Installation Hole:20mm&30.5mm
Size:(29mm*29mm)&(37.5mm*37.5mm)"
Receiver ( will according what you choose)

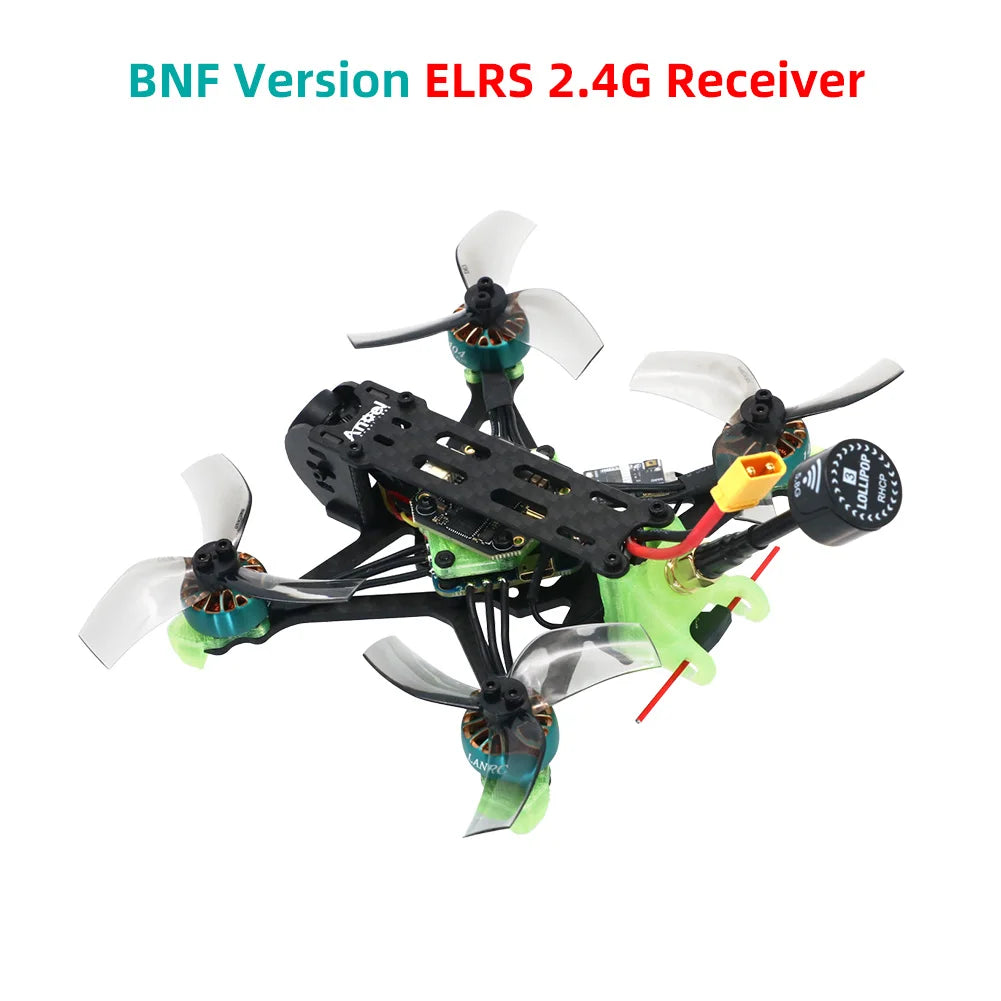

elrs 2.4g "Frequency band :2.4g
Firmware :BETAFPV 2400RX
Input voltage :4.5-5.5V
Antenna connector :IPEX1
Weight :1.6g
Size :10.5x17mm
Telemetry power :20dbm
Maximum receive refresh rate :500Hz
Minimum receive refresh rate :25Hz
Work Agreement :CRSF"

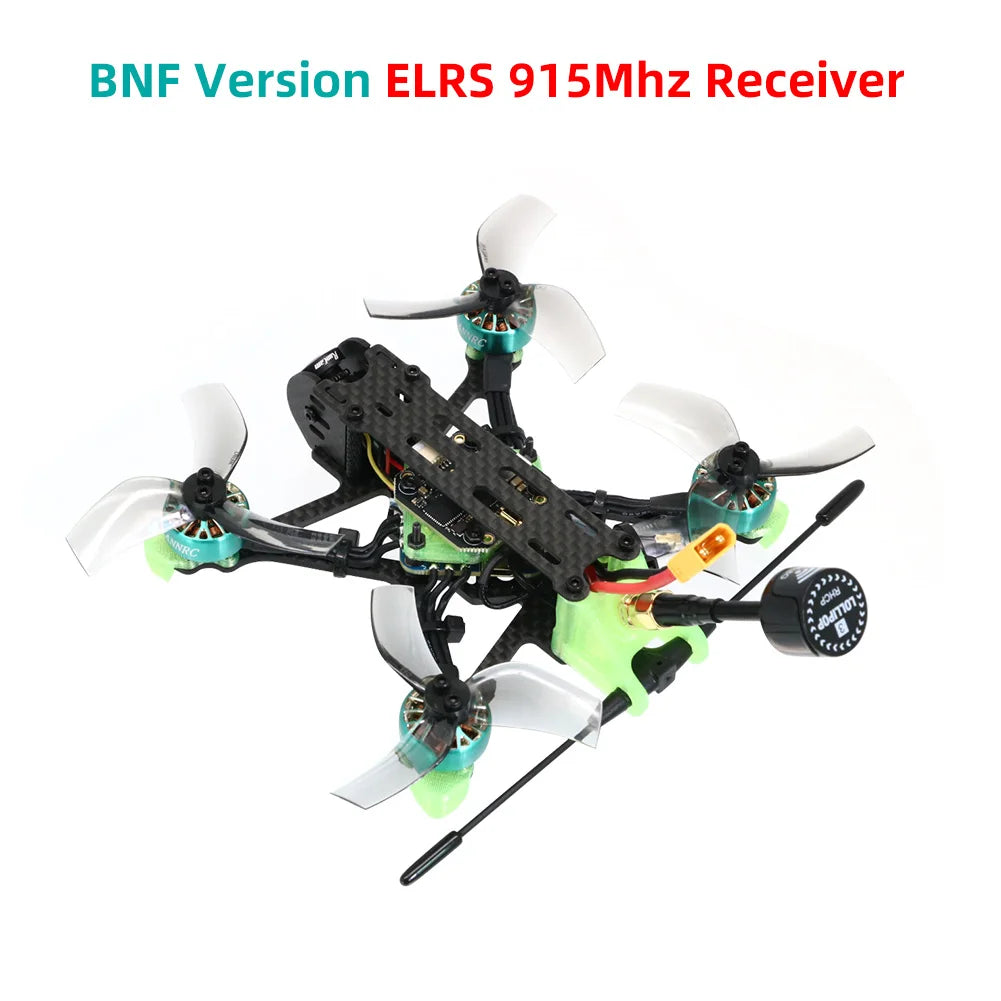

receiver elrs 915 "Model:ELRS 915M NANO
RF Freq:915Mhz
IC:SX1276+ESP8285
Color:Black
Connector:IPEX 1
Input Power:3.6-5.5V
Weight:0.6g(receiver only)
Size:11mm*18mm"
