Description
SPECIFICATIONS
Angle of View: 70 degree
Brand Name: ANNKE
Cable Length: None
Camera Housing: Plastic for Main Part
Camera Video Resolution: 3MP (2304X 1296)
Certification: CE,FCC
Feature 1: Wireless Video Surveillance Kit
Feature 10: surveillance camera
Feature 11: video security system
Feature 12: video surveillance
Feature 2: Wifi Security Camera System
Feature 3: Home Wireless Video Surveillance Kit
Feature 4: Video surveillance wifi
Feature 5: Security Camera System
Feature 6: CCTV Video Surveillance
Feature 7: CCTV Camera System
Feature 8: kit video surveillance
Feature 9: cctv camera
HDD Capacity: Up to 6 TB Capacity
High-concerned chemical: None
IR-Cut Filter: YES
Image Sensor: 1/2.8" Progressive Scan CMOS
Lens: 3.6mm
Max Playback Capacity: 4CH 3MP/2CH 5MP
Max Playback Channel: 4CH
Max Playback Resolution: Up to 5MP (2560 X 1920)
Max Recording Resolution: Up to 5MP (2560 X 1920)
Model Number: N48WHR-74GK
NVR Audio Output: Support
Night Vision Distance: Up to 100 ft/30 m
Number of Infrared LEDs: 18pcs
Operating Power: DC 12V
Origin: Mainland China
PCS of Camera: 4PCS,6pcs,8PCS
Recorder Housing: Metal for Main Part
Resolution: 3 MP
Smart home platform: Other
TV System: NTSC,PAL
Video Compression: H.264+
Video Input: 8 Channel
Video Output: HDMI and VGA up to 1080p
WiFi: 2.4 GHz (Built-in Antenna)

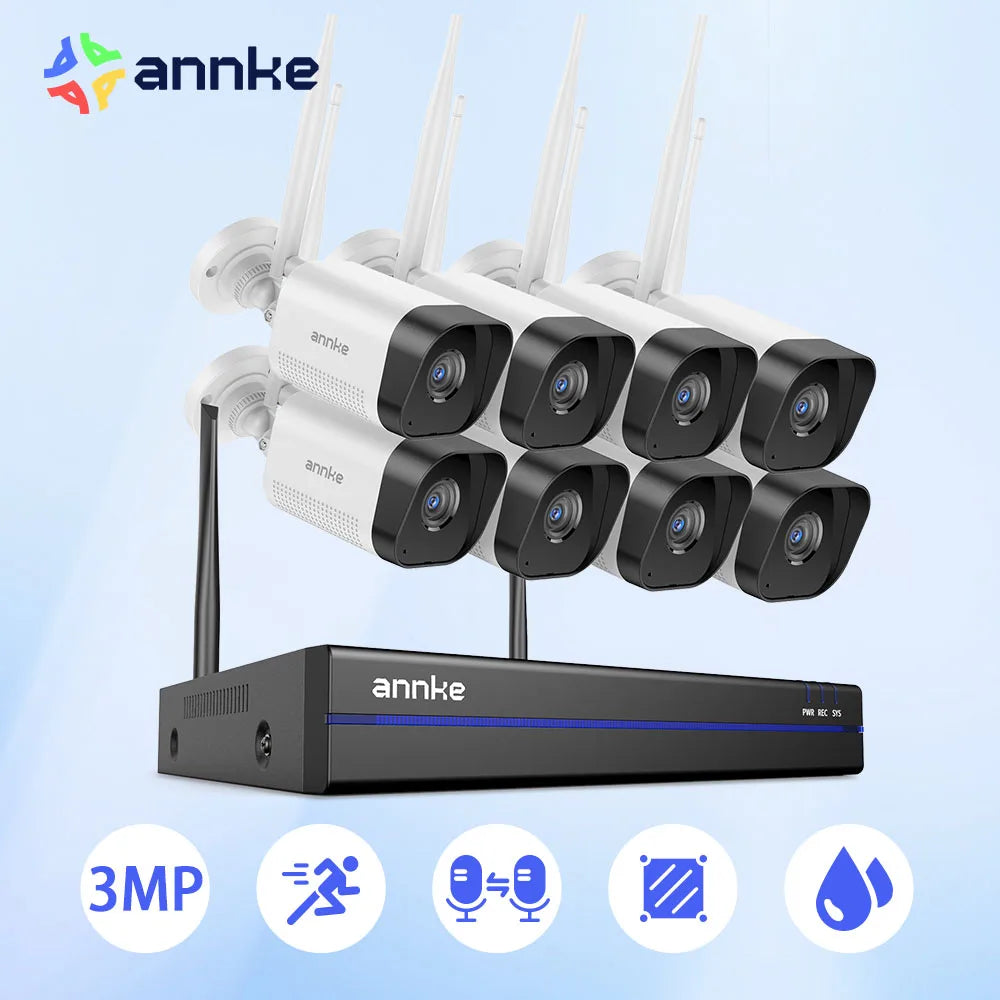

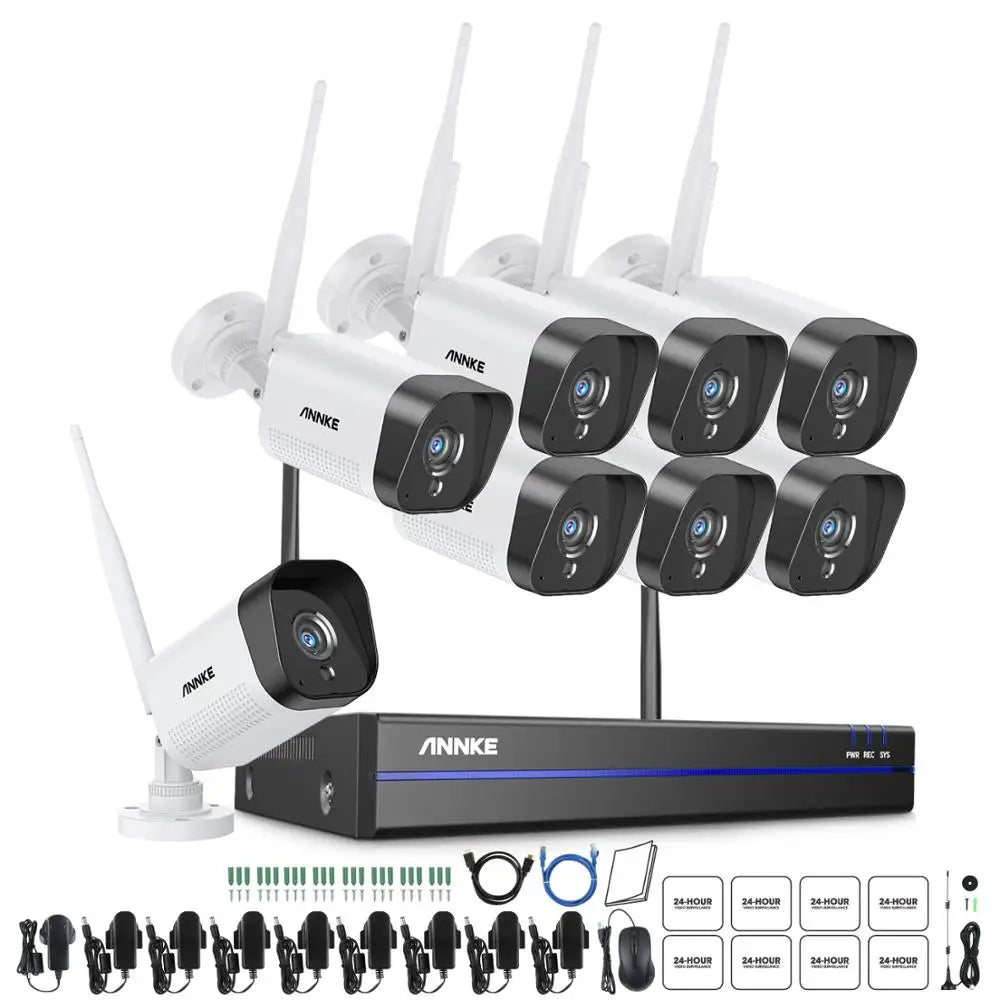

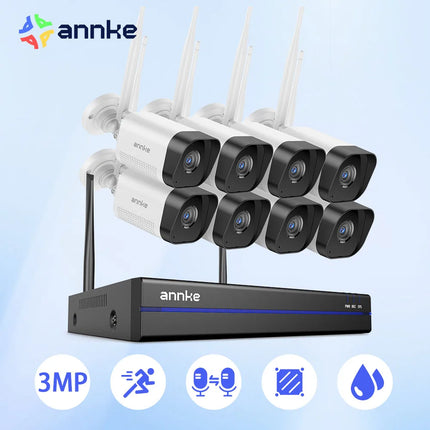

ANNKE WS300 8CH 3MP Super HD Wireless Security Camera System
Key features:
· 3MP FHD video viewing, recording and playback
· Wi-Fi access, real plug-and-play system
· Advanced H.264+ Video Compression
· Instant motion detection email alert

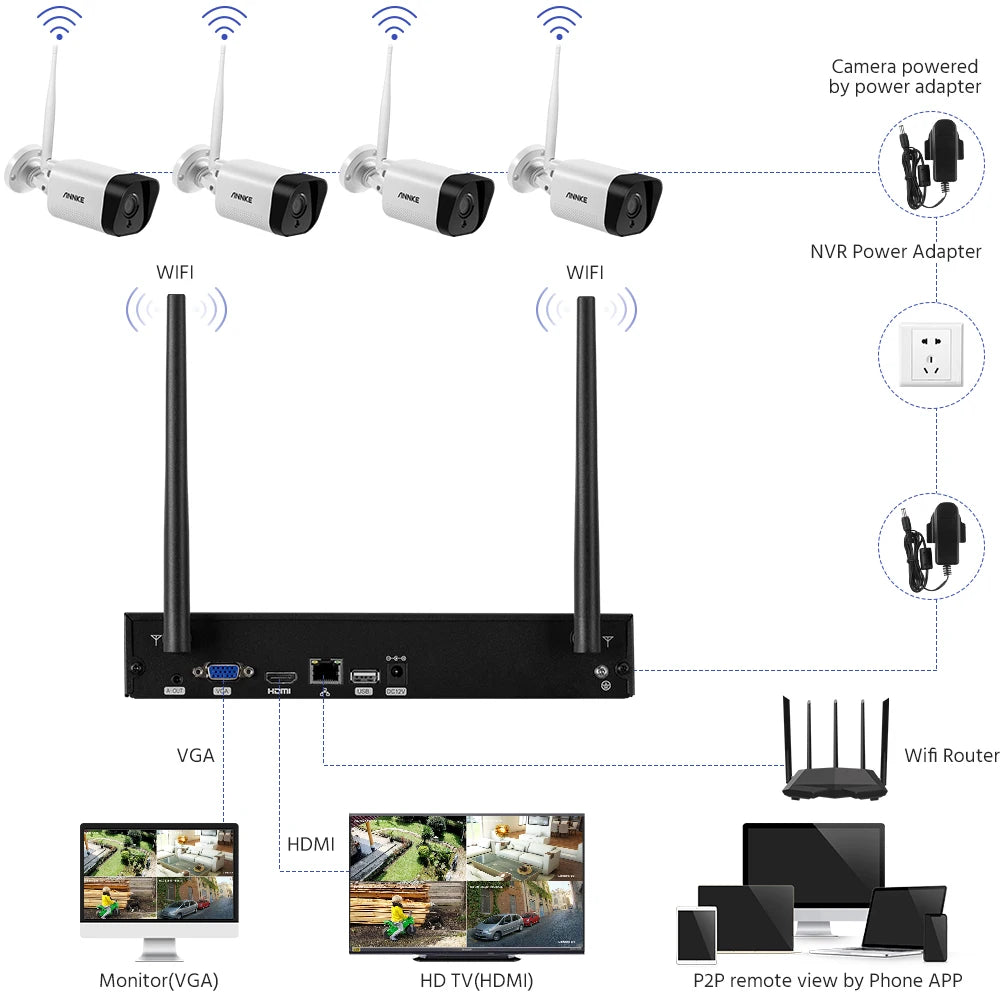

· HDMI and VGA outputs for TV, monitor and computer
· Simple-to-use app for mobile monitoring
· True day and night continuous protection
· Up to 100ft night vision with Smart IR
· IP66 weatherproof indoor and outdoor cameras
NVR |
NVR |
Video Compression |
H.264+ |
IP Video Input |
8CH Wireless |
Video Output |
HDMI and VGA up to 1080p |
Audio Output |
Support |
Max Recording Resolution |
Up to 5MP (2560 X 1920) |
Max Playback Resolution |
Up to 5MP (2560 X 1920) |
Max Playback Channel |
4CH |
Max Playback Capacity |
4CH 3MP/2CH 5MP |
Hard Drive |
HDD |
1 SATA Interface |
HDD Capacity |
Up to 6 TB Capacity |
External
Interface |
Network Interface |
RJ45 X1 (10/100 M) |
Wireless Antenna |
2 Ports (IEEE802.11b/g/n) |
WiFi |
2.4 GHz (Built-in Antenna) |
USB |
USB 2.0 X1 |
General |
Housing |
Metal for Main Part |
Operating Power |
DC 12 V |
Power Consumption |
6W (Without HDD) |
Working Temperature |
14 °F ~ 131 °F/-10 °C ~ 55 °C |
Dimensions (W X H X D) |
|
Weight (Without Hard Disk) |
|
IP Camera |
Camera |
Video Resolution |
3MP (2304 X 1296) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
Audio Compression |
G.711A |
Video Compression |
H.264+ |
Lens |
3.6 mm |
Angle of View |
70° |
Number of Infrared LEDs |
18 |
Night Vision Distance |
Up to 100 ft/30 m |
IR-Cut Filter |
Yes |
Ethernet |
RJ45 X1 (10 M/100 M) |
General |
Wireless |
IEEE802.11b/g/n |
Housing |
Plastic for Main Part |
Operating Power |
DC 12 V |
Operating Temperature |
-4 °F – 140 °F/-20 °C – 60 °C |
Indoor/Outdoor |
Indoor/Outdoor |
Weatherproof Rating |
IP66 |
Dimension (L X W X H) |
|
Weight |
|
