Description
SPECIFICATIONS
Air Consumption: 10.0 SCFM, 1.7 SCFM
Bag handle: D-Handle
Battery: 2*12/120V/Ah
Brand Name: NoEnName_Null,YG
Certification: CE
Charger: 24/18V/A
Compatible Material Type: Glass
Condition: New,New
Controls: Remote Control
Dimension(L*W*H): 1500*1300*1300mm
Driving mode: Front Axle Drive
High-concerned chemical: None
Lifting Height: 3700 / 4500mm
Lifting Motor: 24/2200V/W
Load Capacity: 250 kg, 600 kg, 700 kg, 800 kg
Load Movement: Horizontal
Manipulation: Walkie Type

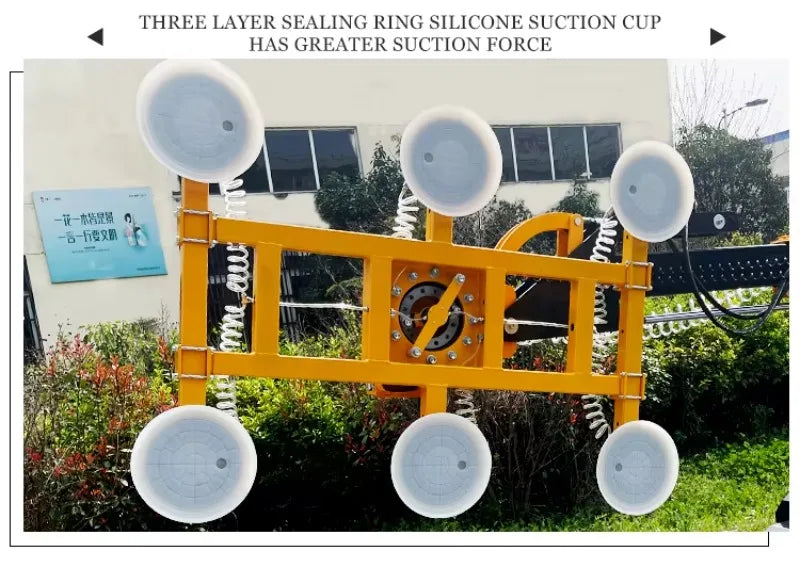

Number of pads: 8
Origin: Mainland China
Pad Diameter: 6 in, 100mm, 4.5 in, 40MM, 10 in
Place of Origin: henan, China
Power Source: AC Power
Product Name: Vacuum Glass Lifter Robot
Release mechanism: Pull Lever

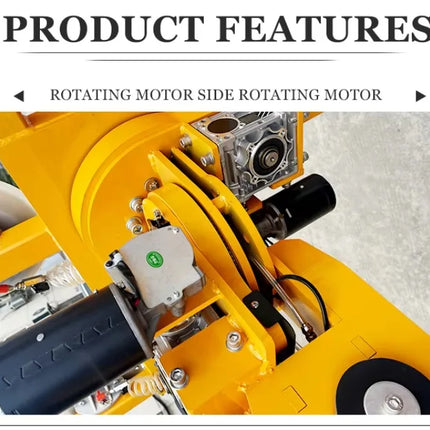

Rotating: Manual 360° (Automatic type for optional)
Suction Force: 2500 N, 3 000 N, 1500 N
Thread Dimension: 1/4 in, 13/32 in, 19/32 in, 9/16 in
Turn to side: Manual 90° (Automatic type for optional)
Voltage: 380 V, 220 V
Warranty: 1 Year
Weight (KG): 80 kg
maximal lifting height: 5 m, 4 m, 3 m
number of suction cups: 6, 4, 8
pad size: 40 mm, 8 mm, 32 mm, 60 mm
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
Product Description Of Powerful Multifunctional Mobile Vacuum Glass Lifting Robot 500~800kg For Glass Door And Window Installation

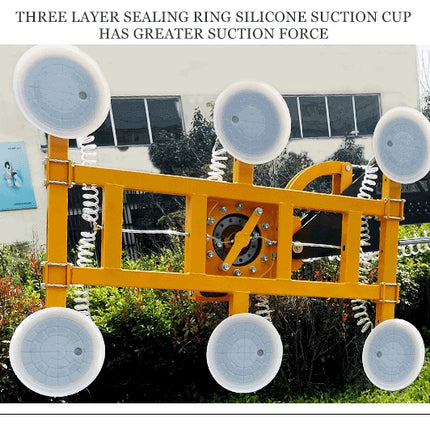

Compared with YG model types, This series is a senior machine with Front Axle driven, which have better road holding and friction force while driving with loads. Moreover, this model improved the controller from manual valves to remote controller, intuitive interface helped operation easier to find required function, and much helpful to the speed control as well.Various options customized for special request as well. Features & Advantages: 1. Front driving,rough terrain wheels,can walk on bad situation road.Strong power, steady lifting and lowering. 2. Intelgent control system ,DC24V reliable actuators for lifting, extension and tilting. 3. Japan Panasonic sensor and Taiwan Airtac pneumatic controller system, no external air source is required. 4. Dual Vacuum System. One for normal operation and the other as spare system. 5. High quality vacuum pump,hydraulic pump,as well as maintenance-free battery. 6. Equipped with pressure auto maintaining system, even if power fails, pressure remains,safer to use. 7. Independent Air Inlets. Each suction cup can be disabled individually if not all are needed. 8. With side shift function for easier installing,without driving the machine.(50+50mm) 9. Integrated control system secures quick and automatic operating. 10. Competitive price, staff saving and strong improvement of working environment.zmwm23

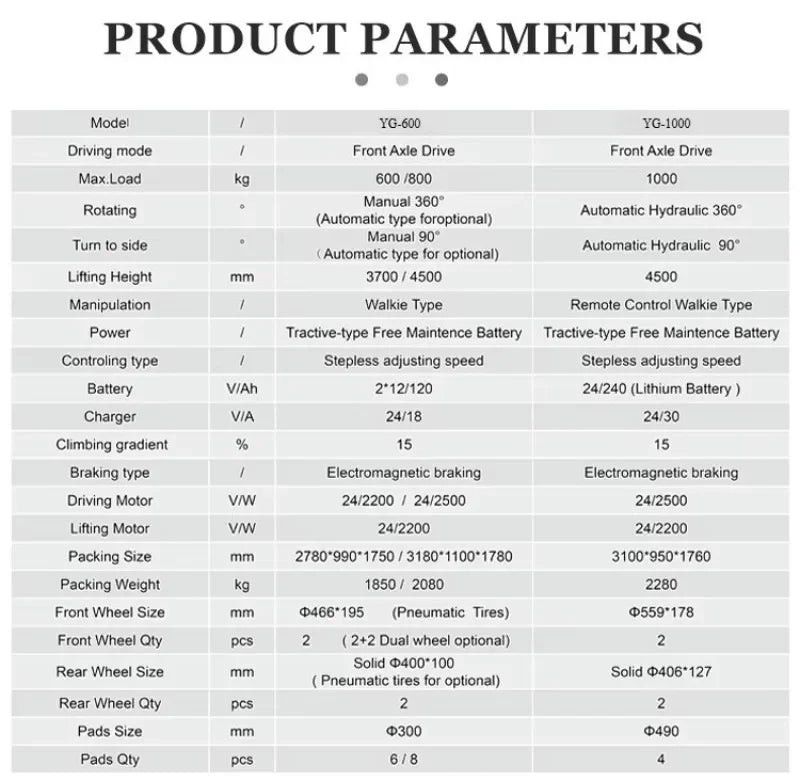

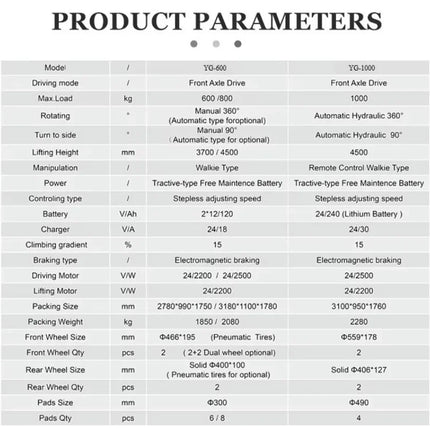

Product Parameters Of Powerful Multifunctional Mobile Vacuum Glass Lifting Robot 500~800kg For Glass Door And Window Installation
Glass installa tion robot
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

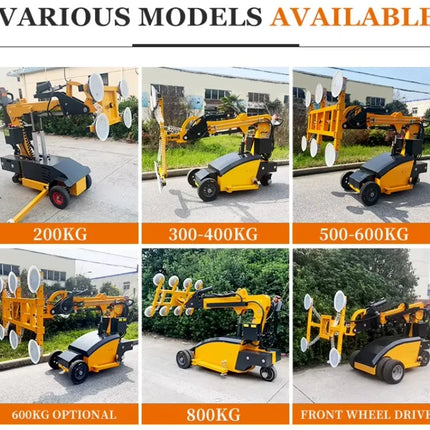

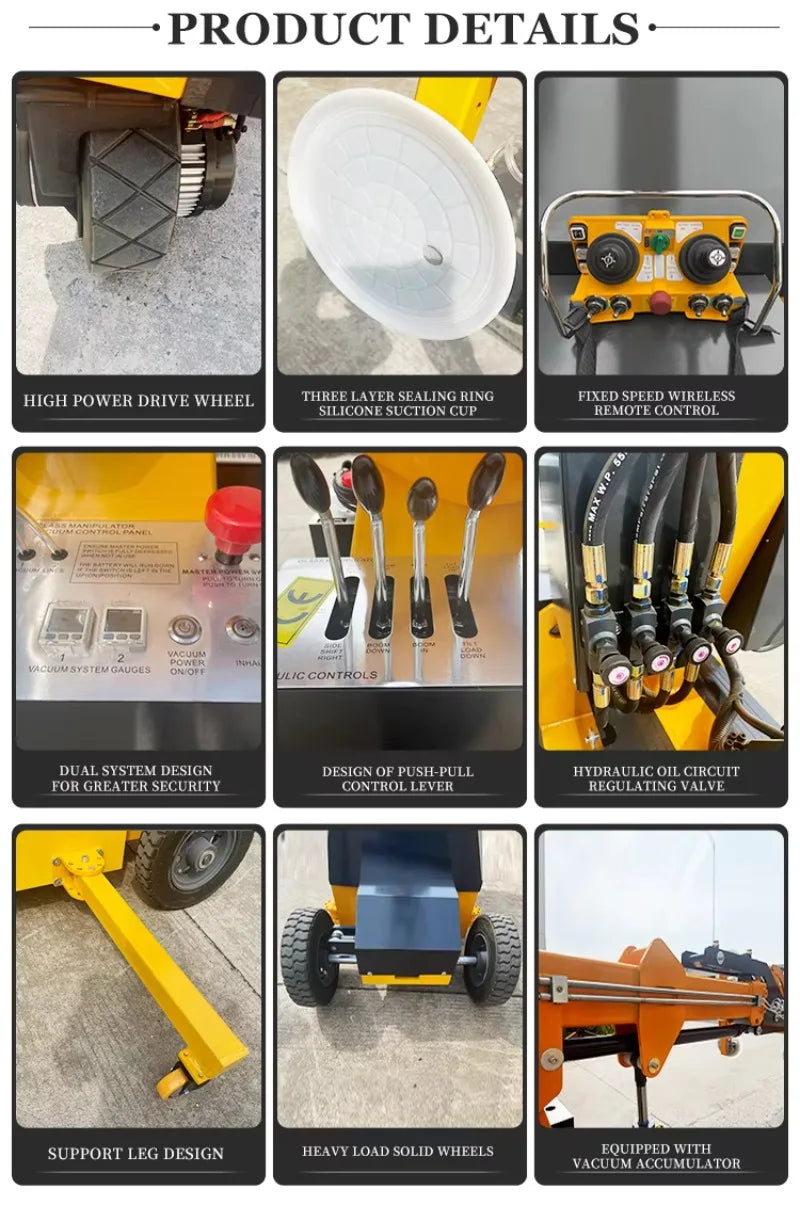

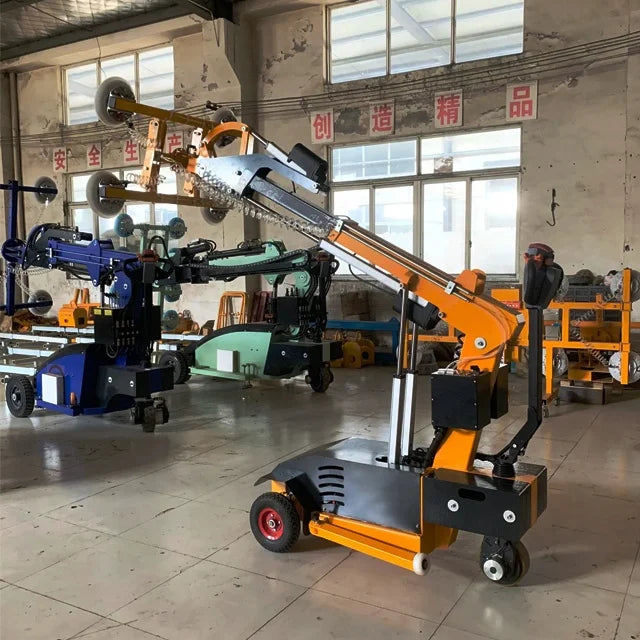

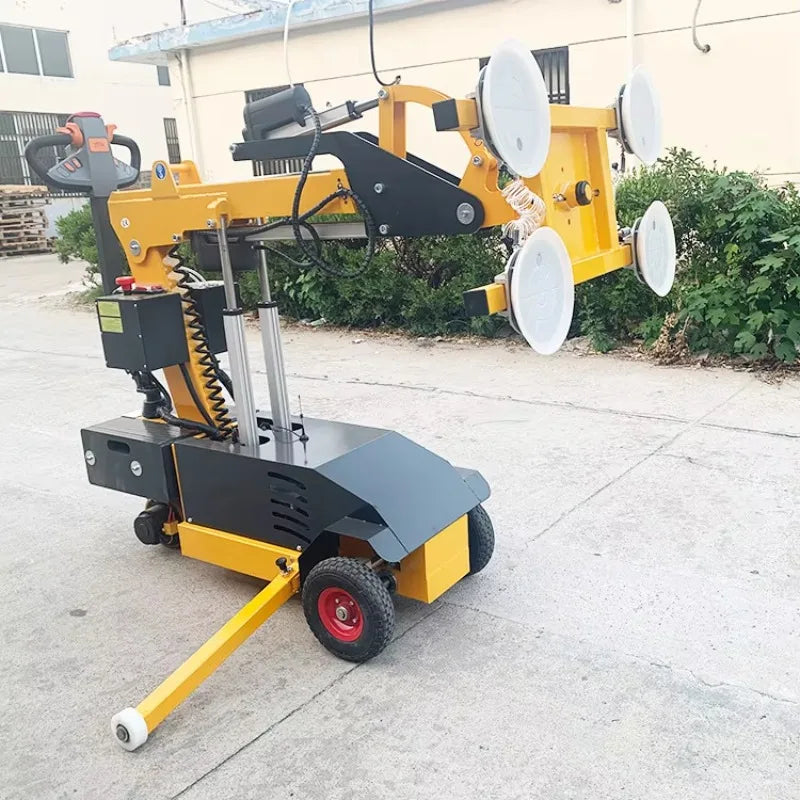

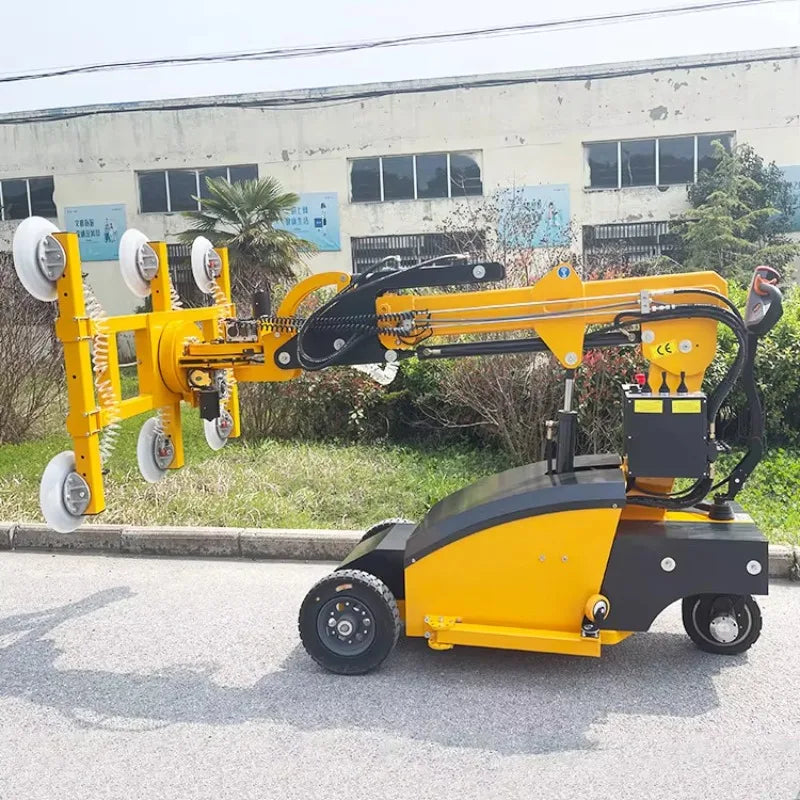

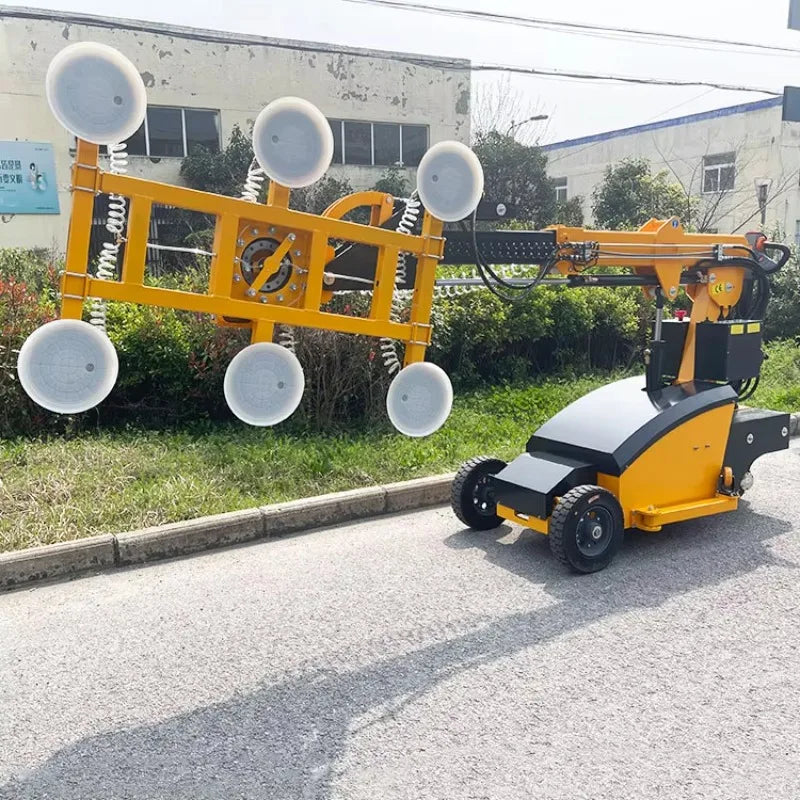

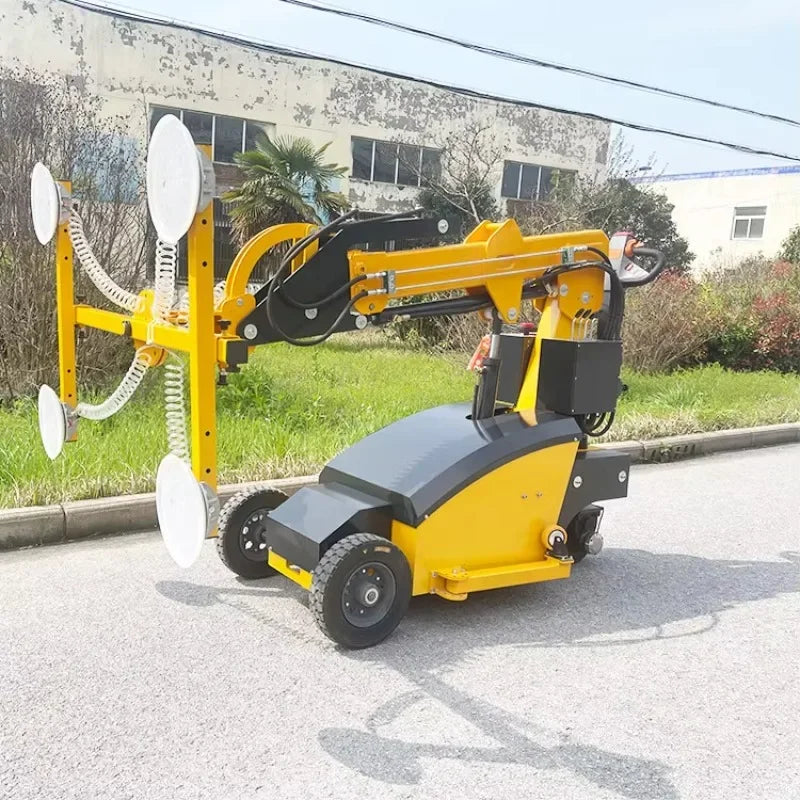

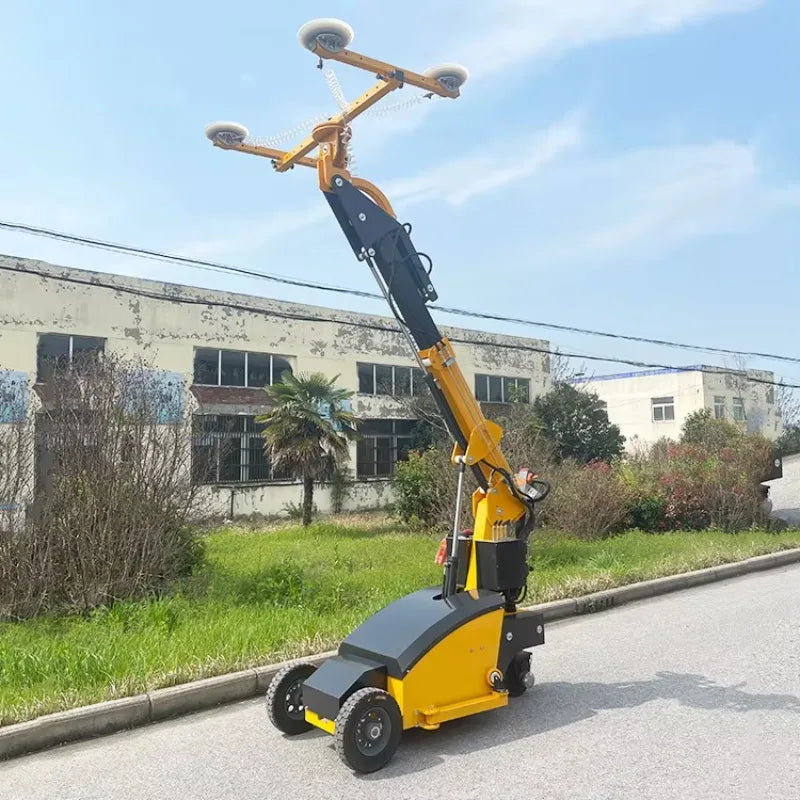

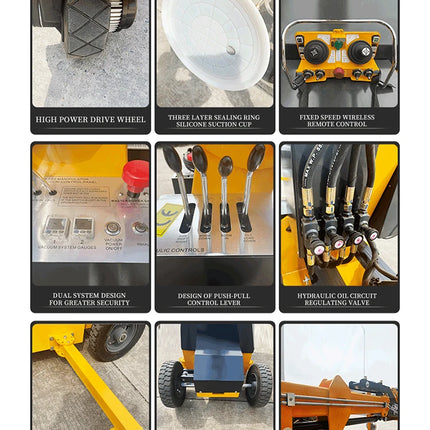

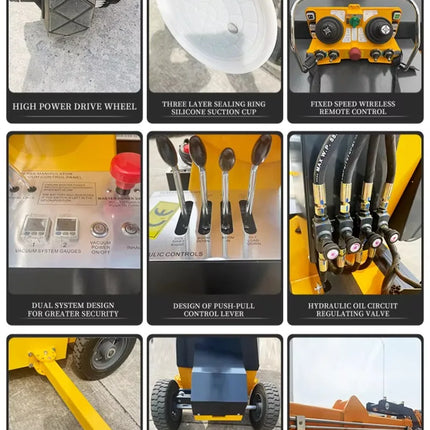

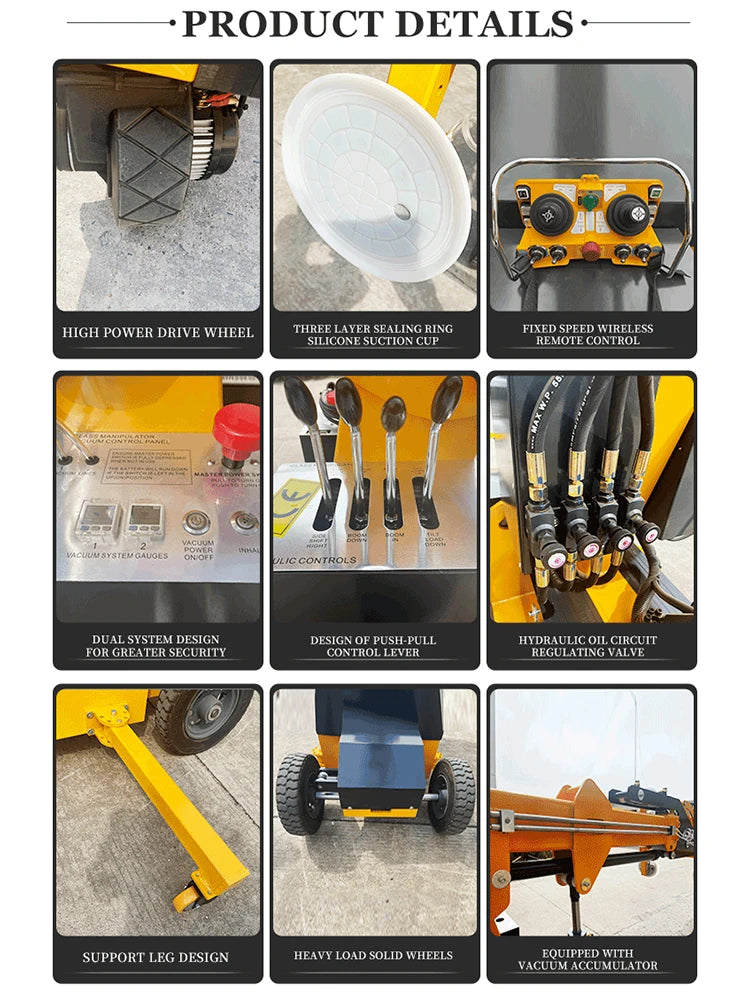

Product Real Shot Of Powerful Multifunctional Mobile Vacuum Glass Lifting Robot 500~800kg For Glass Door And Window Installation

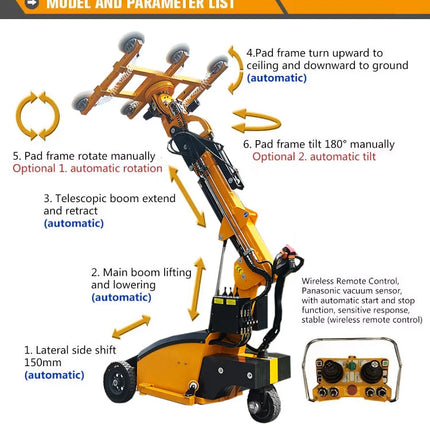

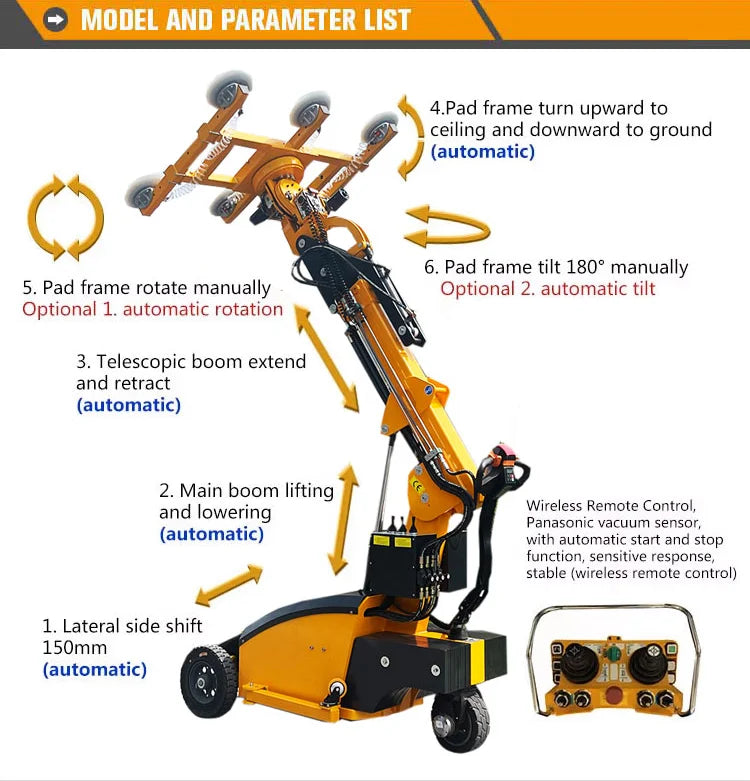

Standard Movements

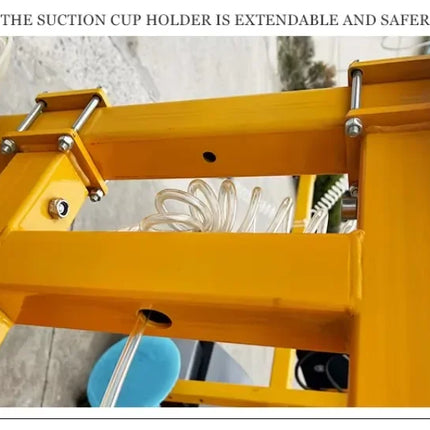

1.Moving control: powered moving, speed control by manual roller sensibly 2.Lifting control: with a hydraulic ram, use the push rod to control the hand-operated valve. 3.Extension control: with a hydraulic ram, use the push rod to control the hand-operated valve. maximum extension distance 750mm, maximum extension distance from the front wheel to the suction pads was 915mm 4.Tilting control: with a hydraulic ram, use the push rod to control the hand-operated valve, the maximum tilting degree near to 180 degree, which can tilt the frame down and up to horizontal position 5.Side-shift: with a hydraulic ram, use the push rod to control the hand-operated valve, 50mm for both sides, totally 100mm
