Description
SPECIFICATIONS
After Warranty Service: Online Video Technical Support
Air Consumption: 1.7 SCFM, 10.0 SCFM, 1.7scfm, 10.0scfm
Applicable Industries: Installation and transportation
Bag handle: Horizontal Handle
Brand Name: NONE
Certification: CE
Color: Customer Requirements
Compatible Material Type: Glass, Metal
Condition: New,New
Controls: Manual Control, Remote Control
Dimension(L*W*H): 1.5*2*1.5m
Drive motor/Lifting motor: 24V/2000W
Function: 90 Degree Flipping
High-concerned chemical: None
Lifting Material: Marble Glass Glass Wall Curtain
Lifting height: 1700mm-2500mm
Load Capacity: 500 kg, 700 kg, 800 kg
Load Movement: Horizontal, manual 360° rotation, manual 180° rota
Number of pads: 10, 8
Origin: Mainland China
Overall Dimensions: 1.5m
Pad Diameter: 300mm
Power Source: Battery, AC Power
Release mechanism: Release Valve, Pull Lever
Rotation: 360 Manual Rotate
Thread Dimension: 13/32 in
Tilting: 90 Manual
Voltage: 24V/2000W
Warranty: 2 Years
Weight (KG): 350kg
maximal lifting height: 1700mm-2500mm
number of suction cups: 8
pad size: 300mm
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali:chunhuali681@gmail.com
CONTACT US:
Product Overview

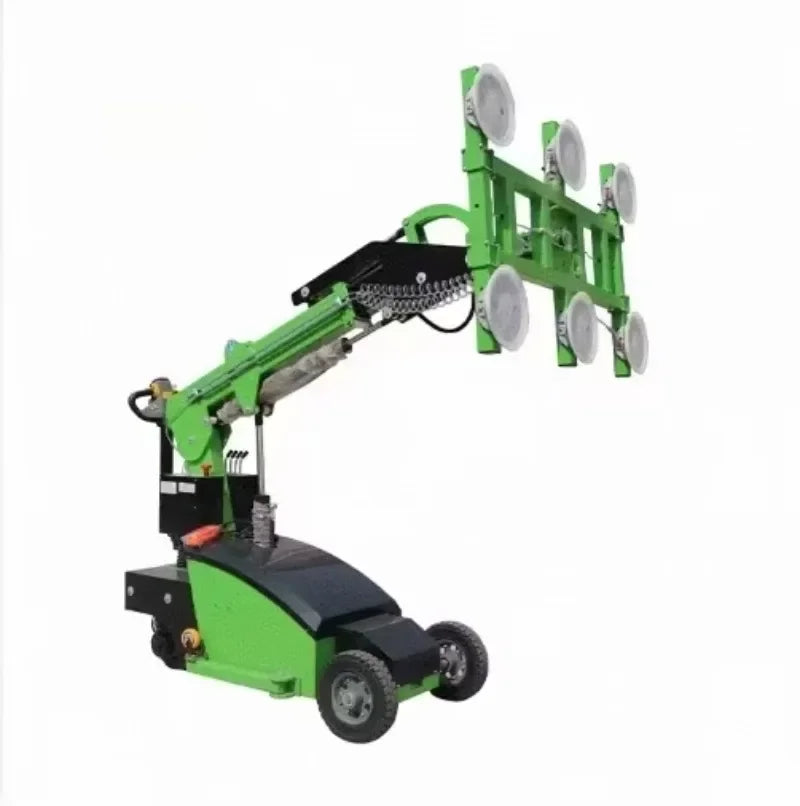

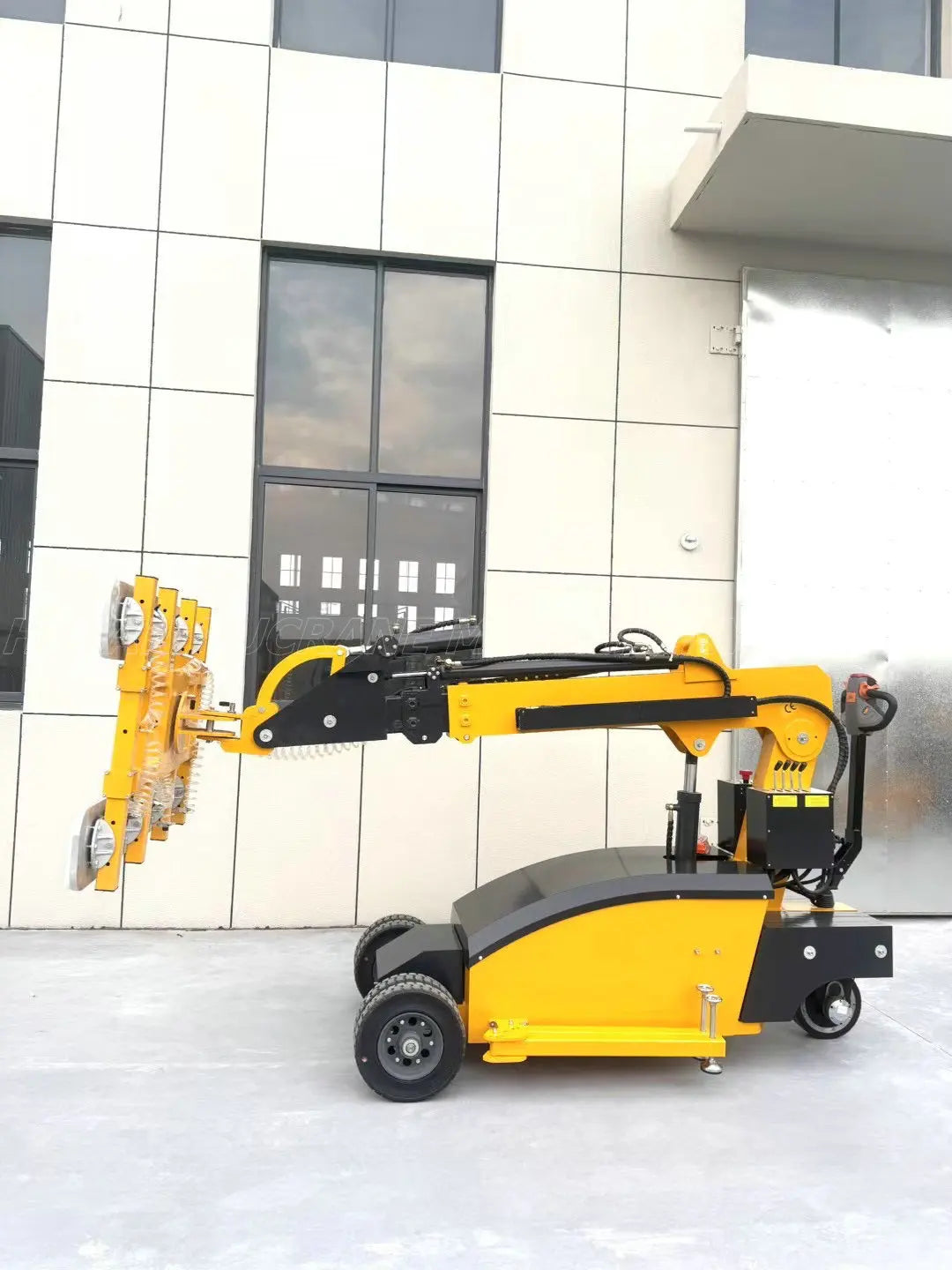

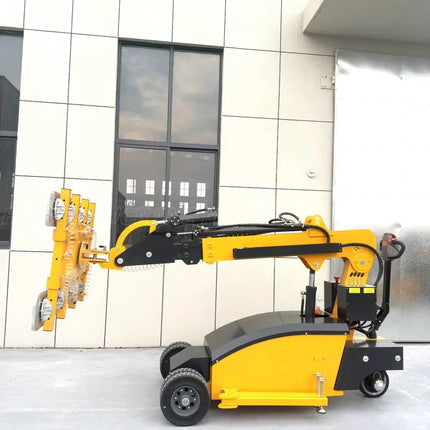

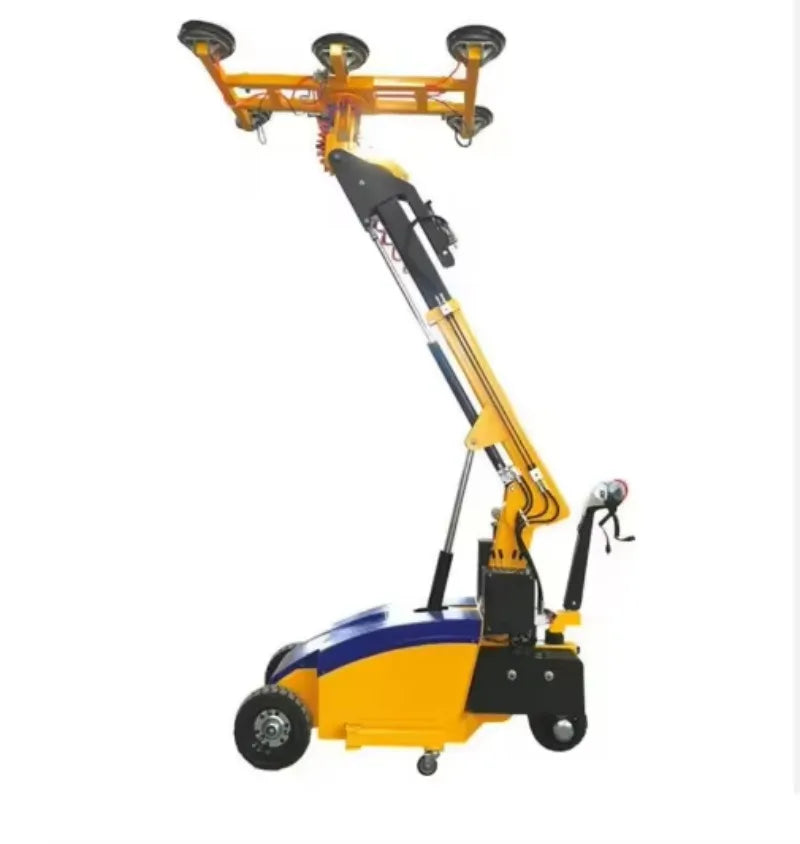

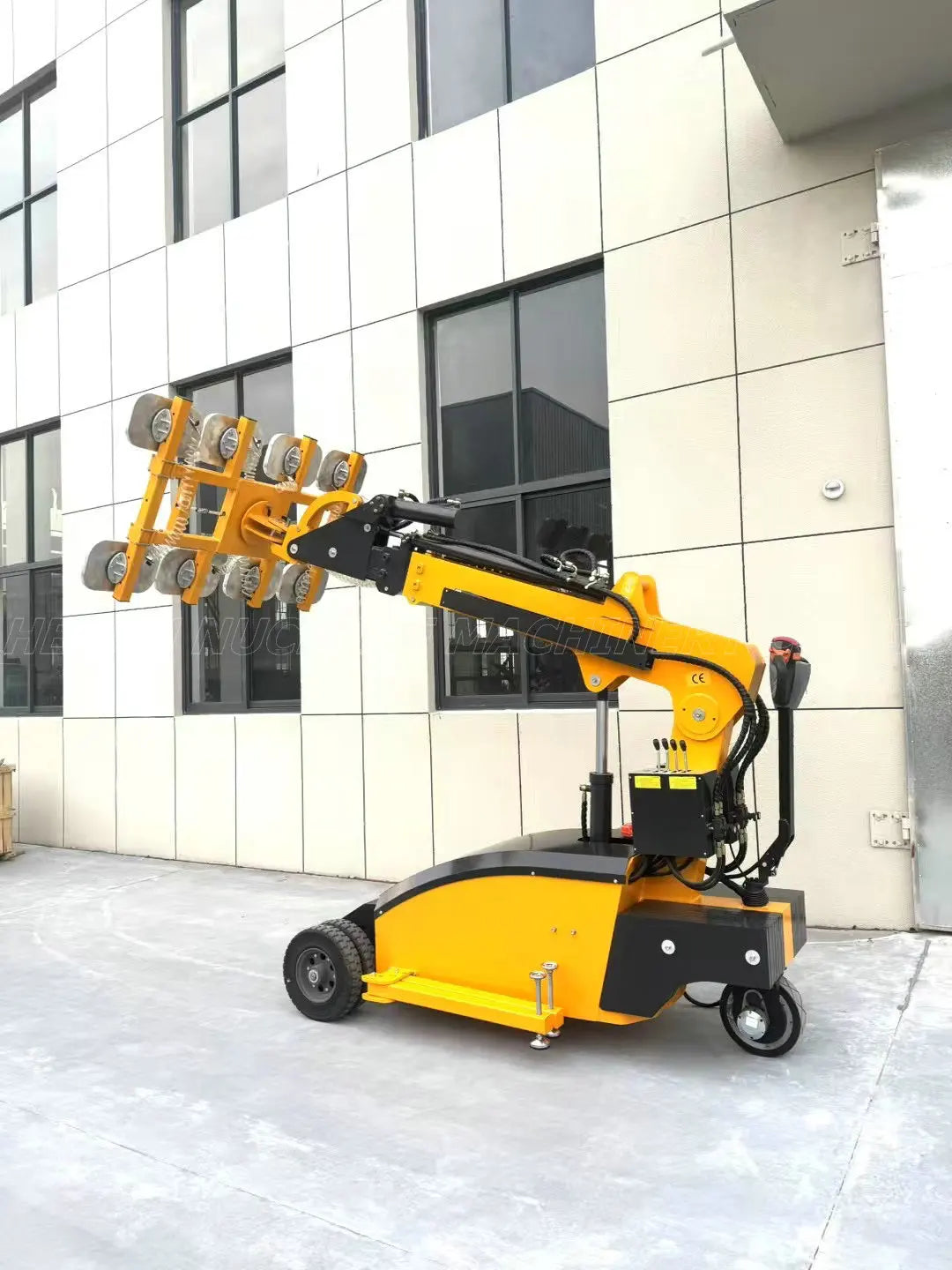

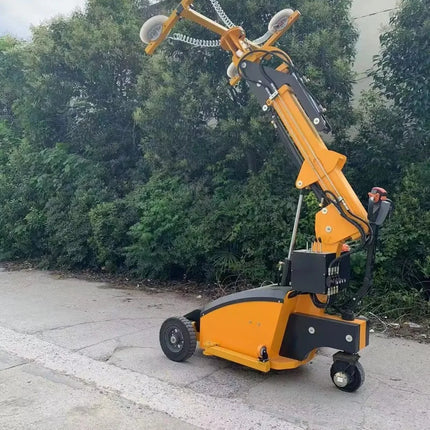

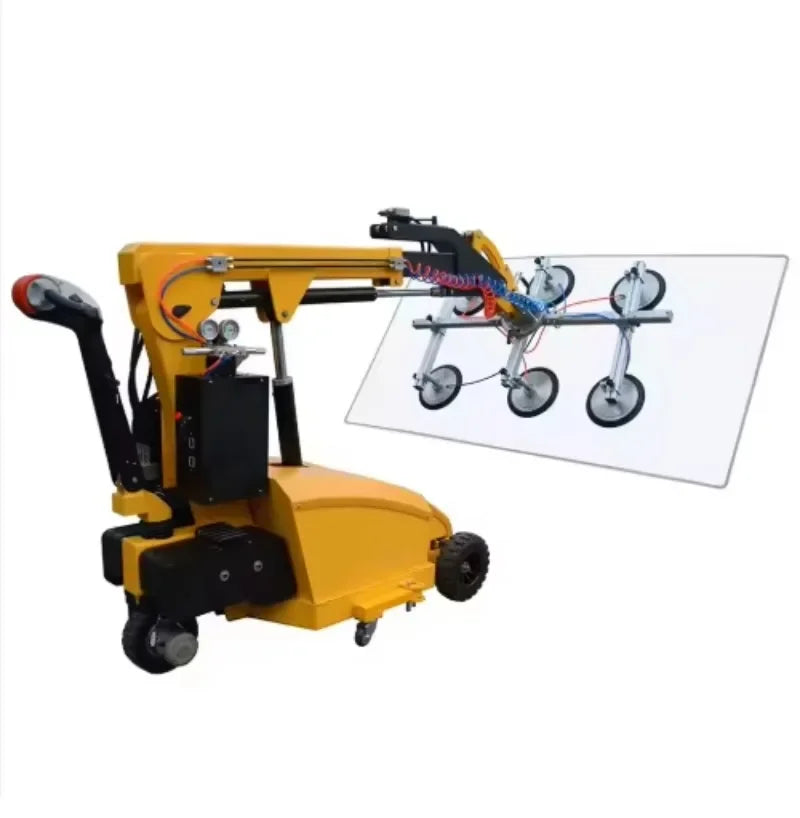

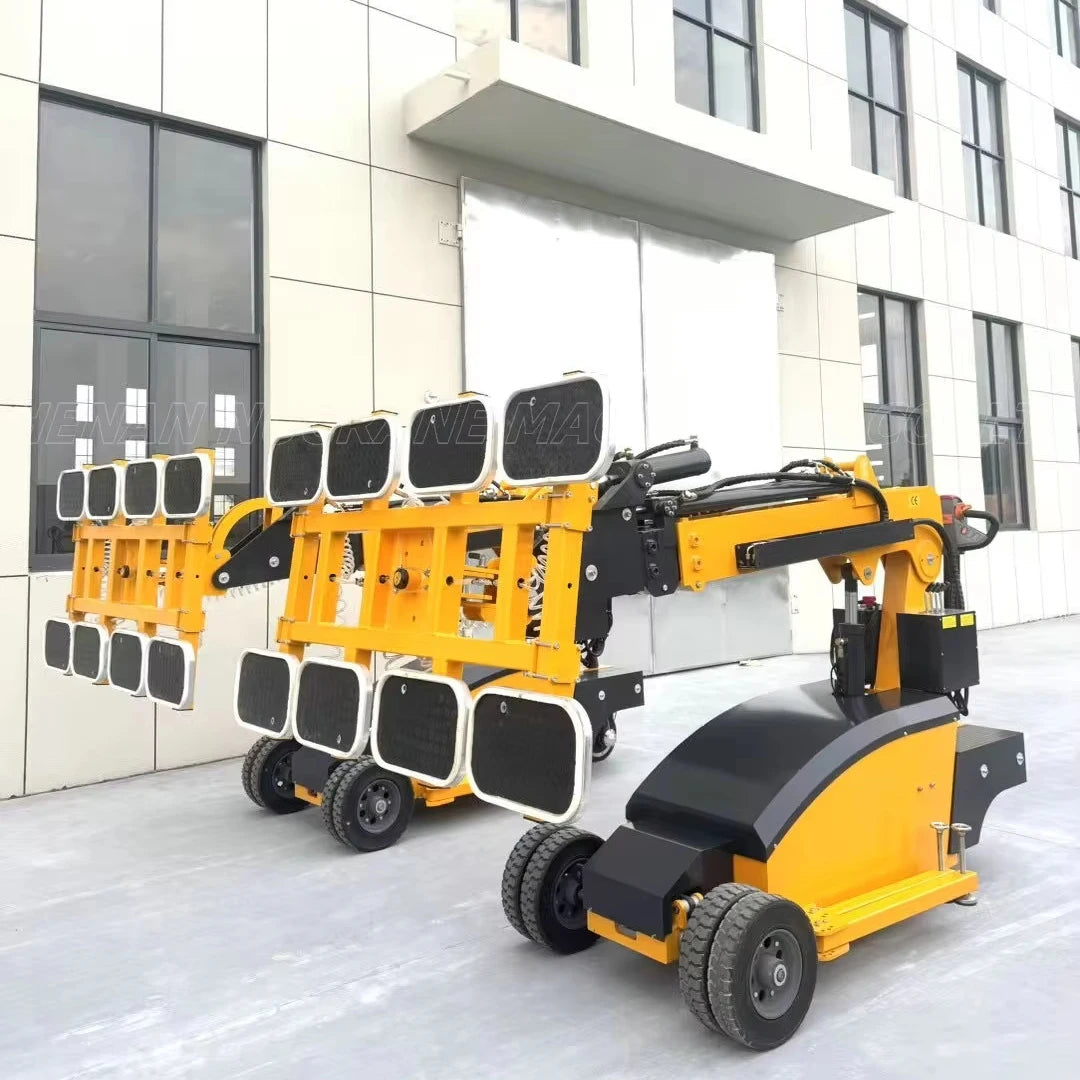

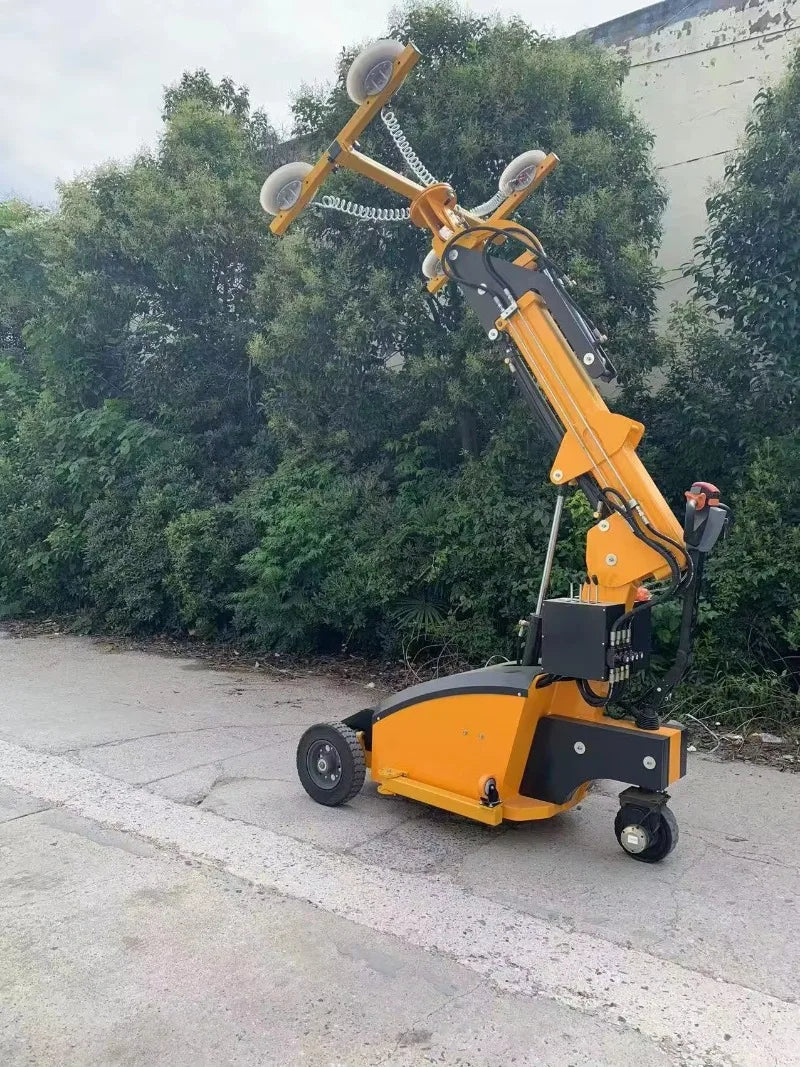

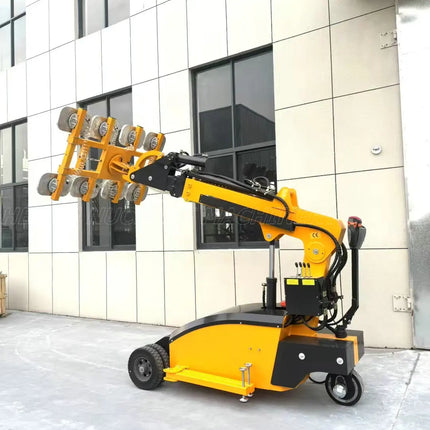

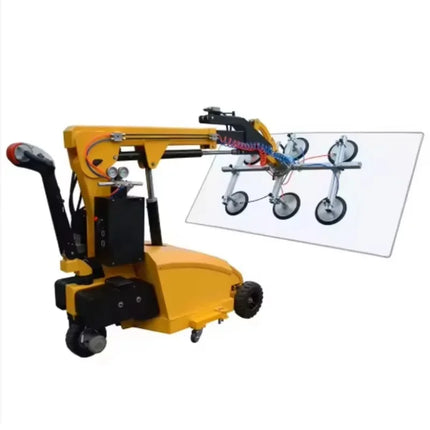

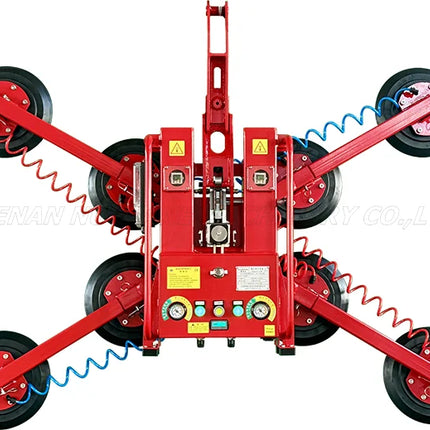

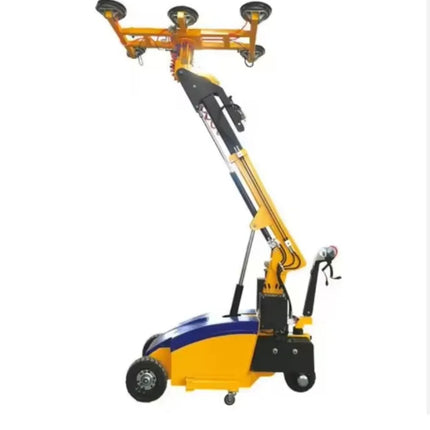

Glass lifting suction cup cart
YG series of glass curtain wall installation vehicles is suitable for installing glass curtain wall panels on building exteriors or floors. The vehicle integrates functions such as grabbing, walking, lifting, tilting, rotating, and twisting. It overcomes the disadvantages of traditional tower cranes or large cranes for installing glass panels, including low cost, high efficiency, low safety, and the need for multiple personnel for assistance. Its compact and flexible structure, coupled with comprehensive functions, allows for operation by a single person, saving costs and improving project efficiency.
YG series vacuum lifter robot are very popular among our Europe,America and Australia clients.Main functions: -
Electric walking and electric vacuum grabbing; - Electric lifting and retraction of the boom; - Electric flipping and rotation of
suction cup holder; - The large arm can be electrically moved horizontally for fine adjustment; - All control actions, integrated
with wired remote control; Equipped with multiple protective devices such as vacuum alarm, battery alarm, charging protection,
anti rollover device, automatic brake, emergency stop, etc. You can call it glass lifter,vacuum glass lifter robot,robotic glazing
tool,electric suction cup trolley and so on.
|

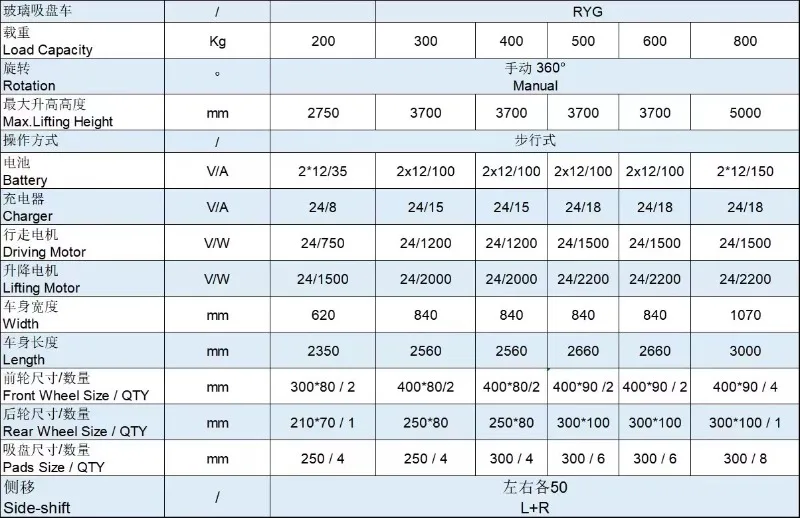

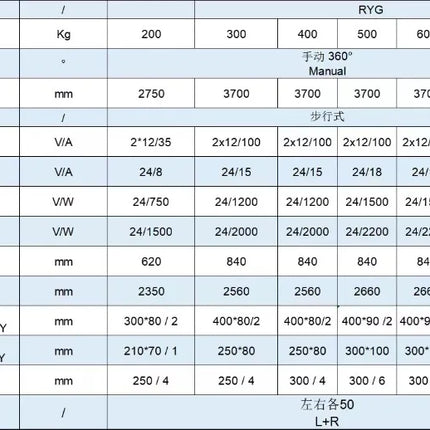

Machine Type
|
Glass lifting suction cup cart
|
|
Load Movement
|
Manual 360°Rotation, Manual 180°Rotation,Horizontal
|
|
Load Capacity
|
400kg/500 kg/600 kg,/800 kg
|
|
Air Consumption
|
10.0 SCFM
|
|
Maximum lifting height
|
3700mm
|
|
Suction Cup Qty
|
4-10 PCS
|
|
Controls
|
Automatic Control, Manual Control, Remote Control
|
|
Max Glass Size
|
4000(L)*2400(W)*4-25 MM(THK.)
|
1. Q: Are you a manufacturer? A:Yes, we are a professional manufacturer with 21 years of production experience and more than 5 production workshops. 2. Q: How is your service? A:1) If you contact us via Alibaba Wangwang, we will reply immediately; if you contact us via email, we will reply within 12 hours. 2) We ship within a maximum of 15 days. 3) We provide 24-hour after-sales service. 4)We have over 21 years of experience in this type of machinery. 3. Q: What is the warranty period? A:1) We offer an 18-month warranty. 2) We provide 24-hour technical support via email or chat software. 3) We provide English manuals and video tutorials. 4) The entire machine is covered by a 2-year warranty (excluding consumables). 5) We will provide consumables at agent prices. 6) We provide 24-hour online service and free technical support. 4. Q: Do you provide equipment operation training? A: Yes. We can send professional engineers to the site for equipment installation, commissioning, and operation training. All our engineers hold passports. 5. Q: What if our prices are higher than other companies or factories? A: Please carefully review the differences in machine parts, service, and warranty, especially the internal electrical components. Sometimes, the main cause of machine malfunctions is a problem with the internal electrical components, but our machines use well-known and reliable parts. 6. Q: What is the delivery time? A:Standard models have a delivery time of 3-15 days; non-standard models and models customized according to specific customer requirements have a delivery time of 15-30 days. 7. Q: What are the payment methods? A:You can choose any payment method, such as Letter of Credit (L/C) or Telegraphic Transfer (T/T).
