Functions:
-

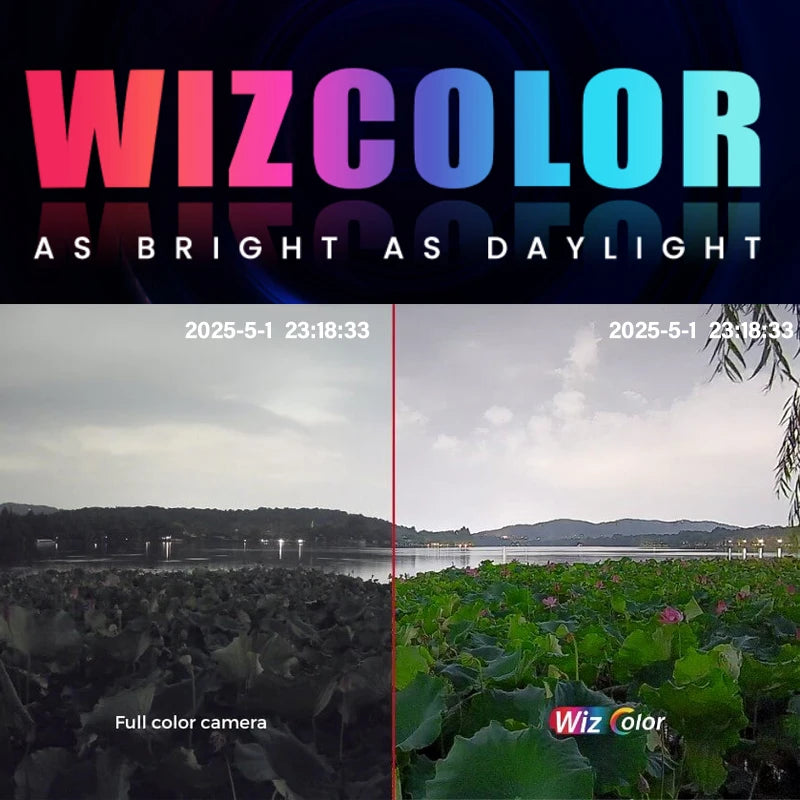

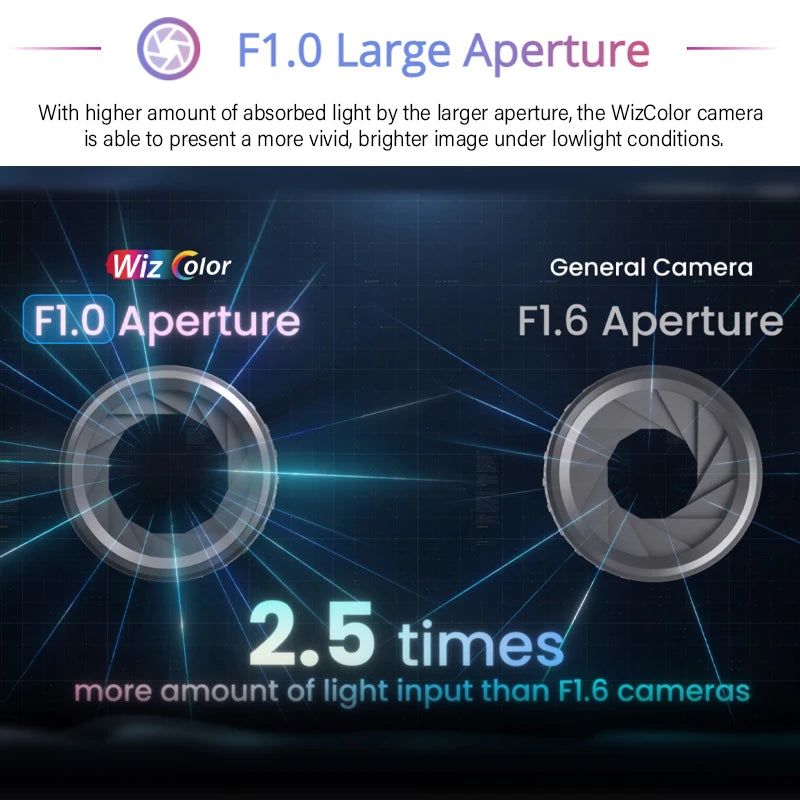

🌙 WizColor Technology + F1.0 Aperture
-
🌓 AI-ISP (Intelligent Image Signal Processing)
-
🚨 Smart Motion Detection
-
💾 Smart H.265+ with AI Coding
5. Built-in warm light, and the max. illumination distance is 50 m.

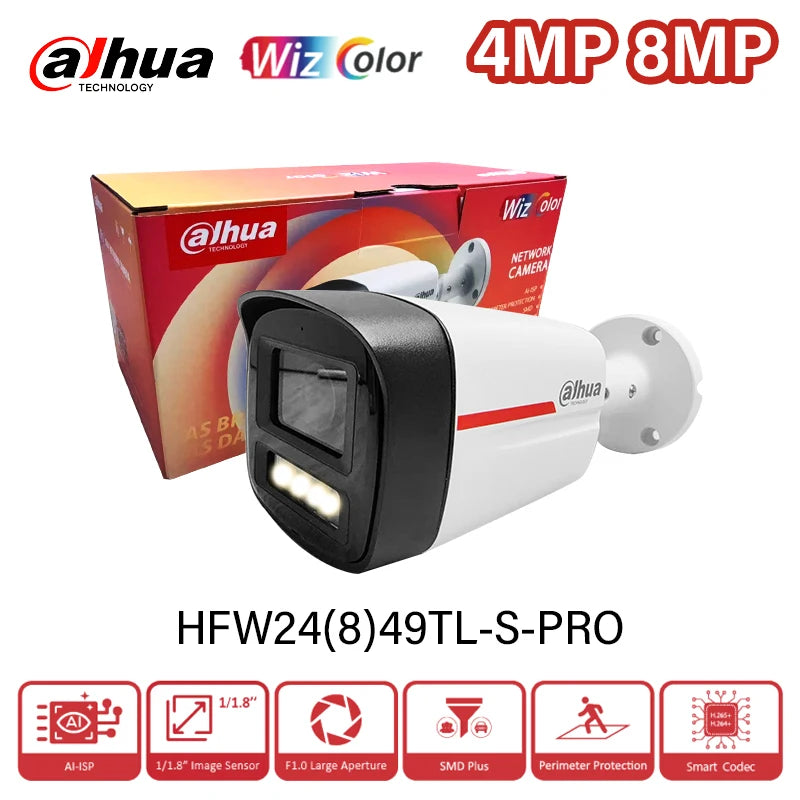

IPC-HFW2449TL-S-PRO
4MP WizColor Fixed-focal Bullet WizSense Network Camera
> 4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4 MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light, and the max. illumination distance is 50 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in Mic.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus
Camera |
Image Sensor |
1/1.8" CMOS
|
Max. Resolution |
3840 (H) × 2160 (V)
|
ROM |
128 MB
|
RAM |
256 MB
|
Scanning System |
Progressive
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s
|
Min. Illumination |
0.0008 lux@F1.0
|
S/N Ratio |
>56 dB
|
Illumination Distance |
Up to 50 m (164.04 ft) (Warm light)
|
Illuminator On/Off Control |
Auto;Manual
|
Illuminator Number |
4 (Warm light)
|
Angle Adjustment |
Pan: 0° – 360°
Tilt: 0°– 90°
Rotation: 0°–360°
|
Lens |
Lens Type |
Fixed-focal
|
Lens Mount |
M16
|
Focal Length |
2.8 mm; 3.6 mm; 6 mm
|
Max. Aperture |
F1.0
|
Field of View |
2.8 mm: H: 110°; V: 59°; D: 131°
3.6 mm: H: 93°; V: 49°; D: 110°
6 mm: H: 57°; V: 30°; D: 66°
|
Iris Control |
Fixed
|
Close Focus Distance |
2.8 mm: 2.8 m (9.19 ft)
3.6 mm: 4 m (13.12 ft)
6 mm: 12 m (39.37 ft)
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
84.0 m
( 275.59 ft)
|
33.6 m
( 110.24 ft)
|
16.8 m
( 55.12 ft)
|
8.4 m
( 27.56 ft)
|
3.6 mm |
102.0 m
( 334.65 ft)
|
40.8 m
( 133.86 ft)
|
20.4 m
( 66.93 ft)
|
10.2 m
( 33.46 ft)
|
6 mm |
169.0 m
( 554.46 ft)
|
67.6 m
( 221.78 ft)
|
33.8 m
( 110.89 ft)
|
16.9 m
( 55.45 ft)
|
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Intelligence |
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
|
SMD |
SMD Plus
|
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
|
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
|
Smart Codec |
Smart H.265+; Smart H.264+
|
Video Frame Rate |
Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
Streaming Capability |
2 streams
|
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
|
Bit Rate Control |
VBR;CBR
|
Video Bit Rate |
H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
|
Day/Night |
Color/B/W
|
BLC |
Yes
|
HLC |
Yes
|
WDR |
120 dB
|
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom
|
Gain Control |
Auto/Manual
|
Noise Reduction |
3D NR
|
Motion Detection |
OFF/ON (4 areas, rectangular)
|
Region of Interest (RoI) |
Yes (4 areas)
|
Smart Illumination |
Yes
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)
|
Mirror |
Yes
|
Privacy Masking |
4 areas
|
LDC |
Yes
|
Audio |
Built-in MIC |
Yes, built-in Mic
|
Audio Compression |
G.711a; G.711Mu; PCM; G.726
|
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
|
Network |
Network Port |
RJ-45 (10/100 Base-T)
|
SDK and API |
Yes
|
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
|
Interoperability |
ONVIF (Profile S & Profile G & Profile T); CGI
|
User/Host |
20 (Total bandwidth: 48 M)
|
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
|
Browser |
IE; Chrome; Firefox
|
Management Software |
Smart PSS Lite; DSS; DMSS
|
Mobile Client |
iOS;Android
|
Security |
Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning
|
Certification |
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
|
Power |
Power Supply |
12 VDC (±30%); PoE (802.3af)
|
Power Consumption |
Basic: 2.3 W (12 VDC); 3.2 W (PoE)
Max.: 6.1 W (12 VDC); 7.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)
|
Environment |
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F)
|
Operating Humidity |
≤95% (RH), non-condensing
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F)
|
Storage Humidity |
≤95% (RH), non-condensing
|
Protection |
IP67
|
Structure |
Casing Material |
Metal
|
Product Dimensions |
197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") (L × W × H)
|
Net Weight |
0.57 kg (1.26 lb)
|
Gross Weight |
0.72 kg (1.59 lb)
|
