Description
SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: as the description
Brand Name: jmt
Camera Mount Type: Other
Control Channels: 6 channels
Controller Battery: NO
Controller Mode: MODE2,MODE1
Drone Weight: as the description
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor
Is Batteries Included: No
Is Electric: Lithium battery
Material: Plastic,Carbon Fiber,Metal
Model Number: DIY F215 5inch RC Quadcopter
Motor: Brushless Motor
Operator Skill Level: Beginner
Origin: Mainland China

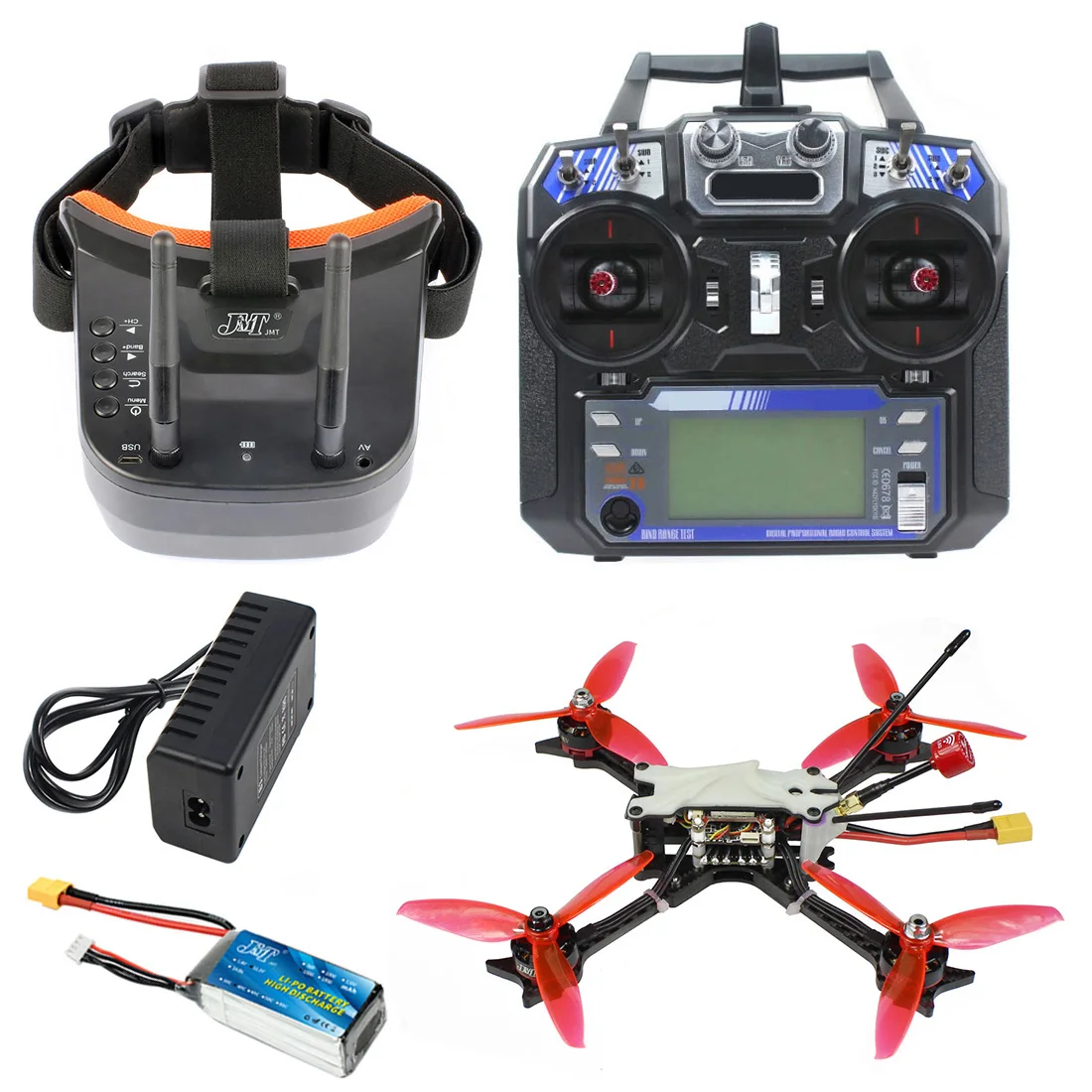

Package Includes: charger,Remote Controller,Batteries,Camera,Original Box,Operating Instructions
Power Source: Electric
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: about 2000meters
State of Assembly: Ready-to-Go
Takeoff Weight: as the description
Transit Time (Days): as the description
Type: HELICOPTER
Video Capture Resolution: 4K UHD

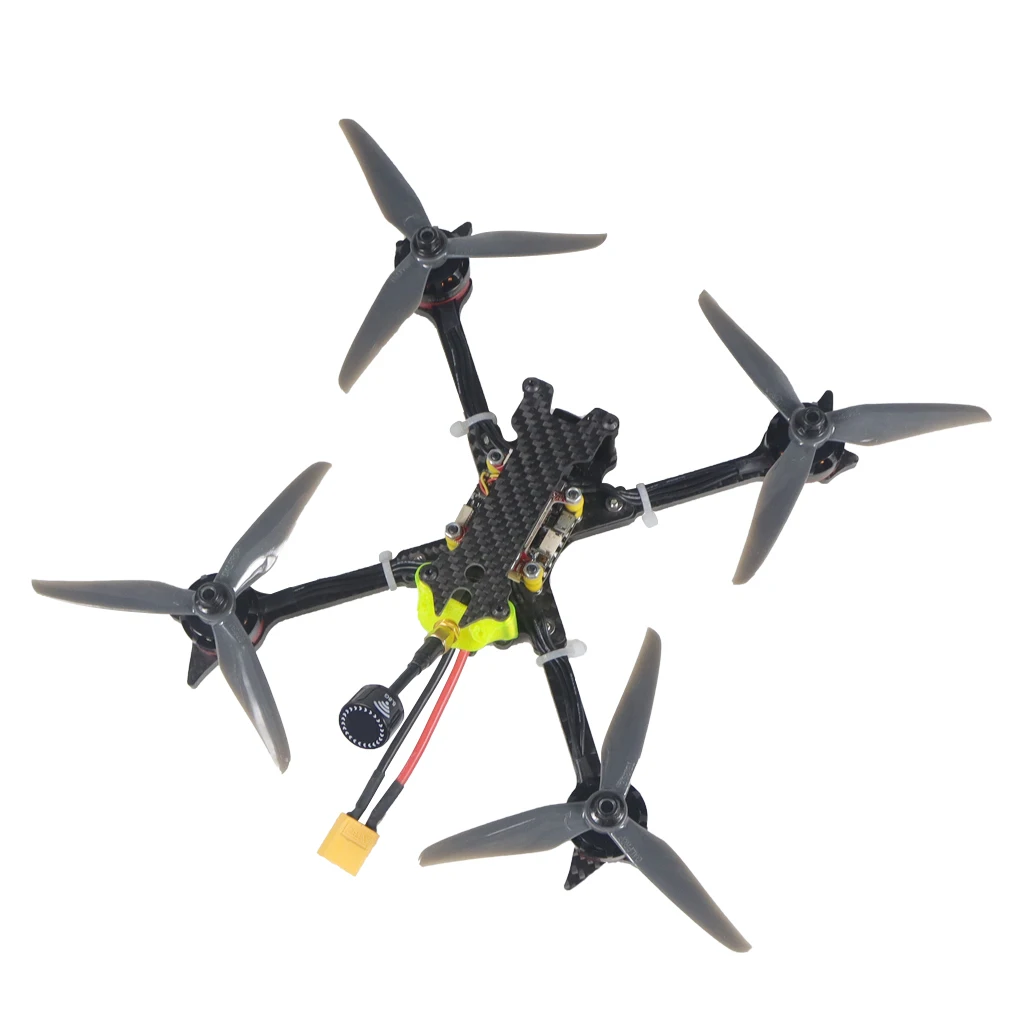

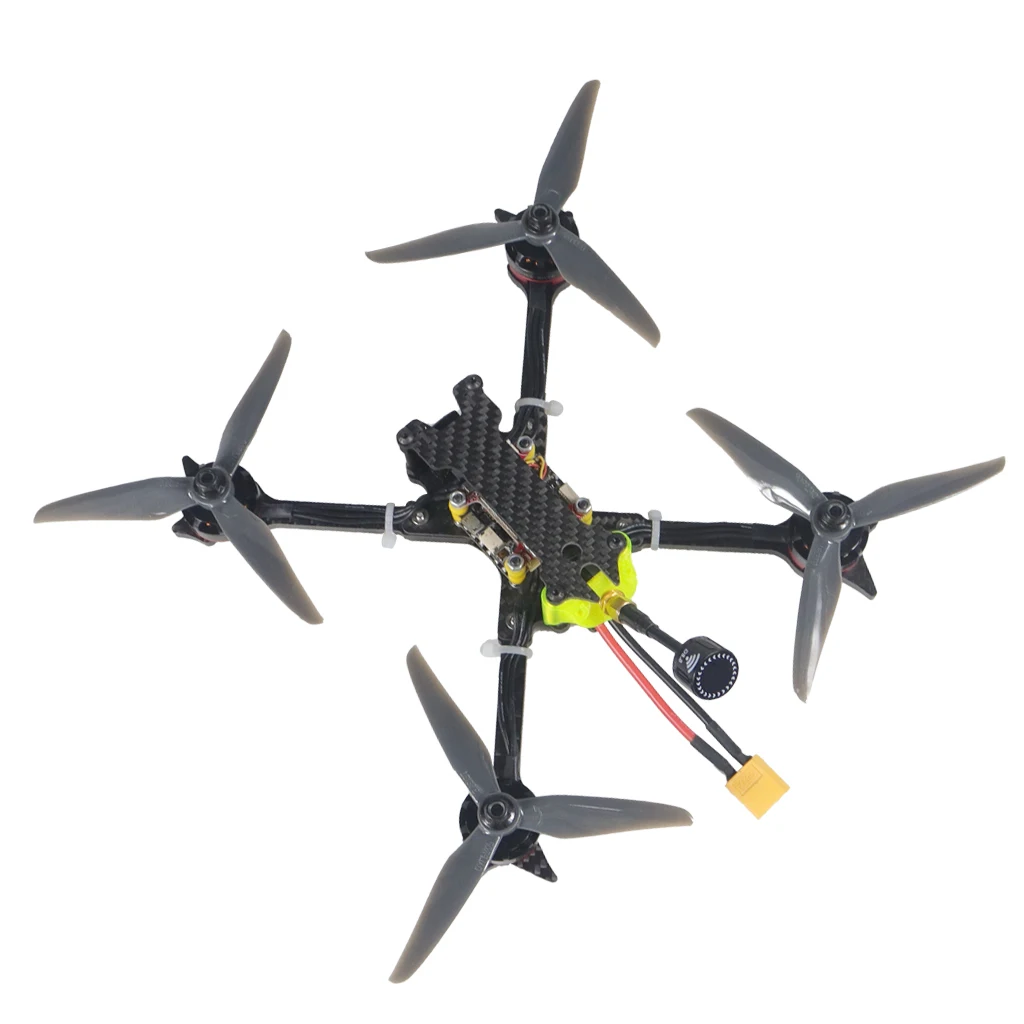

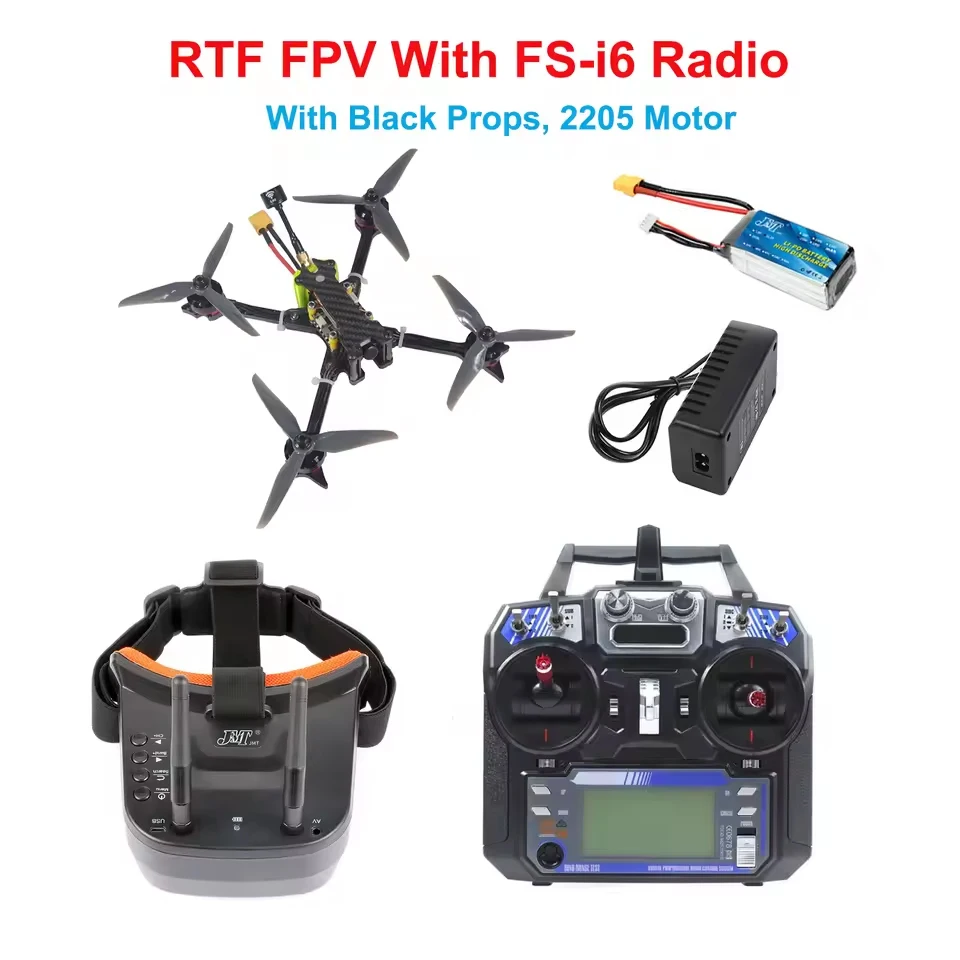

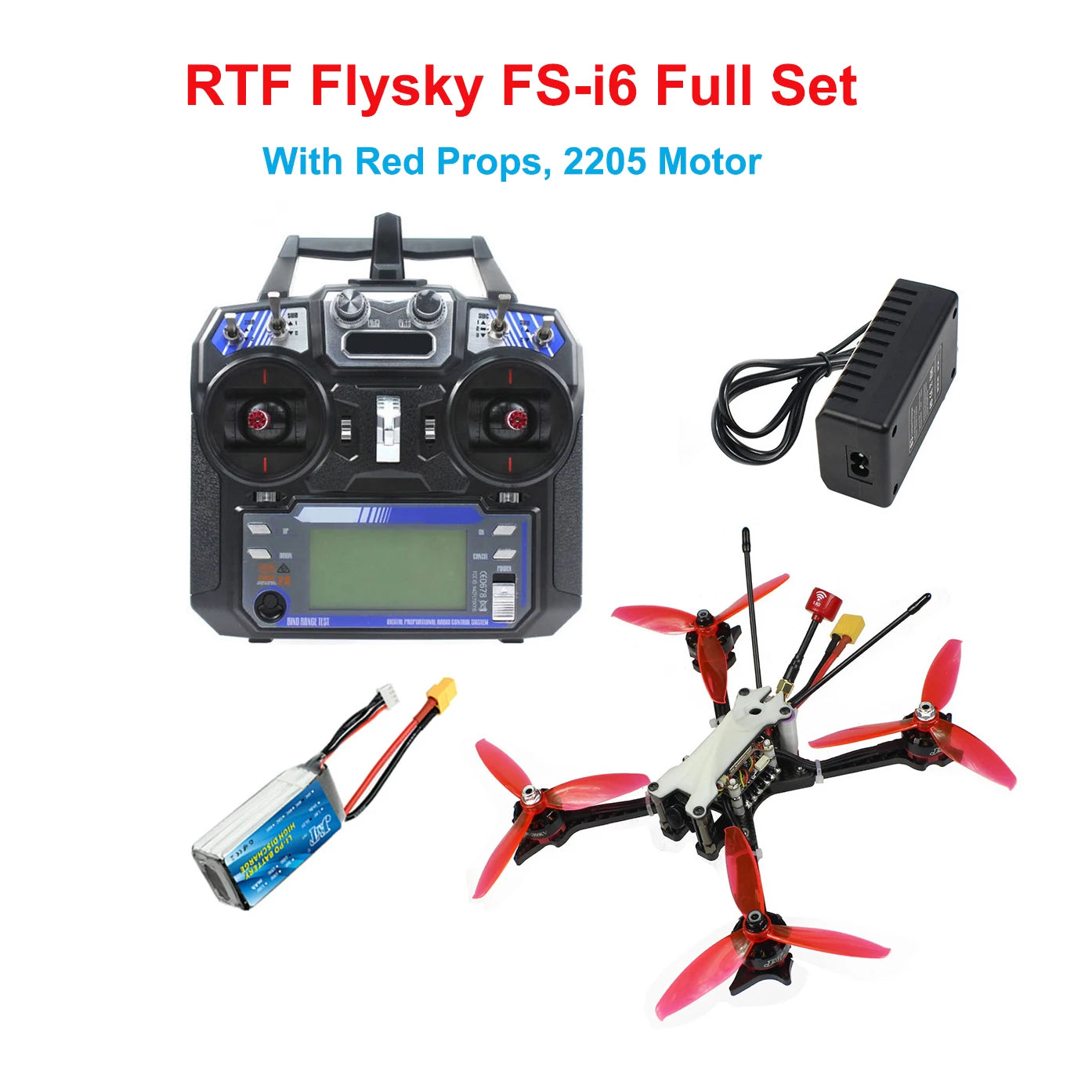

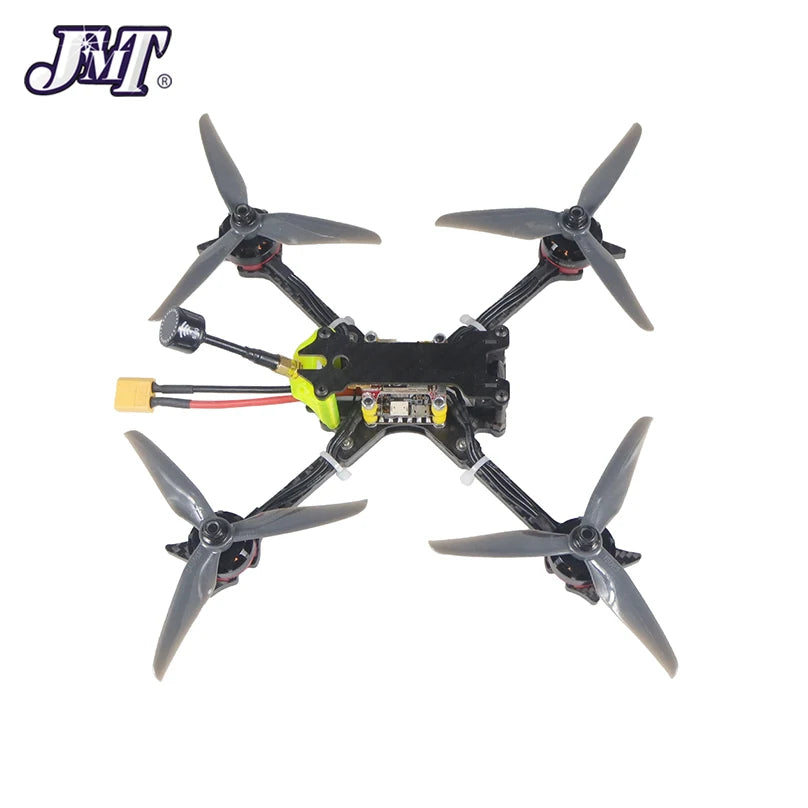

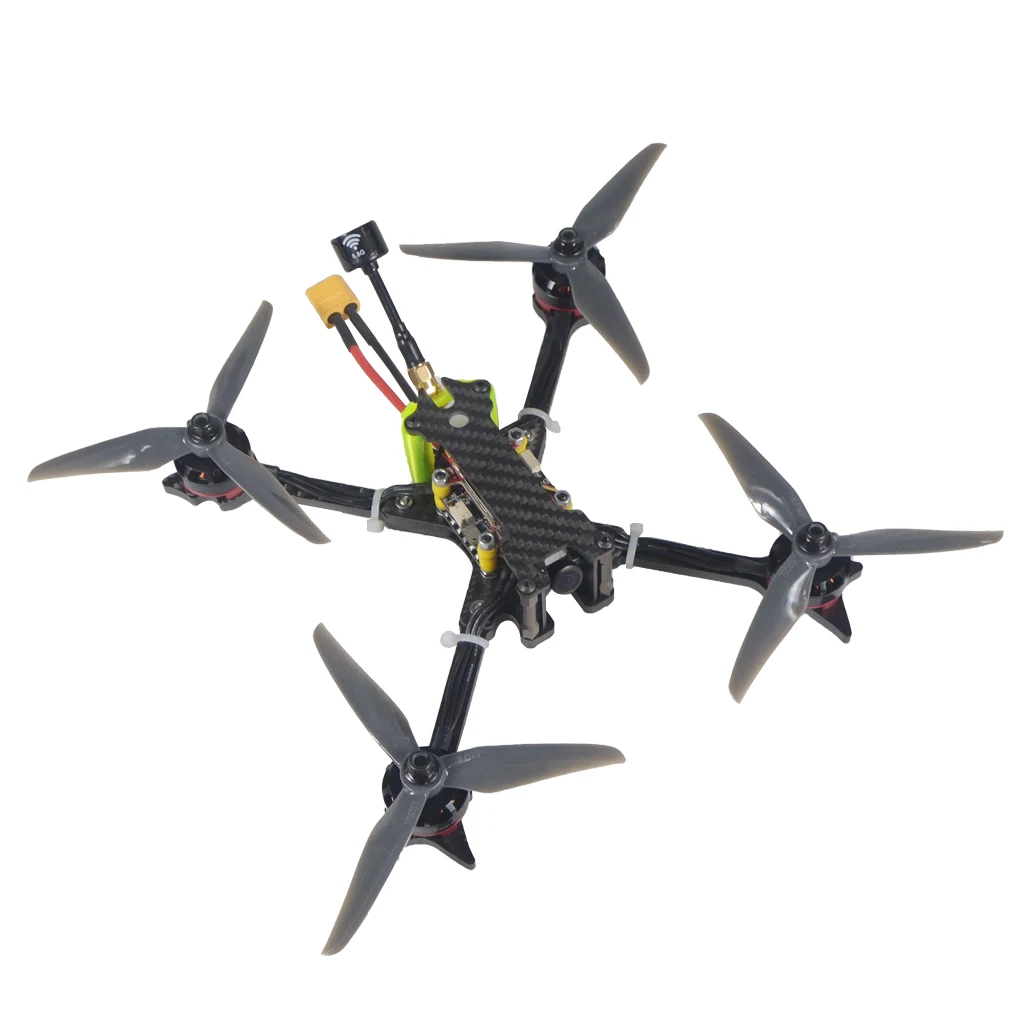

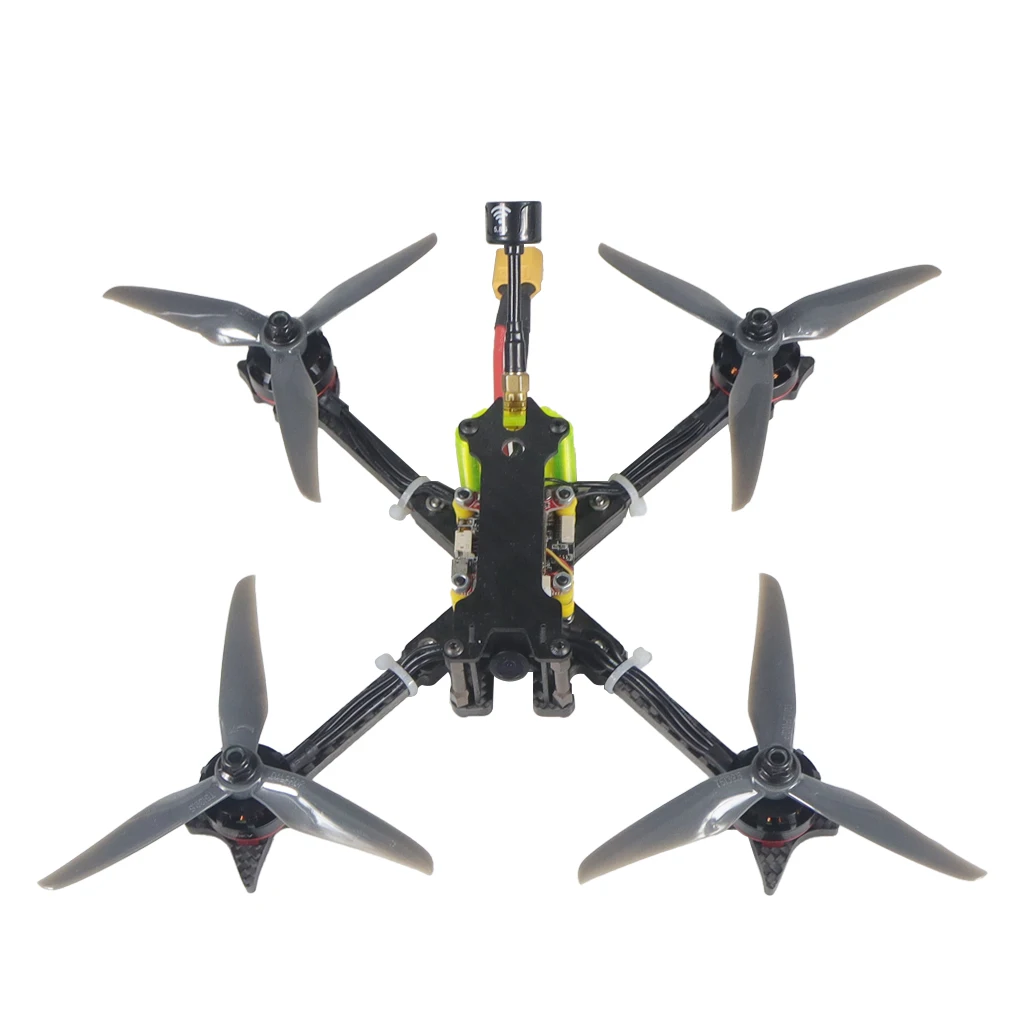

DIY F215 215mm Wheelbase 5inch 3-4S RC FPV Racing Drone Built-in OSD Betaflight with BLHeli-S 45A 4in1 ESC Razer/Ratel 2 Camera

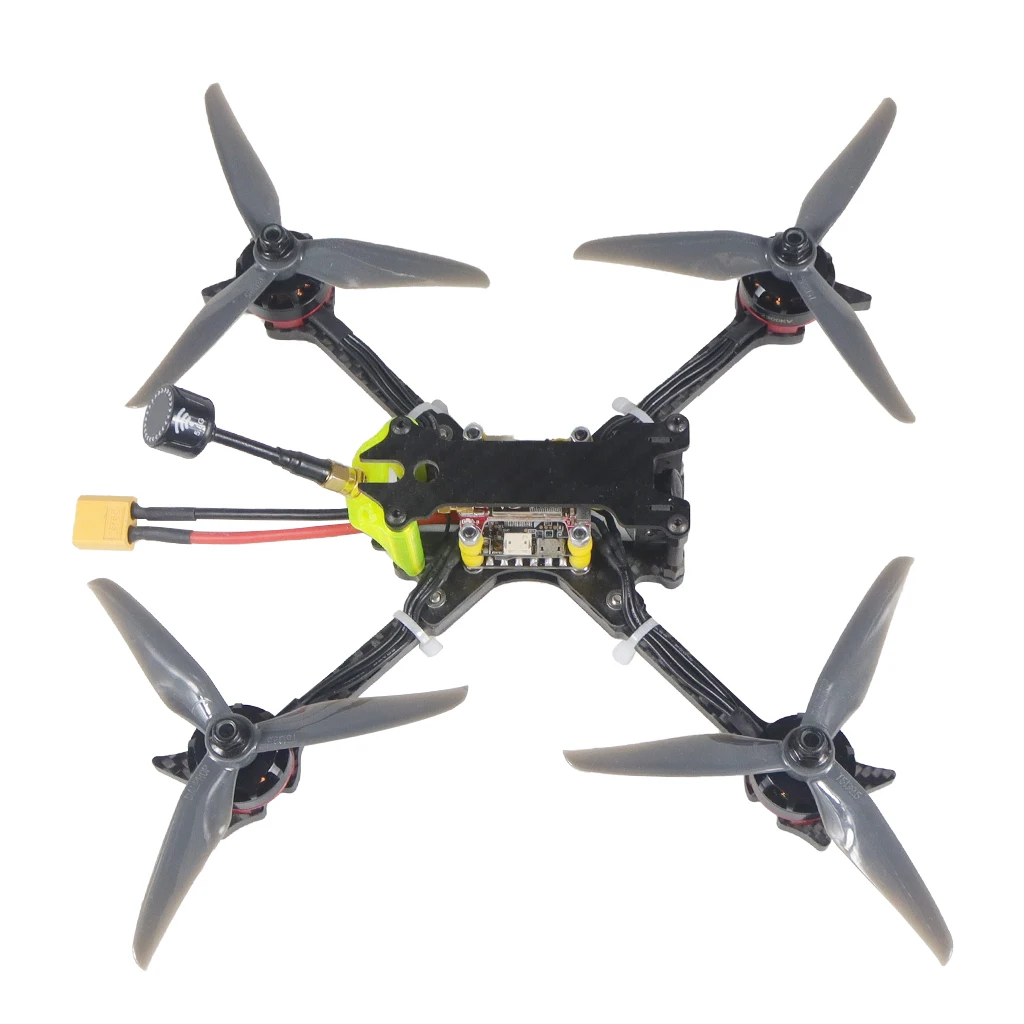

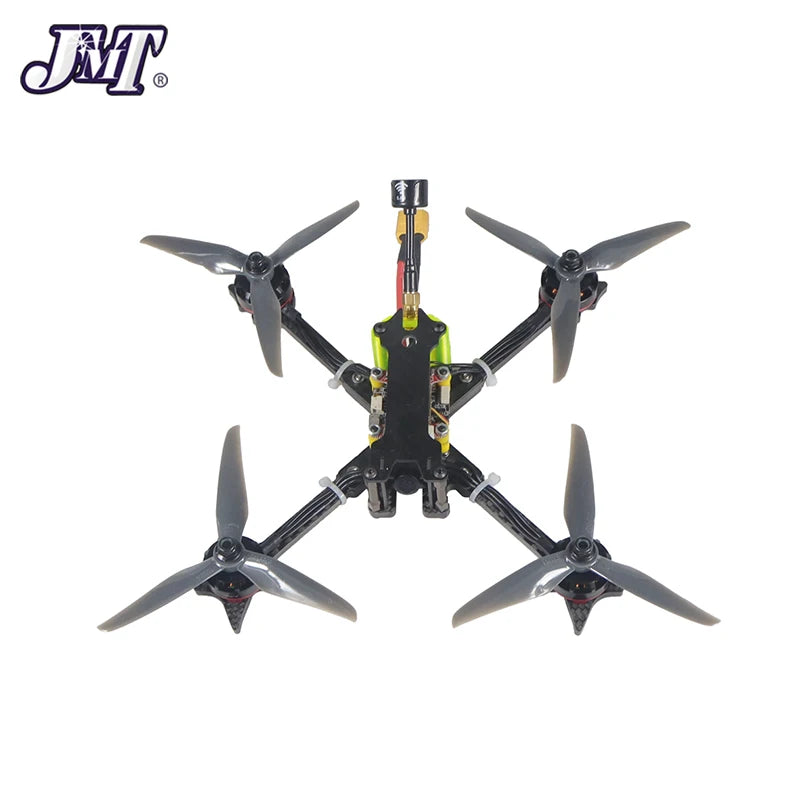

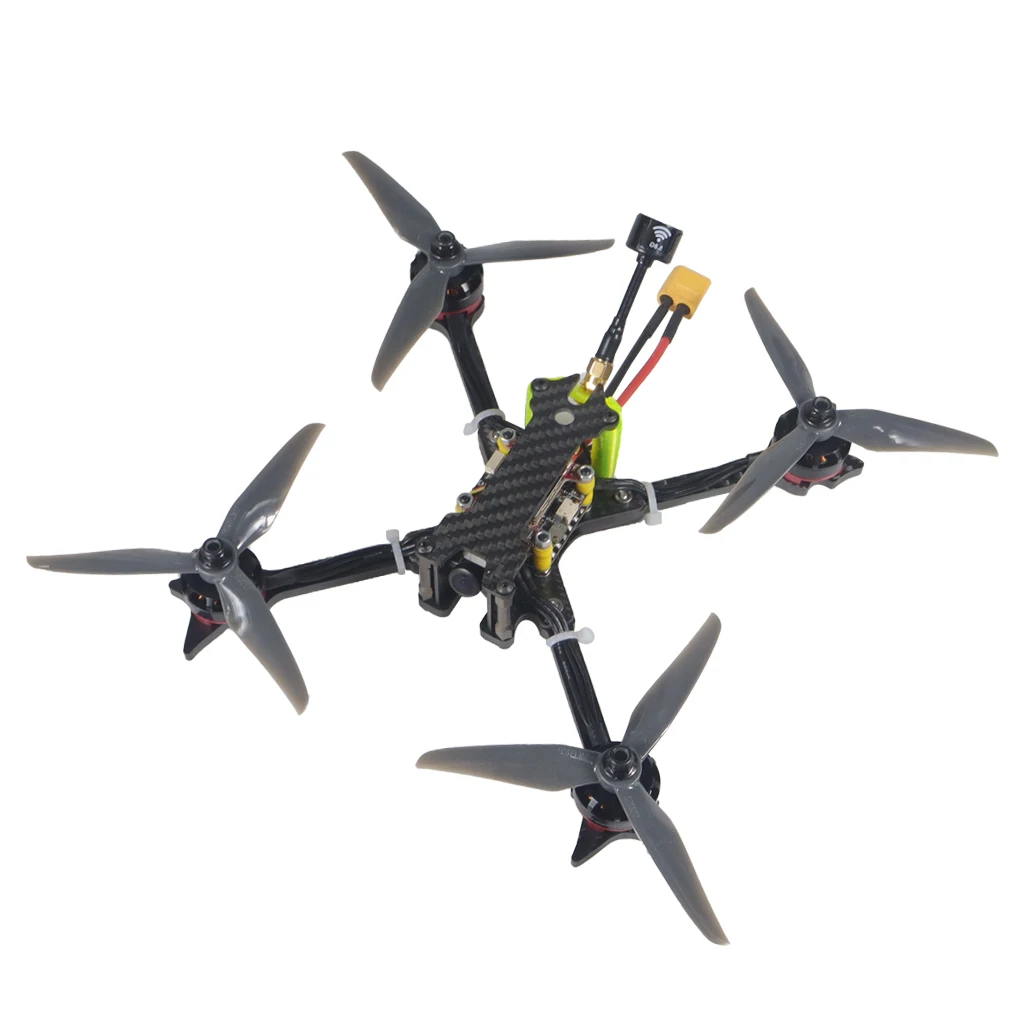

B-FPV Racing Drone with Black color Proprller Kit

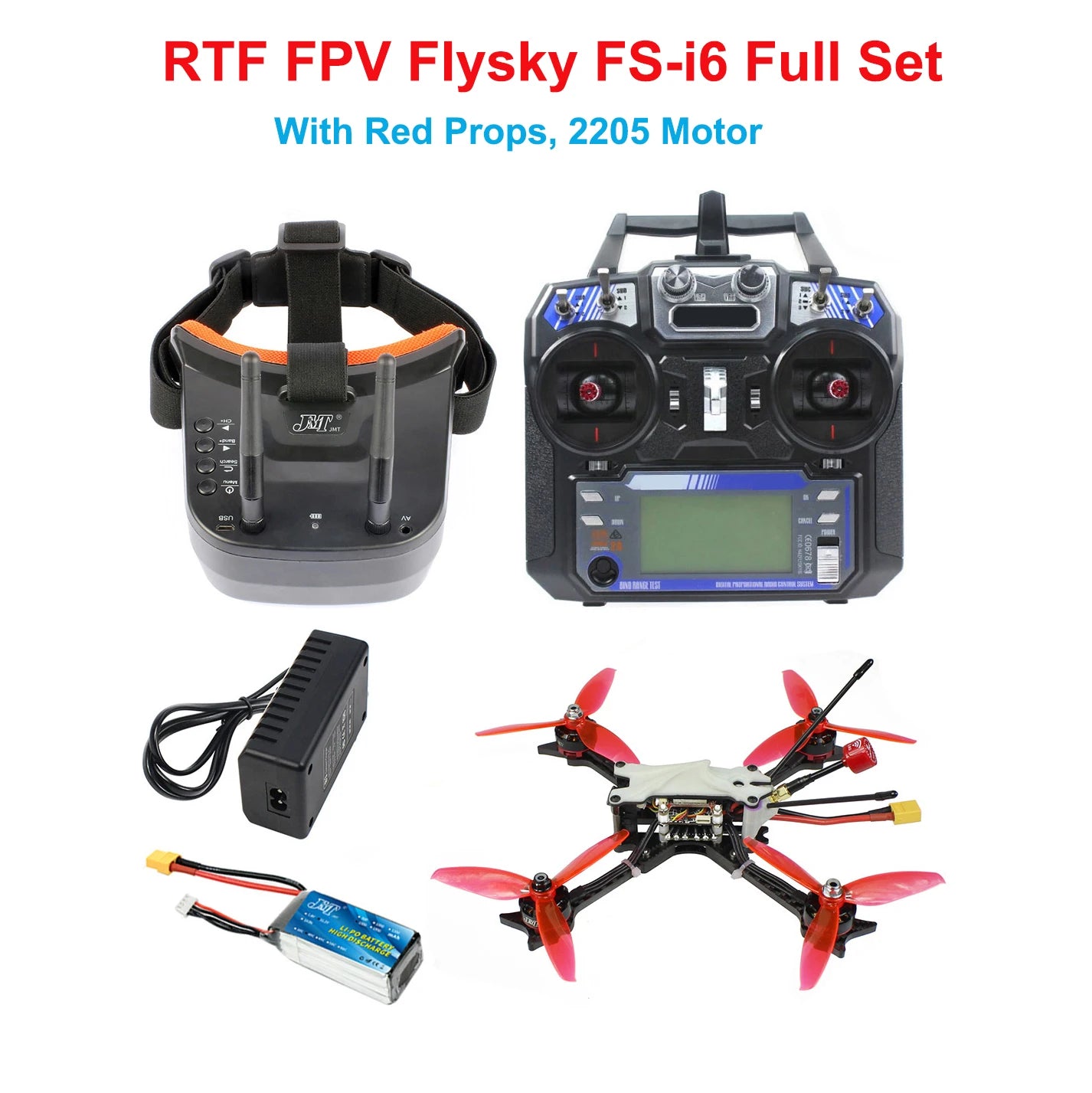

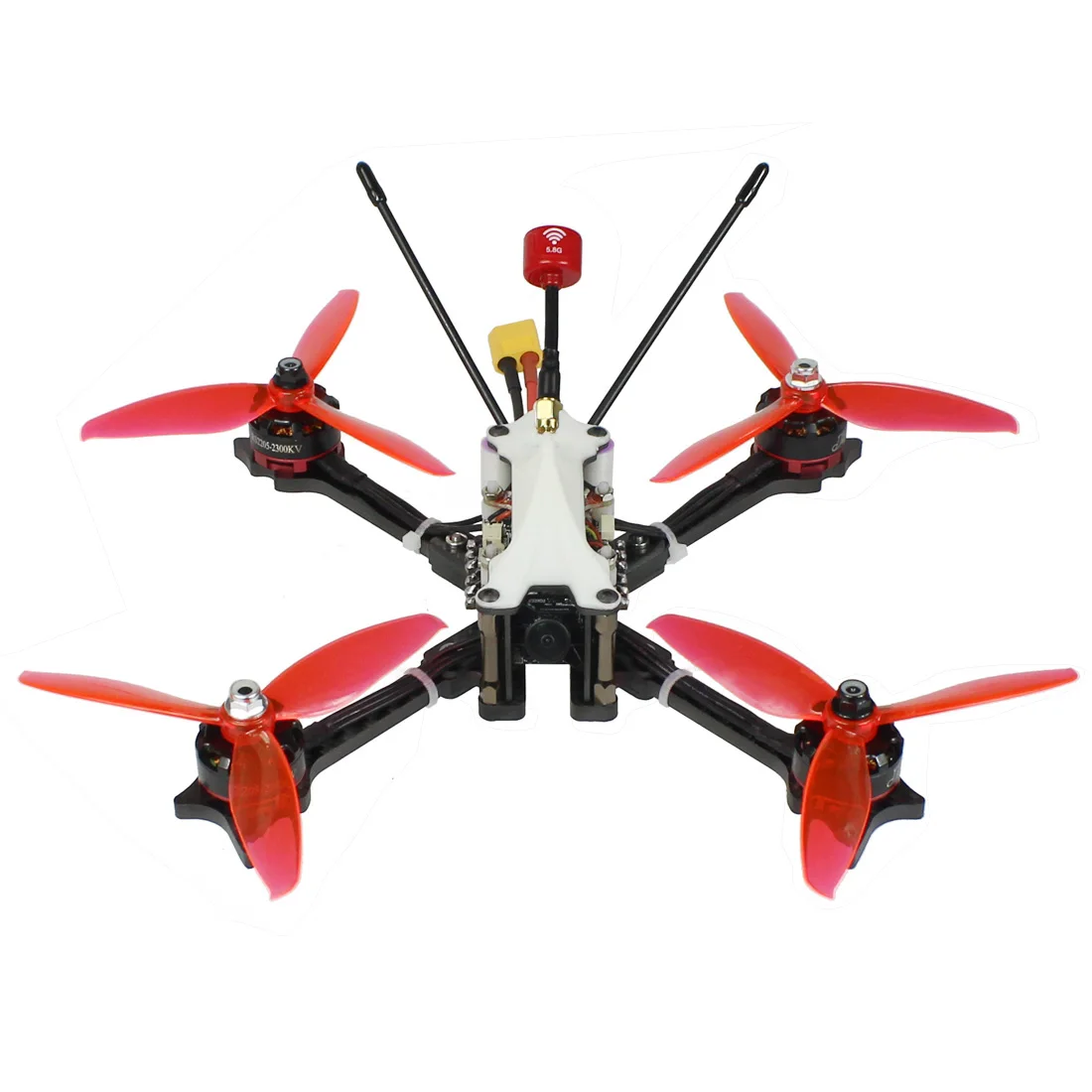

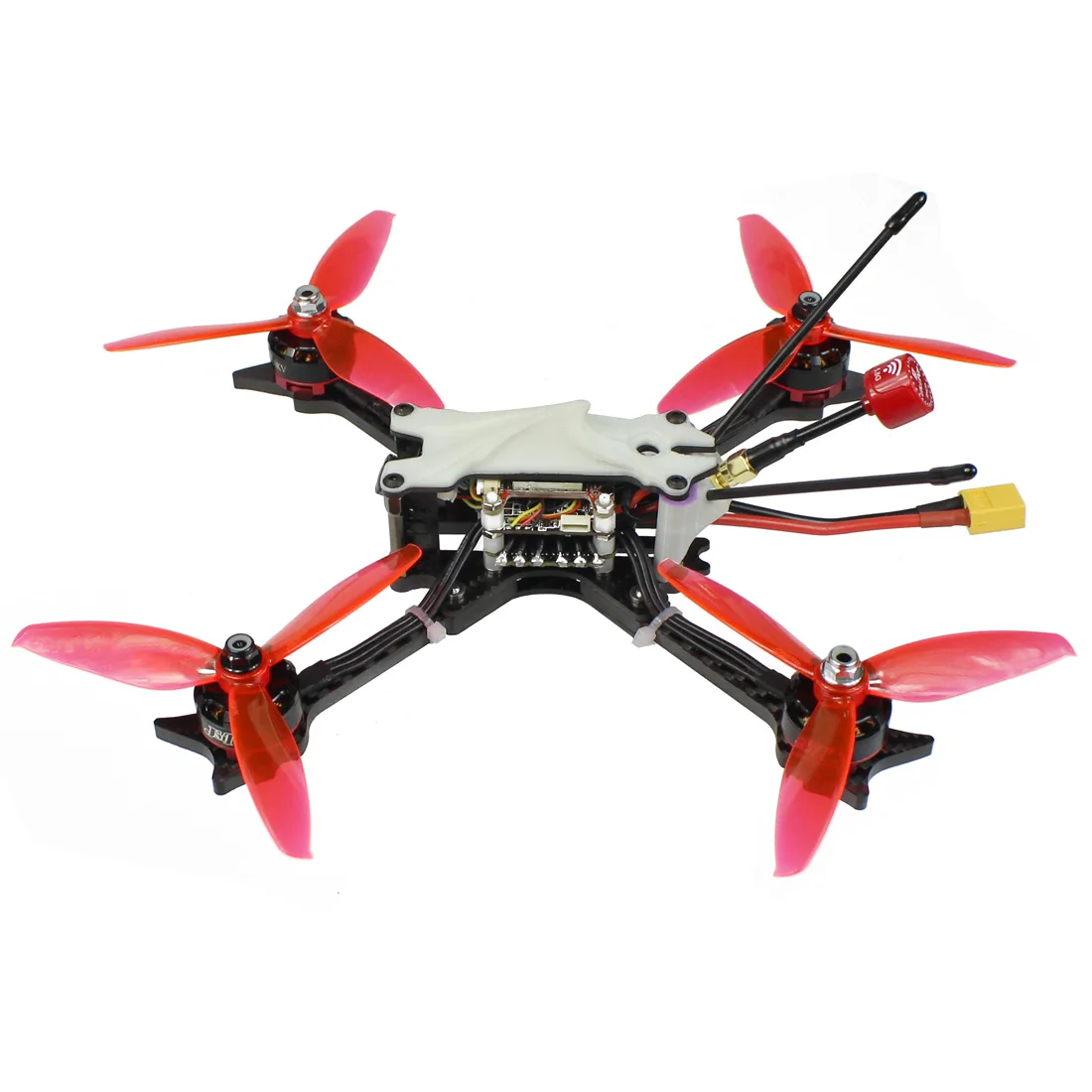

R-FPV Racing Drone with Red color Proprller Kit
Note:if you need the with battery version, due to the aliexpress standard shipping method not support pure battery, pls choose express shipping method, thank you!
When the VTX is working, the surface will generate high temperature, please do not touch it directly to avoid burns; There is no such thing as a non-heat-generating VTX on the market.
Functions and features:
215mm wheelbase
Built-in OSD Betaflight
Support BLHeliSuit configuration
Support voltage3-4S
7-10minutes of battery life
Remote control distance (about 400meters with FLYSKY remote control)
Propeller:
Model: 5043
Pitch: 4.3 inches
Material: PC
Weight/G: 4.63G
Inner diameter of center hole: 5mm
Propeller diameter: 13.5mm
Center thickness: 7mm
ESC:
Working voltage: 2-6S
Maximum continuous working current: 45A
Maximum instantaneous working current: 50A
Support communication modes: DShot150/300/600, PWM, Oneshot125, Oneshot42 and Multshot
Firmware version: BL16.7
Installation hole distance: 20 * 20mm / 30.5 * 30.5mm
Product size: 44 * 44 * 5.5
VTX:
Weight: 12g
Input voltage range: 7-24V
Frequency: 48CH
Output power: 0mW / 25mW / 100mW / 200mW / 400mW / 600mW switchable
Transmission distance: ≥0.5km25mW, ≥1km200mW, ≥2km600mW
Installation size: 30.5*30.5mm
2205 Motor or 2306 Motor:

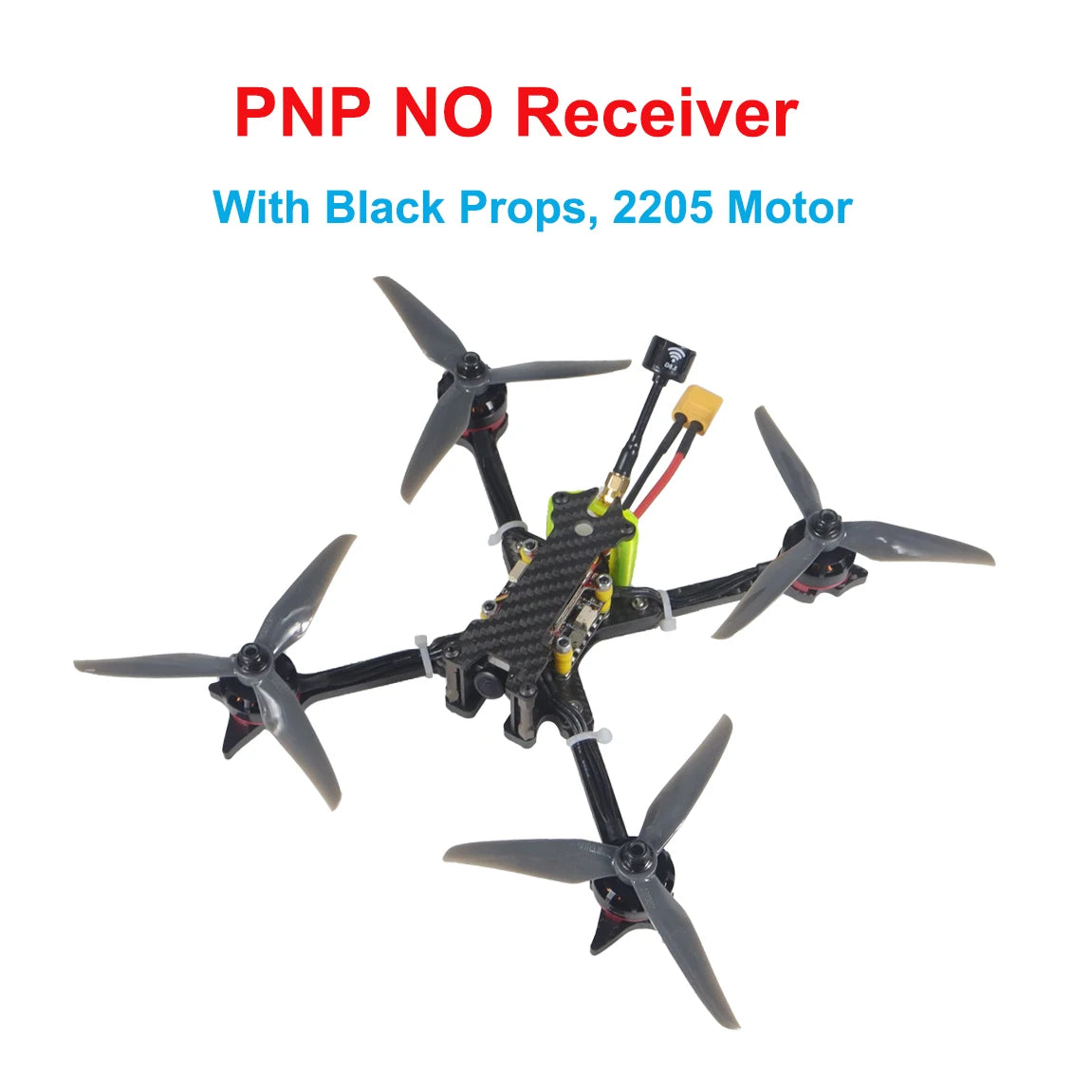

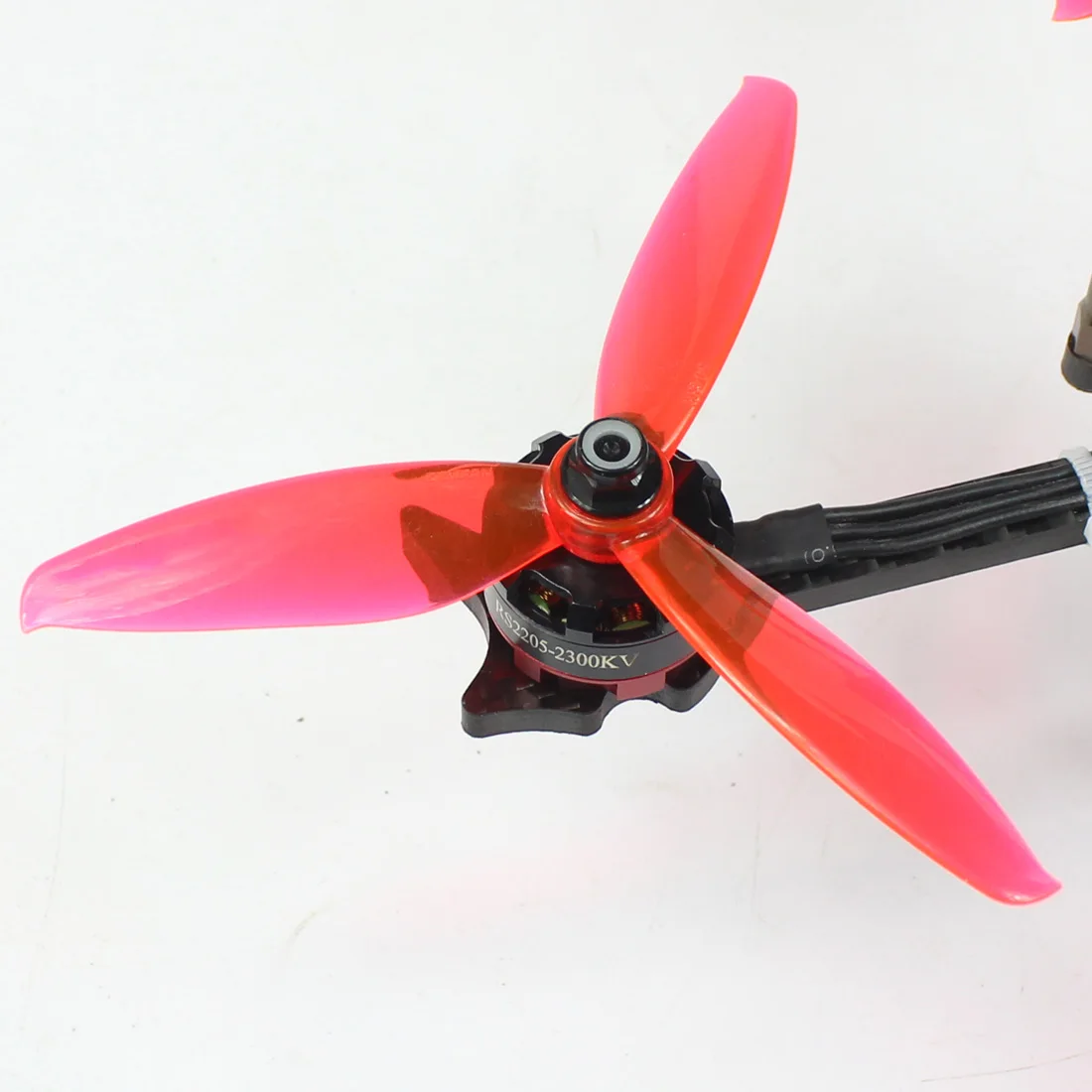

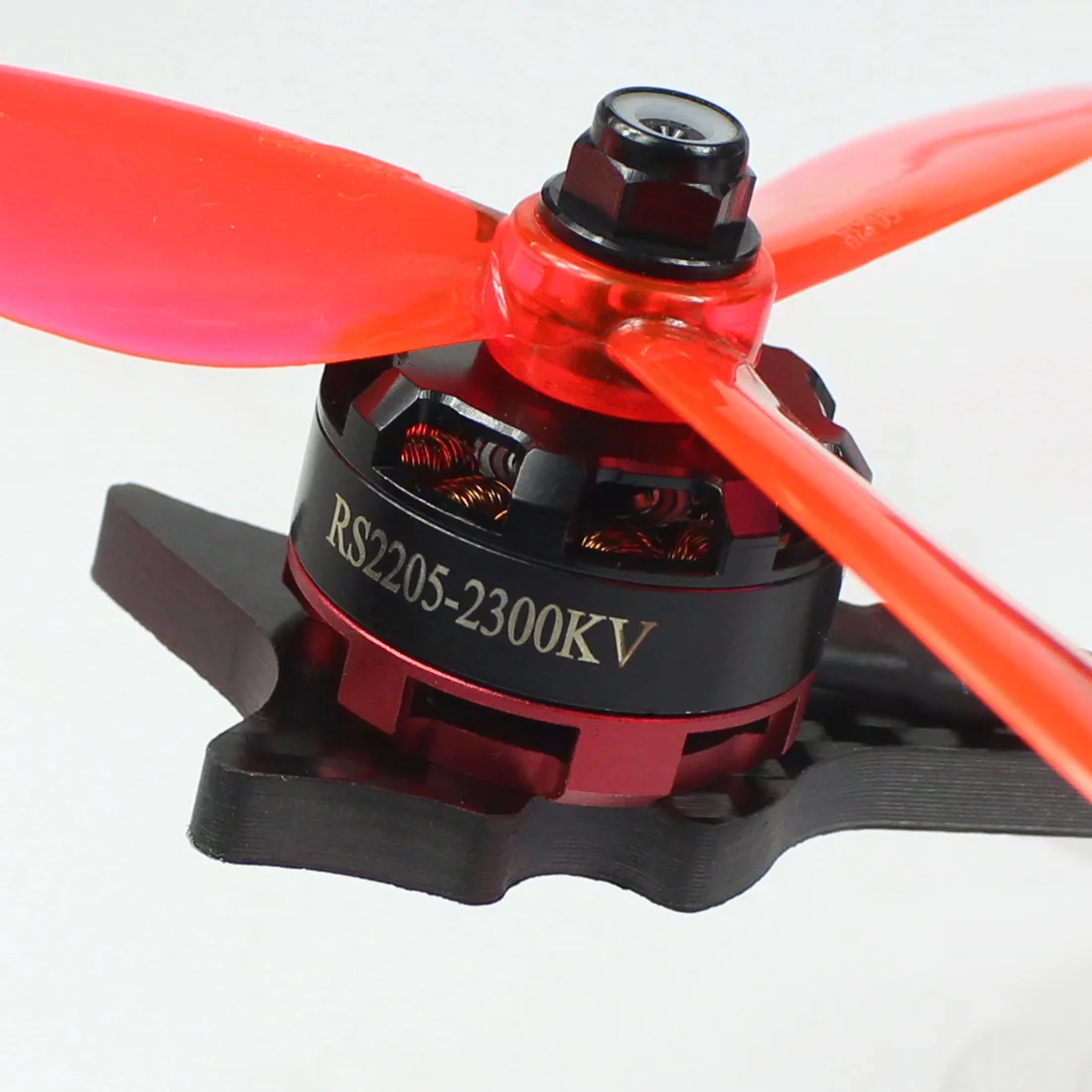

2205 Motor
Size: 2205
Stator diameter: 22 mm
Stator height: 5 mm
Motor KV: 2300
Weight: 29g
Support voltage: 3~4S

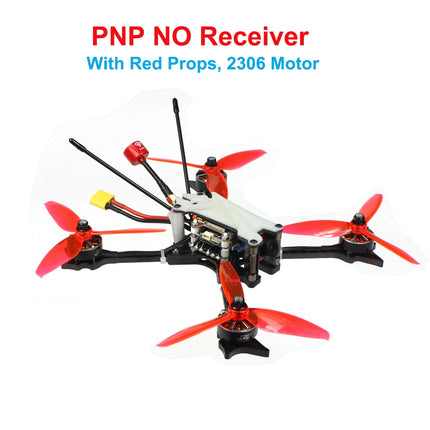

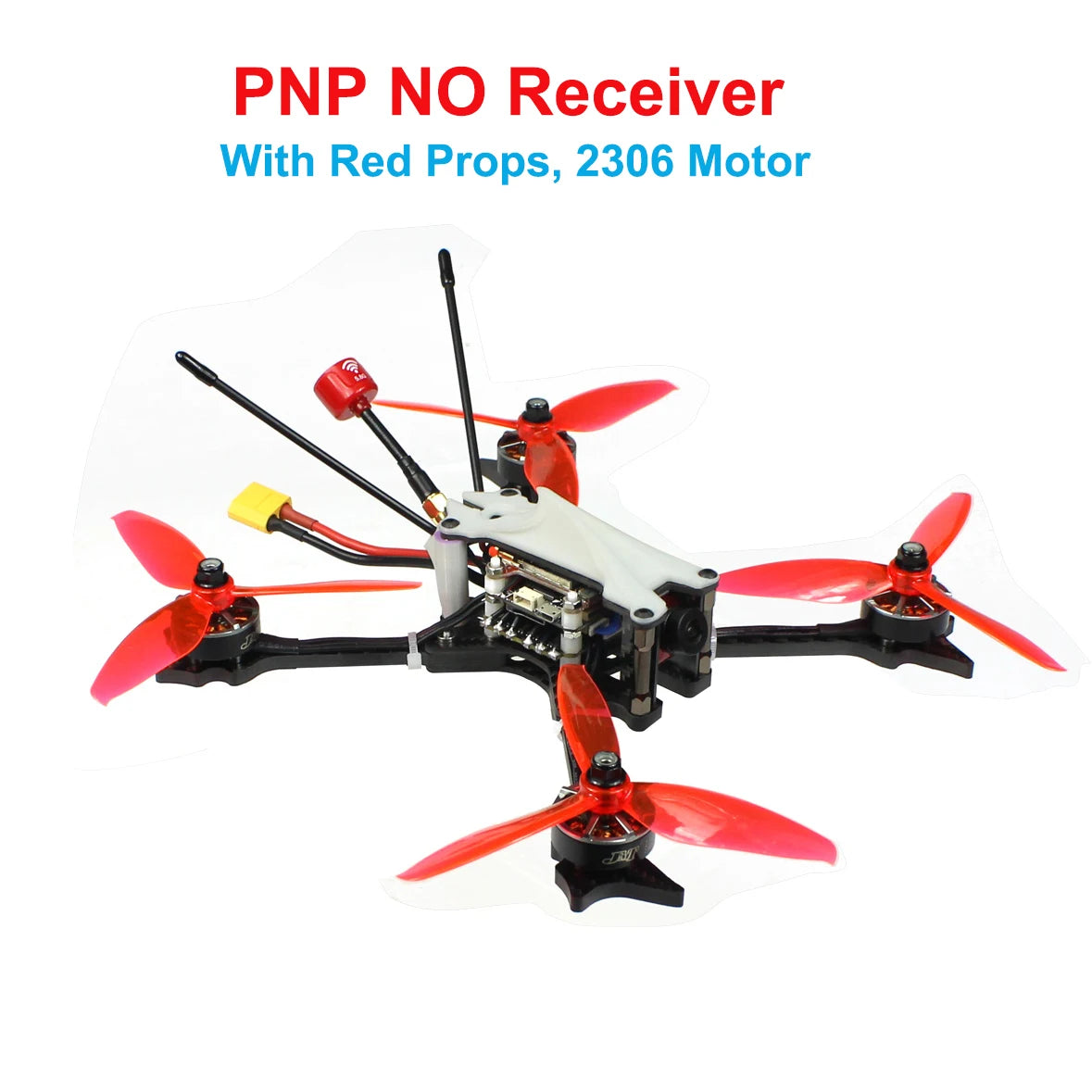

2306 Motor
Stator diameter: 23 mm
Stator thickness: 6 mm
Number of stator arms: 12 pieces
Number of stator poles: 14
Motor KV: 2400
Maximum continuous power: 750 watts
Weight: 32 grams
Outer diameter: 28 mm
Support voltage: 3~4S
Flight controller:
Name: F4 V2
Size: 36x36mm
Mounting hole: 30.5x30.5mm
STM32 F405 MCU can shorten the cycle time.
Support SBUS / PPM / IBUS receiver mode
Built-in power module BEC
Razer camera or ratel 2 camera:

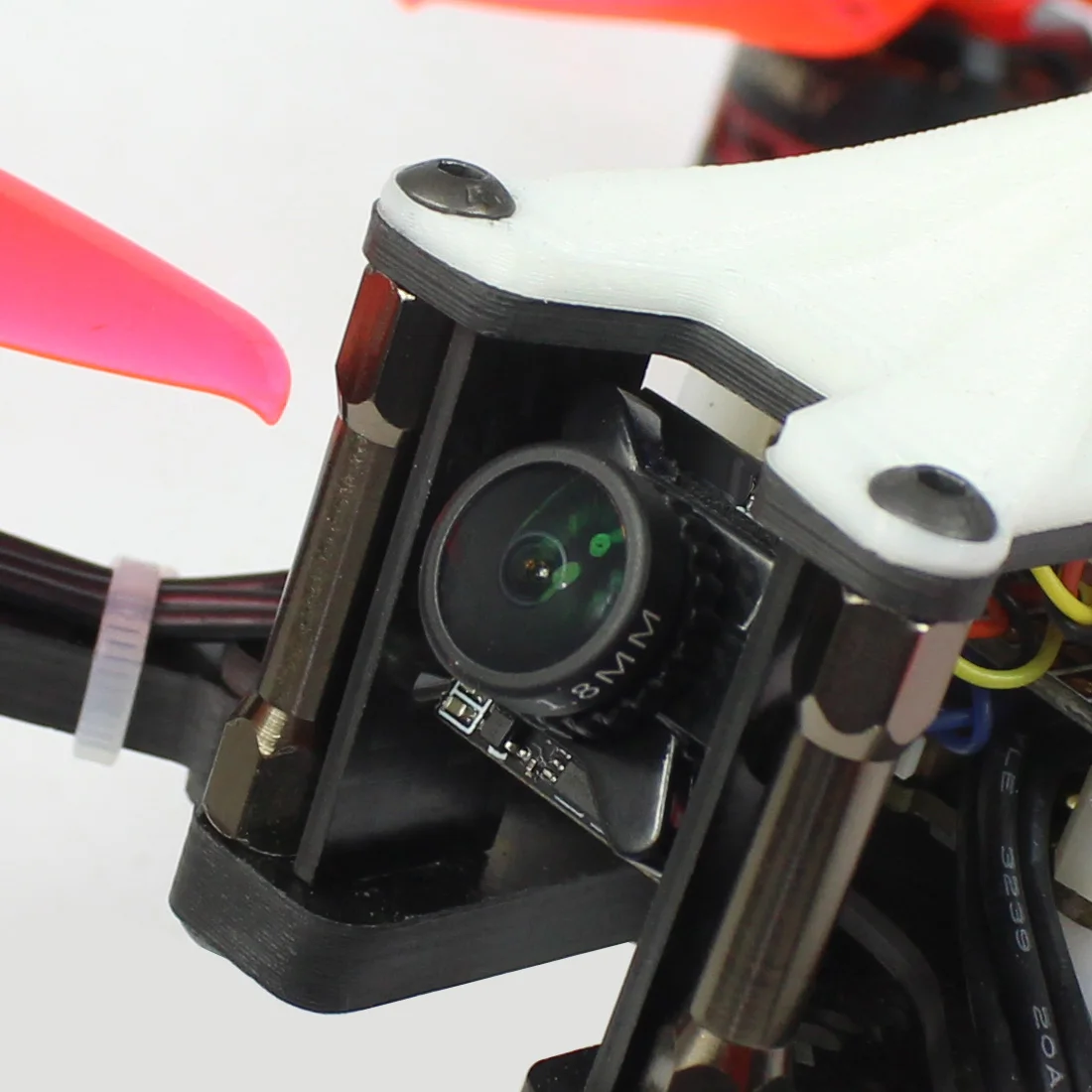

razer camera
Sensor: CMOS 1/3
Lens: 1.8mm
Video format: PAL/NTSC switchable
Resolution: 1200TVL
Input voltage: DC4.5V-25V
Weight: 4.5g
Size: 19*18.7mm(W*L)
White balance: automatic
WDR: 90db
Caddx ratel 2 camera
Sensor: CMOS 1/1.8
Lens: 2.1mm
Video format: PAL/NTSC switchable
Resolution: 1200TVL
Input voltage: 5V-40V
Weight: 5.9g
Size: 19*19*20mm
White balance: automatic

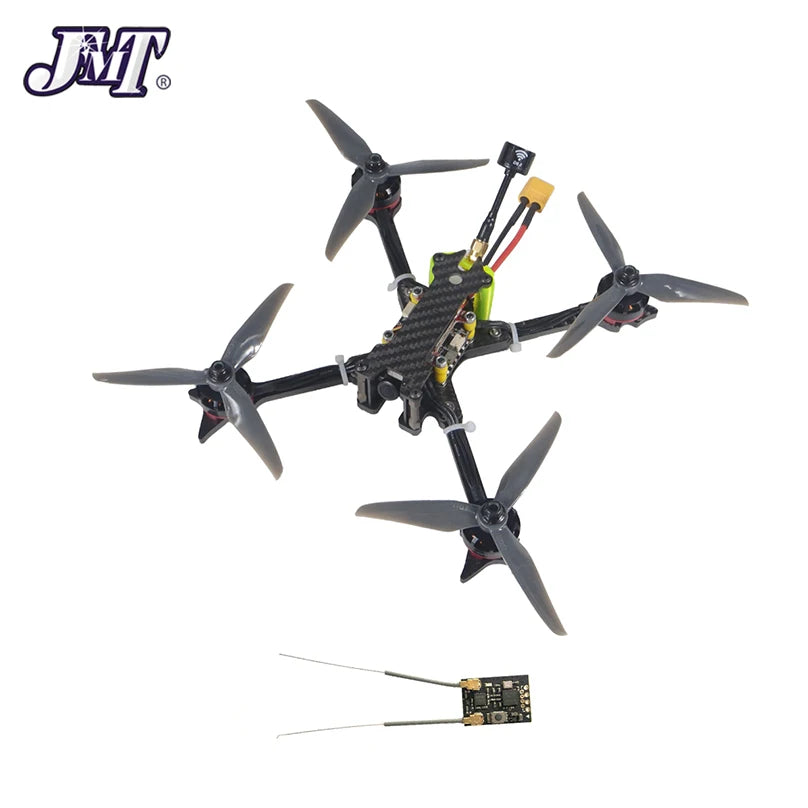

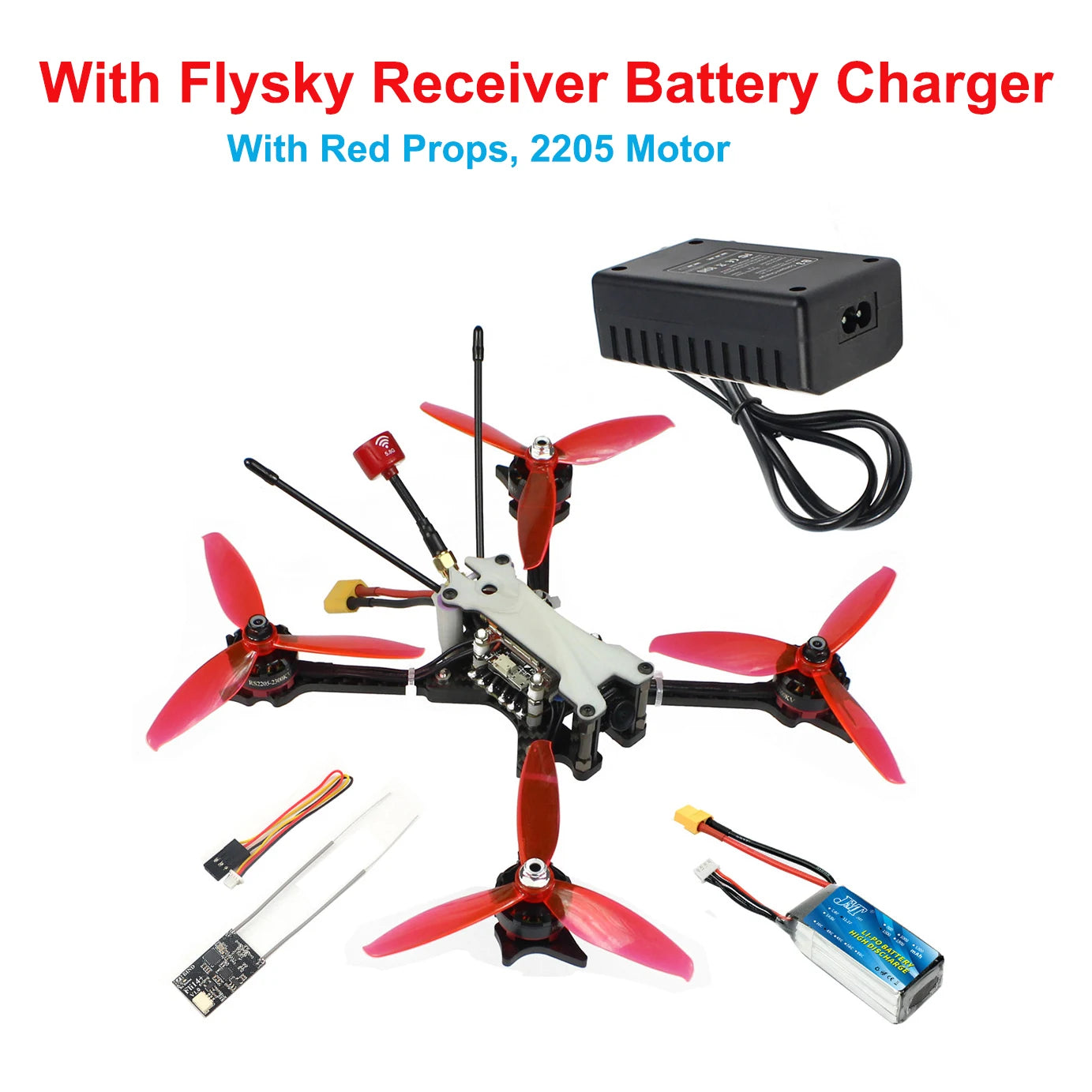

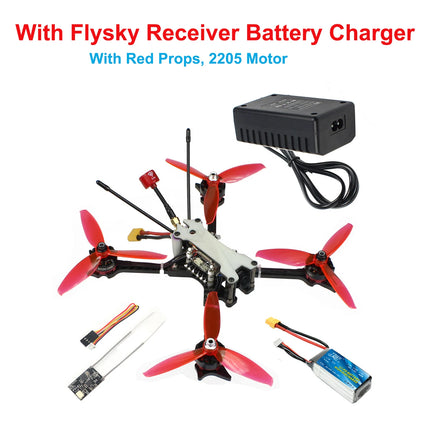

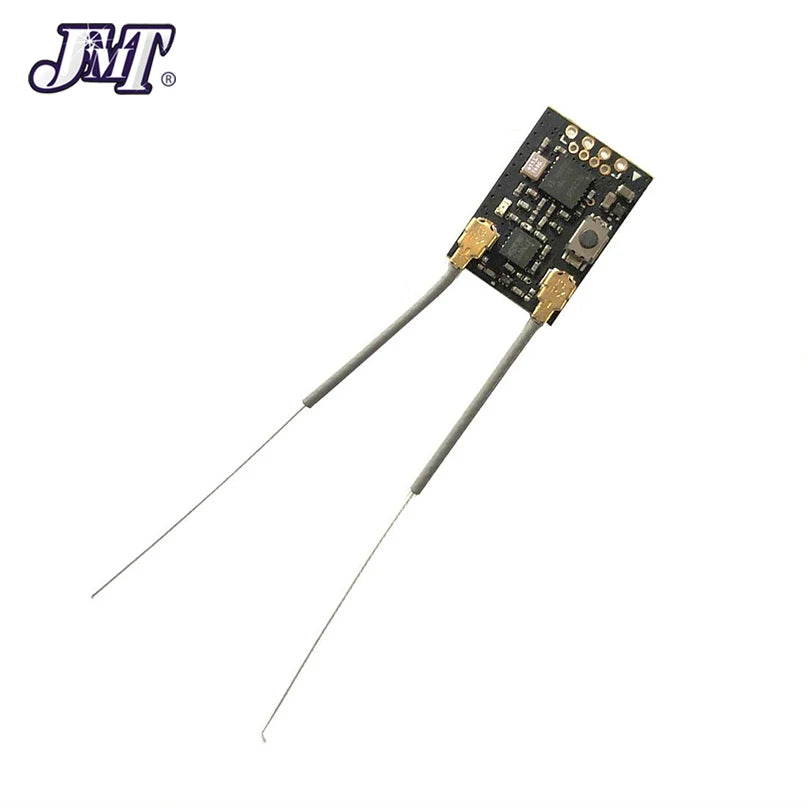

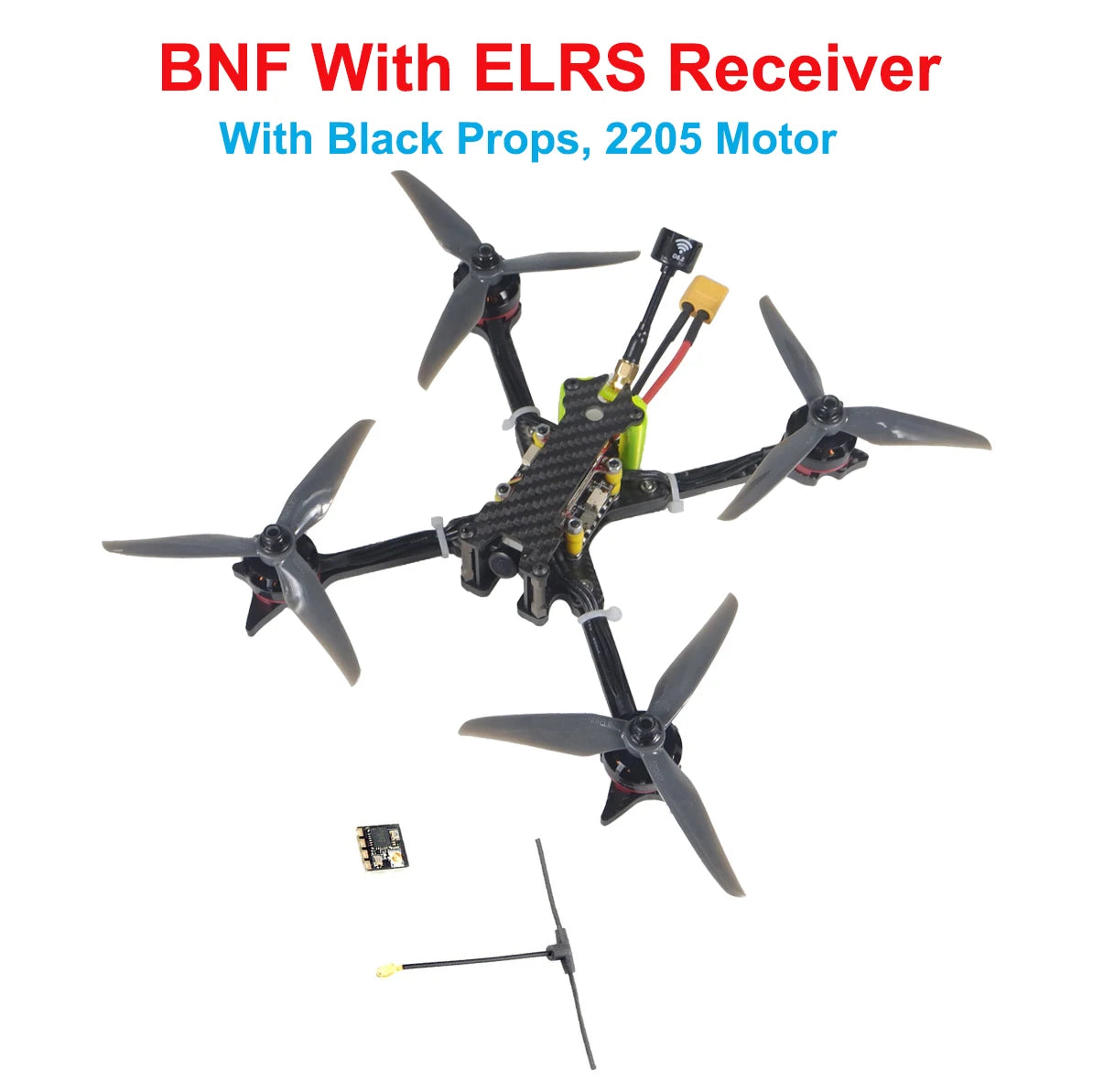

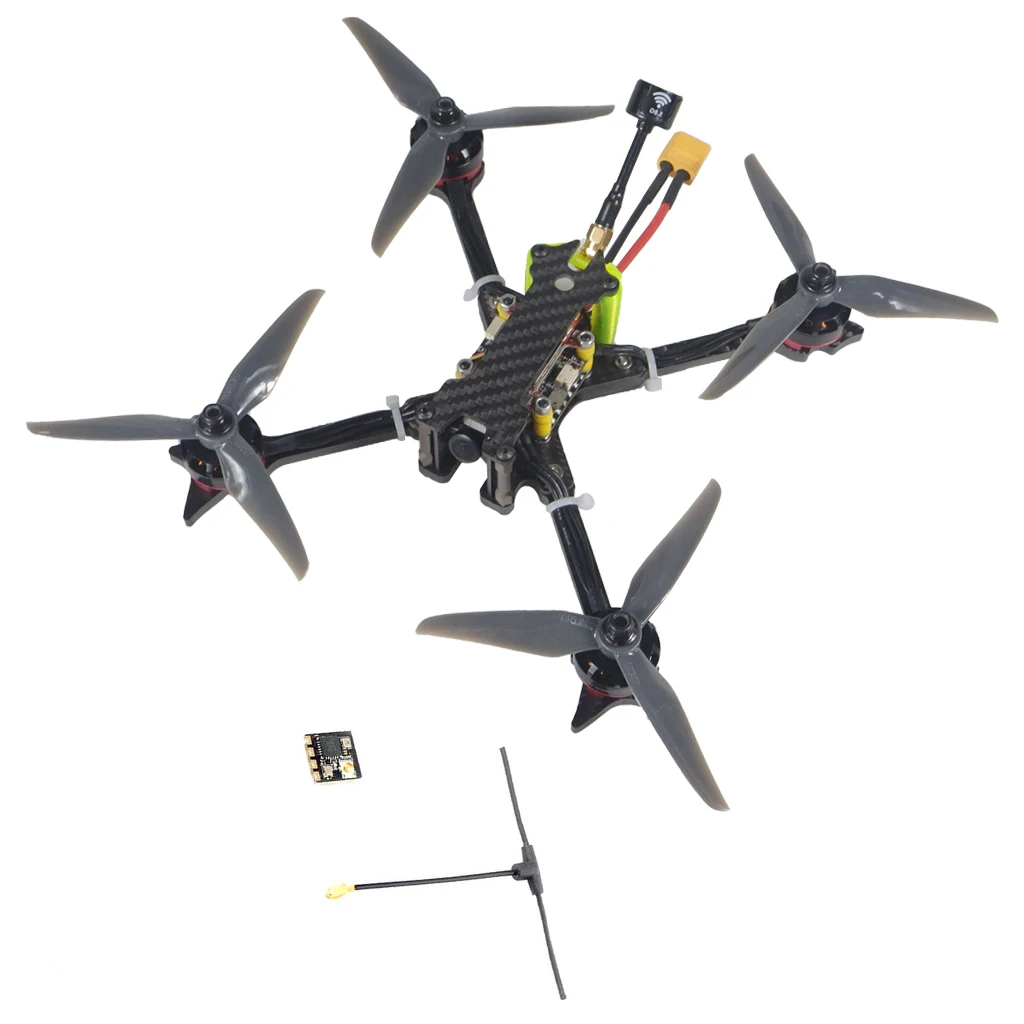

Receiver version:

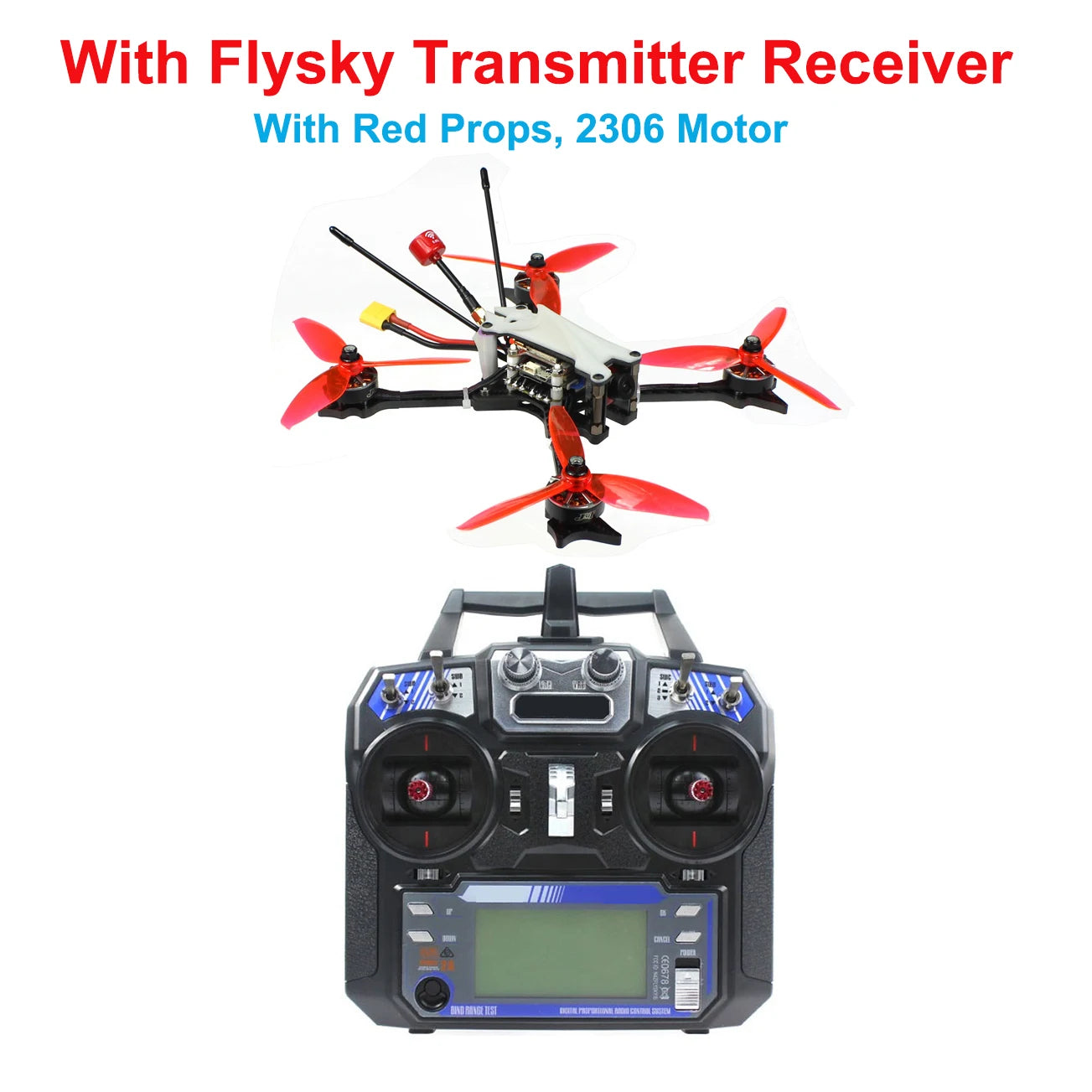

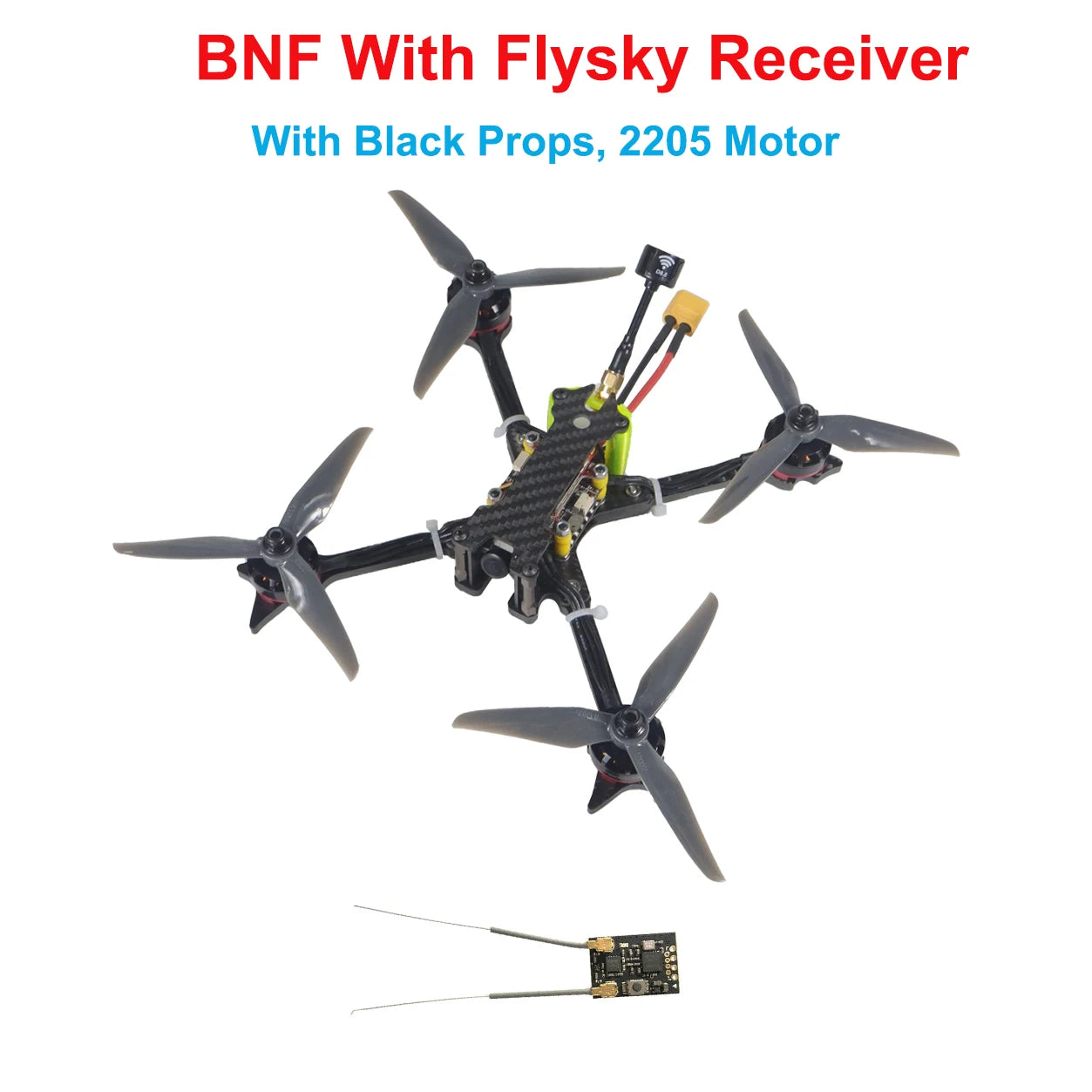

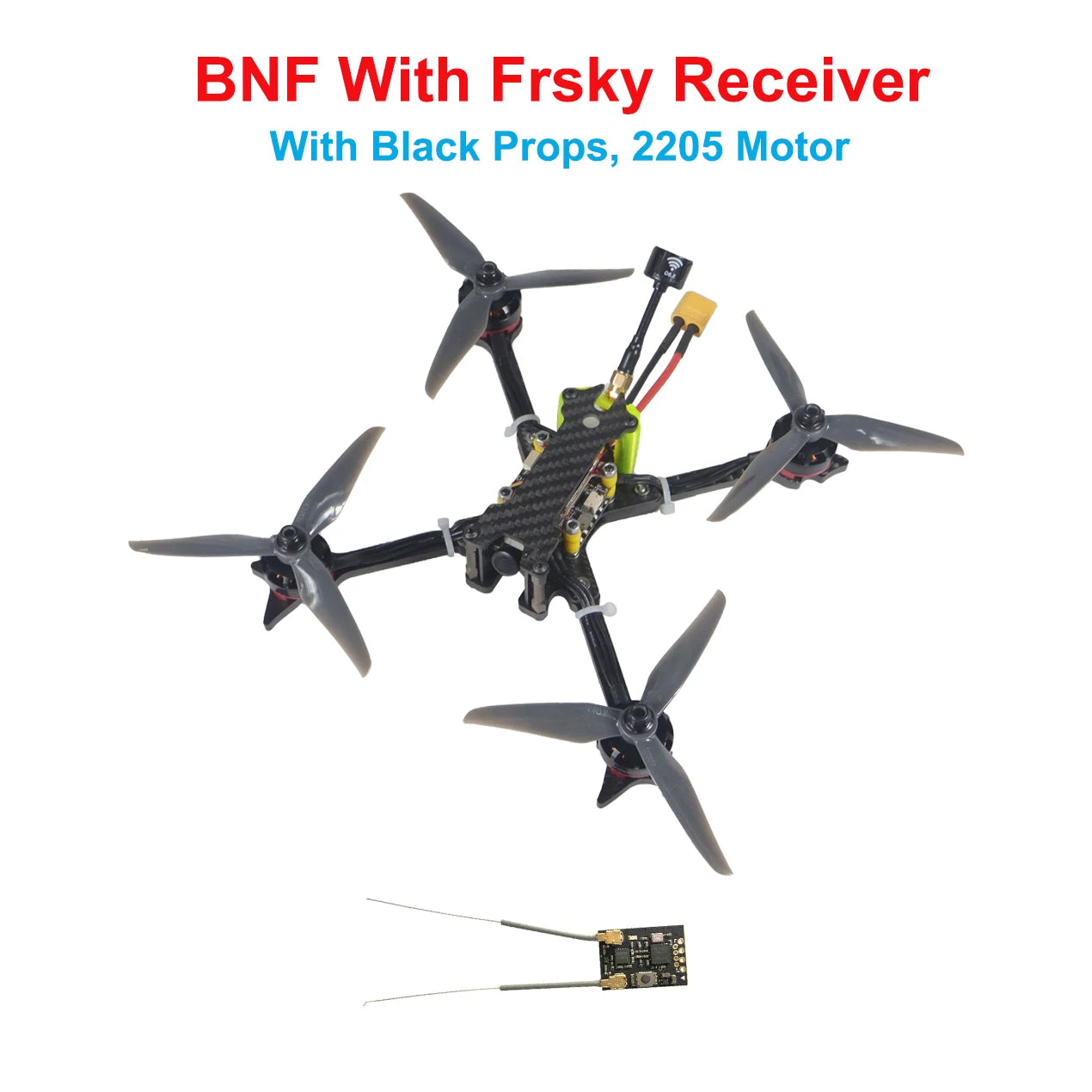

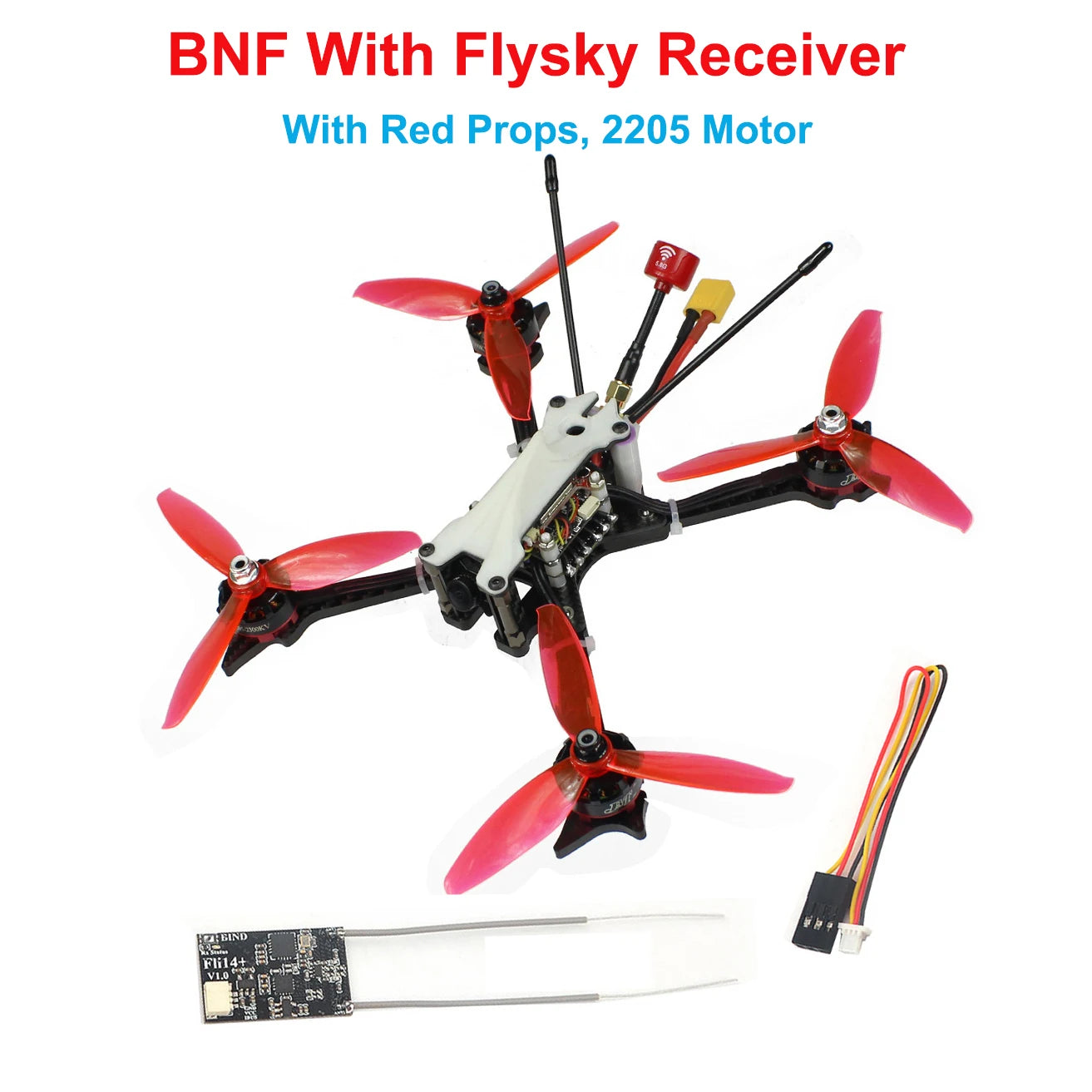

FRSKY version, FLYSKY version, DSM-X receiver Version,without receiving version
If you need the 4-IN-1 version, please contact our customer service. 4-IN-1 is also available for sale. Thanks

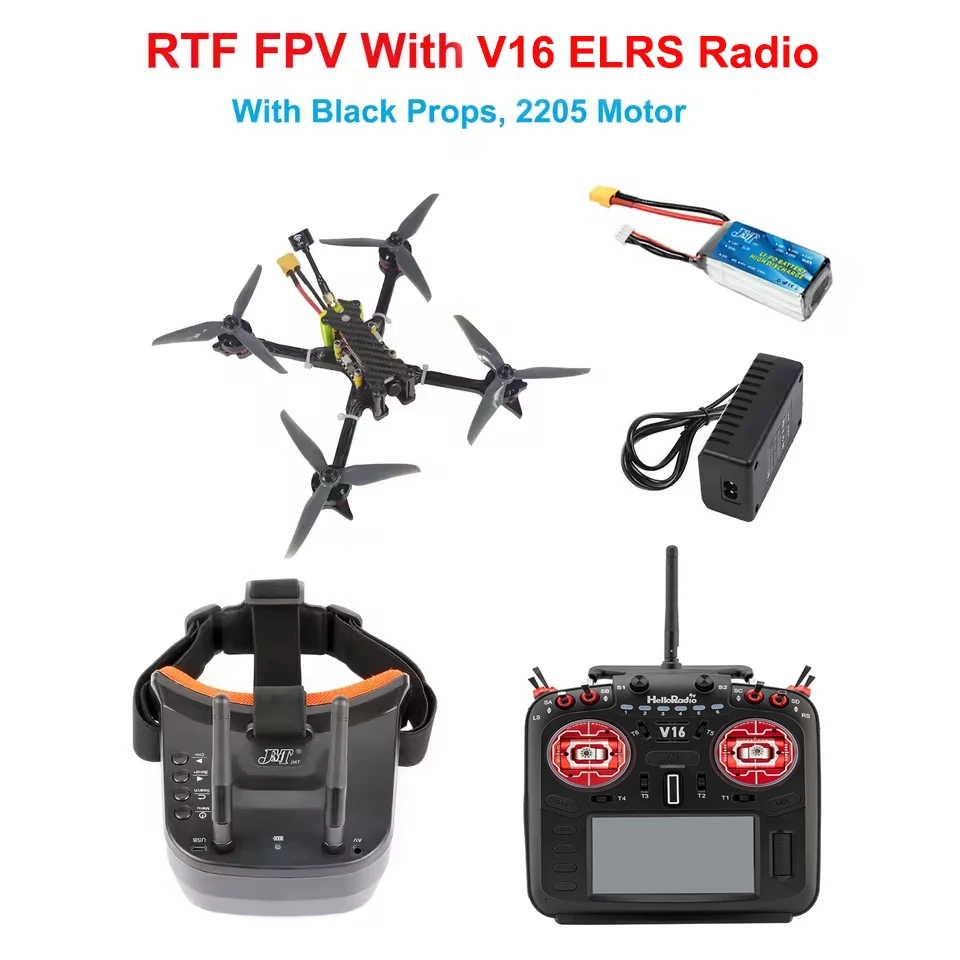

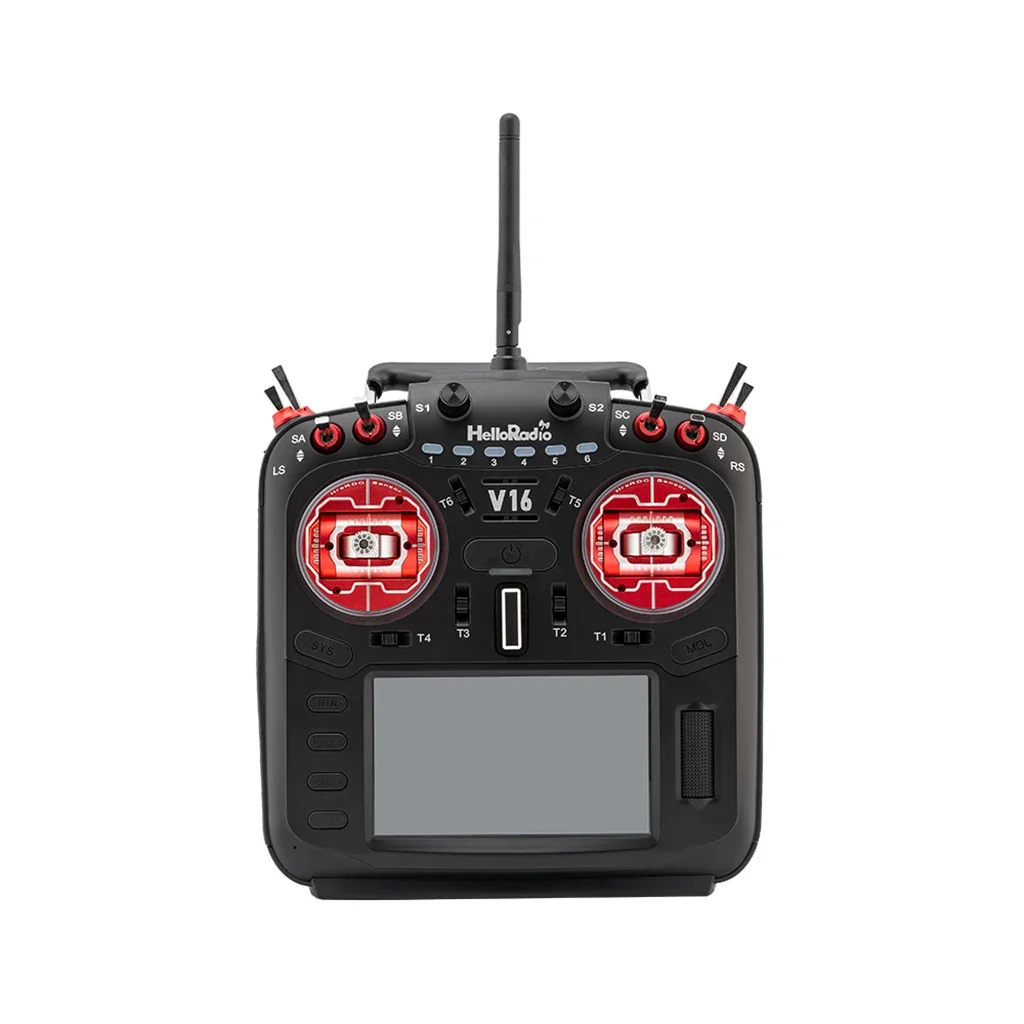

V16 Main Features:
1. Comfortable touch panel experience
2. Place the SWD debugging port of the MCU at the bottom of radio, easier for upgrading and debugging
3. Place the headphone jack at the bottom of the radio for easier connection to the headset
4. Optimized LCD circuit design, releasing memory and CPU resources
5. Supports the currently popular ESP32-C3-MINI and XIAO ESP32-C3 Bluetooth-modules, providing more possibilities for future applications
6. Hardware dual serial port is used to communicate with the external RF module. And a reverse control circuit is designed to support more types of external RF modules
7. 6-mode switch can be defined at will. Users can program to customize their functions and corresponding LED colors. Multi-Color LEDs are used, and you can be assured to create your own favorite
8. The charging circuit will automatically stop charging when overvoltage is detected in the battery cells, protecting the battery
9. Protection circuit is used to avoid damage from any reverse-polarity connection of power supply
10. Equipped with 6-axis gyroscopes to provide possibilities for future applications
11. Programmable colorful gimbal LED, allows users to achieve the dazzling colors they want through simple programming, adding color to their flight
12. Intelligent voice interaction control circuit to achieve true human-machine interaction. Users can customize their voice and create their own style of voice control function
13. Equipped with 3 voltage and current measurement units with an accuracy of +-0.1%, which can independently measure the voltage of a single battery cell of the radio, monitor the charging voltage and current in real time to prevent overcharging of the single battery cell, and no longer require manual correction. They can measure and display the working voltage and current of the overall system, as well as internal/external RF module, in real time. It will give alarm or shut down the system, if abnormal voltage or current is detected. The radio and modules will always be in good protection.

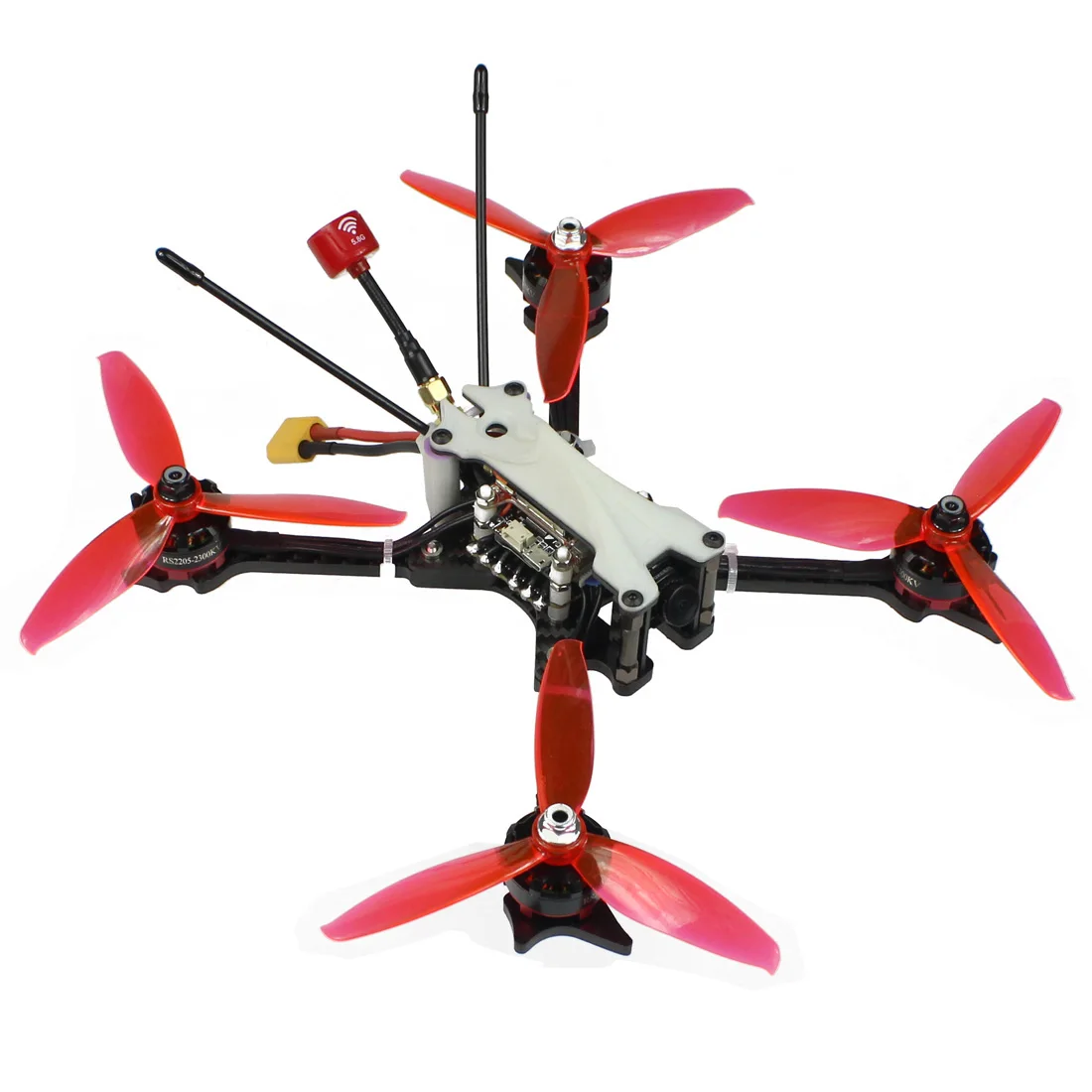

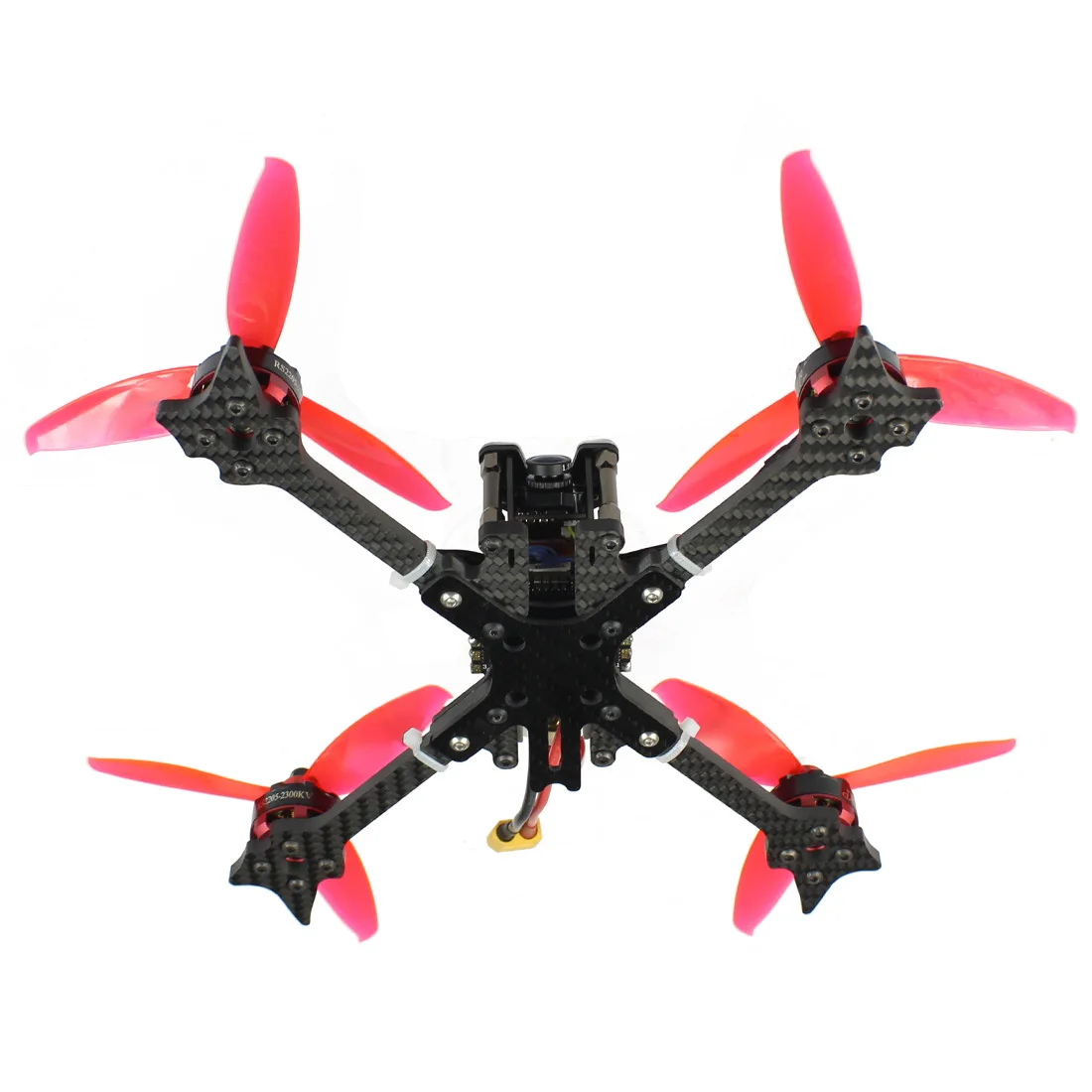

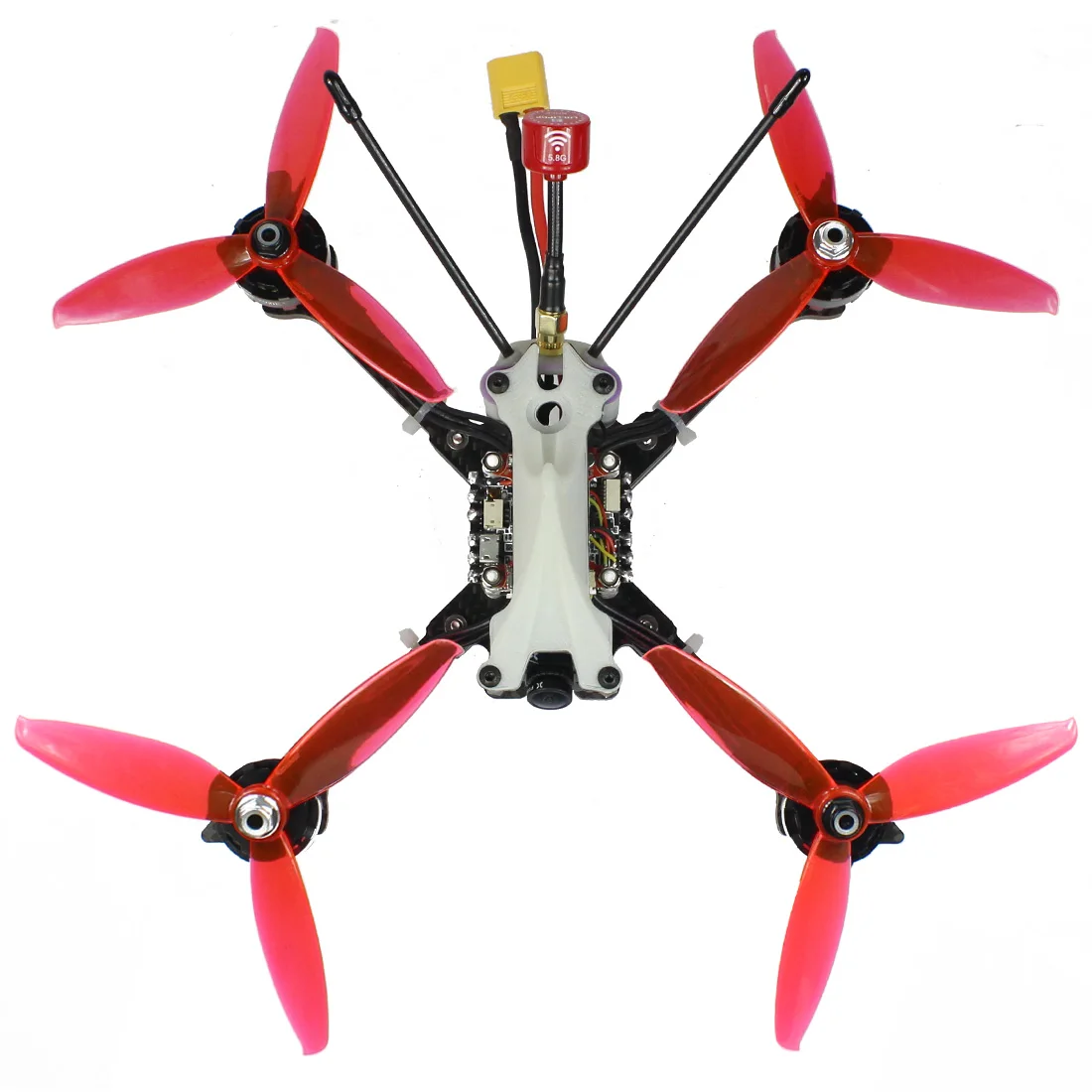

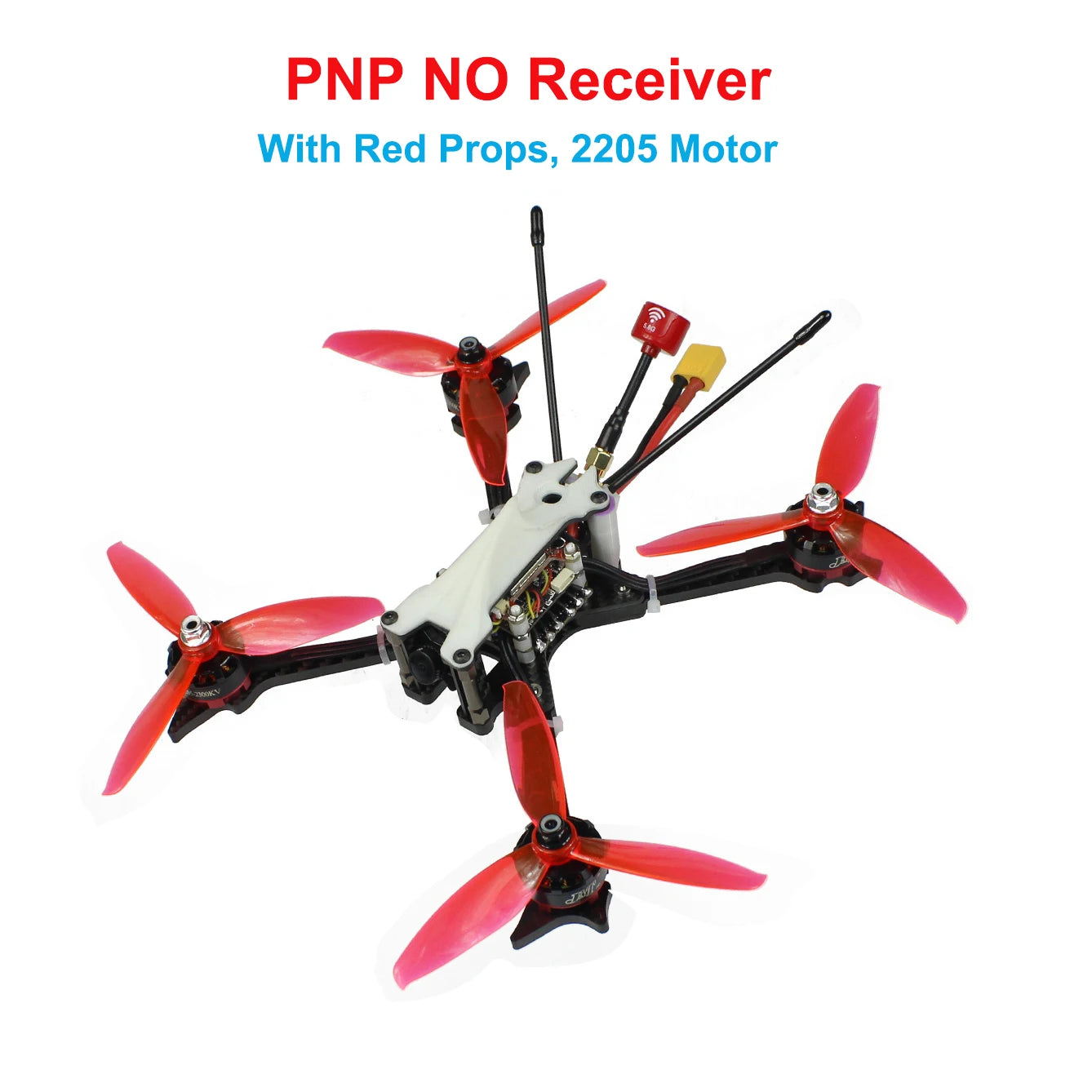

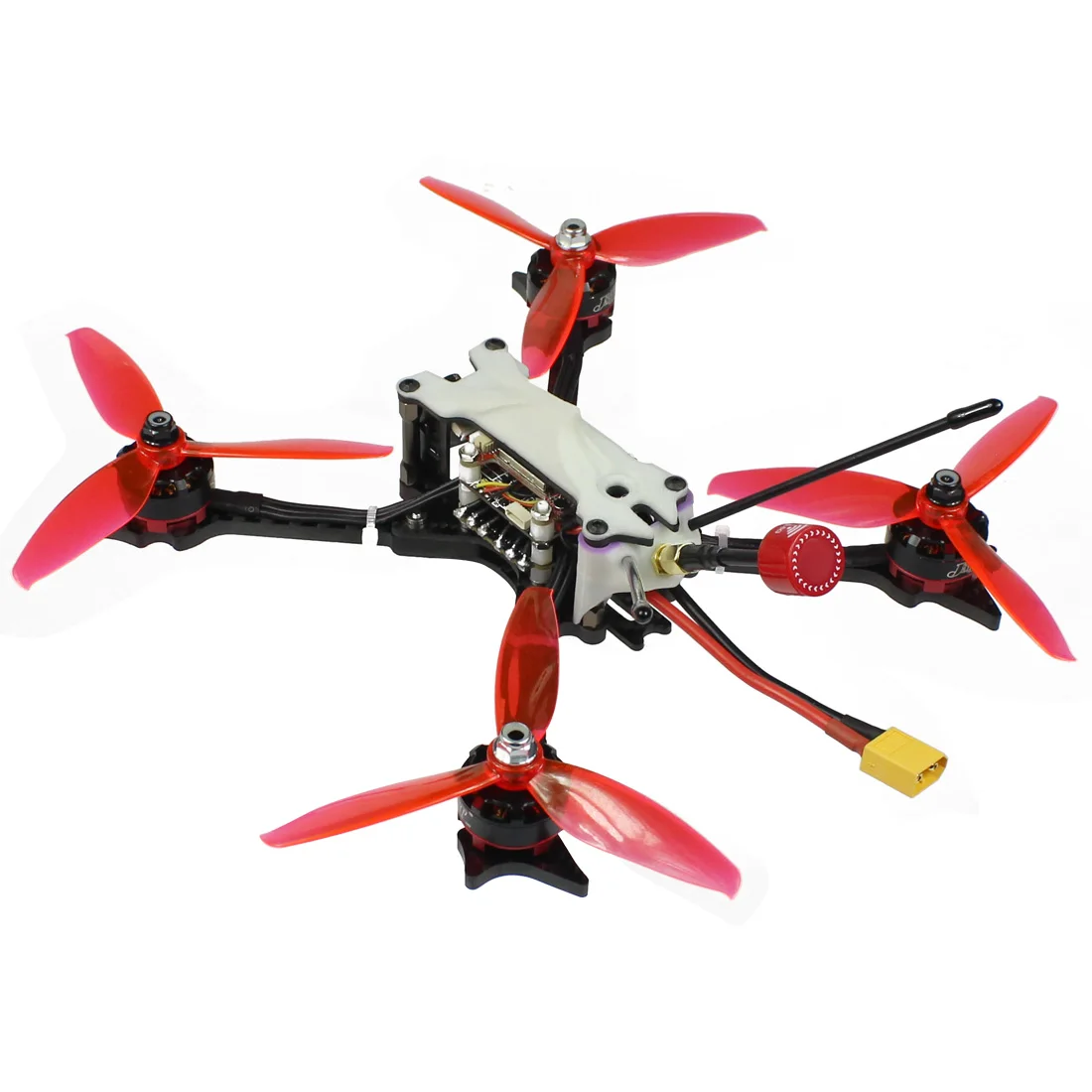

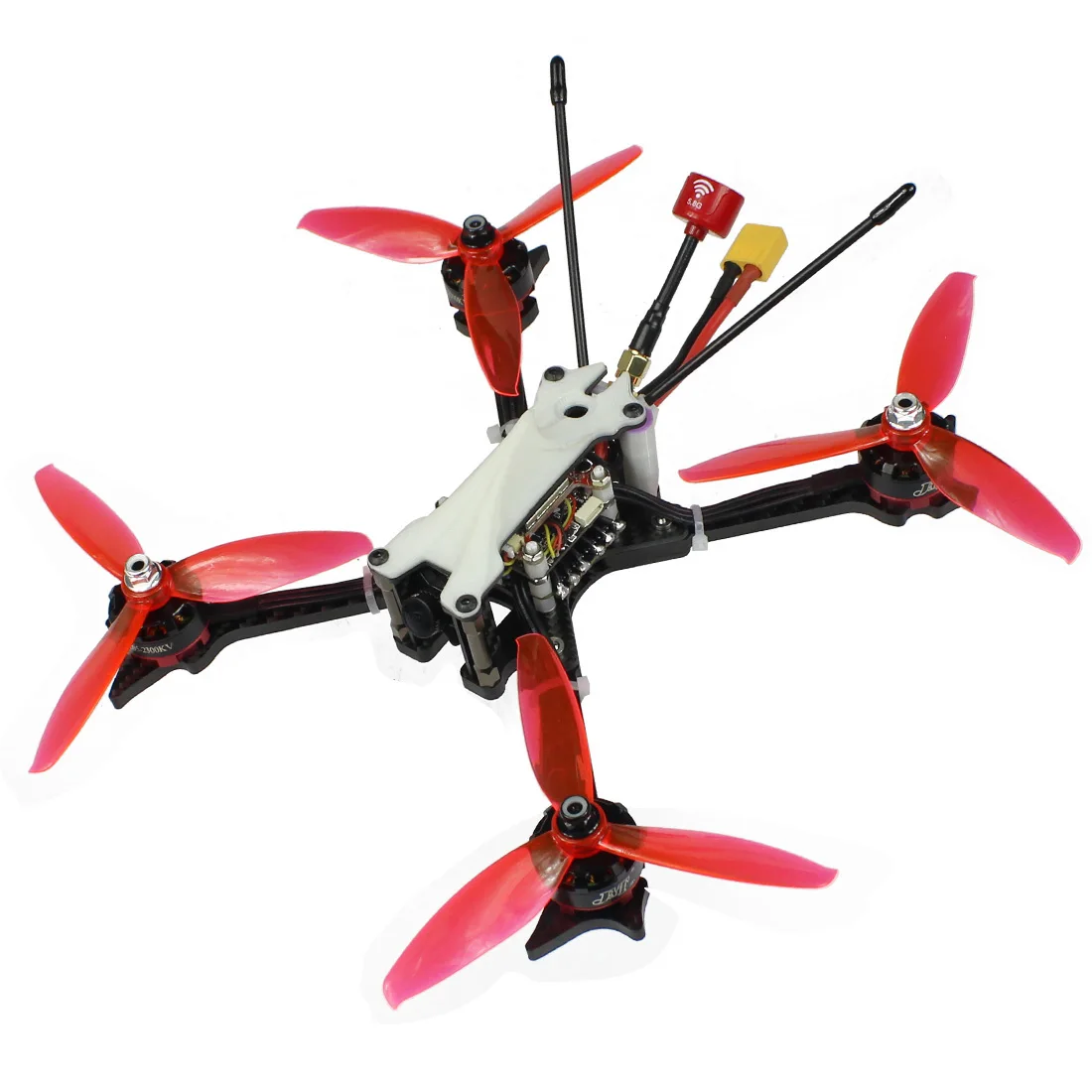

With Red Proprllers
Precautions:

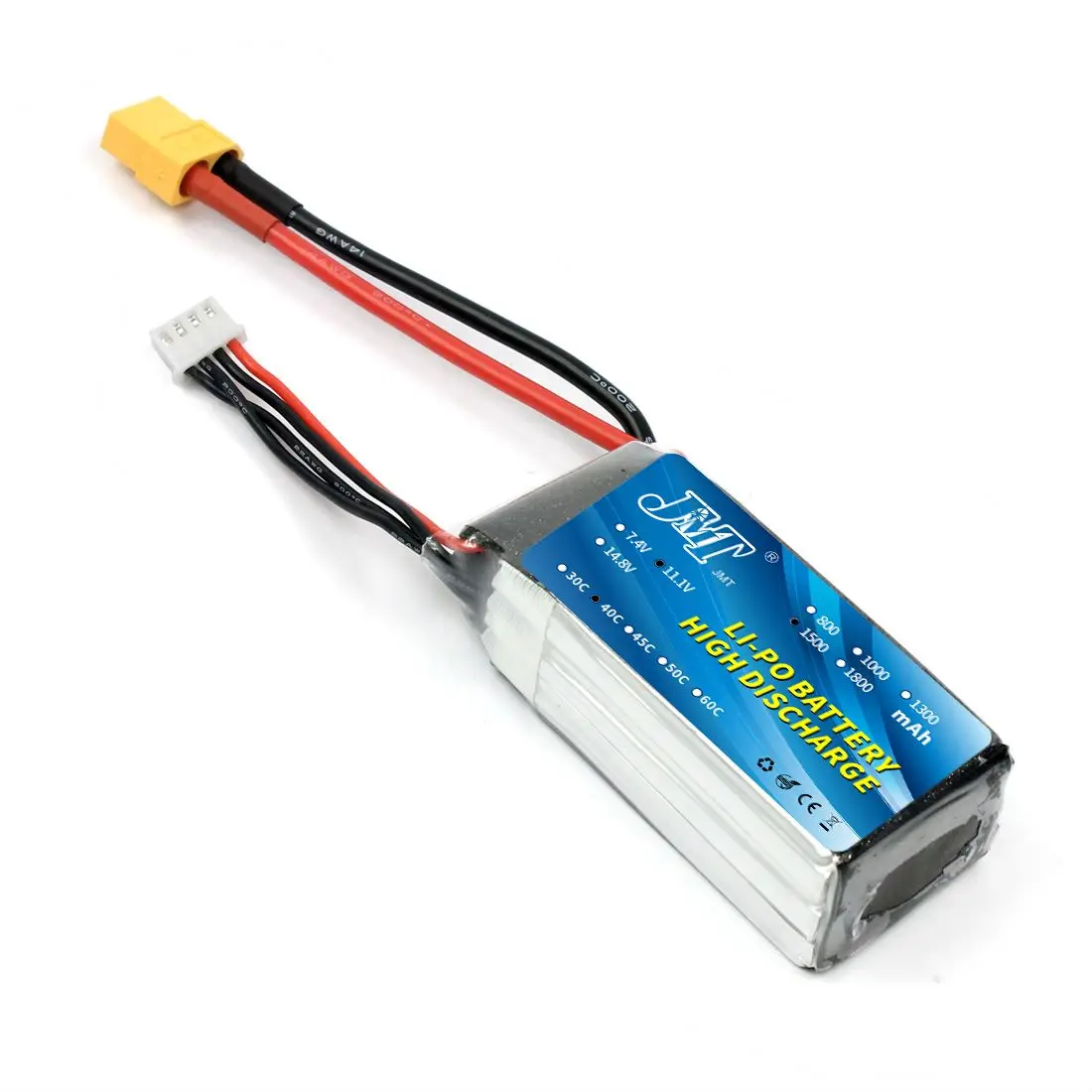

1. Do not charge the battery when you are away from home, do not charge the battery immediately after flying, and do not over-discharge the battery (over-discharge may cause the battery to fail to be charged and become obsolete). After the battery is fully charged, the battery should be cut off in time and cannot be charged for a long time. .
2. Do not modify any parameters and wiring without knowing the flight control and remote control.
3. Turn on the remote control before powering on the aircraft, unplug the power switch after the flight, and then turn off the remote control to prevent accidents.
4. This product is not a toy and is not suitable for children under 14 years of age.
5. If you are a beginner, it is recommended to be assisted by an experienced adult
6. Novices should pay attention to not holding the airplane by hand when the airplane is turning, and don't let children touch it. Prevent being scratched.
7. Please turn off the start switch in time when the aircraft falls from a wall or hits other objects during flight, otherwise it may cause damage to the flight control motor. Check whether the aircraft is damaged, whether the screws are loose, and wait until everything is normal before taking off again.
