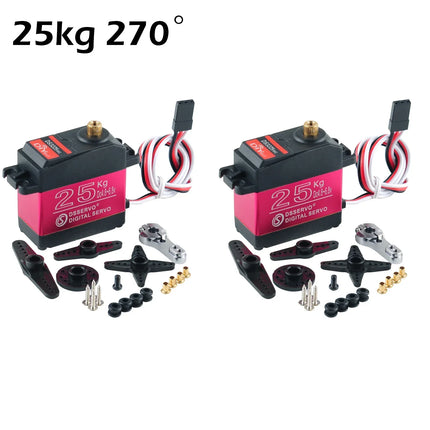

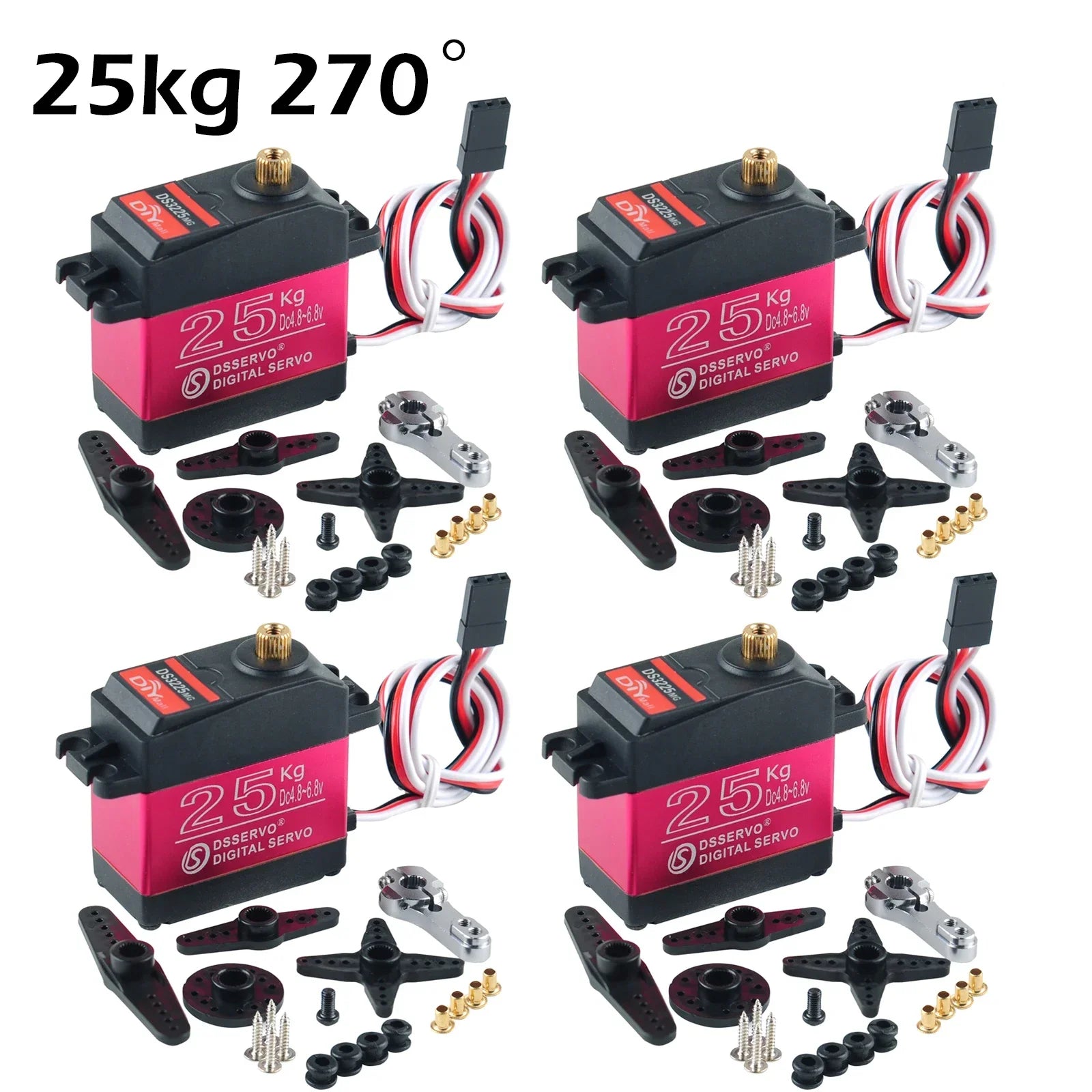

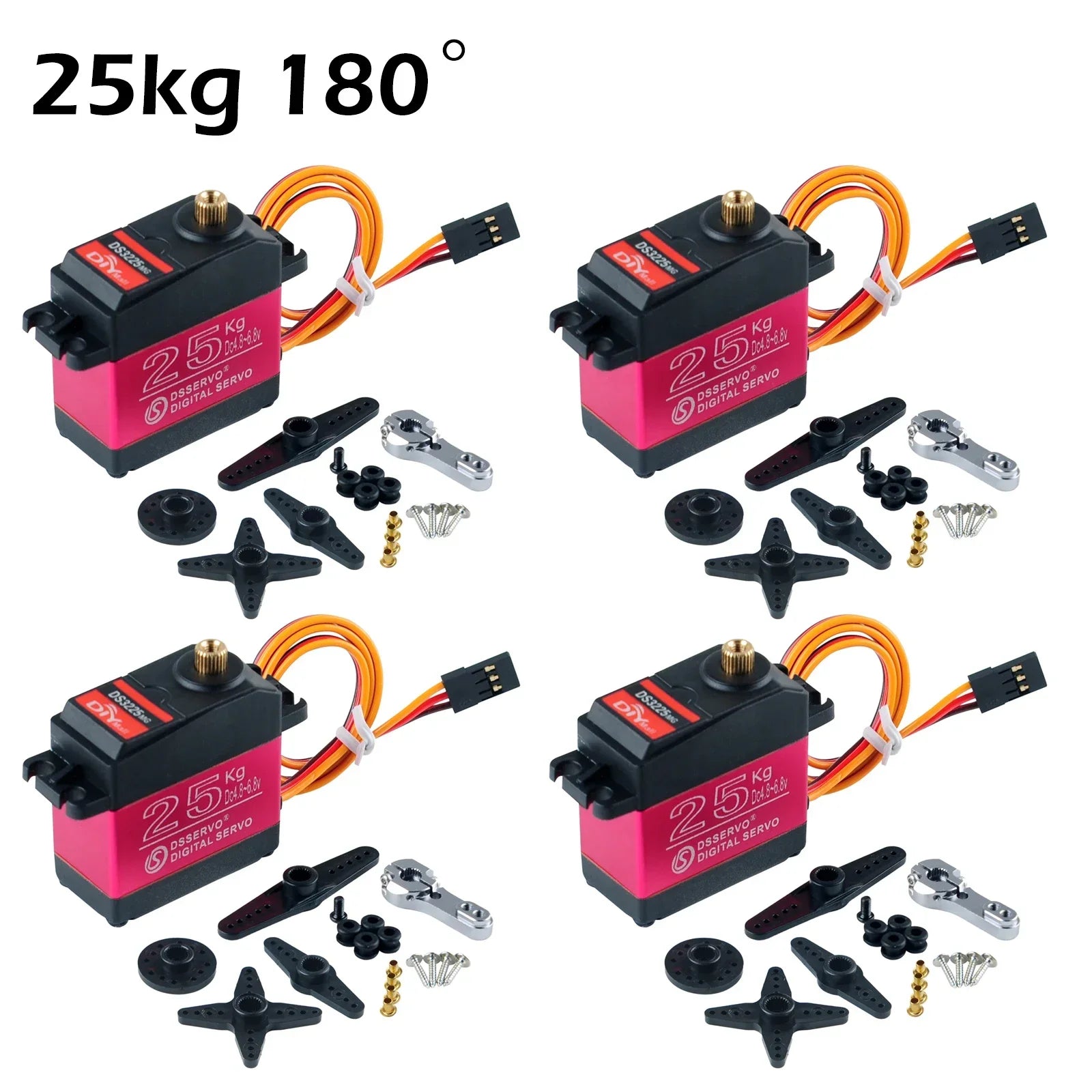

DS3225 25Kg RC Digital Servo 180 270 Degree Waterproof servo high torque Full Metal Gear for DIY Baja Car RC Robotic Arm

DS3225 25Kg RC Digital Servo 180 270 Degree Waterproof servo high torque Full Metal Gear for DIY Baja Car RC Robotic Arm

Fiche produit

SPECIFICATIONSBrand Name: wishiotChoice: yesFour-wheel Drive Attributes: MotorsHigh-concerned chemical: NoneMaterial: MetalOrigin: Mainland ChinaRC Parts & Accs: Servo AccessoriesRemote Control Peripherals/Devices: ServosUse:... En savoir plus

4 en stock 🚚 Livraison gratuite / Free shipping

$43.63 Excl. T.V.A.

    • ✓ Paiement Sécurisé / Secure Payment avec Shop Pay et autres méthodes de paiement fiables / with Shop Pay and other trusted payment methods

      ✓ Garantie de Satisfaction / Satisfaction Guarantee - Remboursement assuré / Refund guaranteed

      ✓ Livraison Gratuite / Free Shipping pour 442 millions de personnes / for 442 million people

      shop pay
    • Expédié aujourd'hui ? Commandez dans : Jun 11, 2026 23:59:00 -0400
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    SPECIFICATIONS

    Brand Name: wishiot

    Choice: yes

    Four-wheel Drive Attributes: Motors

    High-concerned chemical: None

    Material: Metal

    Origin: Mainland China

    RC Parts & Accs: Servo Accessories

    Remote Control Peripherals/Devices: Servos

    Use: Vehicles & Remote Control Toys

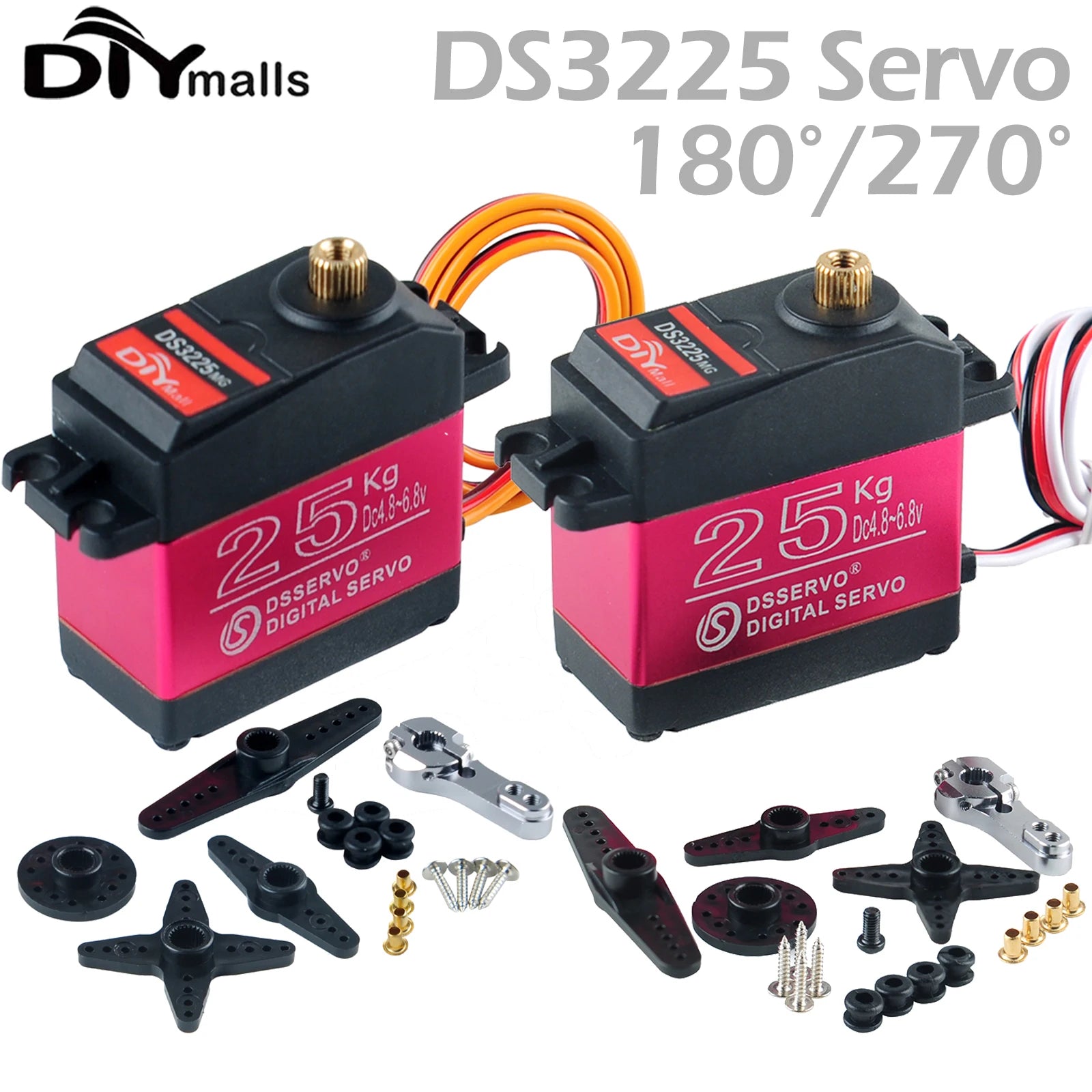

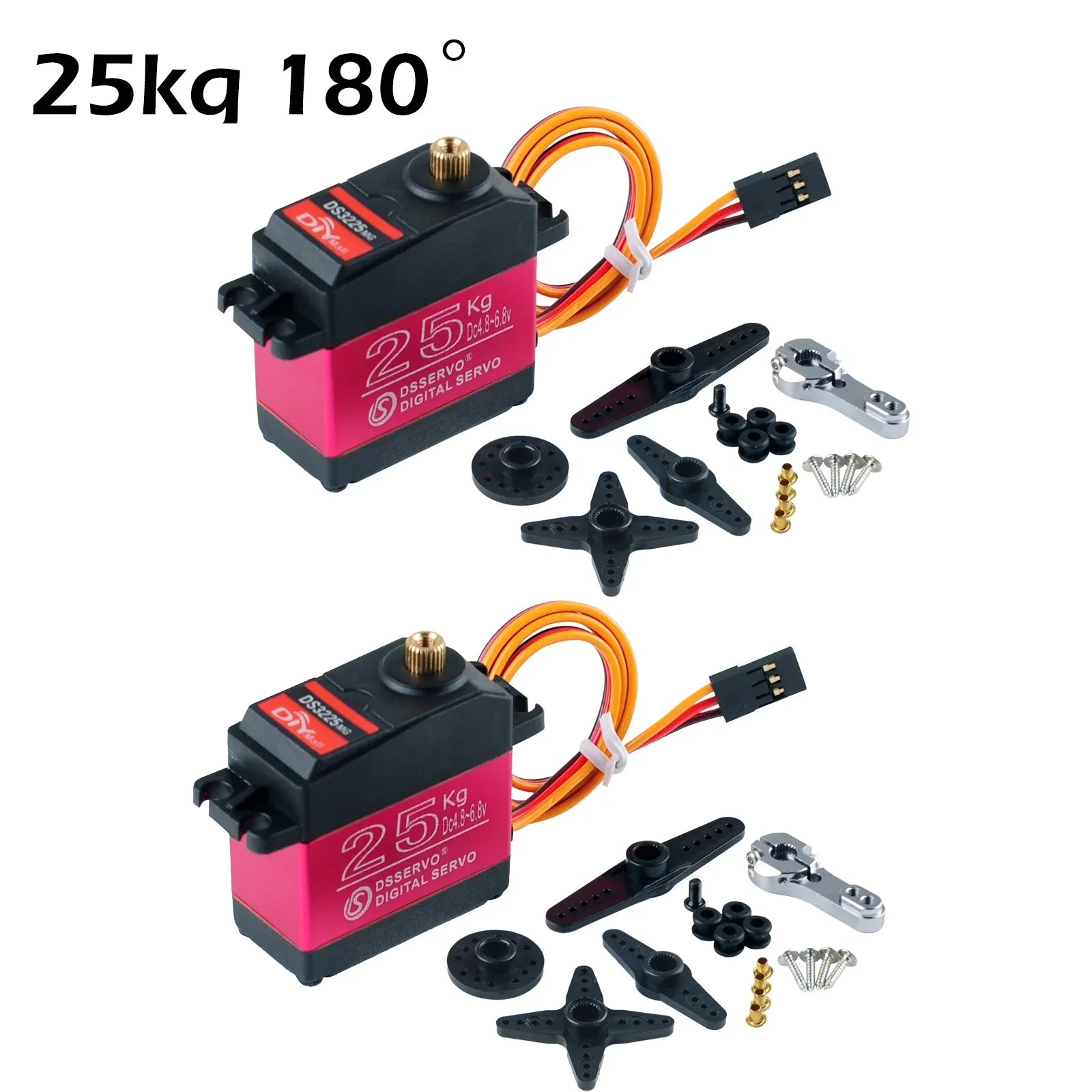

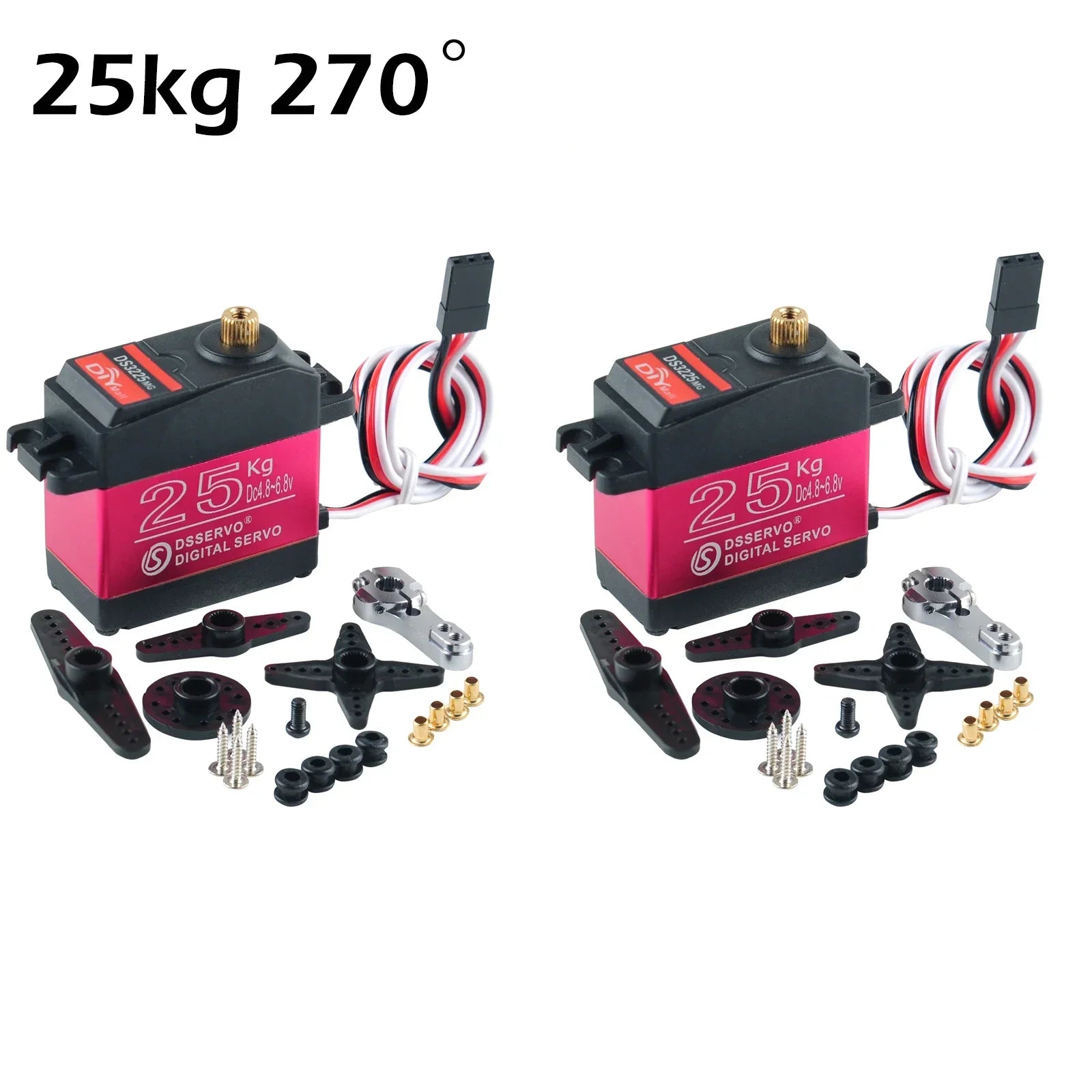

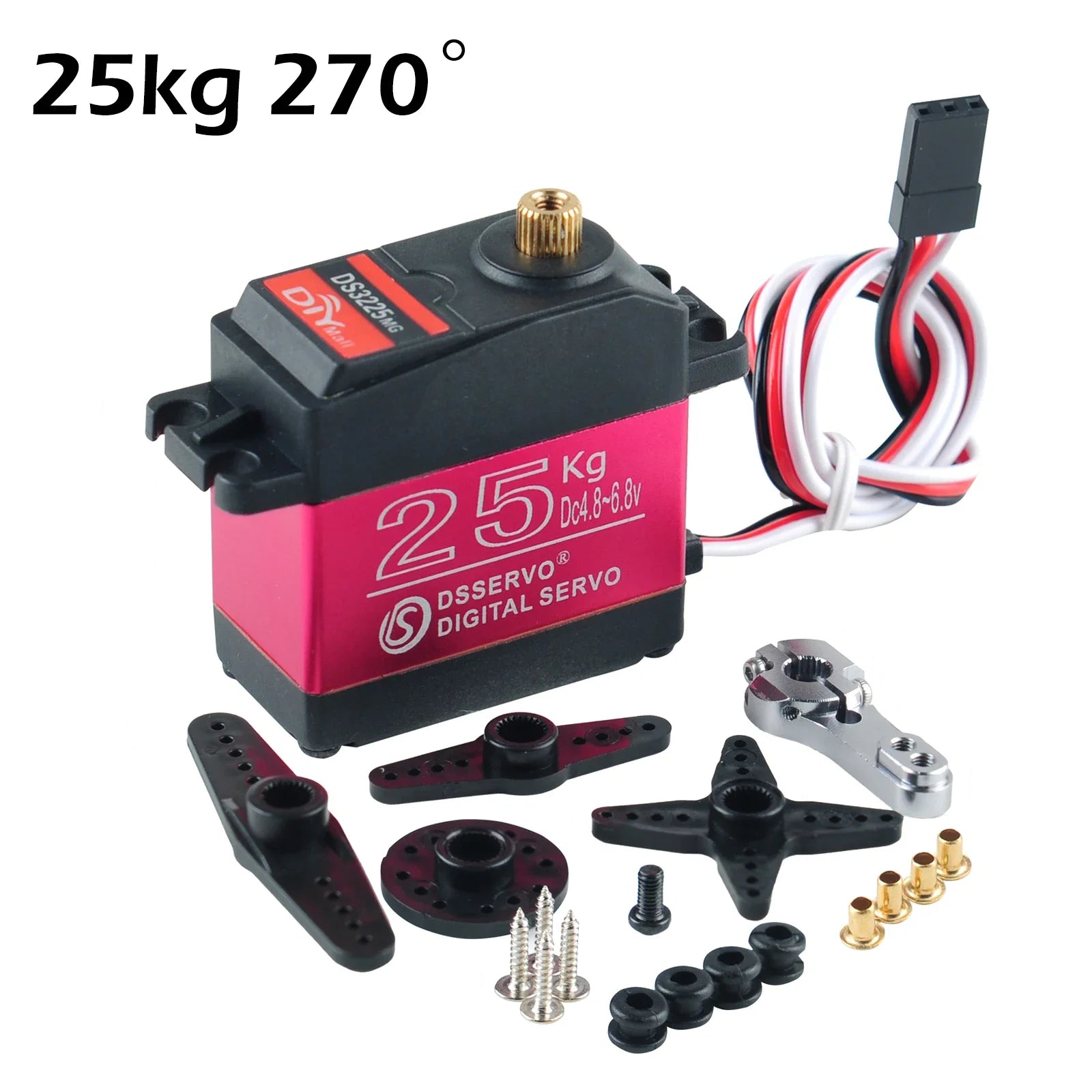

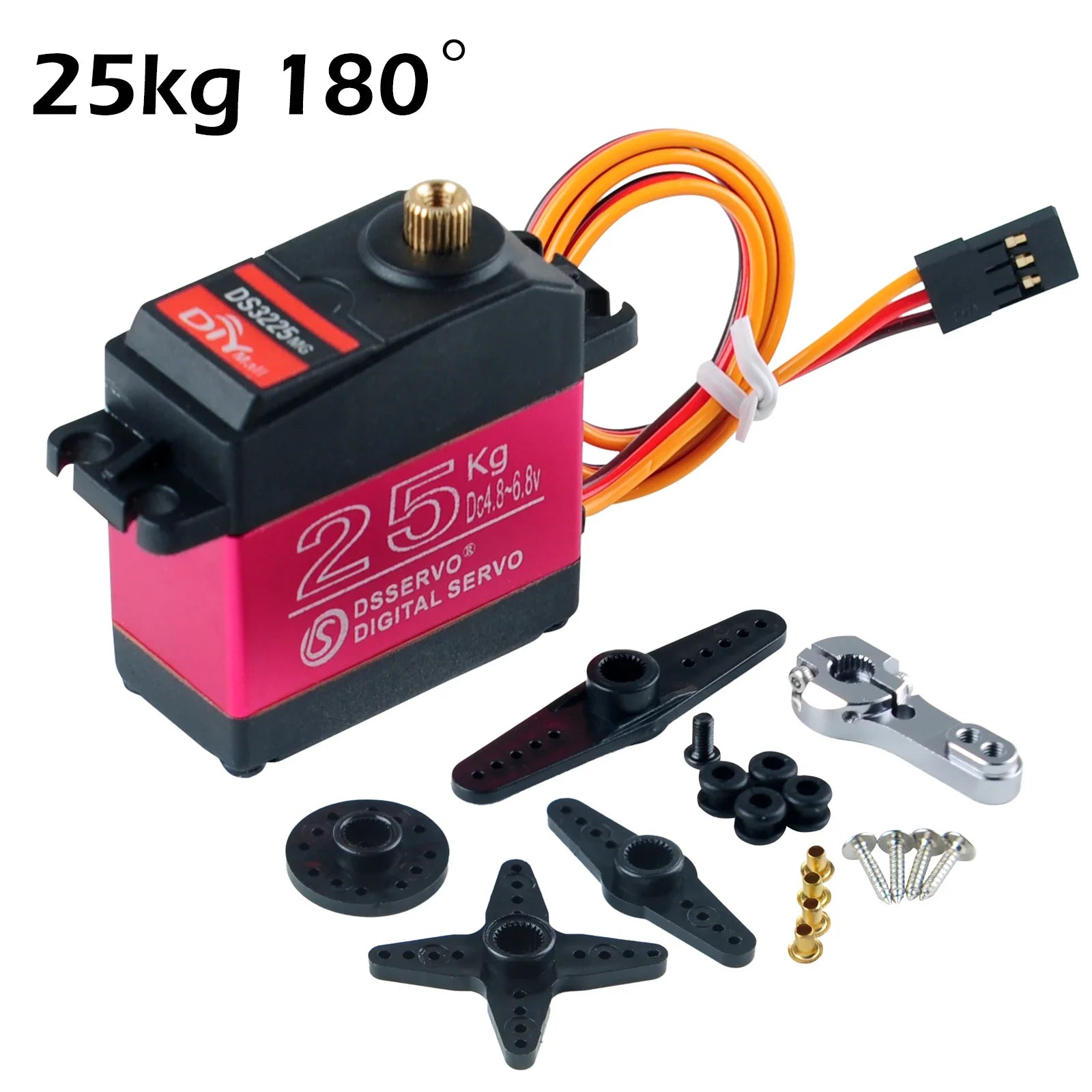

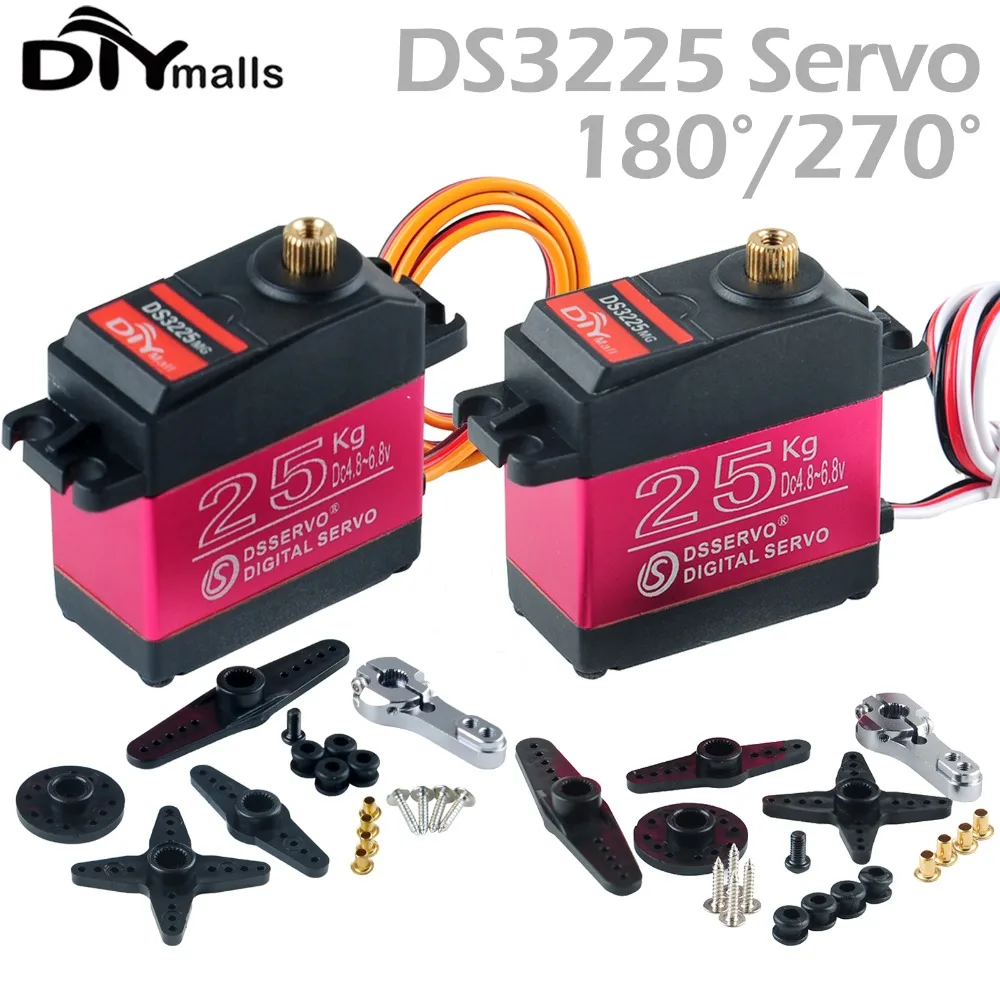

    DS3225MG 25Kg 180 270 Degree RC Digital Servo Full Metal Gear with 25T Servo Arm Horn Kit
    • DS3225MG servo is suitable for 1/8, 1/10, 1/12 Scale Crawler Truck, RC Car / Robotic arm / Boat and other remote control models.

    • It is water resistant servo, not waterproof servo, it works if gets a little wet, but can't work under the water, so pls be careful not to get it submerged in water, otherwise, it will be ruined.

    • Control system: PWM(Pulse width modification), sensitive response, Pulse width range is around 500~2500μsec.

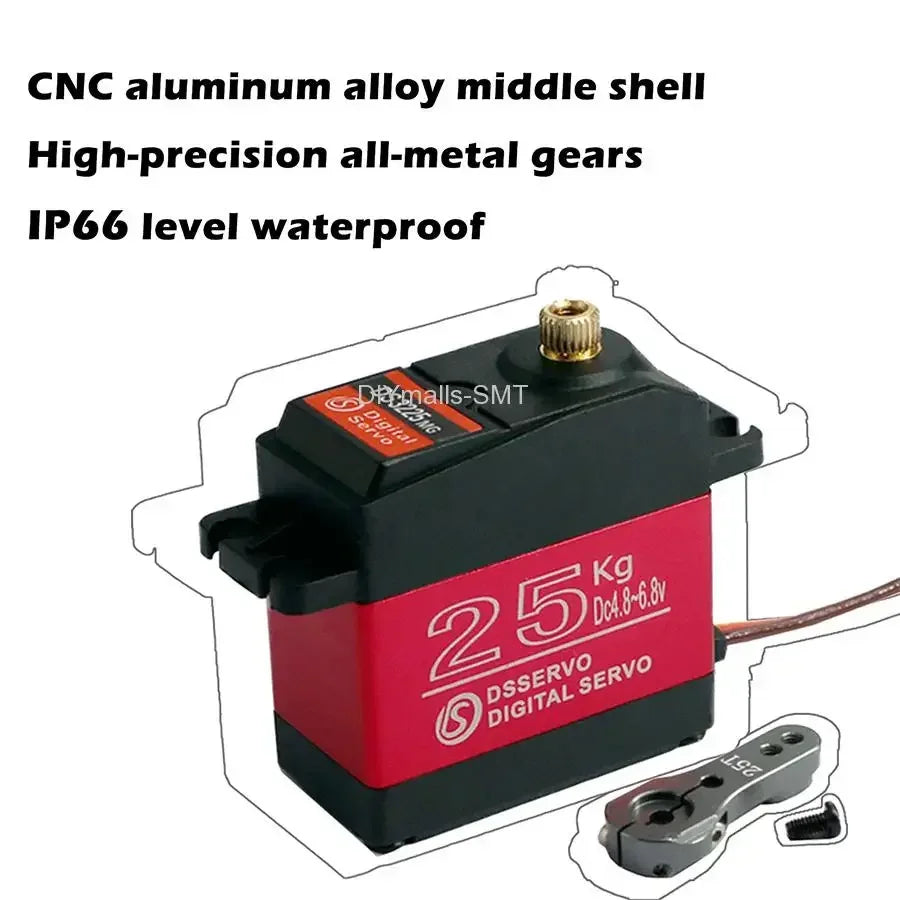

    • Full metal gear in copper&aluminum, CNC aluminum middle Shell. 25Kg.cm High torque steering servo for robotic arm, boats, vehicles and other remote control toys.

    DS3225MG digital servo

    Model: DS3225MG
    Type: Digital Servo
    Torque: 25kg/cm
    Control angle: 180 / 270 degree
    Control system: PWM(Pulse width modification)
    Operating voltage: 4.8-6.8V
    Gear ratio: 275:1
    Waterproof performance: IP66 (it can't work under the water, please be careful not to put it under the water)

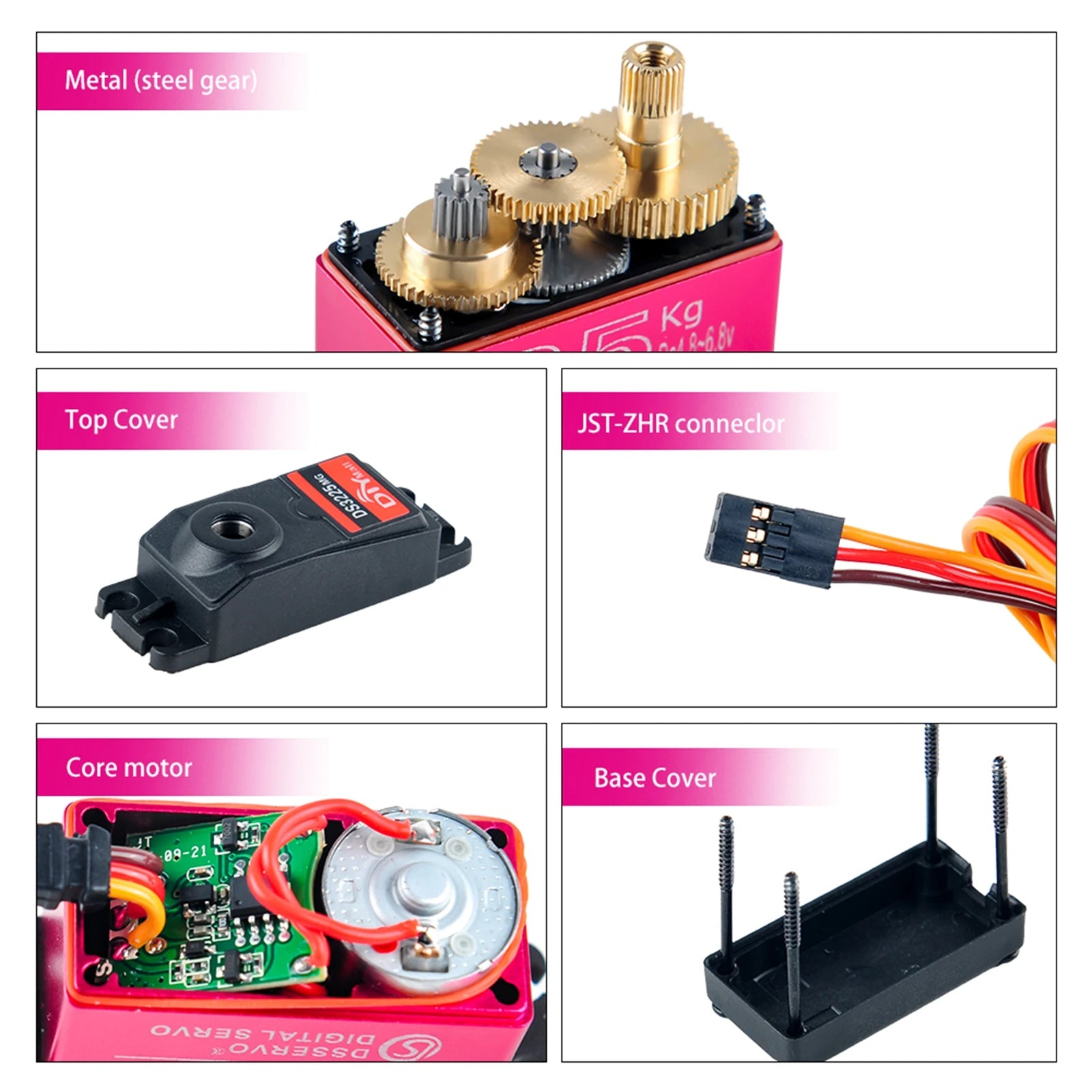

    Full metal gear, dual ball bearings, CNC aluminium middle Shell.

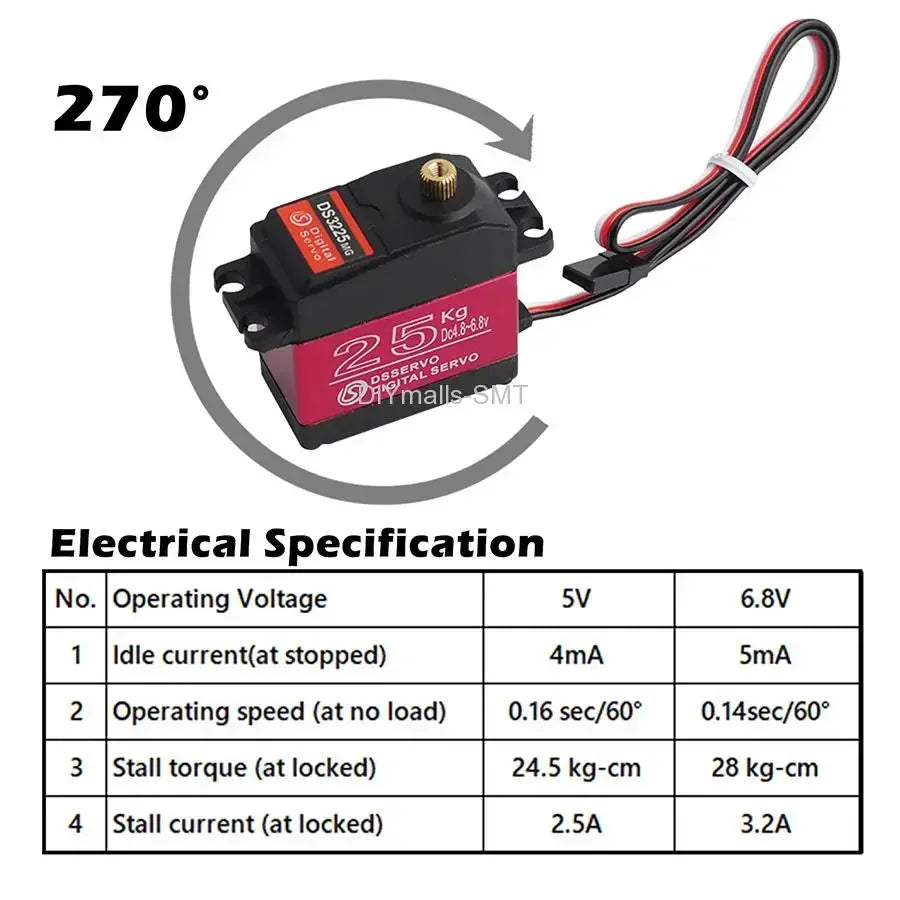

    Electrical Specification
    Operating Voltage: --------------5V-----------6.8V
    Idle current(at stopped): -------4mA----------5mA
    Operating speed (at no load): 0.16 sec/60°---0.14sec/60°
    Stall torque (at locked): -------24.5 kg-cm----28 kg-cm
    Stall current (at locked): --------2.1A----------2.9A

    Control Specification
    Control System: PWM(Pulse width modification)
    Pulse width range: 500~2500µsec
    Neutral position: 1500µsec
    Running degree: 180° or 270°(when 500~2500 μ sec)
    Dead band width: 3 µsec
    Operating frequency: 50-330Hz
    Rotating direction: Counterclockwise (when 500~2500 µsec)

    DS3225MG digital servo 3Pin wire
    DS3225MG servo is with 3Pin Plug wire.
    Plug type: JR, FUTABA General
    Red wire: ''+'' (power positive)
    Black wire: ''-'' (power negative''
    White wire: Signal





    Spécifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Avantages et inconvénients

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight
