Tinyhawk II RTF Version comes already bound to your radio and on the right video channel matched with your goggle.
We strongly recommend that you fly in an open place, away from crowds and buildings.
Specification:
Brand: EMAX
Item name: Tinyhawk II Freestyle FPV Racing Drone RTF
Max size of the aircraft (without antenna, cable tie): 143*137*23mm
Take off Weight (without battery): 57g
Frame |
Diagonal Wheelbase (Without Paddles): 115mm
Material: 3k Woven Carbon Fiber
|
Motors |
TH1103-7000KV
|
All-In-One (AIO) Flight Controller |
Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A Blheli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8 Mode)
Battery Connector: JST-PH2.0
|
Camera |
RunCam Nano 2 Camera
|
VTX
|
0-25-100-200mW Adjustable Frequency 37CH. Support SmartAudio. Ham radio license required for use in North America.
|
Propeller
|
Avan Rush 2.5 Inch Propeller
|
Receiver
|
EMAX Tiny Receiver（Compatible with Frsky Remote Control D8 Mode）
|
Battery
|
1 Cell 450 mAh HV Lipo Battery
|

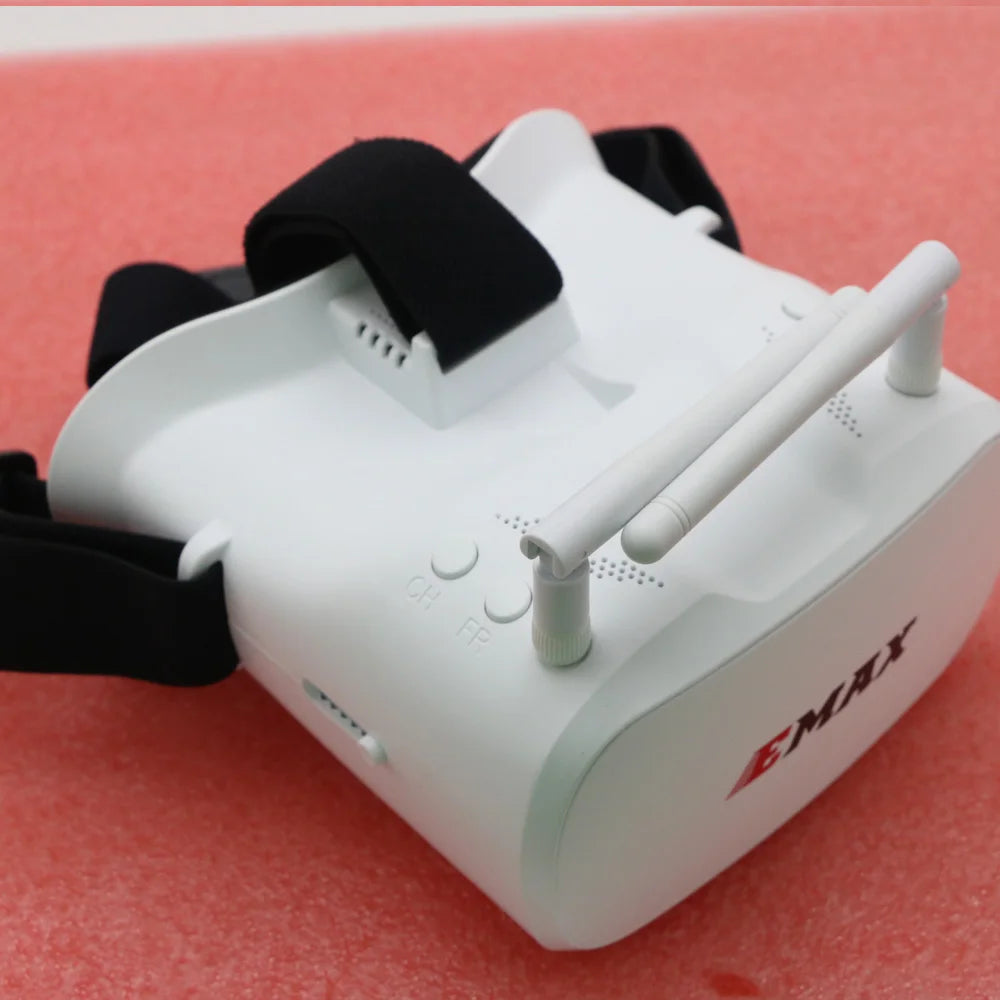

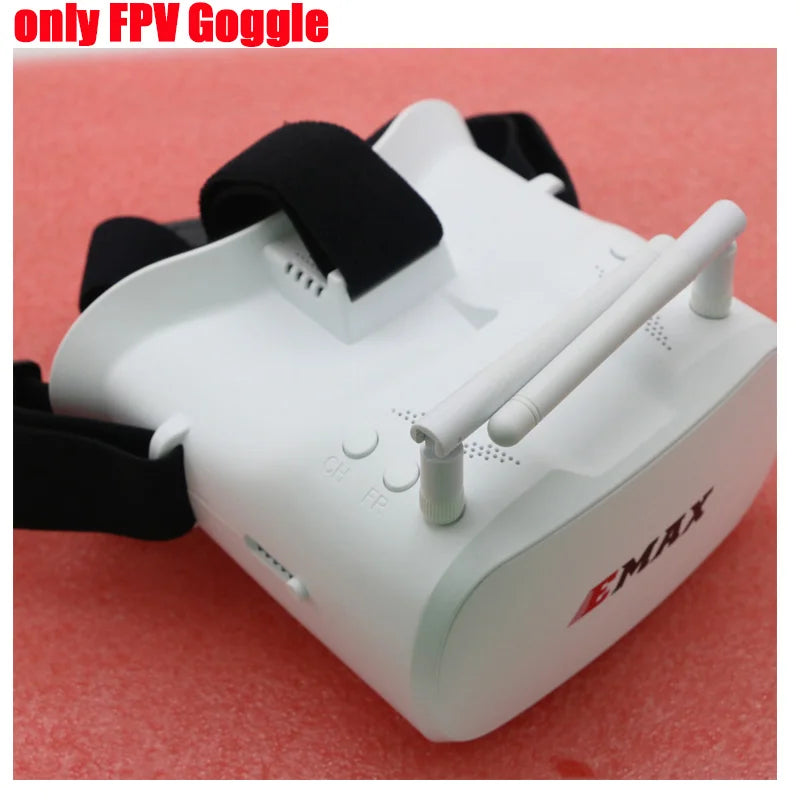

Goggles |
Size 140*153*90mm
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery
|

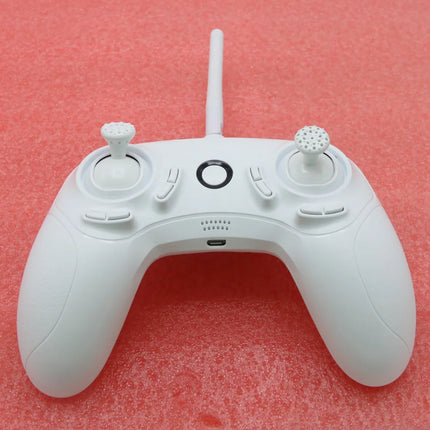

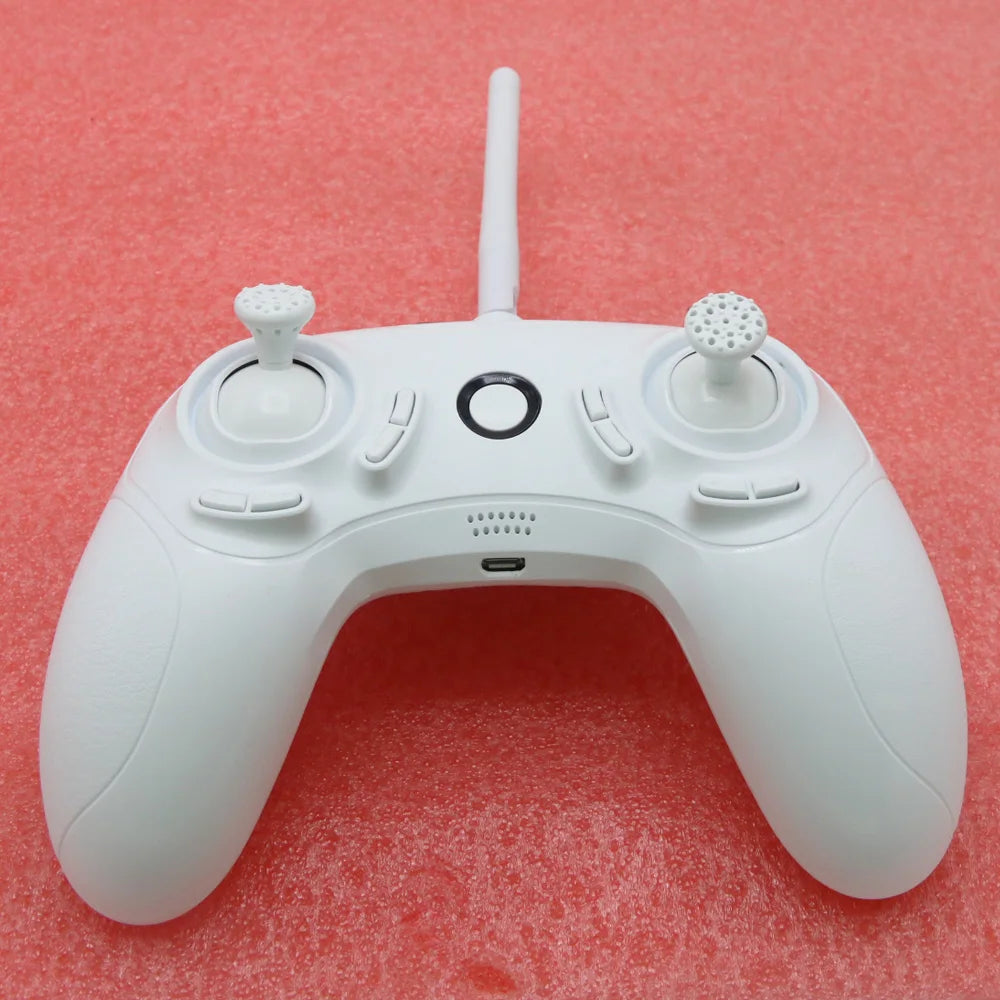

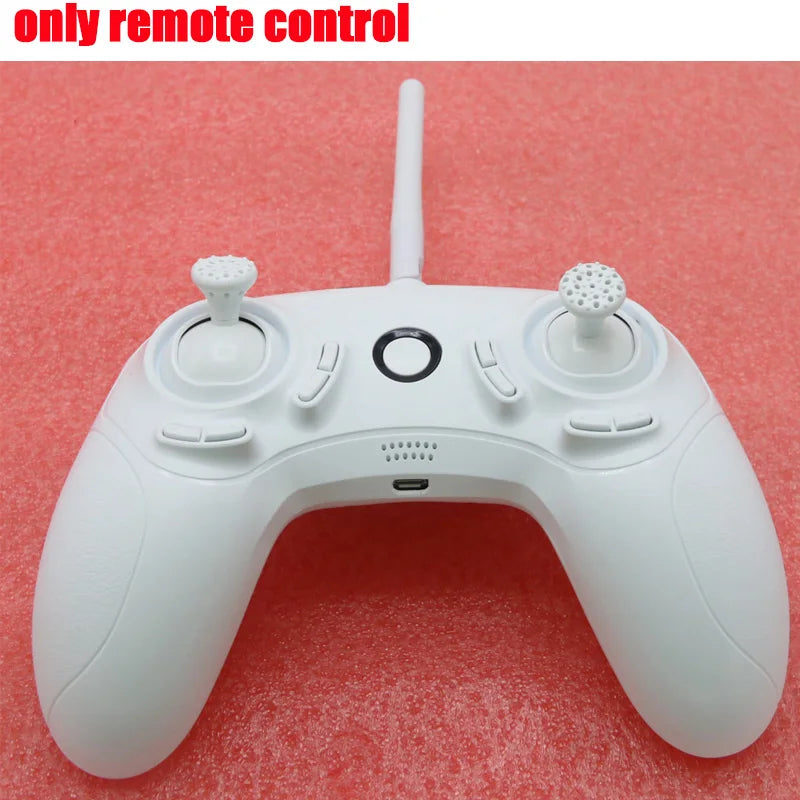

Radio Control |
Number of channel: 6 Channels
Transmission frequenc: 2.4GHz ISM Band（2400MHz~2483.5MH)
Output Power: 22dbm
Modulation: GFSK
Battery: 1 cell 18650 lipo battey
Maximum appearance size: 181×213×80(mm)
weight (without battery: 211g)
|
For instructions, please click here
FS RTF CLI
Features:
Optimized Power System: Featuring a power system focused on control and flight time, theTinyhawk2 Freestyle utilizes 1103 7000KV motor in order to achieve the optimal RPM needed to maximize filight time and efficiency. By utilizing the AVAN Rush 2.5 inch propeller, grip and thrust are optimized.
Durable Design: Designed out of aerospace grade 3k woven carbon fiber, durability is maximized allowing the aircraft to withstand high degrees of impact.Printed onto the frame is a designer pattern giving the aircraft an appeal like no other.
Enhanced Video: By re-designing the frame to accept a higher quality camera, the FPV experience is enhanced, allowing newfound clarity when navigating the enviroment.Paired together with a video transmission system that is 8x more powerful than its predecessor, video signal will no longer impede the user experience.
First-Person Experience: Integrated into the Tinyhawk2 is a video transmission system with a first-person-view camera, allowing the pilot to utilize our Virtual Reality Goggle to experience a pilot's view firsthand.
Ultimate Drone Kit: For the more experienced pilot, the Tinyhawk2 offers unparalleled value in helping pilots master FPV with everything
needed to get started into outdoor drone racing.

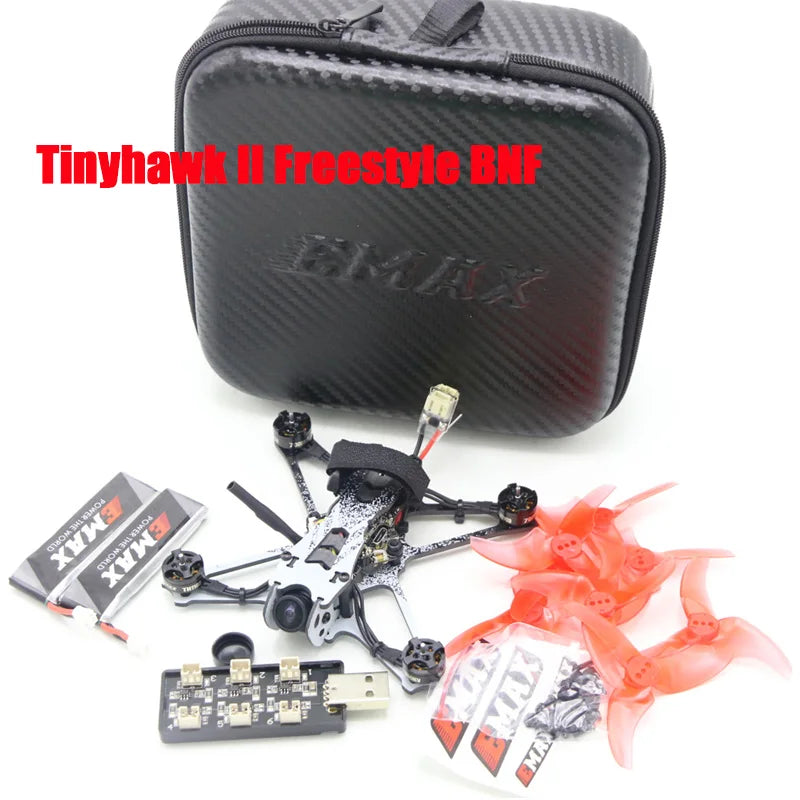

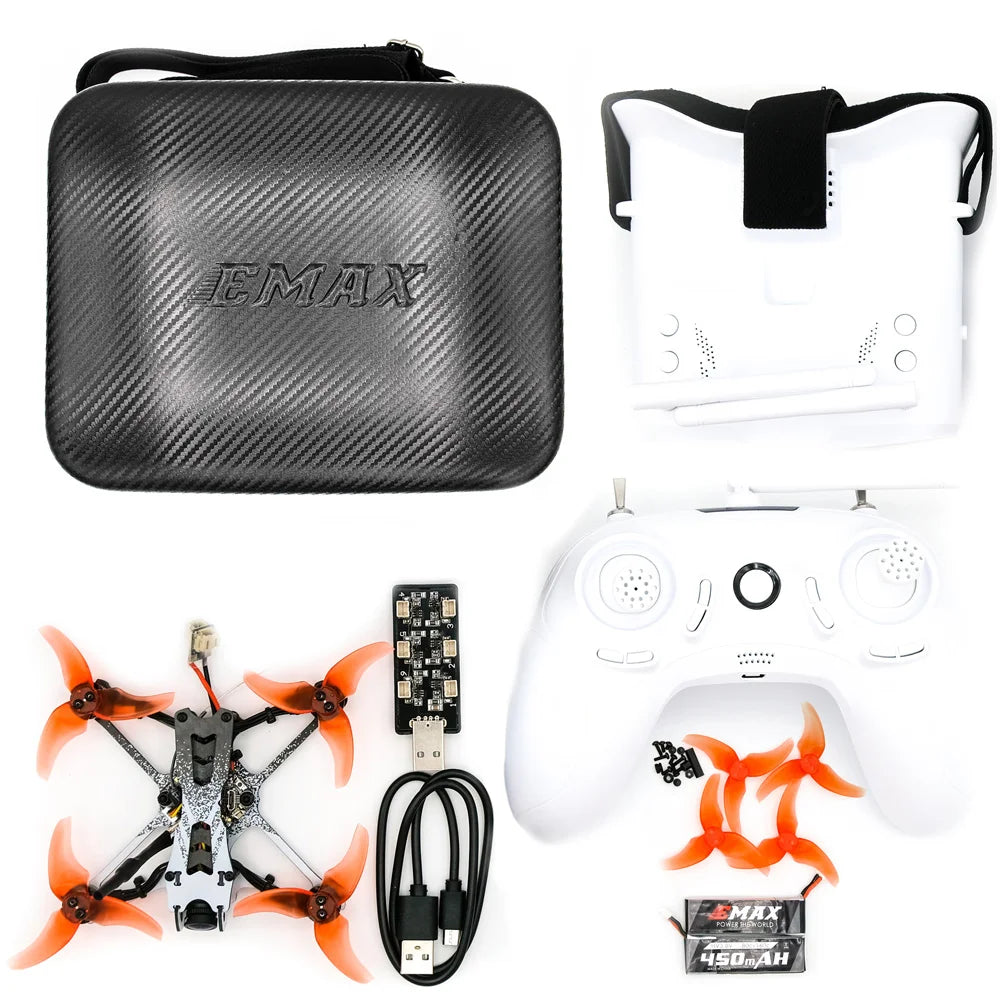

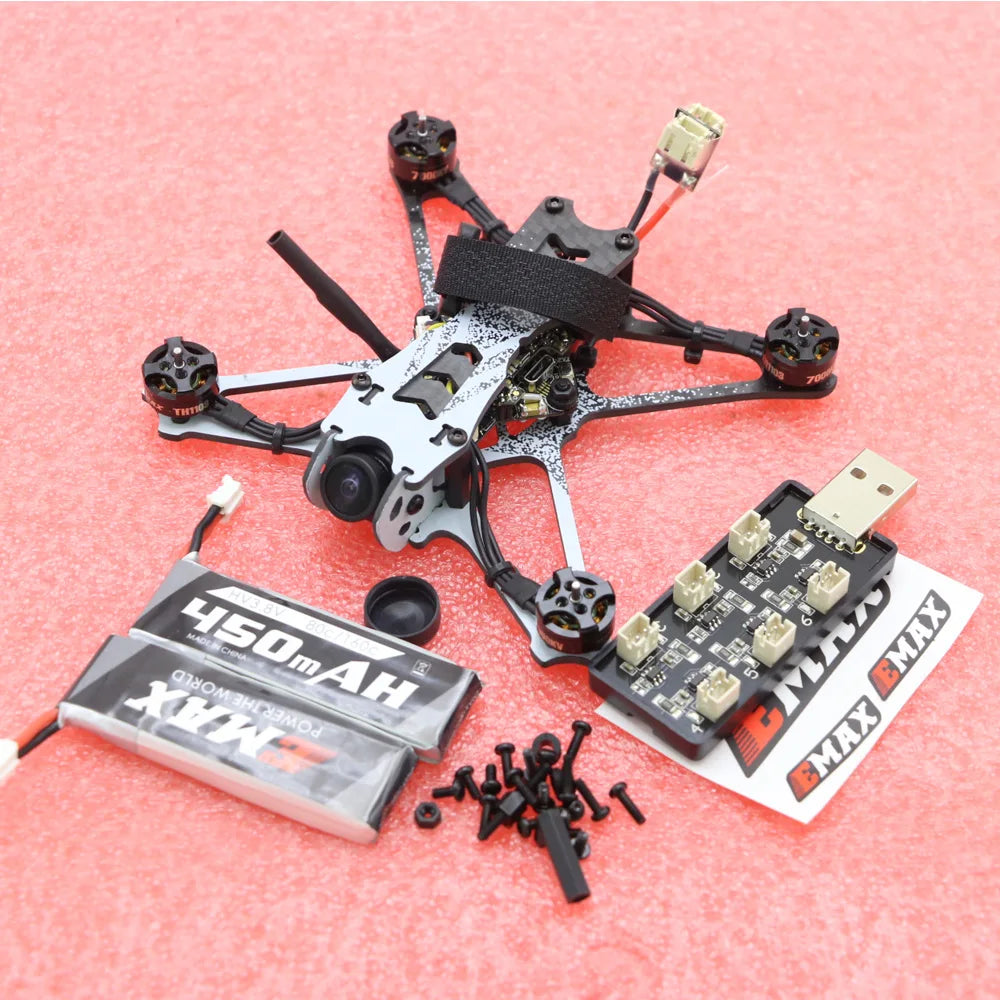

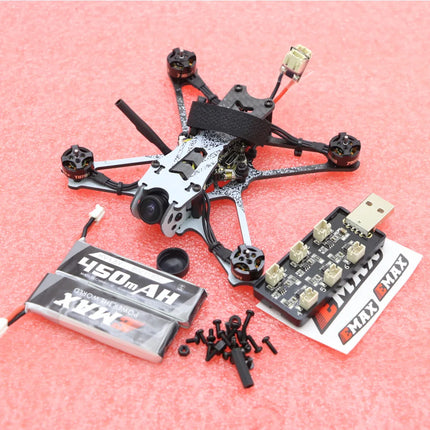

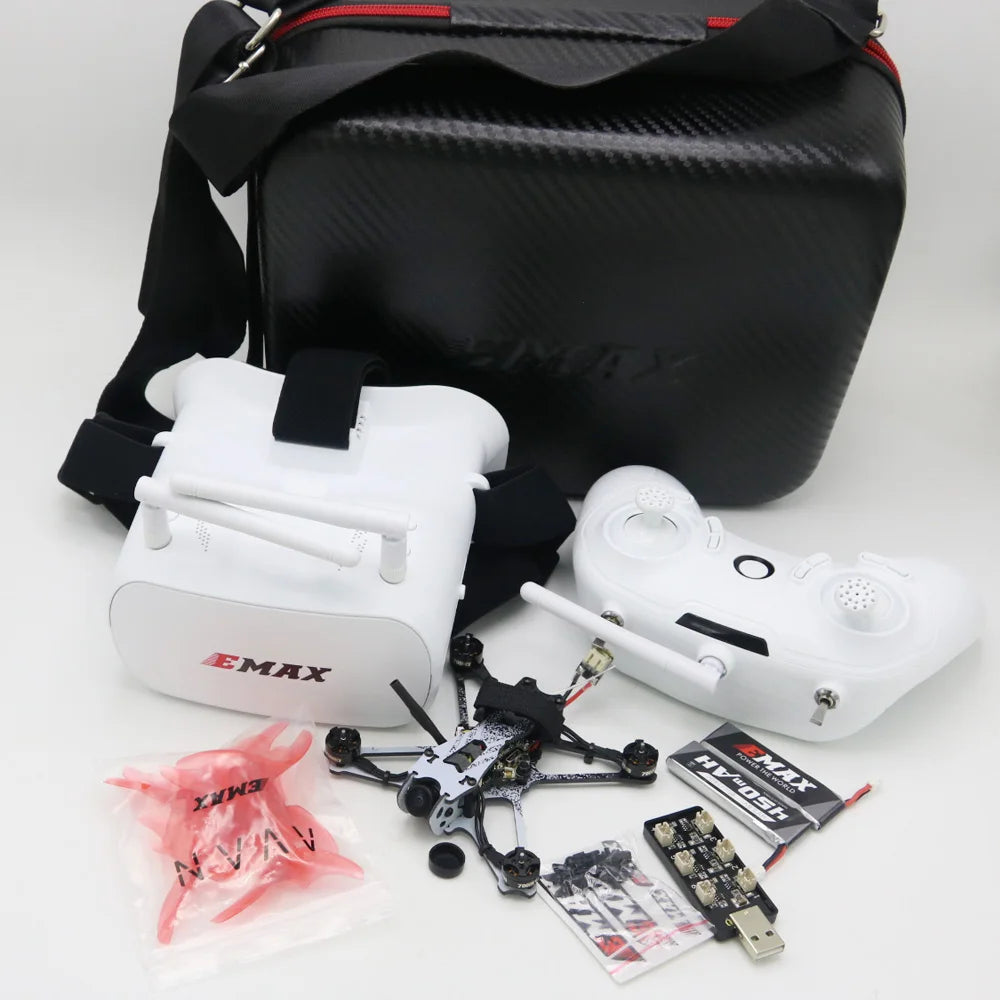

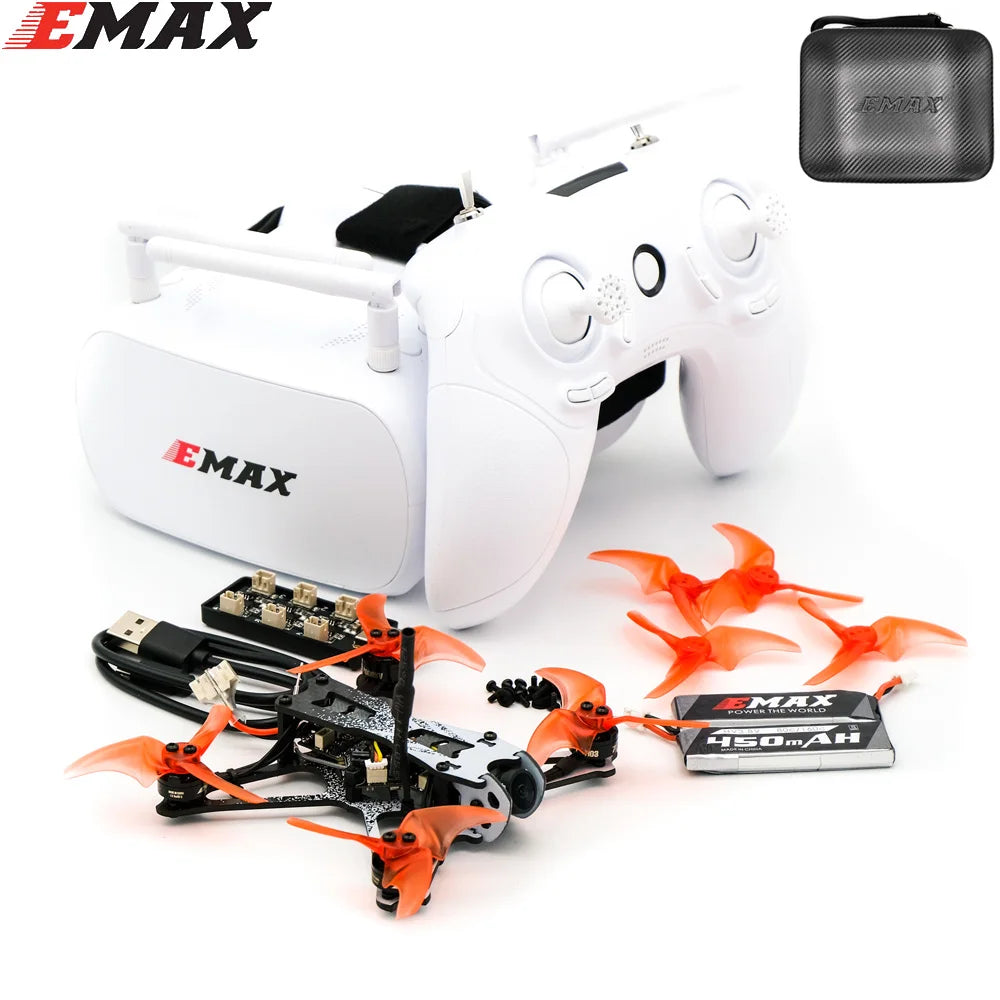

Package Included:
1 x Tinyhawk II Freestyle 2.5 Inch FPV Racing Drone
1 x Radio Control
1 x Goggles
2 x Emax 1s HV 450 mAh Battery
1 x Charger
1 x Propeller Set (4x CW, 4x CCW)
1 x Screw Pack
1 x User Manual Website Card
1 x Micro USB Charging Cable
1 x Faux Carbon Fiber Carrying Case
