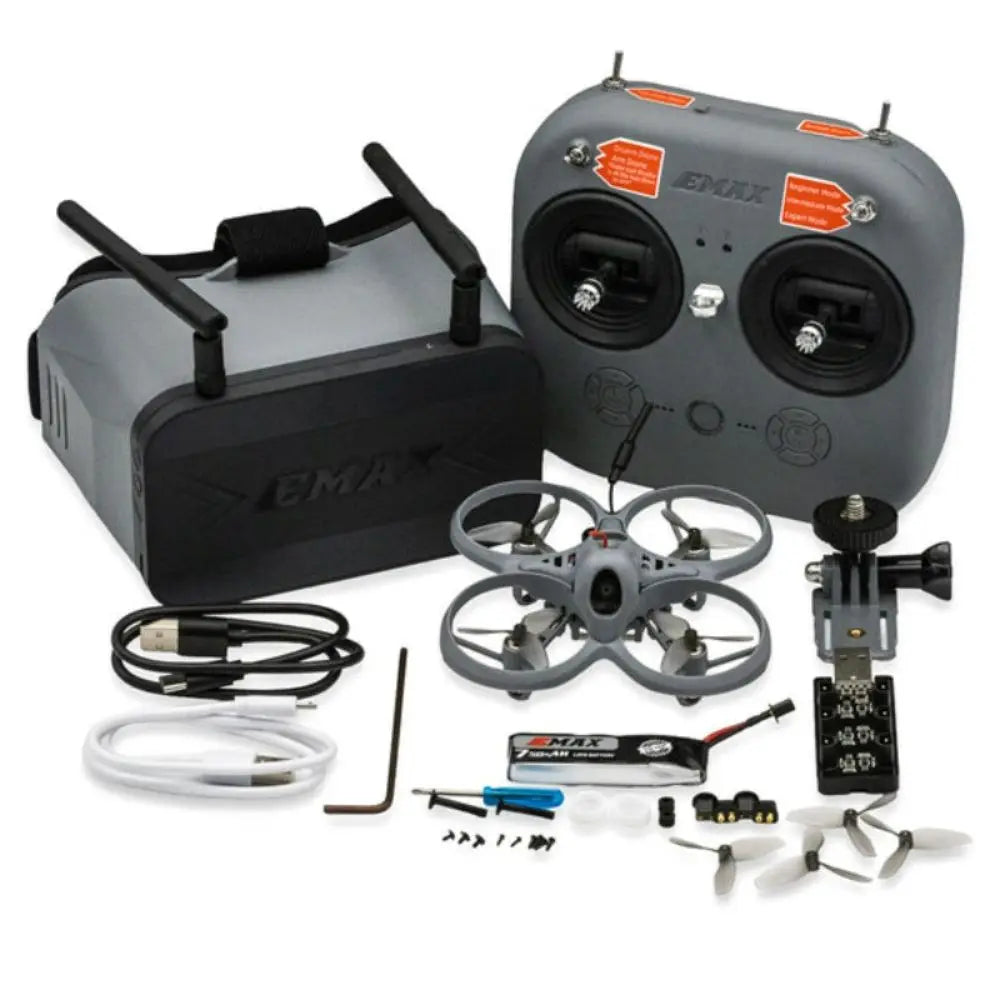

The EMAX Tinyhawk Lite RTF Kit is a beginner-friendly FPV drone package that includes everything needed to get started flying. With a durable micro quad, analog camera, E8 transmitter, and Transporter 2 goggles, it’s ready to go right out of the box. Designed for indoor or small outdoor spaces, it offers an easy entry into FPV.
Features
Complete ready-to-fly kit with drone, radio, and goggles included
Lightweight micro quad ideal for indoor and small outdoor flying
Durable frame built to handle beginner crashes
Easy-to-use transmitter designed for new pilots
E8 Transmitter radio and Transporter 2 goggles
FPV camera for a real-time first-person view
Affordable entry point into FPV flying
Specifications
EMAX TINYHAWK LITE RTF
Flight Controller: STM32F411 (100MHz), 1S input, EMAX_TINYHAWKF4SX1280 Firmware
Receiver: Built-in ELRS (2.4GHz), SX1280 RF module, CRSF protocol
Configuration: Betaflight Configurator for VTX, OSD, and binding
ESC: 4-in-1 brushed, 10A, DC 3.7–4.2V input
FPV Camera: RunCam Nano 3 Analog
VTX Power: 0/25mW/100mW/400mW
VTX: 32-bit, 40CH, open-source
Dimensions: 104 x 104 x 52mm
Weight: ~37g (without battery)
Motor: 0816 coreless DC 3.7V
Propellers: HQ 40mm 3-blade
Battery: 1S HV 750mAh
Model: Tinyhawk Lite
Wheelbase: 75mm
EMAX TRANSPORTER 2 GOGGLES
Charging System: Built-in USB 5V--1A linear lithium-ion battery charging system
Maximum Size: (Without antenna - Folded) 155x100x90mm
Frequency: 5.8GHz（5658MHz-5945MHz)
Video: VGA/D1/HD (Off/3min/5min/10min)
DVR: 32 GB TF card (max), MJPEG, AVI
Battery: 1300mAh Lithium-ion battery
Screen resolution: 480X800
Weight (With battery): 398g
Working Voltage: 4.2V-3.7V
Screen size: 4.3 inch
Type: Analog
EMAX E8 ELRS RADIO TRANSMITTER
Charging System: Built-in USB 5V--1A linear lithium-ion battery charging system
External interface: Micro USB,3.5mm Audio interface (wired coach interface)
Frequency 2.4GHz (2400MHz-2483.5MHz)
Maximum Size: L*W*H=150x140x45mm
Battery: 18650 Lithium-ion battery
Weight (Without Battery): 260g
Number Of Channels: 8CH
Working Voltage: 4.2V-3.3V
Protocol: ELRS
Output: 22dbm
Includes
1x EMAX Tinyhawk Lite 75mm Micro Whoop - ELRS 2.4GHz
1x EMAX Transporter 2 Goggles
1x EMAX E8 Radio Transmitter
1x Action Camera Mount
4x Spare Propellers
1x Battery Charger
1x Hardware Kit
1x Battery
