SPECIFICATIONS

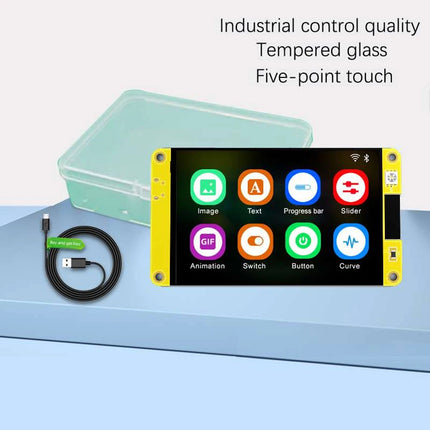

ESP32 3.5inch Smart Display ST7796 320x480 Resistive/Capacitive Touch Screen ESP32-3248S035 WIFI Blue-tooth Development Board for Arduino

Description:

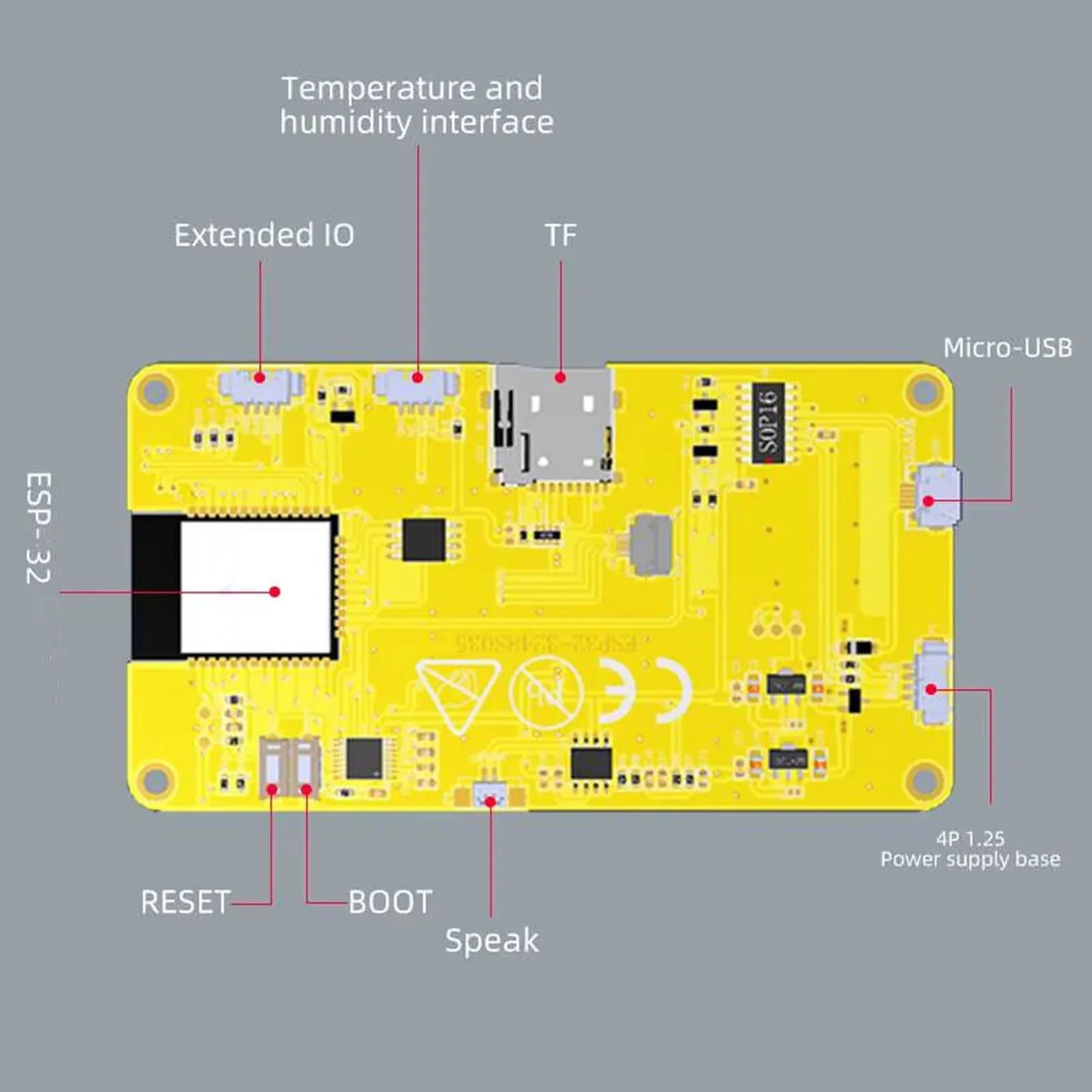

This LCD module uses ESP32 module as the main control, the maincontrol is a dual-core MCU, integrated Wl-Fl and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB, Thedisplay resolution is 320x480,resistive touch. The module includes LCD display screen,backlight control circuit, touch screen control circuit, speaker drive circuit, photo sensitive circuit and RGB-LED control circuit. TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved lO port interface, this module supports development in A rduino IDE, ESP IDE,M icropython and M ixly.

Features:
- 3.5-inch color screen, support 16 BIT RGB 65K color display, display rich colors
- 320 x 480 resolution
- The sample program has been programmed in the factory and can be plugged in
- With TF card slot for easy expansion storage
- Provide arduino-library functions and sample programs to facilitate rapid secondary development
- Support one-click download program
- Military-grade process standards, long-term stable work

Parameters:
Display color: RGB 65K color
SKU: Resistive touch:ESP32-3248S035R
SKU: Capacitive touch: ESP32-3248S035C
Size: 3.5 inch
Type: TFT
Driver chip: ST7796
Resolution: 320*480(Pixel)
Effective display area: 73.44*48.96(mm)
Module size: 101.5*54.9(mm)
View: >60°
Operating temperature: -20C~70℃
Storage temperature: -30℃~80℃
Operating Voltage: 5V
Power consumption: About 120m
Product weight: About 50g

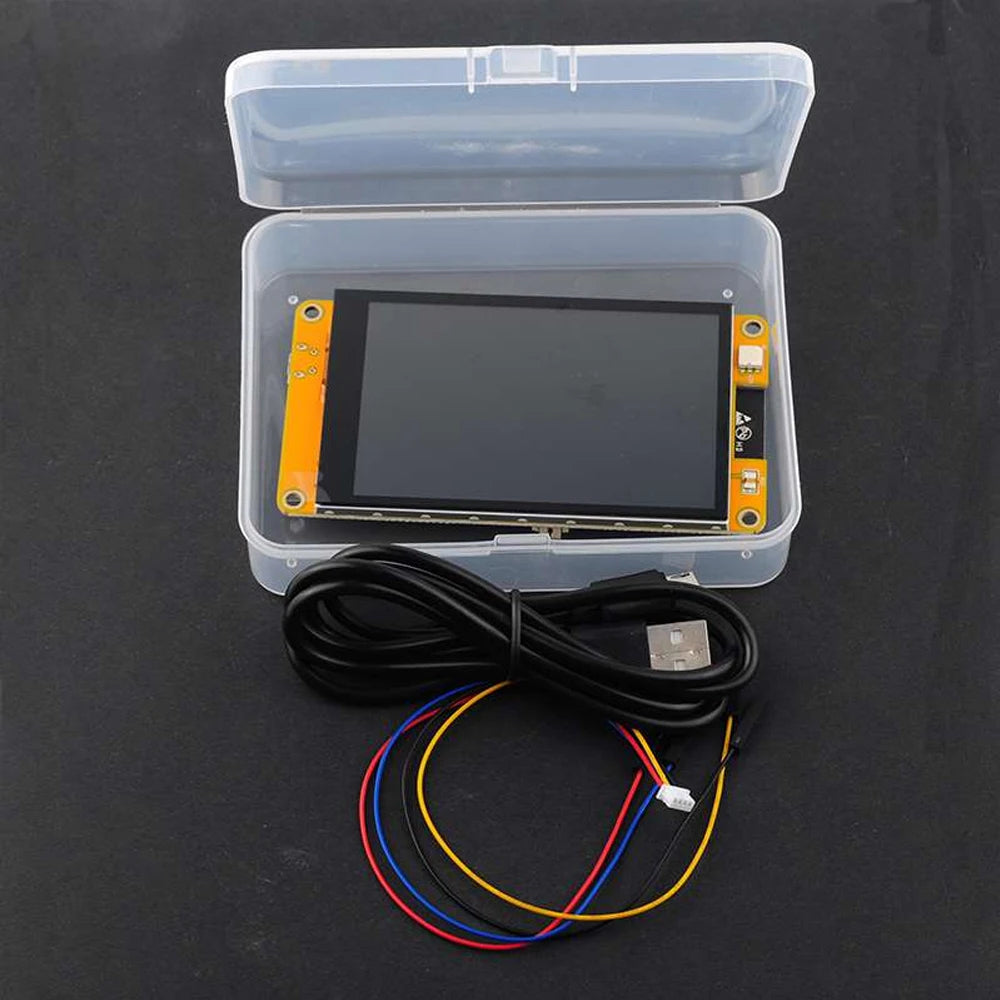

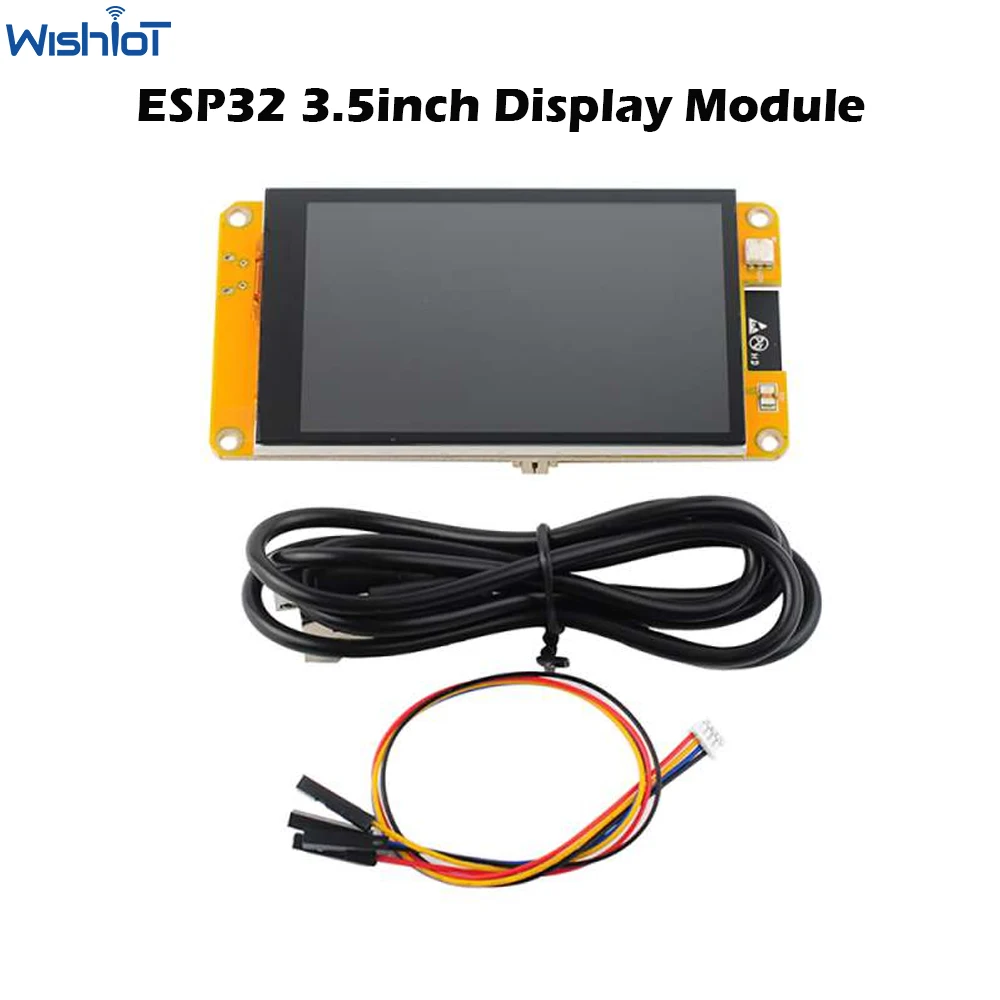

Package includes:
1 X ESP32 3.5 inch touchscreen module
