Description
SPECIFICATIONS
Attention: Must work with DC12V or DC24V Power
Average Life (hrs): 80000
Brand Name: BTF-LIGHTING
Certification: ce,FCC,ROHS,UL
Color Temp(K): 3000K, 4000K, 6000K
Cutting Length for 336: DC12V- every 35.5mm, DC24V-every 71.5mm
Cutting Length for 480: DC12V- every 25mm, DC24V-every 50mm
Cutting Length for 528: DC12V- every 22.5mm, DC24V-every 45.5mm
FPCB Width: 336-8mm / 480-8mm / 528-10mm
Feature 1: Without Dark Area
Feature 2: Super Flexible
Feature 3: Linear Dimmable
Feature 4: Super Power Saving
High-concerned chemical: None
Is Batteries Included: no
Item Type: Strip
LED Chip Model: RA90
LEDs Number/M: 336 / 480 / 528
Luminous Flux: 2000-82000
Model Number: BTF-FCOB DIM LED STRIP
Nominal Voltage: 12V/24V

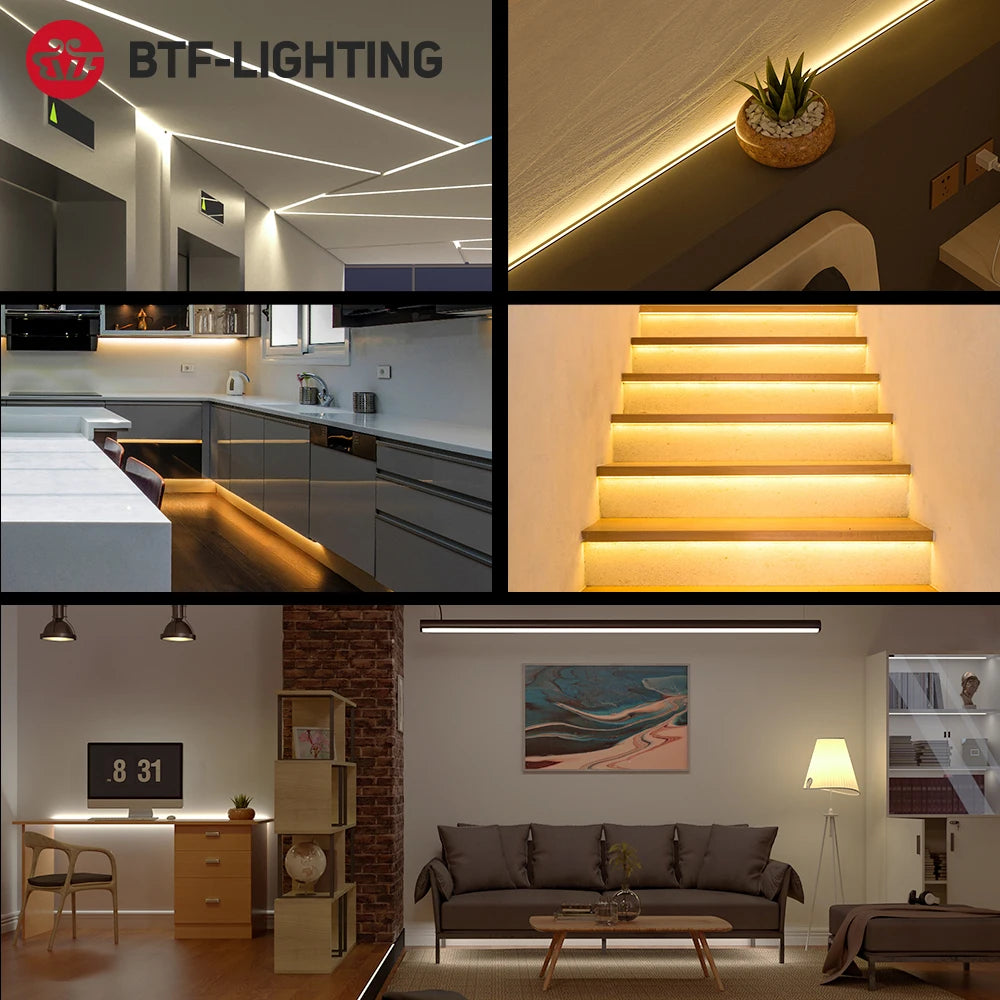

Occasion: Bedroom
Occasion 1: Bedroom or Cabinet
Occasion 2: Hotel or Office Building
Occasion 3: Shopping Mall
Occasion 4: Home Decoration
Optional Length: 0.5m/1m/2m/3m/4m/5m/10m
Origin: Mainland China
Package Including: Only LED Lights ( No power and LED controller )
Power Source: DC
Strip type: COB
Theoretical Power: 336-9W/M, 480-9W/M, 528m-14W/M
Voltage: DC12V / DC24V
Waterproof: No
Please Pay Attention:
1. The Price is Only LED Strip, Not Included Power Supply and LED Controller and Connectors.
2. This FCOB Must Use DC12V or DC24V Power Supply.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.
4. This FCOB LED Strip Can Be Cut at Each Shear Point To Create Custom Lengths, Do Not Bend LED Strip Sharply.
5. The 2 Pin DC Connectors of LED Strip Included: Red: VCC, Black: GND. You can cut the DC connector to connect the 2 pin wire to the power supply.
6. The LED Strip Has Adhesive Tape On The Back of PCB. Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
7. Longer LED Strip Runs, Please Add More Power to 2 Pin Wire of Both Ends To Reduce Voltage Drop.
8. If the length of the FCOB light you choose is 0.5m/1m/2m, it will come with a DC female plug, No DC male plug at the other ends, please know.
9. If you choose 10 meters, you will get 1 roll of 10 meters instead of 2 rolls of 5 meters. 10 meters of fcob light strip needs more energy, so please buy high power adapter, thank you!
How to Choose Power Supply?
First, Calculated The Whole LED Strip Lights Watts.
Theoretical Power, 336-9W/M, 480-9W/M, 528-14W/M, If You Buy 5m 528LEDs/m, So 14W/M*5m=70W.
Then, Choose the Right Power Supply.
If This LED Strip is Work with DC12V Power, So 70W / 12V = 5.8A ( At Least 6A or more ).

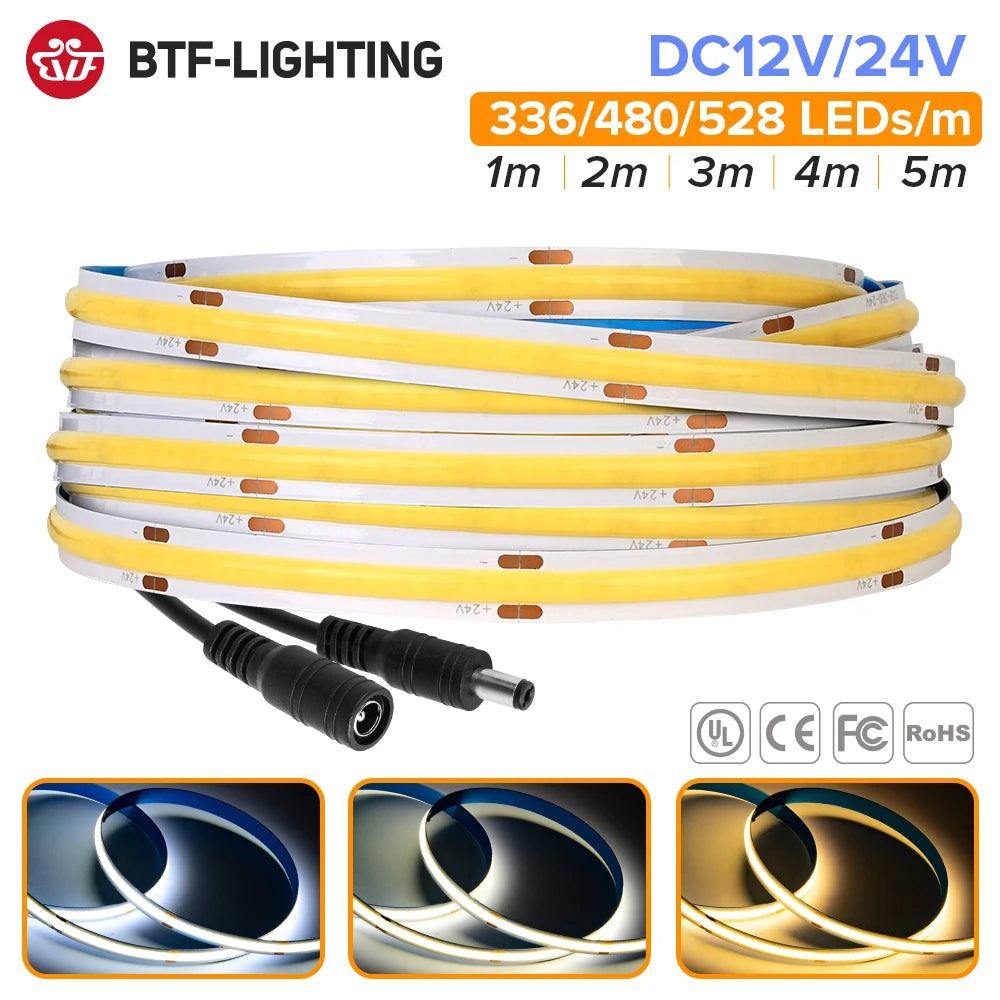

FCOB LED Strip Light 336 480 528 LED High Density Flexible FOB COB Led Light RA90 Warm Nature Cool White Linear Dimmable 12V 24V

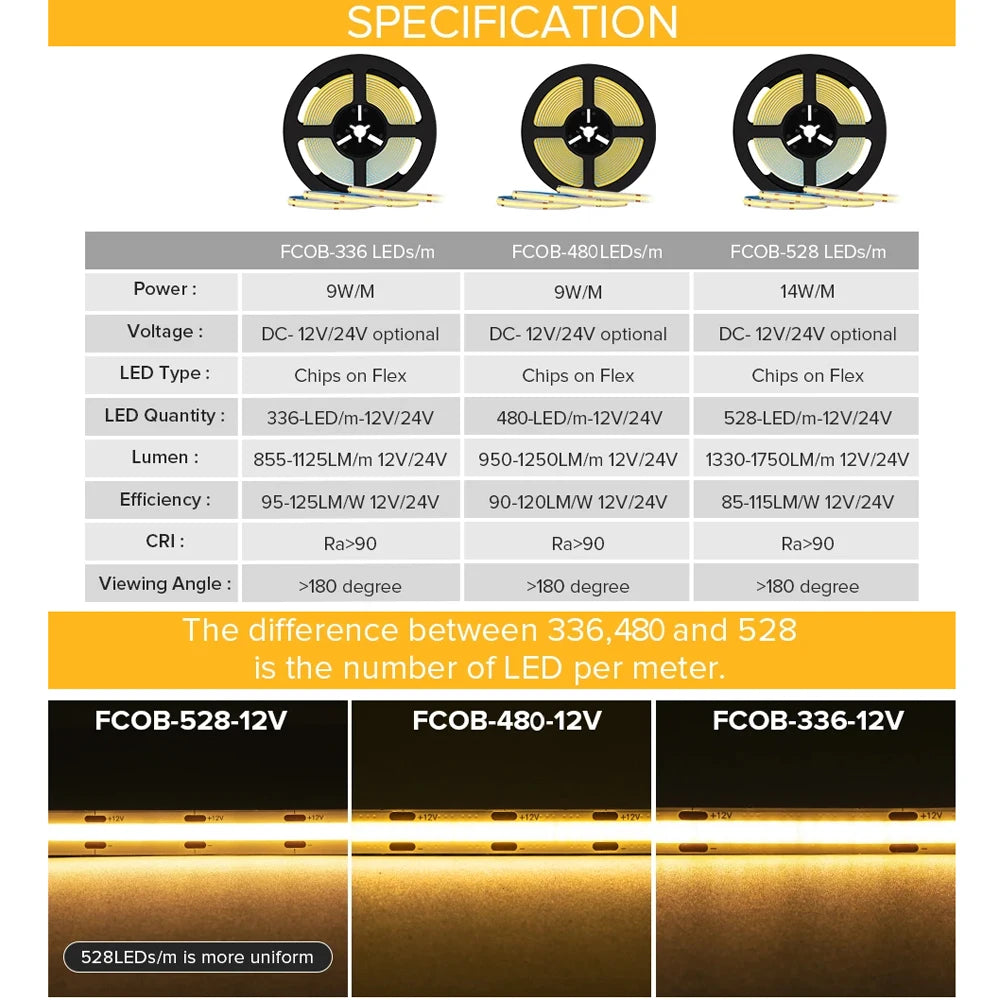

Specification:
Input Voltage: DC12V / 24V
Theoretical Wattage : 336-9W/M, 480-9W/M, 528m-14W/M
FPCB width: 336leds/m-8mm, 480leds/m-8mm, 528leds/m-10mm
LED quantity: 336/480/528 LEDs/M
Cutting length: 336leds/m, DC12V- every 35.5mm, DC24V-every 71.5mm. 480leds/m, DC12V- every 25mm, DC24V-every 50mm. 528leds/m, DC12V- every 22.5mm, DC24V-every 45.5mm.

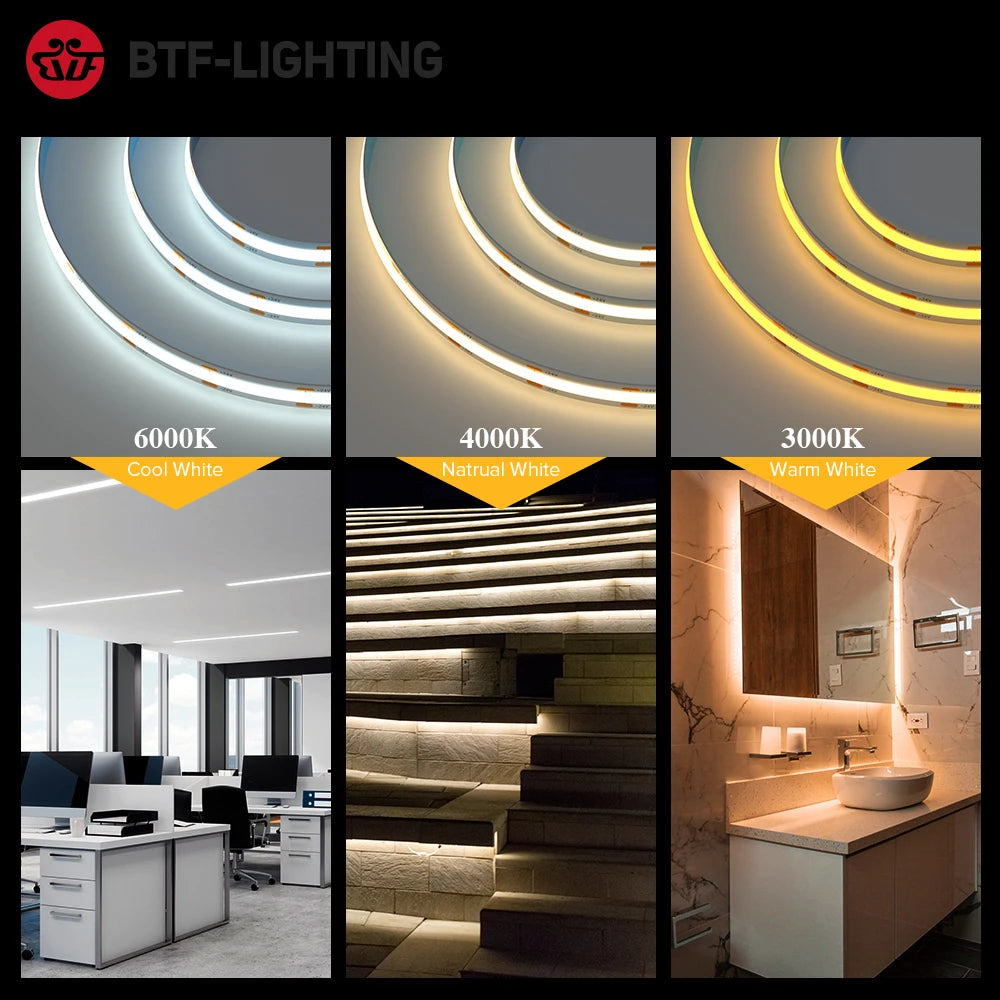

Color temperature: Warm White(3000K), Nature White(4000K), Cool White(6000K).
Color Rendering Index: Ra＞90
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°

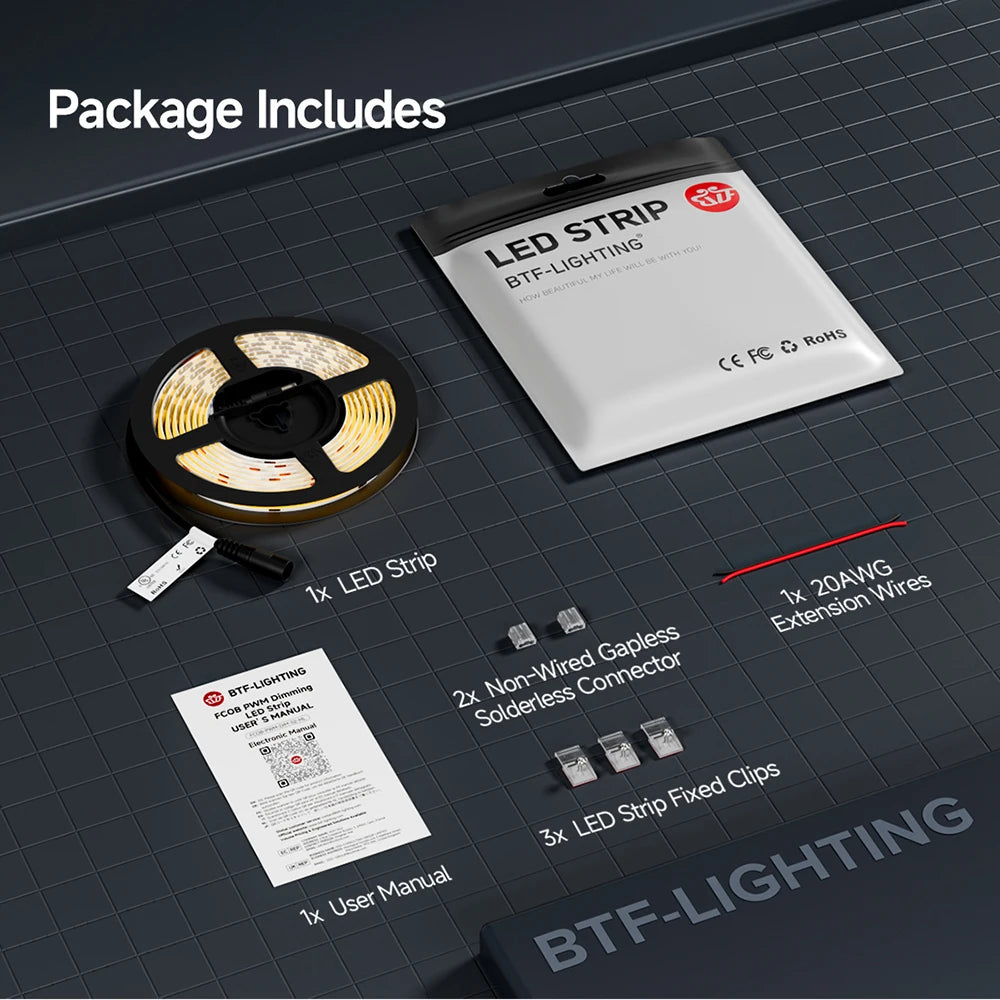

Package:
1× FCOB LED strip（ power supply, DIM led controller and connectors are not included ）
