Summary

  The Cinelog30 V2 is a 3-inch FPV drone designed for both cinematic shots and recreational flying. It features an advanced protective frame and builds on the Cinelog series’ superior handling and stability. With extensive upgrades, it takes everything you loved about the Cinelog series and cranks it up for even better filming and flying.
The advanced shock-absorbing system drastically minimizes instability, ensuring exceptionally stable and high-quality footage. Its quiet operation makes it ideal for various filming scenarios.

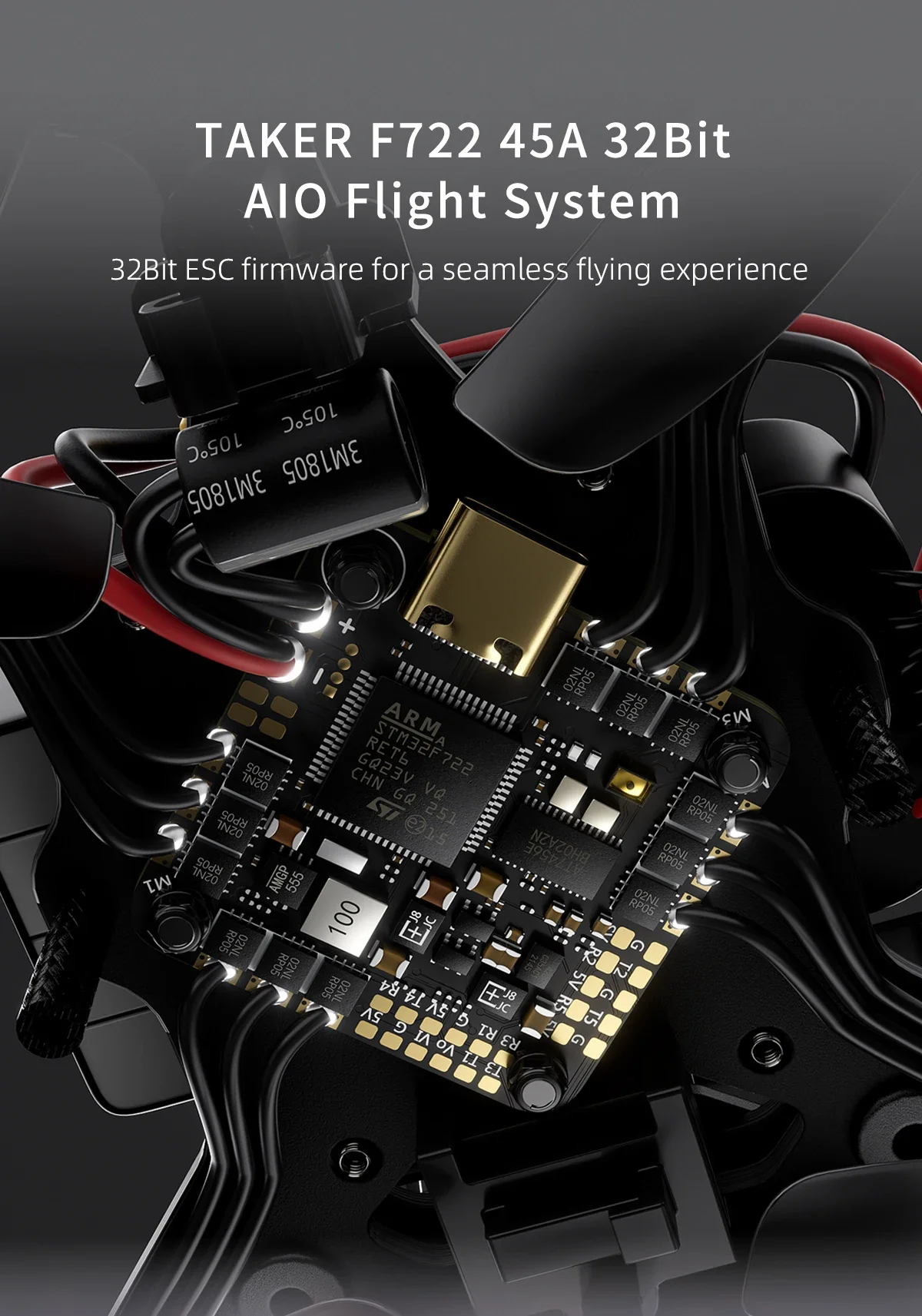

Powered by the TAKER F722 45A 32Bit AIO flight controller, 1404 3850KV motors, and HQprop DT76mm propellers, the Cinelog30 V2 offers up to 8'30'' of flight time with a LiHV 4S 720mAh battery. Compatible with Naked GoPro, Action2, and Insta360 cameras, it provides versatile shooting options.

Feature

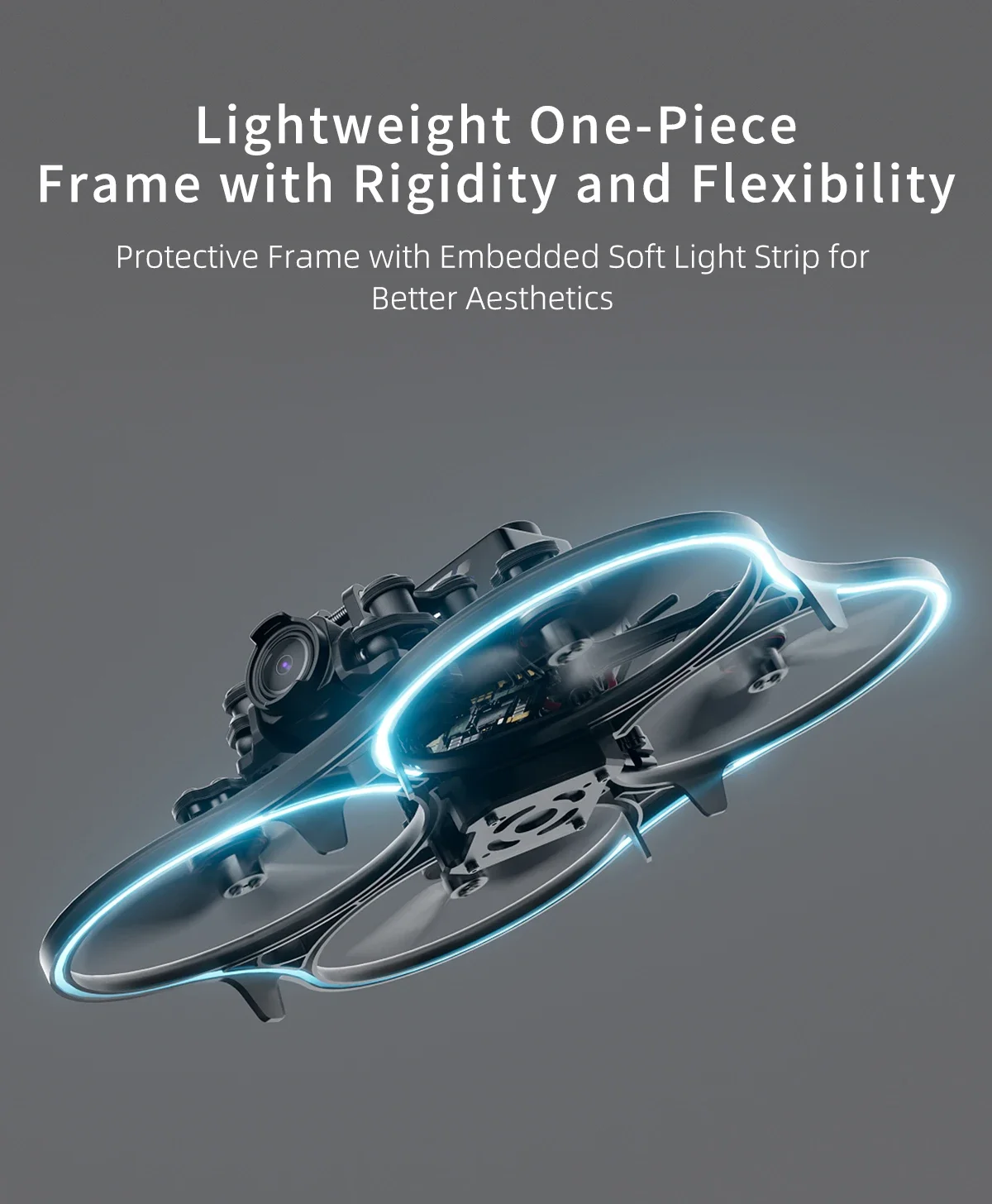

1. Constructed from advanced materials, the integrated frame is lightweight yet highly rigid.

2. Featuring a LiPo 4S 720mAh battery, the take-off weighs only 249g, complying with FAA regulations.

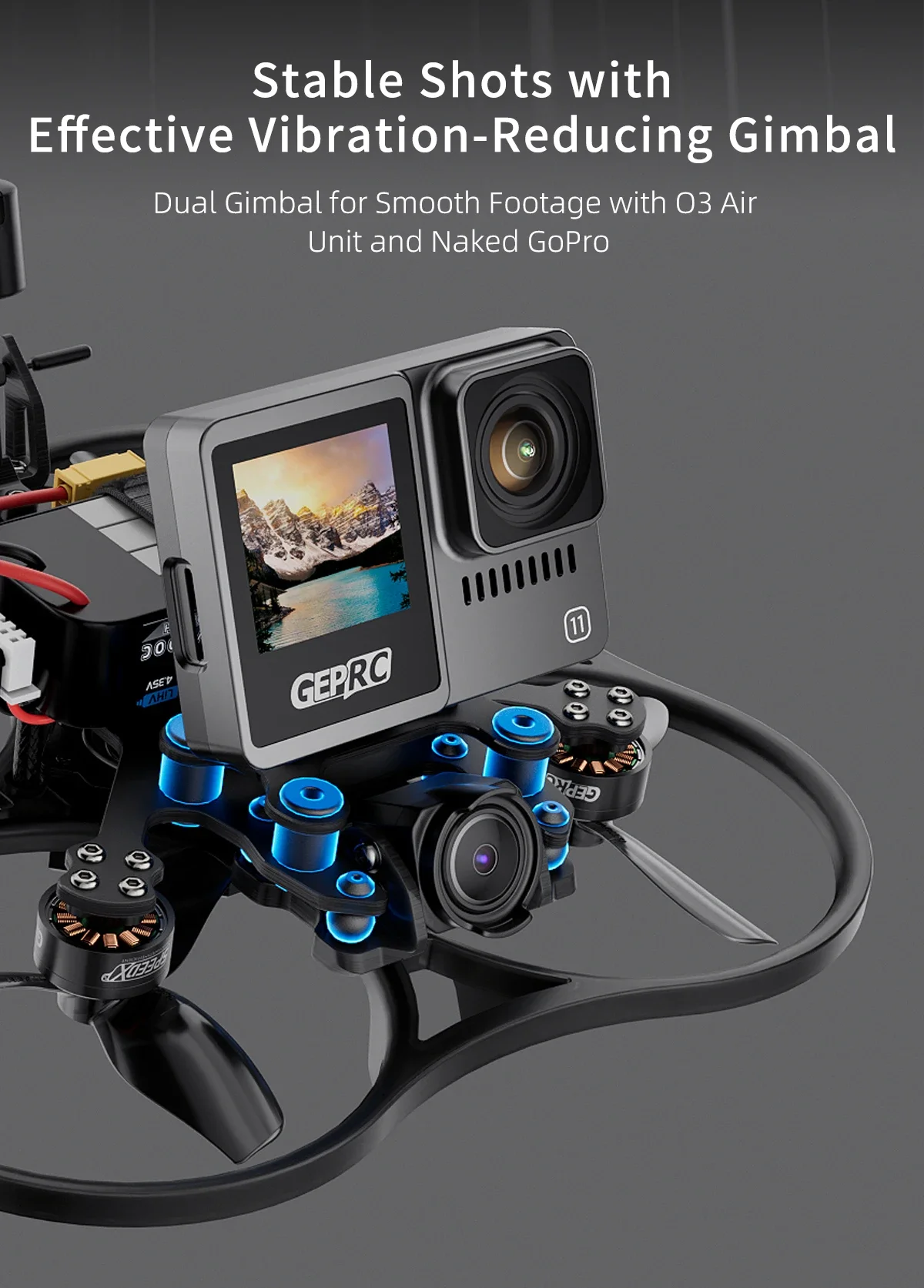

3. The shock-absorbing gimbal delivers smooth, stable footage with the O3 directly.

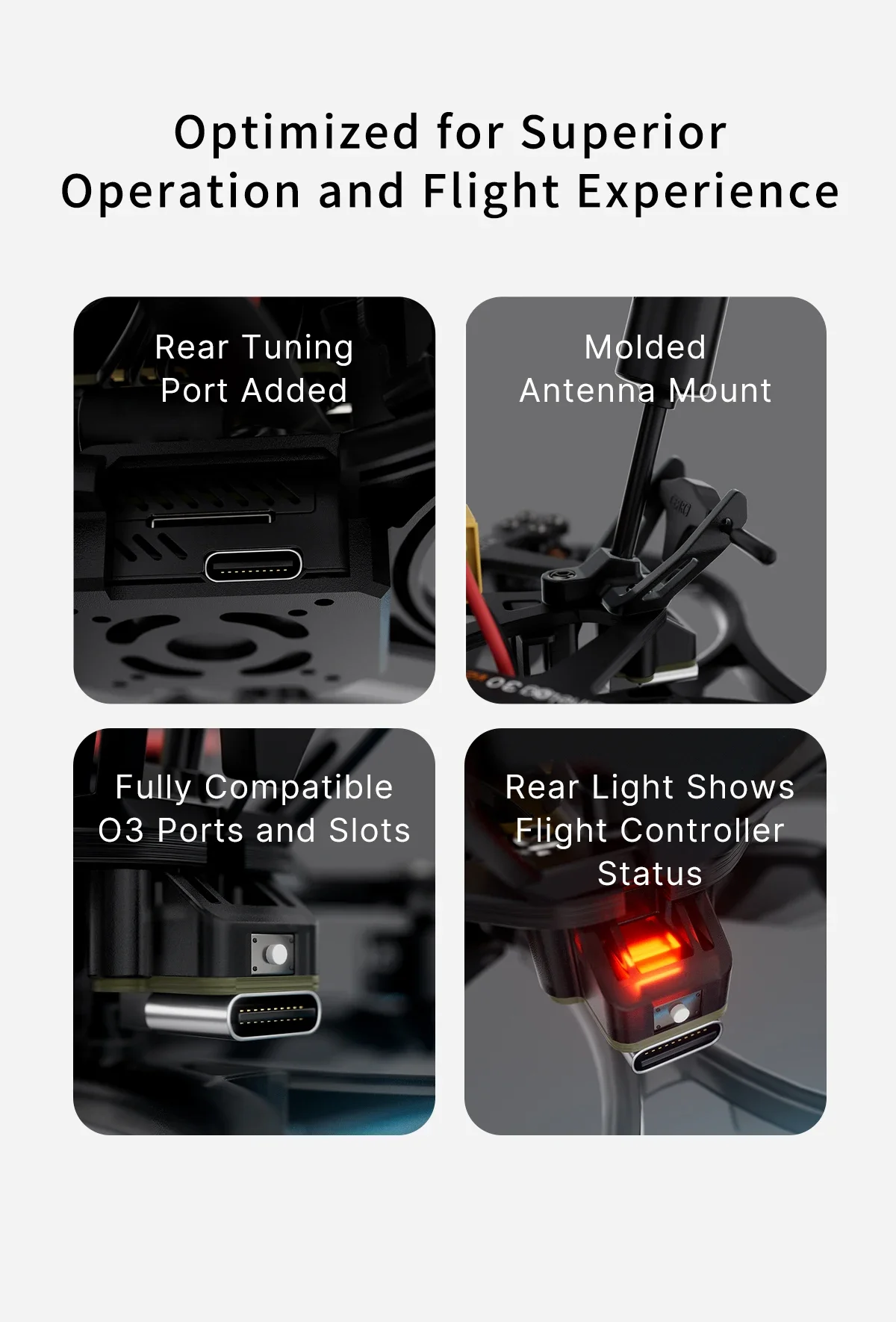

4. The rear USB port allows for easy parameter adjustments.

5. The O3-compatible memory card slot and optimized USB port simplify card removal.

6. Offers superior flying experience with a Naked GoPro.

7. Facilitate battery changing by fastening the battery with a CNC aluminum part and strap together.

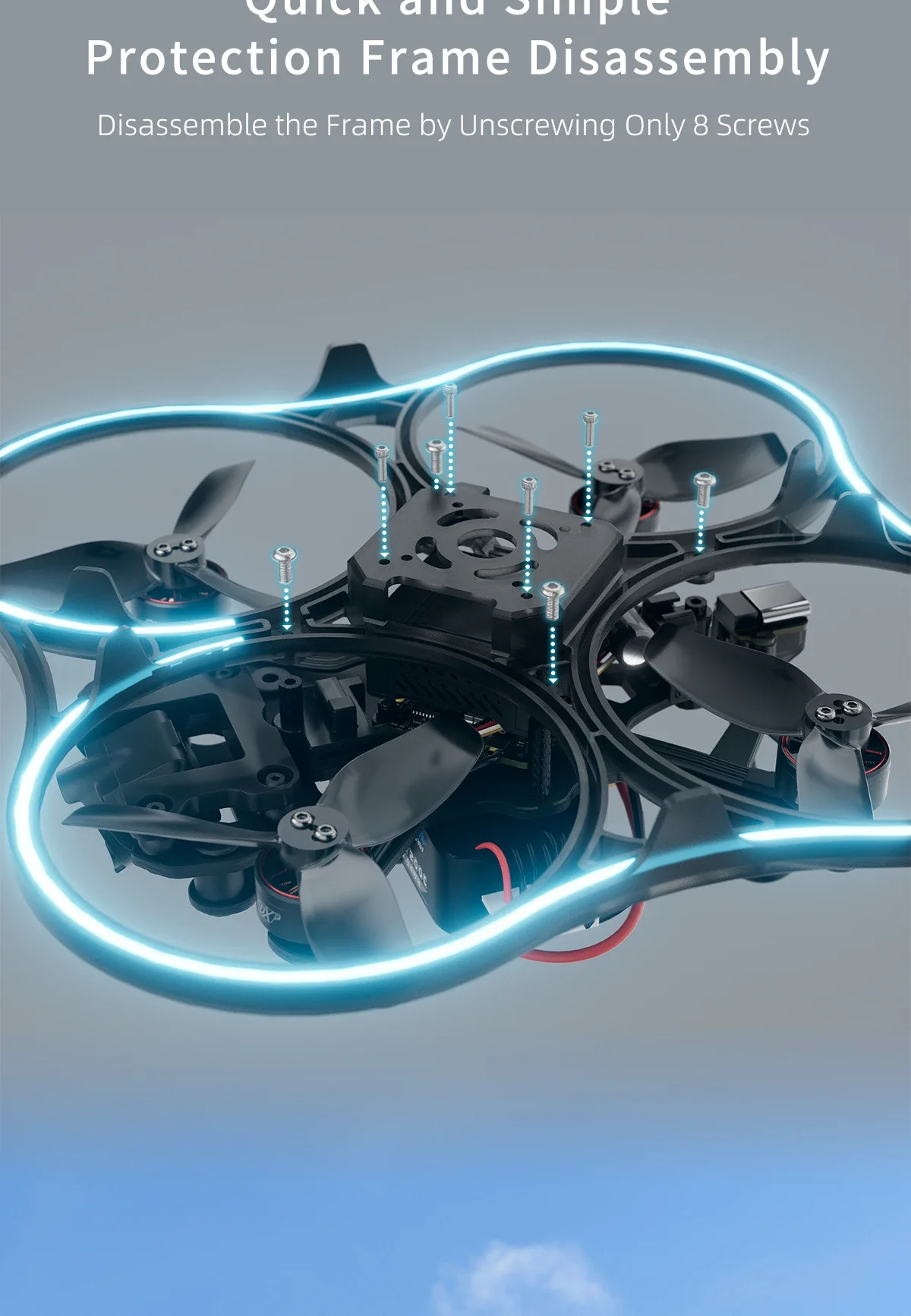

8. The drone operates with minimal noise, and the protective frame reduces the risk of injury during impacts.

9. Fine-tuned by the GEPRC team, it offers a refined flying experience with up to 8'30'' of flight time.

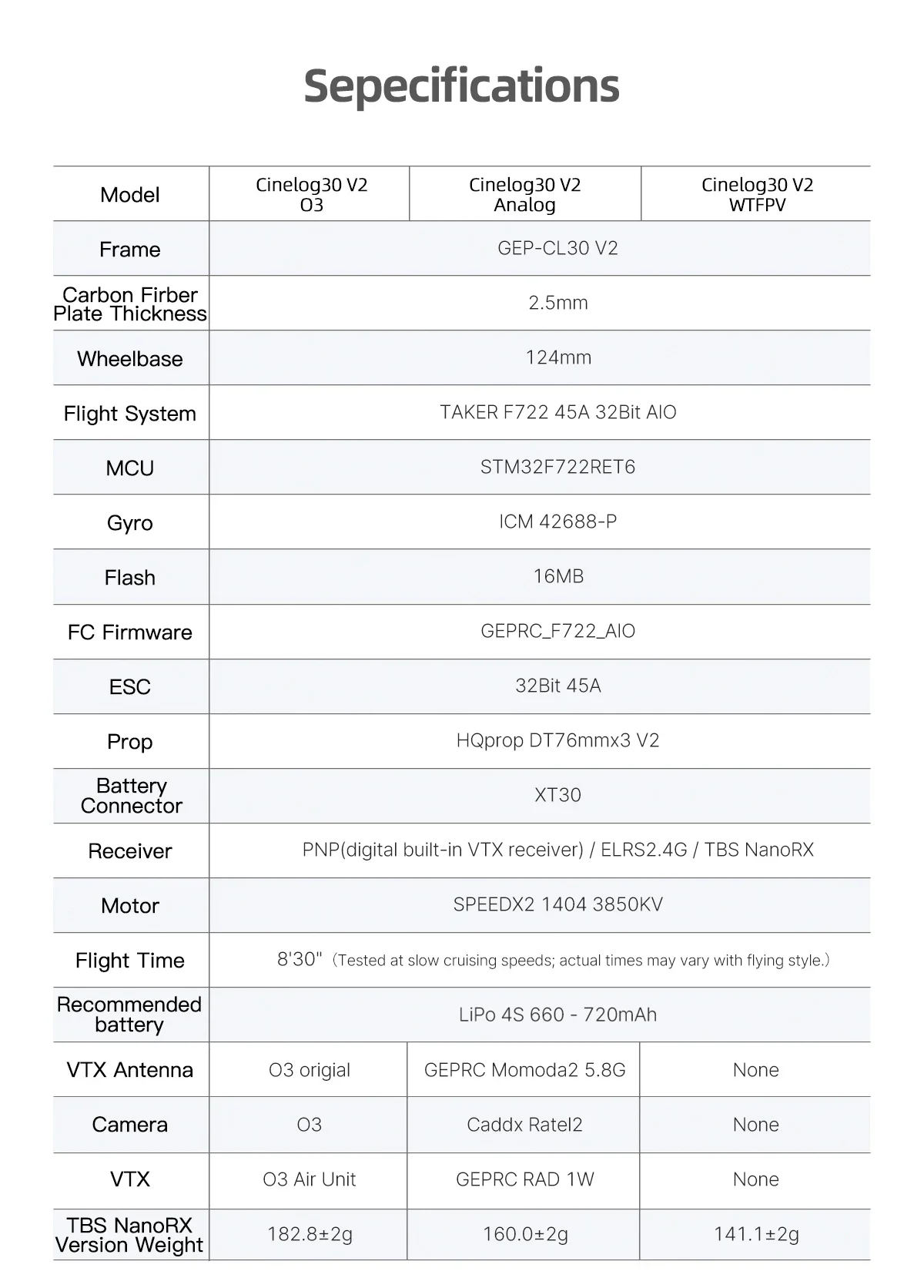

Specifications-----Analog

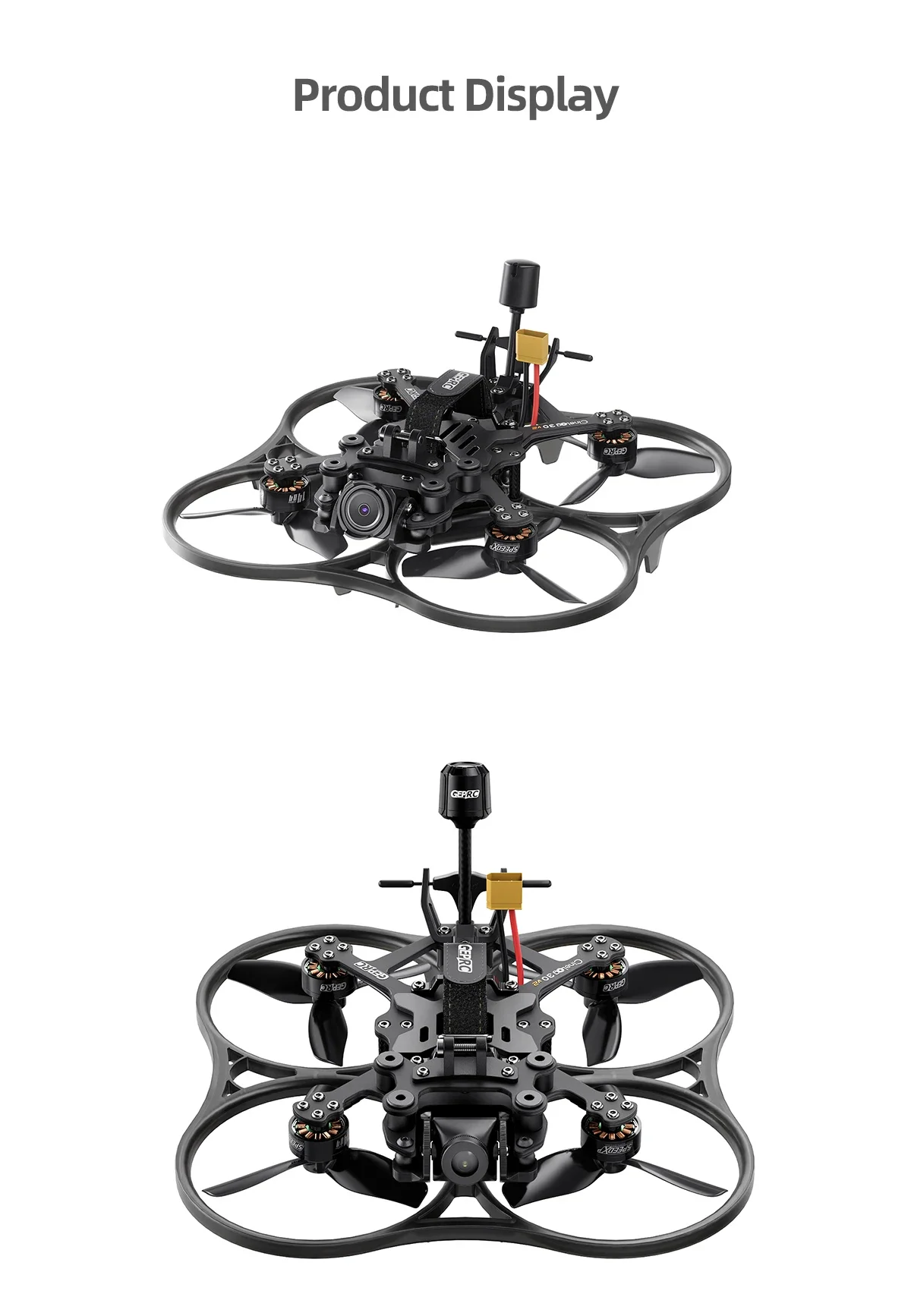

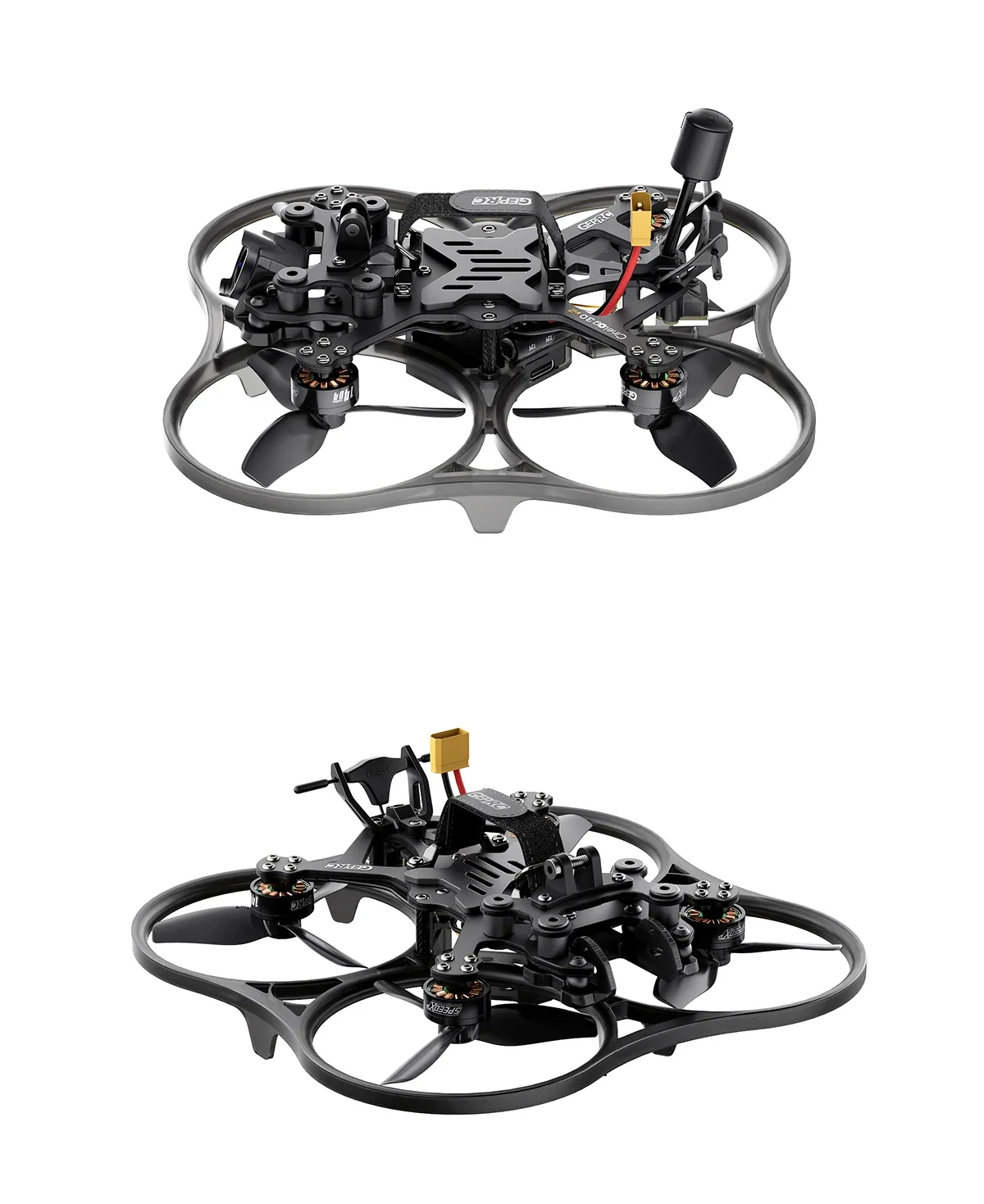

• Model: Cinelog30 V2 Analog Quadcopter

• Frame: GEP-CL30 V2

• Carbon Plate Thickness: 2.5mm

• Wheelbase: 124mm

• Flight System: TAKER F722 45A 32Bit AIO

• MCU: STM32F722RET6

• Gyroscope: ICM 42688-P

• FC Firmware: GEPRC_F722_AIO

• Flash: 16MB

• ESC: 32Bit 45A

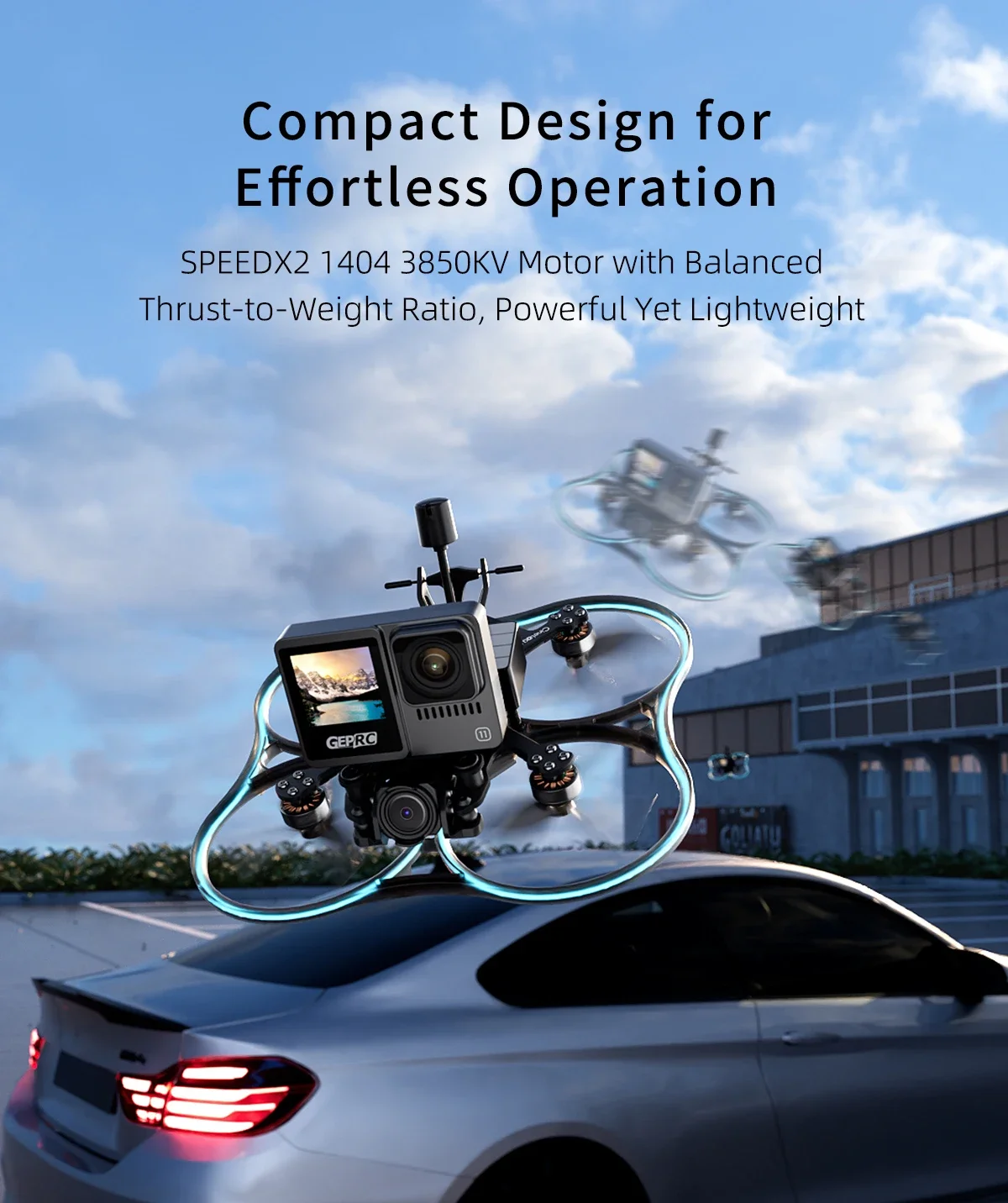

• Motor: SPEEDX2 1404 3850KV

• Propeller: HQprop DT76mmx3 V2

• Battery Connector: XT30

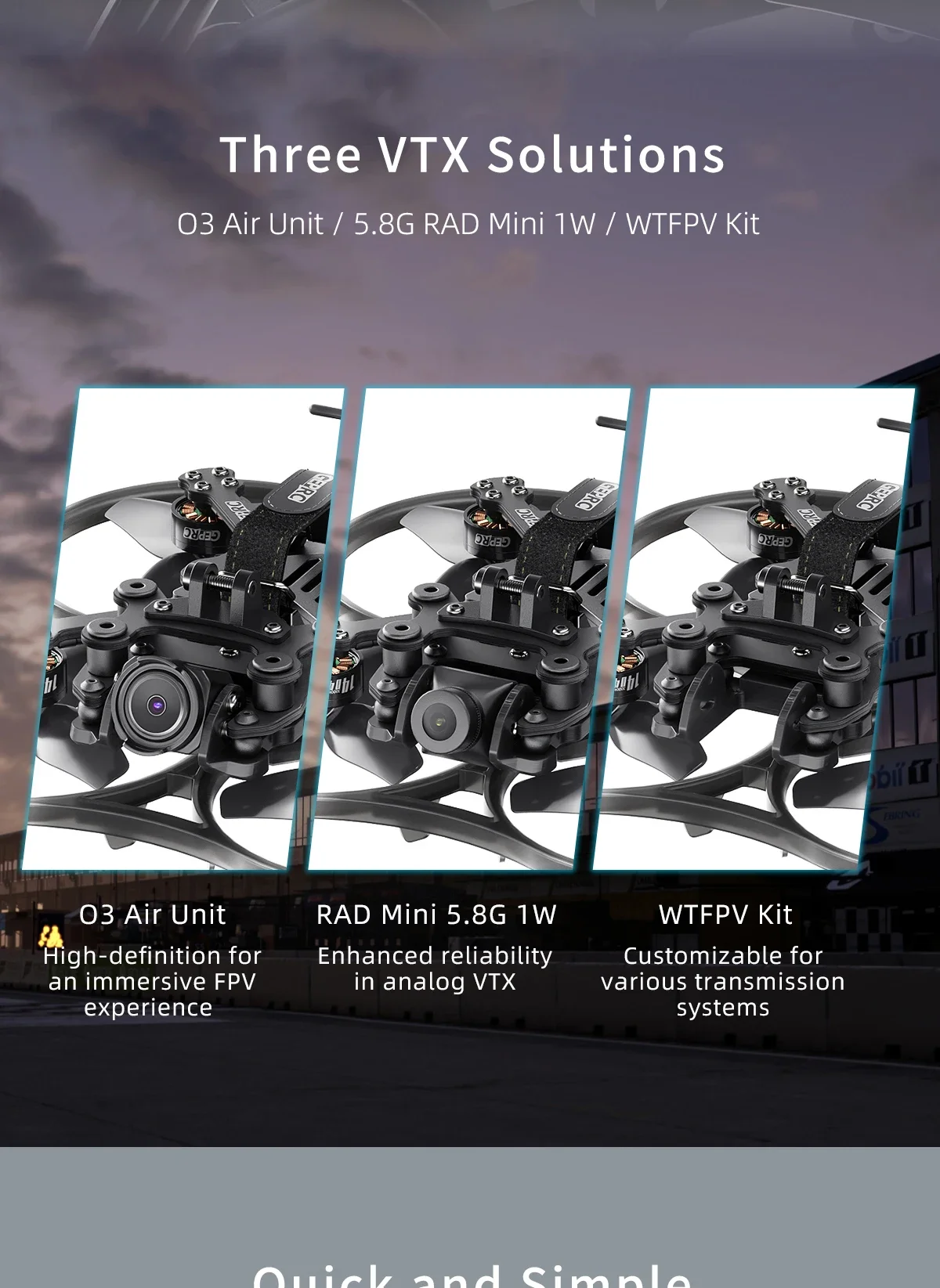

• VTX: GEPRC RAD mini 5.8G 1W

• Camera: Caddx Ratel2

• Antenna: GEPRC Momoda2 5.8G UFL

• Receiver: PNP(digital built-in receiver) / ELRS2.4G / TBS NanoRX

• TBS NanoRX Version Weight: 160.0g

• Recommended Battery: LiHV 4S 660mAh-720mAh

• Flight Time: 6'- 8'30" (based on low-speed cruising, actual time varies with flying style)

Specifications---WTFPV

• Model: Cinelog30 V2 WTFPV Quadcopter

• Frame: GEP-CL30 V2

• Carbon Plate Thickness: 2.5mm

• Wheelbase: 124mm

• Flight System: TAKER F722 45A 32Bit AIO

• MCU: STM32F722RET6

• Gyroscope: ICM 42688-P

• FC Firmware: GEPRC_F722_AIO

• Flash: 16MB

• ESC: 32Bit 45A

• Motor: SPEEDX2 1404 3850KV

• Propeller: HQprop DT76mmx3 V2

• Battery Connector: XT30

• VTX: None

• Camera: None

• Antenna: None

• Receiver: PNP(digital built-in receiver) / ELRS2.4G / TBS NanoRX

• TBS NanoRX Version Weight: 141.1g

• Recommended Battery: LiHV 4S 660mAh-720mAh

• Flight Time: 6′- 8’30” (based on low-speed cruising, actual time varies with flying style)

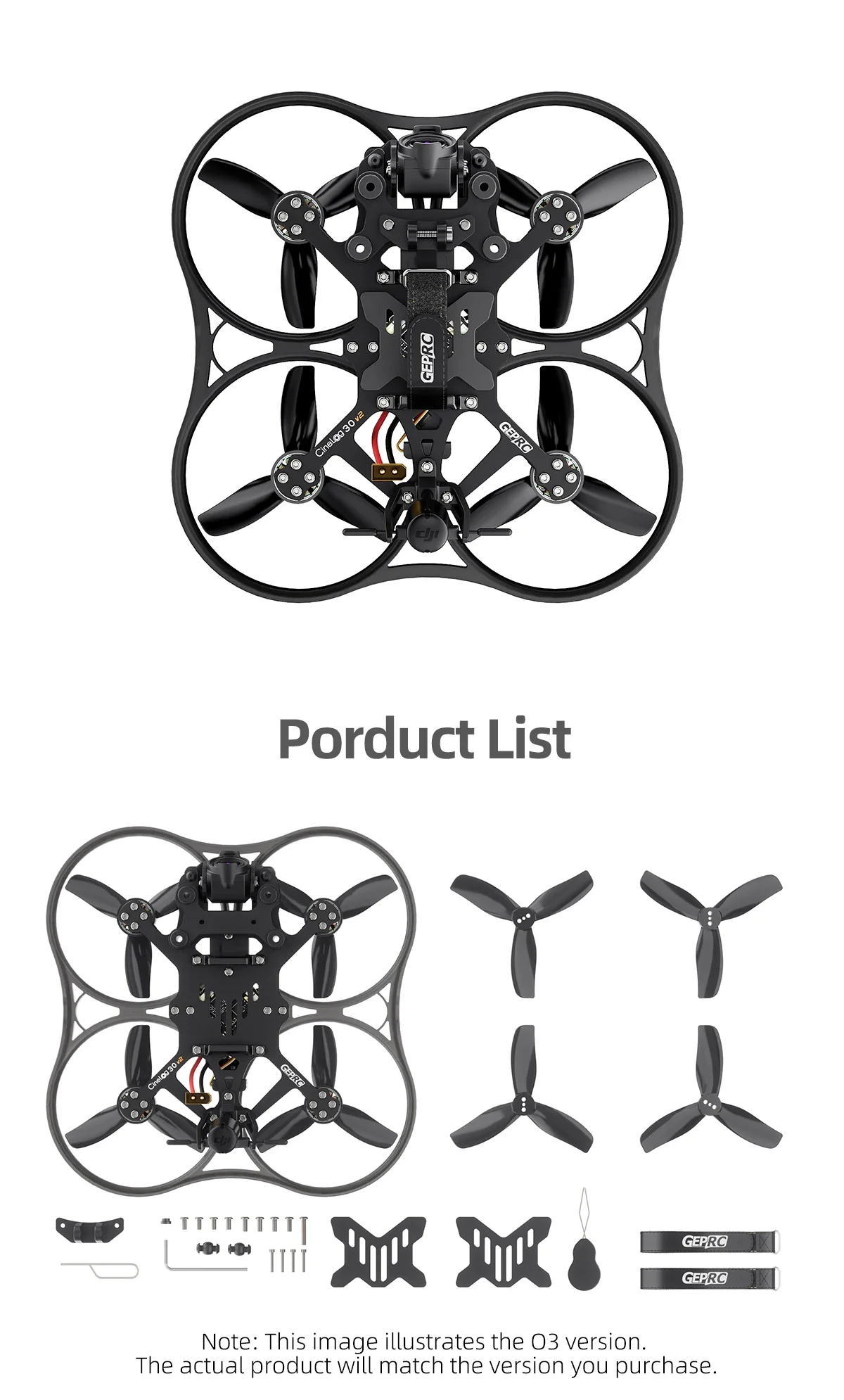

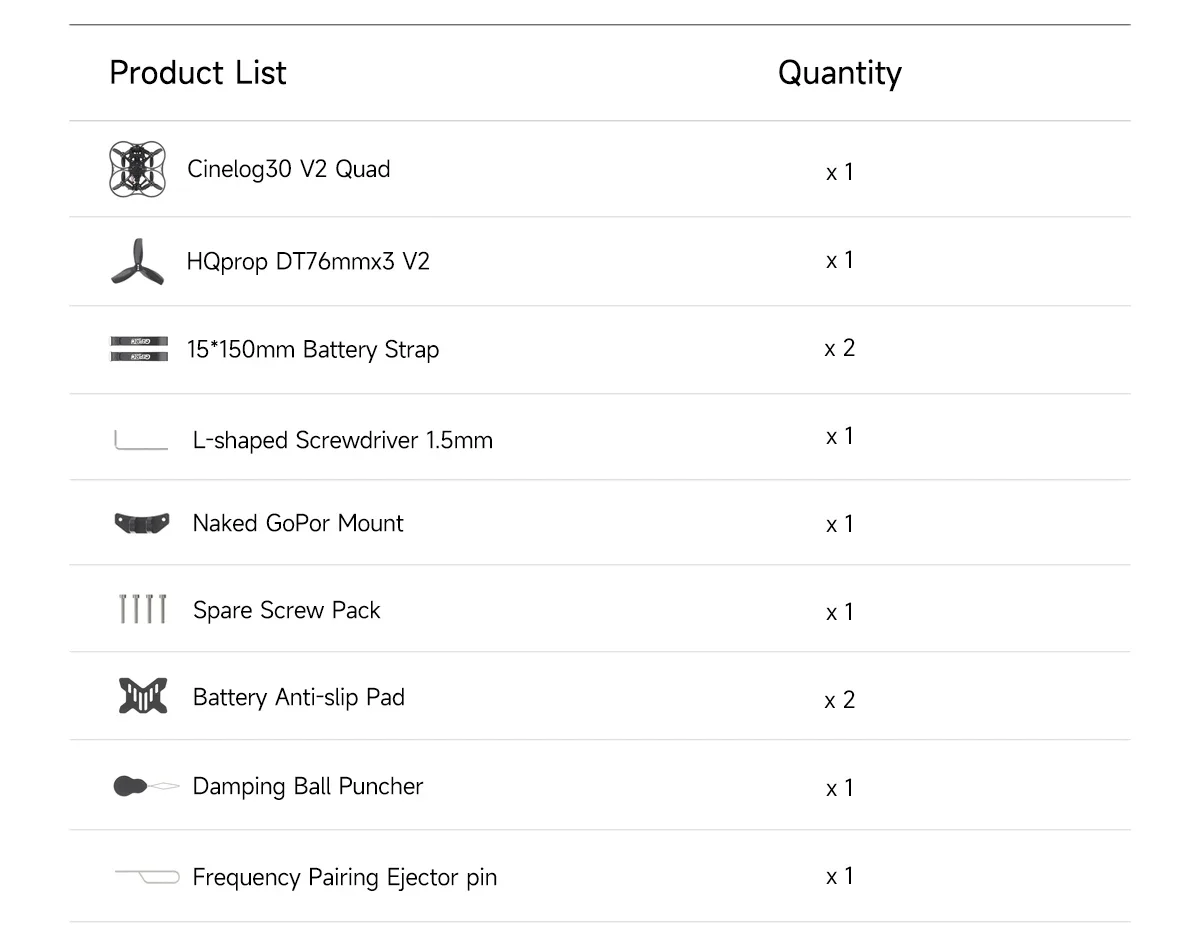

Includes

1 x Cinelog30 V2 Quadcopter
1 x HQprop DT76mmx3 V2 propeller (pack）
2 x 15*150mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x Spare screw pack
2 x Battery anti-slip pads
1 x Damping ball puncher
1 x Frenquency pairing ejector pin
1 x Naked GoPro mount

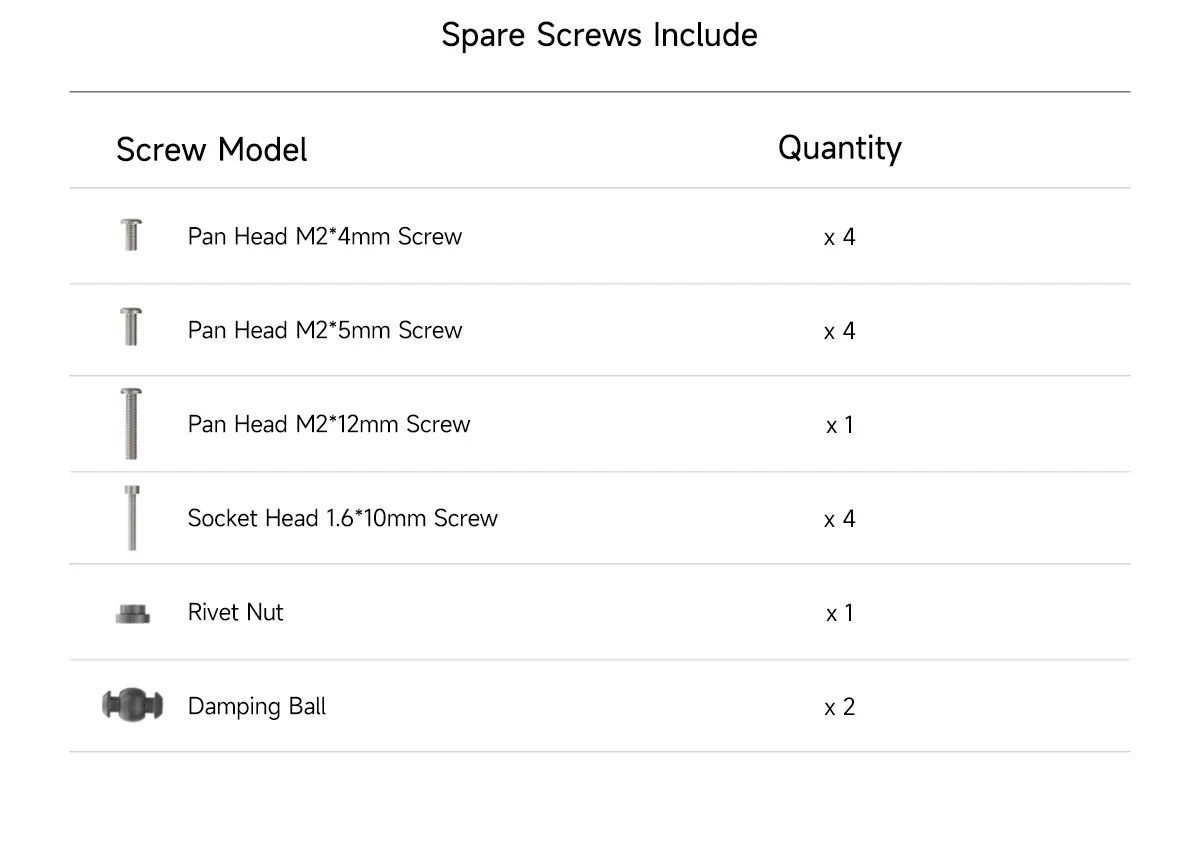

Spare Screws Include：
4 x M2*5mm Pan-Head screws
1 x Swage nut
4 x M2*4mm Pan-Head screws
4 x 1.6*10mm screws
2 x O3 damping balls
