Summary

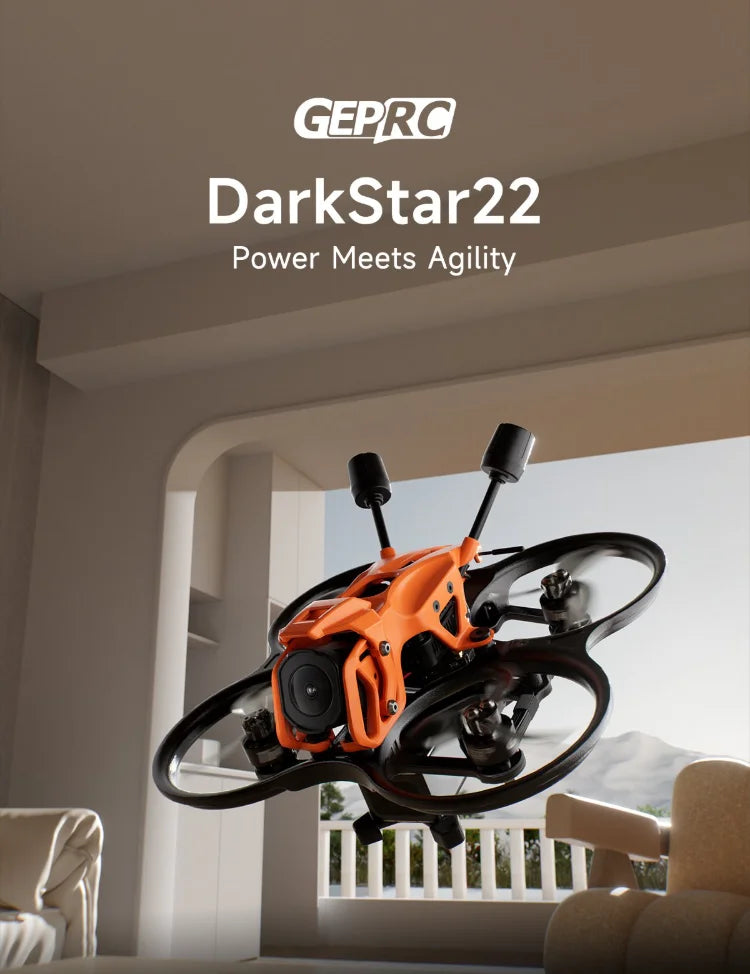

The DarkStar22 combines high performance with portability, equipped with the D-J-I O4 Pro VTX system, delivering ultra-low latency, HD stable long-range transmission.
It features the latest TAKER F405 20A ELRS2.4 2-4S AIO flight controller with an integrated receiver, eliminating the need for an additional RX and ensuring compatibility with all mainstream ELRS protocol radios. The innovative five-point floating damping system provides a stable working environment for the O4 Pro gyro, enabling smooth and stabilized video output.
With a reserved GPS mount, pilots can enjoy safer flights in complex outdoor environments. The SPEEDX2 1104 7500KV motors, paired with newly designed high-efficiency 2219 props, deliver a strong punch while maintaining an excellent balance of power and endurance.
The entire build is compact, reinforced with a thickened canopy and prop guards for crash resistance, making it beginner-friendly and safe to fly both indoors and outdoors. Truly a performance beast among micro cinewhoops!
Feature
-
Mini-sized drone with D-J-I O4 Pro HD system, supporting up to 4K 120fps recording.
-
Powered by the latest TAKER F405 20A ELRS2.4 2-4S AIO with integrated ELRS 2.4G receiver.
-
Camera protection canopy effectively shields the O4 Pro camera module.
-
All-new five-point damping design, enhancing stability for the O4 Pro camera module.
-
Simple body structure – only 4 screws to disassemble the frame.
-

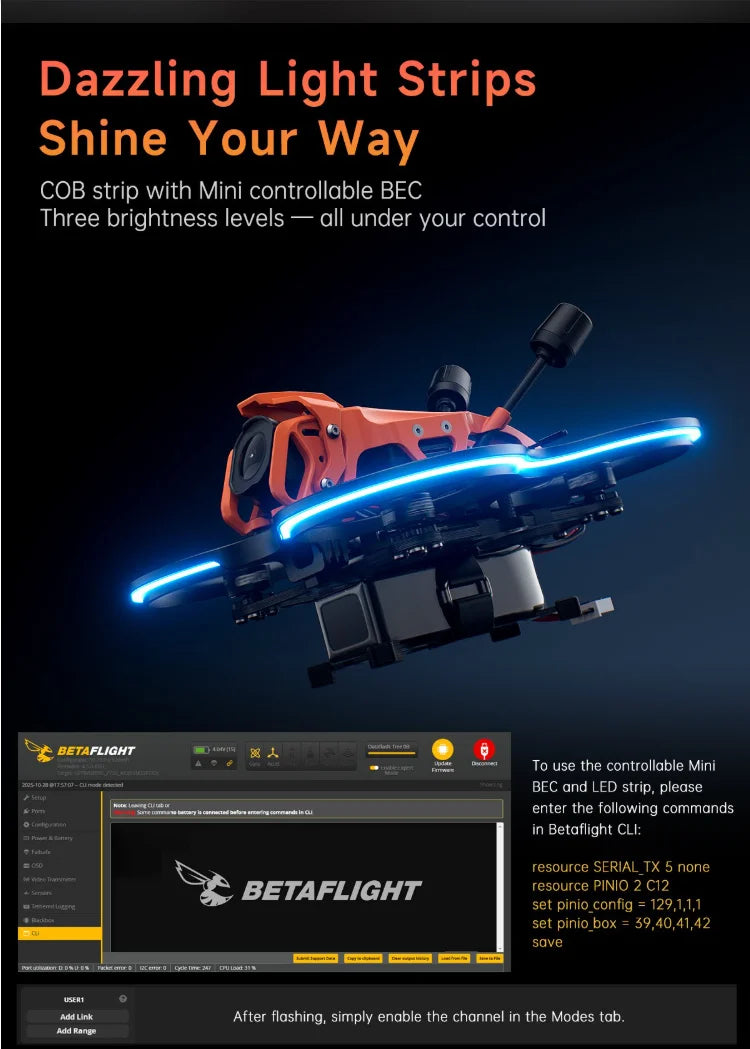

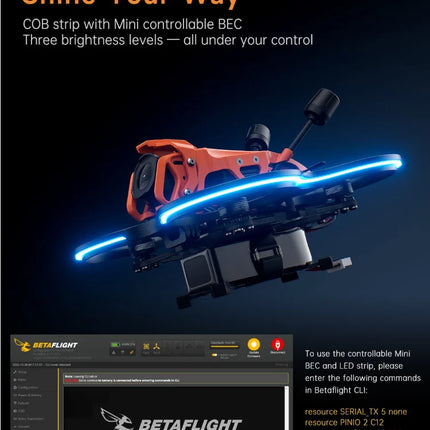

LED strip powered by a mini controllable BEC – small in size, big in function.
-

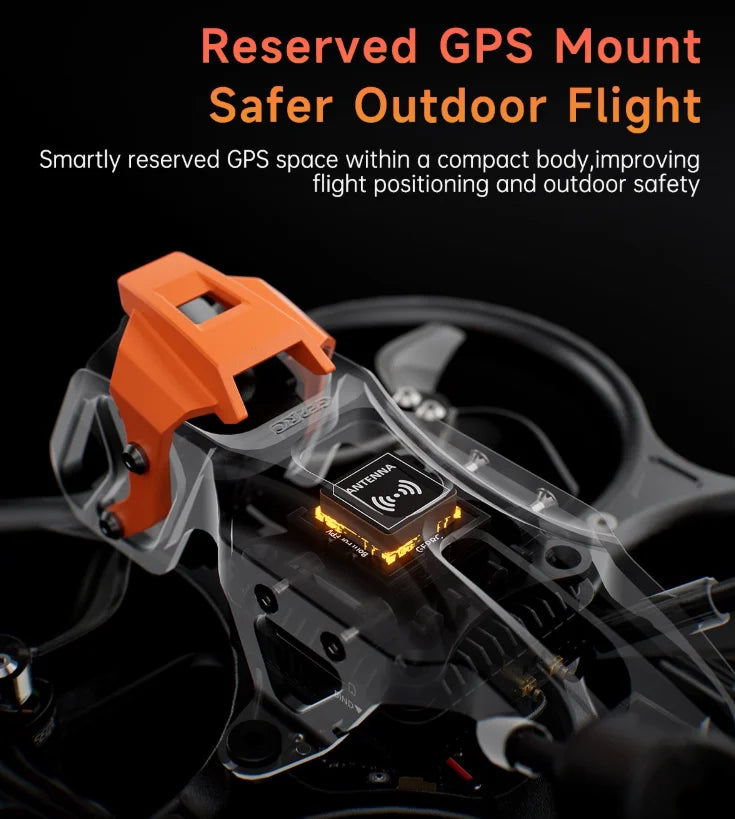

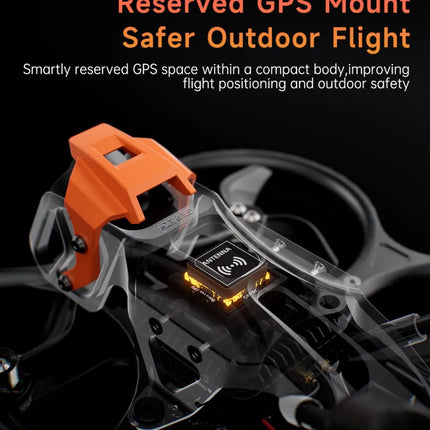

O4 Pro mounting module includes reserved GPS slot, supporting most mainstream Mini GPS modules.
1.GEPRC DarkStar22 WTFPV CineWhoop Quadcopter Specifications
-
Model: DarkStar22 WTFPV
-
Frame: GEP-DS22
-
Main Carbon Plate Thickness: 2.5mm
-
Wheelbase: 100mm
-
FC System: TAKER F405 20A ELRS2.4 2-4S AIO
-
MCU: STM32F405
-
Gyro: ICM42688-P
-
FC Firmware: GEPRC_TAKER_F405 AIO
-
Flash: 16MB
-
ESC: 8Bit 20A
-
Motor: SPEEDX2 1104 7500KV
-
Propellers: HQProp 2219-3
-
Power Connector: XT30U-M
-
VTX: None
-
Camera: None
-
Antenna: None
-
Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
-
Weight (ELRS 2.4G version): 98.0g
-
Recommended Battery:GEPRC Storm LiHV 3S 720mAh
Includes
1 × DarkStar22 Drone
1 × Prop Guard
1 × Top Plate
1 × Camera Cover
1 × Battery Pad
2 × Propellers (pairs)
1 × 10*120mm Battery Strap
1 × L-shaped Hex Wrench 1.5mm
1 × Battery Anti-slip Pad
1 × Damping Ball Punch Tool
1 × Binding Pin
1 × USB Adapter Board
1 × 5P Terminal Cable
Spare Screw Pack Includes:
2 × Damping Balls
4 × M2*4 Round-head Screws
4 × M2*7 Round-head Screws
4 × M2*6 Countersunk Screws
4 × M2*5 Countersunk Screws
4 × M2*6 Round-head Screws
4 × M2*7 Countersunk Self-Tapping Screw

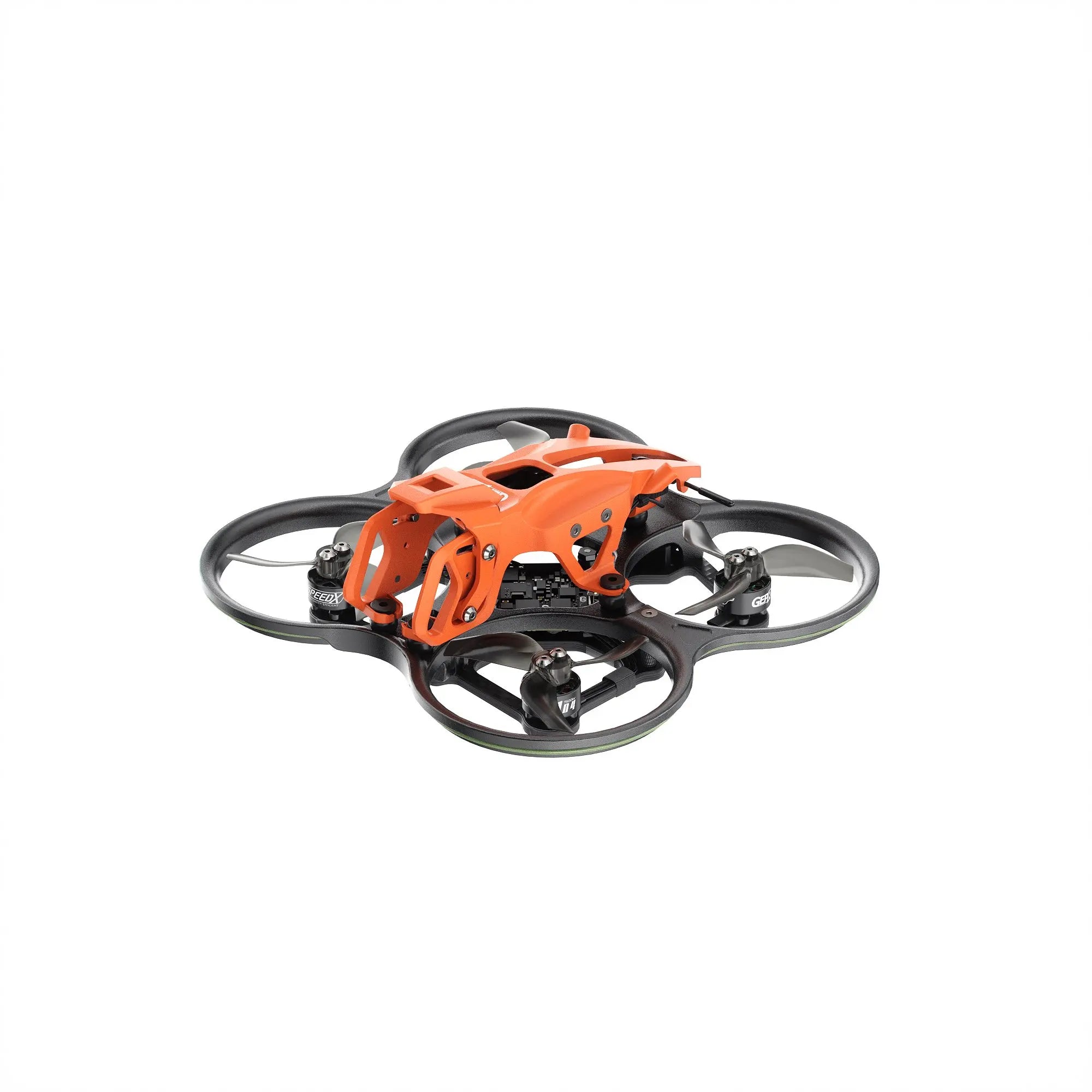

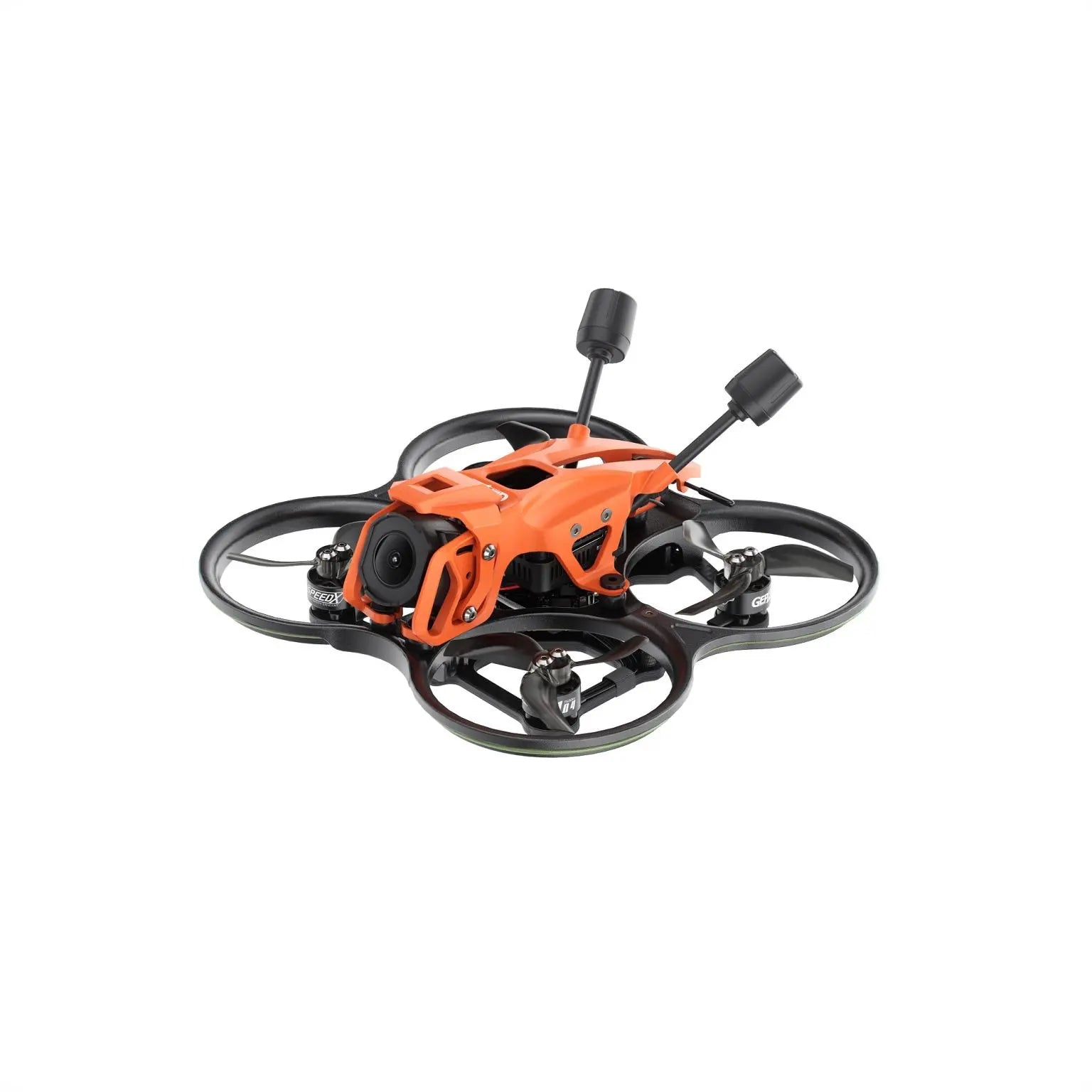

2.GEPRC DarkStar22 O4 Pro CineWhoop Quadcopter Specifications
-
Model: DarkStar22 O4 Pro
-
Frame: GEP-DS22
-
Main Carbon Plate Thickness: 2.5mm
-
Wheelbase: 100mm
-
FC System: TAKER F405 20A ELRS2.4 2-4S AIO
-
MCU: STM32F405
-
Gyro: ICM42688-P
-
FC Firmware: GEPRC_TAKER_F405 AIO
-
Flash: 16MB
-
ESC: 8Bit 20A
-
Motor: SPEEDX2 1104 7500KV
-
Propellers: HQProp 2219-3
-
Power Connector: XT30U-M
-
VTX: D-J-I O4 Air Unit Pro
-
Camera: D-J-I O4 Air Unit Pro camera module
-
Antenna: D-J-I O4 Air Unit Pro antenna
-
Receiver: PNP (O4 Pro built-in RX) / ELRS 2.4G
-
Weight (ELRS 2.4G version): 126.8g
-
Recommended Battery:GEPRC Storm LiHV 3S 720mAh
-
Flight Time: 6min45s (tested under smooth cruising; actual flight time depends on flight style)
Includes
1 × DarkStar22 Drone
1 × Prop Guard
1 × Top Plate
1 × Camera Cover
1 × Battery Pad
2 × Propellers (pairs)
1 × 10*120mm Battery Strap
1 × L-shaped Hex Wrench 1.5mm
1 × Battery Anti-slip Pad
1 × Damping Ball Punch Tool
1 × Binding Pin
1 × USB Adapter Board
1 × 5P Terminal Cable
Spare Screw Pack Includes:
2 × Damping Balls
4 × M2*4 Round-head Screws
4 × M2*7 Round-head Screws
4 × M2*6 Countersunk Screws
4 × M2*5 Countersunk Screws
4 × M2*6 Round-head Screws
4 × M2*7 Countersunk Self-Tapping Screw
