Description
SPECIFICATIONS
Audio Crossover: Two-Way
Battery: No
Brand Name: GHXAMP
Built-in Microphone: No
Cabinet Material: Wood
Category: Speakers,4 inch woofer speaker
Certification: CE
Channels: 1
Communication: Audio Line
Display Screen: No,No
Feature: None
Frequency Range: Other
Frequency response range: 68Hz-2.5KHz
High-concerned chemical: None
Impedance: 4 Ohm
Inbox adaptor: No
Input Power(W): 25-49 W
Input/Output: Other
Intelligent Personal Assistant: NONE
Material: Metal
Number of Loudspeaker Enclosure: 1
Origin: Mainland China
Output Voltage: Other
PMPO: Other
Playback Function: DVD,Radio,CD,mp3,Other
Power Source: None,None
Rated power: 40W
Remote Control: No
Sound Mode: Extra Bass Mode,Other
Speaker Type: Subwoofer
Speaker diameter: 116mm
Suitable: for 2.1 Subwoofer speaker,two way speaker
Support APP: No
Support Apt-x: No
Support Memory Card: No
Total height: 68mm
Use: Home
Voice Control: No
Voltage range: High voltage (50-1000V DC, 75-1000V AC)
Waterproof: No
Wi-Fi Music: Other
1. The cone is made of cotton and linen fiber + bark fiber, and the hanging edge is made of rubber and foam composite. Due to the high sensitivity,25W-40W can be easily pushed.
2. The polymer sound cap with the same damping coefficient as the sound basin is used.The polymer sound cap has good damping coefficient and strong elasticity. The cavity sound brought by harmonics is solved from the design.
3. The diversion double magnetic circuit system is adopted to ensure that the bass is clean, strong and fast in high-power long-stroke operation.
4. It adopts long-stroke, high-power design and low-frequency flexibility.It is suitable for making 2.1 subwooferspeakerand two-way speaker . It is also a good choice for upgrading computer speaker subwoofer.
Product name: 4 inch woofer speaker
Rated impedance: 4ohm
Rated power: 40W
Sensitivity: 87.5DB+-3DB
Resonant frequency: 68Hz
Frequency response range: 68Hz-2.5KHz
Sound basin material: cotton hemp fiber+material leather fiber
Voice coil diameter: 25mm

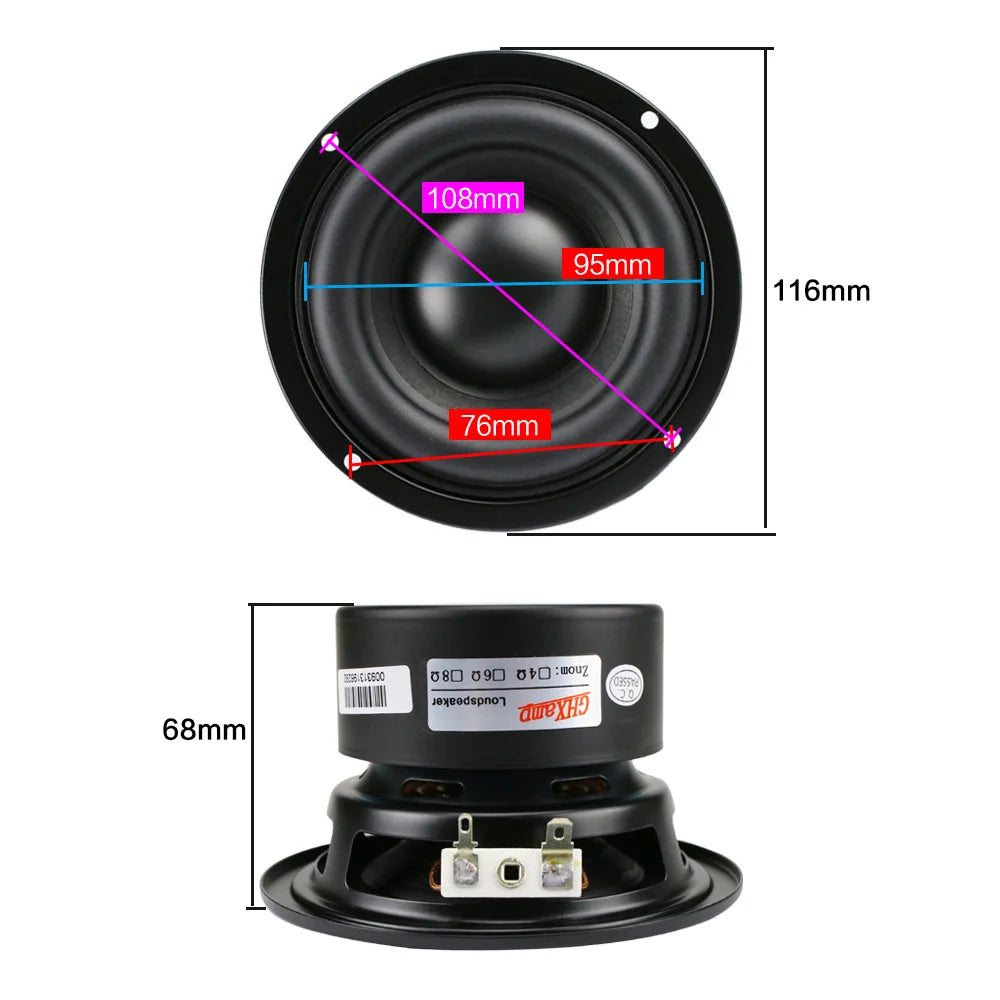

Speaker diameter: 116MM
Opening diameter: 95mm
Diagonal screw distance: 108mm
Height: 68mm
Qts: 0.55
Vas: 3.8L
BL: 3.6T
MMS: 2.3g
Linear displacement: 8mm
Cabinet type: guided phase
Recommended guide tube: inner diameter 37mm, length: 100mm
Net weight: 780g/pc
Package:
1pc
