SPECIFICATIONS

About tax duty

The buyer is responsible for paying all associated costs, such as customs duties and VAT, incurred by the product.

Features

Dual CS43198
4x OPA1622 headphone amps separate from DAC
4000mAh large battery
3.5mm PO+ 4.4mm BAL.PO
Up to 480mW output power
Line out | USB | S/PDIF | Bluetooth freeform signal I/O
X1600E SoC
3.3” High resolution touchscreen
All-new UI
Fully featured HiByOS
MSEB audio tuning board
DSD256 / PCM384kHz/32bit
MQA 8X
Dual Hi-res certifications
Bluetooth 5.1
WiFi support
Supports up to 2TB storage expansion via Micro SD card
PD2.0 fast charge

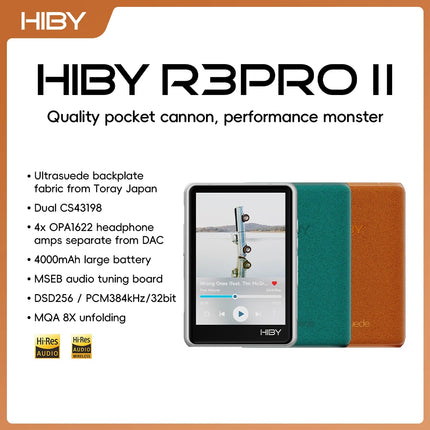

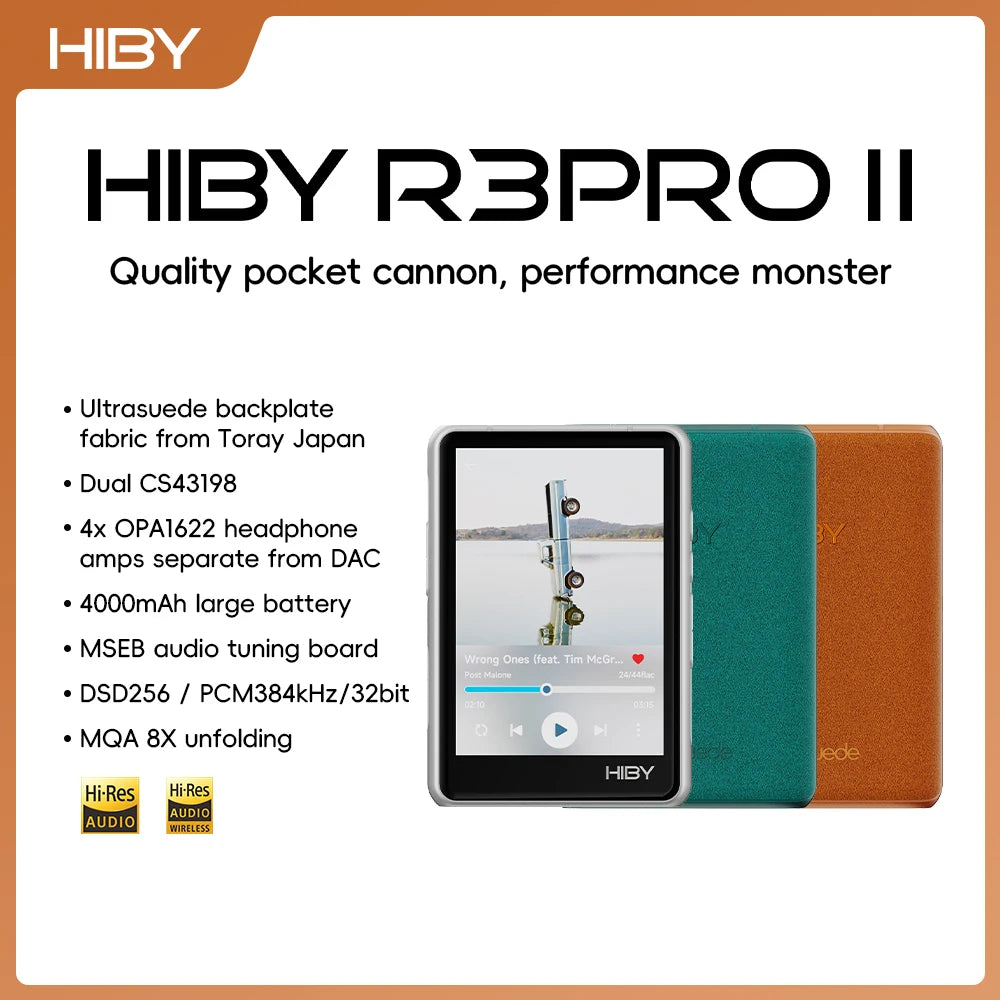

Quality pocket cannon, performance monster

Embodying rich functionality and high performance in a light, compact body, the next generation of high fidelity, high performance pocket cannon!

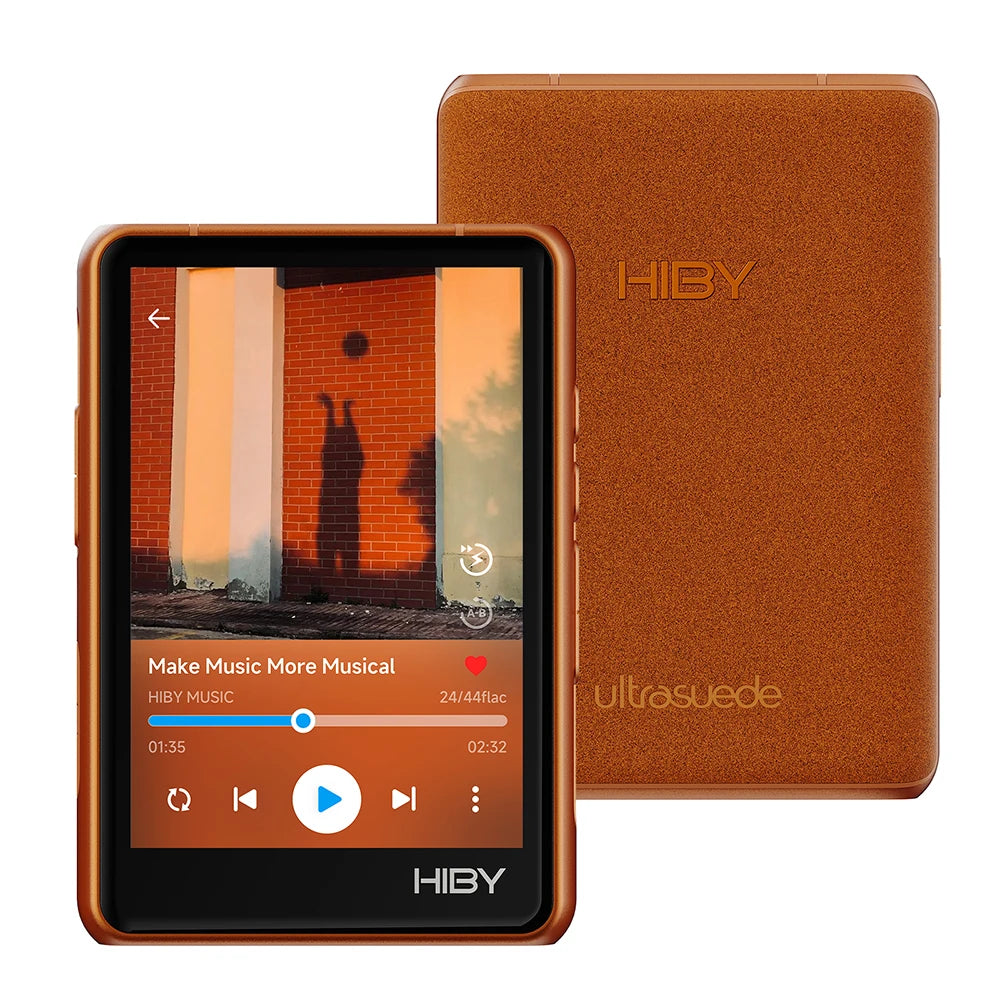

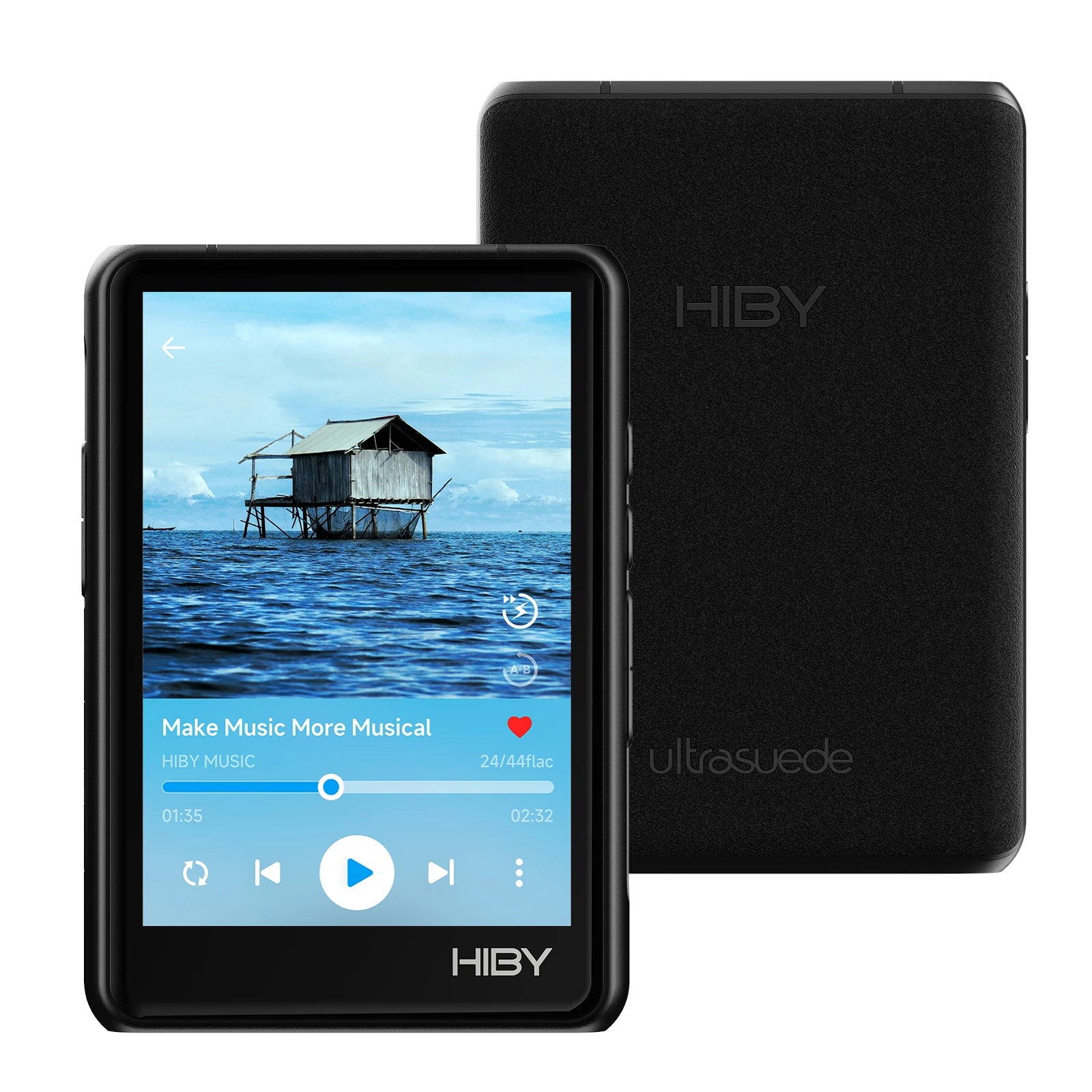

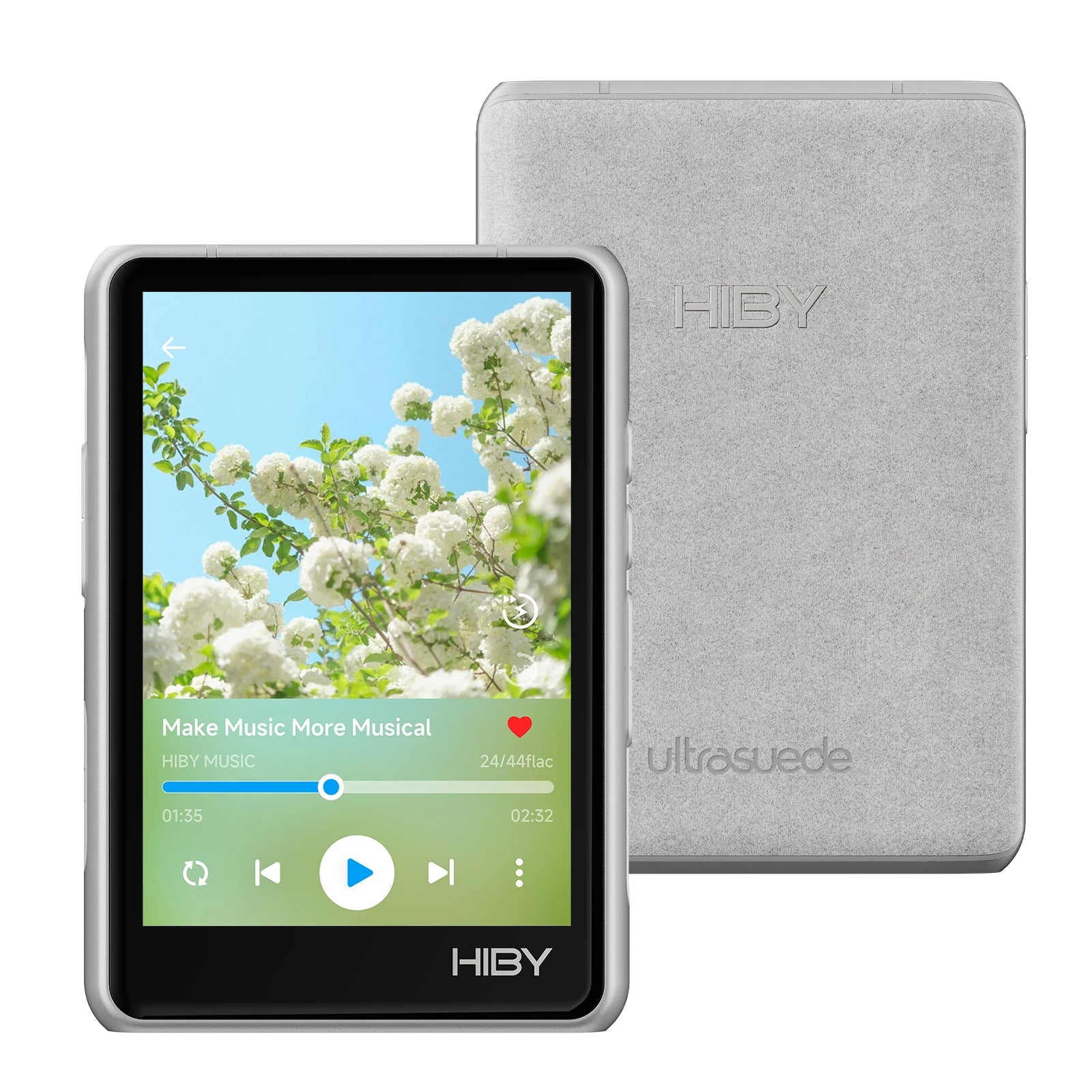

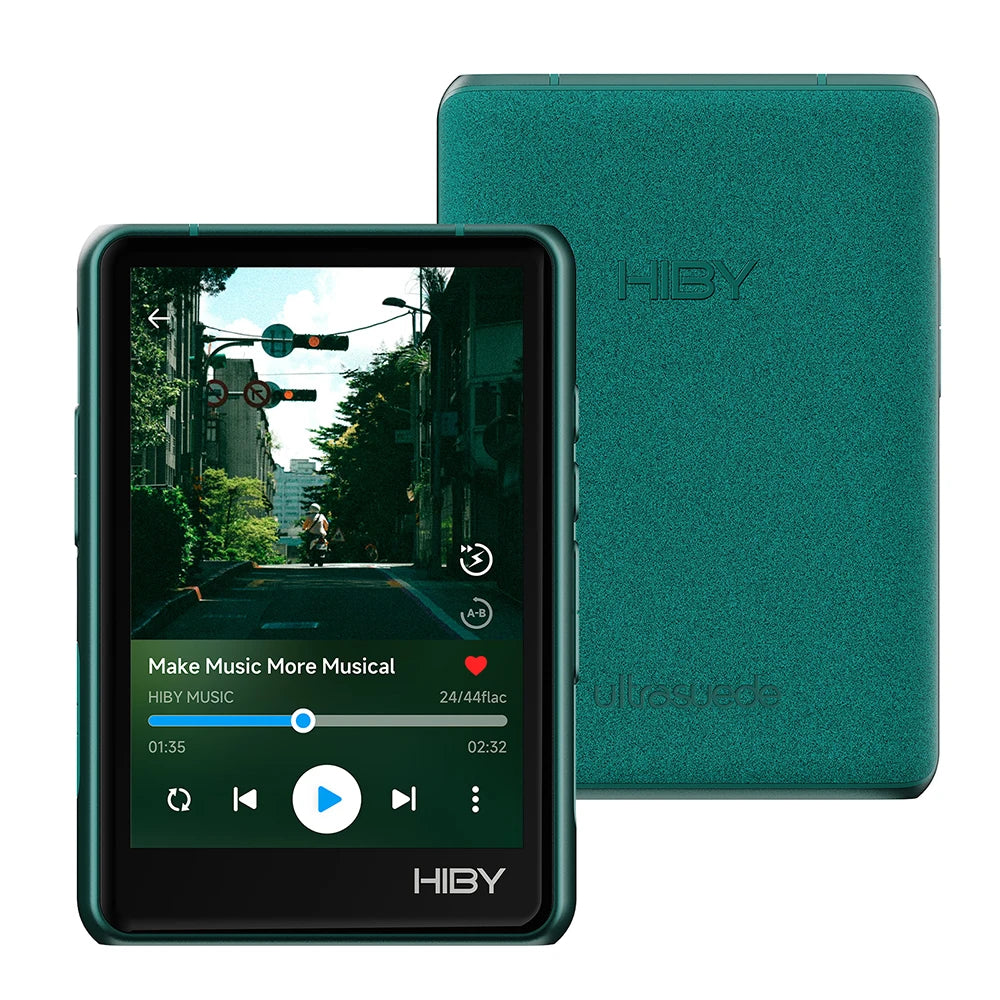

Hi-end Ultrasuede backplate with premium texture

Utilizing a high-end Ultrasuede backplate for a high end texture and hand-feel. Light, soft and durable, it is more comfortable to hold and use. Its texture and temperature control both lend it to comfortable hold and use for long periods. Choose Ultrasuede for quality living as well as high technology.

*Ultrasuede comes standard on Green and Orange colorways.

Dual CS43198

The CS43198 is widely regarded as a high end DAC chip, with high resolution, low distortion and high fidelity lending lifelike impact to every song played. The dual chip design further elevates detail expression and soundstage width, giving you richer, purer layers of sound. Whether it be crisp high notes or thunderous bass, all music notes are captured in replay, turning every listening session into a veritable concert.

Flagship-class headphone amp fitout

Armed with 4 OPA1622 headphone amplifiers, the dual-channel parallel design delivers large dynamics and fast transient response, further enhancing the sound's layering and dynamic performance, ensuring every melody is rich and powerful.

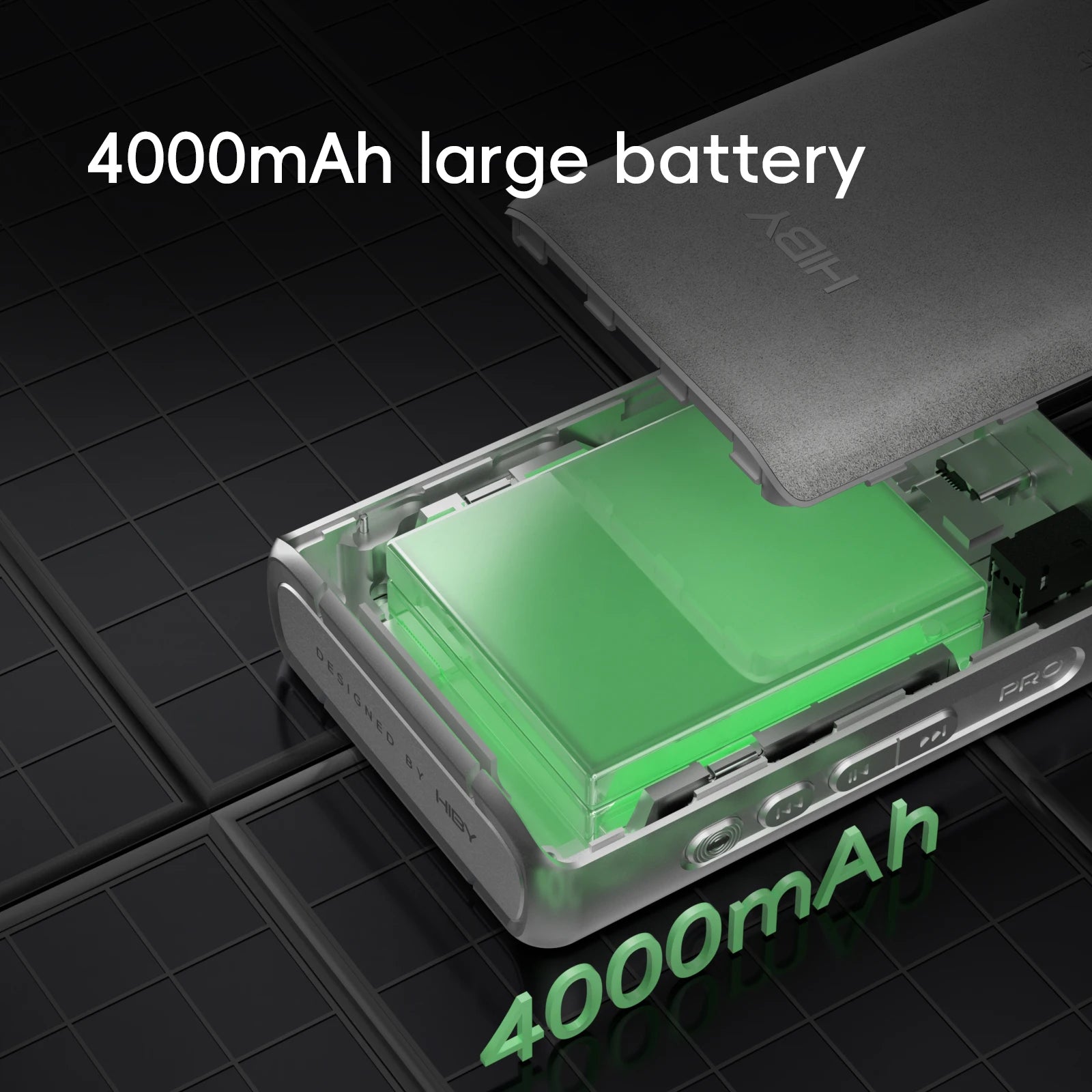

4000mAh large battery

Armed with 4 OPA1622 headphone amplifiers, the dual-channel parallel design delivers large dynamics and fast transient response, further enhancing the sound's layering and dynamic performance, ensuring every melody is rich and powerful.

Independent audio clocks

With two low phase noise, active crystal oscillators independently clocked at 45.1584 and 49.152MHz, the device automatically provides an exact timing references for all music sources of different sample rates (multiples of 44.1 and 48kHz), reducing jitter, effectively increasing digital audio accuracy, reducing effect of phase noise on music quality.

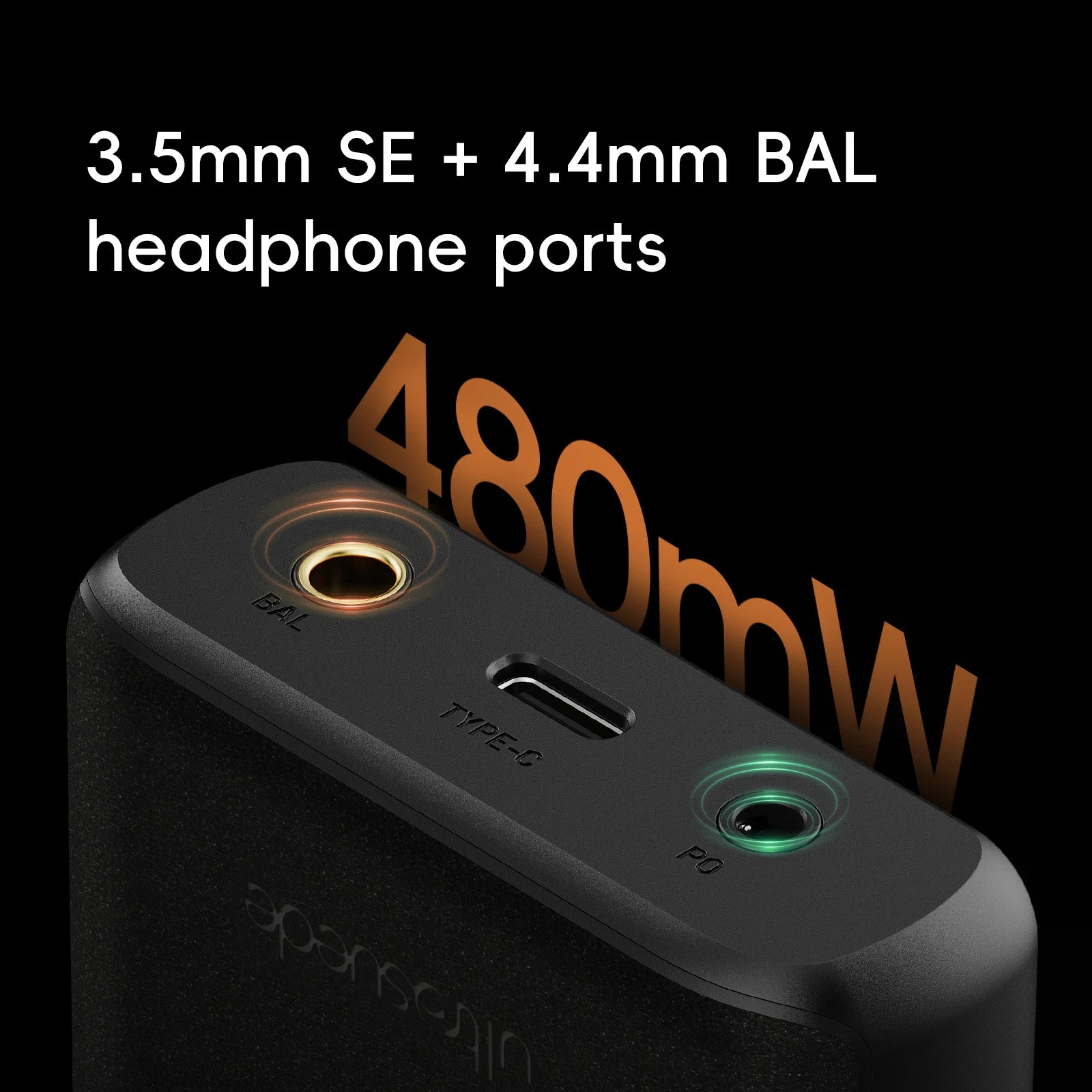

3.5mm PO + 4.4mm BAL.PO

With up to 480mW output power via balanced, slaying all in-class competition! Easily drive all dynamic, BA, piezo, planar, e-stat… earphones and all hybrid, tribrid… combinations thereof. A true pocket cannon.

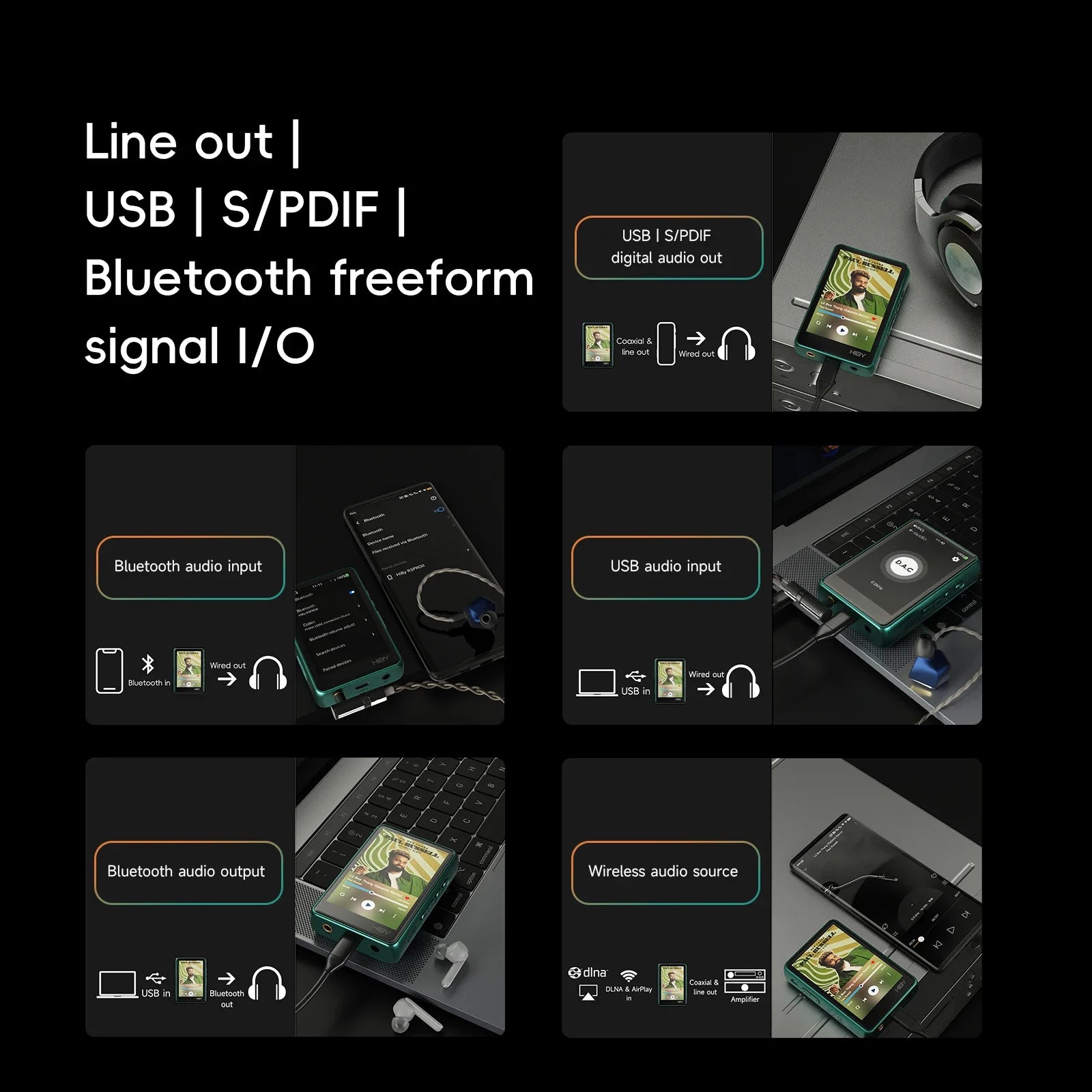

Line out | USB | S/PDIF | Bluetooth freeform signal I/O

1、USB | S/PDIF digital audio out

Play music on the R3 and output it digitally via USB audio or S/PDIF coaxial (via adapter on USB port) to use the R3 as a compact pure digital audio source;

2、Bluetooth audio input

Play to the R3 via Bluetooth from smartphones, tablets and computers alike. And utilize the high quality DAC and amp on the R3 to convert Bluetooth into a high quality analog output to headphones, active speakers or even component HiFi;

3、USB DAC USB audio input

Feed digital audio from smartphones, tablets and computers alike to the R3 via USB connection, using professional software such as HiByMusic on android / iOS to transfer the audio losslessly / without SRC, and utilize the high quality DAC and amp on the R3Pro II to convert this into a top quality analog output to headphones, active speakers or even component HiFi;

4、Bluetooth audio output

Can be used in conjunction with USB audio input to turn the R3Pro II into a high quality Bluetooth transmitter for e.g. computers;

5、Wireless audio source

Accepting wireless audio via Airplay, DLNA, Bluetooth etc., the R3Pro II can decode these sources and output to anything from USB, coaxial to headphone out / line out, to elevate the convenience and quality of your wireless audio experience.

SoC Upgrade for user experience upgrade

SoC upgraded to X1600E for faster UI response and stronger Bluetooth signal;

High resolution display

3.3” IPS display of 720x480 pixels having a high coverage of the device real estate, high resolution over the screen area, vibrant colors and accurate touch sensing;

Coupled with modern new UI for intuitive usage and an ergonomic user experience.
