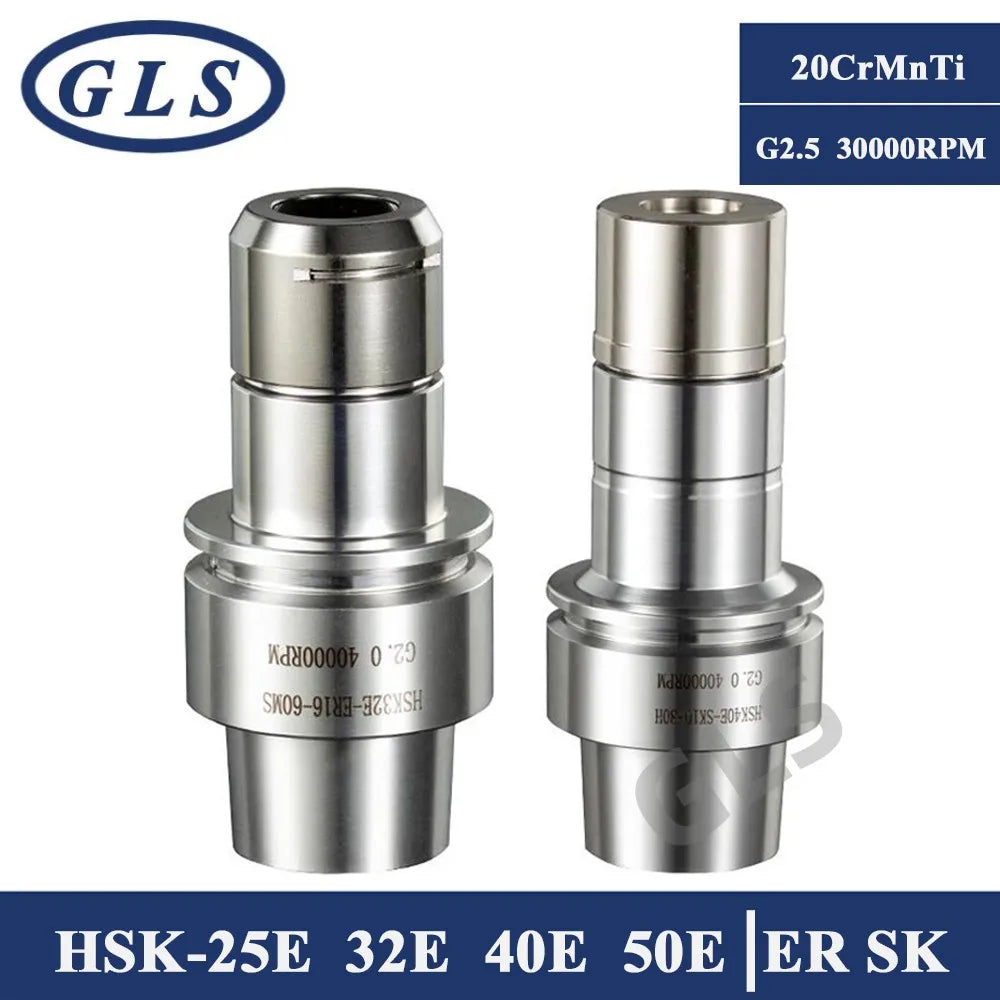

SPECIFICATIONS

Brand: GLS Precision Machinery
Material: 20CrMnTi Steel
Hardness: HRC60
Accuracy: 0.001mm
Standard speed: G2.5  30000RPM

Main features:
1. The taper of the tool handle is tested on the standard gauge of DIEBOLD in Germany;

2. The inner cone surface of the clamp is ground by a high-speed inner hole grinder and tested using a standard pneumatic measuring instrument;

3. The thread of the tool handle is tested with a 4H level thread ring gauge, and the nut is tested with a 4H level thread plug gauge;

4. The inner cone runout of the tool handle body is ≤ 0.003mm;

5. Full inspection quality, high hardness, high stability, and long service life.

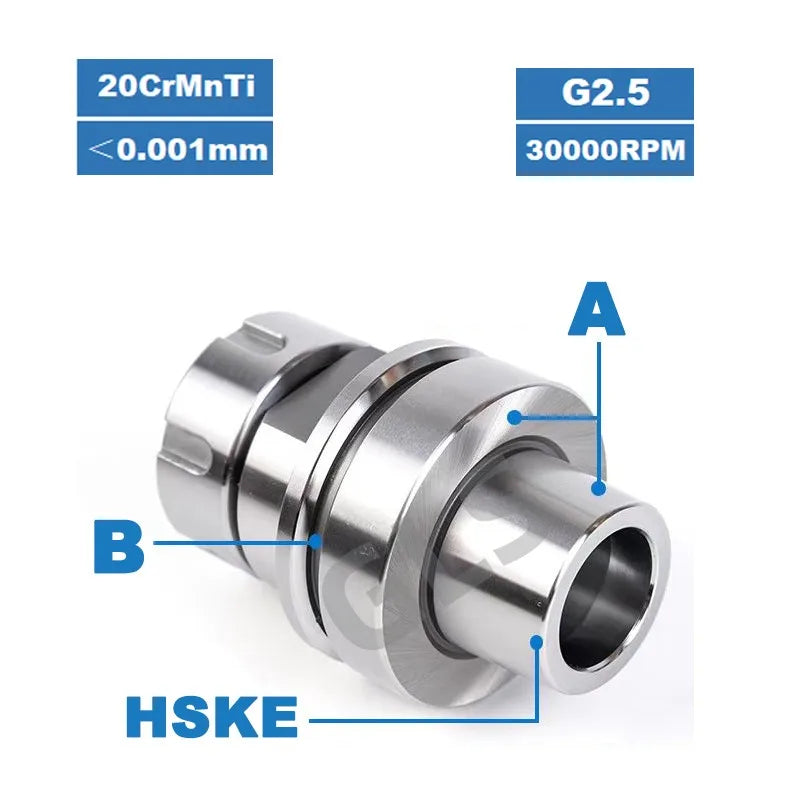

A) The handle is tightly integrated with the spindle
1. Enhance the rigidity of the blade handle and reduce vibration.
2. Stable Z-axis positioning during high-speed rotation

B) Robot card slot

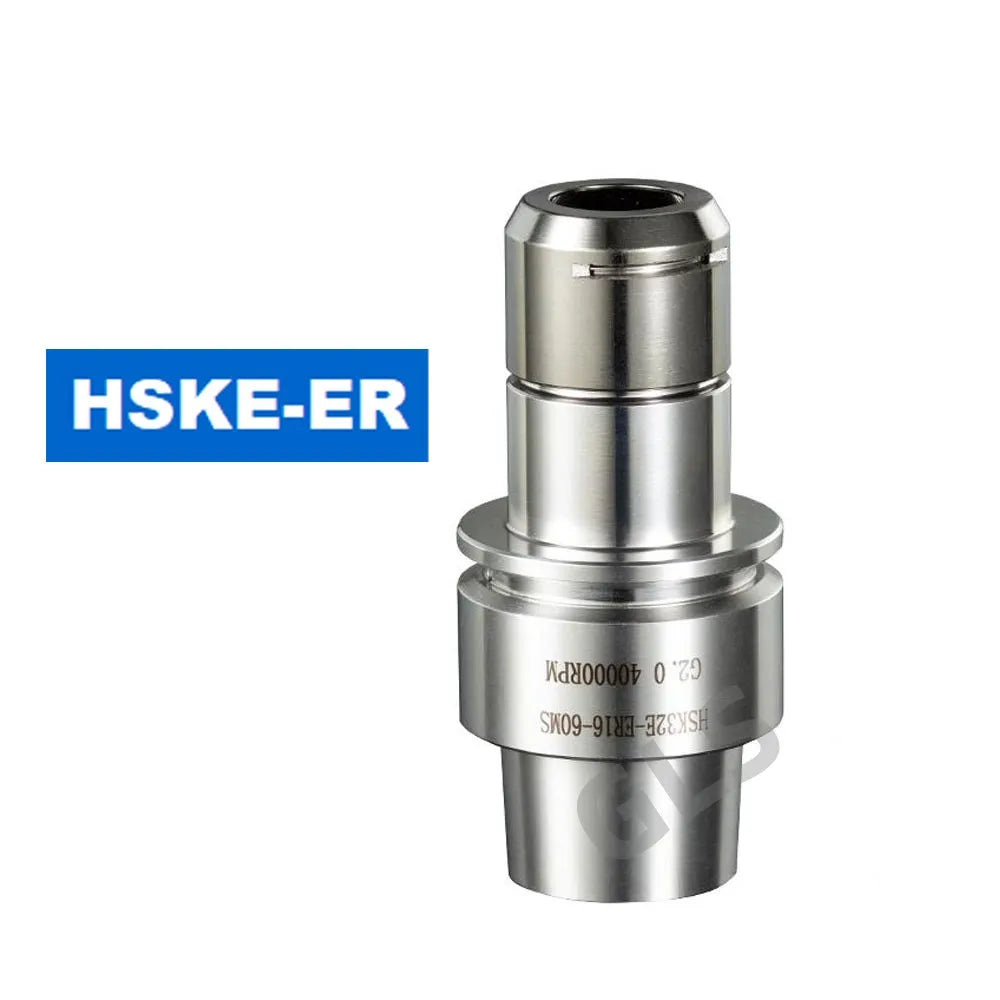

HSK-E type interface
1. Suitable for high-speed machine tools, with robotic arm slots, suitable for automatic tool exchange.
2. Support cooling and lubrication pipes. No drive keyway, supporting central cooling and lubrication supply.
