Description
SPECIFICATIONS
4.0mm Fixed Lens: Max. Aperture F1.6
AI Functions: Human Detection
App name: Imou Life
Audio Output: Two Way Audio
Brand Name: IMOU
Certification: CE
Color: WHITE
Color Night Vision: Yes,15m(49ft) Distance
Configurable Region: Yes, support
Configurable Tripwire: Yes, support
Connectivity: WIFI(2.4GHz)
Dimensions (L x W x D)(mm): 165x126x154mm
Field of View: 78°(H), 41°(V), 91°(D)
High Definition: 3.0 Megapixels
High-concerned chemical: None
Human Detection: Yes, support
IP Rating: IP66
IR Distance(m): 15m(49ft) Distance
Installation: Normal
Lens (mm): 3.6mm
Lens Quantity: Single Lens
MSDS: Yes, support
Megapixels: 3 MP
Model Number: Cell PT 2C Kit
Motion Detection: Yes, support
Operating Temperature: -30°C~+60°C, Less Than 95%RH
Origin: Mainland China
Pixels: 3MP(2304x1296)
Power Consumption(W): <9.2W
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): DC 5V 2A Power / Imou Solar Panel Supply
Scene: Indoor and outdoor
Sensor Brand: Omnivision
Smart home platform: Other,alexa
Style: PT Camera
Supported Mobile Systems: Windows Mobile,Android,iOS
Supported Operating Systems: Windows 98,Windows 7,Windows 10
Up to 15fps Frame Rate: Yes
Vehicle Detection: Yes, support
Video Compression: H.265/H.264
Video Compression Format: H.264,H.265
Weight: 275g (0.61lb)
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Wi-Fi: 2.4GHz&5GHz Dual-band Wi-Fi 6, Dual Antenna,
Zoom: 8x
Zoom type: Digital zoom

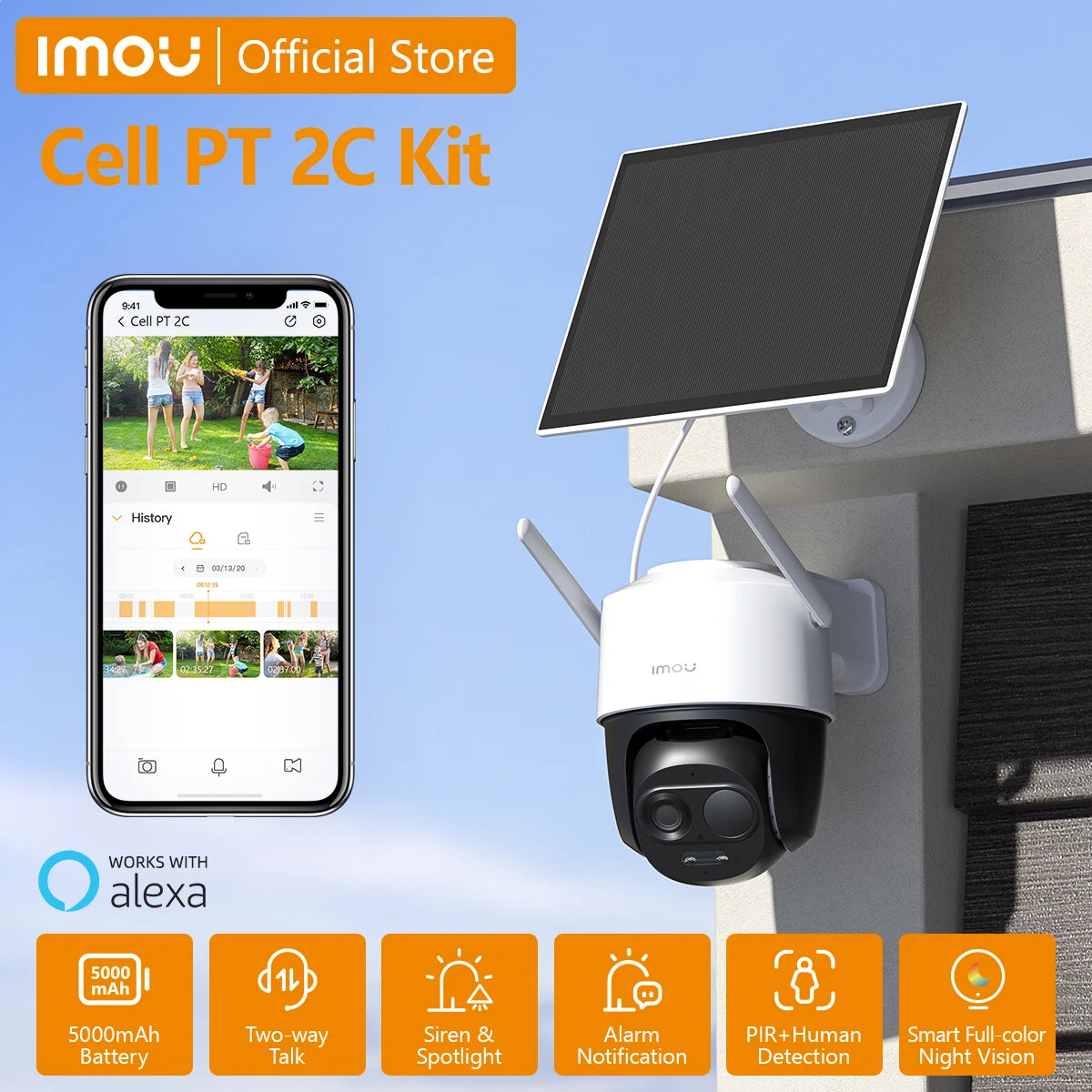

Cell PT 2C 3MP/5MP
2K/3K QHD Image | 5000mAh Rechargeable Battery | Low Temperature Charging Technology | 350° Pan & 90° Tilt | 8x Digital Zoom | Smart Full-color Night Vision | PIR+Human Detection
2K/3K QHD Image | 5000mAh Rechargeable Battery | Low Temperature Charging Technology（even at -10℃) | 350° Pan & 90° Tilt | 8x Digital Zoom | Smart Full-color Night Vision | PIR+Human Detection I Two-way Audio
See the Difference, Experience the Details
With 3MP/5MP ultra-clear resolution, capture every detail and elevate your home security to the next level.
Unfazed by the cold, reliable charging in low temperatures
When winter comes, the battery cameras usually faces the problem of not being able to be charged. But no need to worry, with IMOU's cutting edge low-temperature charging technology，Cell PT 2C can be charged normally even at -10℃！
Eco-friendly and Effortless: Stay Powered Anywhere with Solar Panel and 5000mAh Battery
Harness the power of the sun with a 3W solar panel and a 5000mAh battery, ensuring reliable, long-lasting performance. Say goodbye to frequent charging and enjoy uninterrupted protection for your outdoor spaces.
Ultra-Clear, Full-Area Surveillance
With its wide-range pan and tilt, this camera covers every angle of your outdoor space. Effortlessly zoom in to capture details like visitors or movement, while enjoying sharp, clear images even in low-light conditions.
Wide-Angle Coverage
Full-area monitoring to eliminate blind spots.
8x Digital Zoom
Focus on important details with precision.
F1.6 Aperture Lens
Bright and clear images, even in low-light conditions

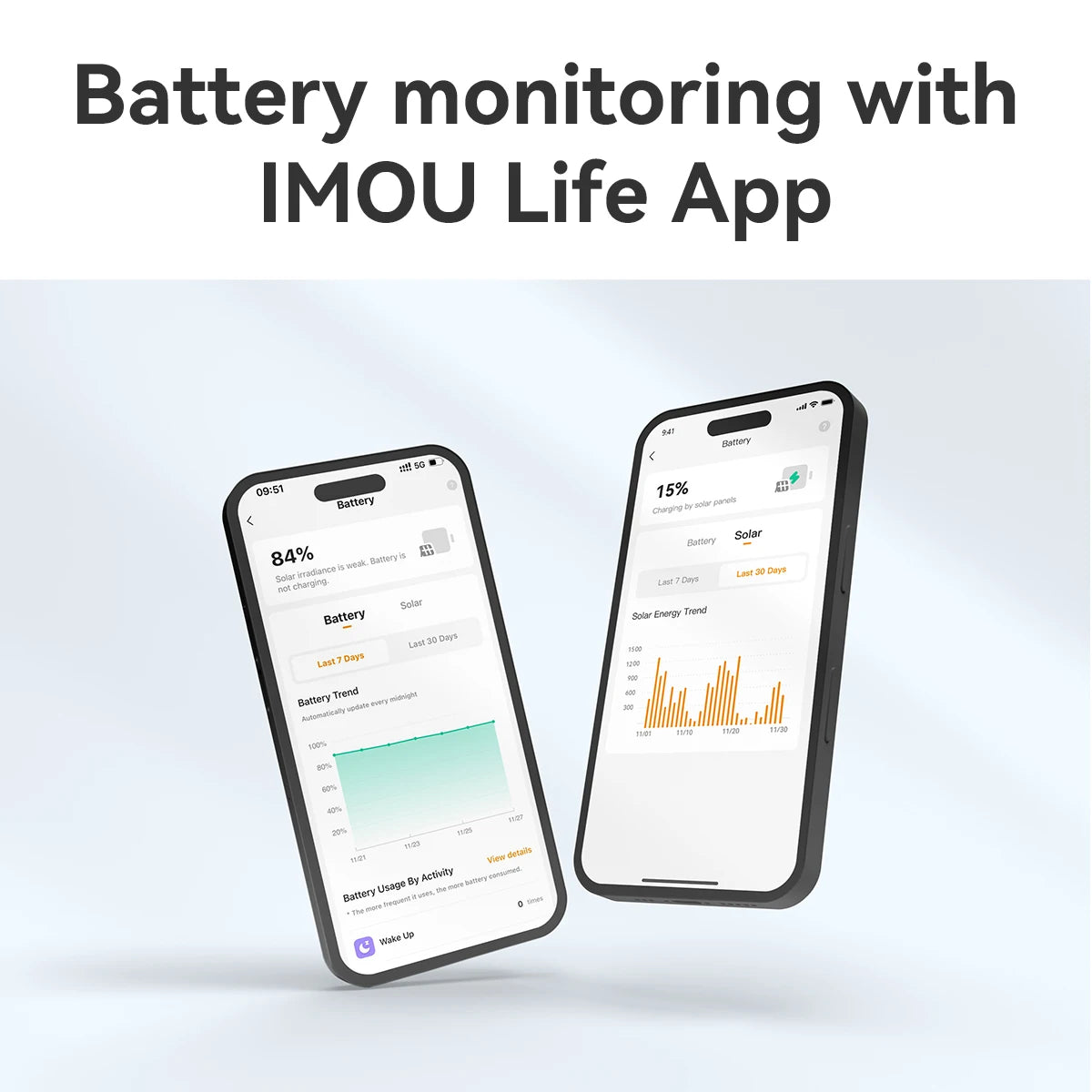

Battery monitoring
IMOU Life App will constantly monitor the camera's power usage, so you can check the current power level at any time and adjust the camera settings as needed to match the battery usage to your needs.

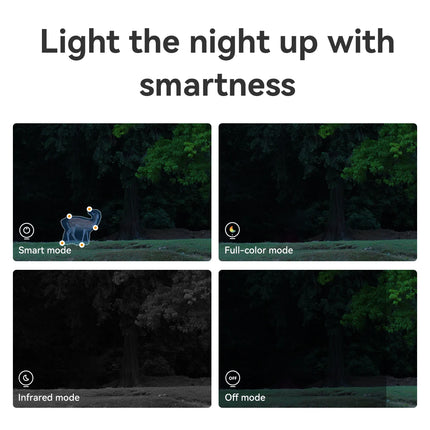

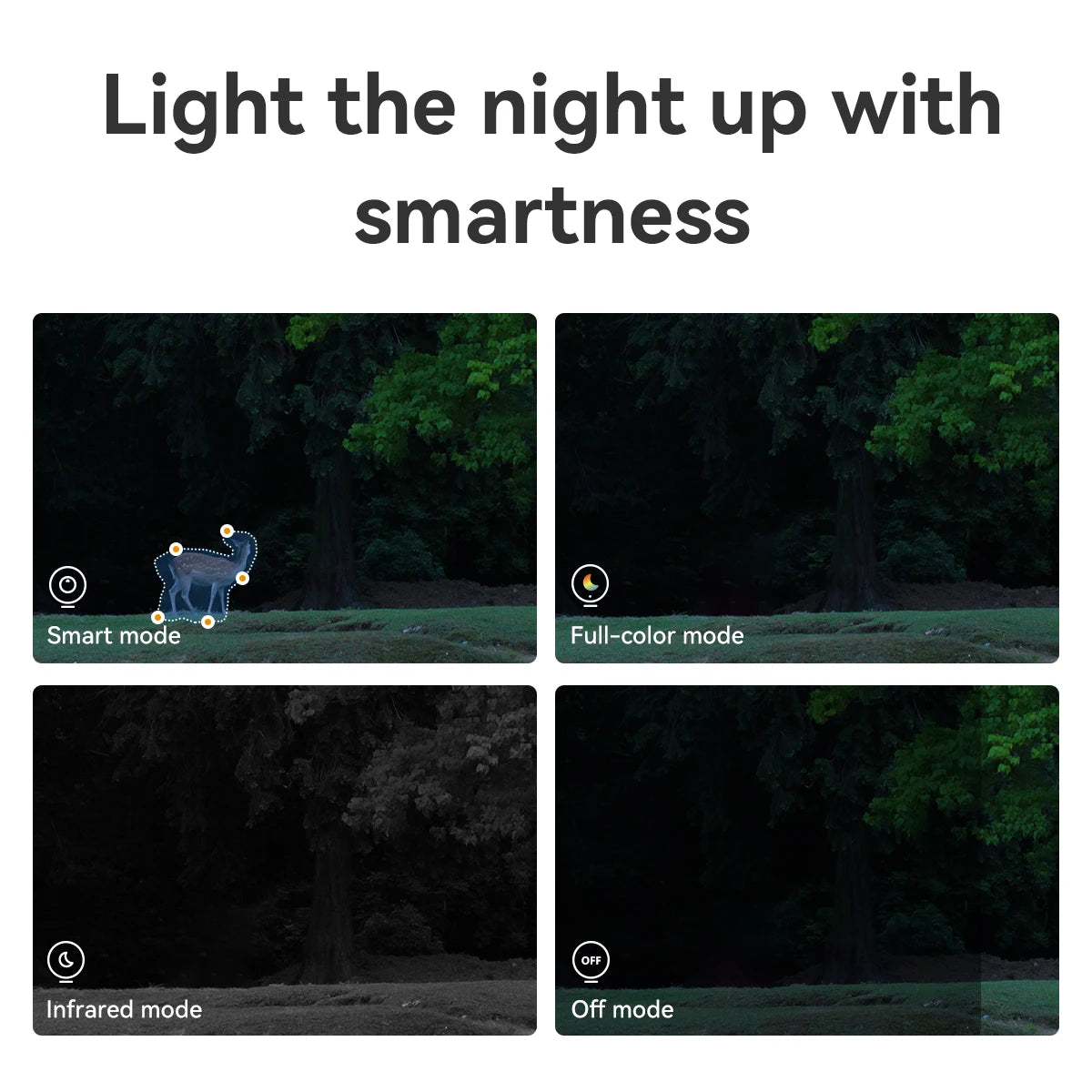

Light the night up with smartness
Cell PT 2C can adjust different night vision modes according to your needs, whether you want the night vision to remain in full color all the time or want to turn on full color only when there is an event to save energy, it can always satisfy you.
20m IR Night Vision/ 15m Full-Color Night Vision
PIR + Human Detection for Precise Alerts
Combining PIR motion sensing and human detection, this camera only triggers alerts for human activity, enhancing security while minimizing unnecessary notifications.
Professional IP65 protection to weather any storm
With IP65 weather-resistance, Cell PT 2C is able to against dust penetration and can easily handle rain and wind, keeping you safe around the clock.
Different working modes to suit your needs
Cell PT 2C supports 5 different operating modes, whether you want to have a long battery life or continuously record video, you can set it through the app.
Protect according to your preferences
Customizable detection zone
Customizable alarm sound
Protection scheduling
Deter unwelcome visitors
Cell PT 2C keeps an eye on your house, when someone breaks in, the 110dB siren will turn on to deter the unwelcome visitor.
1*Siren (110dB)+3*Customizable Siren
Other amazing features
Supports 512GB SD Card Storage
H.265 compression for longer recording
Water-Proof SD Card Slot
0.3s instant notification
Product Details
What's in the box
-1xCamera
- 1x Quick Start Guide
-1x Screw Posilioning Stickers
-1x Power Cable
-1x Screw and Wall Anchor pack-1x Mounting bracket
-1x Solar Panel-1x Mounting bracket-1x Screw and Wall Anchor pack
-1x Quick Start Guide
Specifications
Camera
1/2.8”Progressive CMOS
3MP(2304*1296)
Network
Wi-Fi:lEEE802.11b/g/n,120m Open Fieldlmou App: iOS, Android
Night Vision: 15m(49ft) Distance
4.0mm Fixed Lens, Max. Aperture Fl.6Field of View :78°(H),41°(V).91°(D)5000mAh Rechargeable Batteny
Video & Audio
Video Compression : H.264 & H.265
Up to 15fps Frame Rate
8x Digital Zoom
Two-way Audio
Notice Management
Motion Detection
Human Detection、Vehicle Detection
Configurable Region
Perfommance mode
Storage
Local Storage: sD Card (Up to 512GB)
Cloud Storage: lmou Subscription Plan
Auxiliary InterfaceBuilt-in Mic & SpeakerPower on /off Button / Reset ButtonSD Card Slot
Type C
General
DC 5V 2A Power / lmou Solar Panel Supply
Power Consumption:<3W
Operating Temperature:-20℃-+50℃(-4F~122°F)
Charging Temperature:-0℃-+45℃(32F~112'F)
Camera Dimensions:165x126x154 mm(6.5x4.96x6.06 inch)
Camera Weight: 270g (1.27lb)
Package Dimensions: 205x165x208 mm (8.05x6.5x8.19 inch)Package Weight: 1202g (2.65lb)
MSDS、CE、Alexa
Record, view, and save events in your lmou app with a 3l day trial of the lmou Subscription Plan.
FAQ
Q:Difference between SD memory card and cloud storage?
A:
1) Using SD card need to use computer to read the history monitoring screen, when the memory card is full, it will automatically delete and start a new round of recording, make sure to save the data in time;
2) Cloud storage is a value-added service, new devices have a 7-day free trial period of cloud storage, you can view the history monitoring screen directly in the app. When the trial period is over, you can choose to subscribe in the app. There is a time limit for using this service, when the time is full of 3 days or 7 days, the records will be automatically deleted and start a new round, make sure to save the data in time.
Q:How to modify device’s photo /name /channel name /password in mobile app?
A:Two methods to modify device infos from your account,firstly login into your account in mobile app:
Method 1: Go to preview page then click icon on the top right corner, go to device settings page,click device image bar to Device Info page,click corresponding option to modify.
Method 2: Click Me->My Device->select corresponding device ->click device image bar to Device info page -> click corresponding option to modify.
Q:The app says"Failed to bind"?
A:When the app says “Failed to bind”, it means your device is already successfully connected to your Wi-Fi, but failed to add the device to your Imou account. Please double check whether your router is connected to Internet, then try again. Normally the reason is the Internet connection is not stable.
Q:Imou account?
For security reason, one camera can be bound to only one Imou account. So if you want to add your camera to a new account, please delete it from the previous account first.
A:Two methods to delete camera from your account,firstly login into your account in mobile app:
(1) Method 1:go to preview page then click gear icon on the top right corner, go to device settings page, slide to the bottom then delete device.
(2) Method 2:Click Me->My Device->select corresponding device ->slide to the bottom ->Delete Device.
Q:I changed my Wi-Fi, I want to put the camera at a new location, how to connect my camera to my new Wi-Fi?
A:
1）Firstly please check whether your camera has an Ethernet port and whether you have an Ethernet cable at hand.
2）If yes, please power on your camera and connect it to your Router with the Ethernet cable, wait till the LED turn stably blue to make sure it has access to Internet. Then login to your Imou account, find your IPC on “Device” page and go to its settings page, then tap “Wi-Fi Config” and you can connect it to your new Wi-Fi.
3）If your camera has no Ethernet port or you don't have a cable at hand, we suggest you reset your camera to factory default, then setup your camera with the new Wi-Fi.
Q:How can I receive the alarm message?
A:
1）Firstly, you need click the enable button in the upper right corner in the picture of the channel of main page.
2）If it says “Failed to subscribe”, we suggest you ensure the following configuration:
Receives notifications from APP. Enable Imou Notifications via “Settings”->” Notifications” on your iPhone and “Me”-> “Settings”-> “Notice” on Imou APP.
3）Enable Event in the device. Take motion detection as an example, the event should be enable and time schedule should be valid.
4）Make sure the device is connected to Internet.
5）After successfully subscribe, you will receive the message.
Q:Working at night, the image is all black？
A:Reason:
1）IR LED didn’t light up
2）ICR didn’t switch to night mode
3）Objects are too far away from the camera
Solution:
①If the IR LED did light up, but you cannot hear “KA” and the image is still all black, maybe there is something wrong with the ICR.
②For consumer cameras, the IR distance is less than 10m(differ between different models), so you cannot see too far away at night.
