SPECIFICATIONS

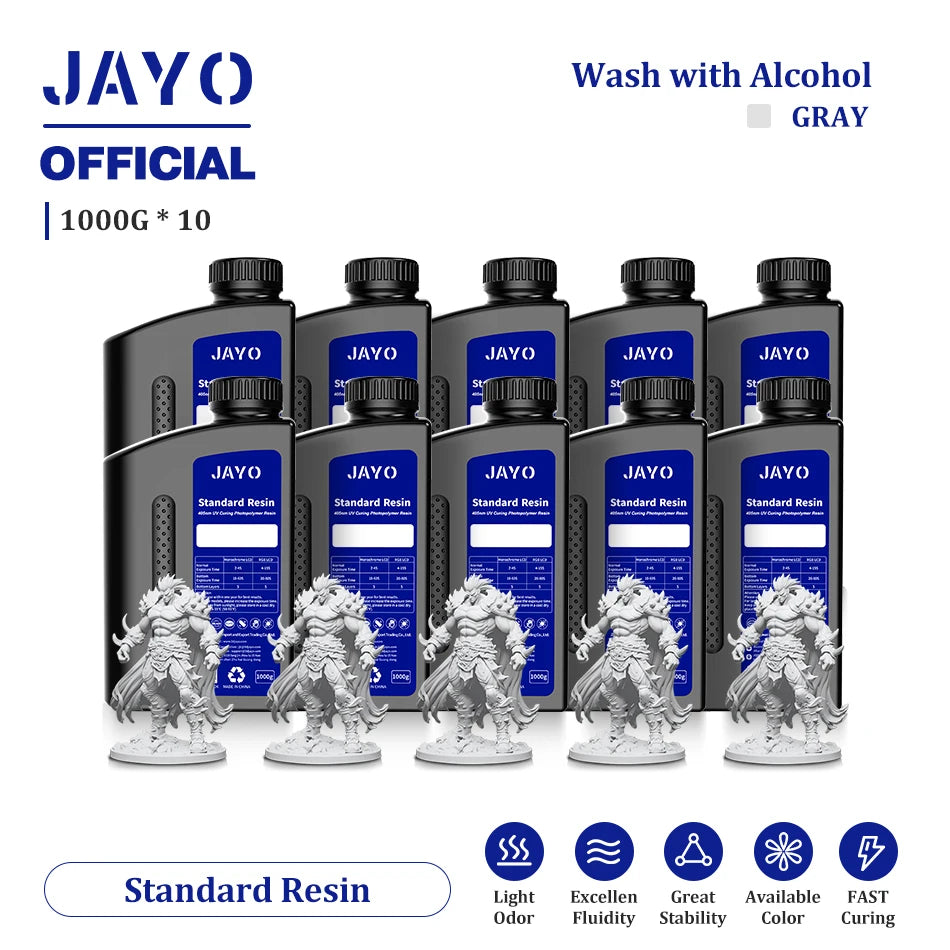

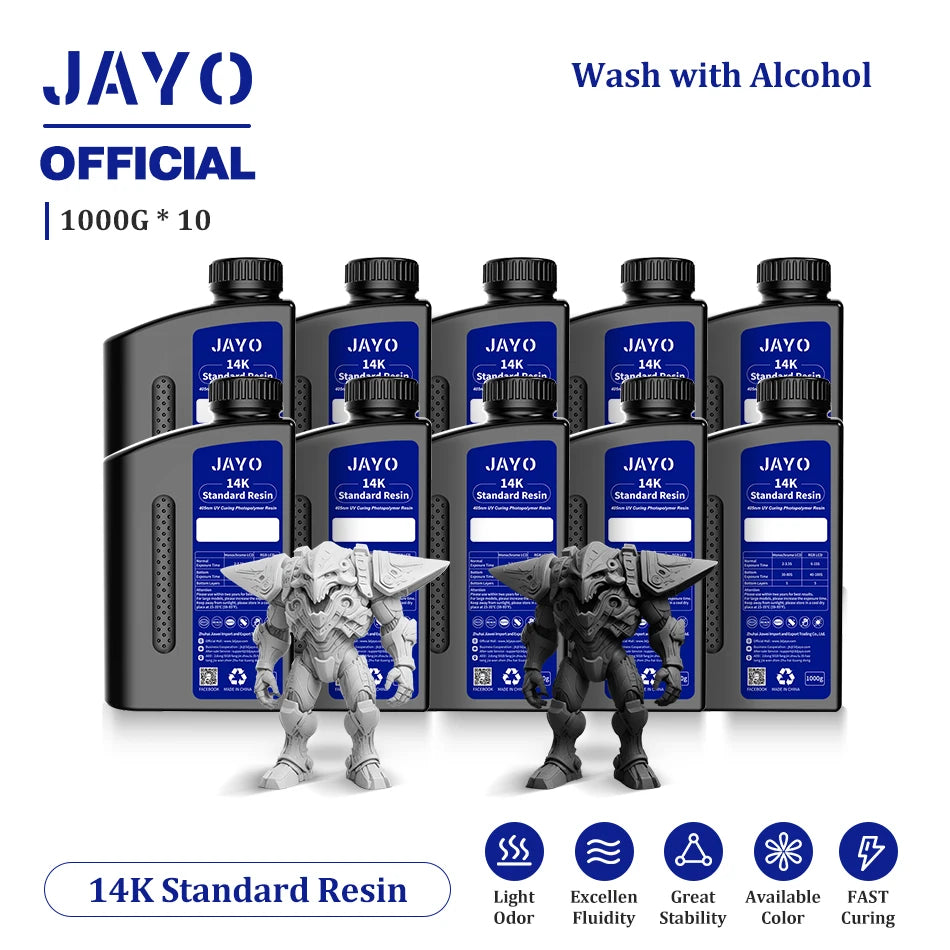

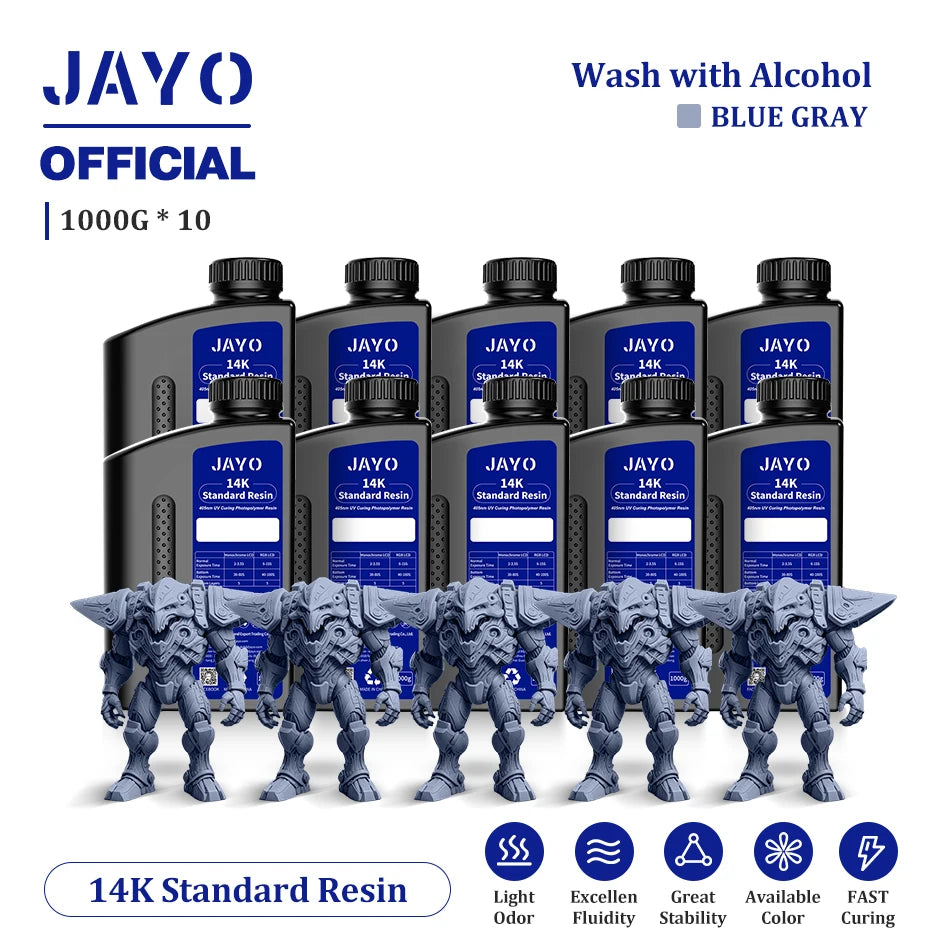

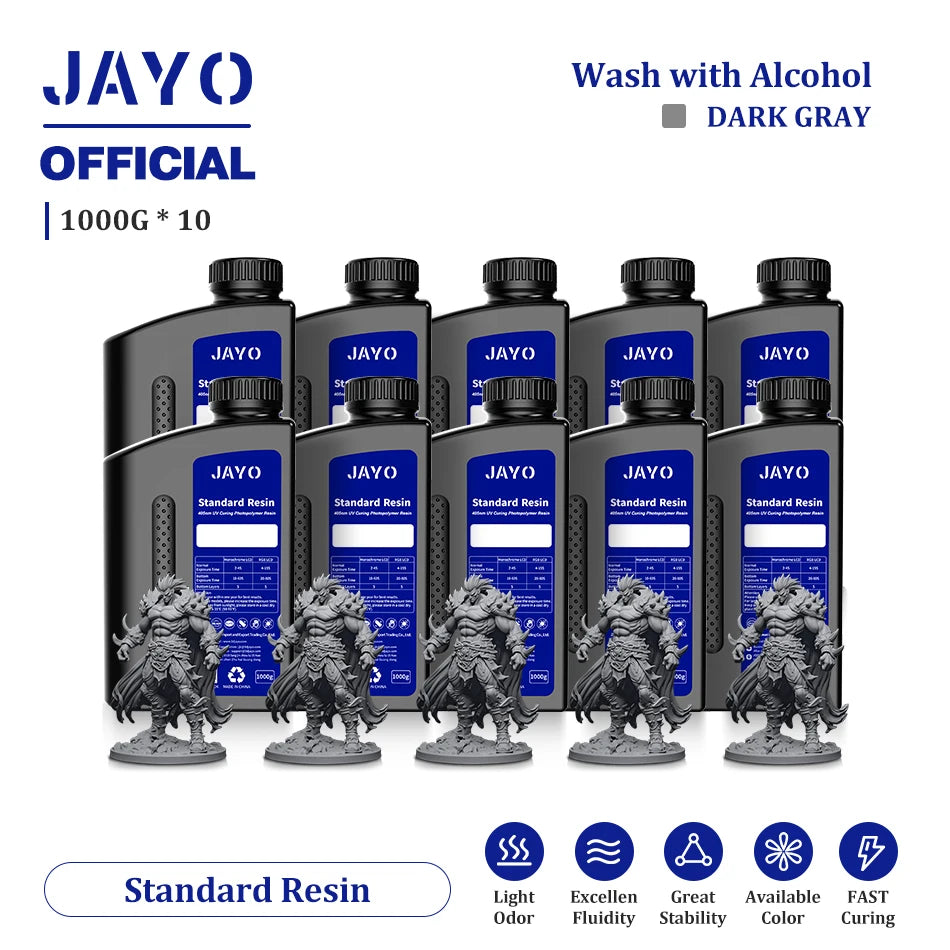

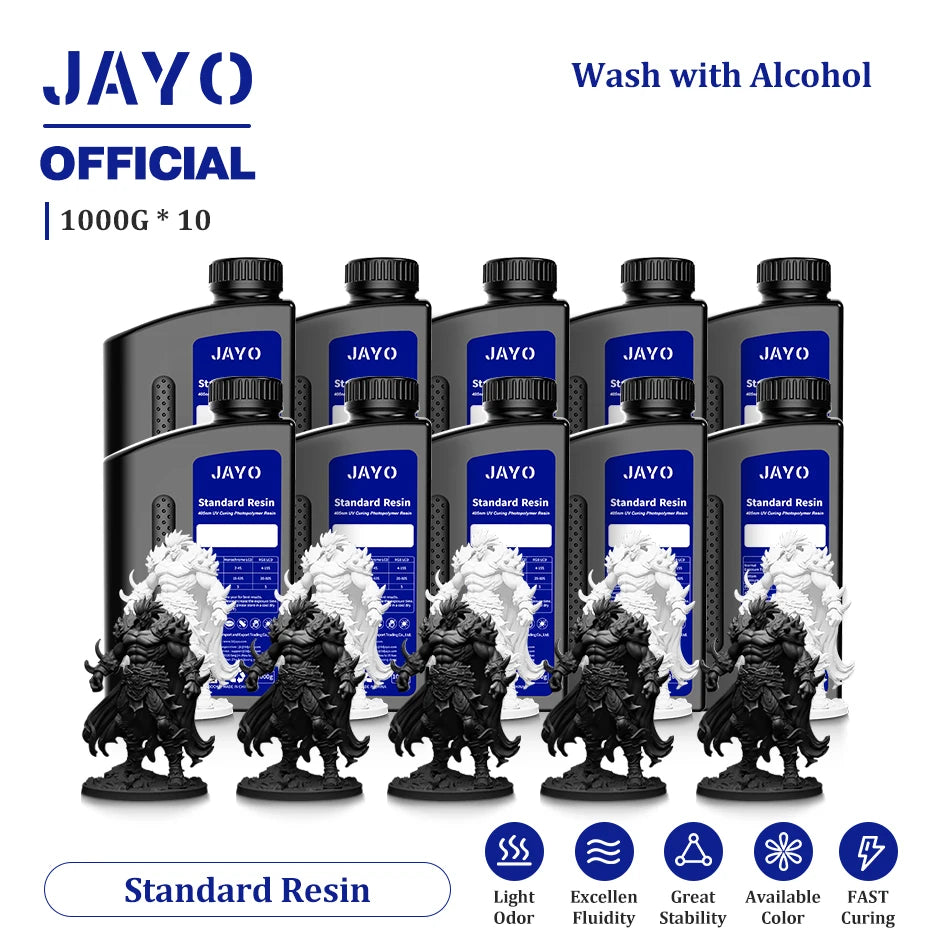

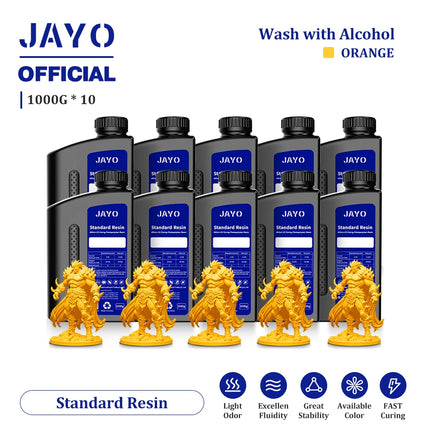

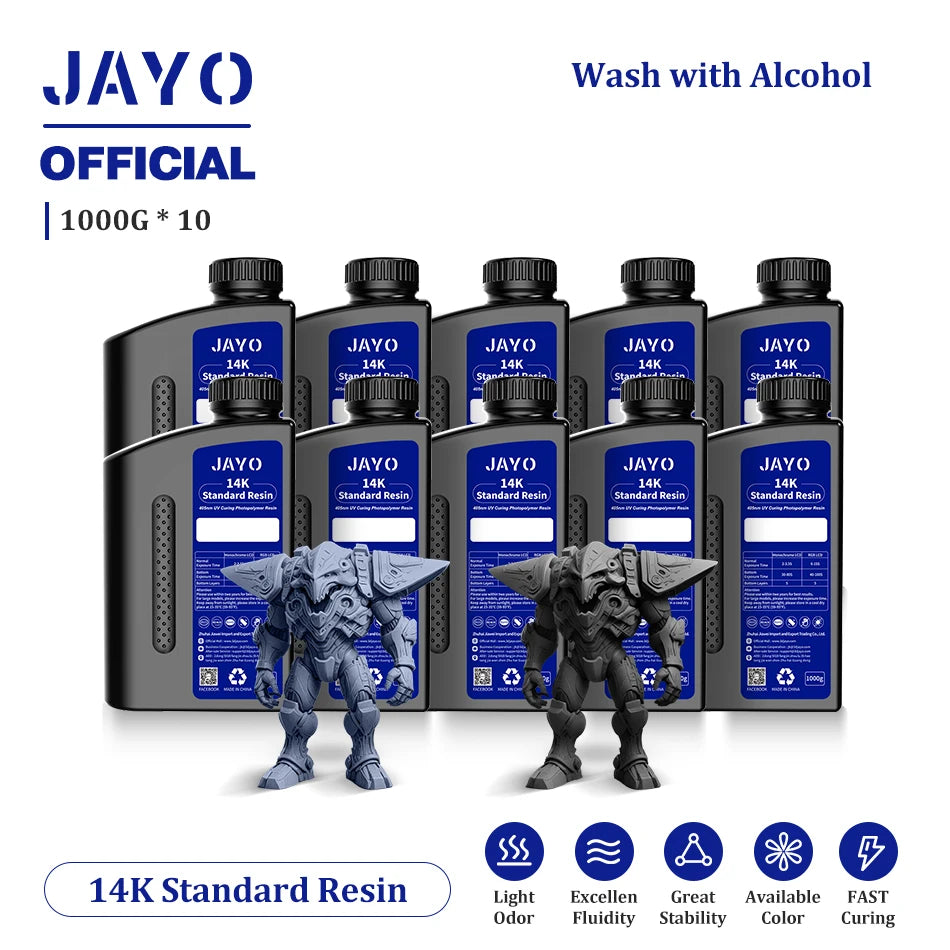

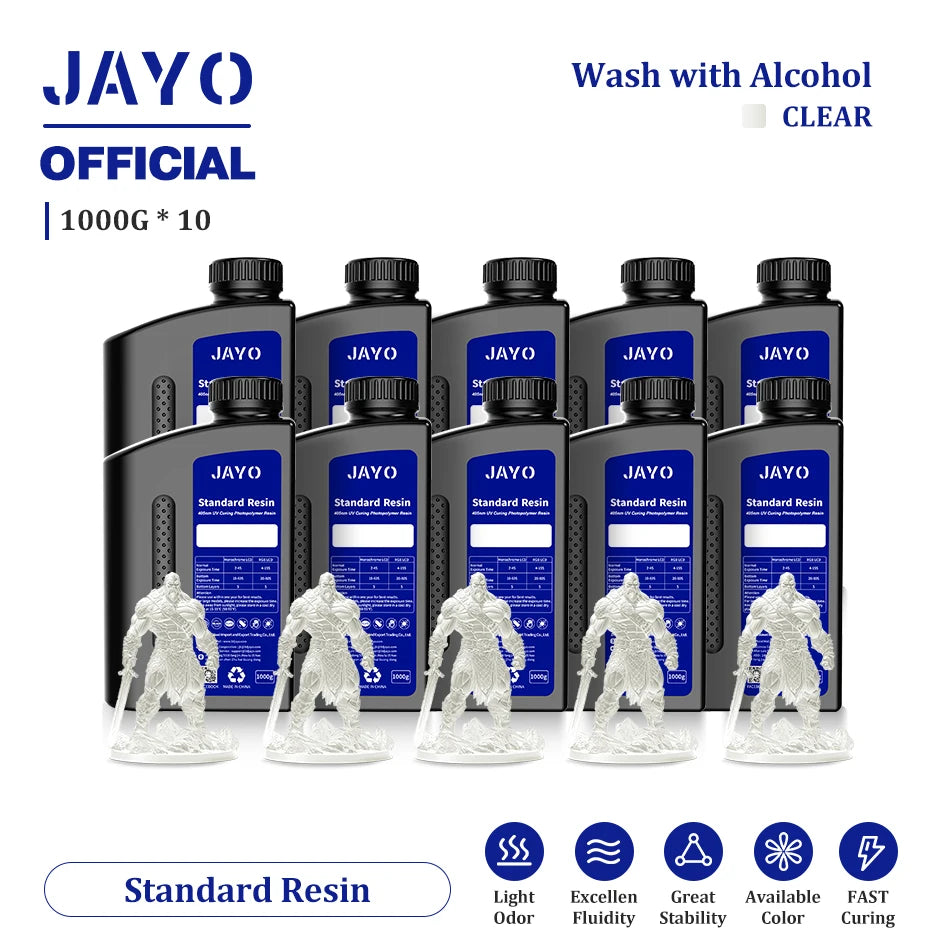

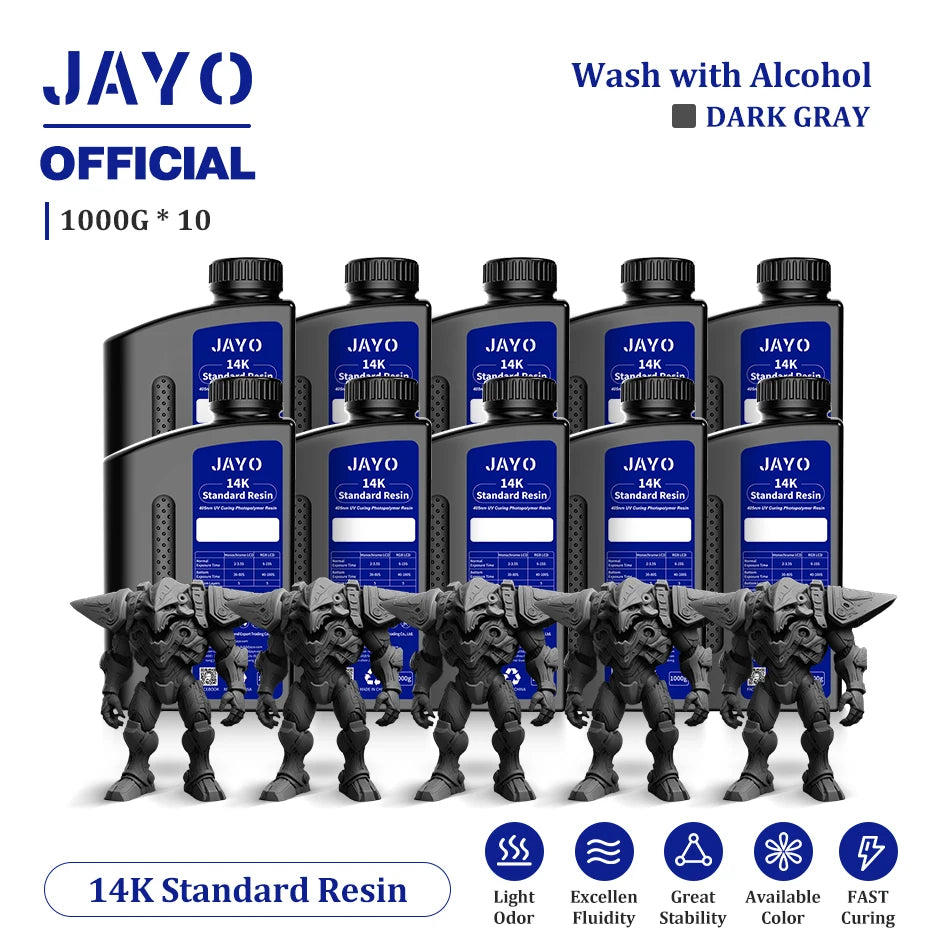

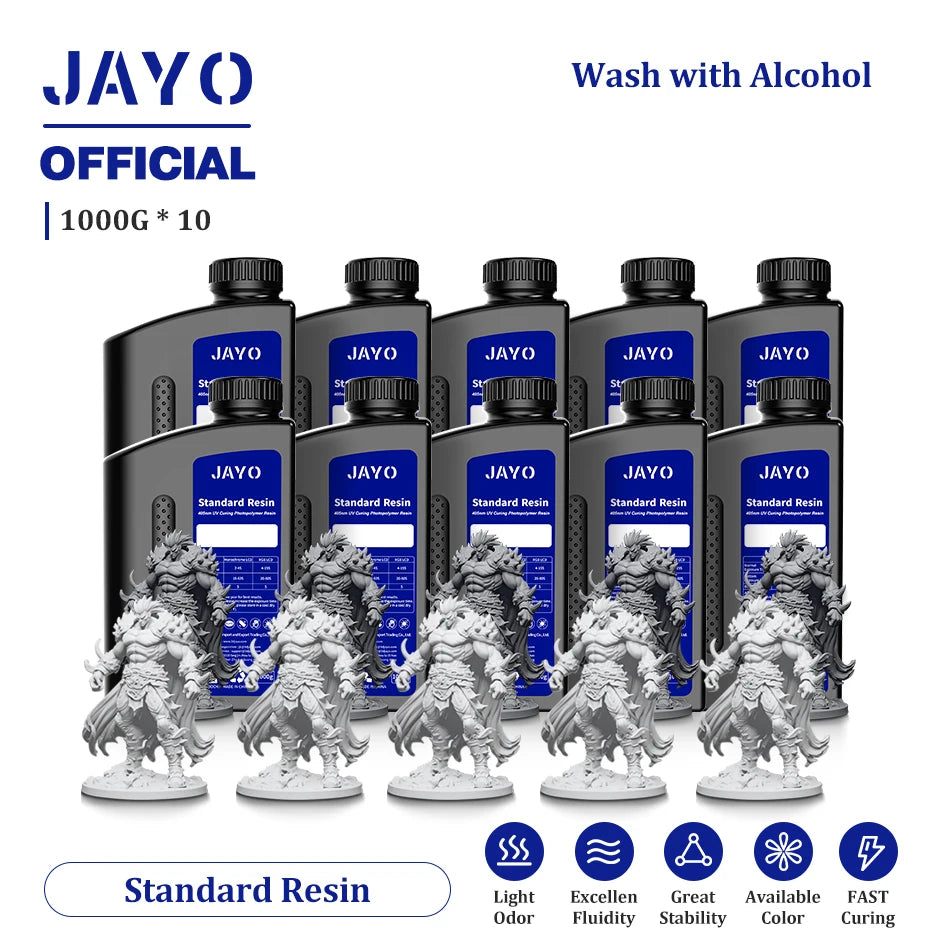

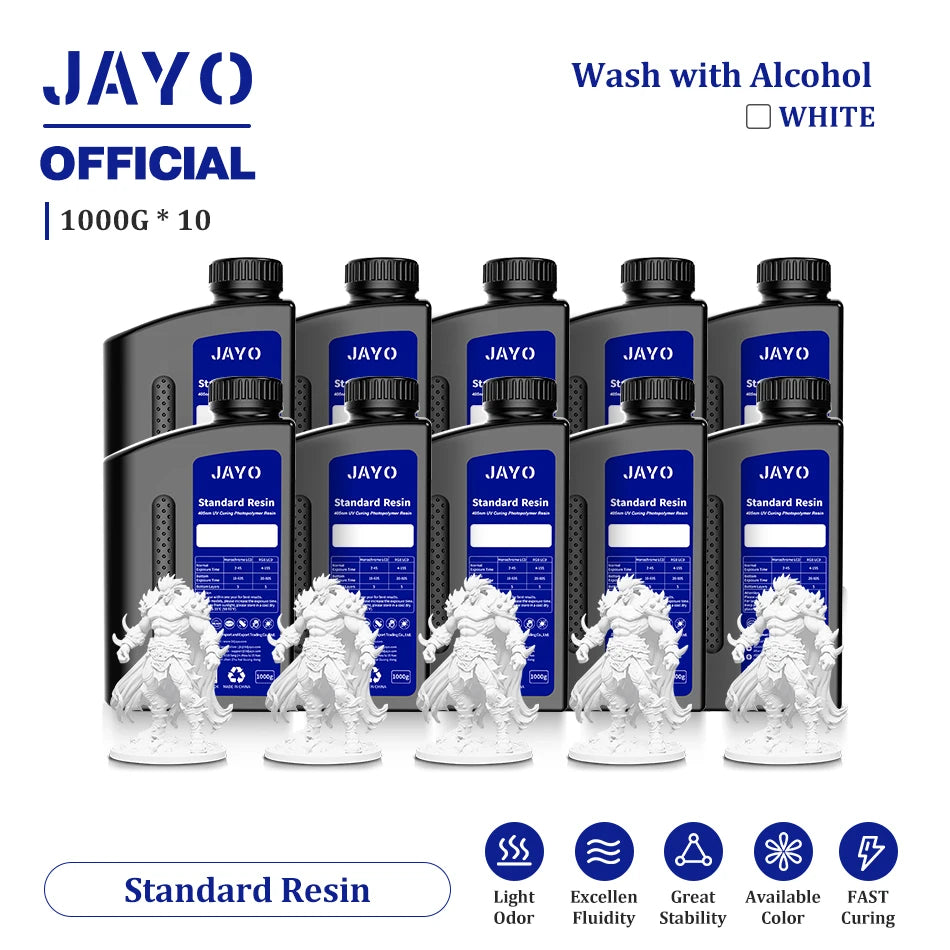

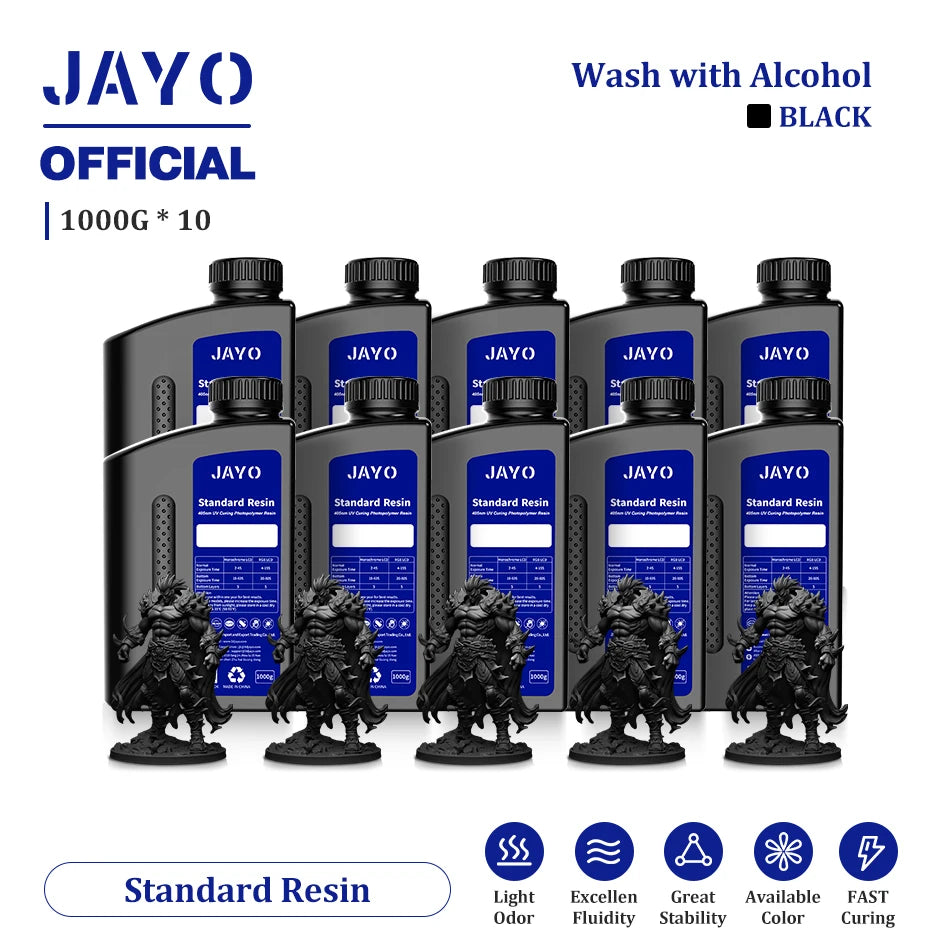

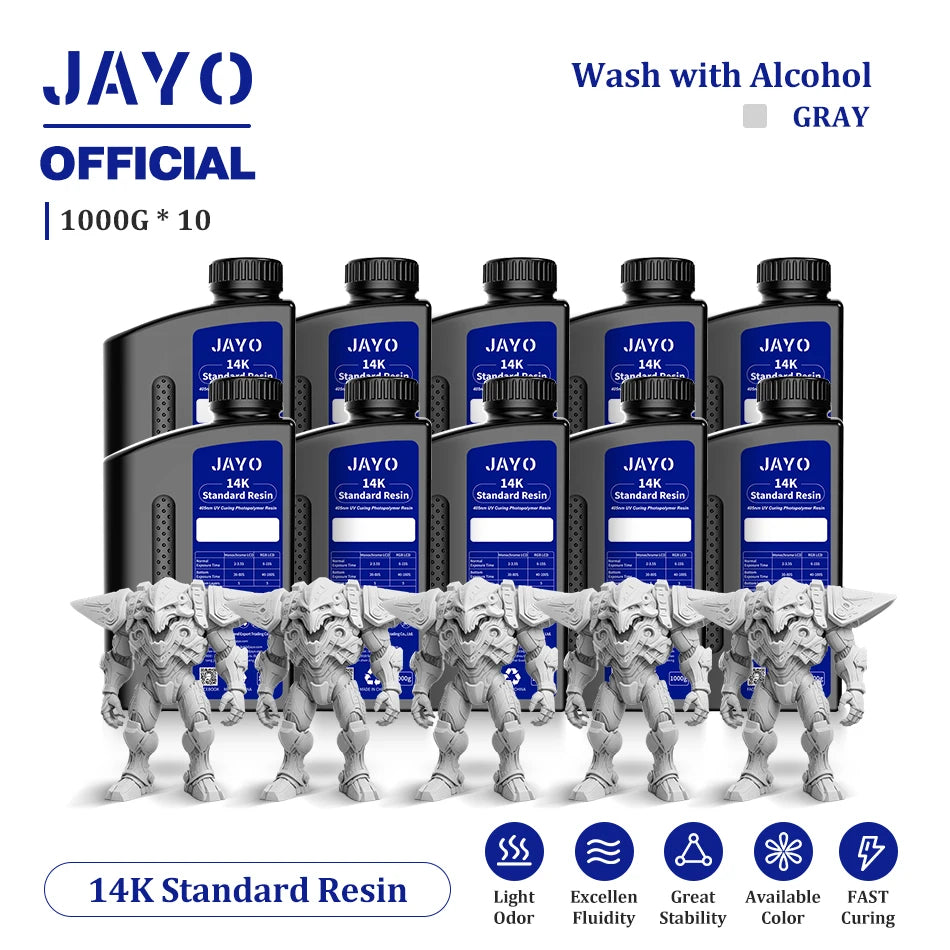

JAYO Standard 3D Printer Resin 405nm Photopolymer UV Curing Resin Suitable for 2K 4K 6K 8K Curing Printers High Precision Sensitive Resin Liquid Material for LCD 3D Printing 1000g

1:Standard 3D Printer Resin Features：

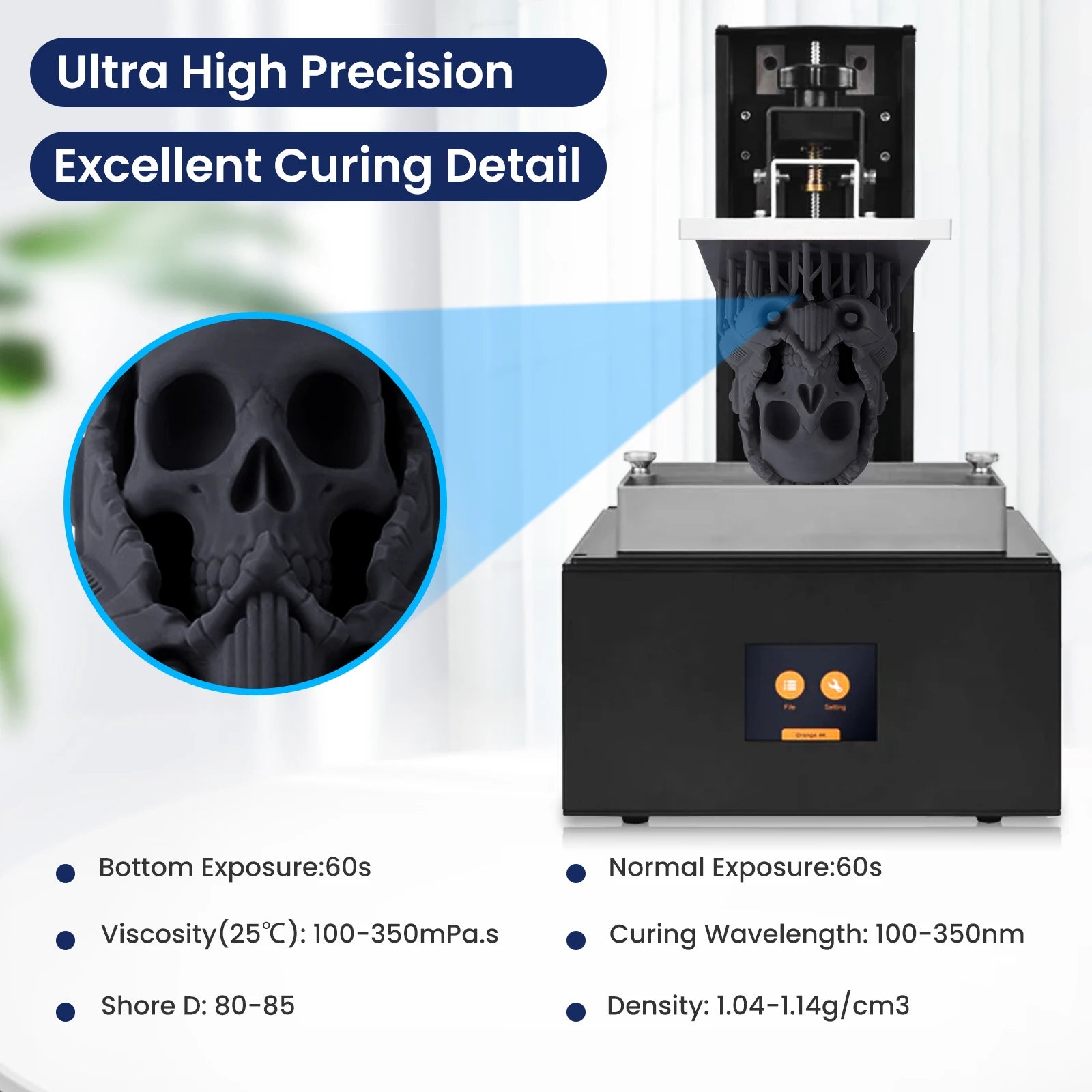

【Quick Curing and High Precision】 The JAYO 3D Printer Resin has outstanding fluidity and high precision. Fast curing saves you printing time and the high precision makes smoothness of the printed model.

【Low Odor and Stunning Colors】 JAYO resin uses High-quality materials and there is no VOC or irritating gas of it. The resin contains high quality pigments and photo-initiators, the models printed with resins have a pure and stunning colors.

【Wide Applications and Easy to Clean】 JAYO 405nm UV-Curing Resin is designed for LCD 3D printing. It also compatible for DLP/SLA 3D printing and other resin printers. JAYO resin can be cleaned with ethanol, which is easy to clean and the surface of model can be smoother.

【Good Fluidity, Stability & Toughness】JAYO Standard UV Resin has good fluidity and fast penetration, which improves the printing speed and shortens the curing time. After curing, it shows good stability in a humid and corrosive environment. The UV Resin has good Toughness, strong adhesion to the model, and easy separation after molding.

【Storage Instructions】 It is recommended to store the resin in closed opaque bottle to avoid exposing it to air and dust-free place at 15°C-35°C. Keep it sealed to avoid dust or moisture, which will affect the print quality. Do not leave the resin in the trough for a long time without use. Resin contamination affects printing results.

【Secure Packaging】 JAYO Standard Resin is packed in Leak-Proof Bottle and protected by secure package with Air Column Bag and Cowhide Box. It can ensure the safety of transportation and storage. Don't worry for leakage.

Standard Photosensitive Resin Parameter:

1．Material: Standard Photosensitive Resin
2．Form: Liquid
3．Net Weight: 1000g/bottle
4．UV curing wavelength: 405nm

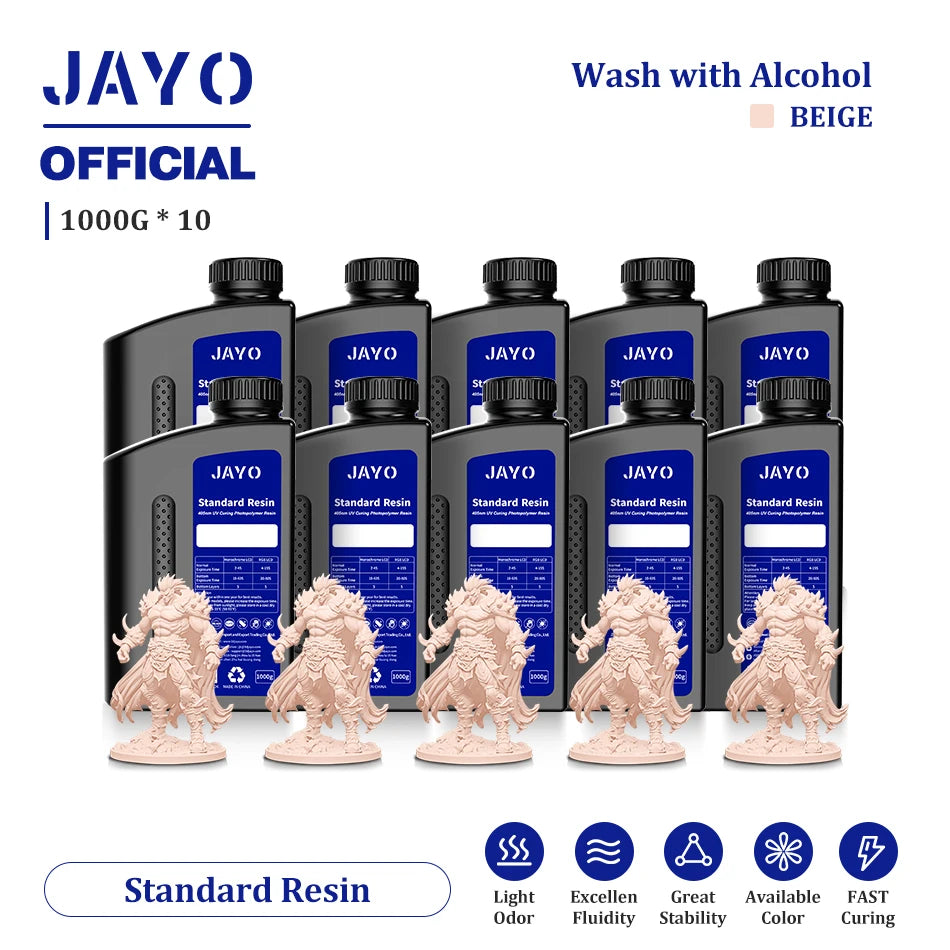

5．Color: black, white, gray,transparent,beige
6．Bottom Exposure: 50s
7．Temps: 25-40℃
8．Normal Exposure: 8s
9. Surface hardness (Shore D): 80-85
10. Body contraction (%): 7%-9%
11. Tensile strength (MPa): 20MPa-40MPa
12. Elongation at break (%): 5%-15%
13. Bending strength (Mpa): 25Mpa-45Mpa
14. Flexural modulus (Mpa): 650Mpa-900Mpa
15. Bottom exposure time (s): 20-80 for color screen machine, 10-60 for black and white machine
16. Bottoms: 3-5
17. Normal layer exposure time (s): 4-15 for color screen machine, 1.5-4 for black and white machine
18. Lifting distance (mm): 6-10mm
19. Lifting speed (mm/s): 1-2mm/s)

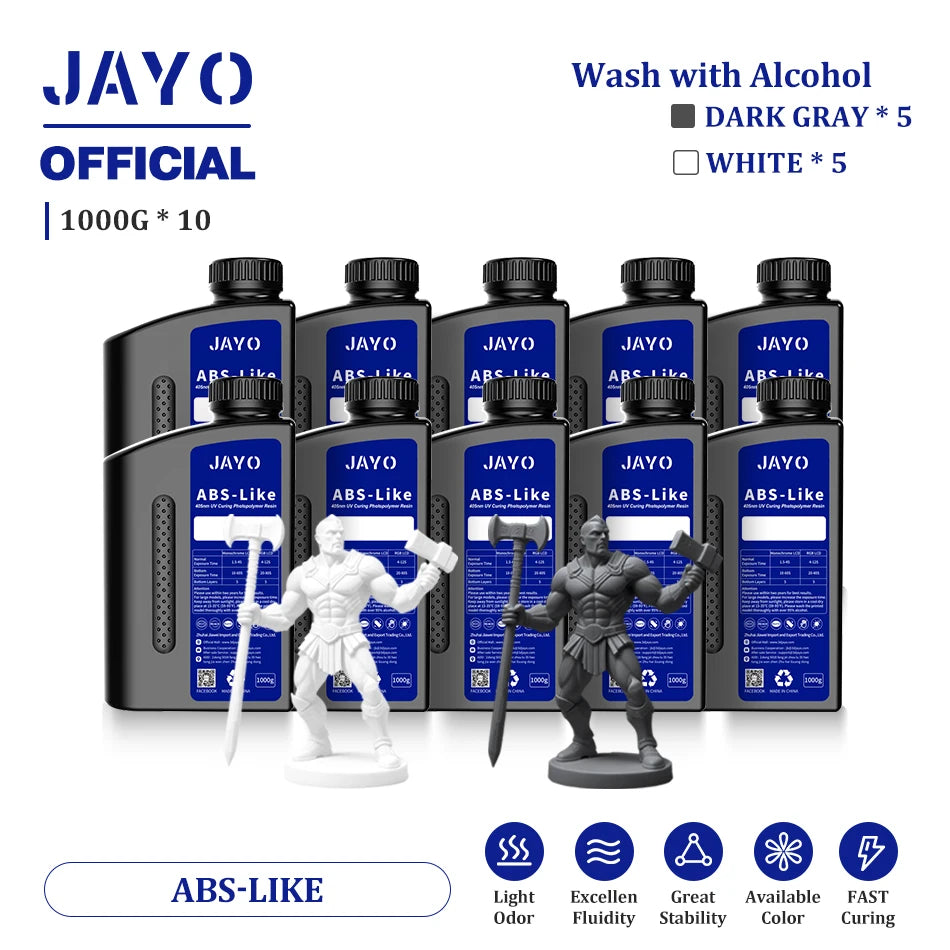

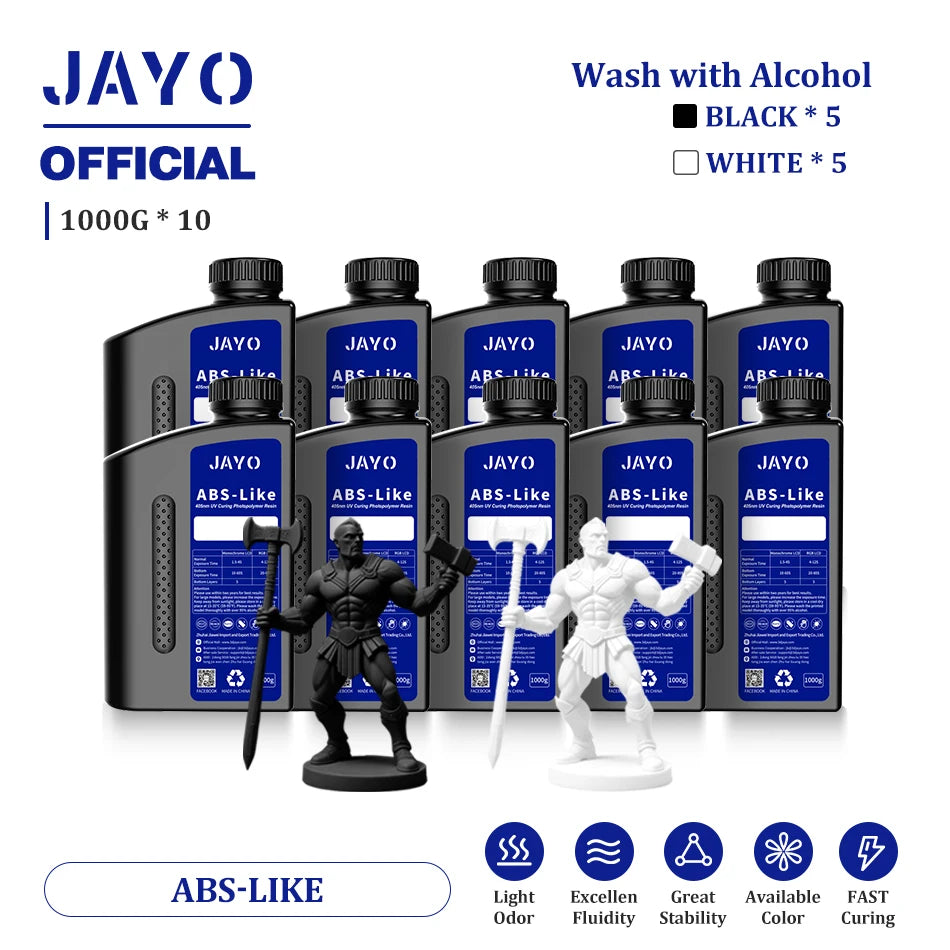

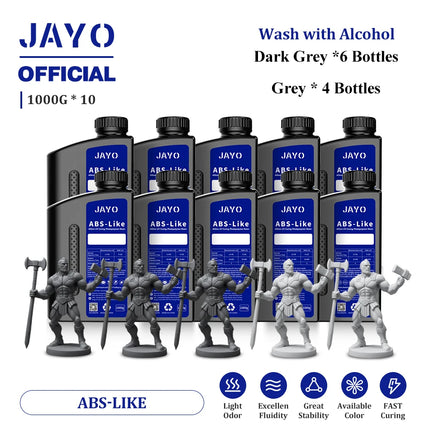

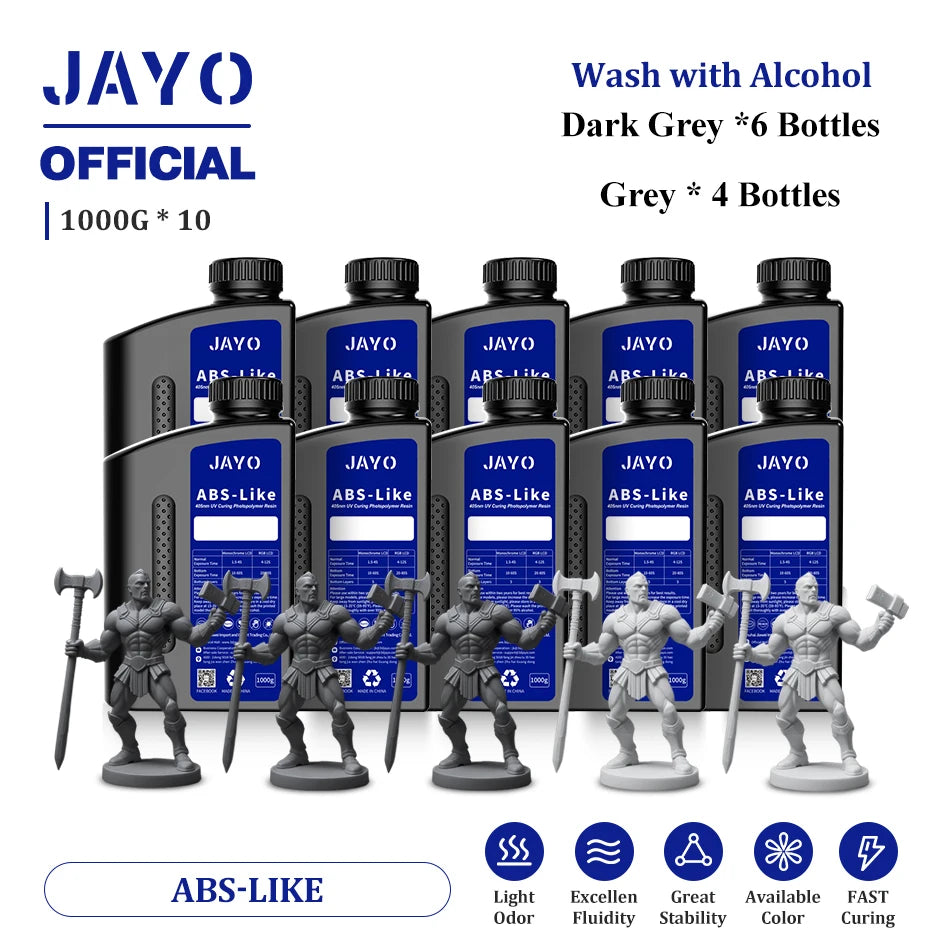

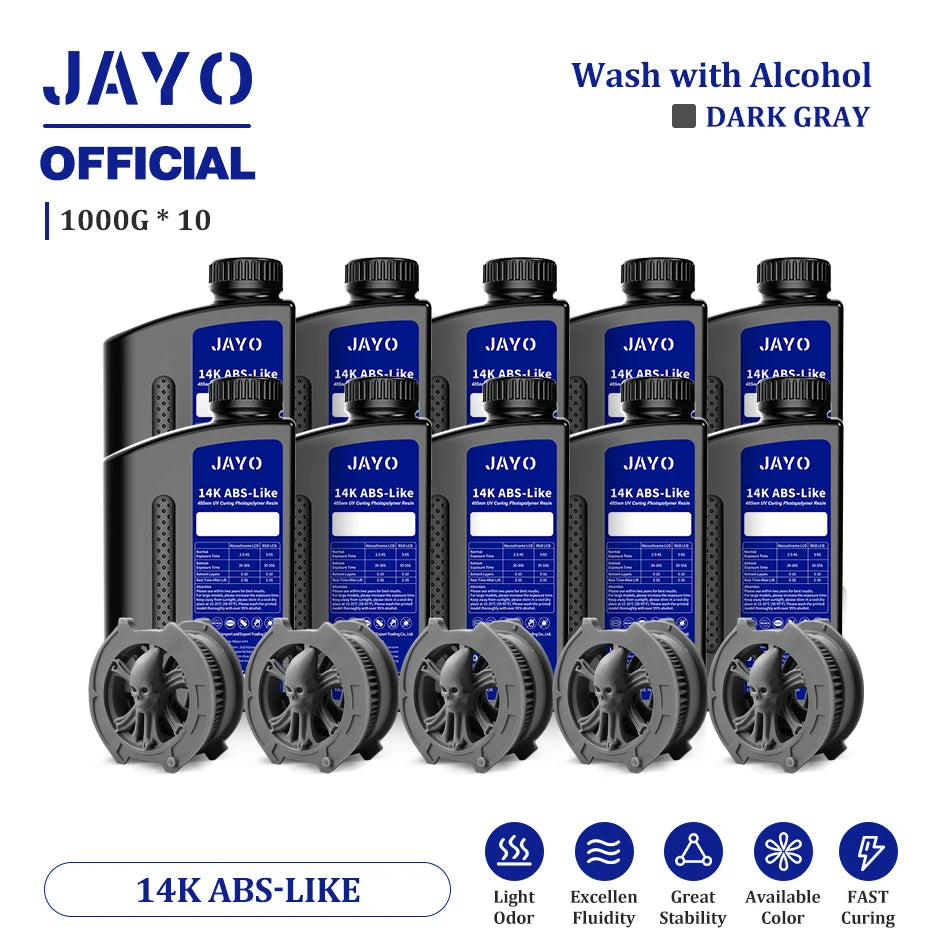

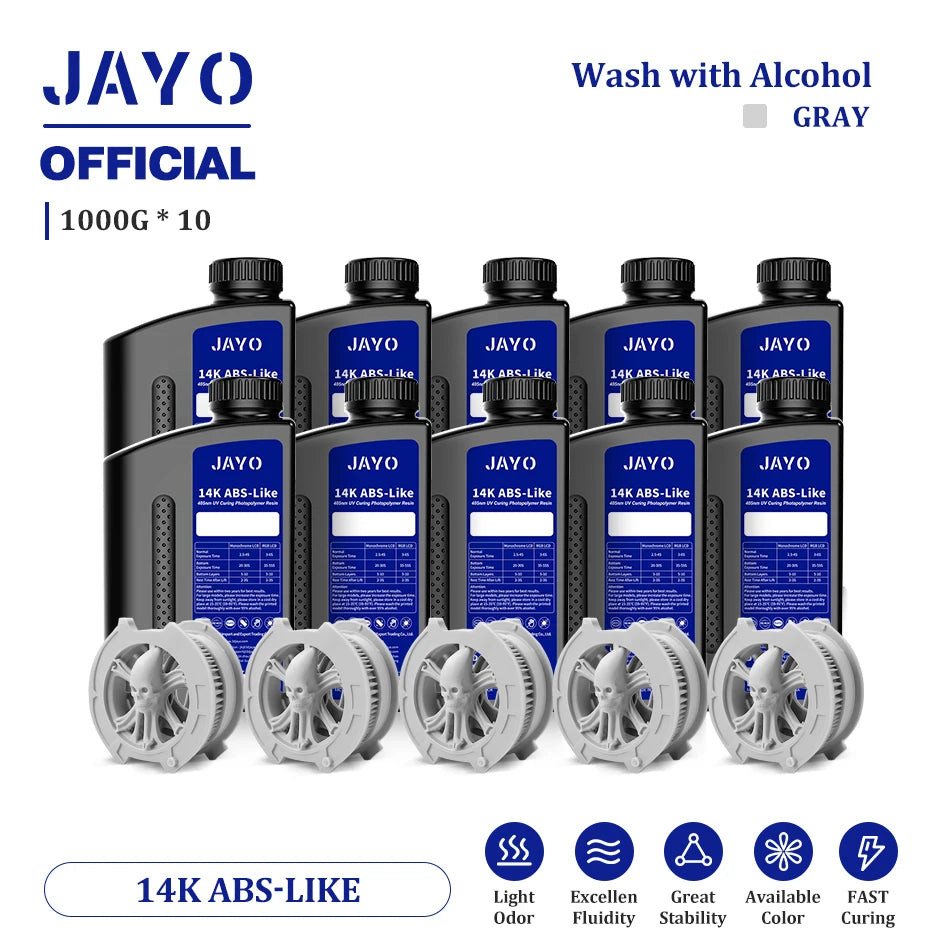

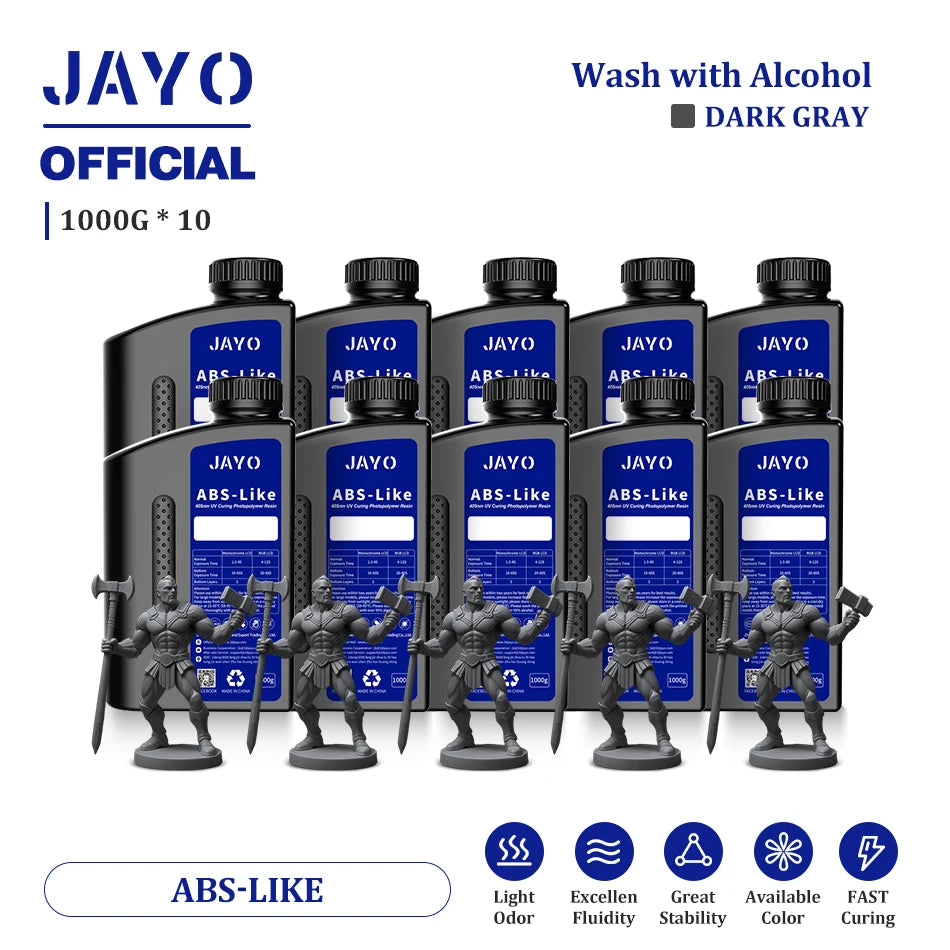

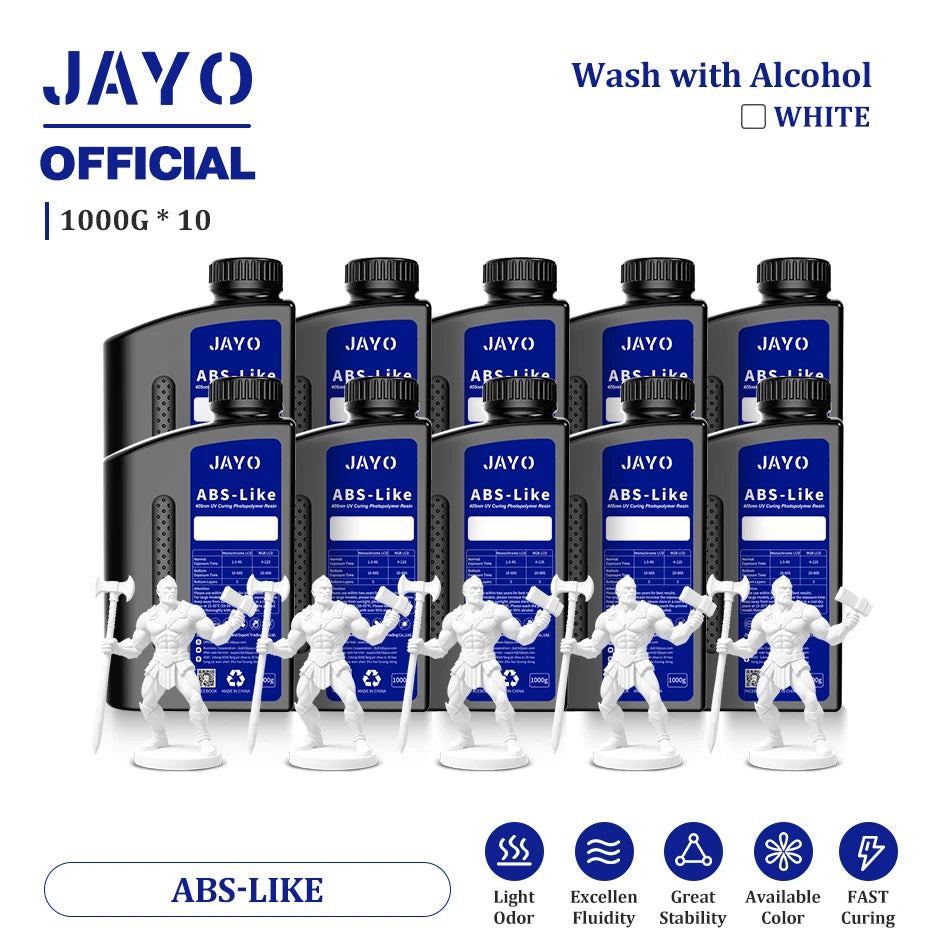

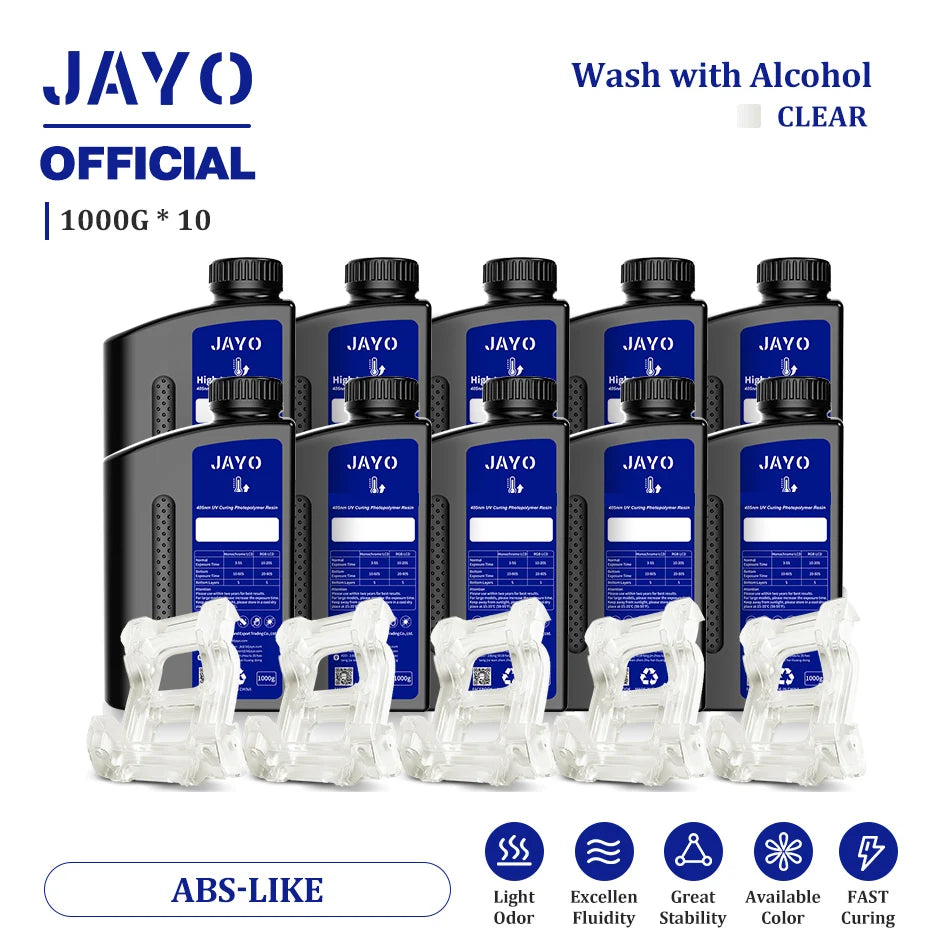

JAYO ABS-Like 3D Printer Resin Drillable 405nm Rapid UV-Curing Photopolymer Resin with High Hardness and Toughness Low Odor and Low Shrinkage Suitable for 2K 4K 6K 8K LCD 3D Printers

2:ABS-Like 3D Printer Resin Features：

【Great Fluidity and Fast Curing】JAYO ABS-Like Resin has great fluidity to fast curing, which will help you save time and finish your printing work efficiently. It brings you satisfying printing experience.

【High Hardness】JAYO ABS-Like 3D Printer Resin has the feature of ABS which is high toughness and hardness. Printing models from this ABS-Like Resin can be drilled, which can be used to produce some sturdy and impact-resistant parts.

【High Precision】There is low shrinkage of our JAYO ABS-Like Resin, which brings high printing precision and smooth surface. You can use it to print beautiful models that have clear details.

【Quality Materials, Bright Colors】Materials that JAYO Resin used are high-quality pigments and photoinitiators, so printing model from our resin will show pure and stunning color effect, which just likes an artwork.

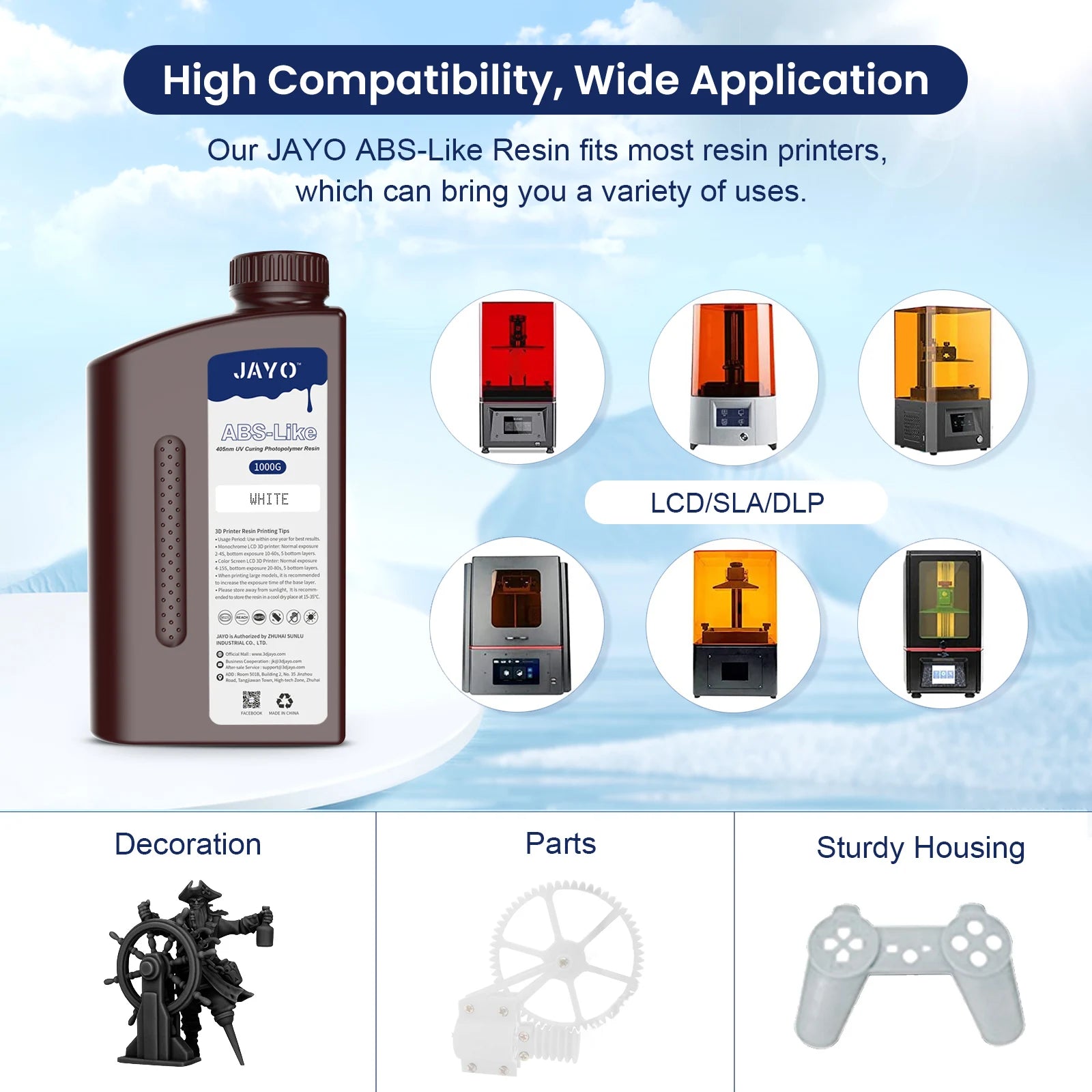

【Wide Application】JAYO ABS-Like 3D Printer Resin is designed for LCD 3D Printer, but it can also be used to SLA, DLP 3D printing. As resin with high hardness, it can not only print equisite decorations for you home, but also make some wear-resistant industrial parts, which is useful widely.

Like-ABS Resin Parameter:

1．Material: ABS-like Photosensitive Resin
3．Net Weight: 1000g/bottle
4．Gross weight: 1.3KG/bottle
5．Color: black, white, light gray,beige,deep gray
6.Wavelength: 395nm-405nm
7.Viscosity(mPa.s,25℃): 200-400
8.Density (g/cm3): 1.04-1.14
9.Volume shrinkage(%): 6-8
10.Hardness (D): 70-80d
11.Tensile strength (Mpa) : 20-35
12.Tensile modulus Mpa) : 600-800
13.Elongation at break (%): 15-25
14. Lifting distance (mm): 6-10
15. Lifting speed (mm/min): 60-90
16. Lifting speed (mm/min): 120-180

JAYO 3D Printer Resin, Strong Durable Nylon Like 3D Resin for LCD DLP SLA Resin 3D Printers, 395-405nm UV Light Curing 3D Printing Liquid Photopolymer Resin, Good for Functional Parts, 1000g, Black

5. Nylon Like 3D Resin Parameter & Features ：

JAYO Nylon Like 3D Resin Parameter:

1:Surface Hardness (Shore D):70-80
2:Body Contraction （%）:6%-8%
3:Tensile strength （MPa）:20-45
4:Elongation at break （%）:20-50%
5:Bending strength （Mpa）:20-50
6:Bending modulus （Mpa）:650-900
7:Bottom exposure time (s):
Color screen machine 20-80； black and white screen machine 10-60
8:Ground floor number: 3-5
9:Normal exposure time (s):
Color Screen Machine 4-12； Black and White Screen Machine 1.5-3.5
10:Lifting distance (mm):6-10
11:Lifting speed (mm/min):60-90

JAYO Nylon Like 3D Resin Features:

1. Good molding, low odor and low shrinkage;
2. The tensile, bending and toughness properties are good, and can be punched and tapped.
The molding performance is similar to that of PA, and it is applied to product models that require high hardness and high toughness, such as the production of structural part templates, and products that require better material properties

Precautions:

1. Shake well before use. It is recommended to stand upside down three times. It is forbidden to use resin in places exposed to sunlight;

2. Do not take it orally, keep it away from children, wear gloves before use, avoid direct contact with the skin, and keep the room ventilated; do not enter the eyes, in case of accidental contact, rinse with plenty of water as soon as possible.

3. The printed resin model needs to be cleaned with high-concentration alcohol (recommended above 95% concentration, the higher the better) for about 30s; after cleaning, wait for the alcohol to dry and then perform secondary curing, so that the best performance can be obtained;

4. Do not pour the used resin in the trough back into the unused resin, and do not leave the resin in the trough for a long time without use. The contamination of the resin affects the printing effect;

5. Store in the dark at room temperature. The ultraviolet rays in the sun will cure the photosensitive resin; it is recommended to store it at an ambient temperature of 15-35 °C. The lower the temperature in winter, the higher the resin viscosity;

6. Sealed storage to avoid dust or moisture, which will affect the print quality
