Description
SPECIFICATIONS
Application Scenarios: Suitable for handling small parts with flat suction surfaces, such as IC chips
Black Anti-Static Type: The anti-static type does not generate electric sparks, so it is widely used in vacuum smelting, vacuum drying, chemical engineering, pharmaceutical manufacturing, light industry, electric vacuum industry, and other fields
Brand Name: NONE

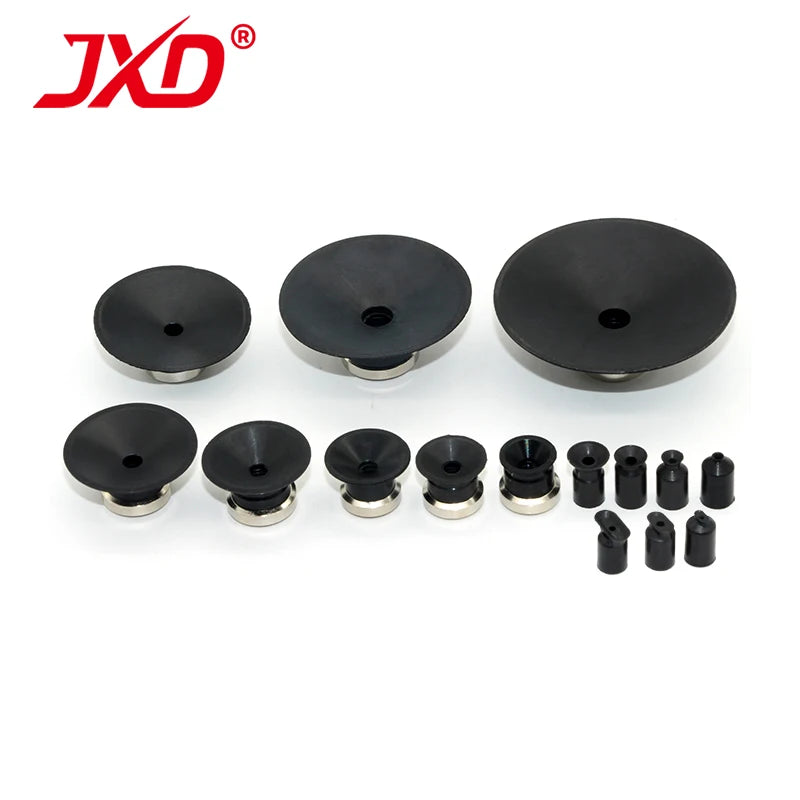

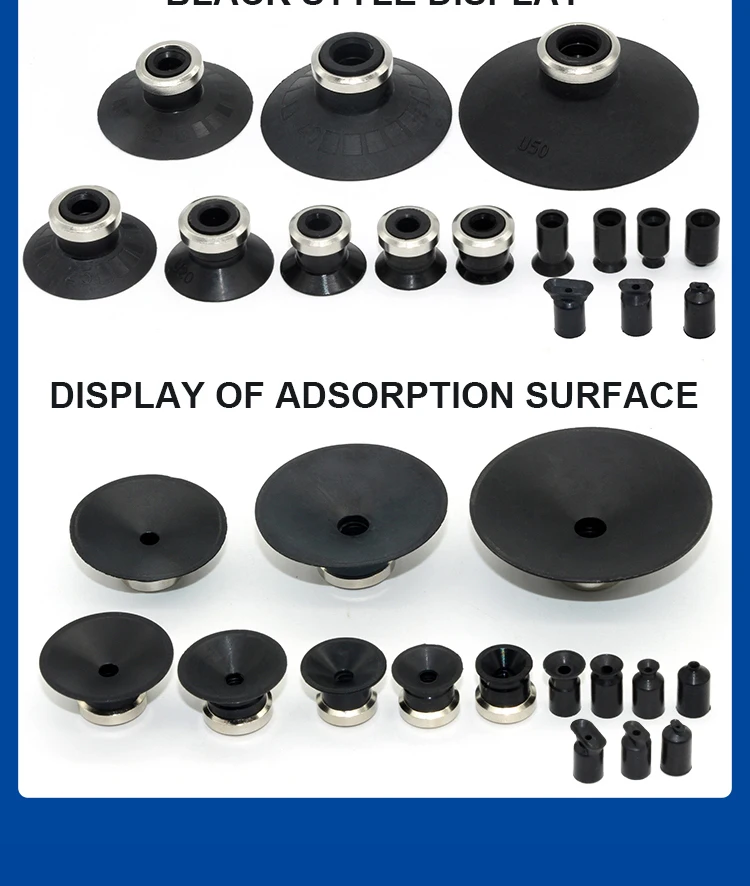

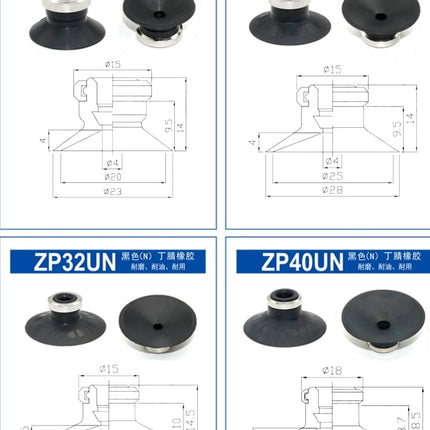

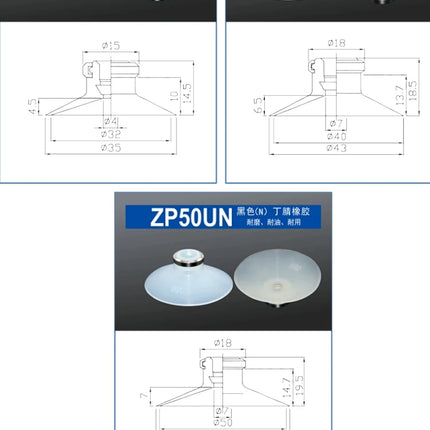

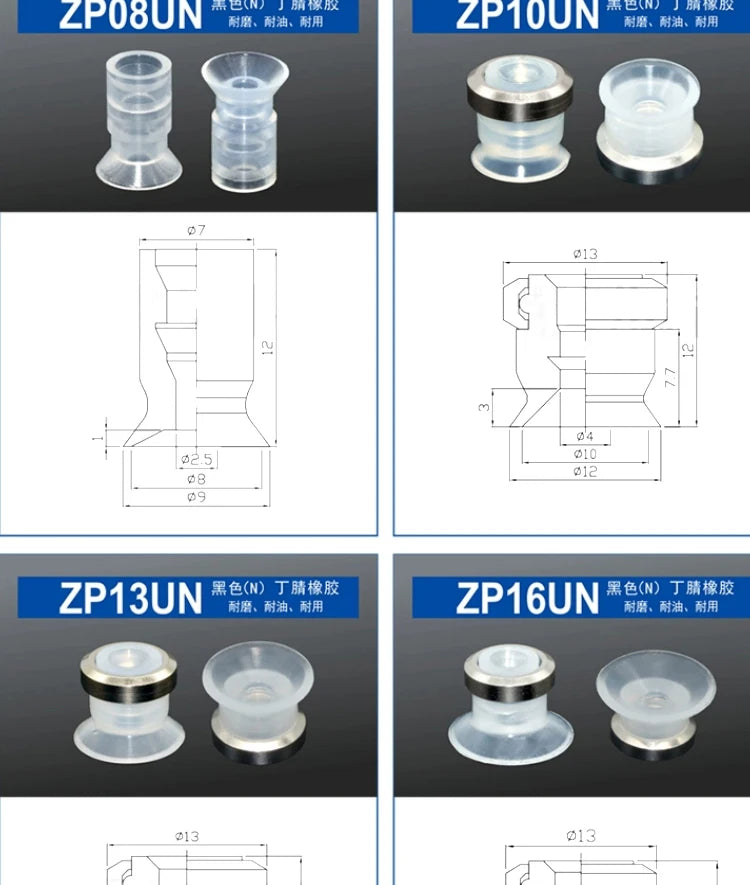

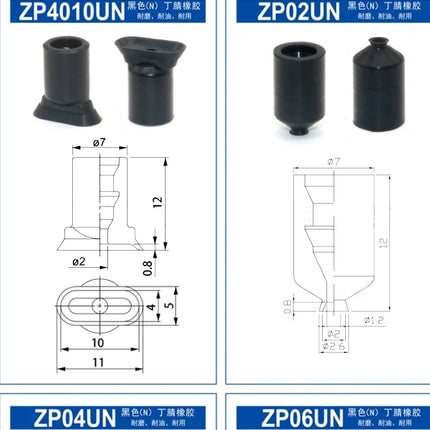

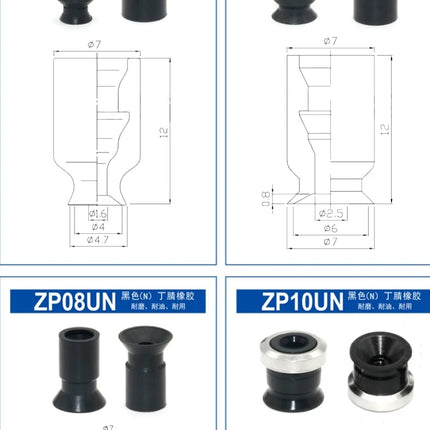

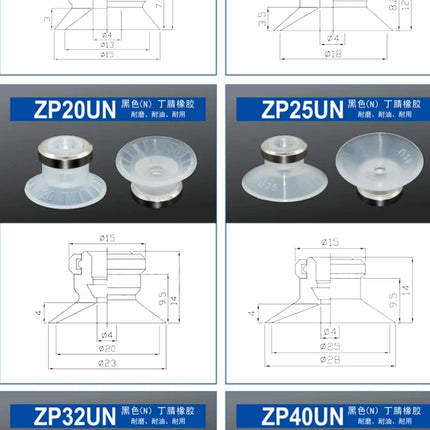

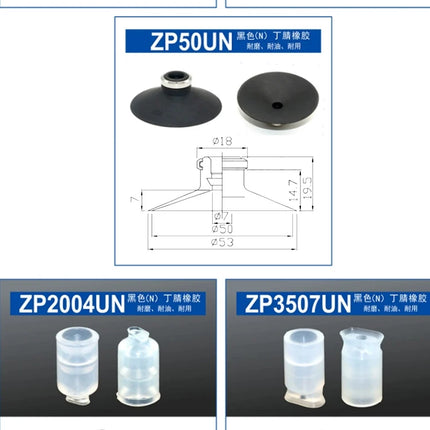

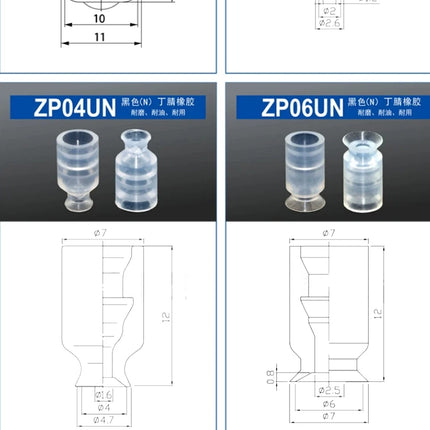

Cup Diameter: 06/08/10/10/13/16/20/25/32/40/50mm
Customization Availability: Non-standard customization is supported
Features: The suction cup is equipped with a ribbed structure at the bottom, which reduces tilting during handling and improves operational stability. The surface of the suction cup is burr-free with clear textures, and it has high tensile strength, ensuring no damage to workpieces when adsorbing accessories
High-concerned chemical: None
Imported Silicone: Silicone can withstand high and low temperatures. Owing to its stable chemical properties and non-polluting nature, it is also frequently used in the medical and food industries.

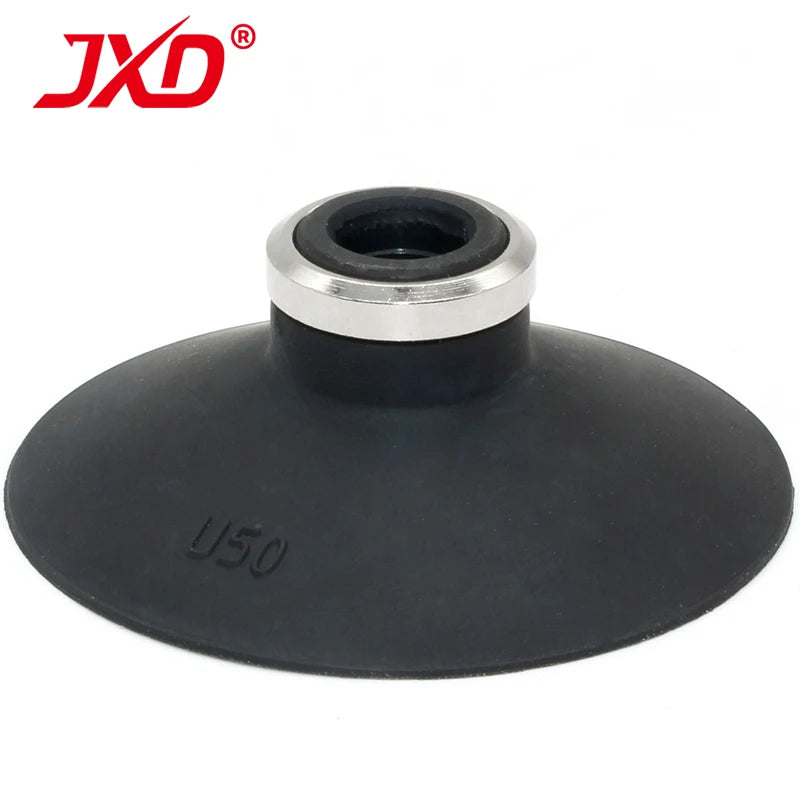

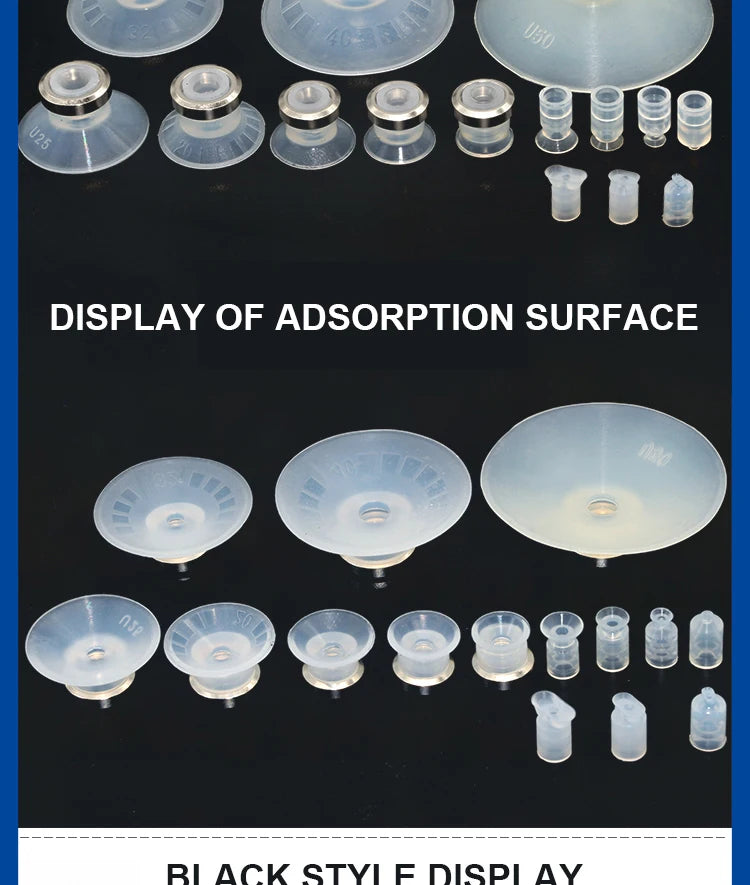

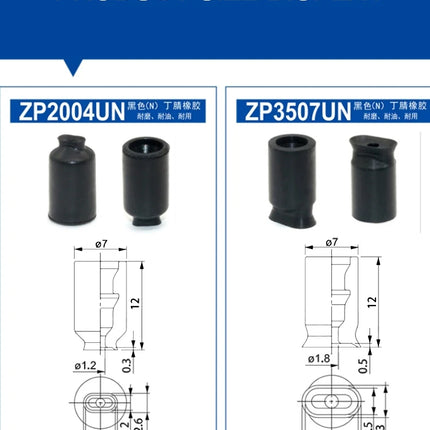

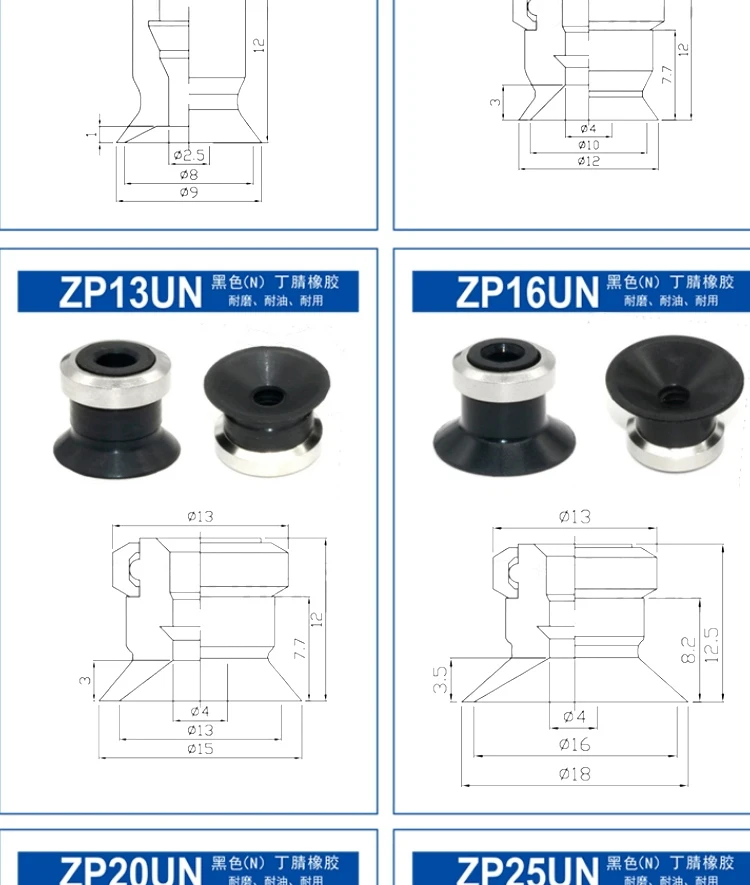

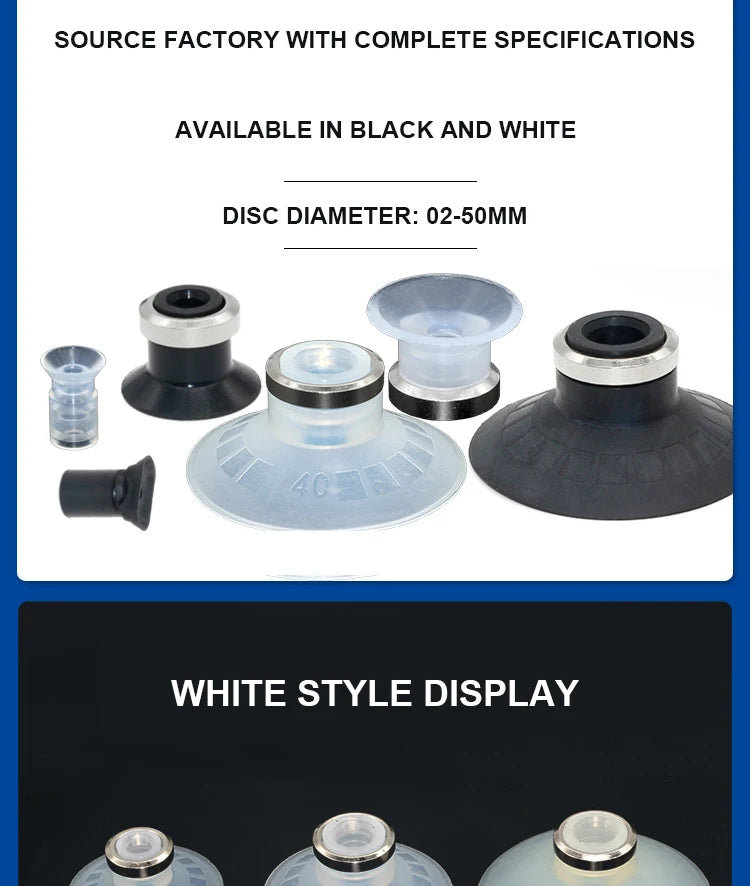

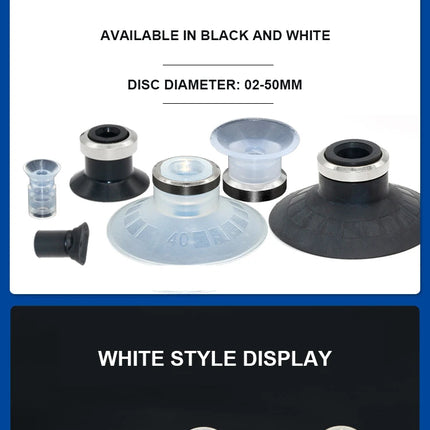

Material: Black Nitrile Rubber / White Silicone
Motivity Type: Other
Mounting Hole: 4-6mm
Nitrile Rubber: Boasts excellent oil resistance, wear resistance, durability, and anti-static properties, along with strong adhesion. It offers wide practicality, good water resistance, and is easy to process, thus being widely applied most commonly as a material for seals and suction cups.
Origin: Mainland China

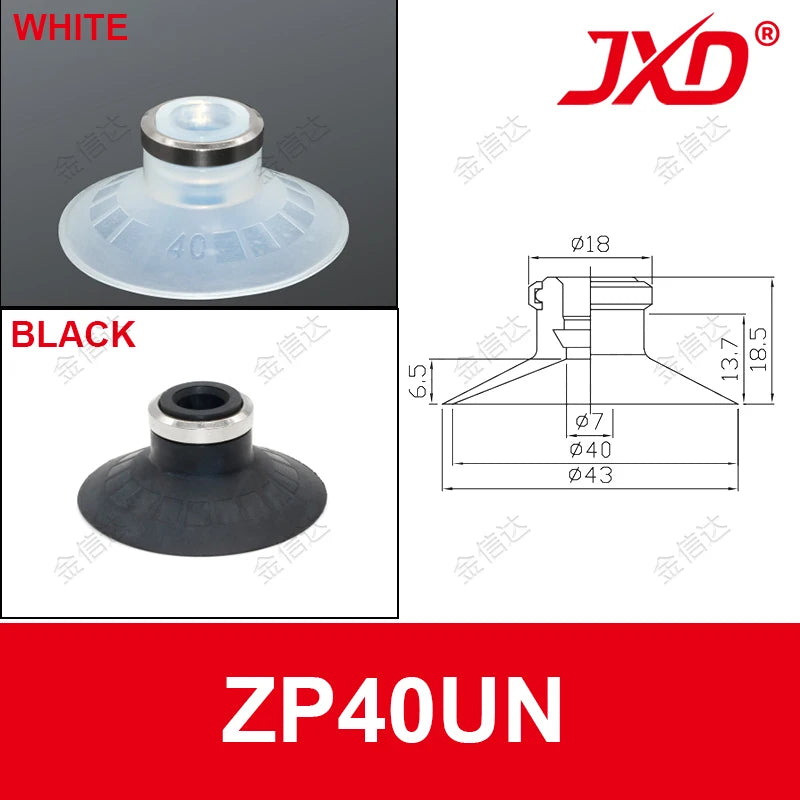

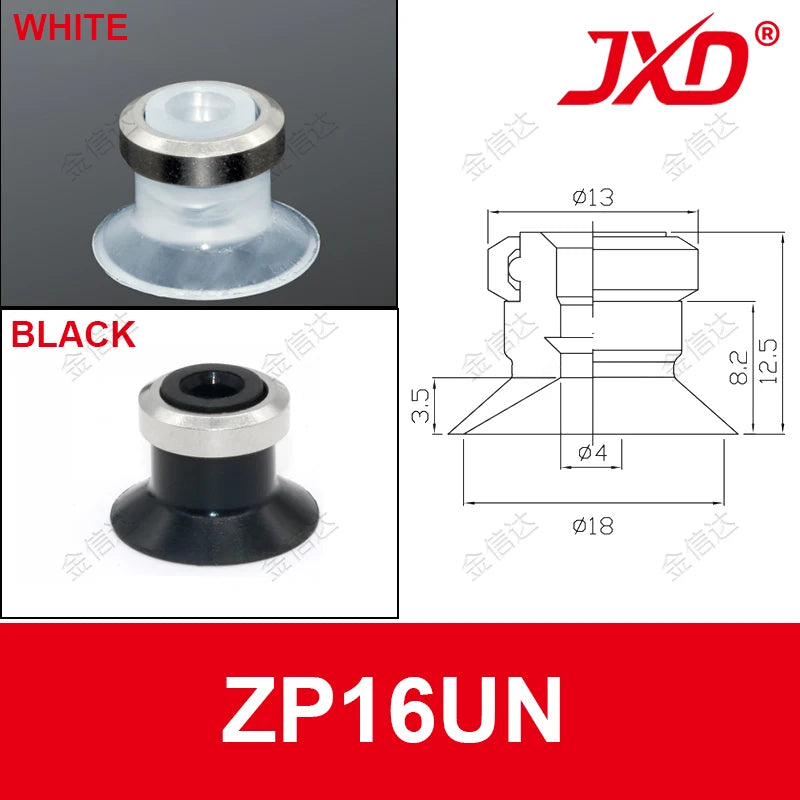

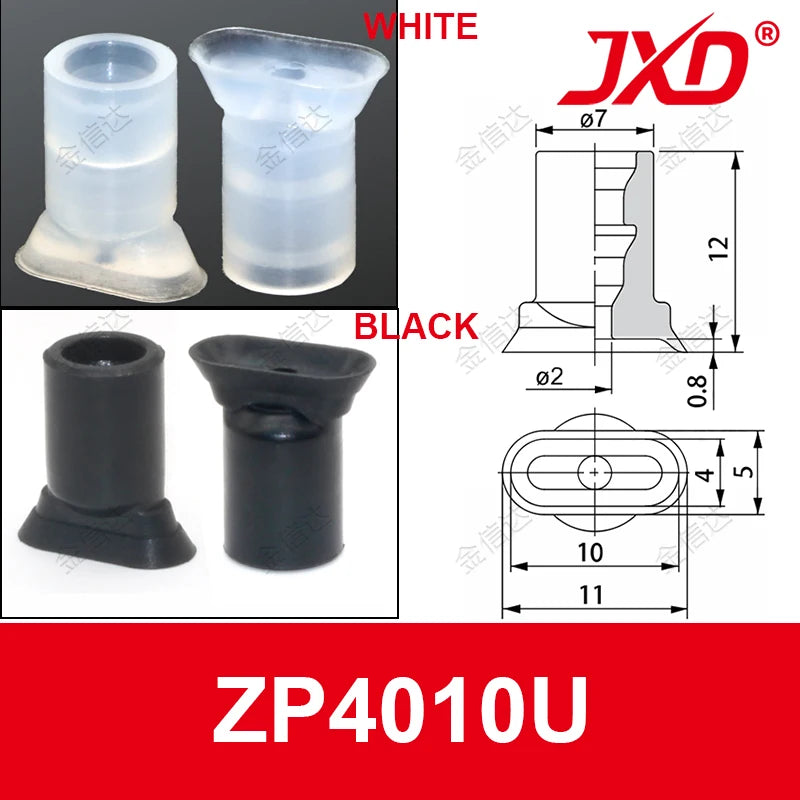

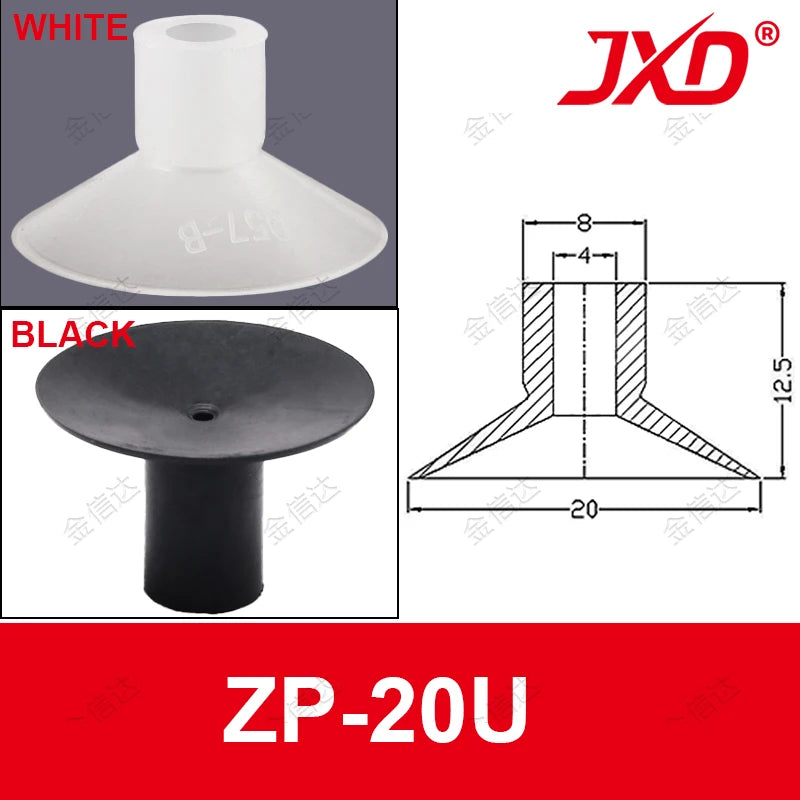

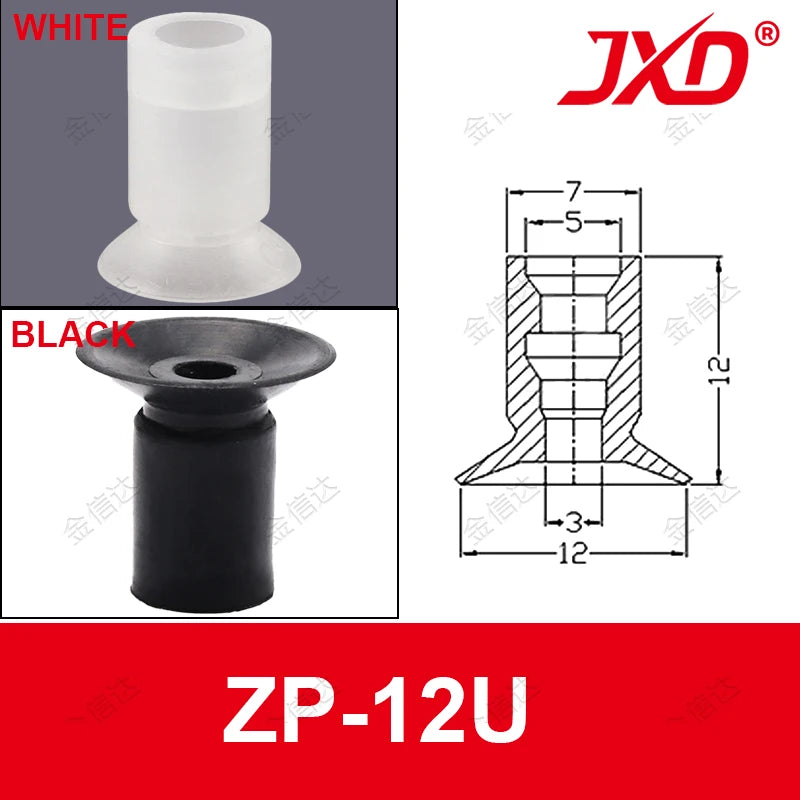

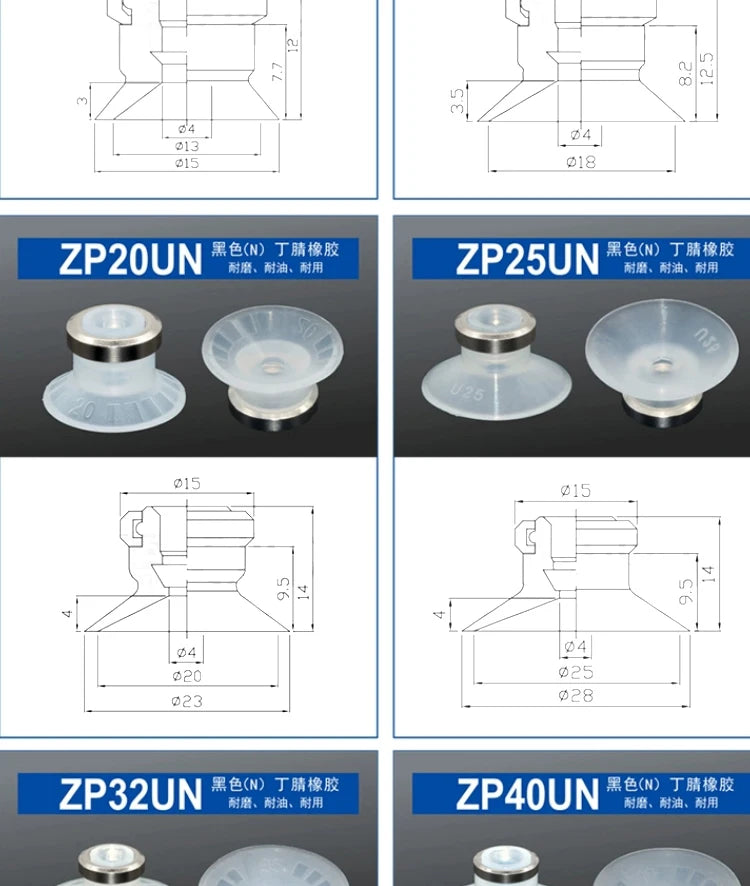

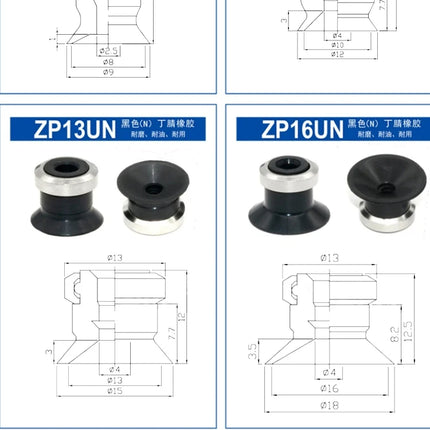

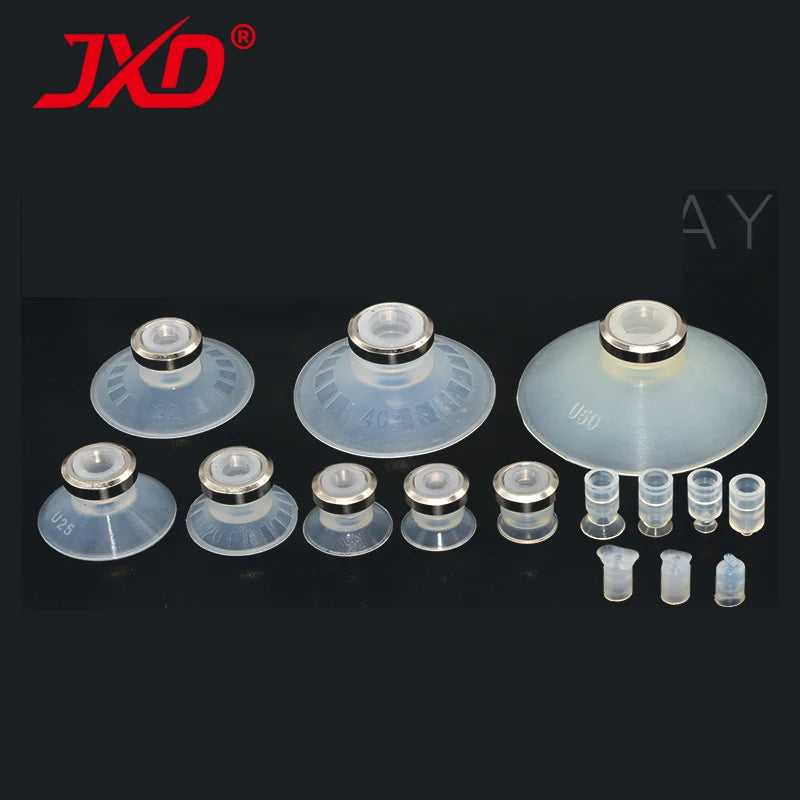

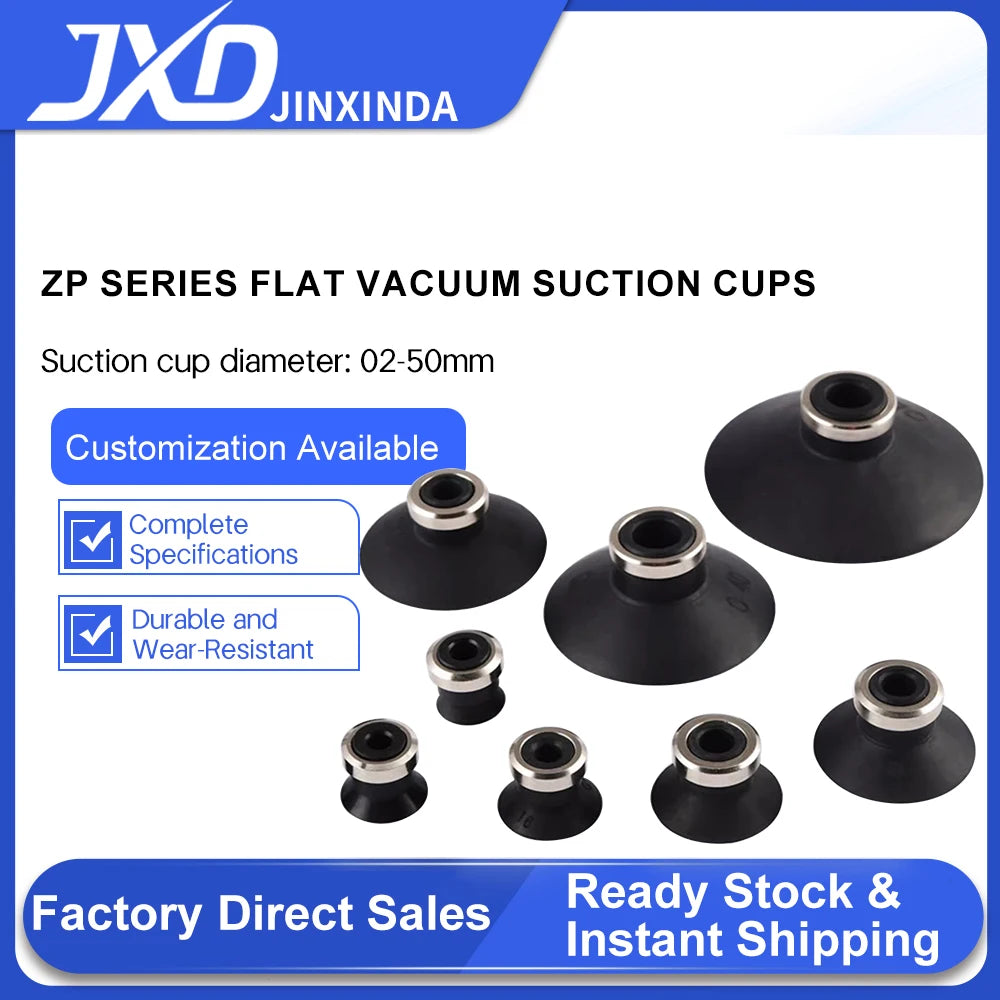

Product Name: ZP Series Vacuum Suction Cup

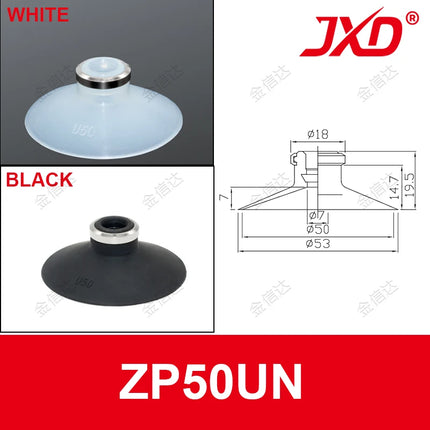

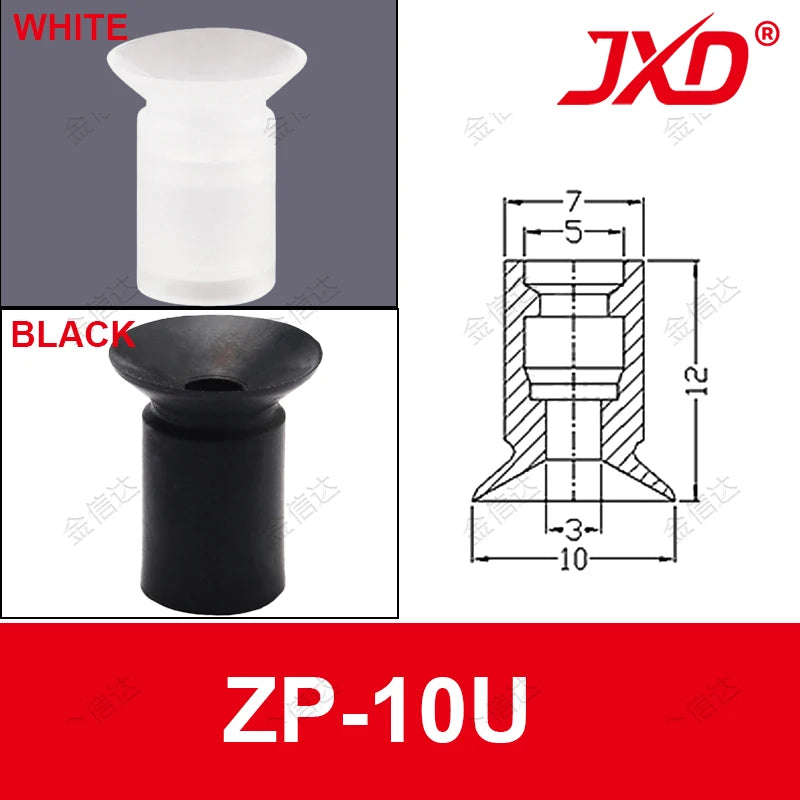

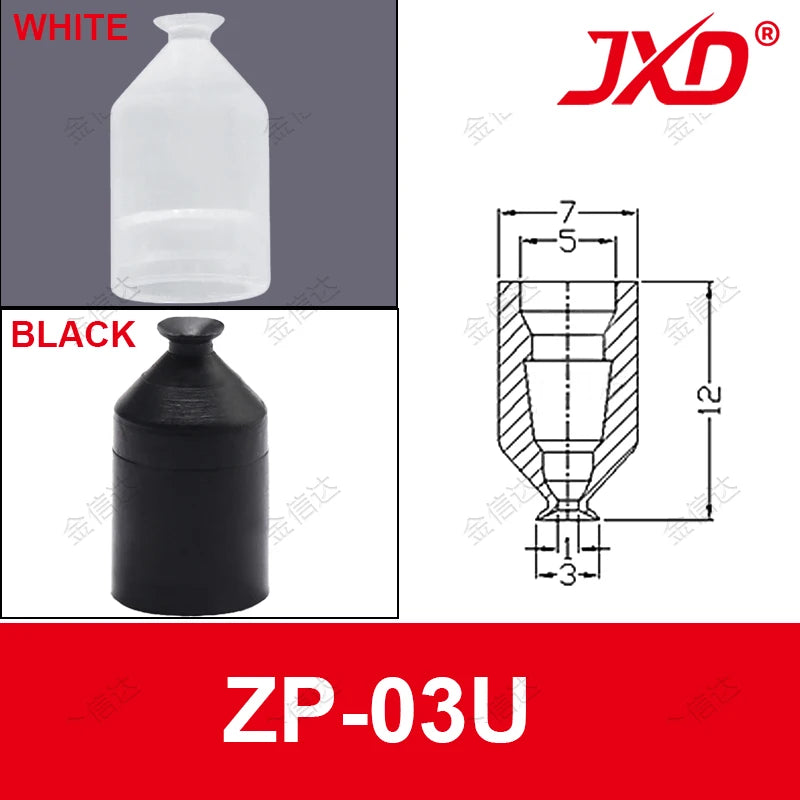

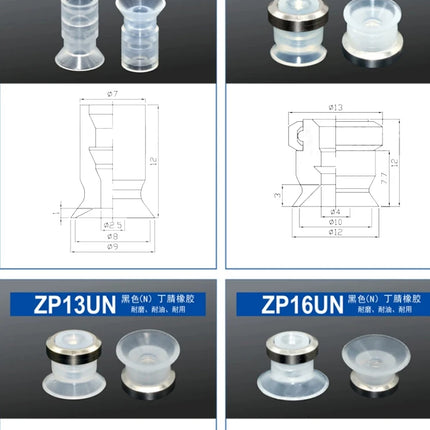

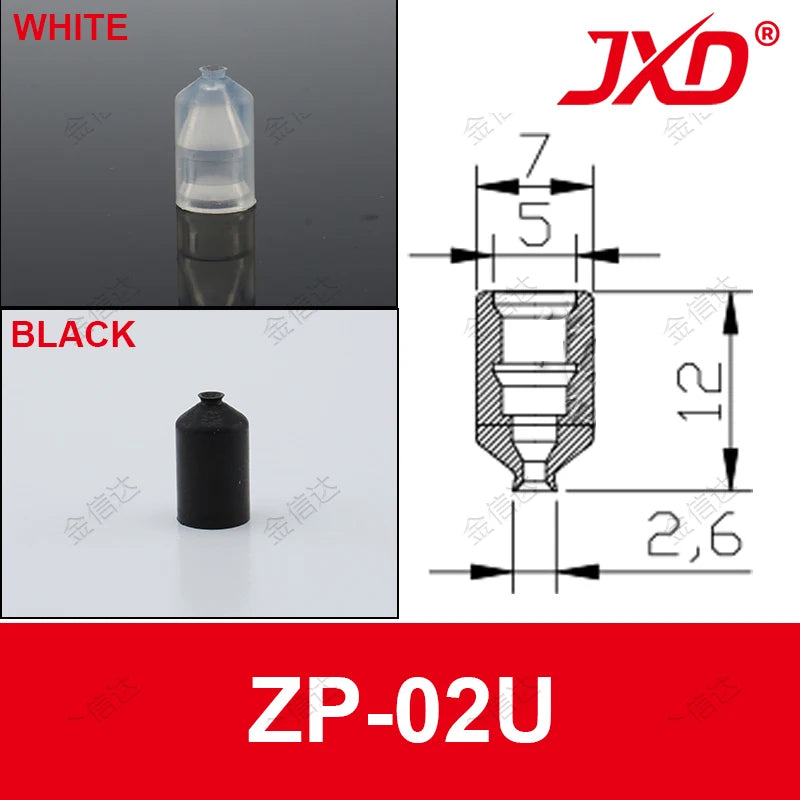

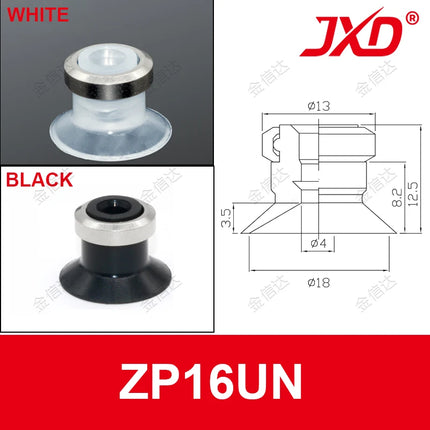

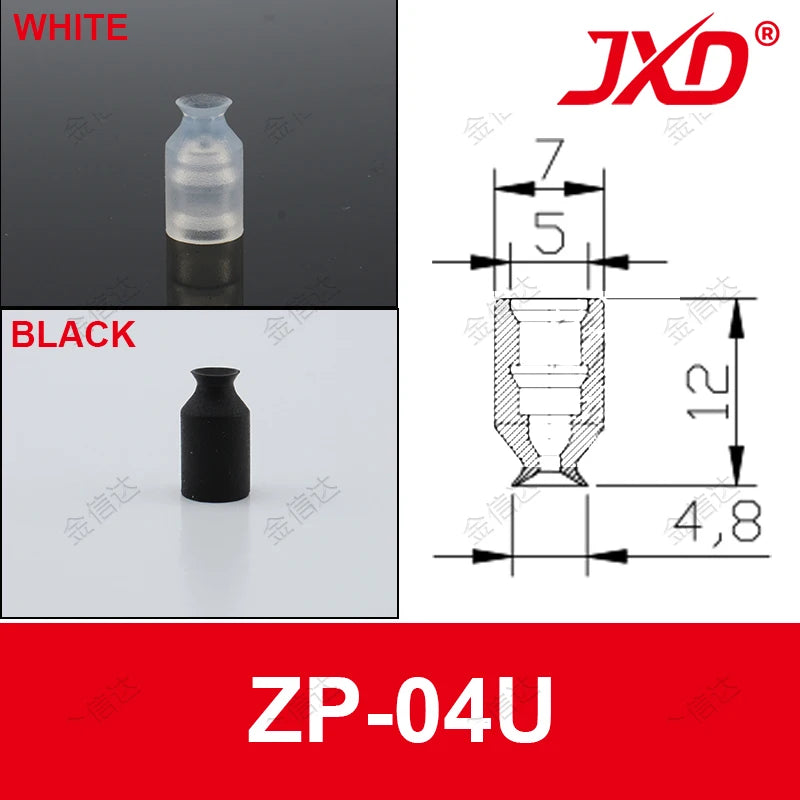

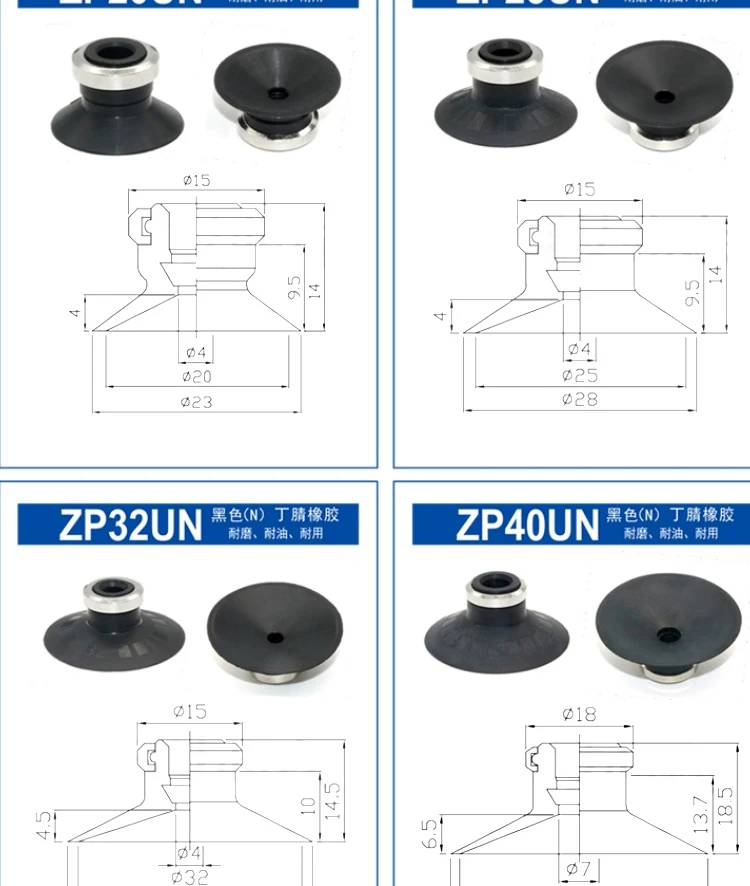

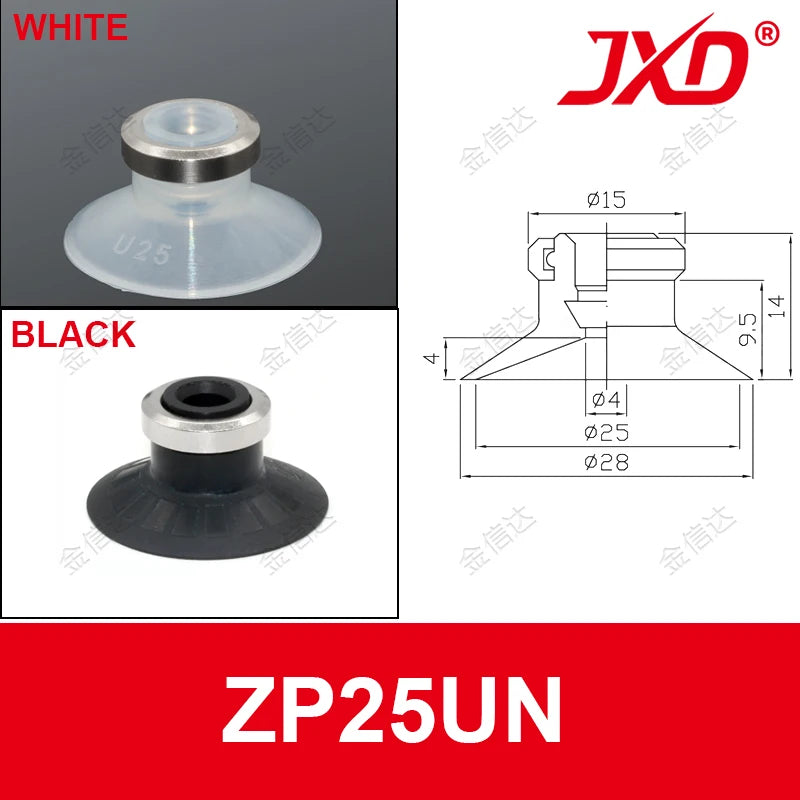

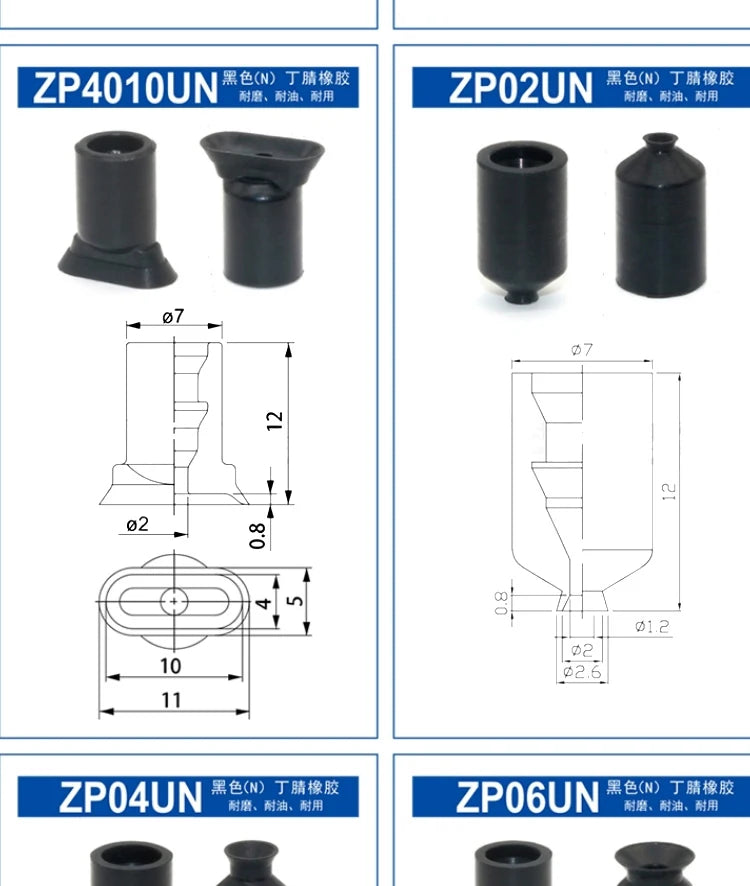

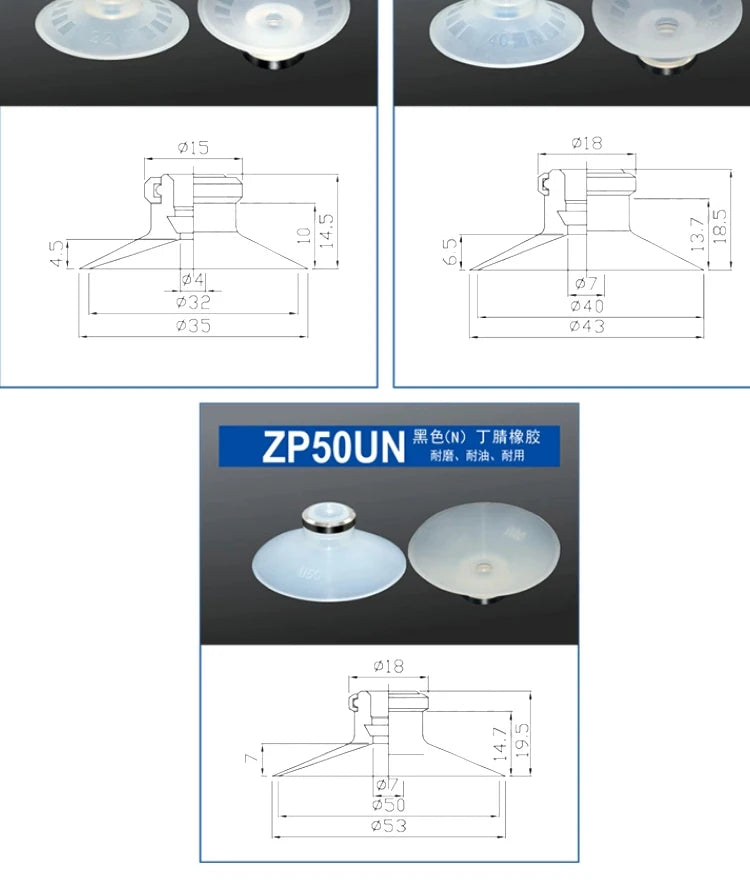

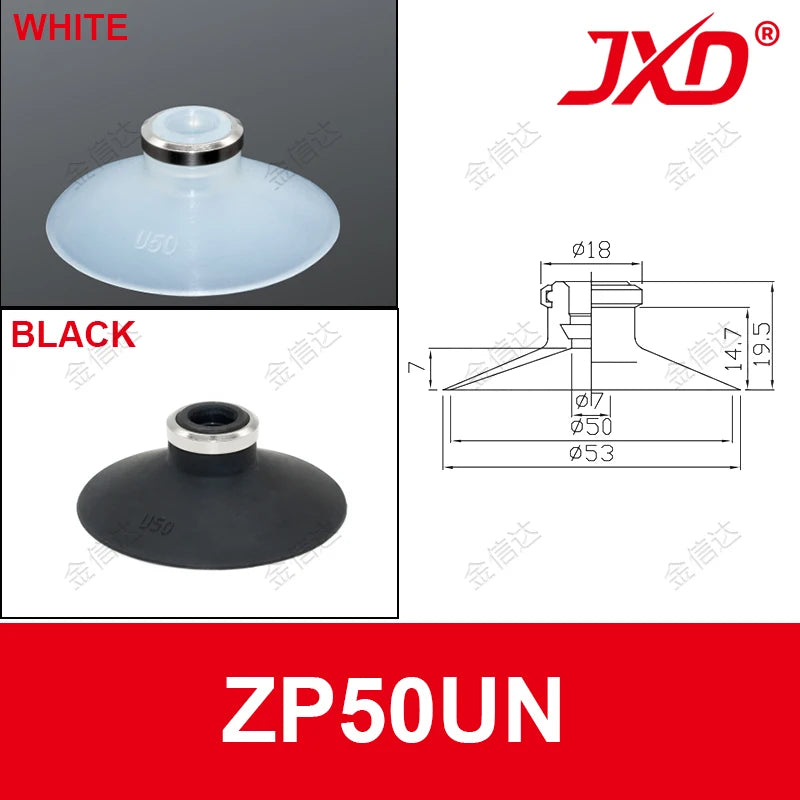

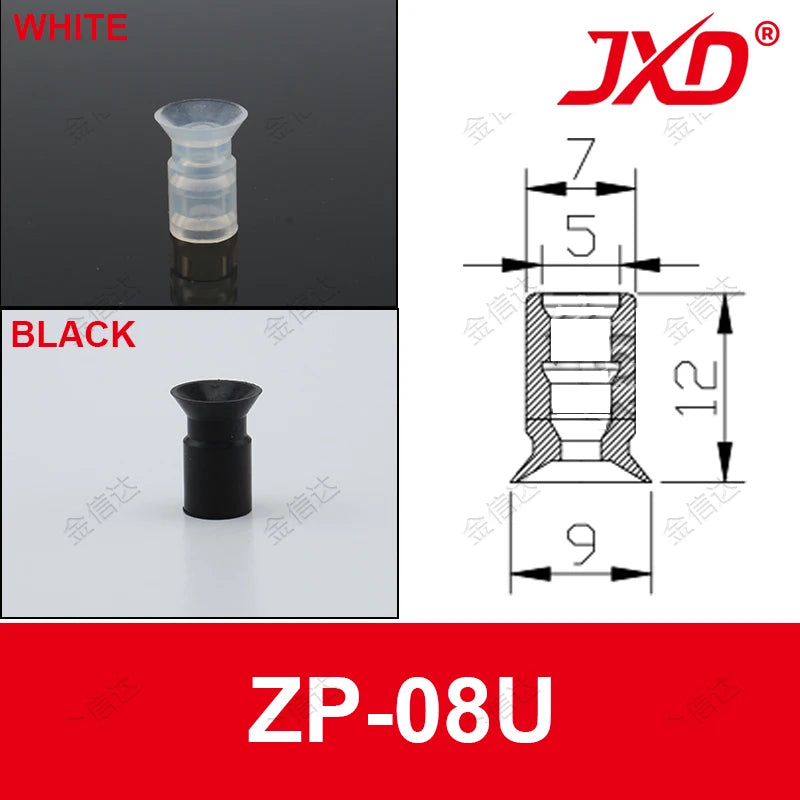

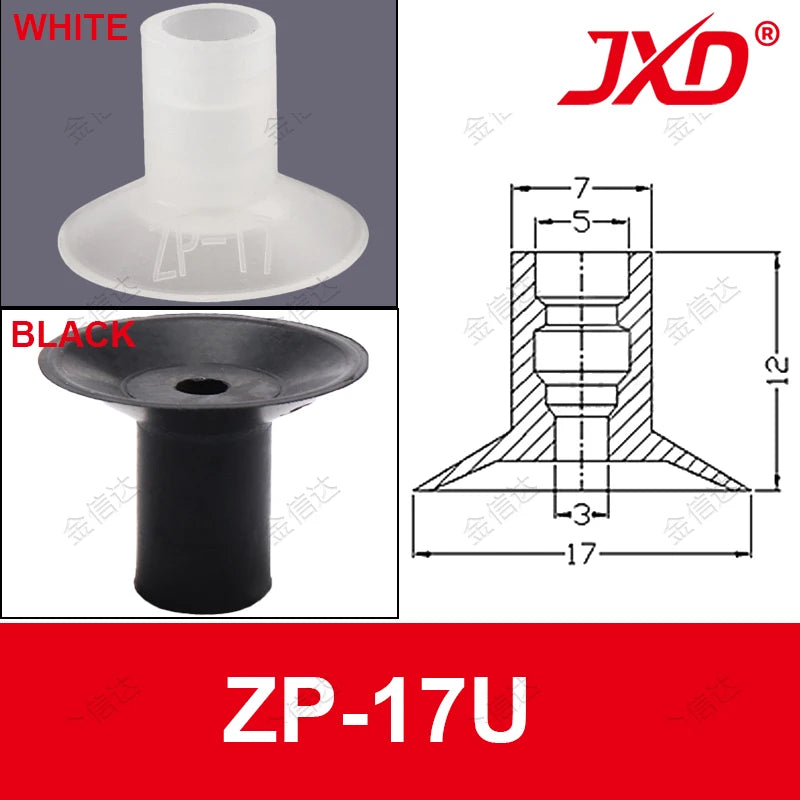

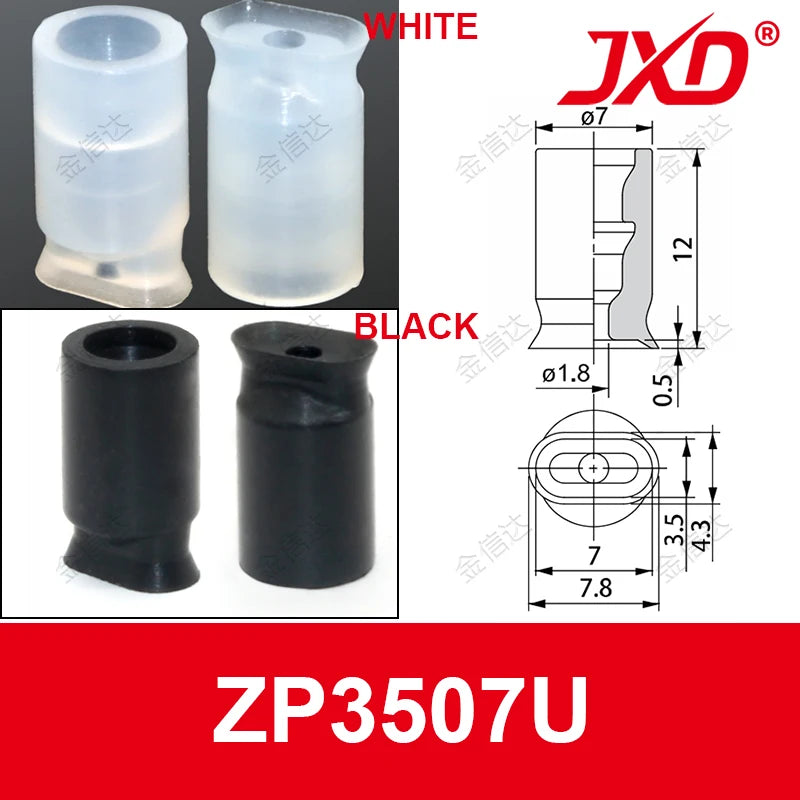

Shape: U Flat Type, B Bellows Type, C Flat Type with Ribs, D Deep Type
Type: Actuator
1. Premium Material Options for Versatile Needs
Black Nitrile Rubber: Exceptional oil resistance, wear durability, and anti-static performance, paired with strong adhesion and reliable water resistance. Easy to process, making it a universal choice for seals and suction cups across industries.
Imported White Silicone: Wide temperature tolerance (resists both high and low temperatures) with stable chemical properties and non-pollution. Ideal for medical, food, and precision applications.
Anti-Static Variant: Spark-free design ensures safe use in vacuum smelting, vacuum drying, chemical engineering, pharmaceuticals, light industry, electric vacuum industry, and other sensitive environments.
2. Multiple Shapes & Sizes for Precise Adaptation
Shape Selection: U Flat Type, B Bellows Type, C Flat Type with Ribs, D Deep Type – tailored to different workpiece surfaces and handling requirements.
Cup Diameter Range: 06/08/10/13/16/20/25/32/40/50mm, covering small to medium-sized parts with flat suction surfaces (e.g., IC chips, electronic components).
Standard Mounting Hole: 4-6mm for easy and secure installation in automated systems.
3. Enhanced Stability & Damage-Free Handling
Ribbed Bottom Structure: Minimizes tilting during transportation, significantly improving operational stability and positioning accuracy.
High-Quality Surface Finish: Burr-free with clear textures, featuring high tensile strength to ensure no scratches or damage to delicate workpieces.

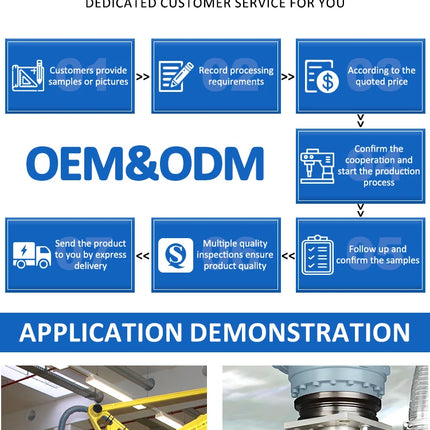

4. Customization Flexibility
Supports non-standard customization to meet unique requirements for size, shape, material, or performance (e.g., specialized temperature resistance, enhanced adhesion).
5. Wide Application Versatility
Perfect for handling small parts with flat surfaces, such as IC chips, electronic components, precision hardware, and food/medical accessories – suitable for automation lines, assembly processes, and precision manufacturing.
