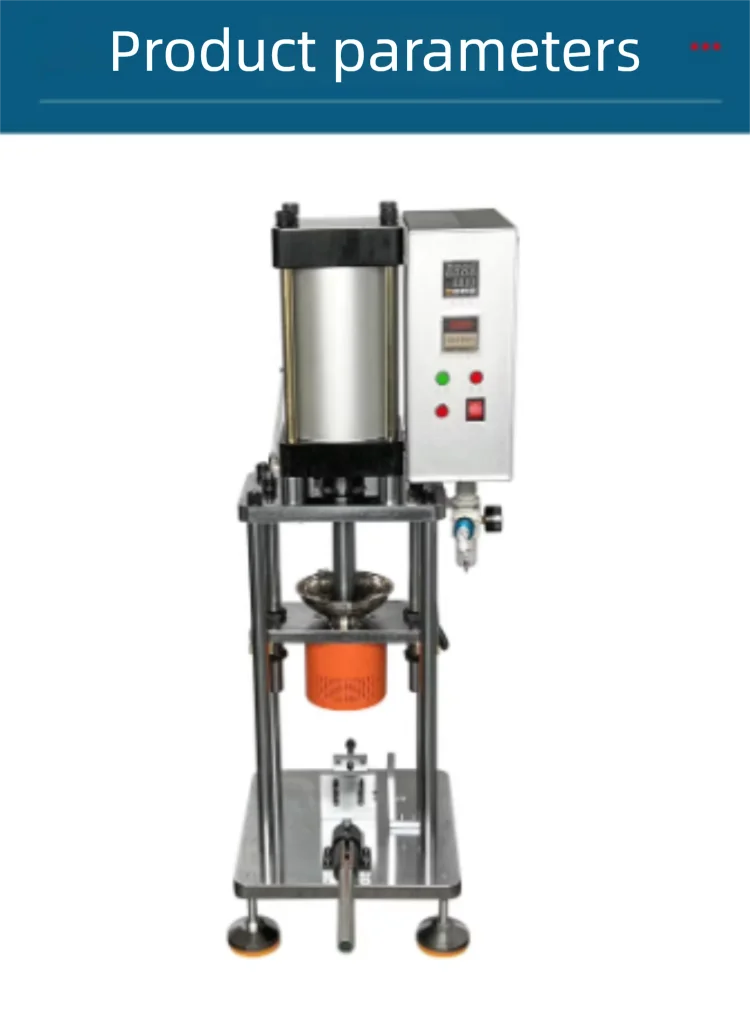

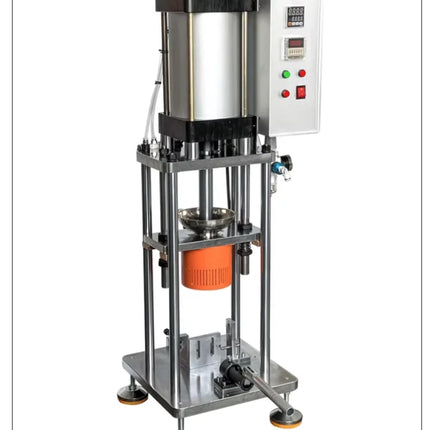

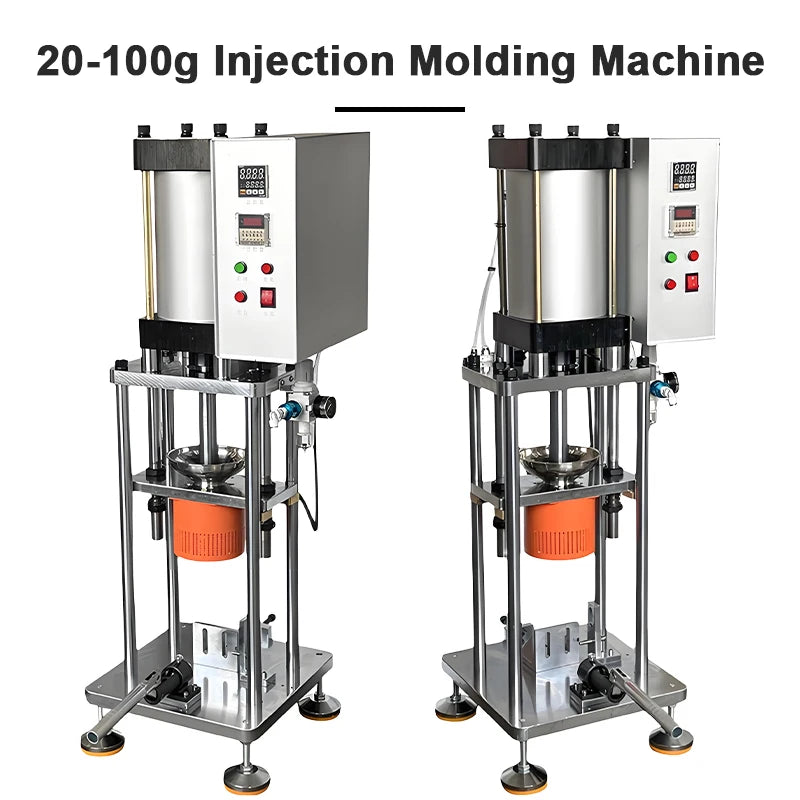

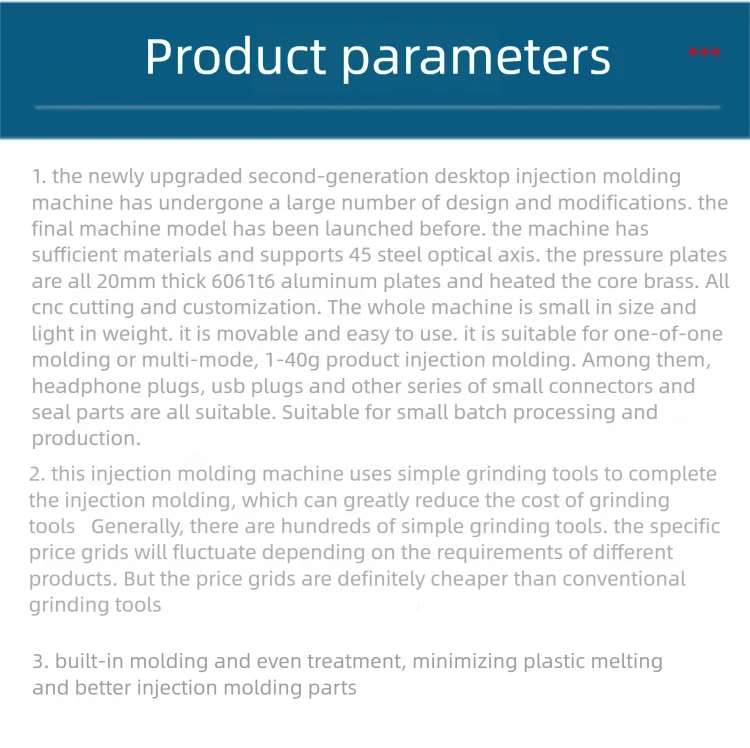

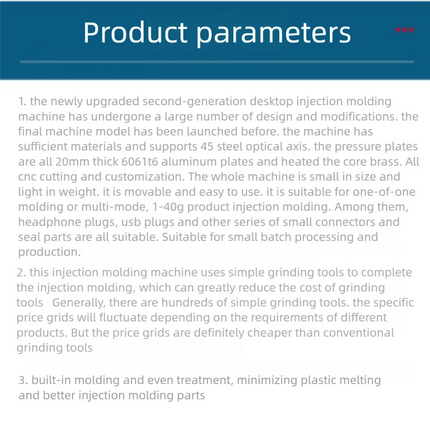

Product parameters

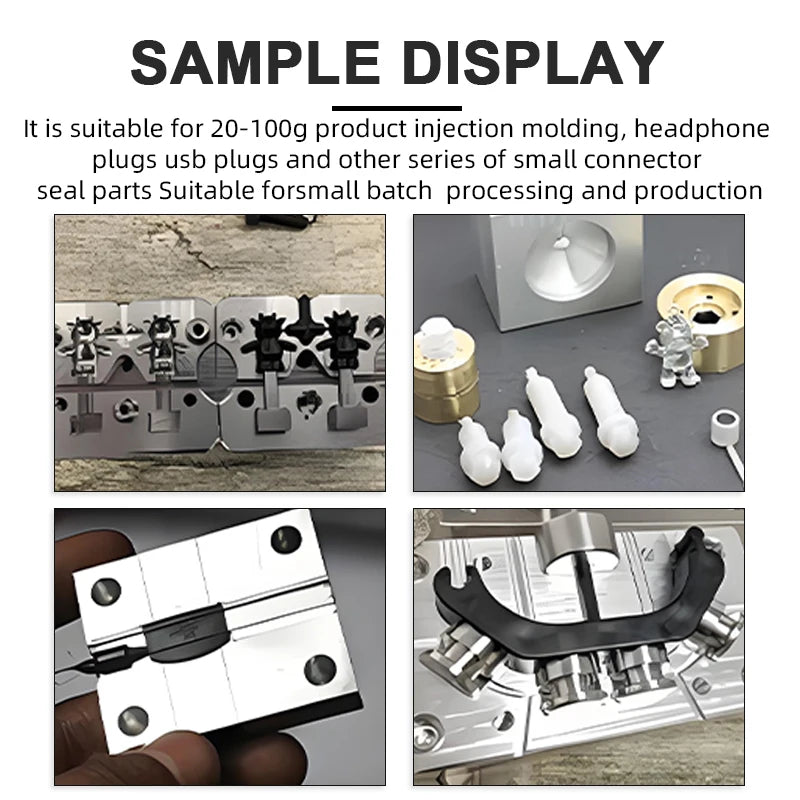

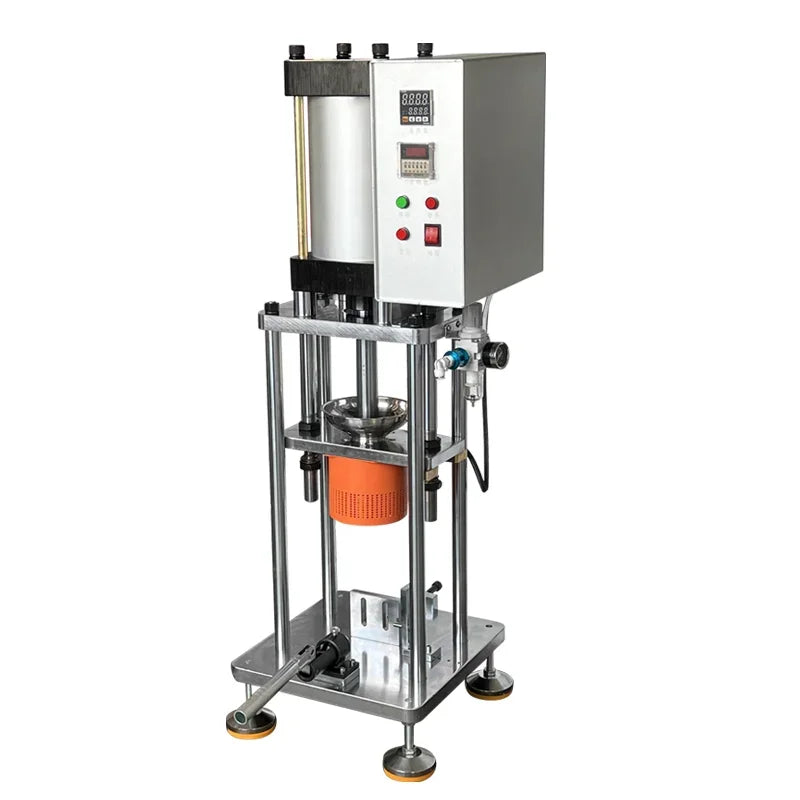

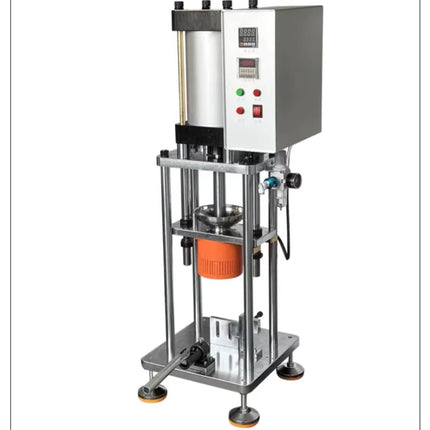

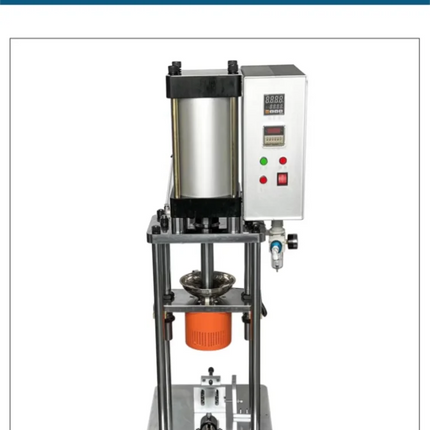

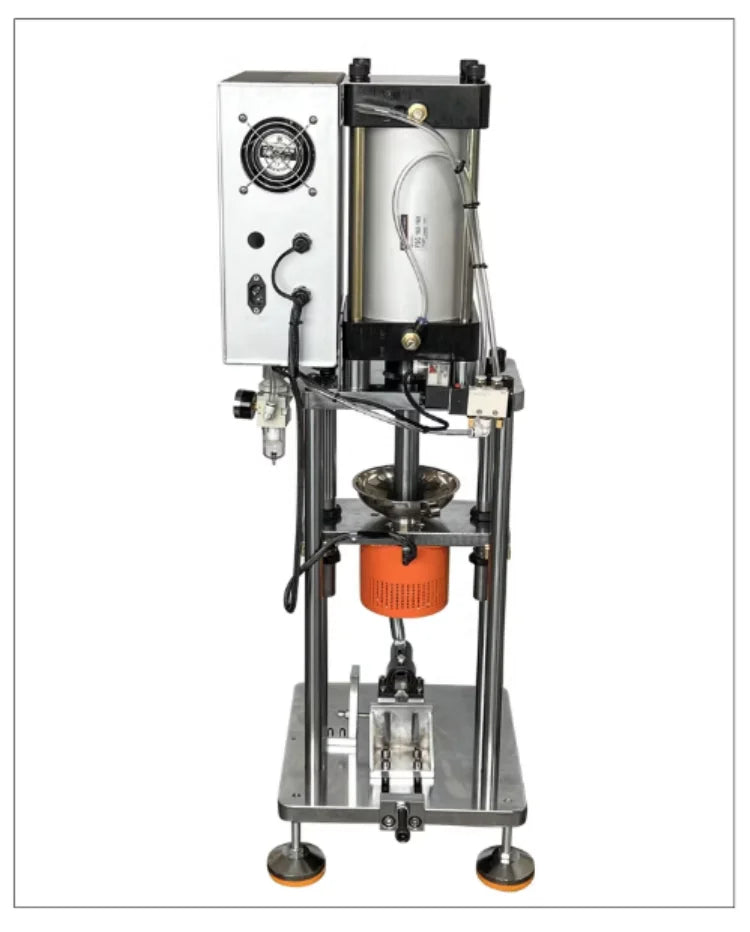

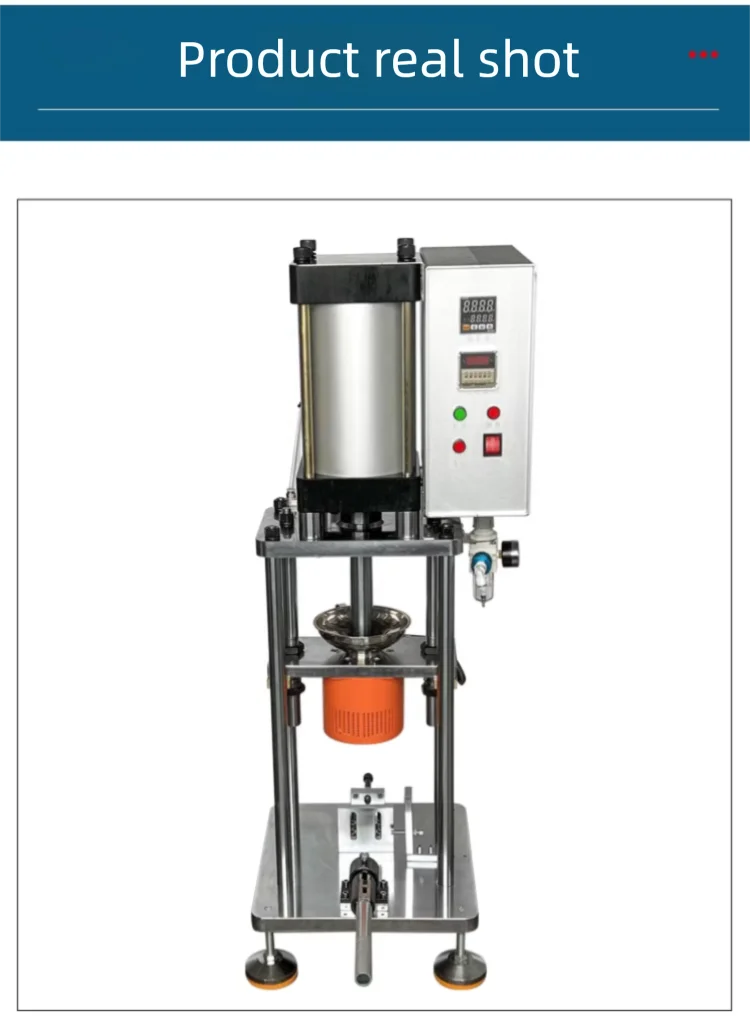

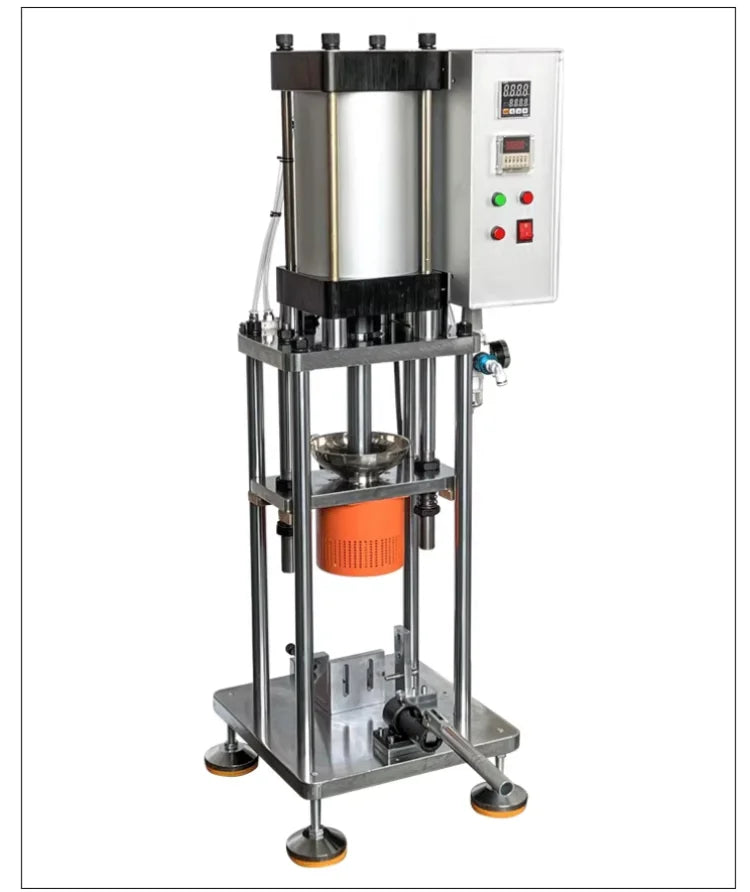

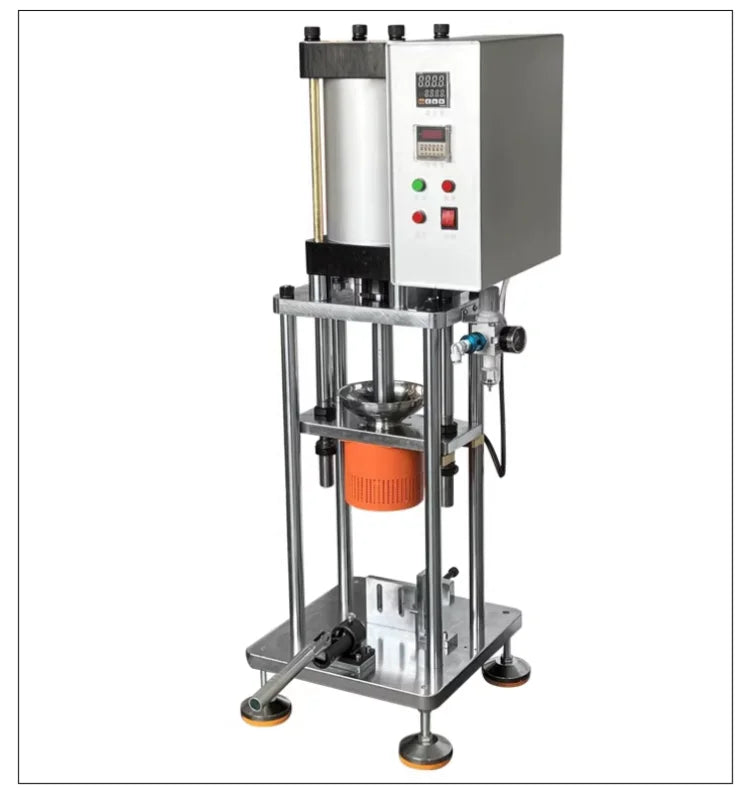

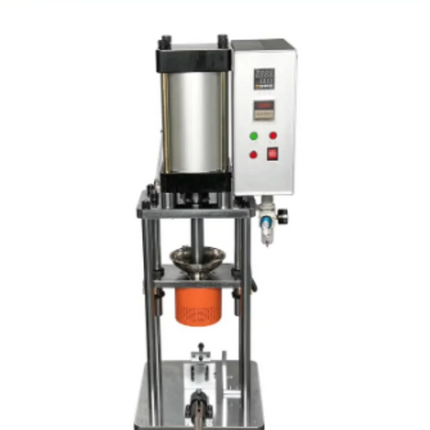

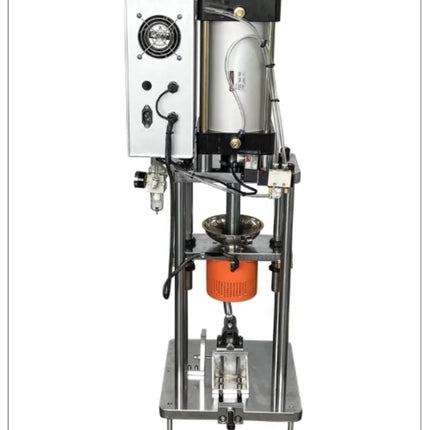

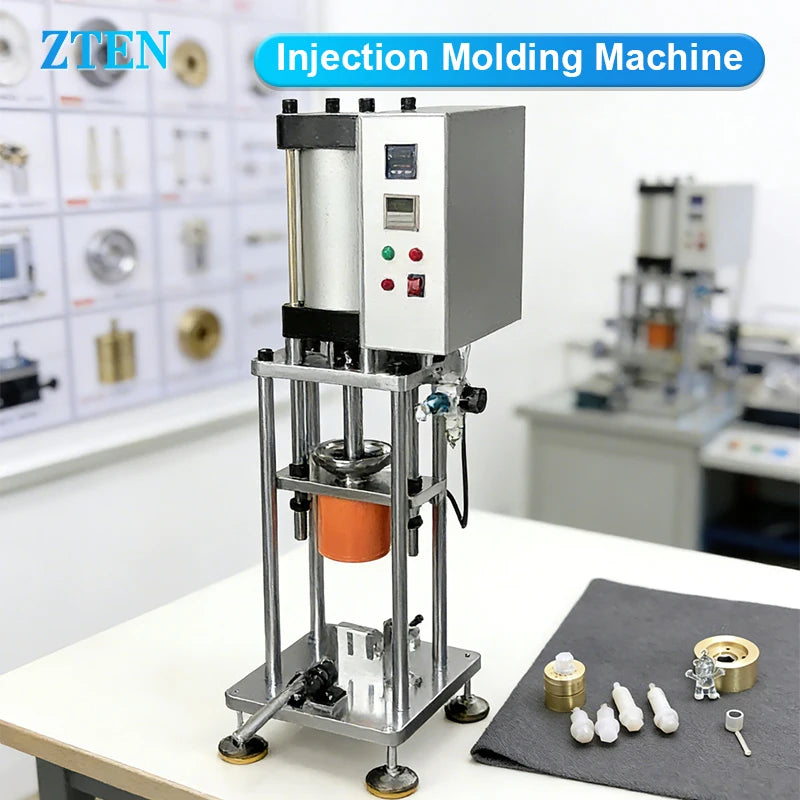

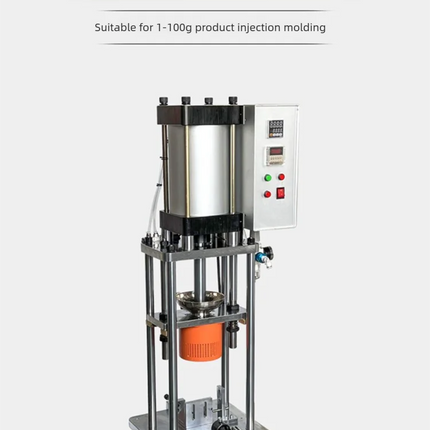

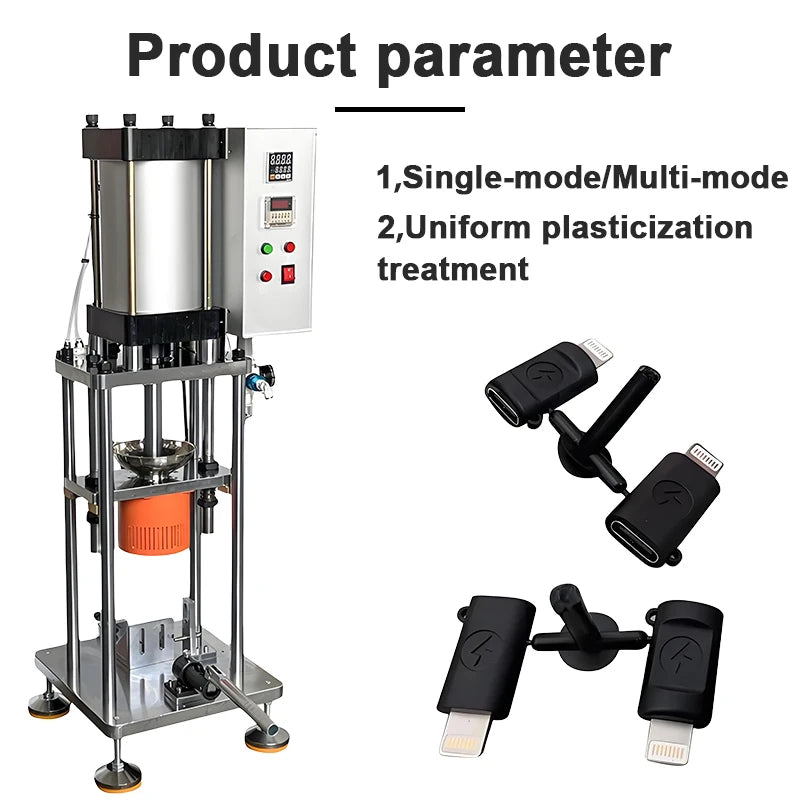

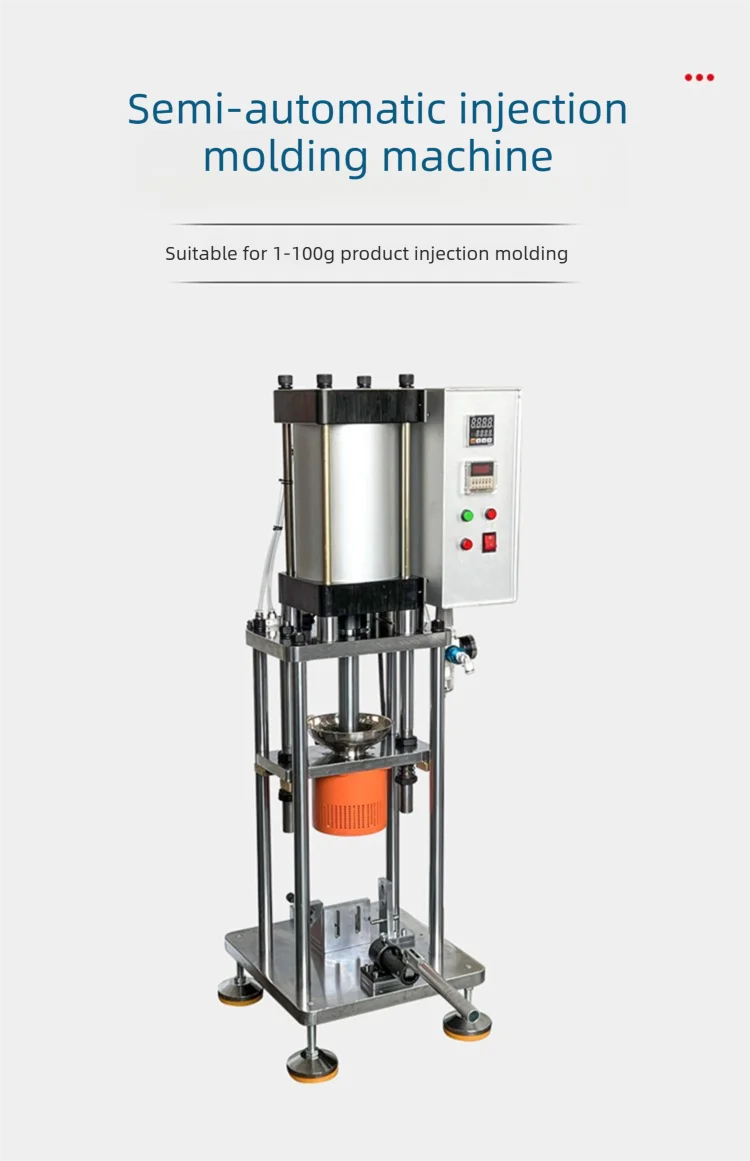

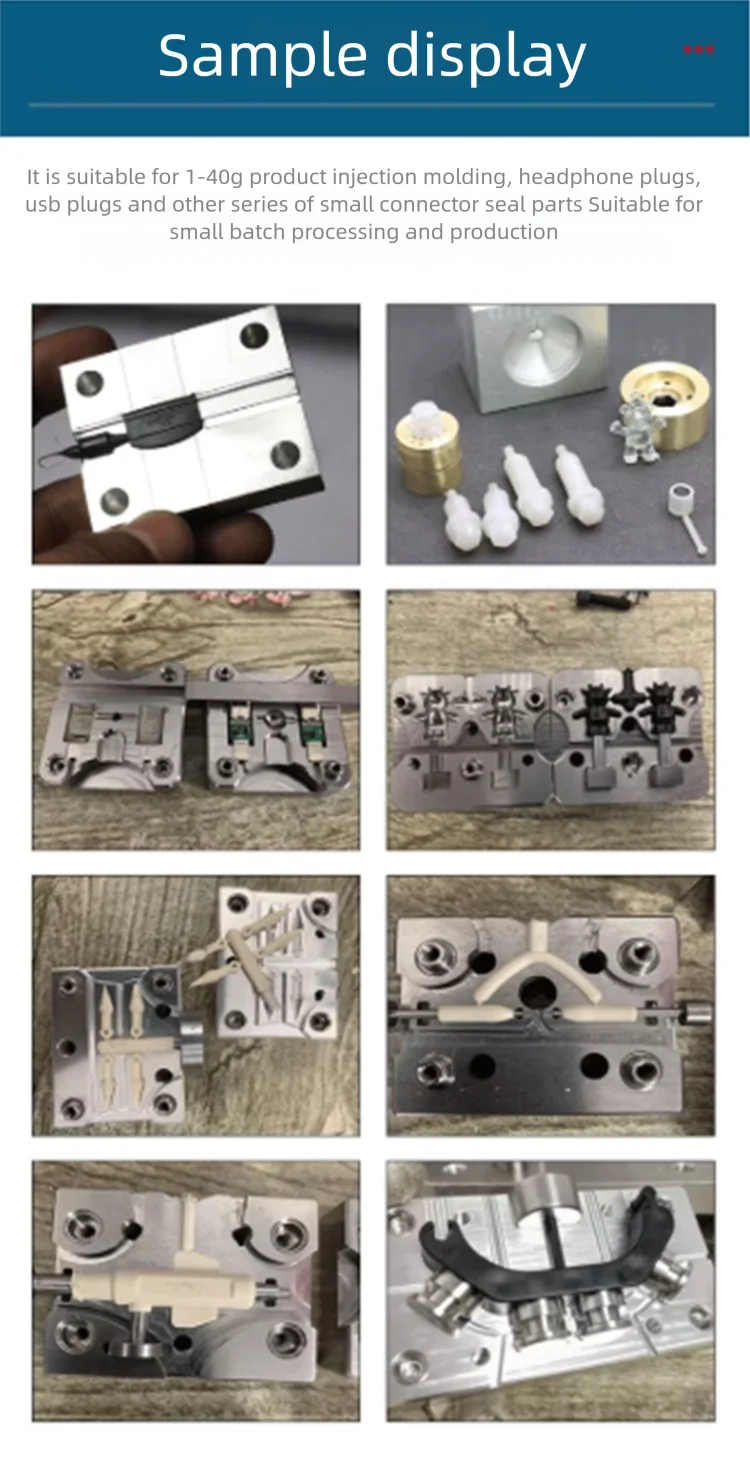

1.the newly upgraded second-generation desktop injection moldingmachine has undergone a large number of design and modifications. thefinal machine model has been launched before. the machine hassufficient materials and supports 45 steel optical axis. the pressure platesare all 20mm thick 6061t6 aluminum plates and heated the core brass. Allcnc cutting and customization. The whole machine is small in size andlight in weight, it is movable and easy to use. it is suitable for one-of-onemolding or multi-mode, 1-40g product injection molding. Among them,headphone plugs, usb plugs and other series of small connectors andseal parts are all suitable.Suitable for small batch processing andproduction.

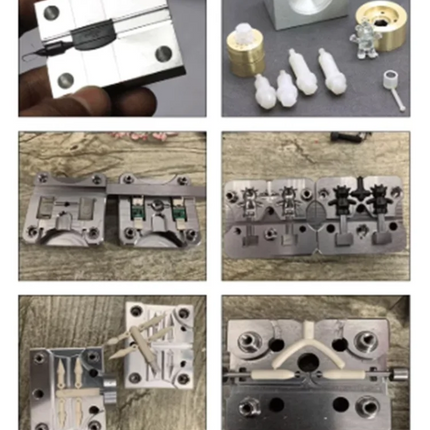

2. this injection molding machine uses simple grinding tools to completethe injection molding, which can greatly reduce the cost of grindingtools Generally, there are hundreds of simple grinding tools. the specificprice grids will fluctuate depending on the requirements of differentproducts. But the price grids are definitely cheaper than conventionalgrinding tools

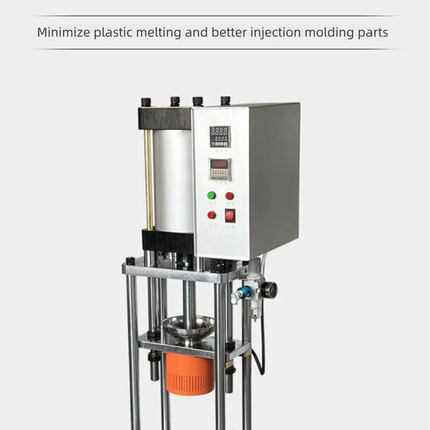

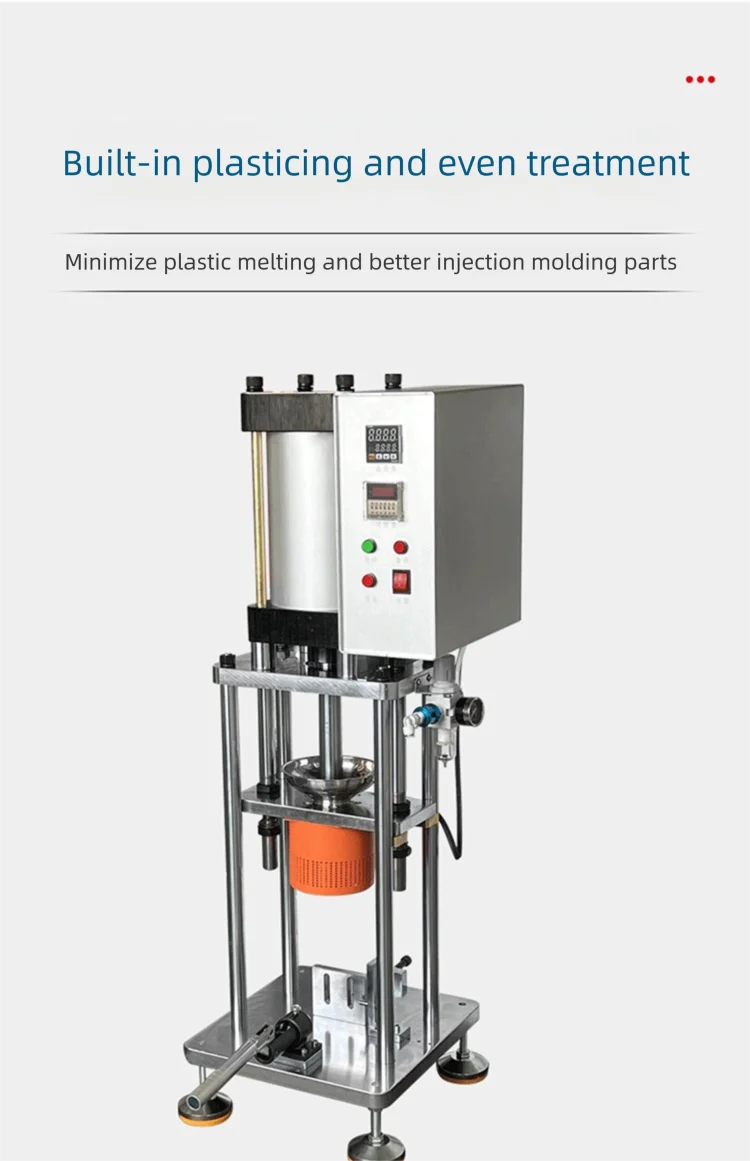

3. built-in molding and even treatment, minimizing plastic meltingand better injection molding parts

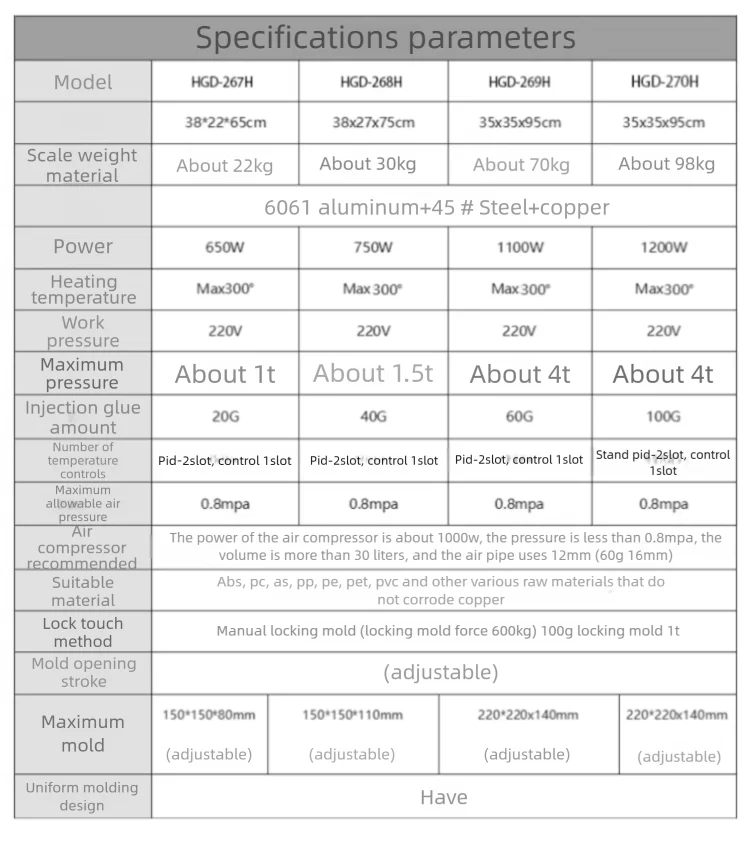

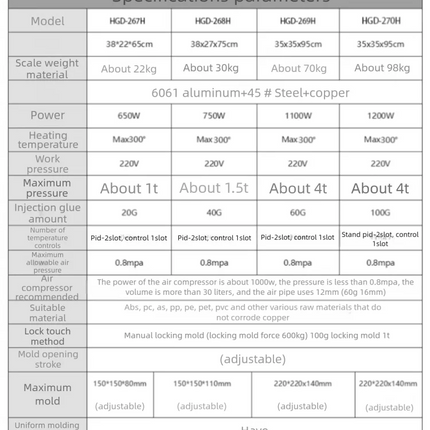

Product specification
Model: HGD-267H HGD-268H HGD-269H HGD-270H
Dimensions: 38x22x65cm 38x27x75cm; 35x35x95cm; 35x35x95cm
Net weight: approximately 22kg; About 30 kilograms; About 70 kilograms; About 98kg
Material: 6061 aluminum +45# steel + copper
Power: 650WV 750W 1100W 1200W
Heating temperature: Maximum 300 degrees
Working voltage: 220v
Maximum pressure: approximately 1T; About 1.5T; About 4 tons; About 4 tons
Injection glue volume: 20G; 40G; 60G; 100G
Temperature control quantity: PID-2 bits, control 1 bit
Maximum atmospheric pressure: 0.8mpa
Air compressor recommendation: The power of the air compressor should be around 1000w, the pressure below 0.8mpa, the volume over 30 liters, and the air pipe should be 12mm(60g - 16mm).
Suitable materials: ABS,PCAS,PP,PE,PET,PVC, or various raw materials that do not corrode copper
Clamping method: Manual clamping (clamping force 600KG) 100g clamping 1T
Mold opening stroke: Adjustable
Maximum mold: 150*150*80mm(adjustable); 150*150*110mm(adjustable) 220*220x140mm(adjustable) 220*220x140mm(adjustable)
Uniform plastic design: included
