Description
SPECIFICATIONS
Brand Name: YoufangSmart
Feature 1: Manipulator Robot Arm
Feature 10: Industrial Stepping Metal Manipulator Model
Feature 11: Multi-Dof Industrial Robotic Model
Feature 12: Stepping
Feature 13: Stepping Robotic Arm
Feature 14: Metal
Feature 15: With Servos
Feature 16: Large Suction Air Pump
Feature 17: Stepper Motor
Feature 18: For Arduino
Feature 2: Mechanical Robotic Arm
Feature 3: Multi Axis Robotic Arm
Feature 4: Start Kit
Feature 5: Multi axis Robot
Feature 6: DIY KIT
Feature 7: Programmable Arduino
Feature 8: Robot Stepper Kit
Feature 9: Multi-Degree-Of-Freedom 3-xis Robot ar
High-concerned chemical: None
Is Electric: No Battery
Material: Metal
Model Number: Multi Axis Industrial Stepping Robotic Arm Frame
Origin: Mainland China
Power Source: Electric
Recommend Age: 14+y
Theme: Animals & Nature,Transportation,Fantasy & Sci-Fi,Occupations,Sports,Music
Warning: Can not get water
Youfang Smart is smarter, tech, and healthier
We are the sales No.1 in the robot industry, specializing in the development of science and technology, technology, education and teaching enterprises. This programmable robotic arm is a new, very intelligent teaching programmable robotic arm designed by our institute, but also the enlightenment of children and engineers to learn education, we will release more technology, education, health new products from time to time, can be used as children's toy gifts, adult learning programmable board.I believe you will like our robot arm.
By the way, if you like our store, Please add our store to your Favorite Stores, You can get our New arrival and Discount information in time.

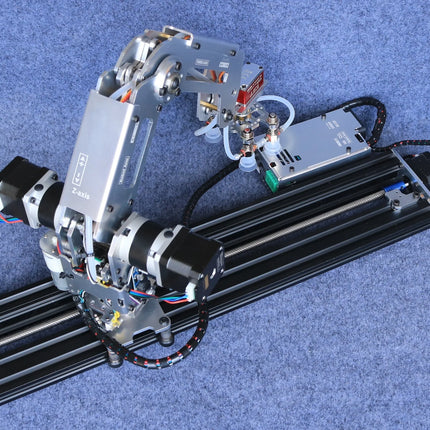

Multi Axis Robotic Arm Industrial Stepping Metal Manipulator Model Compatible Large Suction Cup/Stepper Motor Claw Robot DIY Kit

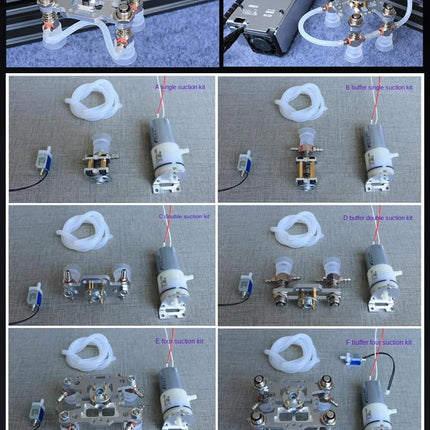

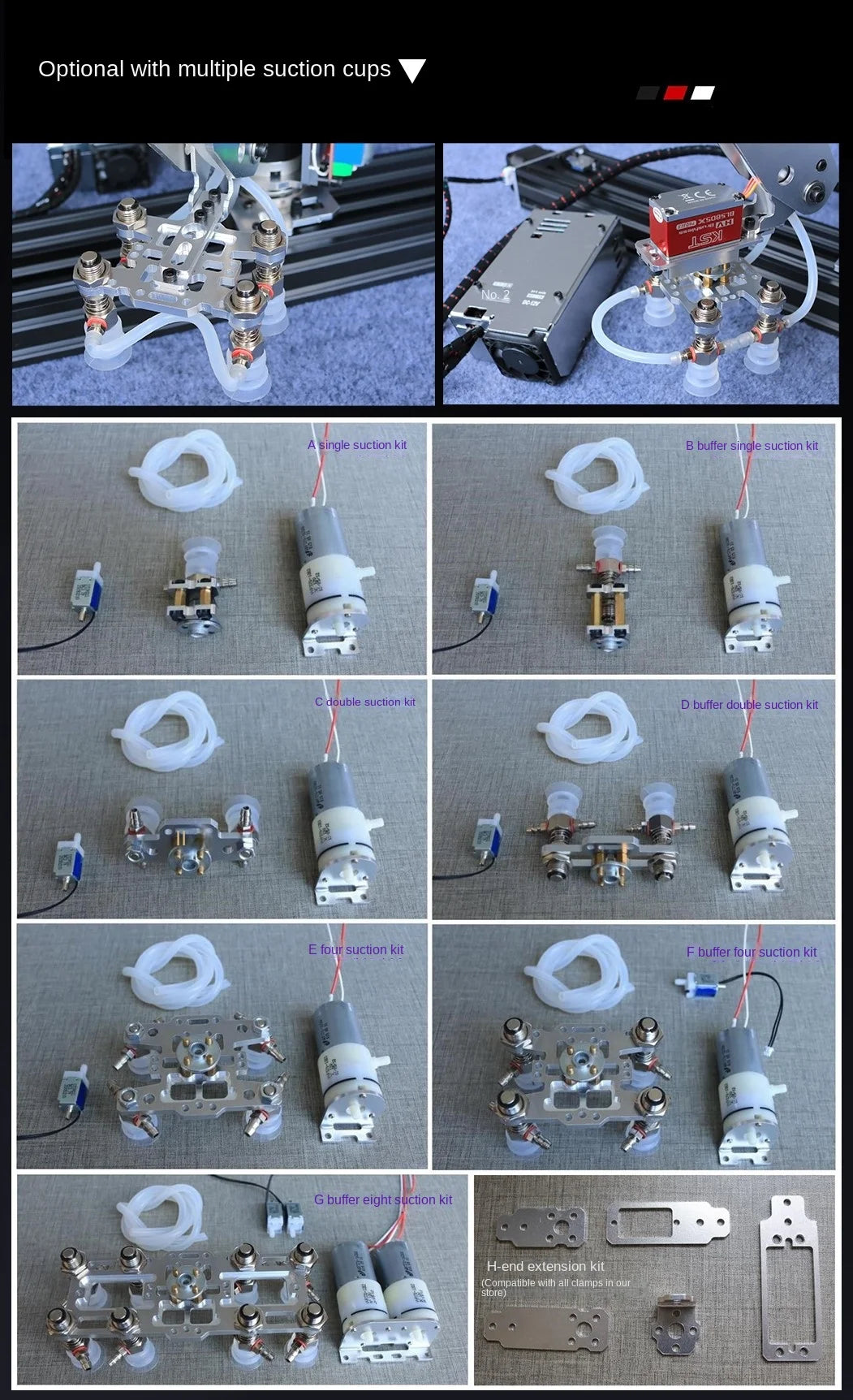

If you need to buy other suction cups, such as we have 1 suction cup, 2 suction cup, 4 suction cup, backflush 4 suction cup, etc., please go to the following link address：
https://www.aliexpress.us/item/3256805463756645.html
Title:Robot arm Robot arm Stepping robot arm Industrial robot model Multi-axis robot
Features:
Controller: For Arduino 2560, ATMEGA2560

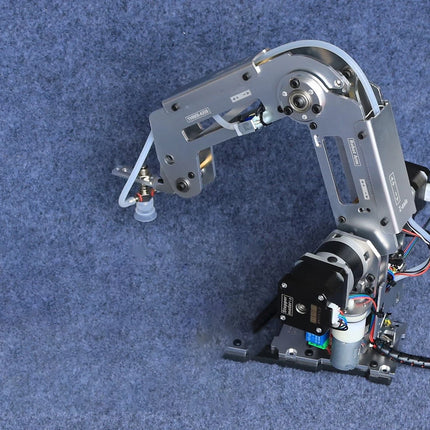

After the stepping robotic arm is closed (normal state).
Length 16.5 cm, width 21.3 cm, height 28 cm.
The maximum extension is 28 cm (base to top suction cup)
The effective travel range of the rail slide table is 39 cm.
The Grab weight of the robotic arm is about 500g.

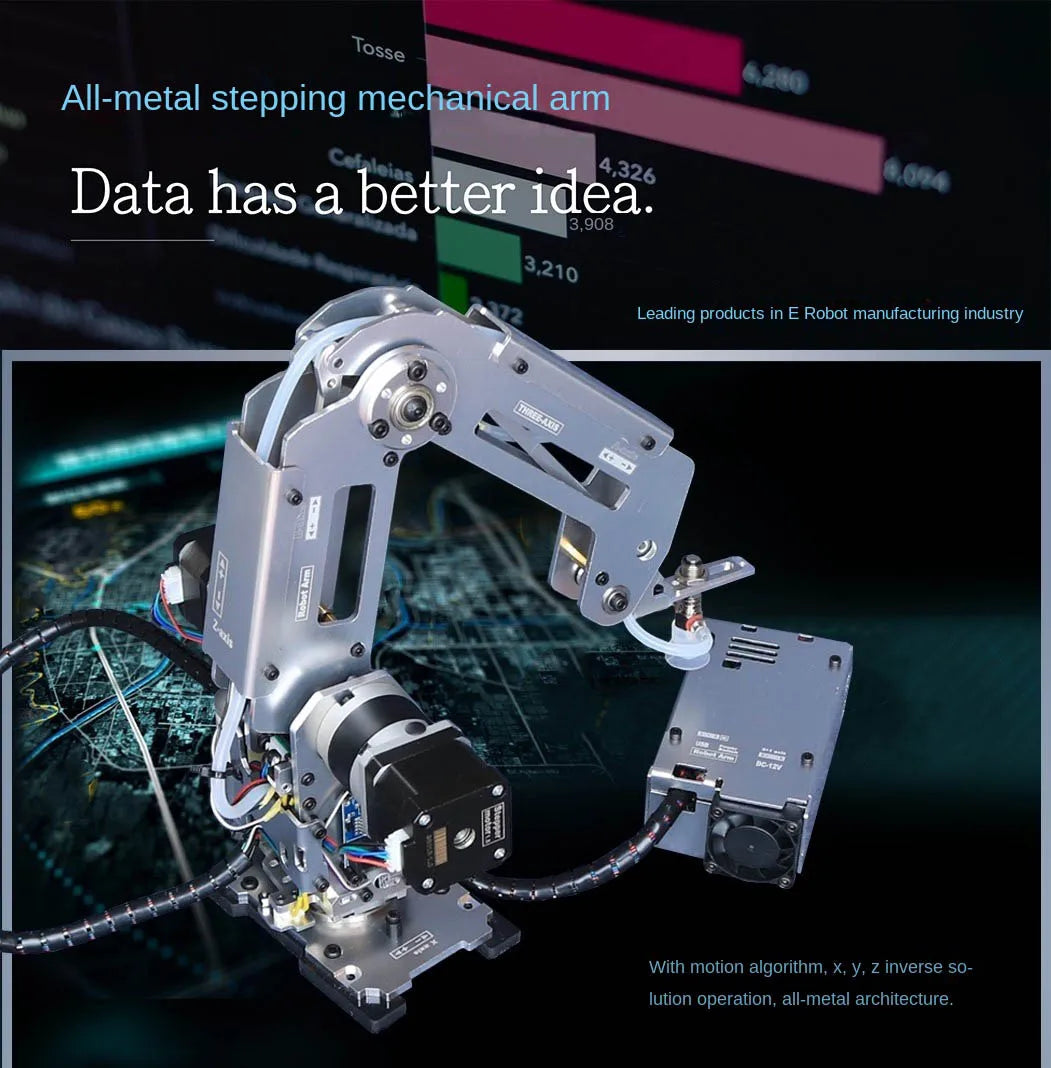

With motion algorithm, x, y, z inverse solution, all metal architecture.

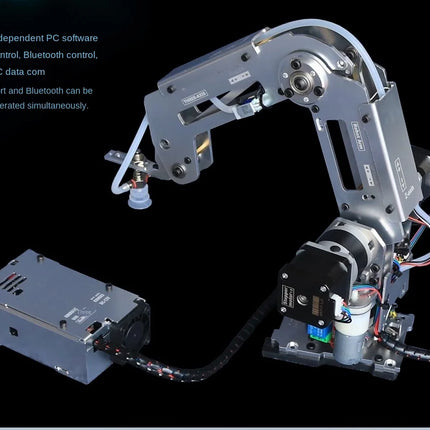

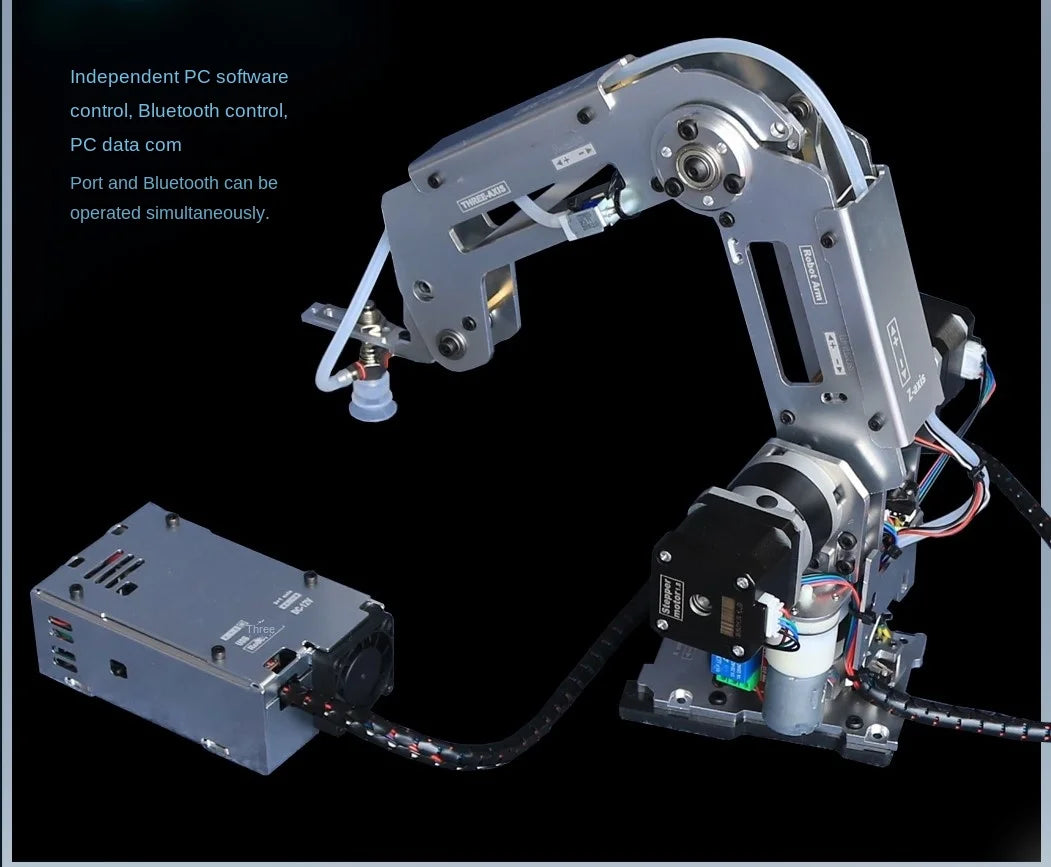

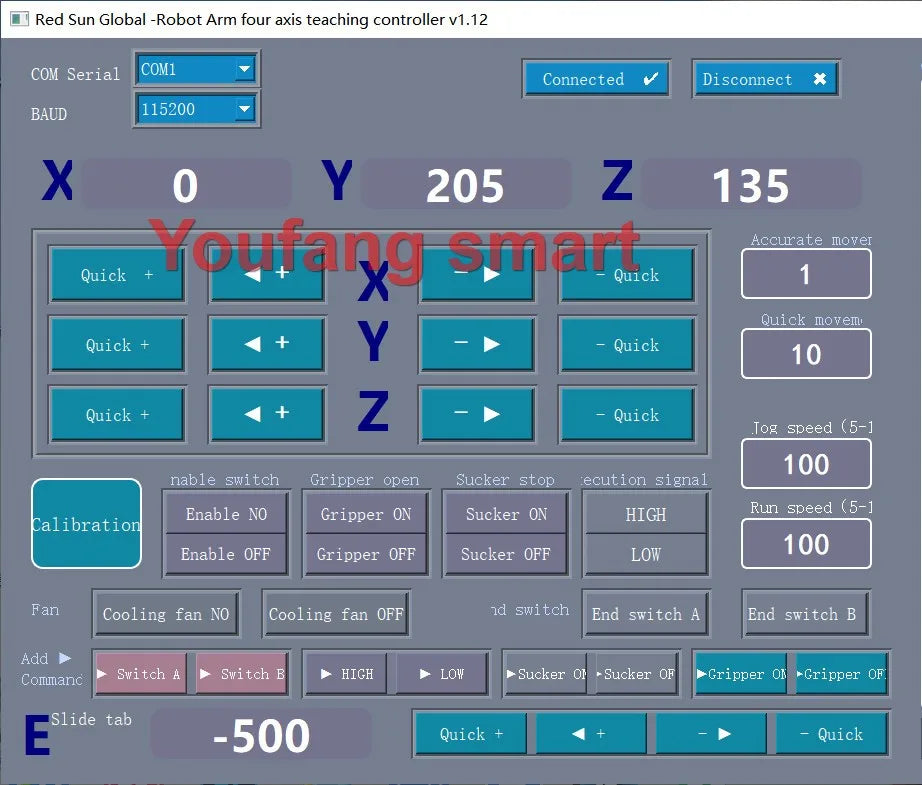

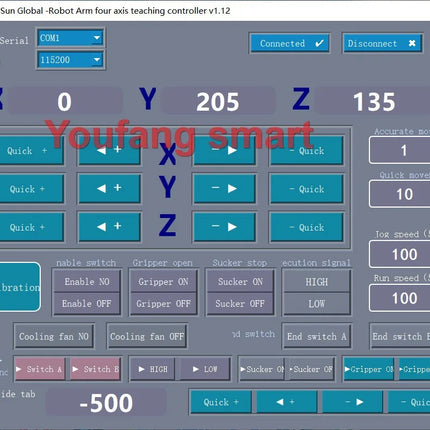

Independent PC software control, while supporting Bluetooth control, PC data com port and Bluetooth can be operated at the same time.

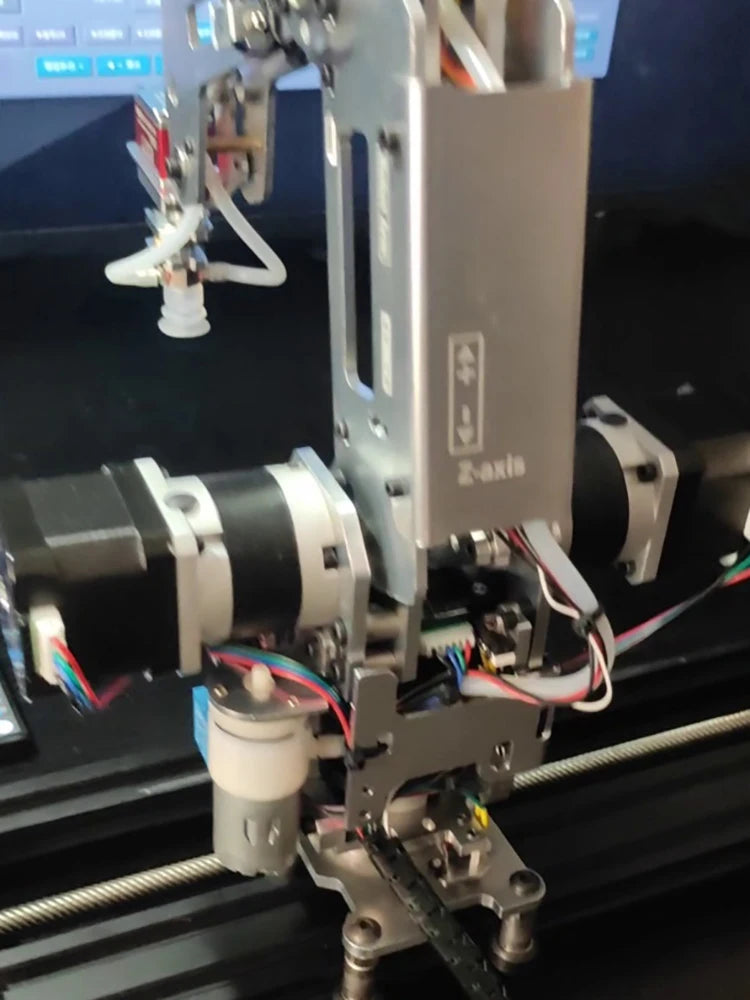

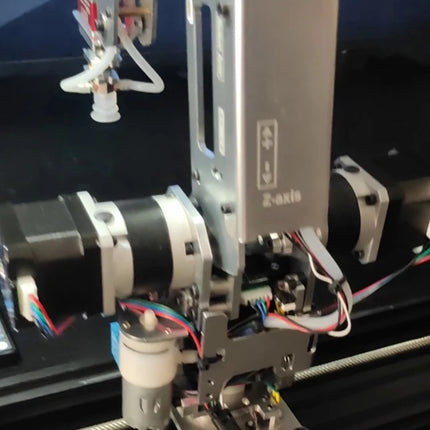

XYZ is mechanically classified as a switch and can be calibrated by mechanical homing. All metal architecture. The body adopts high-quality high-precision planetary gear motor, and each moving joint adopts high-quality high-precision bearings.

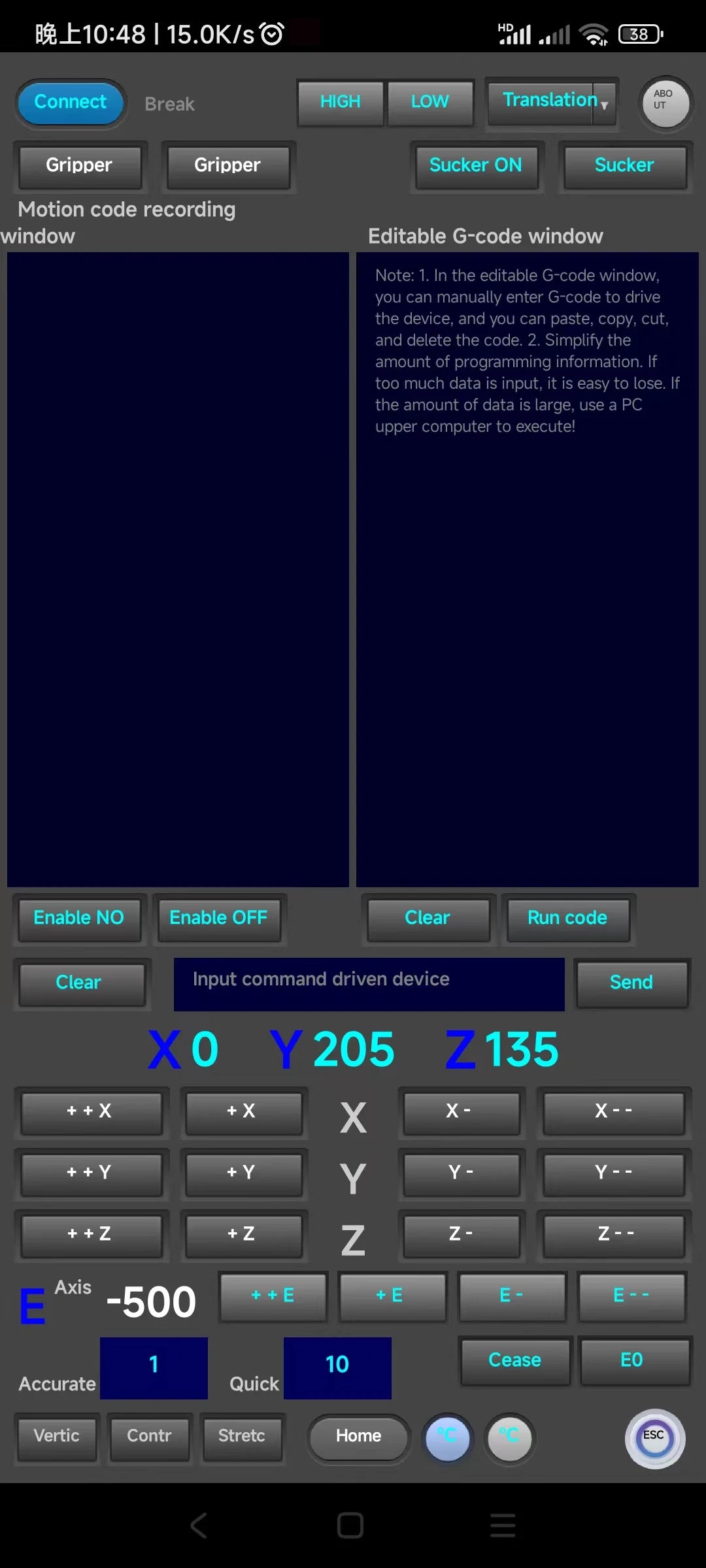

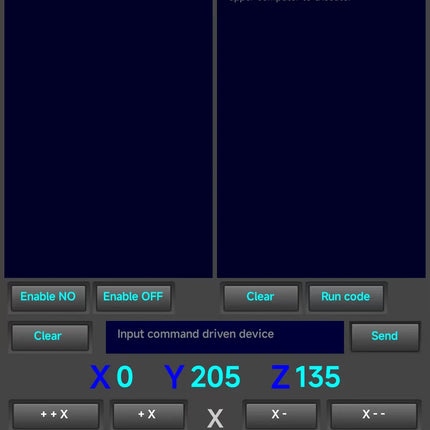

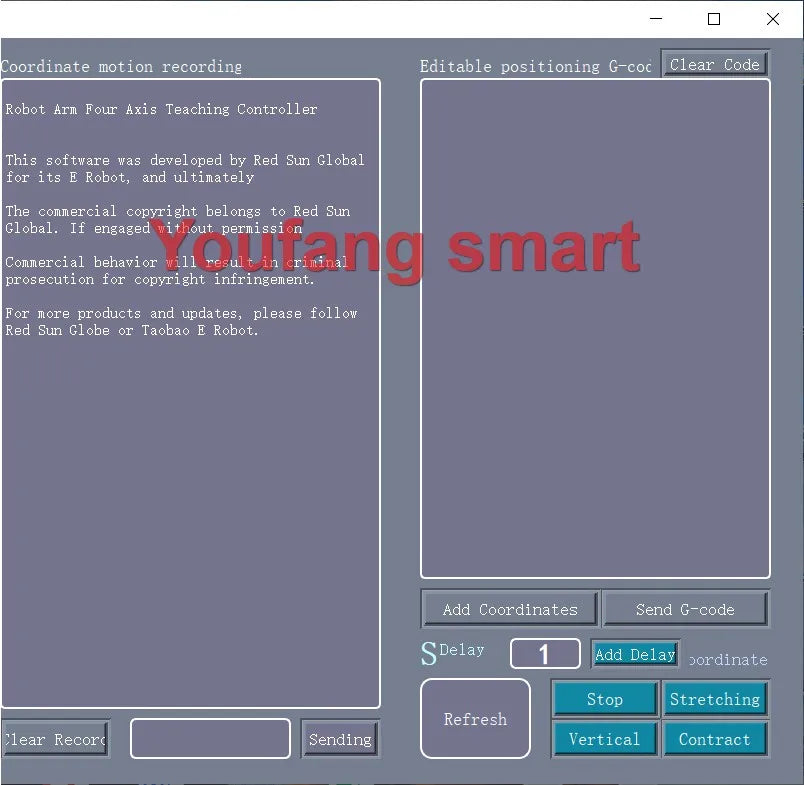

The host computer of the PC and the host computer of the mobile phone is an independently developed host computer. The host computer includes the PC and the mobile phone. Each movement can be edited as a separate movement speed and delay, the same group movement can be fast, slow, delay the set time. In the computer com serial port is not connected, it can be controlled through Bluetooth, and it can be controlled by PC and mobile phone at the same time. We will continue to update more features, and then provide a free upgrade of the upper computer software.

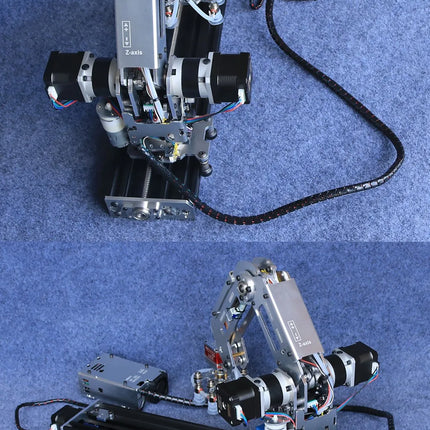

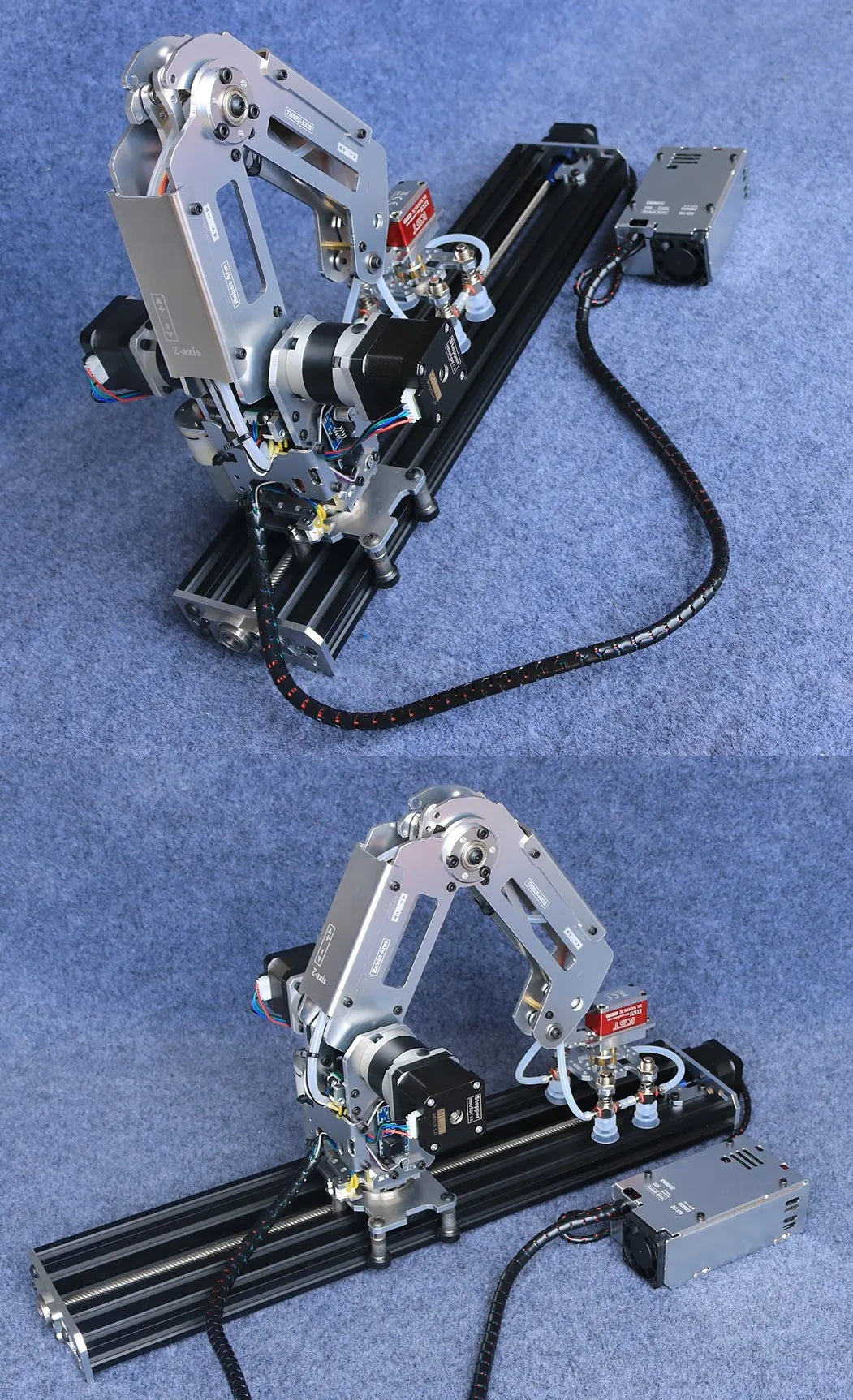

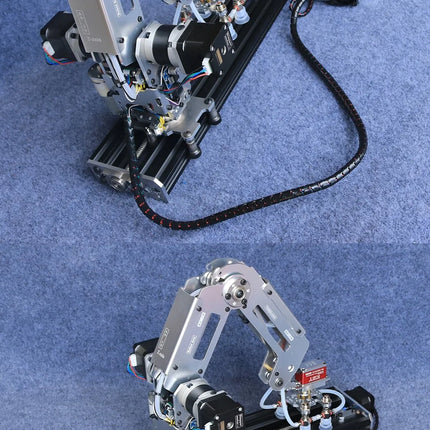

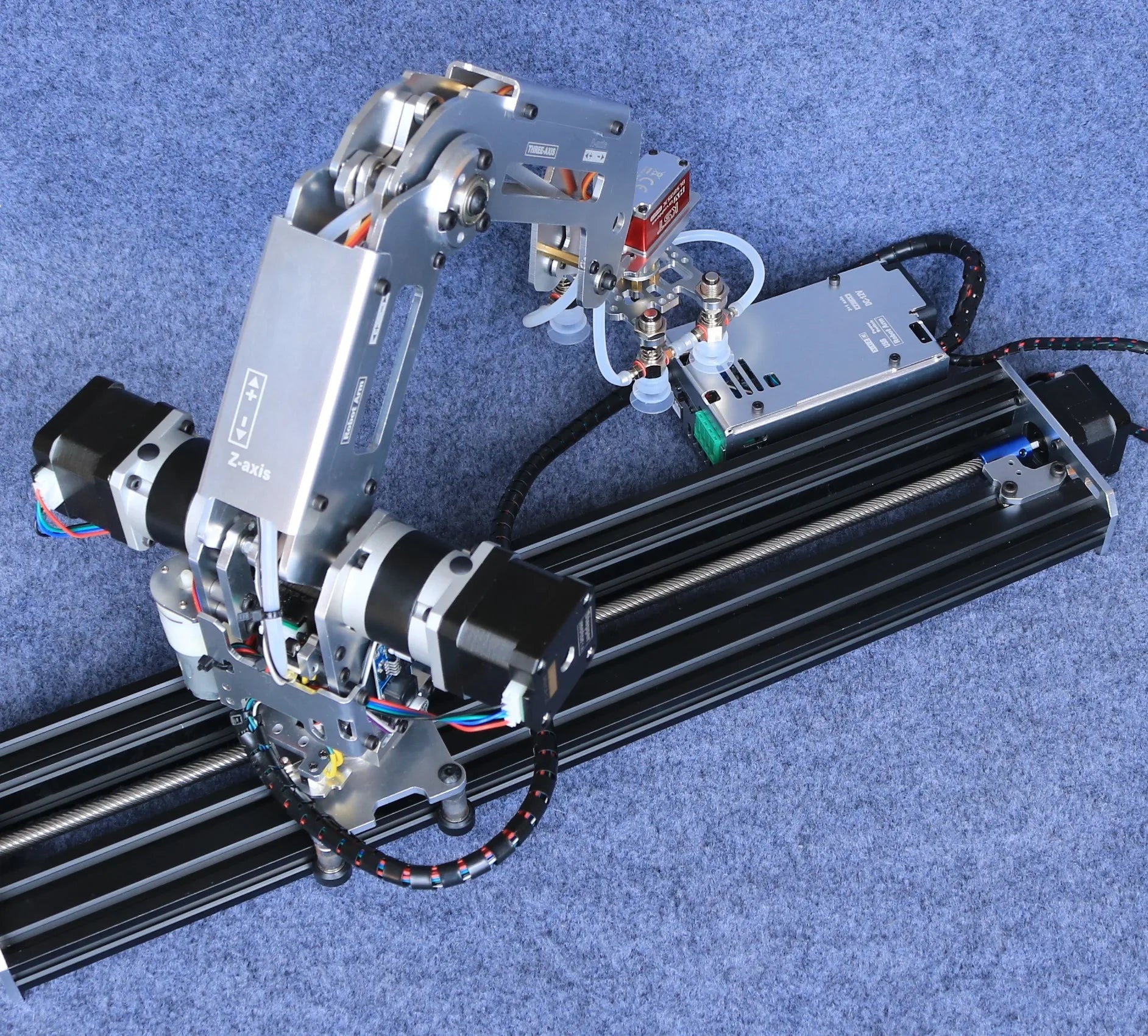

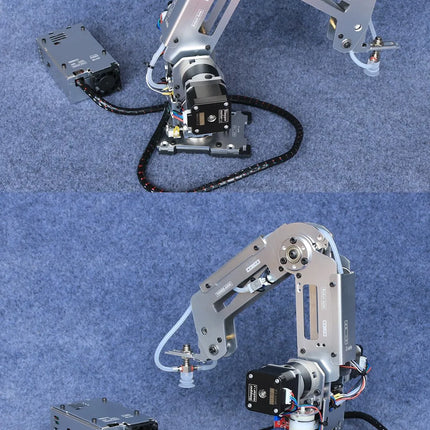

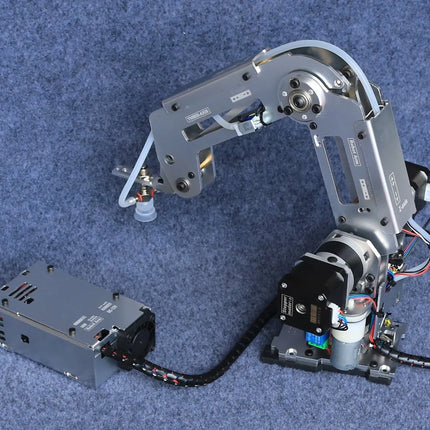

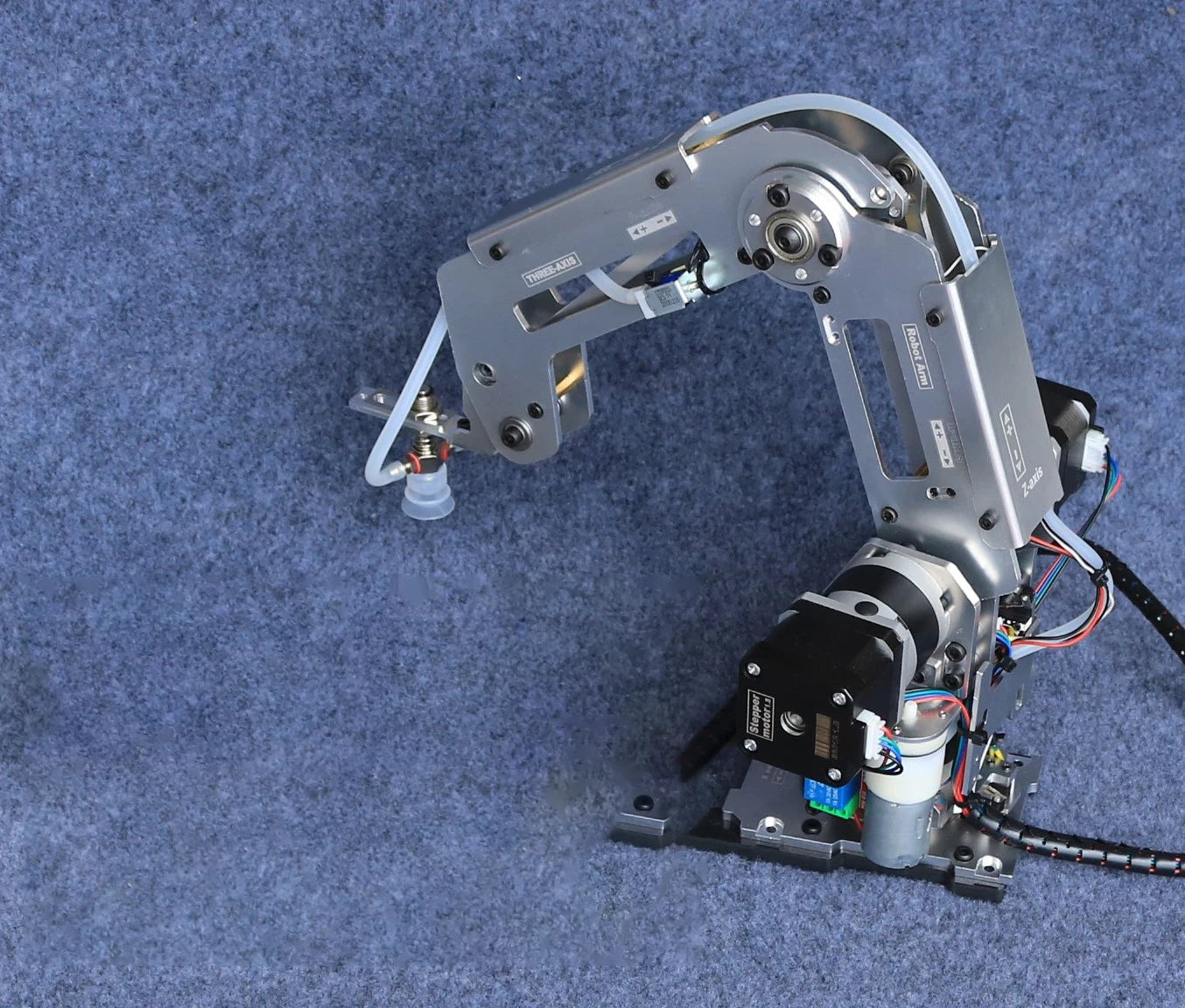

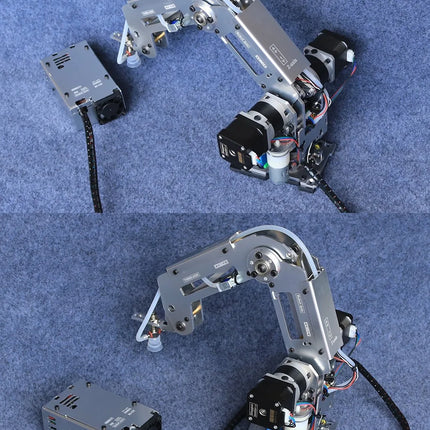

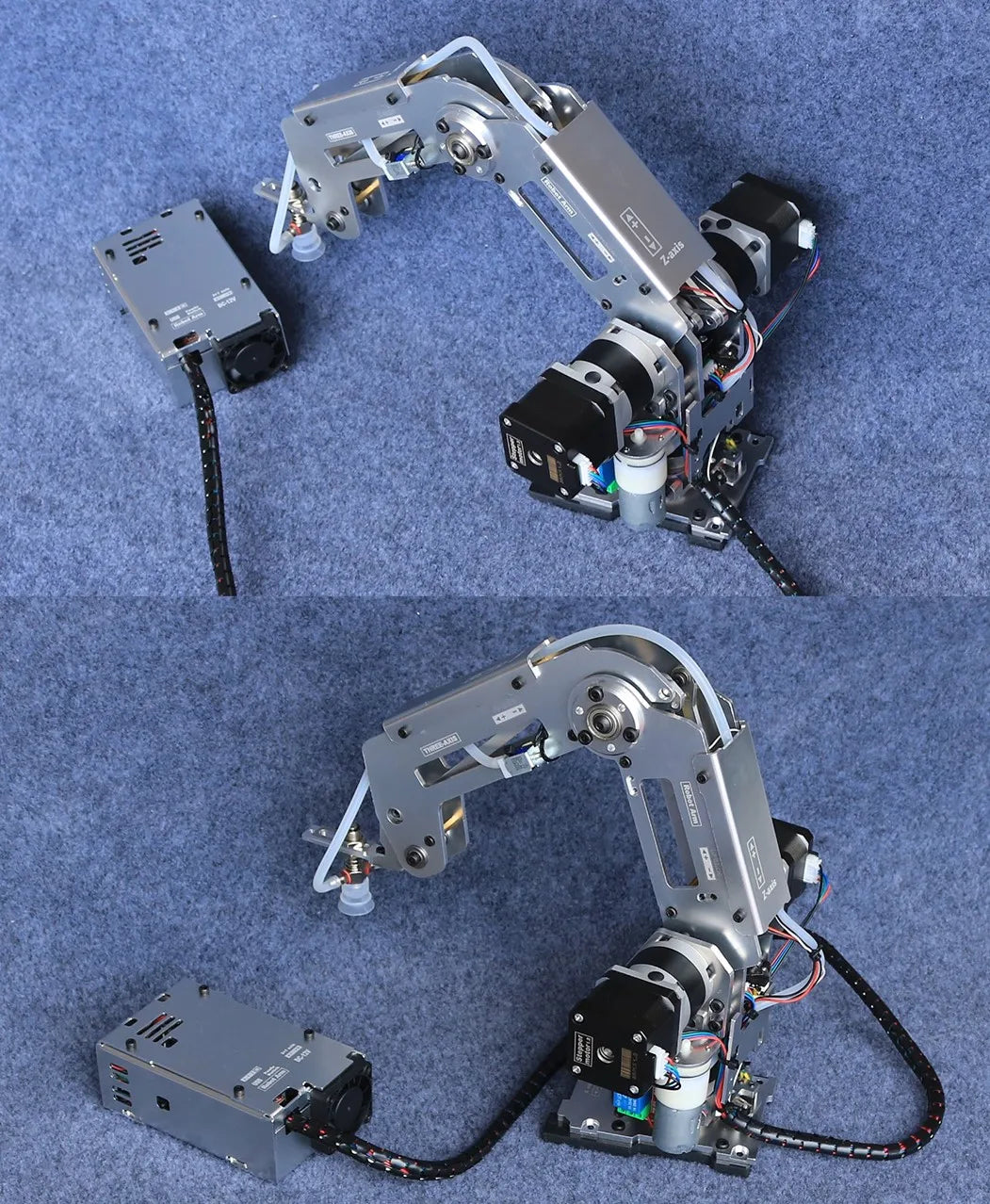

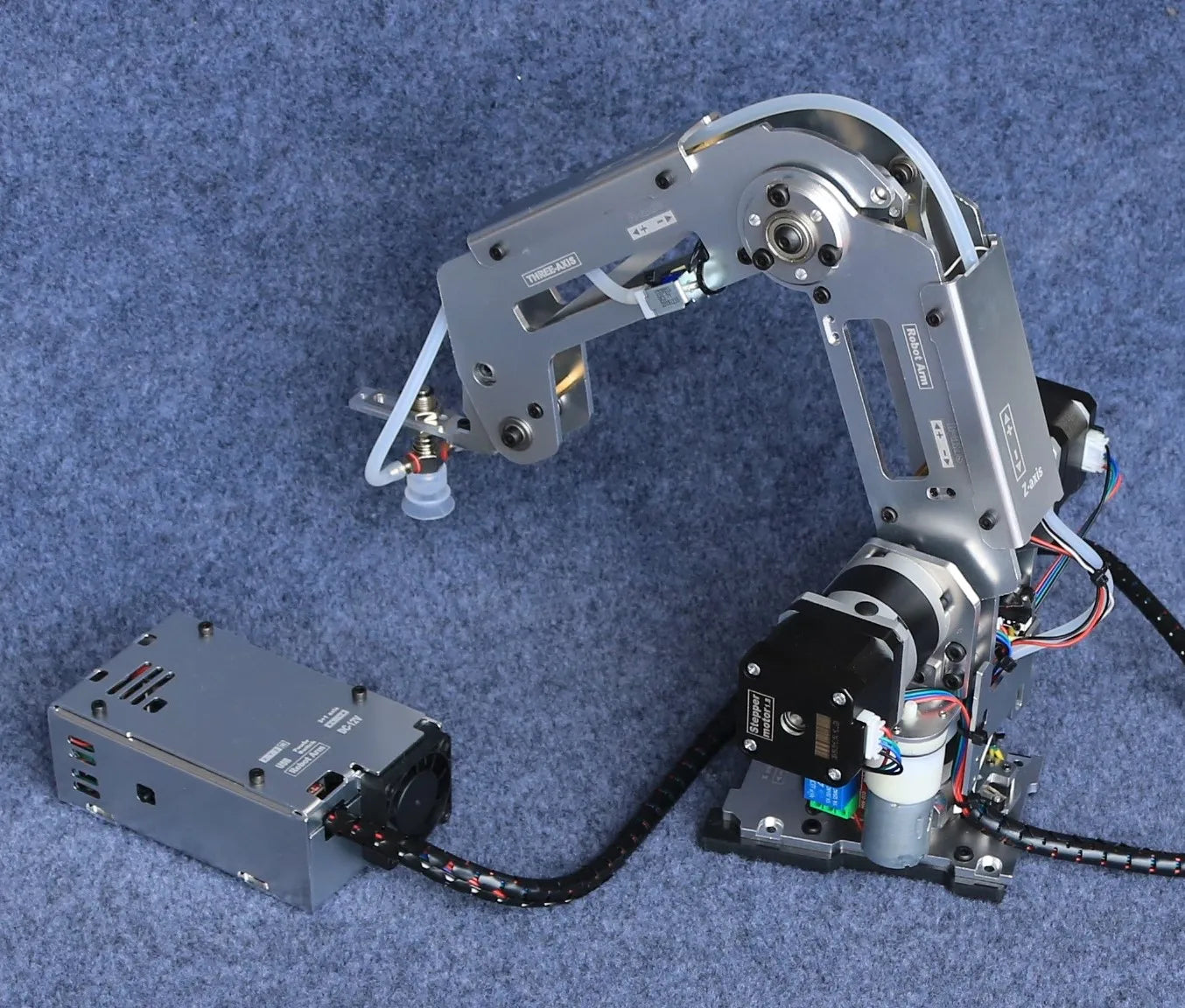

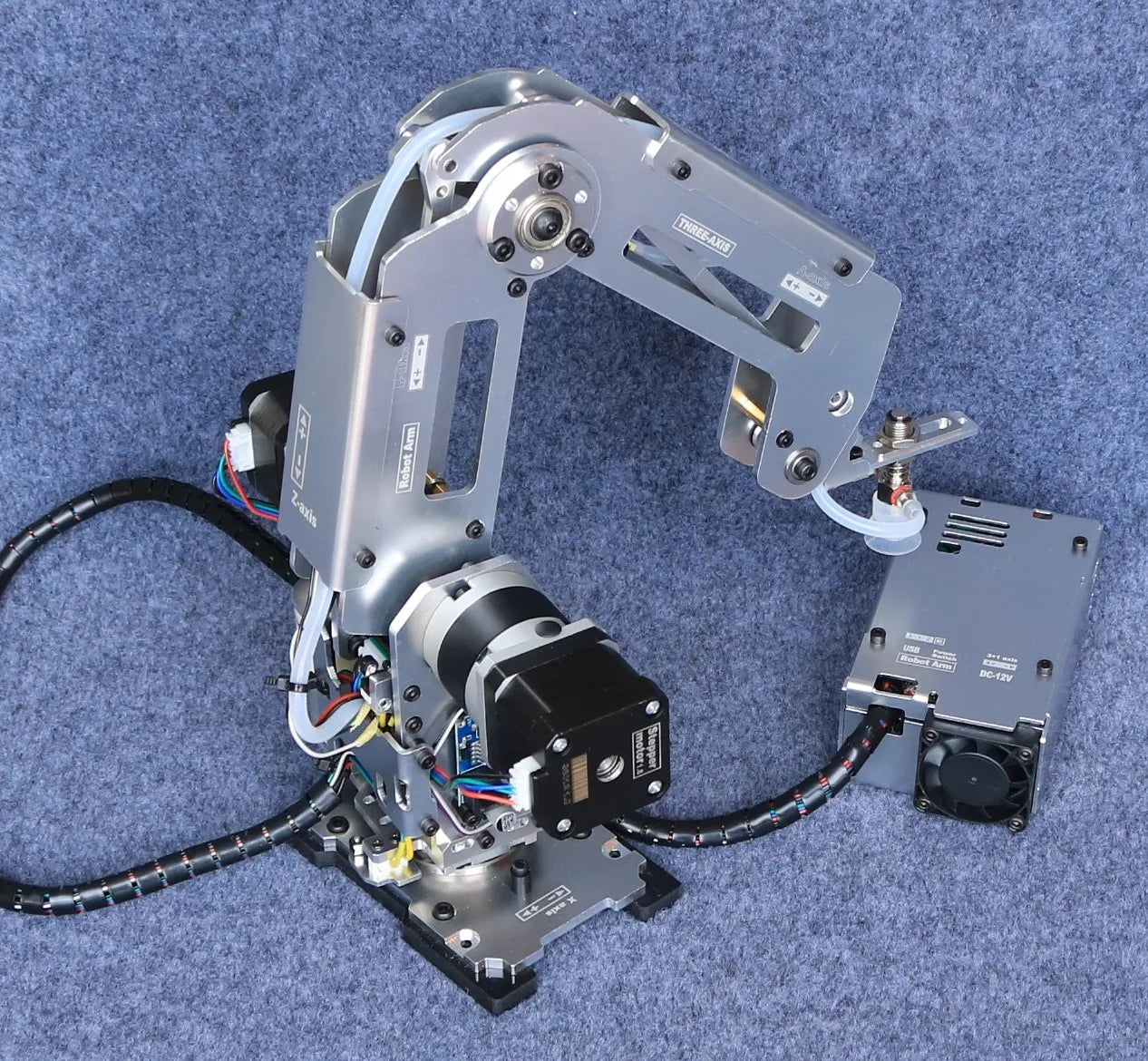

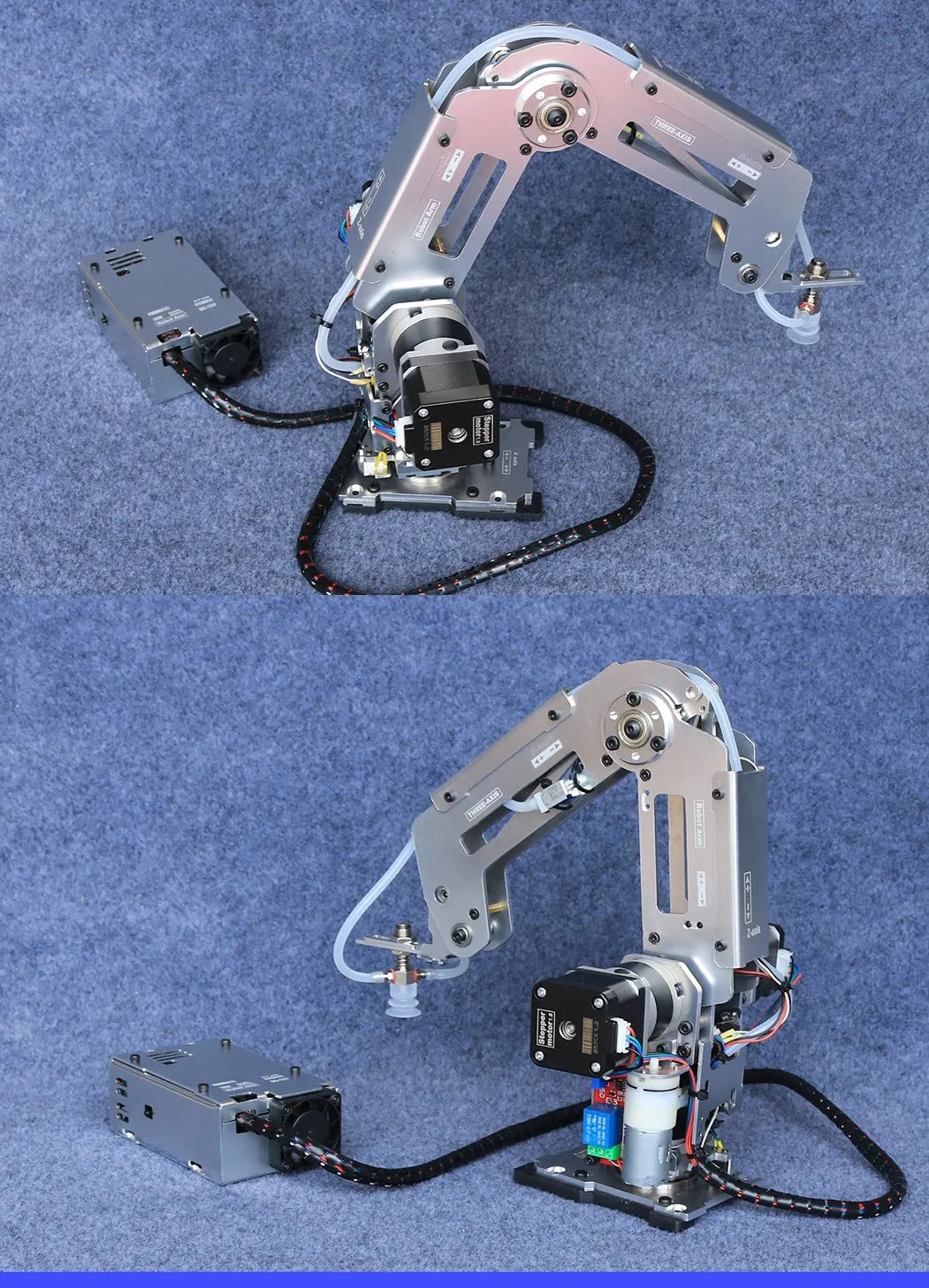

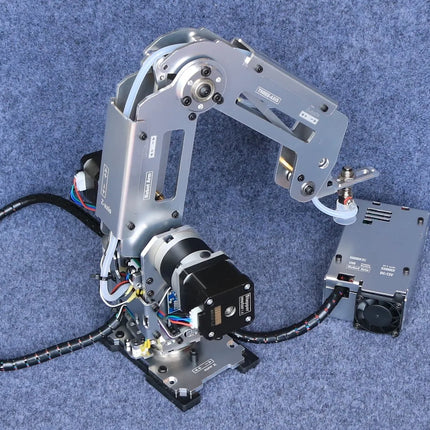

We will continue to develop more excellent products. : Mechanical arms and kits are shipped in bulk. Provide assembly instructions for users to assemble themselves. You need to prepare a 12v 5A power supply. Below is the actual shot

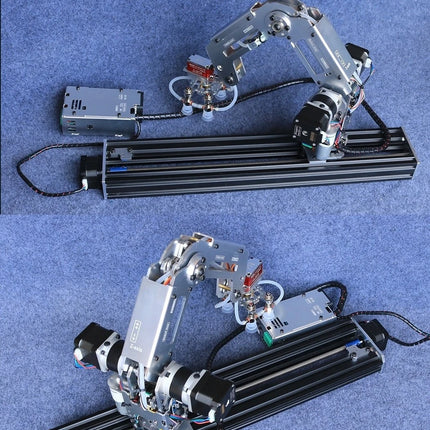

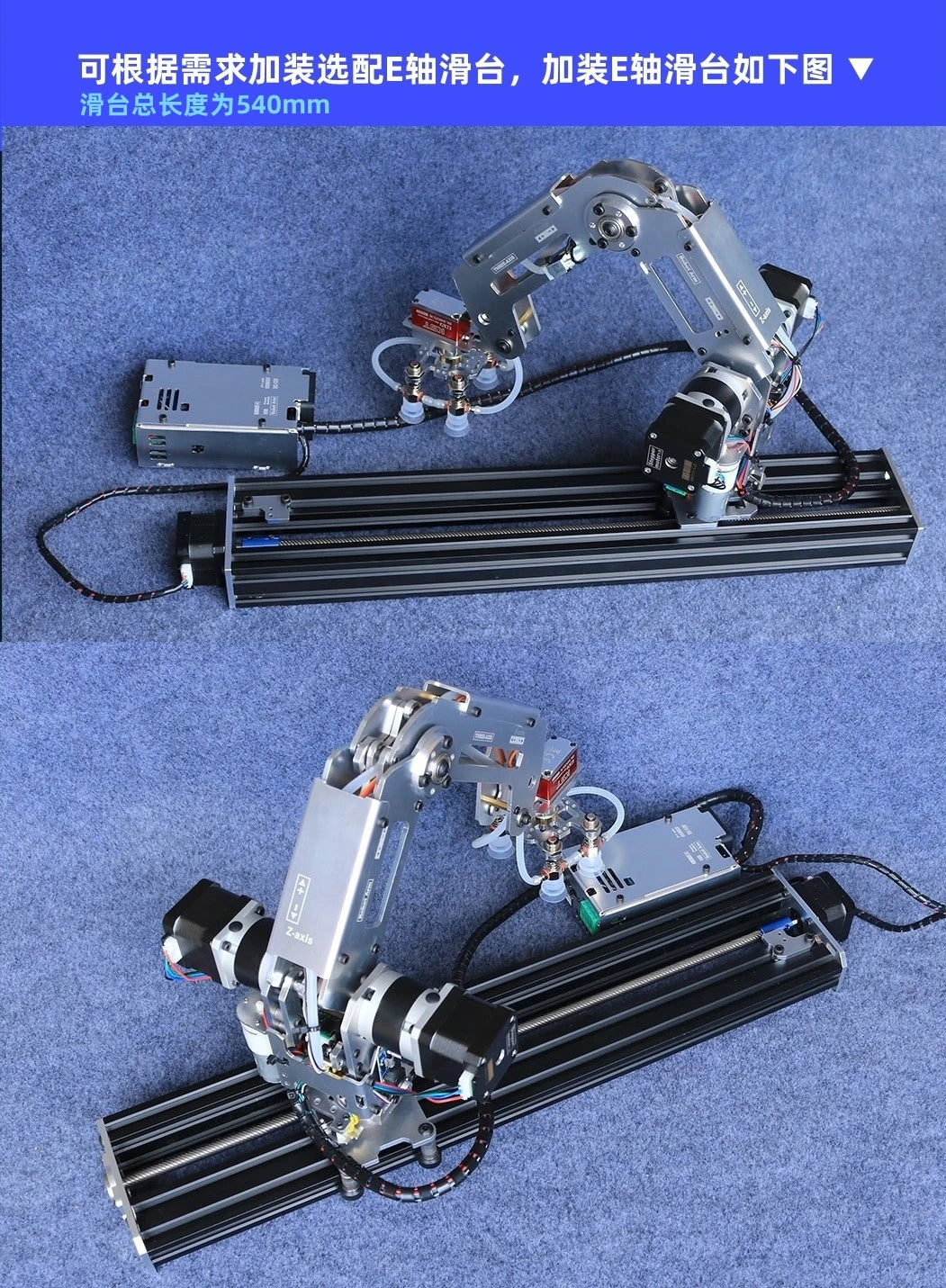

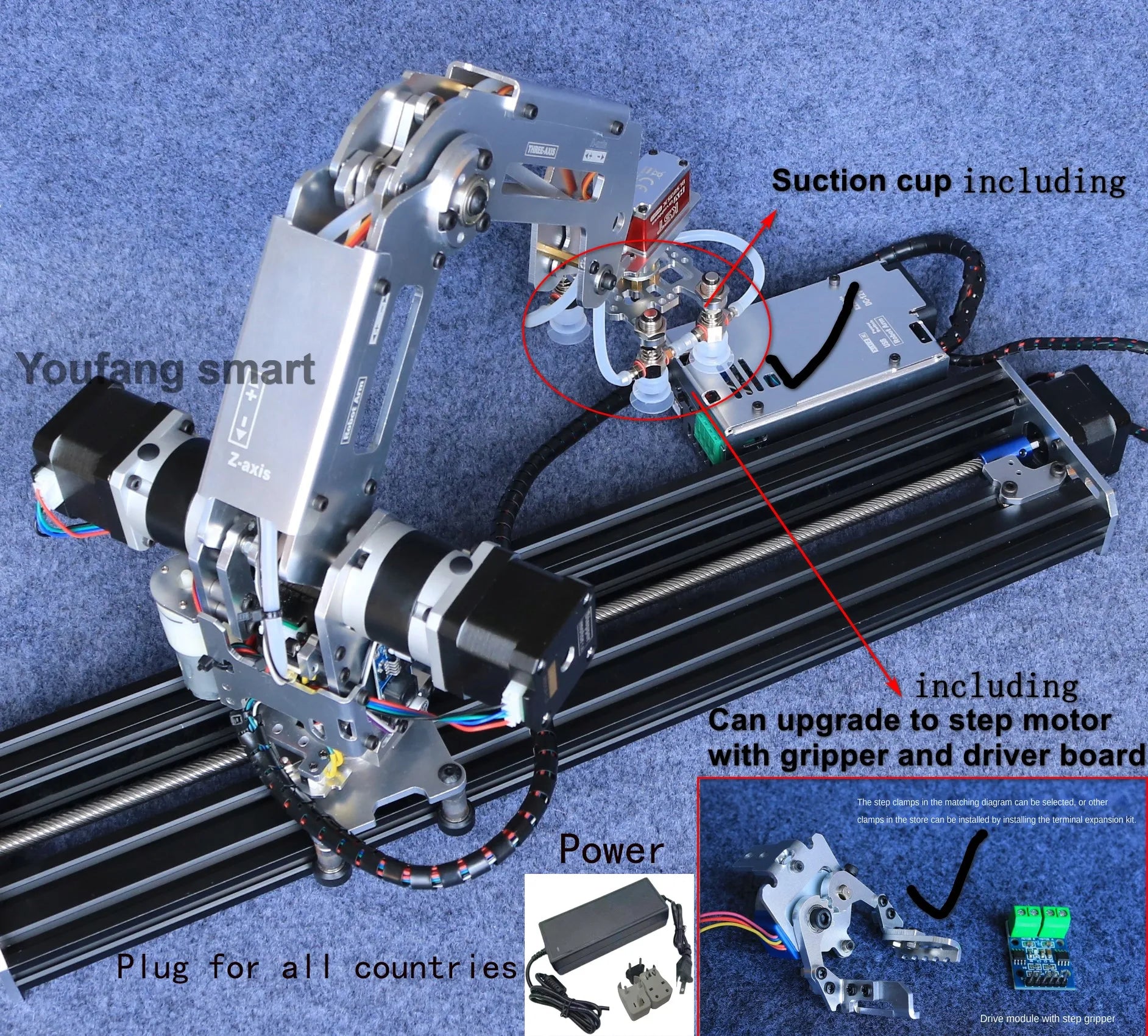

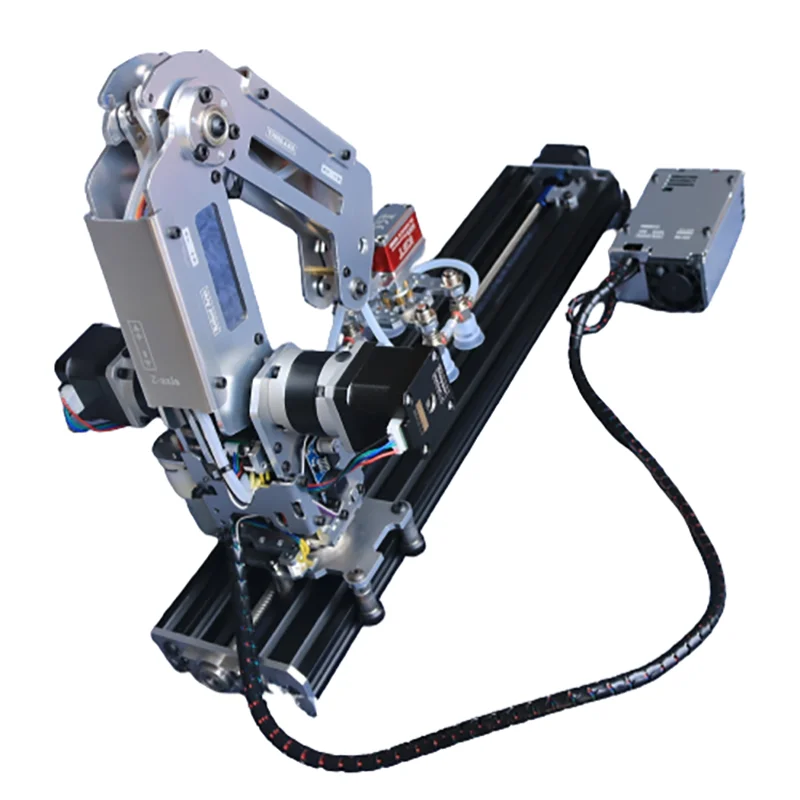

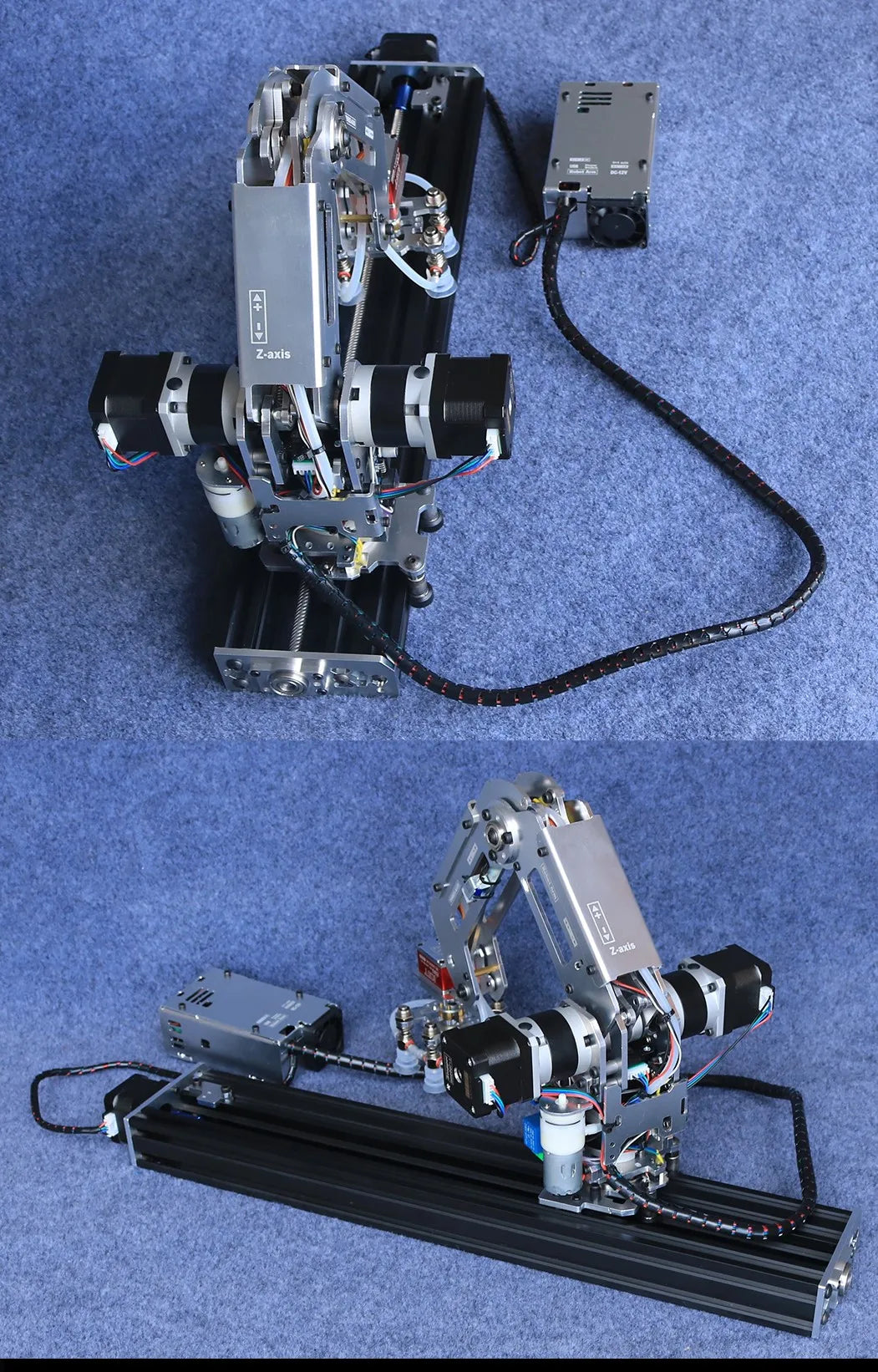

The E axis slide table can be installed according to the requirements. The total length of the E axis slide table is 540mm as shown below

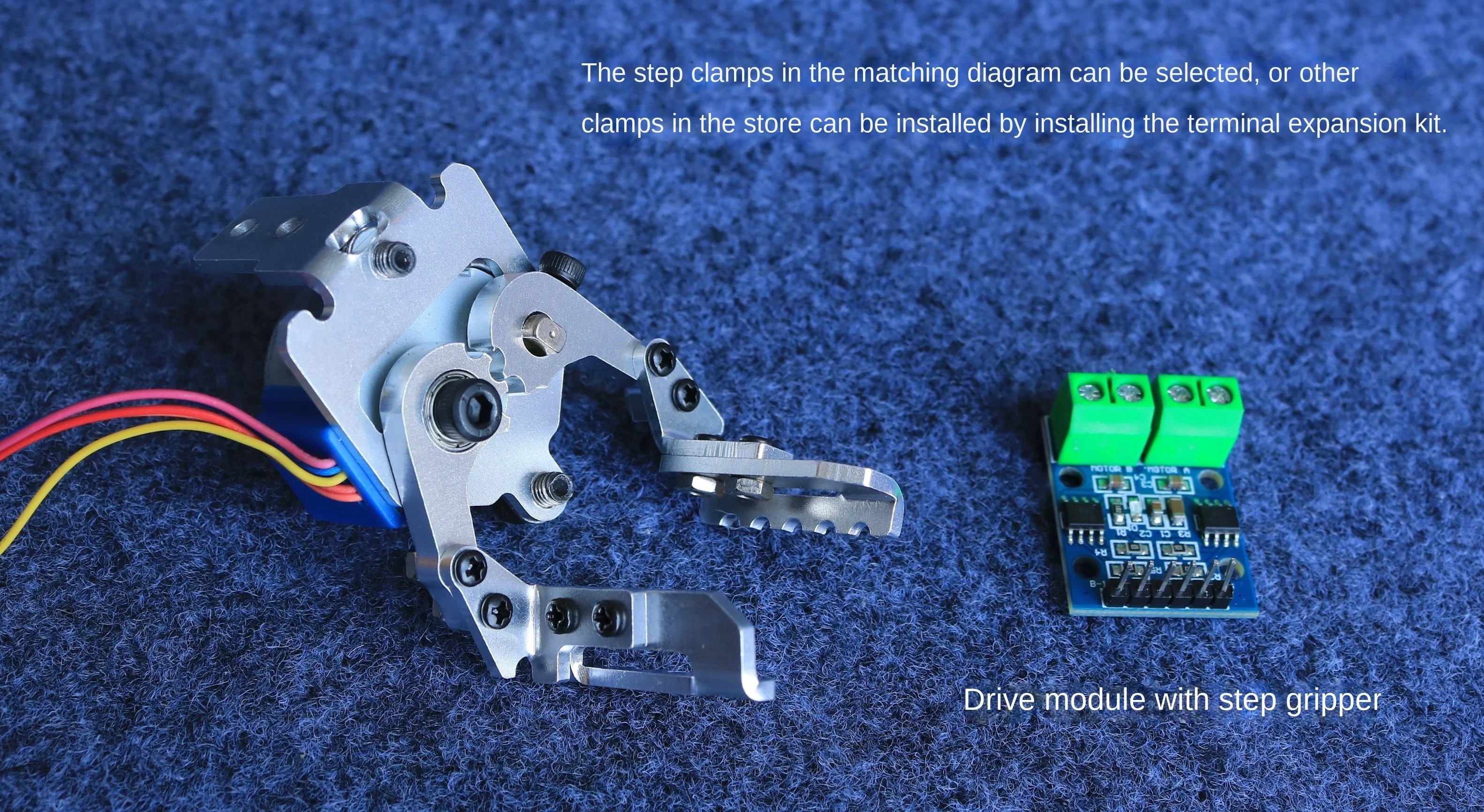

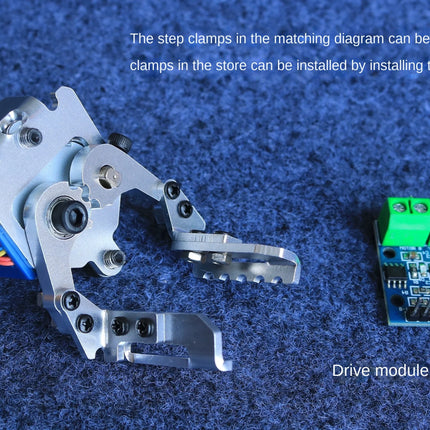

The stepping gripper shown in the picture can be optionally installed, or other grippers in the store can be optionally installed by adding an end expansion kit.
Package List:

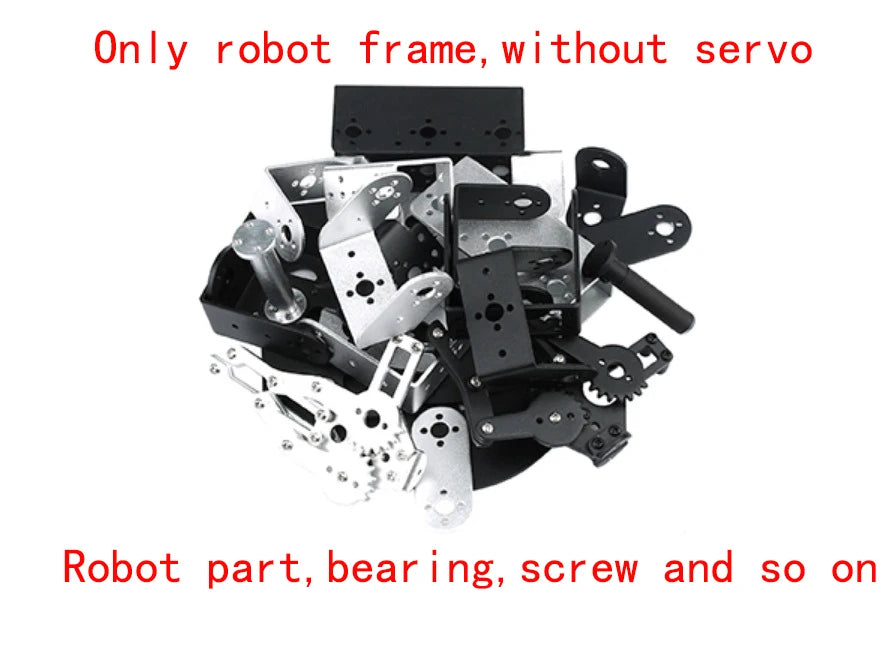

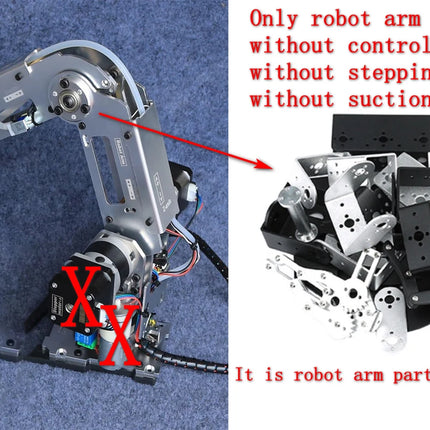

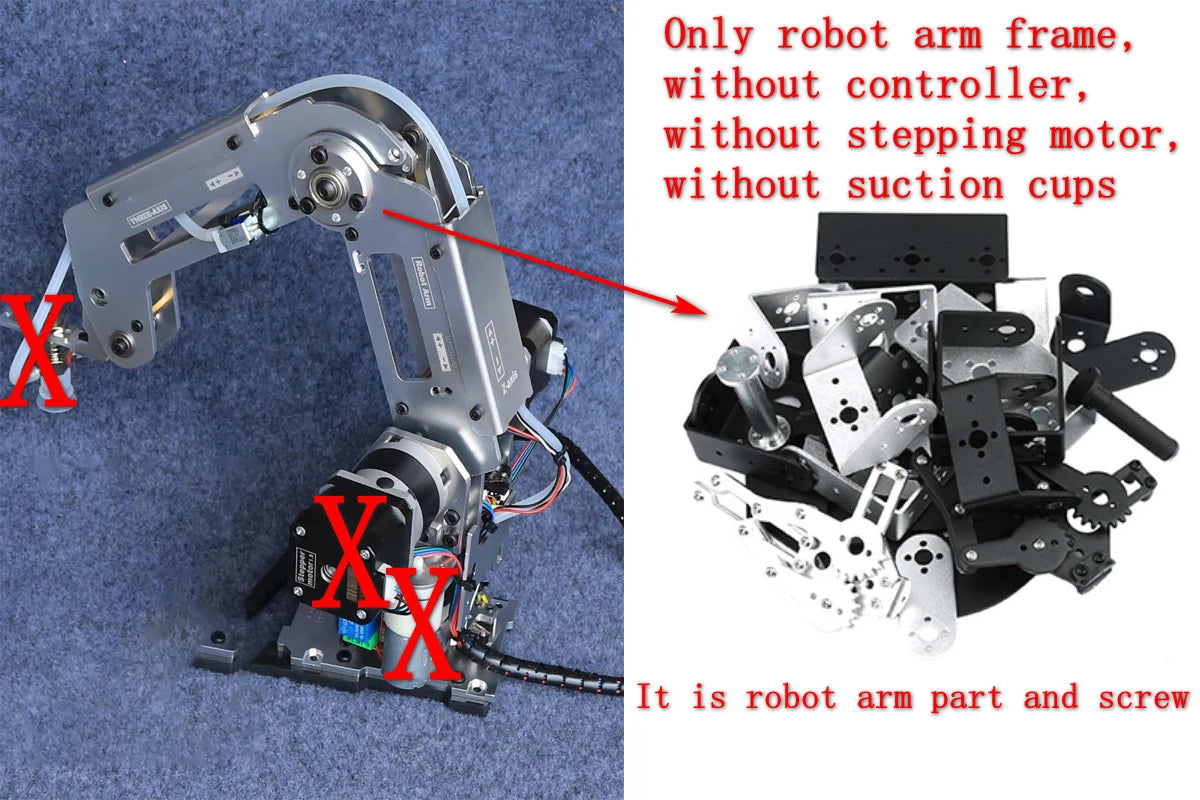

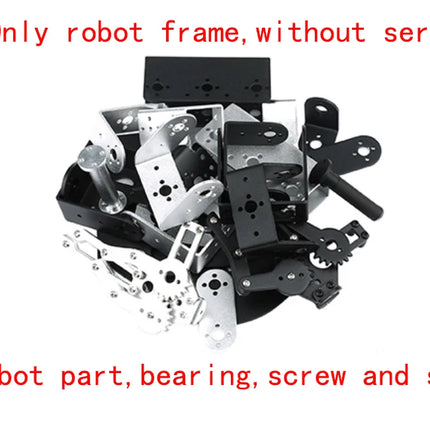

1.Only robot arm frame: 1 set robot arm frame(only metal part,without motor,without controller)
2.Without control: 1 set robot arm (with motor, without control board ,without slideway)

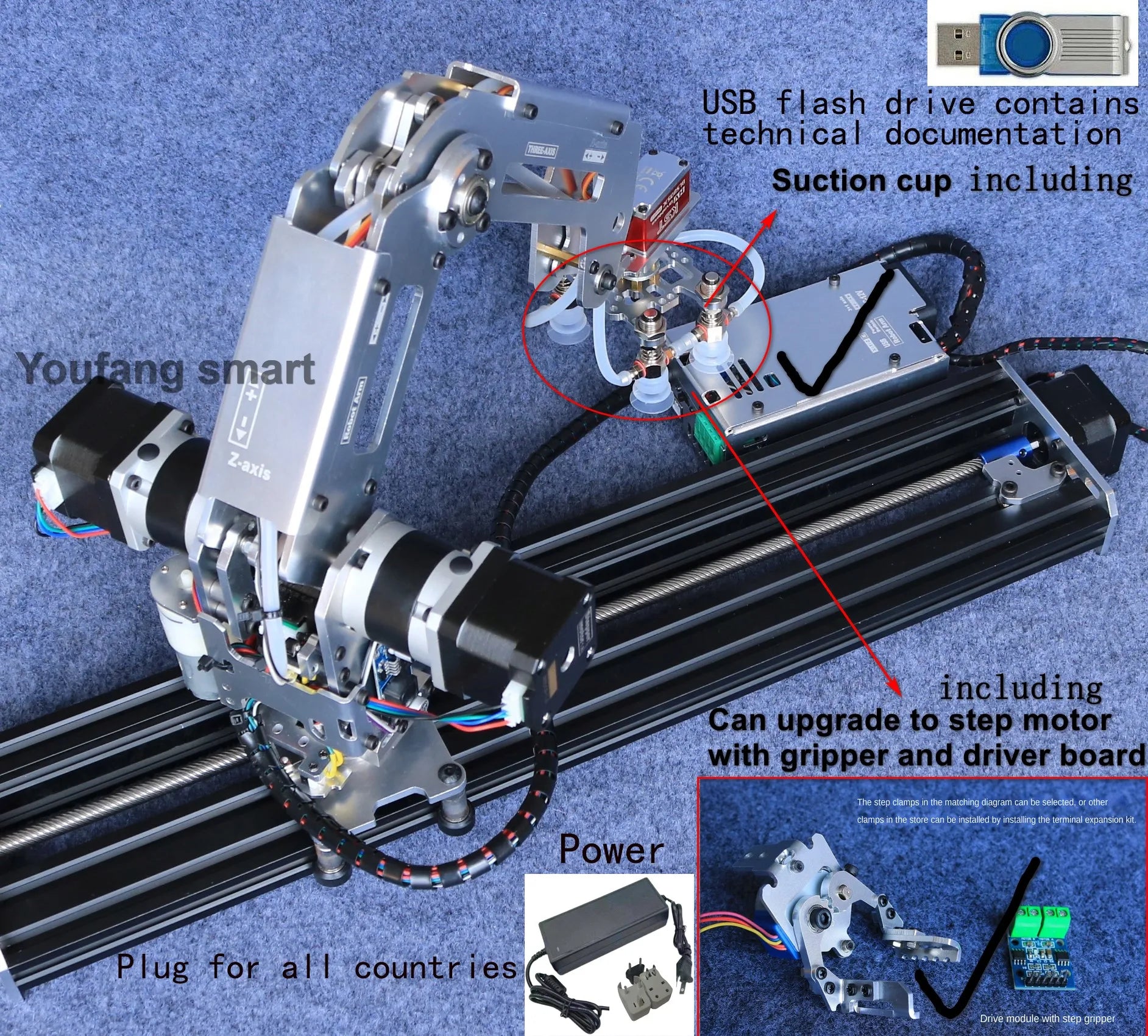

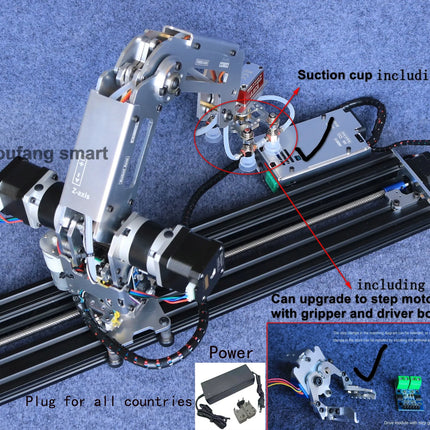

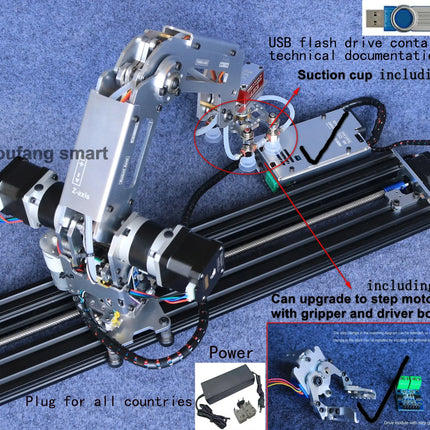

3.Full set all part: 1 set robot arm + control board + Power adapter(Free gift)+ slideway + 4 suction cup + 1 set step motor claw + Servo parts(Free gift)
Note:
1.All kits are unassembled ,need to DIY.

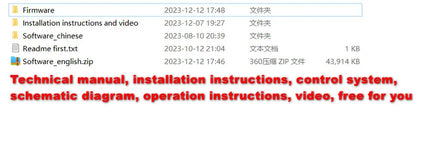

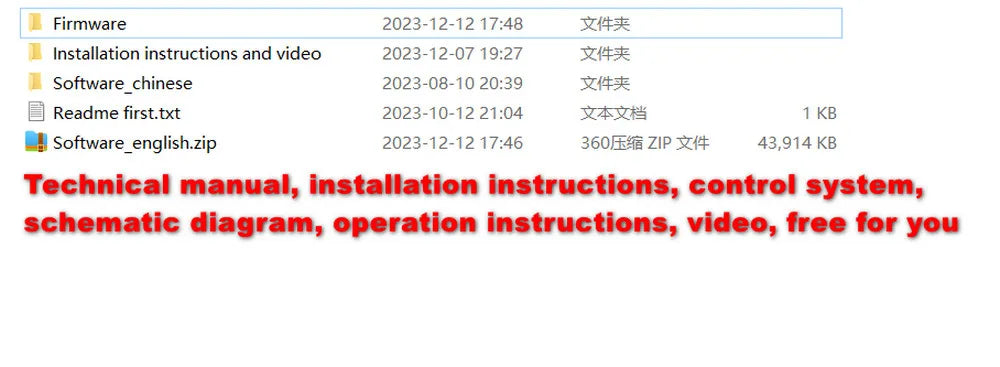

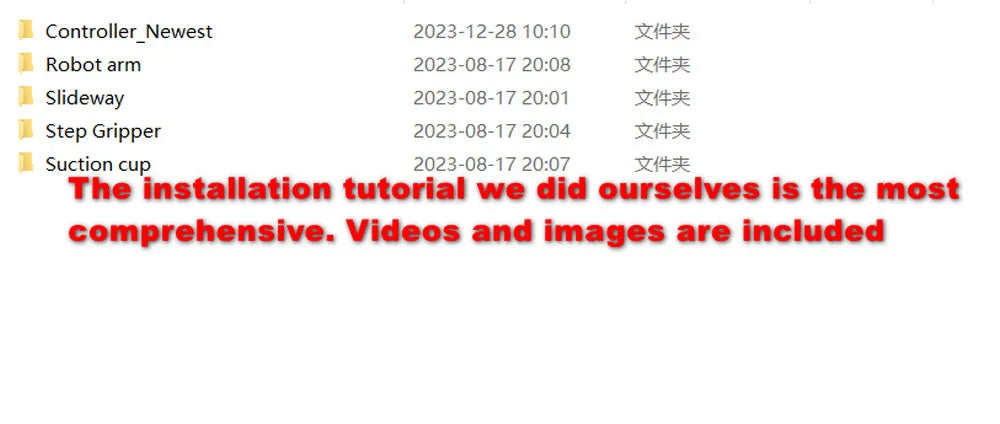

2. Technical documentation can be provided to you free of charge, please contact us.
Note:
1. Samsung mobile phone may not be compatible with our Android APP, if the mobile phone can't find this WIFI, please change to a mobile phone that is not a Samsung brand.
