Description
SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: 1
Brand Name: Aneegfpv
Camera Mount Type: Fixed Camera Mount
Control Channels: 12 Channels & Up
Controller Battery: no
Controller Mode: MODE1,MODE2
Drone Weight: 19.5g
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Metal
Operator Skill Level: Beginner,Intermediate
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: /
Takeoff Weight: /
Transit Time (Days): /
Type: HELICOPTER
Video Capture Resolution: 1080p FHD

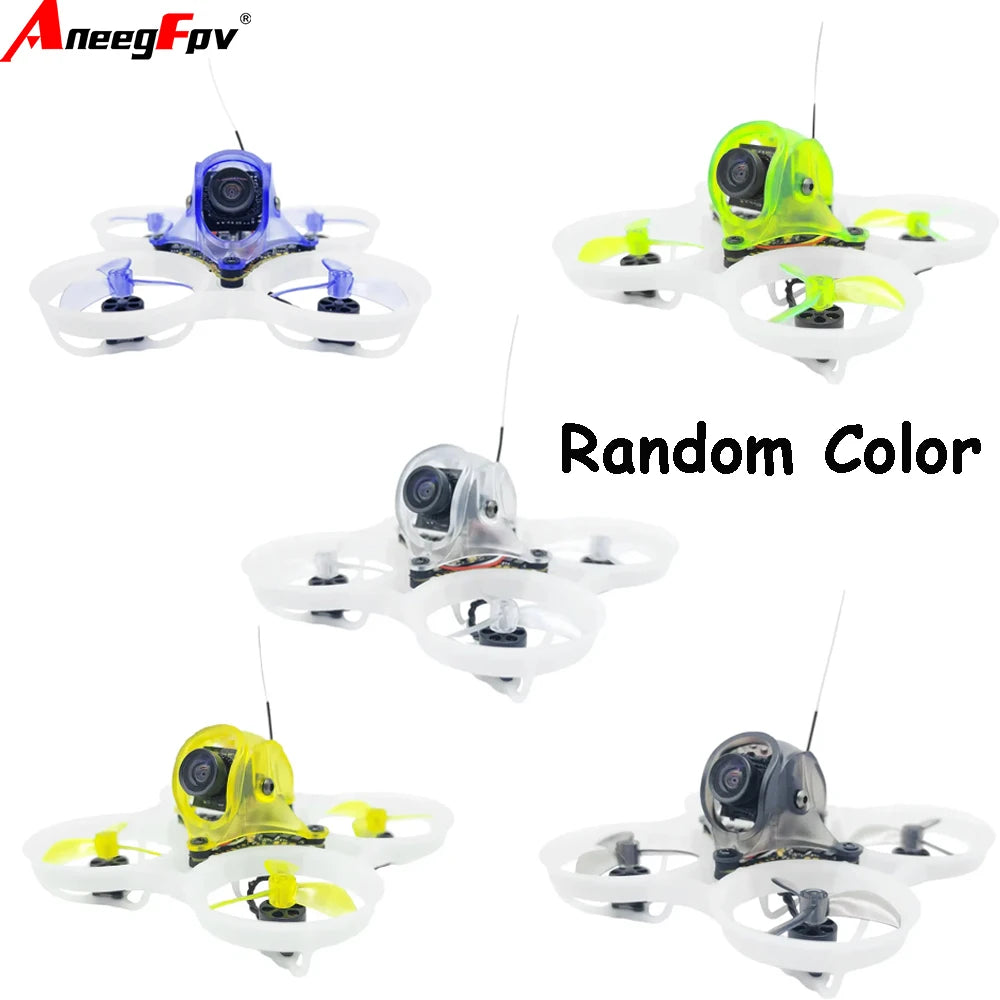

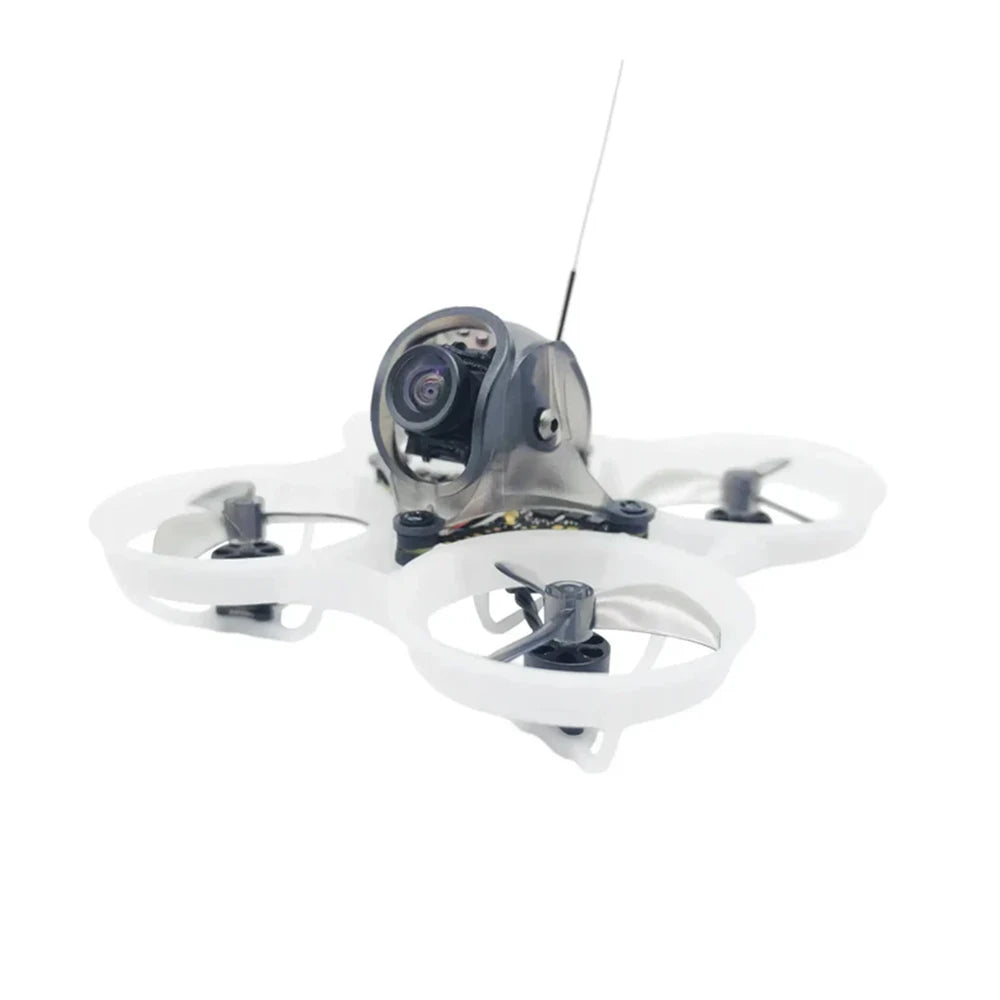

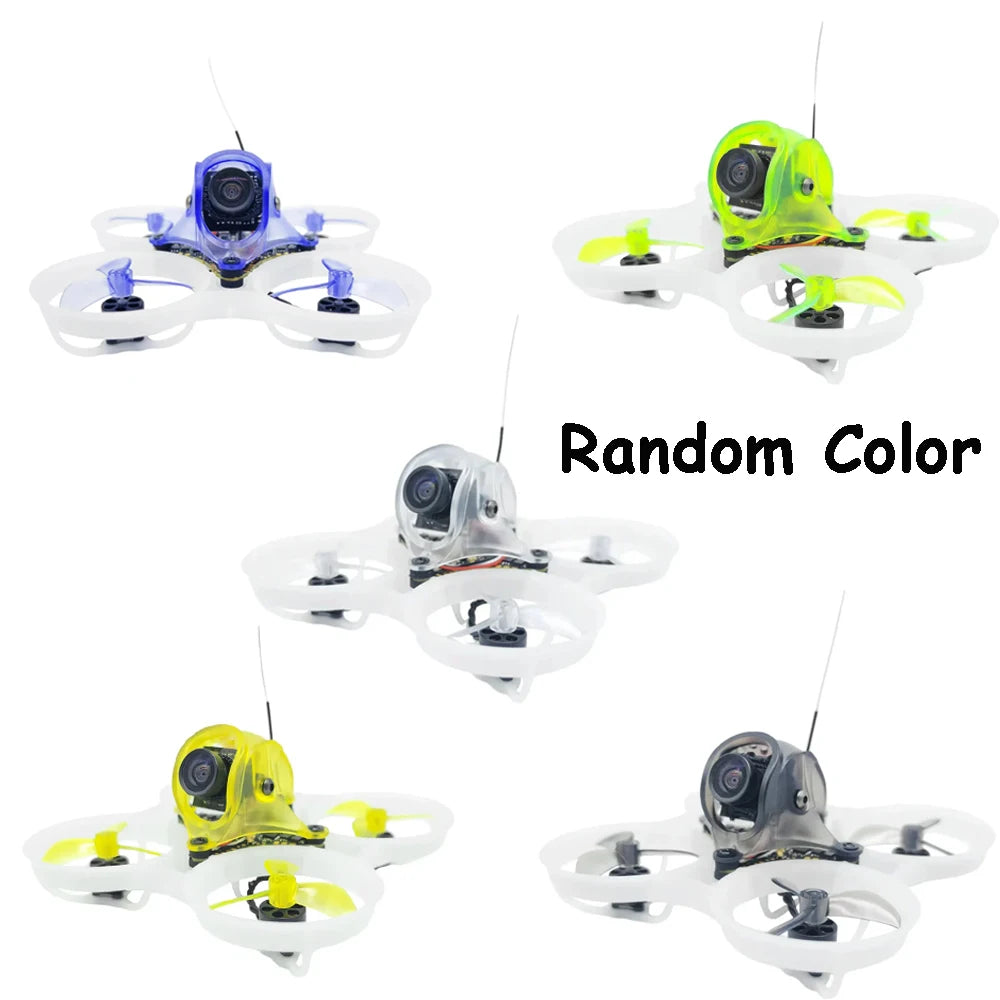

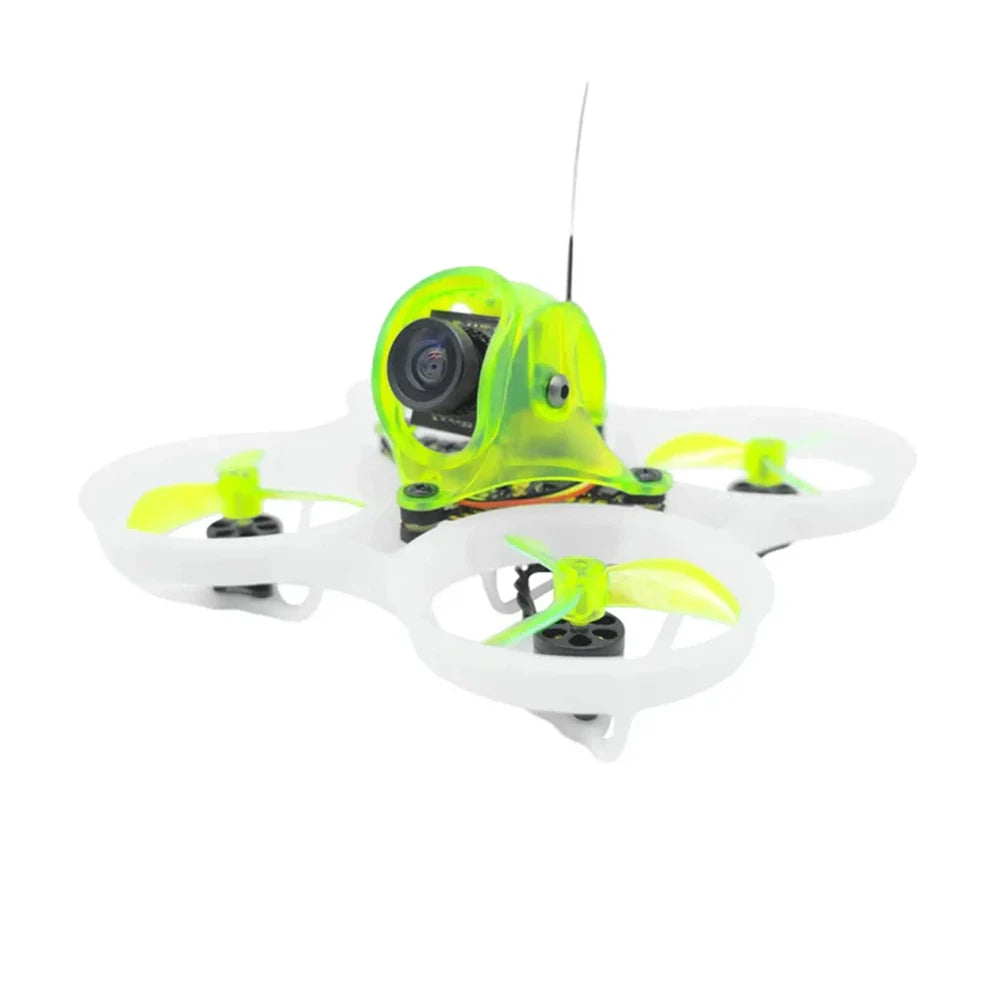

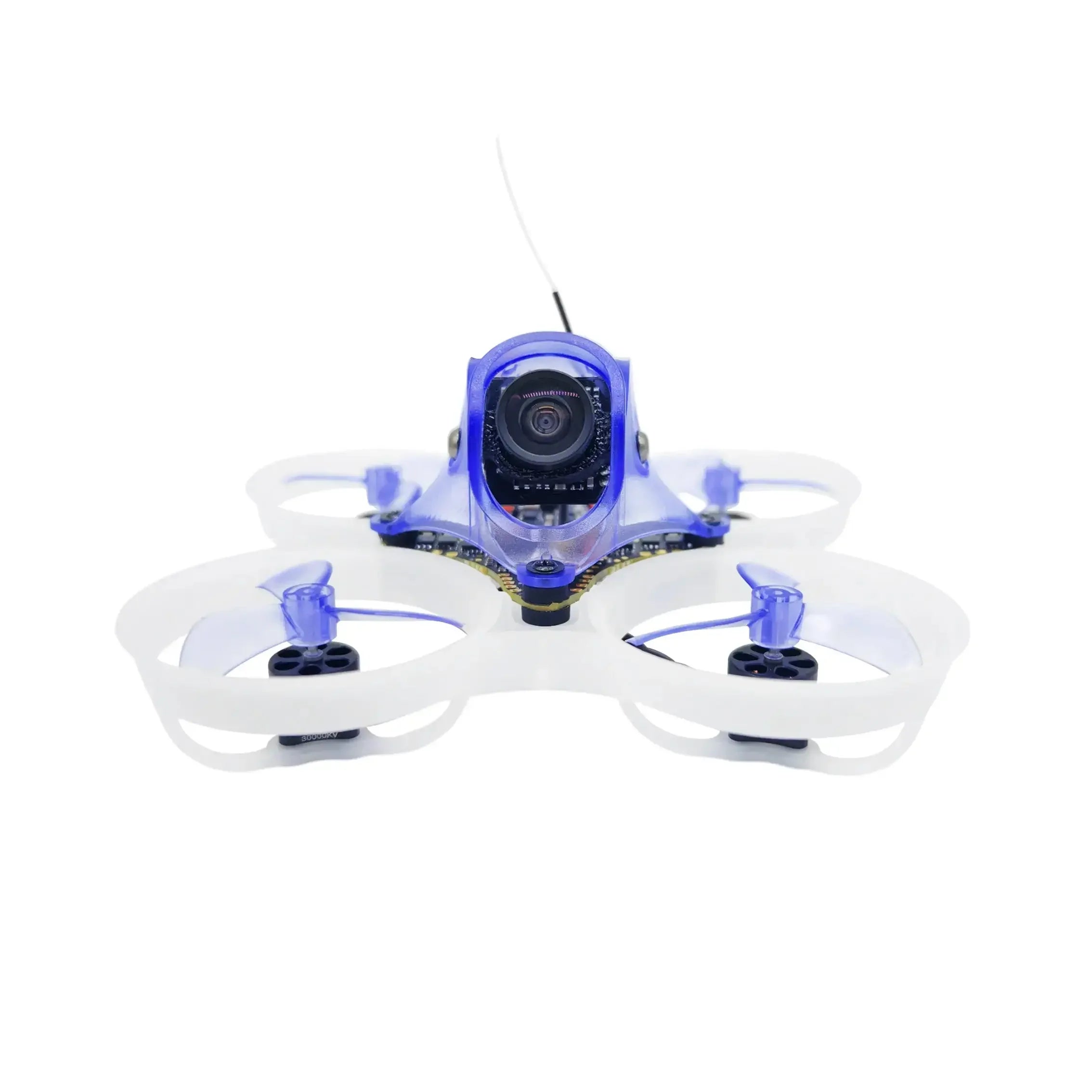

NewBeeDrone HummingBird V4 BNF Racing Drone (Random Color)
Warning:
This drone has been carefully crafted using only newbeedrone parts. It is important to note that any use of non-compatible parts from other brands may result in technical difficulties. Additionally, should you choose to modify the drone, it is crucial that you assume full responsibility for any resulting issues. It is not advisable to proceed with modifications without the necessary knowledge and expertise. We appreciate your understanding and cooperation in ensuring the safe operation of the drone.
If you mess up the setting?
Important Notice: If you experience issues with your drone, do not flash the firmware. Simply perform a factory reset using the configuration tool (e.g., Betaflight Configurator) and then do an accelerometer calibration. For further assistance, please contact our support team.

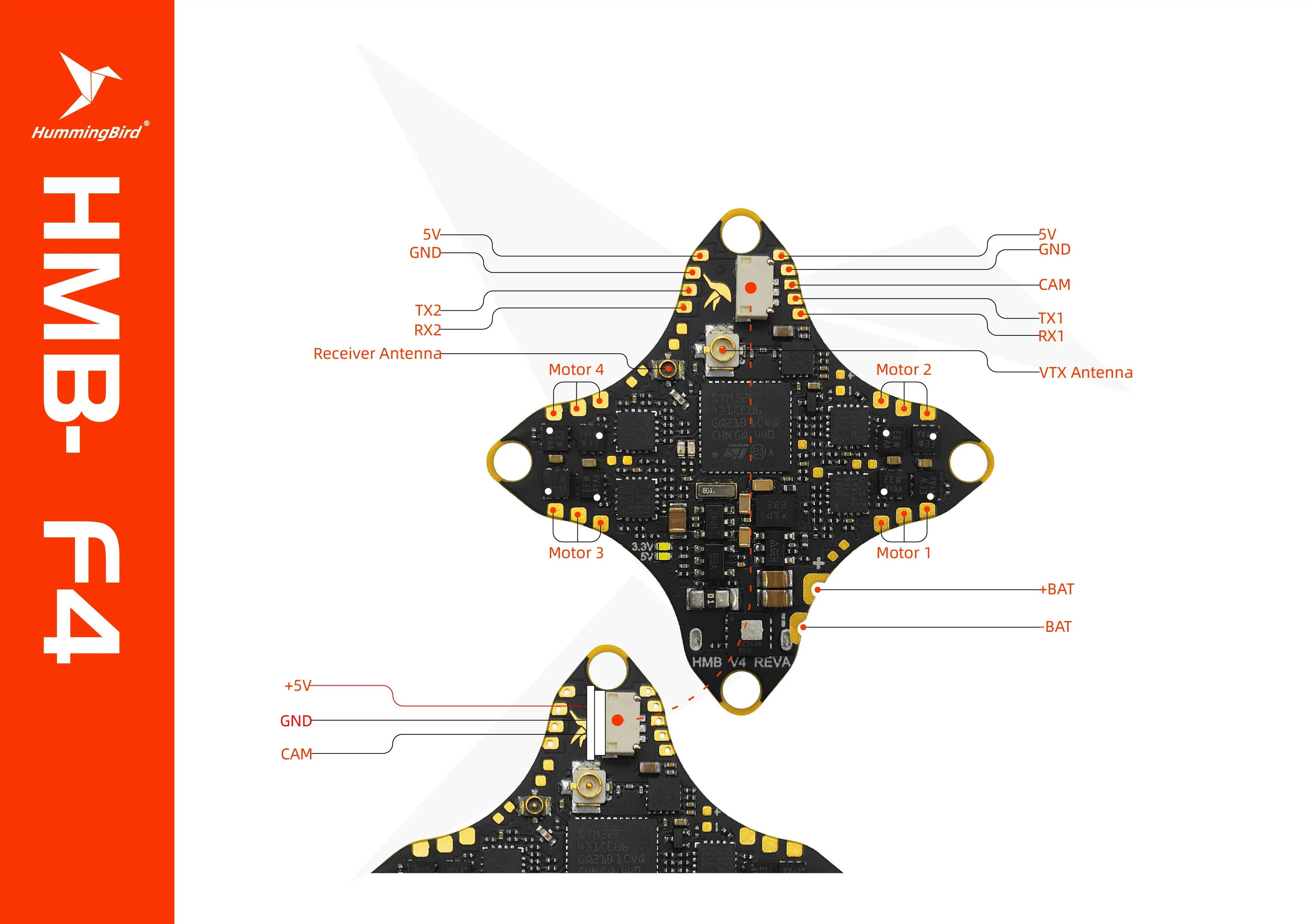

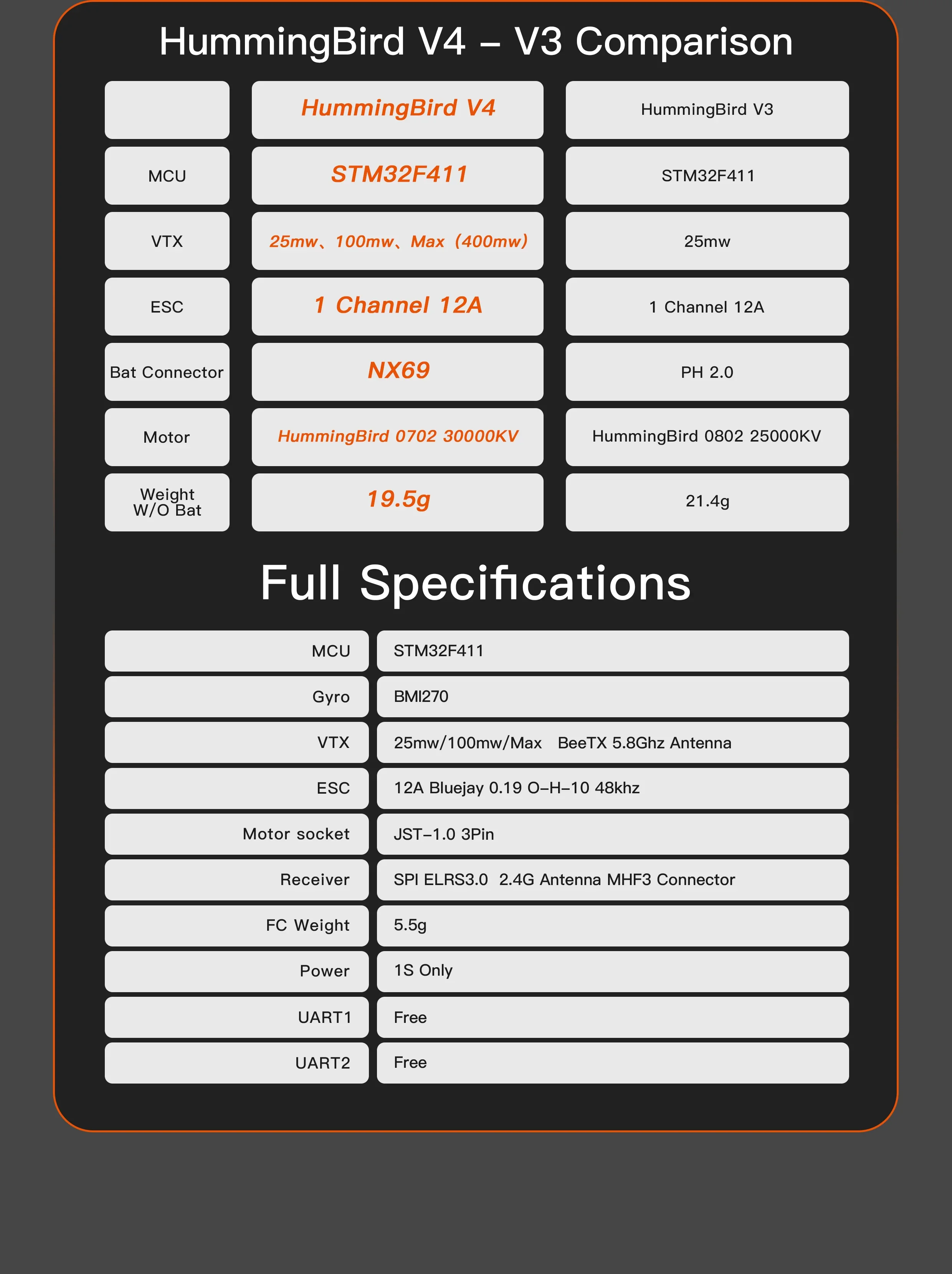

Hummingbird V4 ELRS AIO Flight Controller Specs:
MCU: STM32F411
GYRO：BMI270

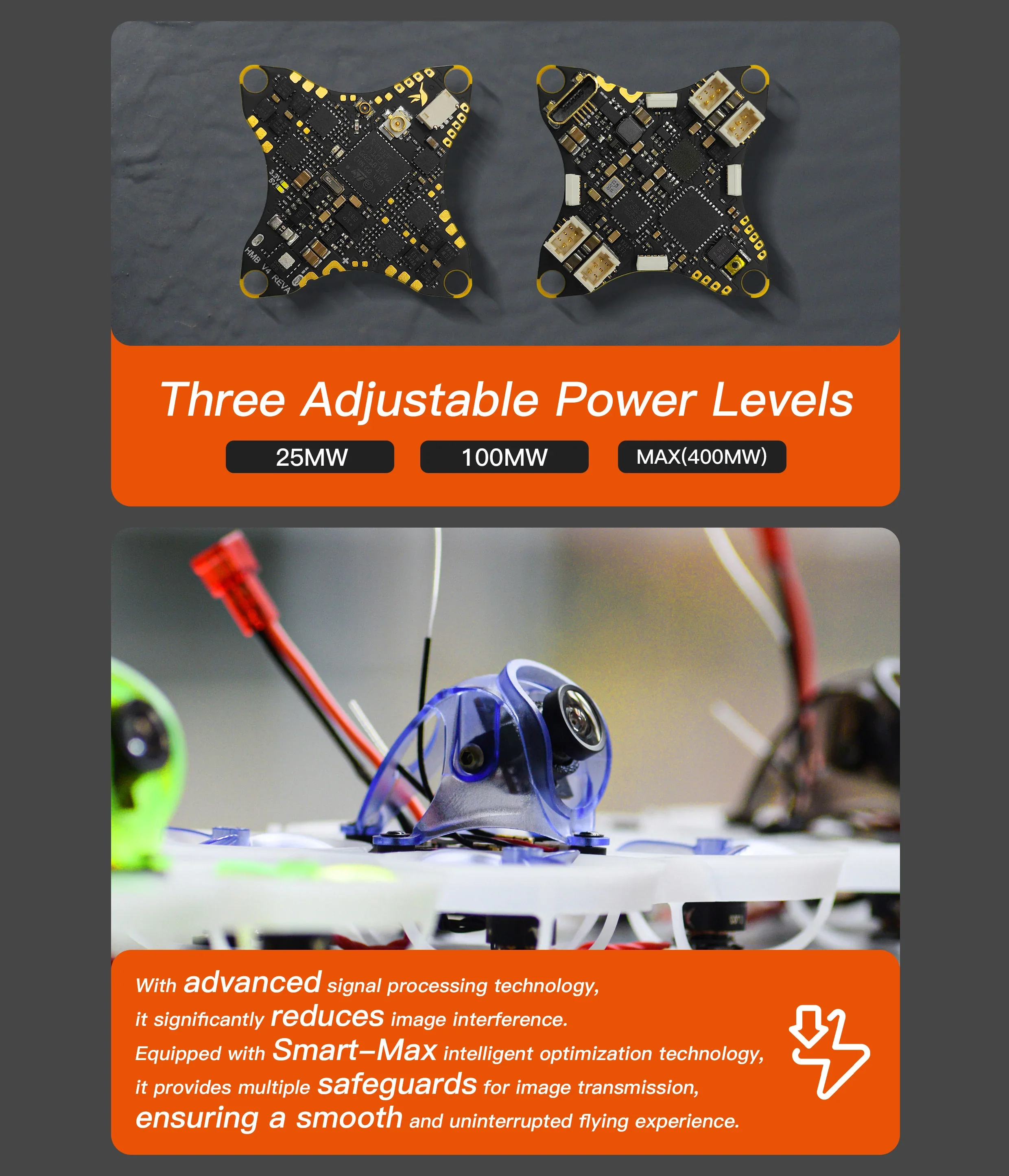

VTX: 25mw for Racing/ 100mw and up to 400mw SmartMax temperature control with BeeTX 5.8Ghz Antenna
ESC: 12A BLHeliS pre-flashed with Bluejay 0.19.2 Target: O-H-10 48kHz
ESC Connector: JST-1.0 3Pin
OSD: NBD7456 Graphical OSD compatible with Betaflight OSD
Receiver: 2.4G Antenna with MHF3 connector
Flight Controller Weight: 4.57g(Include antennas and battery connector)
Flight Controller Size: Outer dimensions: 29x29x7.6mm
Flight Controller Holes: 25.5x25.5mm
Battery input: 1S Only
Uart1: free
Uart2: free
Power Plug: NewBeeDrone NX69 Connector
SPI ELRS3.x receiver (Binding instruction: power on the drone, push the bind button under the flight controller to get into bind mode. If your remote control is not ELRS3.x or above version. You will need to update your remote controller ELRS to 3.x version because betaflight 4.5 will no longer support any lower version of 3.0)
Please read through the SPI base information if you have difficulty with binding
Recommended Batteries:
NitroNectar 300mAh 1S NX69 HV
Firmware:
1. Hummingbird V4 Betaflight firmware
What’s included:
1x Hummingbird V4 BNF Whoop with SmartMax 400mw VTX ELRS2.4G
（Batteries are not included with the product.）
1x Azi Prop 31mm 1.0 random color. 1set.

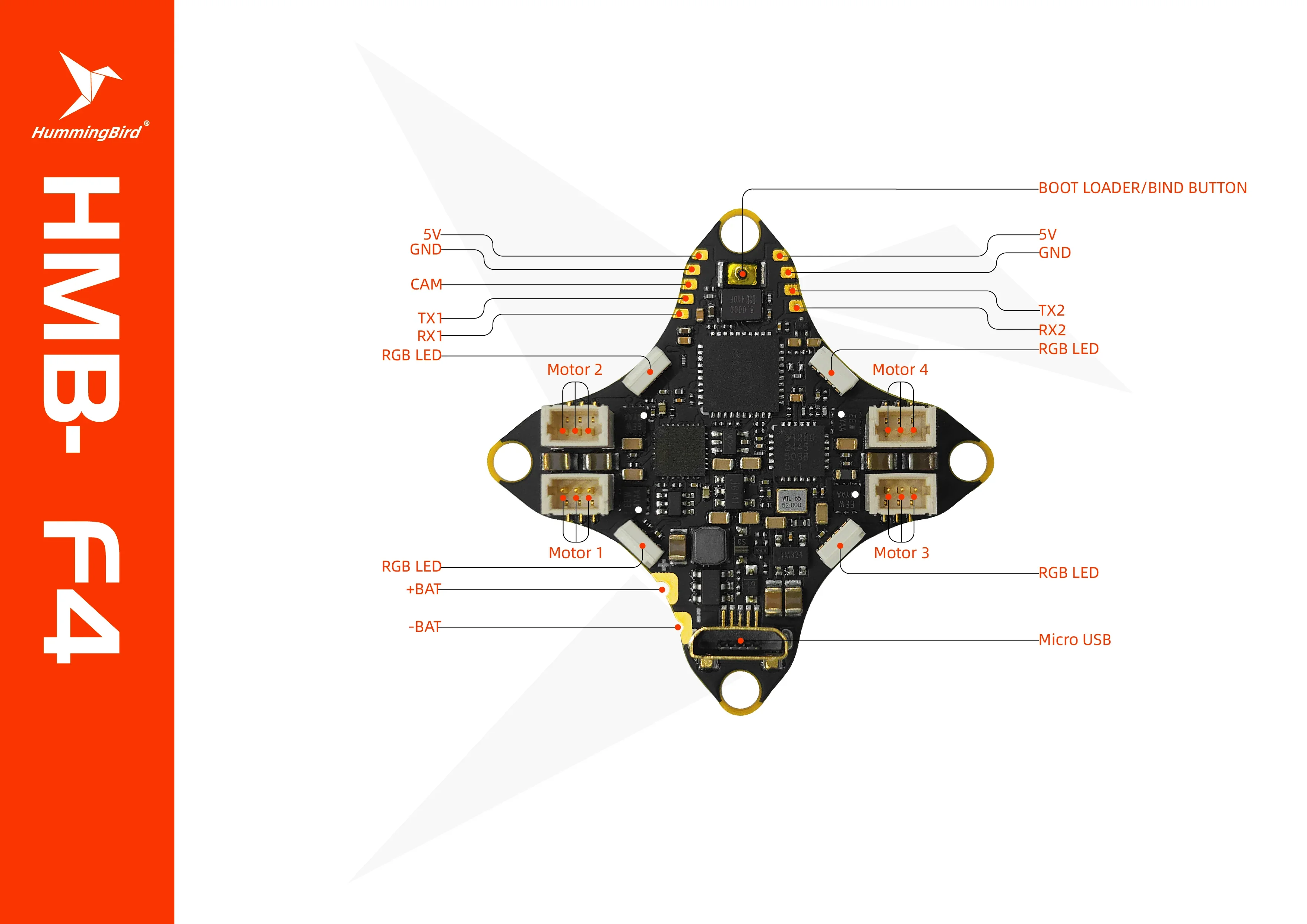

Binding procedure:
To bind, connect to USB power or a battery source. Push the bind button on the front bottom of the flight controller to trigger the binding mode. Bind it to your radio controller. (Note: The Hummingbird v4 only supports ELRS 3.x or a later version. If your remote controller is ELRS 2.5, you will need to update your ELRS TX Module.)
