SPECIFICATIONS

PTZ specifications:

Total pixels: 2MP/3MP/5MP/ 8MP

Output Pixel:

Lens: f=4.7-94mm

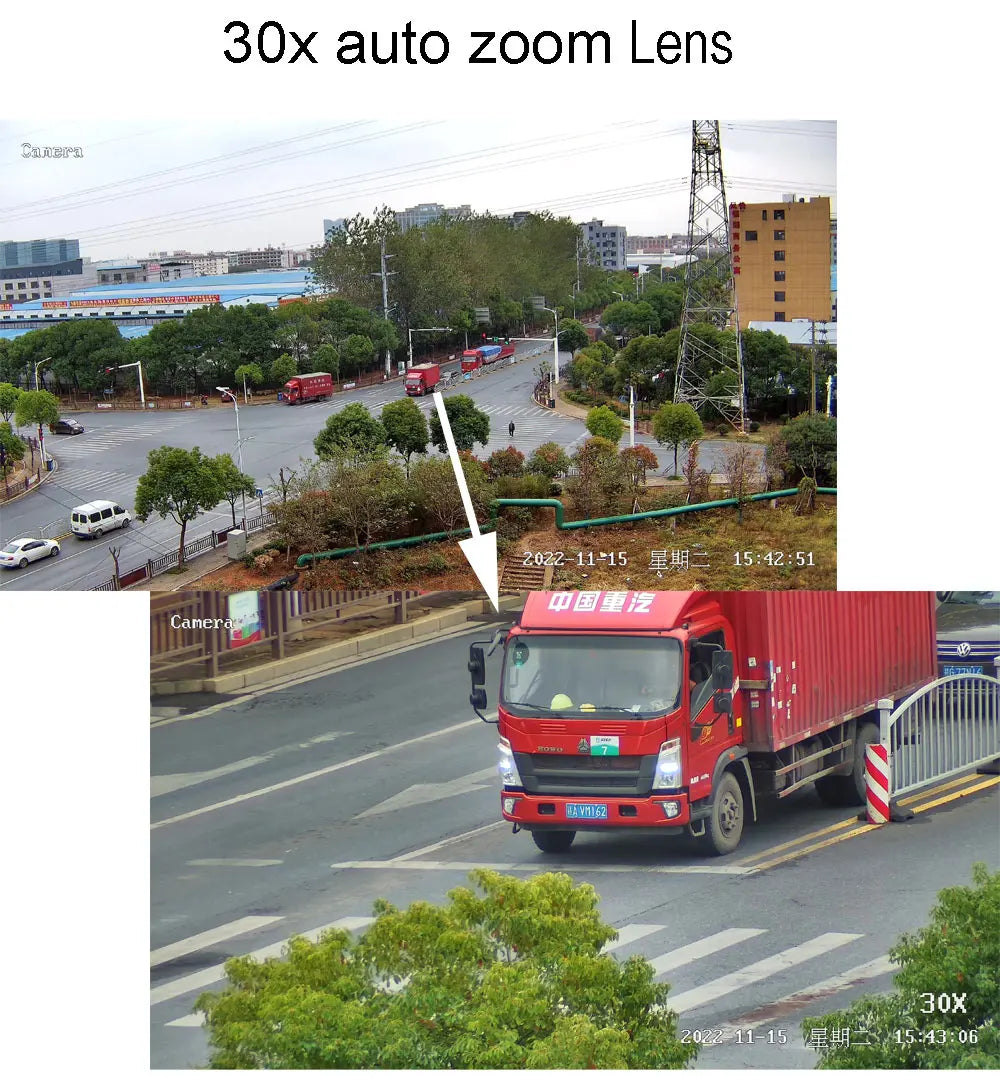

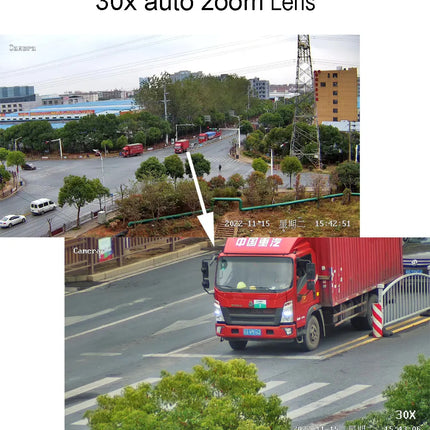

Zoom: 30x zoom(20x Optical+10x digital zoom)

Iris: F1.6~F2.8

Min. illumination: 0 Lux (IR LED On)

D/N: IR-CUT

Digital noise reduction: 3D Digital noise reduction

Compression Format: H.264/H.265

Compression Rate: 32 Kbps~16Mbps

Smart Alarm: Motion detection, Occlusion & Memory error alarm

Support Protocols: TCP/IP,HTTP,DHCP,DNS,RTSP,SMTP,FTP,HTTPS etc.

Interface: 10M / 100M mbps Ethernet (RJ-45)

Management: IE and CMS (supplied with the camera)

Mobile phone monitor: P2P

Pan Speed: 0.02 - 60 degree/s

Tilt Speed: 0.02 -60 degree/s

Pan Range: 0-360 degree

Tilt Range: 0-93 degree

Auto Flip: Horizontal 180 degree, Vertical 93 degree

360 degree Scan: 1-9 Grades setting available

A-B Scan: User programmable

Preset Points: 220

Go to Preset Speed: 60 degree/s

Guard Tours: 3 groups

Guard Points: Max.14 points, dwell time user selectable

Pattern Scan: 4 pcs

Pattern Scan Record: Max.15 minutes, max.512 commands

Time Scheduling Function: 8 tasks

Communication Protocol: Pelco-D, Pelco-P

Communication:RJ45

Baud Rate: 1200/2400/4800/9600bps

Privacy Mask: Support

IR parameters: Auto Control IR LED

LEDs: 6pcs

IR distance: 60-80m

Operating temperature:-40°~ +60°

Humidity:≤95% Non Condensing

Power: POE48V / DC12V 2A

Consumption:< 30W

Lightning Protection: Transient voltage 6000V

Weight: 2 kgs

Waterproof: IP66
