Description

SPECIFICATIONS

AI Functions: Other

Alarm Action: telefon Alarm,Email Photo,Local Alarm

Alarm Type: Local Alarm,FTP Photo

App name: Other

Audio Output: Two Way Audio

Brand Name: Aokwevision

Certification: CE

Color: White

Color Night Vision: Other

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 4 inches

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 80m

IR distance: 60-80m

Installation: Normal

Internal Storage: None

Lens (mm): 4.7-94mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0

Movement Range(Pan): 0°-360°

Operating Temperature: -40°-60°

Optical Zoom: Other

Origin: Mainland China

Pan: 360 degree

Pixel: 2MP/3MP/4MP/5MP/6MP/8MP

Power Consumption(W): 25w

Power Mode: Mains Electricity

Power Supply: With Poe

Power Supply(V): 110-240v

Resolution: Max 8MP

Scene: Indoor and outdoor

Sensor: CMOS,1/2.5 8MP CMOS

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Vandal-proof

Style: Dome Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 2003,Windows 98,Windows 2000,Windows 2008,Windows 7,Windows 10,Windows XP,Windows 8,Windows Vista

TF Card: None

Video Compression Format: H.265,H.264

Viewing Angle : 360°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 30x

Zoom type: Optical zoom

is_customized: Yes

tilt: 90 degree

zoom: 30x(20x Optical+10x digital zoom)

Product Detailed description

How to Choose?

Without POE: Camera only can power on by Power adaptor

POE/Built-in POE: Camera can power on by Power adaptor and POE Device( POE switch/Injector / POE NVR etc.)

2MP 4MP Without POE: 2MP/4MP PTZ + IR Light + Microphone/Speaker

2MP 4MP POE: 2MP/4MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE

5MP 6MP POE: 5MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE

6MP POE Auto Track: 6MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

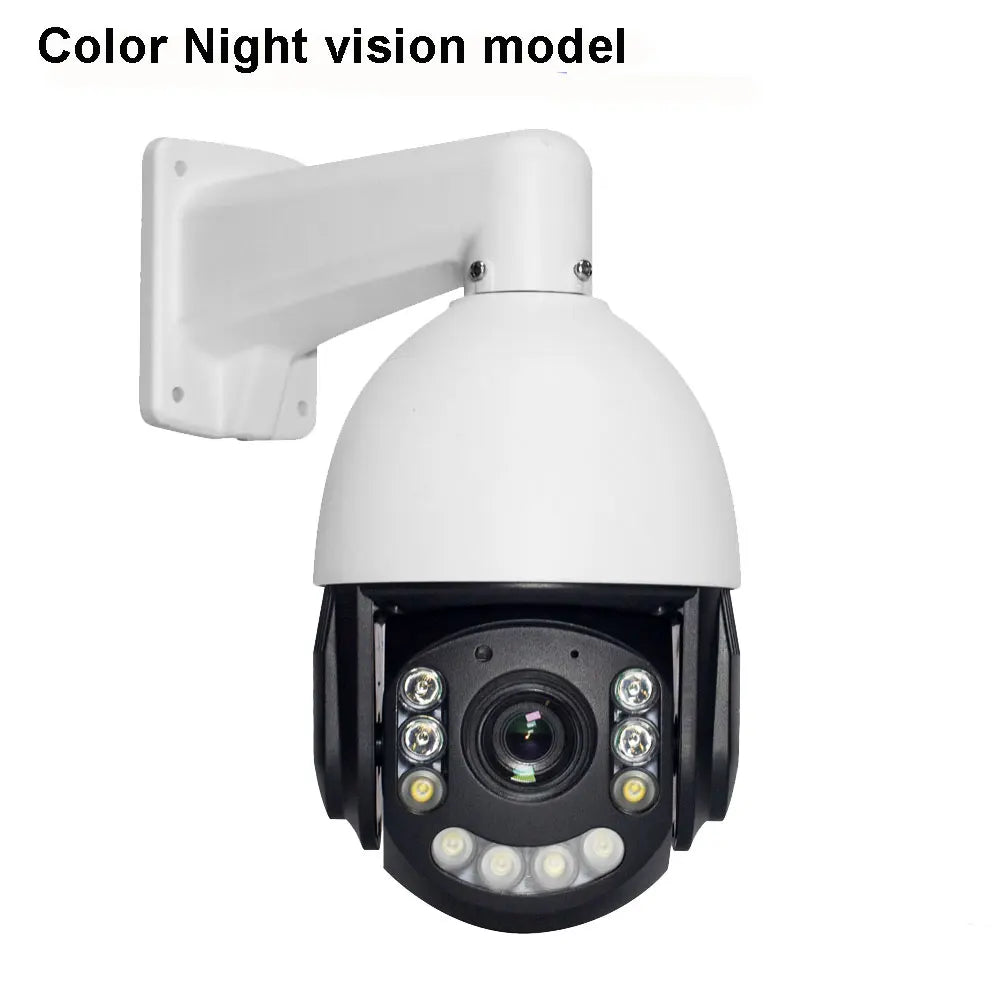

6MP POE Color Night: 6MP PTZ + Dual Light + Microphone/Speaker + SD card slot + POE + Humanoid Auto Tracking

4K 8MP Color Night: 4K 8MP PTZ + Dual Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

4K 8MP POE: 4K 8MP PTZ + IR Light + Microphone/Speaker + SD card slot + POE

4K 8MP POE Auto Track:4K 8MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

4K 8MP WiFi:  4K 8MP WiFi PTZ + IR Light + Microphone/Speaker + SD card slot + WiFi + Human Auto Tracking

2. this camera have ceiling mount for optional, if you need ceiling mount, pleaseClick Here

--compatible with Hikvision, Dahua and XM(App: XMEye) NVR via onvif.

- 4 Inch Mini Size, waterproof IP66;

- 2MP/3MP/5MP/8MP optional,

- 1/2.5 5MP CMOS;
- 30x Optical+digital zoom

- Support ONVIF, convenient to connect to third party;

- IR distance 60-80M

-Mobile APP Support.

PTZ specifications:

Specifications

Camera Sensor:

8MP: SONY IMX415 CMOS Sensor

5MP: SONY IMX335 CMOS Sensor

Total pixels: 2MP/4MP/5MP/8MP

Resolution:

8MP: 3840x2160, 3072x2048, 2592x1944,2560x1440,1920x1080

5MP:2880*1616, 2560x1440, 1920*1080,

4MP: 2560x1440 1920*1080

2MP:1920X1080

Lens: f=4.7-94mm

Zoom: 30x zoom(20x Optical+10x digital zoom)

Iris: F1.6~F2.8

Min. illumination: 0 Lux (IR LED On)

D/N: IR-CUT

Digital noise reduction: 3D Digital noise reduction

Compression Format: H.264/H.265

Compression Rate: 32 Kbps~16Mbps

Smart Alarm: Motion detection, Occlusion & Memory error alarm

Support Protocols: TCP/IP,HTTP,DHCP,DNS,RTSP,SMTP,FTP,HTTPS etc.

Interface: 10M / 100M mbps Ethernet (RJ-45)

Management: IE and PC software (supplied with the camera)

Mobile phone monitor: P2P

Pan Speed: 0.02 - 60 degree/s

Tilt Speed: 0.02 -60 degree/s

Pan Range: 0-360 degree

Tilt Range: 0-93 degree

A-B Scan: User programmable

Preset Points: 220

Go to Preset Speed: 60 degree/s

Guard Tours: 3 groups

Guard Points: Max.14 points,

Pattern Scan: 4 pcs

Communication:RJ45

Privacy Mask: Support

IR parameters: Auto Control IR LED

LEDs: 6pcs

IR distance: 60-80m

Operating temperature:-40°~ +60°

Humidity:≤95% Non Condensing

Power:DC12V 2-3A/ POE48V

Consumption:< 30W

Weight: 2 kgs

Waterproof: IP66

Detail Picture:



Built-in Microphone and speaker, SD card slot:

Auto Cruising:



Outdoor use:

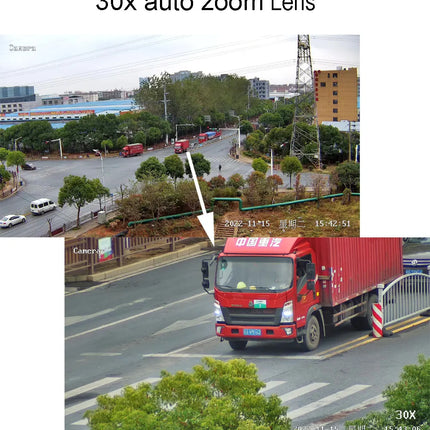

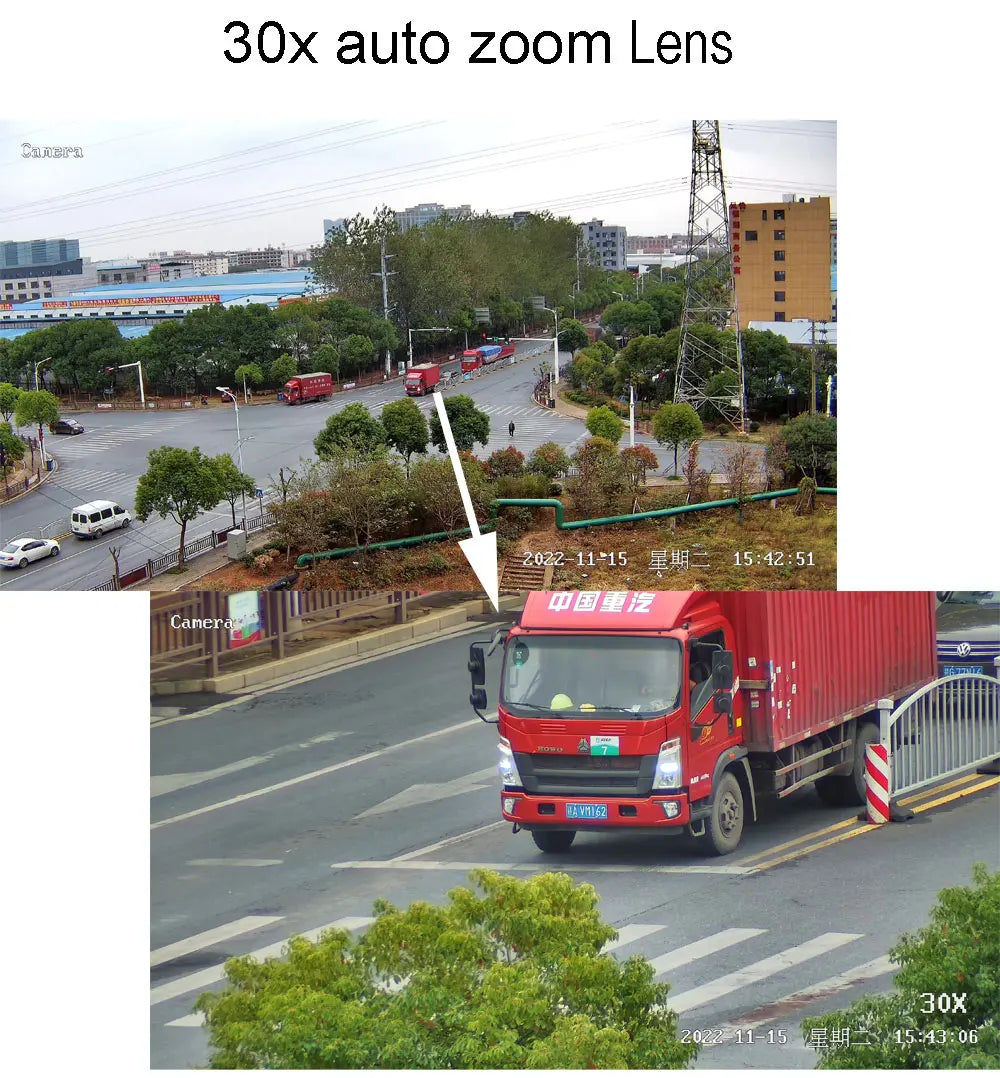

30x Auto zoom Lens:

H.265 video compression:
