Description

SPECIFICATIONS

AI Functions: Human Detection

Alarm Action: Email Photo,Local Alarm

App name: Other

Audio Output: None

Brand Name: Aokwevision

Certification: CE

Color: WHITE

Color Night Vision: Other

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 4 inches

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP66

IR Distance(m): 60m

Installation: Embedded

Internal Storage: None

Lens (mm): 4.7-94mm

Lens Quantity: Single Lens

Max Resolution: 8MP: 3840x2160/ 5MP: 2880*1624

Megapixels: 5 MP

Minimum Illumination(Lux): 0

Model Number: AK-54 series

Movement Range(Pan): 0°-360°

Operating Temperature: -40°-60°

Origin: Mainland China

Power Consumption(W): 25w

Power Supply: With Poe

Power Supply(V): 110-240v

Scene: Indoor and outdoor

Sensor: CMOS,1/2.5 CMOS sensor

Sensor Brand: Sony

Shell Material: Metal

Smart home platform: Other

Special Features: Waterproof / Weatherproof

Style: Dome Camera

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,Windows Vista,Windows 8,Windows 7,Windows 98,Windows XP

TF Card: None

Technology: Pan / Tilt / Zoom

Video Compression Format: H.264,H.265

Viewing Angle : 360°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: 30x

Zoom type: Optical zoom

is_customized: Yes

pixels: 4MP/5MP/6MP/8MP

zoom: 30x(20x Optical+10x digital zoom)

How to choose:

Without POE: Camera only can power on by Power adaptor(power adaptor included)

POE/Built-in POE: Camera can power on by Power adaptor(power adaptor included) and POE Device( POE switch/Injector / POE NVR etc.)

4MP without POE: 4MP PTZ + IR Light + Microphone/Speaker+ SD card slot

4MP POE:  4MP PTZ + IR Light + Microphone/Speaker+POE+ SD card slot

5MP 6MP POE : 5MP 6MP PTZ + IR Light + Microphone/Speaker+POE+ SD card slot

6MP POE Auto Track: 6MP PTZ + IR Light + Microphone/Speaker+POE+ SD card slot+Humanoid Auto Tracking

6MP POE Color Night: 6MP PTZ + Dual Light + Microphone/Speaker+POE+ SD card slot+Humanoid Auto Tracking

4K 8MP POE: 4K 8MP PTZ + IR Light + Microphone/Speaker+POE+ SD card

4K POE Auto Track:4K 8MP PTZ +IR Light + Microphone/Speaker + SD card slot + POE + Human Auto Tracking

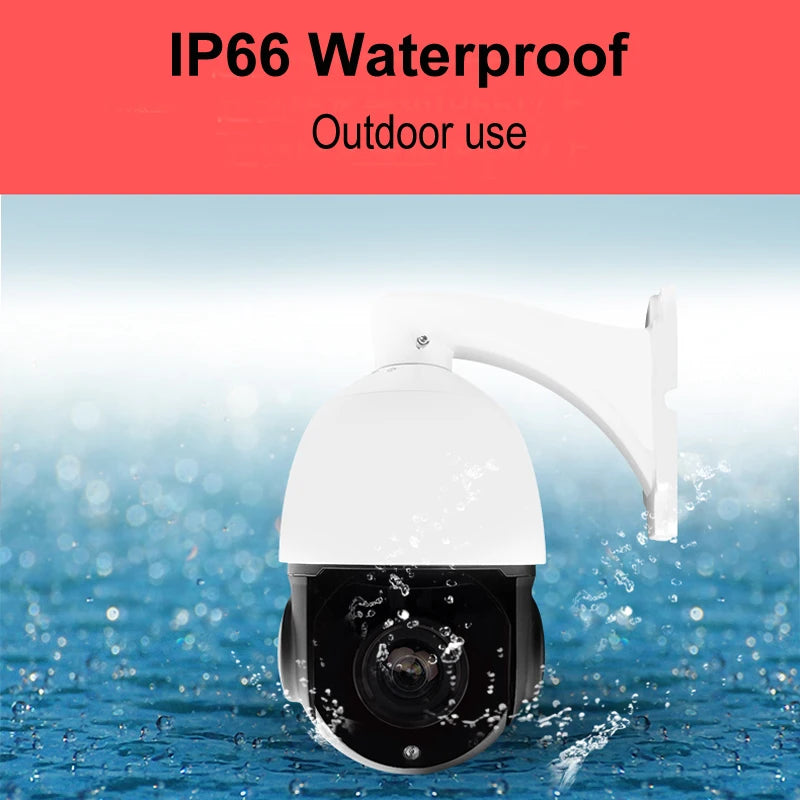

- 4 Inch Mini Size, waterproof IP66;
- 30xdigital+Optical zoom;

- Support ONVIF, convenient to connect to third party;

- IR distance 60M

-Video compression: H.264/265

-Power: DC12V 3A / 48v POE(Power adaptor not include)

-Mobile APP support.

PTZ specifications:

Camera Sensor:  8MP: SONY IMX415 CMOS Sensor

Total pixels: 2MP/3MP/4MP/5MP/8MP

Resolution:

8MP: 3840x2160, 3072x2048, 2592x1944,2560x1440,1920x1080

6MP: 3072x2048, 2592x1944,2560x1440,1920x1080

5MP:2880*1616, 2560x1440, 1920*1080,

4MP: 2560x1440 1920*1080

2MP:1920X1080

Lens: f=4.7-94mm

Zoom: 30x zoom(20x Optical+10x digital zoom)

Iris: F1.6~F2.8

Min. illumination: 0 Lux (IR LED On)

D/N: IR-CUT

Digital noise reduction: 3D Digital noise reduction

Compression Format: H.264/H.265

Compression Rate: 32 Kbps~16Mbps

Smart Alarm: Motion detection, Occlusion & Memory error alarm

Support Protocols: TCP/IP,HTTP,DHCP,DNS,RTSP,SMTP,FTP,HTTPS etc.

Interface: 10M / 100M mbps Ethernet (RJ-45)

Management: IE and PC software (supplied with the camera)

Mobile phone monitor: P2P

Pan Speed: 0.02 - 60 degree/s

Tilt Speed: 0.02 -60 degree/s

Pan Range: 0-360 degree

Tilt Range: 0-93 degree

Auto Flip: Horizontal 180 degree, Vertical 93 degree

360 degree Scan: 1-9 Grades setting available

A-B Scan: User programmable

Preset Points: 220

Go to Preset Speed: 60 degree/s

Guard Tours: 3 groups

Guard Points: Max.14 points,

Pattern Scan: 4 pcs

Time Scheduling Function: 8 tasks

Communication:RJ45

Privacy Mask: Support

IR parameters: Auto Control IR LED

LEDs: 6pcs

IR distance: 60-80m

Operating temperature:-40°~ +60°

Humidity:≤95% Non Condensing

Power:DC12V 2-3A/ POE48V(Power adaptor not include)

Consumption:< 30W

Weight: 2 kgs

Waterproof: IP66
