Description
SPECIFICATIONS
1 TF card slot: Up to128G(optional choose)
AI Functions: Human Detection
Alarm Action: FTP Photo,Email Photo,Local Alarm
App name: Other
Audio Output: 1CH RCA
Brand Name: BOAVISION
Certification: CE
Choice: yes
Color: WHITE
Color Night Vision: no
Connectivity: IP/Network Wireless
Dimensions (L x W x D)(mm): 185*195*250mm
High Definition: 8.0 Megapixels
High-concerned chemical: None
Housing Material: Metal,Waterproof IP66
IP Rating: IP66
IR Distance(m): 80m
Installation: Side
Internal Storage: None
Item Name: 30x Zoom PTZ IP Camera
LEDs: 6pcs Array LEDs. 80m IR Night Vision
Lens: 30X(20X Optical+10X Digital zoom)
Lens (mm): 4.7-94mm
Lens Quantity: Single Lens
Megapixels: 8MP
Microphone Range 15m: Loudspeaker Range 60m
Minimum Illumination(Lux): 0.05 Lux /0 Lux(IR on)
Model Number: HX-W54F5MP/HX-4G54F5MP/HX-W54F8MP/HX-4G54F8MP/HX-W54F8MP-P
Movement Range(Pan): 0°-360°
Movement Range(Tilt): Other
Network: WIFI/4G/POE+wifi Optional
Operating Temperature: -30°-60°
Optical Zoom: Other
Origin: Mainland China
Power Consumption(W): 12W
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): 12V 3A
Rechargeable Battery: NONE
Rechargeable Battery Capability: Other
Resolution: 5MP: 2560x1920 / 8MP:3840x2160
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Metal
Smart home platform: Other
Special Features: Waterproof / Weatherproof
Style: Dome Camera
Support: Support Two Way Audio (With Speaker)
Support iPhone,Android APP: CamHipro
Supported Mobile Systems: iOS,Android
Supported Operating Systems: Windows 10,Windows 7,Windows XP
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 70°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: 30x
Zoom type: Optical zoom
is_customized: Yes
semi_Choice: yes

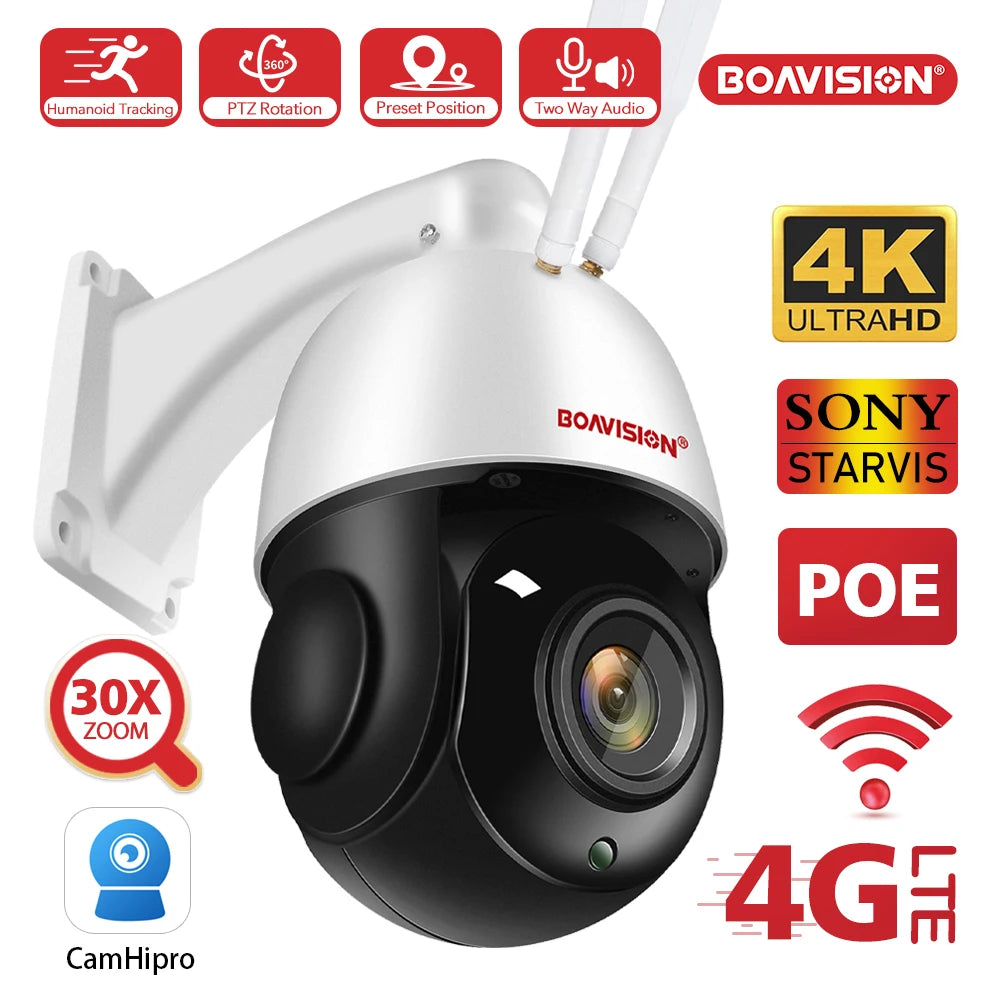

8MP / 5MP 30X Zoom AI Auto Tracking PTZ WIFI 4G Security Camera
Three Modes Optional
4G Camera / WIFI Camera / POE WIFI Camera Three Version Options
5MP / 4K 8MP Ultra HD Resolution
High quality 4K 8MP image , bringing you a smooth and shocking ultra-high definition experience.
AI Human Tracking Auto Zoom
The camera will adjust the pan/tilt rotation and zoom in automatically,
capturing clear monitoring targets and auto-tracking moving human,
and push alerts via email or notifications to your phone.
30X Zoom (20X optical zoom+10X Digital zoom)
you can zoom in or zoom out to watch the far or close objects as you need .
Real Two Way Audio
Built-In Microphone, Support Two Way Audio Talk Back (With Speaker).
Talking with people outdoor through the app for a more convenient life.
Pan Tilt Rotation
Horizon: 0 To 355 Degree ; Vertical: 0 To 90 Degree
80m IR Night Vision
6Pcs Array Infrared LEDs. 80m IR Night Vision

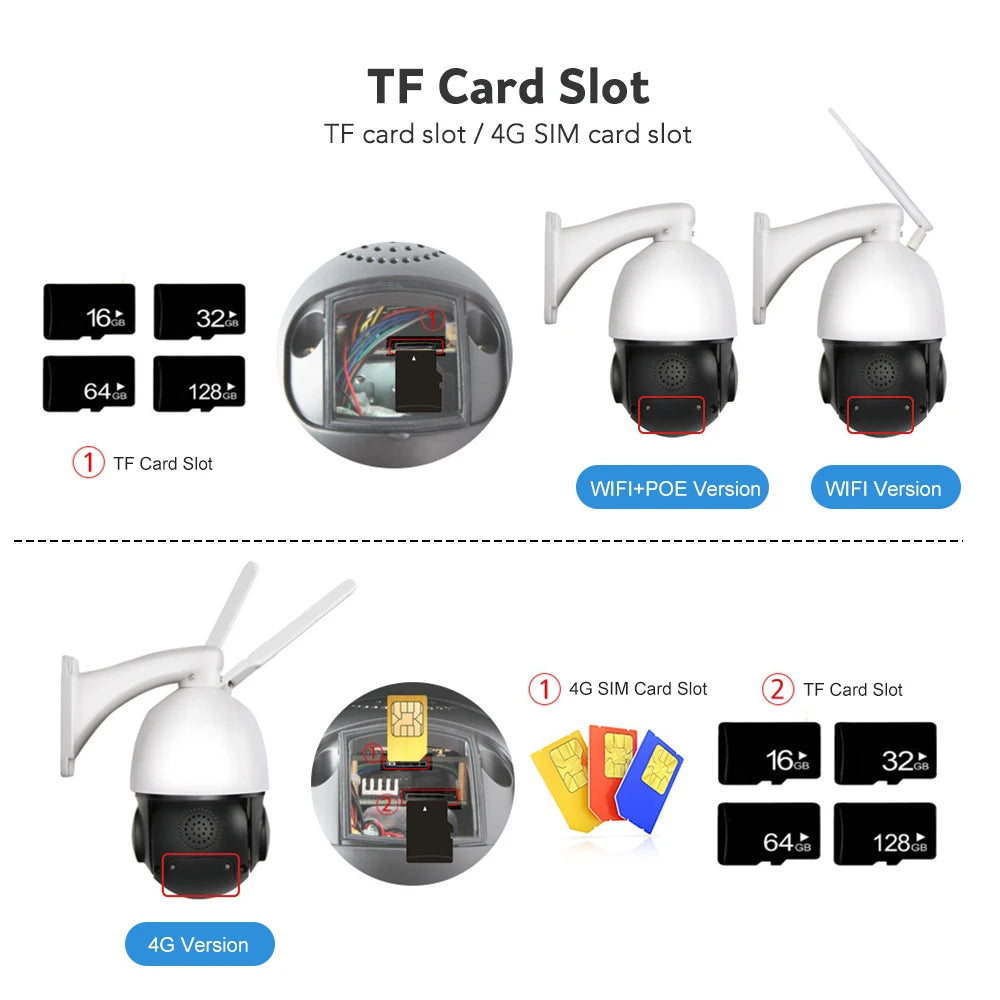

TF Card Slot / 4G Sim Card Slot
TF Card is optional choose , support max up to 128GB TF Card
AI Humanoid/Motion Detection& Alarm Linkage
With improved the human detection function, the camera will intelligently detect human and reduce 95% of false alarms caused by rain, wind, plants, etc,Alarm Send Pictures To The Specified Mailbox, Alarm Upload Pictures And Videos To The FTP Server,
Alarm Write Pictures And Videos To TF Card, Alarm Message Push.
AI Intelligent Detection
Humanoid Detection / Vehicle Detection / Pets Detection
(For 8MP Camera only)

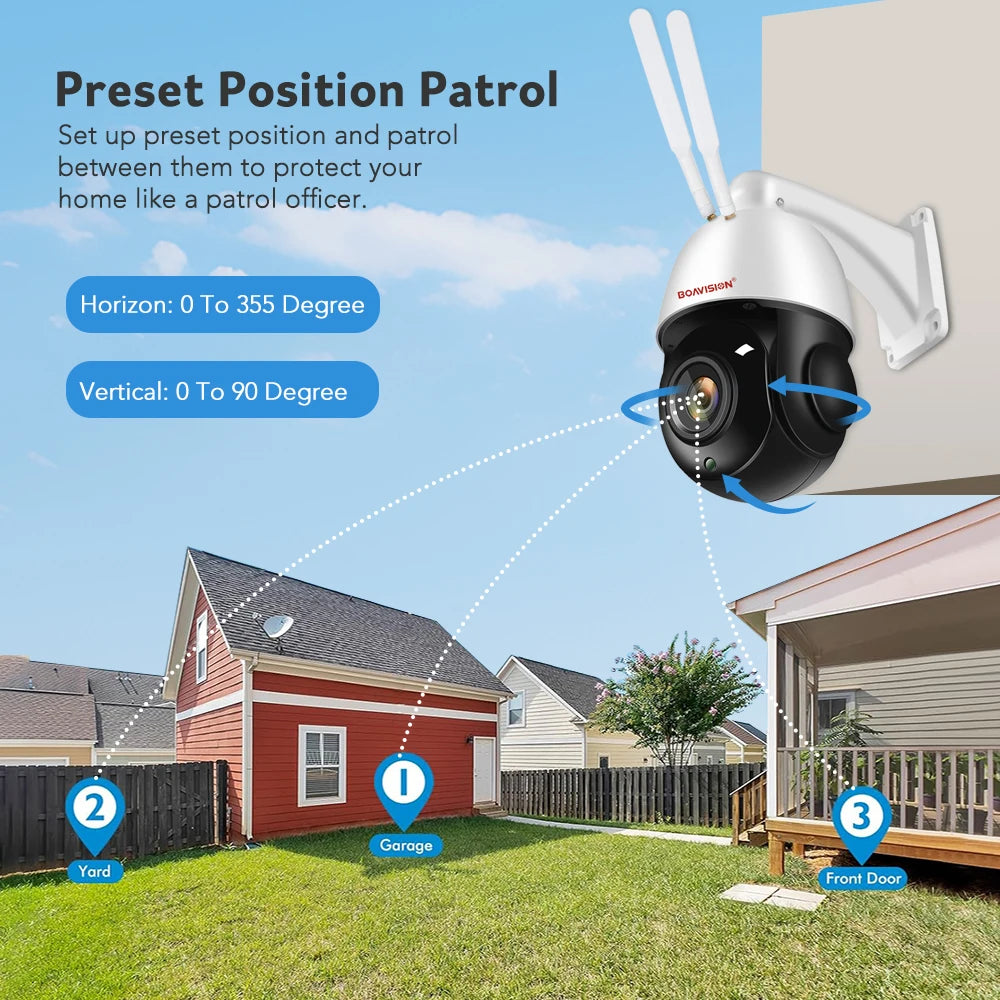

Preset Position Patrol
Support 8 Preset Points, Set up Preset Position and Patrol Between Them to Protect Your Home Like a Patrol Officer.
Zoom Lens Status Can Be Saved During The Preset.
Mobile App Support
Provide Android & IOS APP (CamHipro) And Professional CMS PC Client Software
Waterproof IP66
Metal Housing Material, Outdoor Use, Waterproof IP66
4G Camera Connection
WIFI POE Camera Connection
Features :
Wifi Version : Support Dual-Band Wi-Fi,2.4GHz and 5GHz WiFi IEEE802.11b.802.11g. 802.11n Draft
Support AI Human Feature Tracking&Automatically Zoom
Support Vehicle / Pets Detection(For 8MP only)
8MP 5MP 30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital)
Support Wifi/4G/POE+WIFI (Depends on the models you choose,See Detail on Specification )
Support HD 5MP 8MP High quality resolution
6pcs Array Infrared LEDs. 80m IR Night Vision
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Microphone Effective Range 15 Meters
Loudspeaker Effective Range 60 Meters
Support TF card, up to 128G(Don't included TF Card)
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support P2P, view & anywhere & anytime
Elegant outline and easy installation
Provide android & ios APP (CamHipro) and professional CMS PC client software
Support 8 preset points , zoom lens status can be saved during the preset
Support Cruise Zoom /Auto Tracking AI Human Detection
Metal Housing Material,Outdoor Use,Waterproof IP66
Specification :
Products Model |
HX-W54F5MP |
HX-W54F8MP |
HX-4G54F5MP |
HX-4G54F8MP |
HX-W54F8MP-P |
Effective pixels |
5MP(2560x1920) |
8MP(3840x2160) |
5MP(2560x1920) |
8MP(3840x2160) |
8MP(3840x2160) |
Operating system |
Embedded Linux OS |
CMOS Sensor |
1/2.8" |
Lens interface type |
M12 |
Lens |
30X Zoom Auto Focus Lens(4.7-94mm 20X Optical+10X Digital) |
View angle |
68.5°-4.2° |
Min.illumination |
0.05 Lux / 0 Lux(IR on) |
Day&Night mode |
Auto IR-CUT |
Night vision distance |
6pcs Array Infrared LEDs. 80m IR Night Vision |
Video compression Standard |
H.264 Main Profile/H.264 Baseline |
Video streaming |
Dual streaming |
Video resolution |
First stream:2560x1920 or 2560x1440 |
Second stream:800x600 or 800x480 |
JPEG stream :(Monitoring for mobile phones), Q720P(640x352), QQ720P(320x176) |
Video code rate |
32 to 8192Kbps. supports constant bitrate/variable bitrate |
Video frame rate |
15fps(PAL 50HZ/NTSC 60HZ) |
Audio |
Audio compression standard: G.726/G.711 |
Audio code rate: Rate adaptive |
Audio Input: Support, built-in Microphone |
Audio Output: Support Two Way Audio Talk Back(With Speaker) |
Image settings |
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror |
Image enhancement |
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction |
Audio function |
Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker) |
Motion detecting |
Can set 4 independent detection region (1-100 sensitivity can be set) |
Alarm linkage |
Alarm send pictures to the specified mailbox, |
alarm upload pictures and videos to the FTP server, |
alarm write pictures and videos to Micro TF card, alarm message push |
Privacy mask |
Maximum support 4 users to simultaneously browse |
OSD |
Support camera name, date and time information superimposed |
User management |
Supports user and rights management |
Simultaneous viewers |
maximum support 12 users to simultaneously browse (each stream supports 4 users) |
Network protocol |
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, |
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. |
Connection protocol |
Support ONVIF 2.1(backward compatible) |
Network Support |
2.4 GHz to 2.4835 GHz/IEEE802.11b.
802.11g. 802.11n Draft
|
GSM 900/1800 MHz
UTRA FDD Band I/VIII
E-UTRA FDD Band 1/3/7/8/20/28
E-UTRA TDD Band 38/40/41
|
Wireless Security |
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS |
Transmission rate |
11b: 11Mbps,11g :54Mbps,11n :135Mbps |
Rotation angle |
Horizon:0° to 355°. Vertical: 0° to 90° |
Horizontal speed |
1° to 40°/S |
Vertical speed |
1° to 20°/S |
Preset |
Support 8 preset points , zoom lens status can be saved during the preset |
Cruise Zoom |
Support Cruise Zoom/Auto Tracking Zoom In |
Power interface |
1 5.5mm power interface |
Ethernet |
1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface |
TF card Slot |
1 TF card slot. up to128GB (Don't included TF Card) |
Reset button |
Support(On the side of the TF Card Slot) |
Power supply |
DC 12V 3A |
power |
Day: 3W; Night: 12W |
Operating temperature |
-20 to +60 degree |
Operating humidity |
10% to 95% |
Material |
Metal Housing ,Outdoor Use,Waterproof IP66 |
Installation |
Rack mounting |
Size(mm) |
239*137*215 |
Weight(kg) |
1.45kg |
Package Size(mm) |
295*285*160 |
Package Weight(kg) |
2.15kg |
Packing List:
1*Dome Speed IP Camera Built-in Microphone&Speaker (TF Card Optional Choose)
1*DC 12V 3A Power Supply
1*Manual
1*Screws Bag
1*Antenna
