Description

SPECIFICATIONS

A/D chip: AK5552

A/D converter bit width: 32-bit

A/D sampling rate: 768kHz

Bottom noise: <-90dBu

Brand Name: PaulKitson

Built-in Battery: No

Channel separation degree (between channels @ 1kHz): >80dB

Common mode rejection ratio: 60Hz>100dB @+20dBu

D/A chip: AD1955

D/A converter bit width: width 24 bits

D/A sampling rate: 192kHz

DSP bit width: 32/40/64 bit floating-point dual core SHARC+ARM Cortex-A5TM core

DSP chip: ADSP-21571

DSP main frequency: 500MHz

Dynamic range (20Hz-20kHz, 0dB): >116 dB

Frequency response (20Hz-20kHz @+4dBu): +0/-0.3dB

High-concerned chemical: None

Inbox adaptor: Yes

Input gain range (adjustable): -80dB~+12dB

Input impedance (balanced/unbalanced): Pal: 20K/Unbal: 10K

Material: Metal

Maximum delay (input to output): 750ms

Maximum gain (input to output): 48dB

Maximum input level: +20dBu

Maximum output level: +20dBu

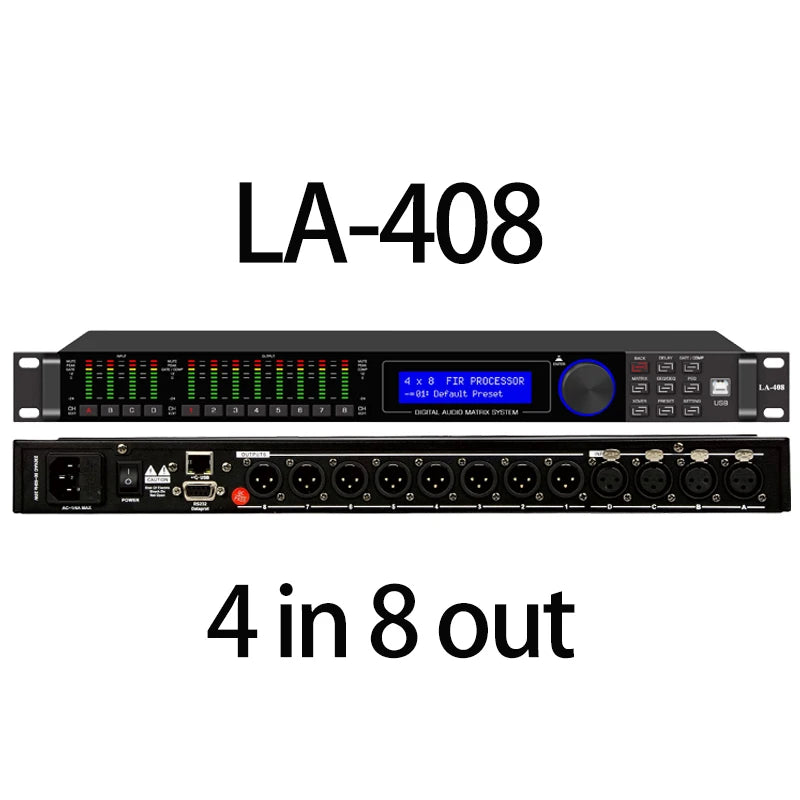

Model Number: LA408

Origin: Mainland China

Output gain range (adjustable): -80dB~+12dB

Output impedance (balanced/unbalanced): Pal: 100ohm/Unbal: 50ohm

Plug Type: US Plug

Power Source: Ac,Ac

Power consumption: 220V 22 watts

Signal to noise ratio: 110dB A weighted

Total harmonic distortion (20Hz-20kHz @+4dBu): <0.003%

Type: Signal Processing

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
