Description

SPECIFICATIONS

Audio Crossover: Three-Way

Battery: No

Brand Name: GHXAMP

Built-in Microphone: No

Cabinet Material: Wood

Category: Speakers

Certification: NONE

Channels: 1

Communication: Bluetooth,Audio Line

Diagonal screw hole: 108mm

Display Screen: No,No

Feature: None

Frequency Range: Other

Frequency response range: 600Hz

HIFI: yes

High-concerned chemical: None

Impedance: 8 Ohm

Inbox adaptor: No

Input Power(W): 50-99 W

Input/Output: Other

Intelligent Personal Assistant: NONE

Material: Metal

Matte coated paper tray: yes

Net Weight: 650g/pcs

Number of Loudspeaker Enclosure: 1

Open Hole diameter: 96MM

Origin: Mainland China

Output Voltage: Other

Outside diameter: 115MM

PMPO: NO

Playback Function: DVD,Radio,CD,mp3,None

Power: 80W

Power Source: None,DC,None,Ac

Remote Control: No

Rubber speaker side: yes

Sensitivity: 89DB

Sound Mode: Other

Speaker Type: Combination

Support APP: No

Support Apt-x: No

Support Memory Card: No

Use: Home

Voice Control: No

Voltage range: High voltage (50-1000V DC, 75-1000V AC)

Waterproof: No

Wi-Fi Music: Other



Tip: This Mid Speaker DC Resistance about 5.2ohm, Impedance is 8OHM，Please be aware that。Thanks



Brand:GHXAMP, ,Price for 1pc.

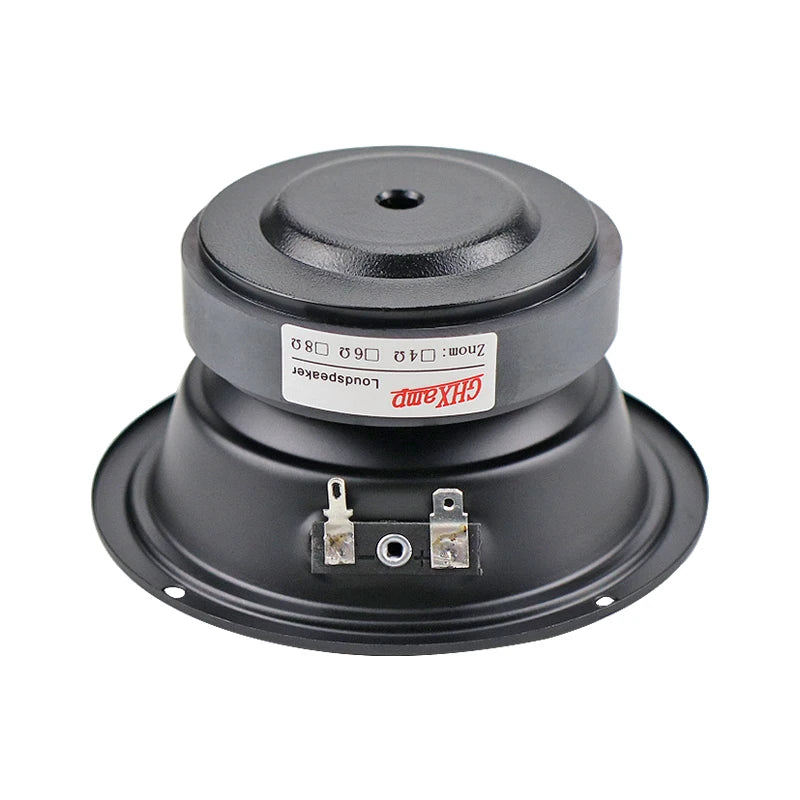

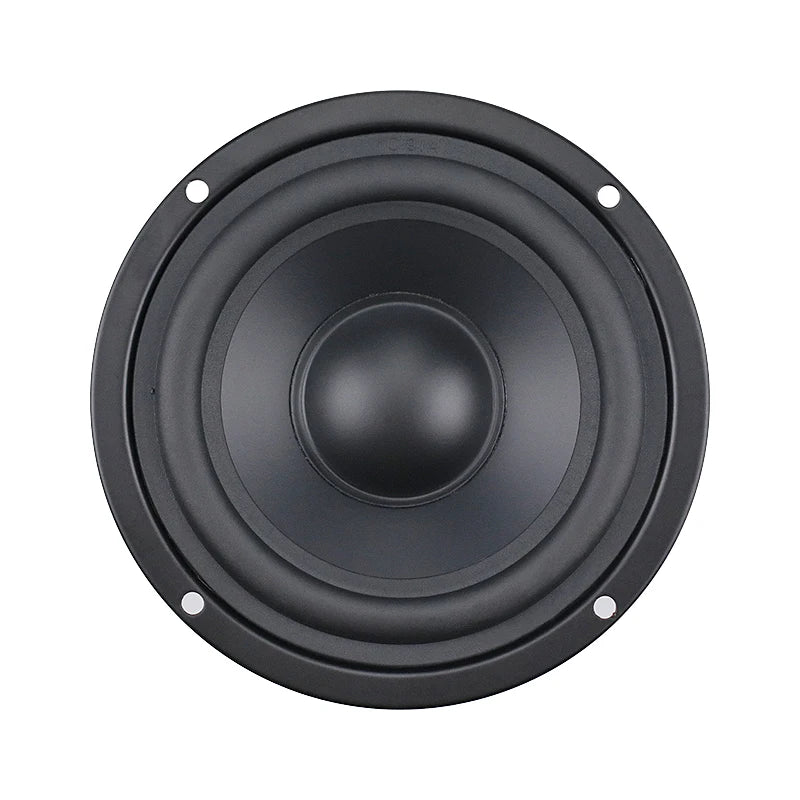

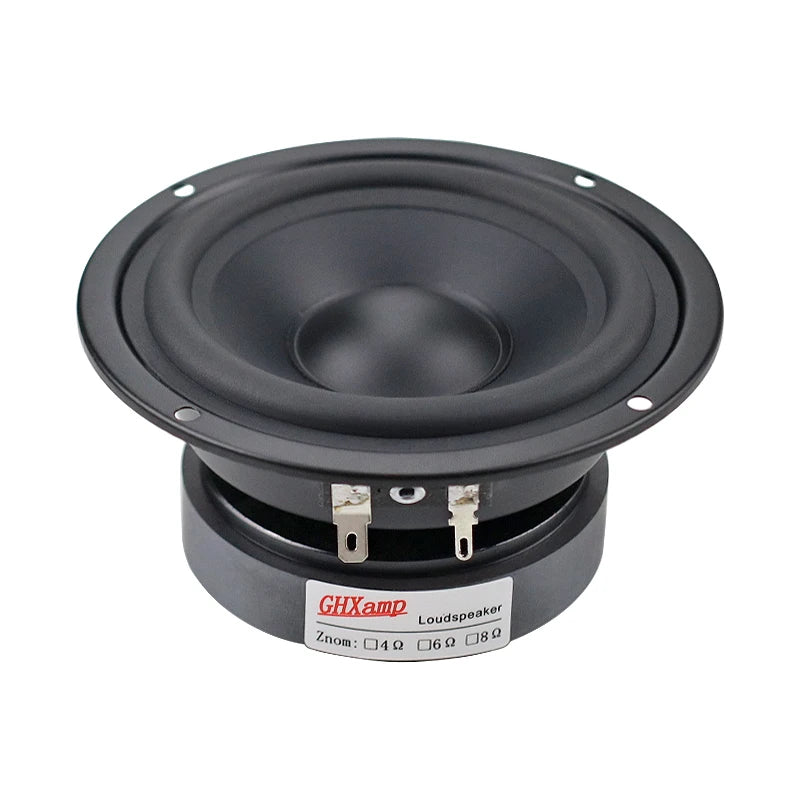

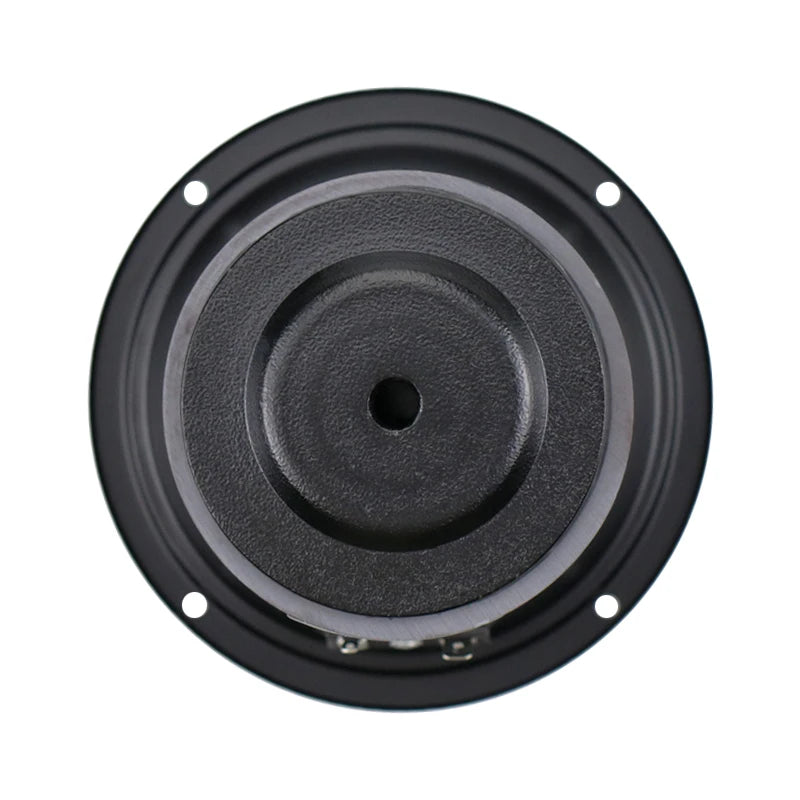

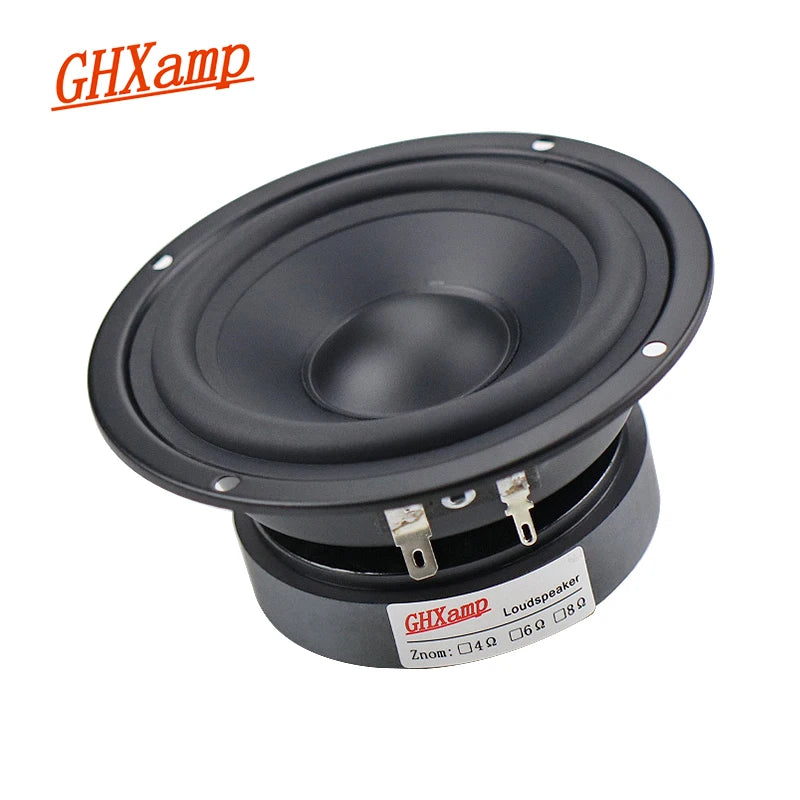

1.Speaker with Matte coated paper tray, rubber speaker side, sound thick natural,



2.increase the magnet to ensure that the voice coil in the high power is still stable work.



3.Fully enclosed cast iron horn tray, can effectively isolate the subwoofer caused by the impact of airflow, so that the midrange speakers are not affected to play the true color.



Rated power: 40W

Max power :80W

DC resistance: about 5.2ohm

Impedance: 8OHM

Resonant frequency: 600Hz

Frequent frequency: F0-8500hz

Sensitivity: 89DB

Q value: 0.51Qts

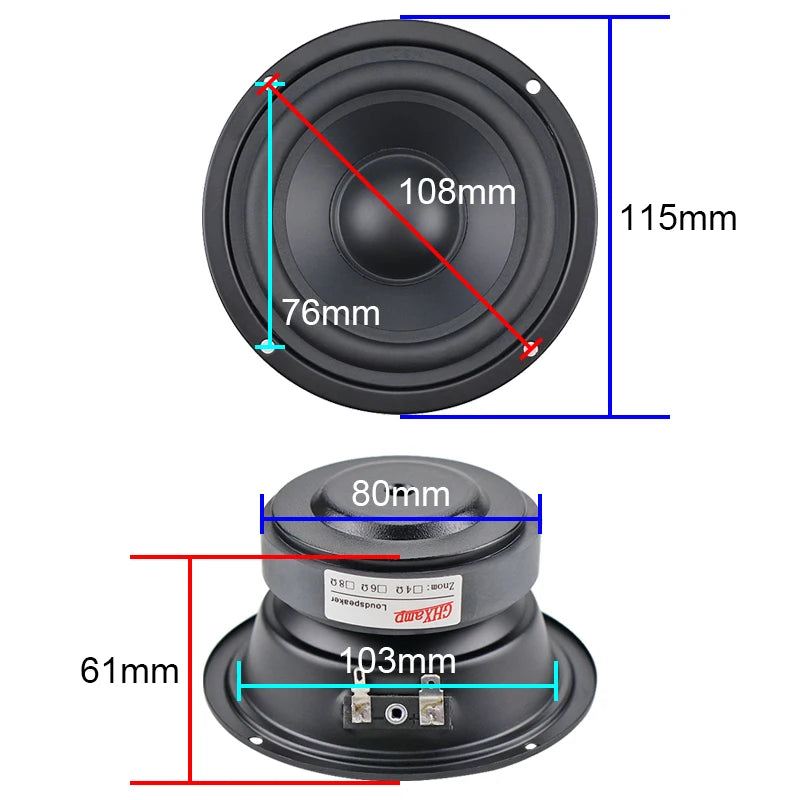

Voice coil diameter: 25mm

Magnet diameter: 80mm

Speaker diameter: 115MM

Opening Hole diameter: 96MM

Weight:0.65kg/pcs



Questions about DC impedance:



The impedance is dynamic and the DC resistance is static!

Impedance = resistance *1.2-1.4 times

The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.



The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms.

The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.



Tip: In special cases, Due to transportation, some magnets at the bottom of the speaker may be slightly scratched, but only a little, it will not affect the use at all, please pay attention.





Package included:

1pc Pure Midrange Speaker











Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
