Description
SPECIFICATIONS
10W 12W15W PC software connect port: by which you can connect computer live
10W15W A1 software: eidt animation shows,can upload to machine without pc
4w 6w rgb laser software: Ishow Software (for window 7 10) computer only)
Accessories: powercon cable, 16G sd card,key,Interlock key,DB25 and RJ45 converter,interlock key,manual
Applicable place: dj,disco,nightclub,pub,bar,party event,advertising,stage show etc
Brand Name: EMMA
Certificate: CE ROHS FC FDA UK CA
Certification: CE
Color: rgb analog full colors+single color
Effects: 128 amazing beam +2600 animation effects
High-concerned chemical: None
Installation Method: self-contained
Is Batteries Included: No
Is Bulbs Included: Yes
Ishow software 2.3 (No controller): can draw graphics Type Text,(static effects)
Item Type: Stage Lighting Effect
Laser power: 4W 6W 7W 10w 12W 15W
Luminous Flux: 249-2000
Master slave mode: DB25 or RJ45 cable connection can make master/salve
Modulation: analog modulation as default
Nominal Voltage: Others
Occasion: Home Entertainment
Origin: Mainland China
Play mode: Auto play ,sound control,dmx,ilda,master/slave,sd card
Power: 15 W
Power (W): 100W
Power Source: DC
Style: DMX Stage Light
Voltage: 90-240V
Warranty: one year
functions for three rgb knobs: can adjust the brightness and choose single color
galvo scanner: 30kpps or 40kpps or 50kpps
ishow 2.3 controller: no controller,you can copy ilda edited shows to sd card
laser show A1 software: eidt animation shows,can upload to machine without pc
safety standard: key switch,interlock in/out,scan fail protection

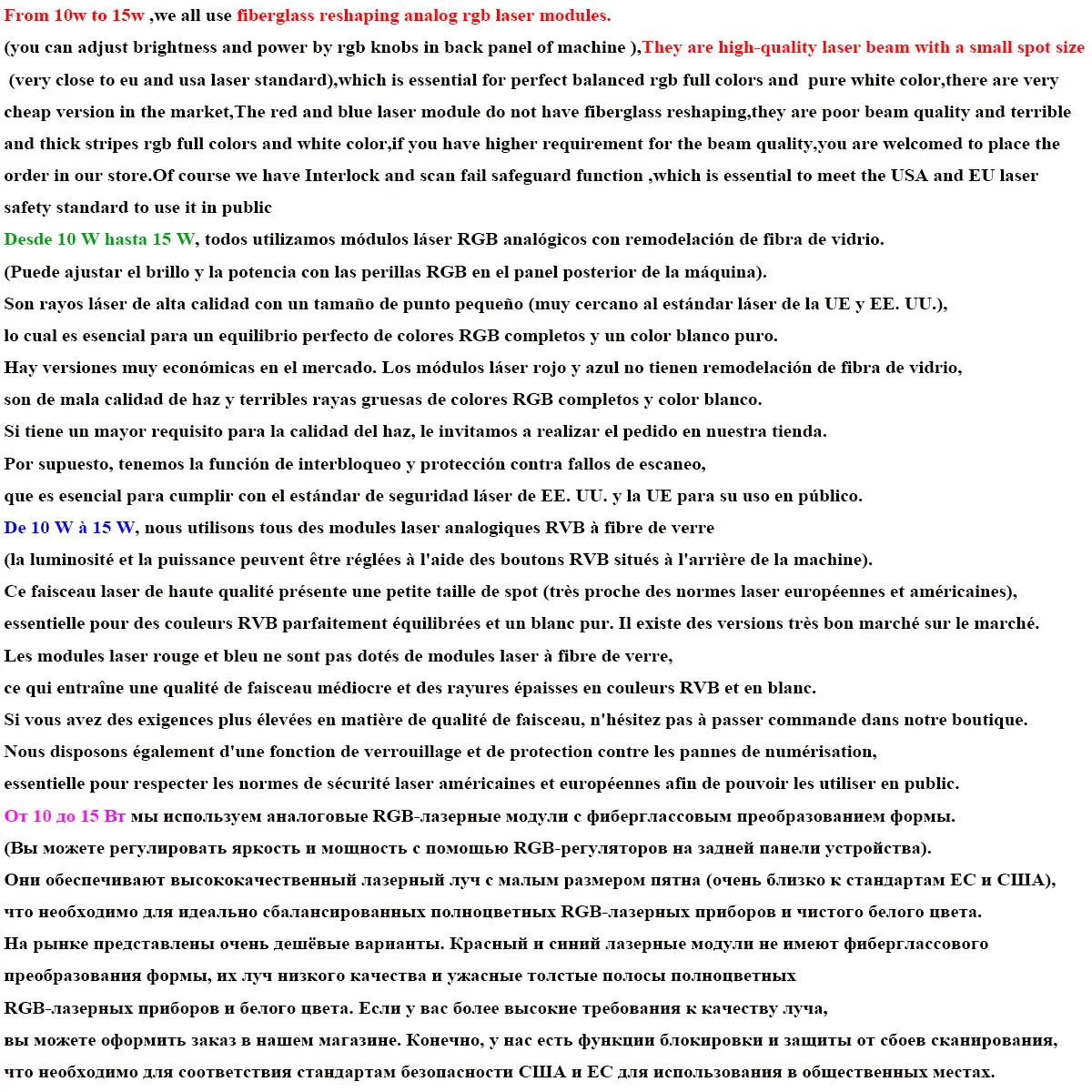

▶For this 10w 12w 15w ,we all use fiberglass reshaping analog rgb laser modules.They are high-quality laser beam with a small spot size,(very close to eu and usa laser standard),which is essential for perfect balanced rgb full colors and pure white color. If you have higher requirement for the beam animation quality,you are welcomed to place the order in this link,it enjoy highest positive reviews from old customers,it definitely worth your money !
▶There are very cheap version in the market,The red and blue laser module do not have fiberglass reshaping,the red and blue color are poor beam quality with terrible and thick stripes ,red and blue color has much thicker stripes than green color,its scanning speed is 15-18kpps, if you want cheap one,we also have another better and cheap option for you in our store,https://www.aliexpress.com/item/1005009002058934.html?spm
Product parameters:
1）Model number/Output Power：

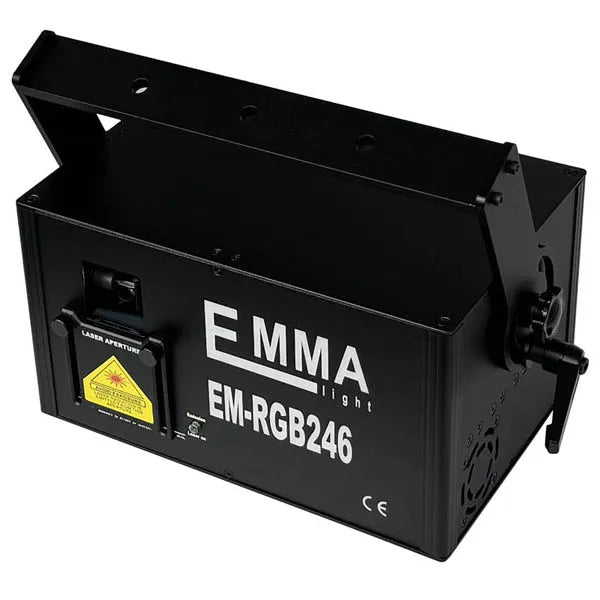

(EM-RGB246) 4w Rgb Laser:Red638nm-1W Green520nm-1W Blue 450nm-2W

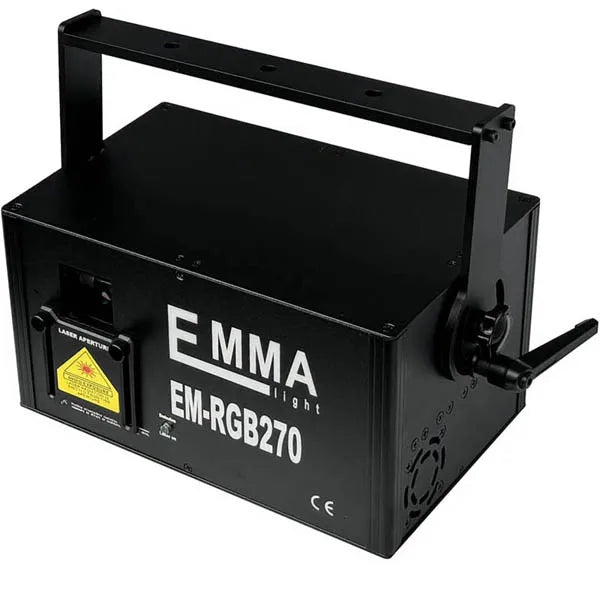

(EM-RGB270) 6w Rgb Laser:Red638nm-1.5W Green520nm-1.5W Blue 450nm-3W
(EM-RGB290) 10w Rgb Laser:Red638nm-3W Green520nm-3W Blue 450nm-4W

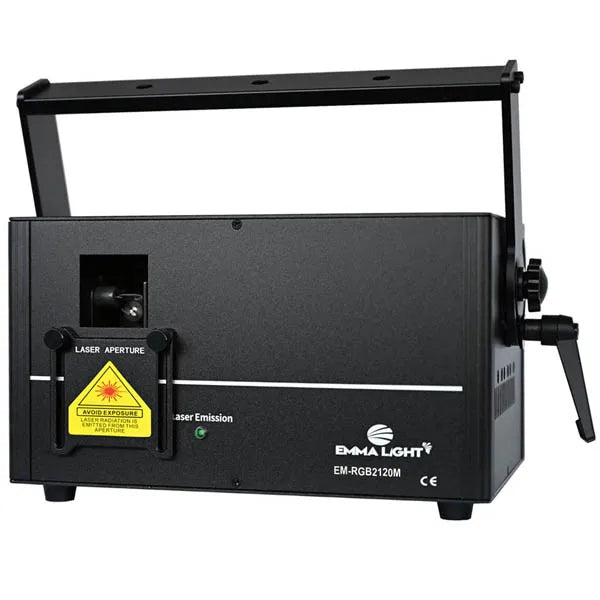

(EM-RGB2120M) 12w Rgb Laser:Red638nm-4W Green520nm-3W Blue 450nm-5W

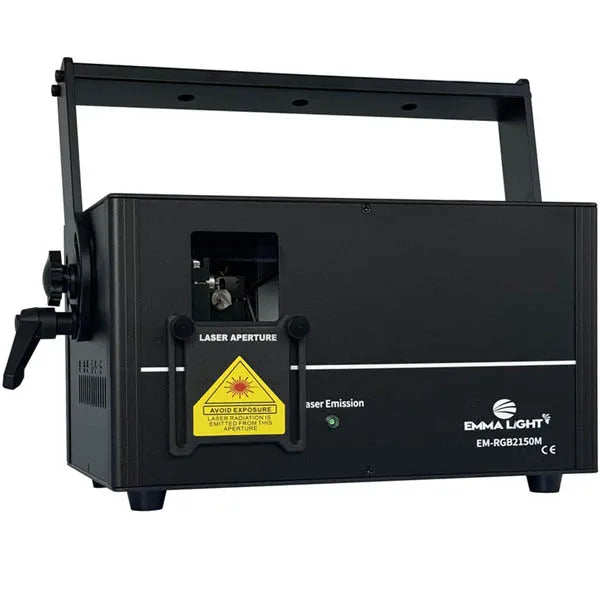

(EM-RGB2150M) 15w Rgb Laser:Red638nm-5W Green525nm-4W Blue 450nm-6W
2)Input Voltage：110V-220V, 50-60Hz3）
3)Colors：Rgb Multi-Colors+Single color like Red,Green,Blue,Yellow,Pink,White,Cyan etc(you can adjust the brightness and power and choose single color by the three rgb rotary knobs in the back panel)
4)Galvo scanner speed:30kpps/50kpps ,Higher scanning speed,more accurate and smooth for the laser show
5)Functions:Auto,sound active,DMX512,Master/slave,ILDA mode(RJ45 and DB25 port),16G SD Card
6)16G Sd card:2600 kinds of amazing animation effects+laser show eidt software
7)Key switch,Interlock In/Out+Laser light scan-fail safeguards
8)Applicable place:Disco,Club,Event,Party,Wedding,Festival,Advertise,stage etc
9)Accessories:powercon cable, 16G sd card,key,Interlock key DB25 and RJ45 converter,manual
10)Size/Weight Machine size:27X18X15CM/4-6KG Cartoon box size/gross weight: 34X25X24CM/4.5-6.5KG
11)Warranty :one year(free spare part during warranty) life time maintenance
That is why you buy from us !

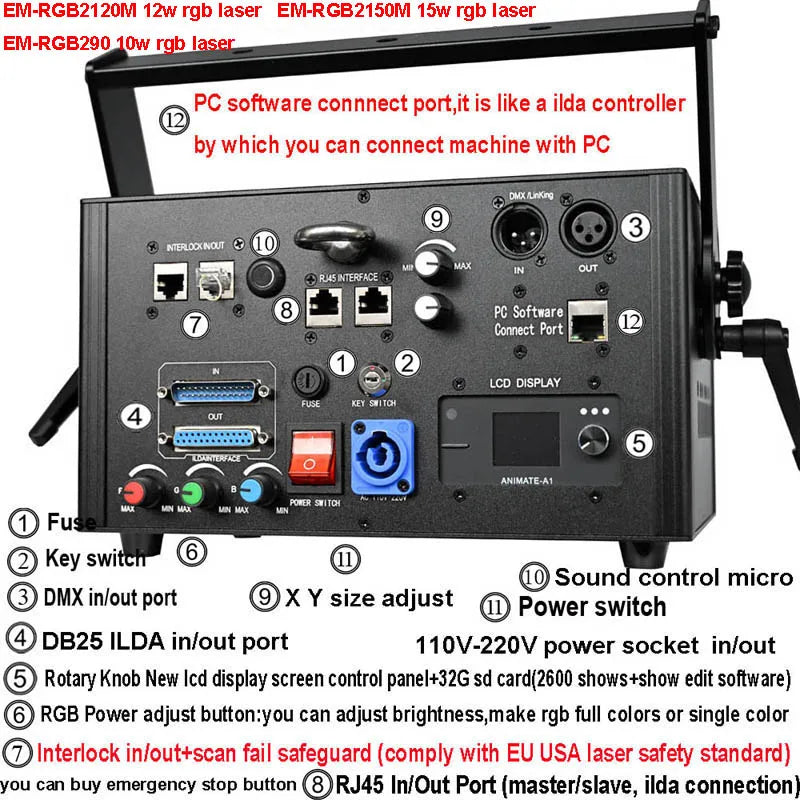

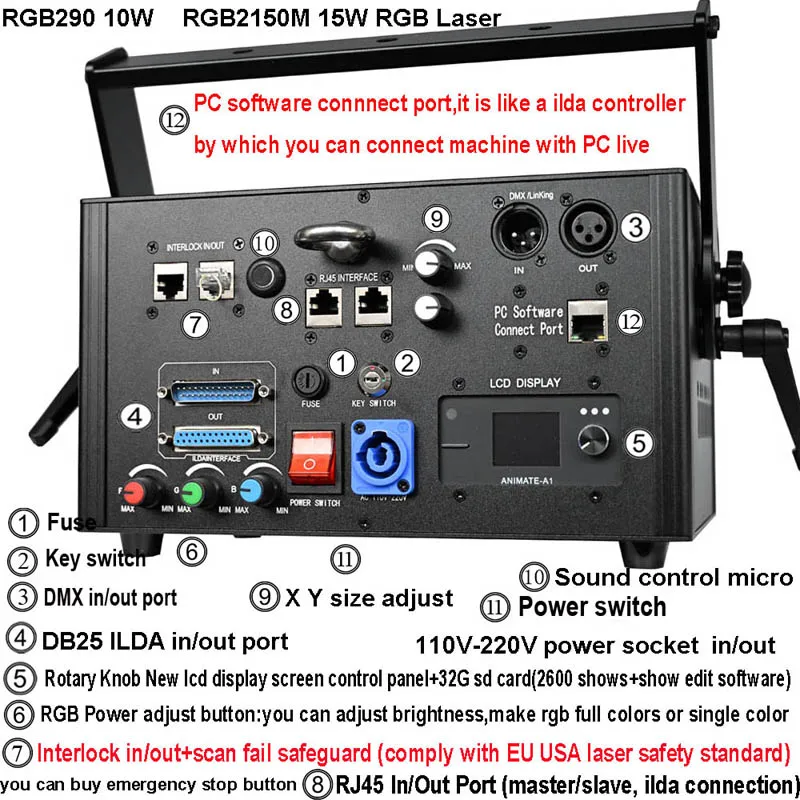

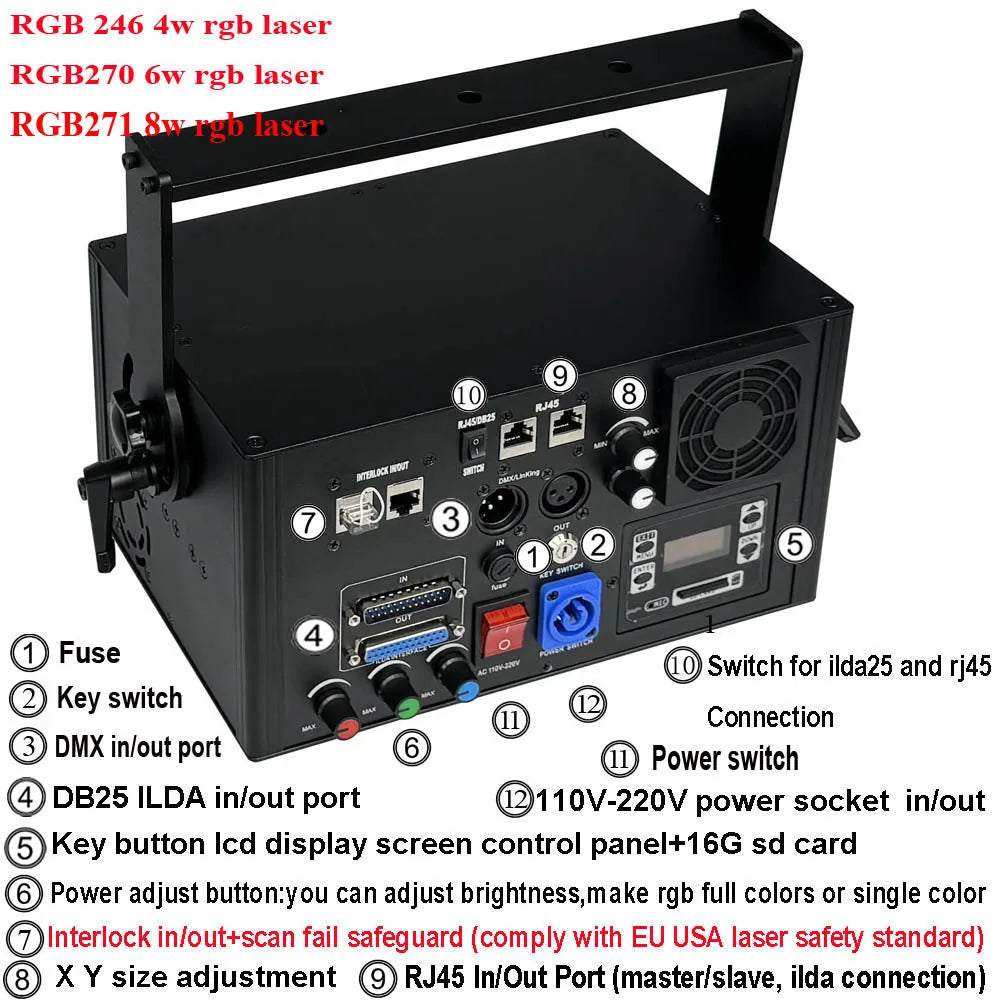

1)Interlock In/Out+Laser light scan-fail safeguards: It comply with EU USA laser safety standard(you can also buy a extra emergency switch in our store to control light on and off ) https://youtube.com/shorts/6g4obSXDaS0?si=IOS17U0XDPghCd_o
2)RJ45 In/Out Port: It has the same function as DB25 ilda port, if you buy ilda controller,you can connect the machine with computer by DB25 ilda cable or RJ45 network cable, If you do not buy ilda controller, you can link several machines as master/slave by ilda cable or network cable
3) There are three rgb knobs in back panel:by which you can adjust brightness and power and choose single color,you can create many different kinds of colors4)you can adjust laser projection angle and size manually
5)More options for scanning speed ,30kpps/50kpps Higher scanning speed,More accurate/smooth for animation,logo text laser show,For beam effects ,they do not have much difference
6) There are 128 kinds of beam effects+2600 kinds of amazing animation effects,(many are copied from pangolin quickshow,it will keep update! There is a show edit software in free 16G sd card
7)Compact and Good Dust-proof laser housing,Excellent cooling system design ,it can work perfectly in full of smoke environment,the laser has longer lifetime and more stable working performance than others.
1)Show Edit Software

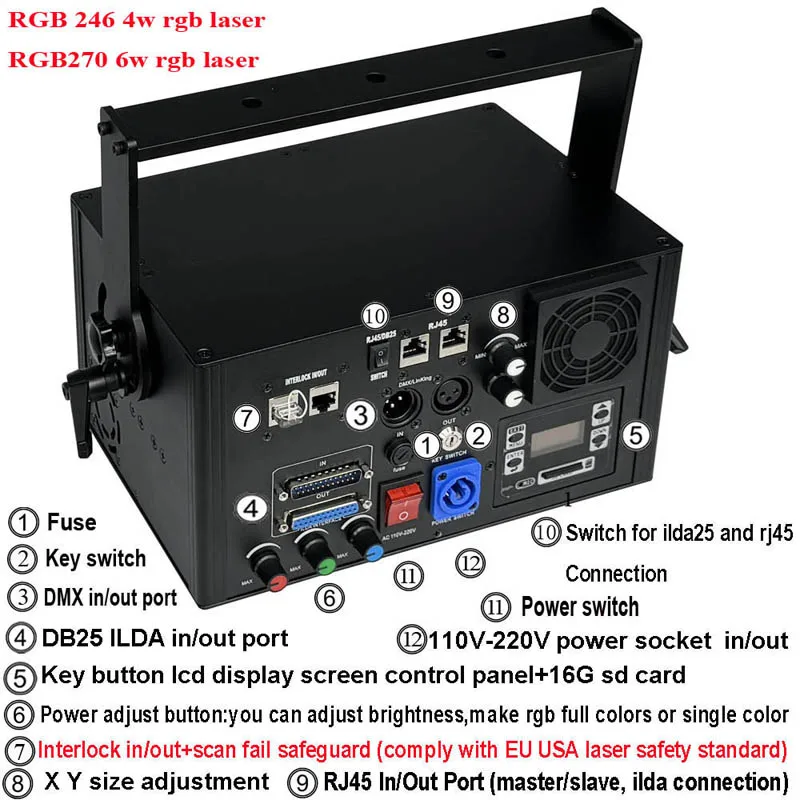

For 4W 6W RGB Laser with Keys Button Display Screen
(A free show software Ishow2.3 (No controller)(only support window 7/10computer)by which you can convert plt format picture into ilda file(you can make plt format picture by coreldraw or any other software)
you can draw graphic and type text in ishow .save it as ddr file,then convert ddr file into ilda file,
then copy it to sd card ,the machine will play them in sd card mode Without controller
2)Show Edit Software
For 10W 12W 15W RGB Laser With Rotary Button Display Screen
A free New show edit software, It support all windows computer,by which you can edit your own laser show, There is a animation effects edit zone in the software, you can add different kinds of amazing animation effects for the shows you created
1)you can copy the shows to sd card and upload them to machine ,the machine will play them in auto mode
2)you can only need to network cable to connect machine directly by computer live through PC software edit port in the back panel of machine
Laser effects

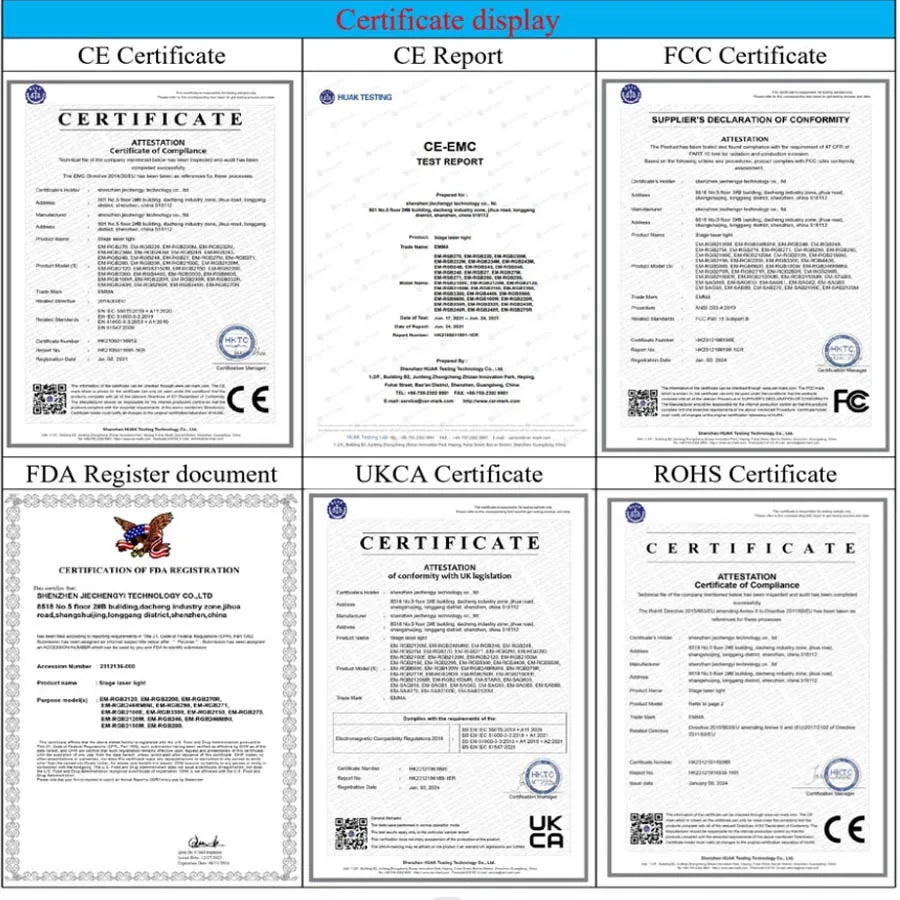

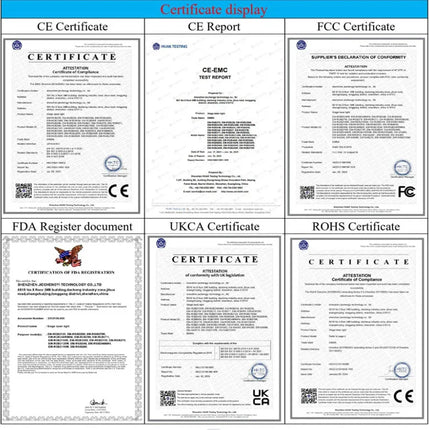

Certificate display
