Description
SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: no
Brand Name: NONE
Camera Mount Type: Other
Control Channels: 12 Channels & Up
Controller Battery: no
Controller Mode: MODE1,MODE2
Drone Weight: no
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Resin,Carbon Fiber,Metal
Motor: Brushless Motor
Operator Skill Level: Beginner,Intermediate
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: no
Takeoff Weight: no
Transit Time (Days): no
Type: HELICOPTER
Video Capture Resolution: Other

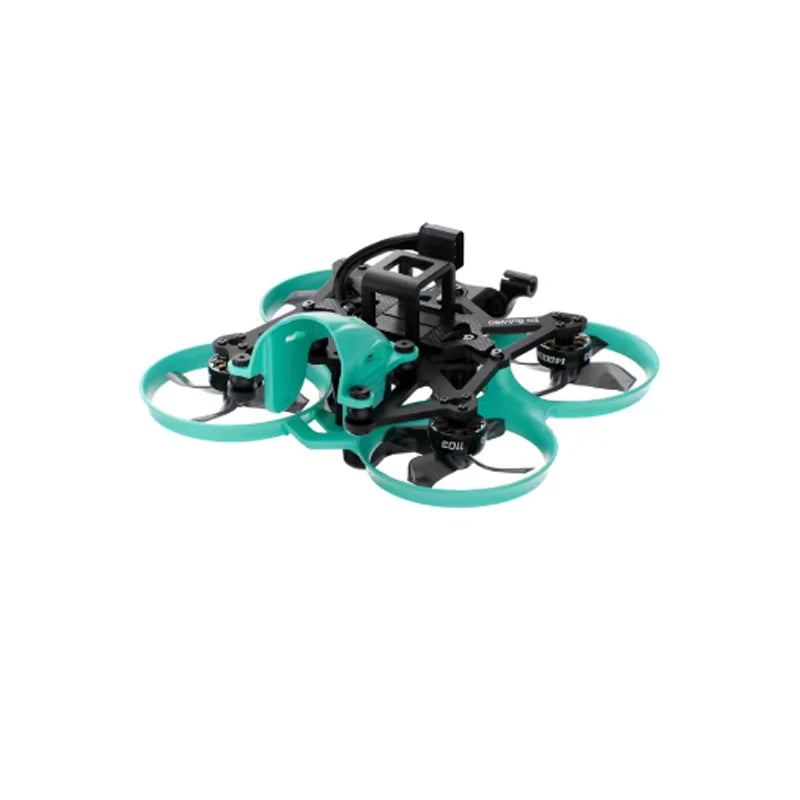

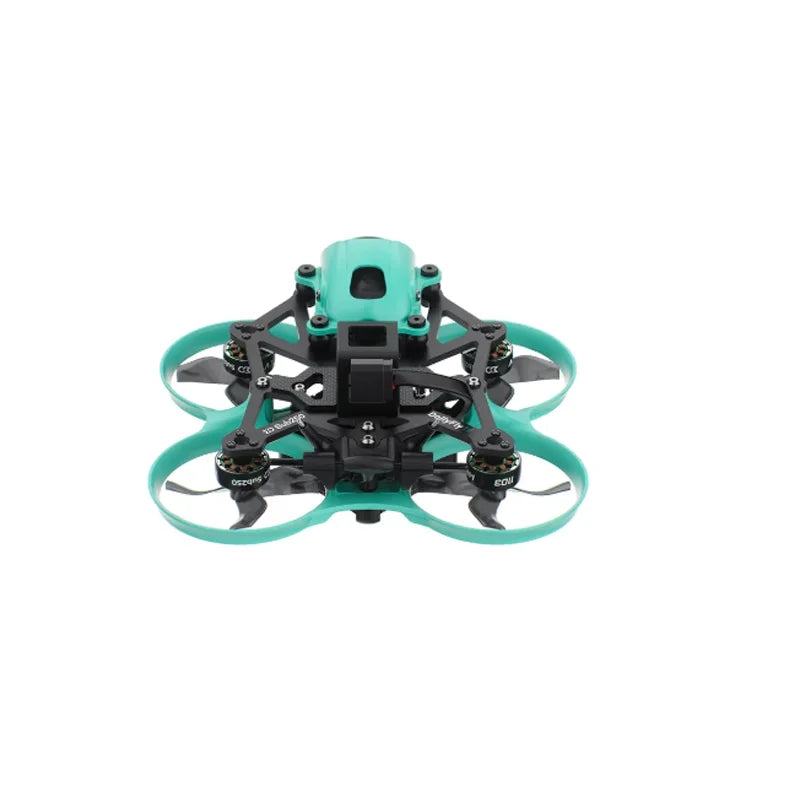

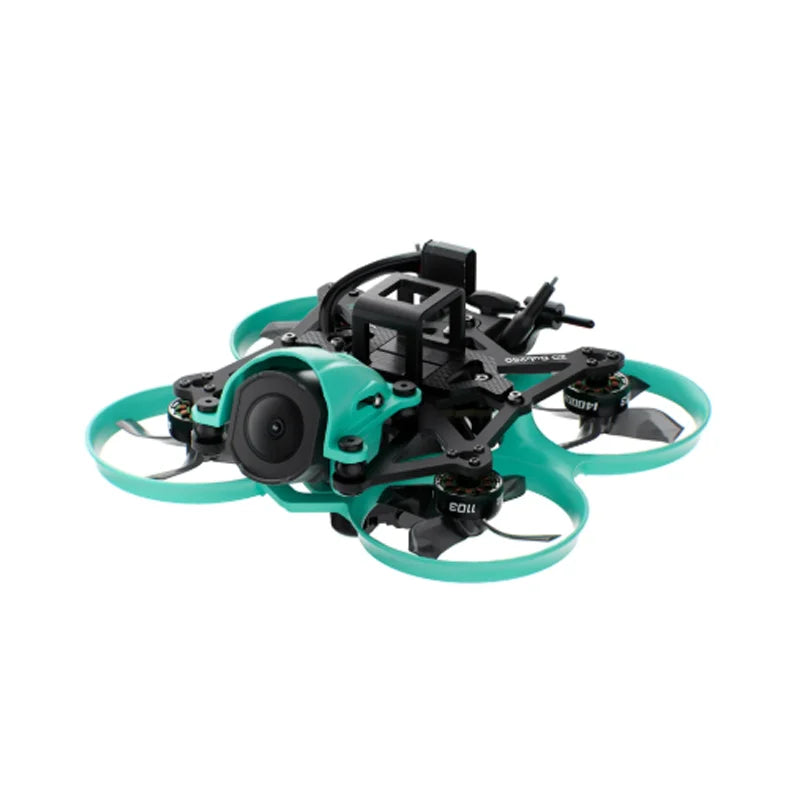

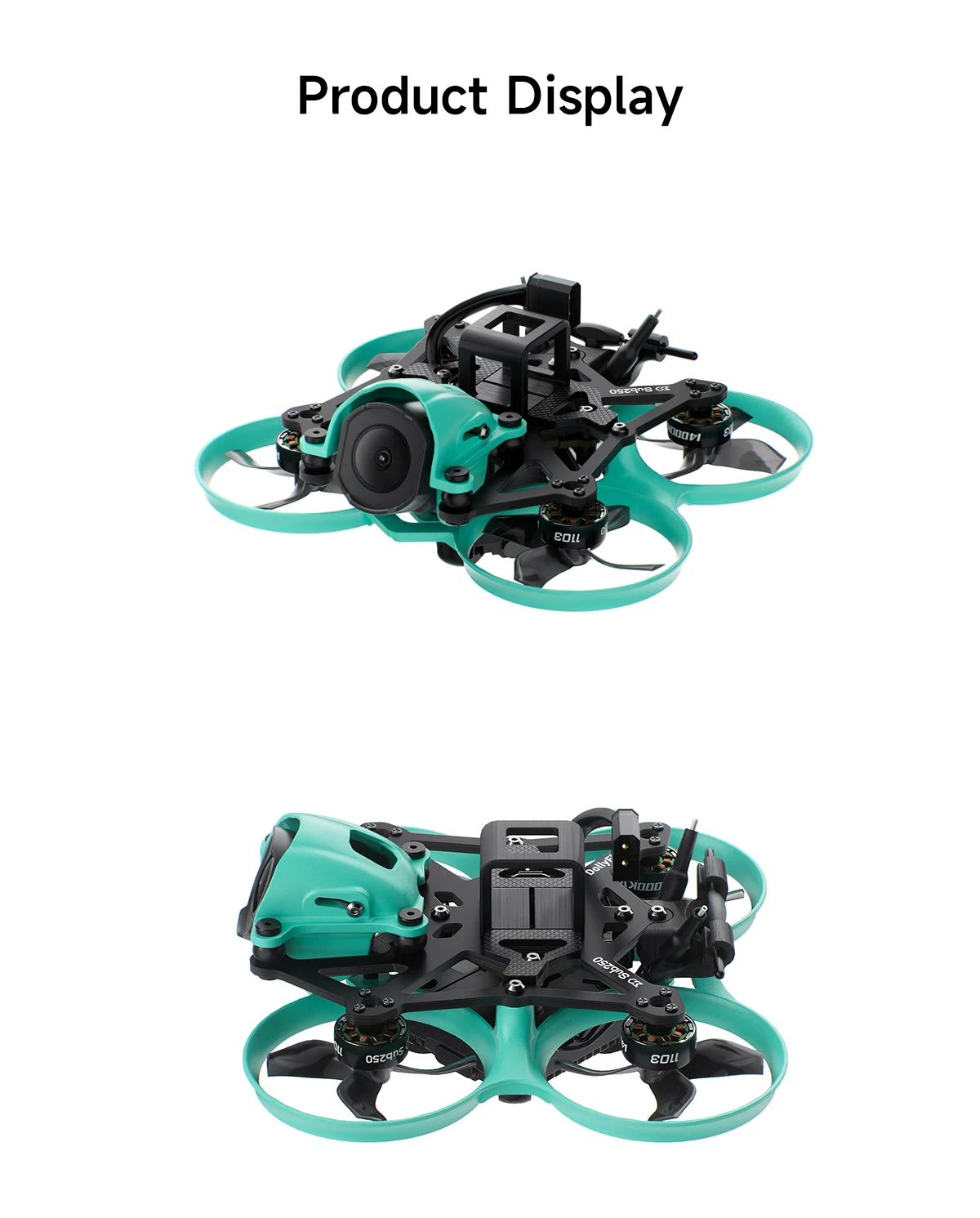

Sub250 DollyFly16 1.6-inch 2S CineWhoop

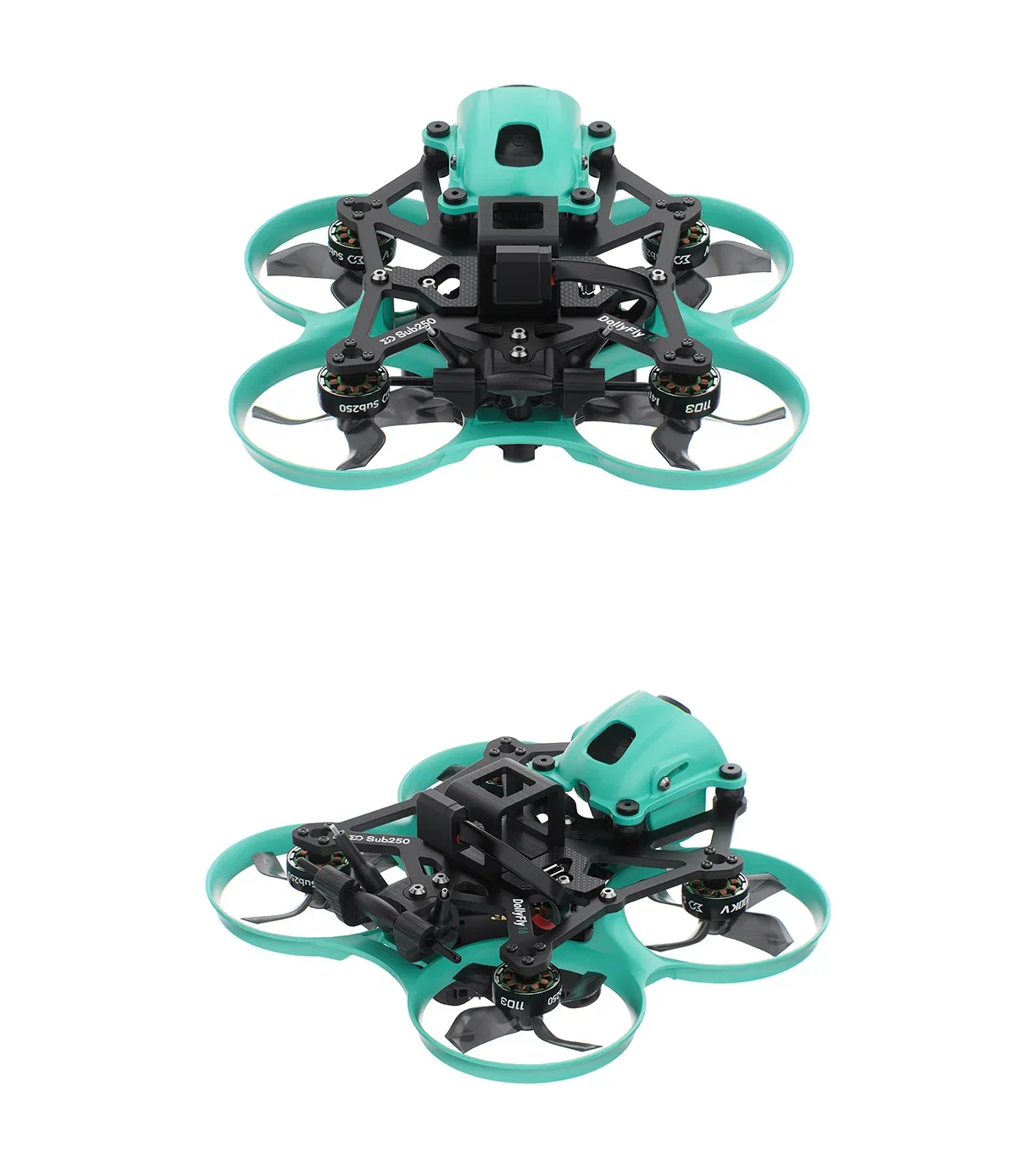

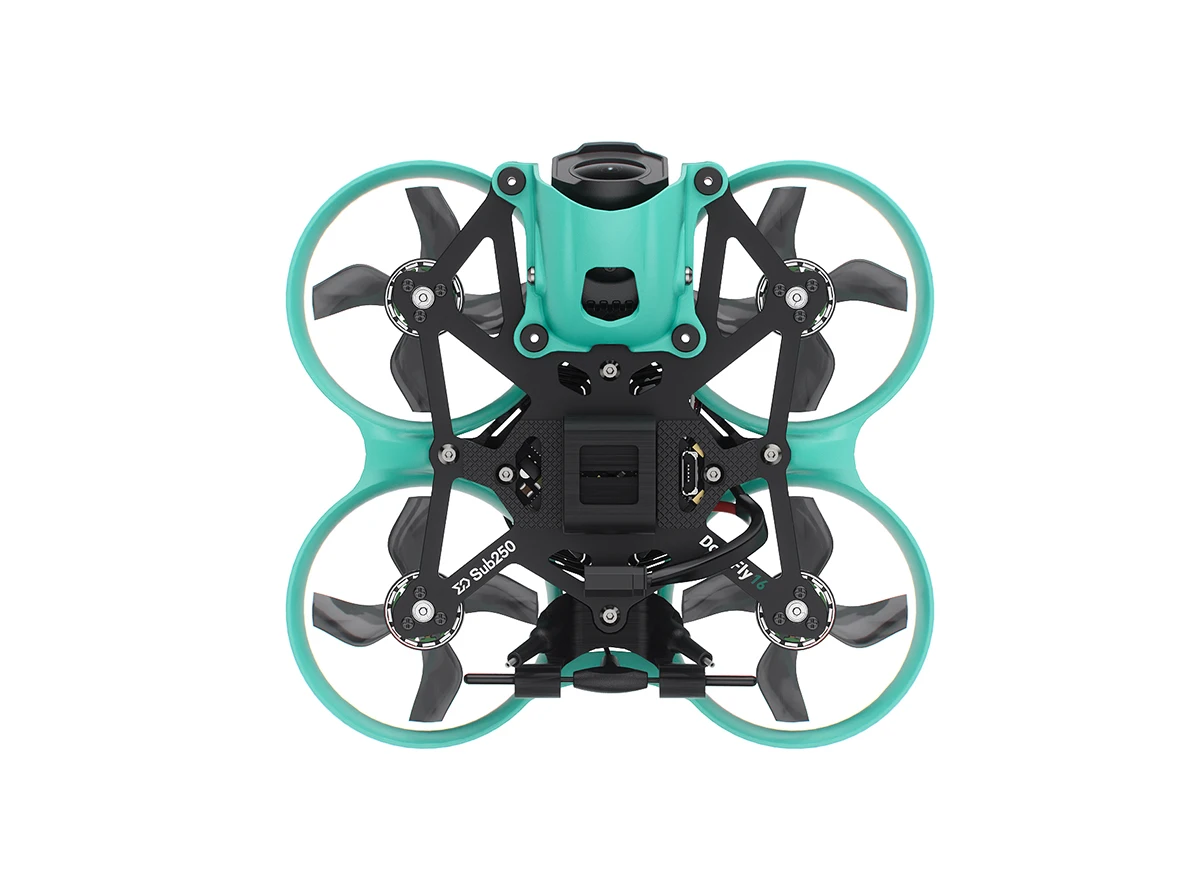

Sub250 Dollyfly16 Whoop is a lightweight FPV drone designed primarily for indoor cinematic filming and flight, weighing only 87g. It is equipped with O4 Air Unit Pro HD digital video transmission system, featuring a vibration-damped camera mount that ensures smooth and stable footage during flight. Configured with TAKER F411 12A AIO Flight Controller system and 1103 14000KV motors, it delivers robust performance capable of executing a wide range of high-agility maneuvers.
An integrated camera protection housing provides effective protection against damage from crashes, while the aerodynamic ducted frame not only enhances thrust but also avoids the risk of injury to bystanders due to flight error.
Meticulously tuned by technical team, Dollyfly16 offers a refined and fluid flight experience, making it best photography partner for small-scene shooting on the journey.

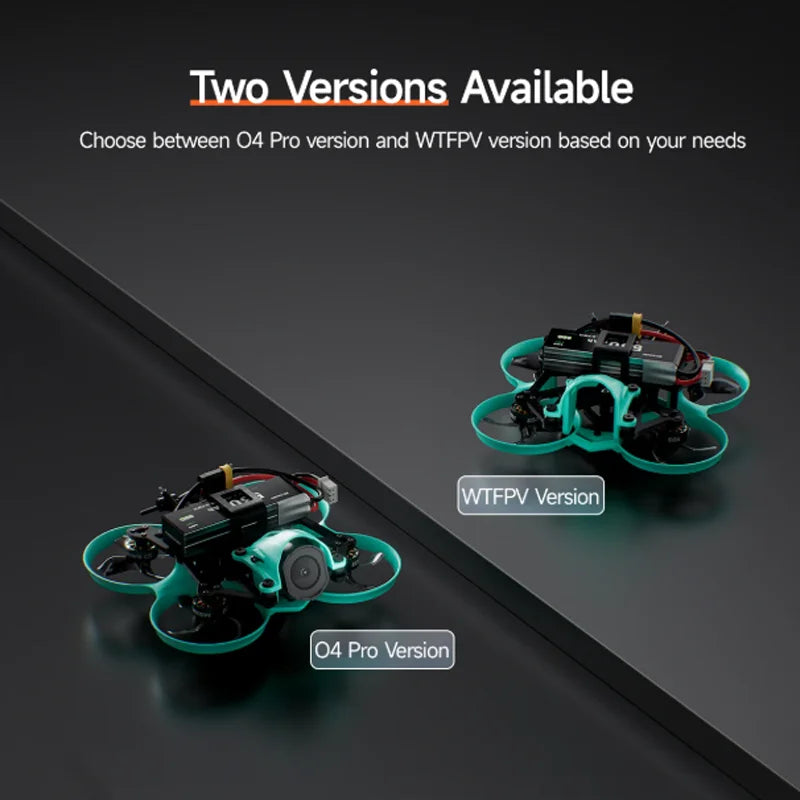

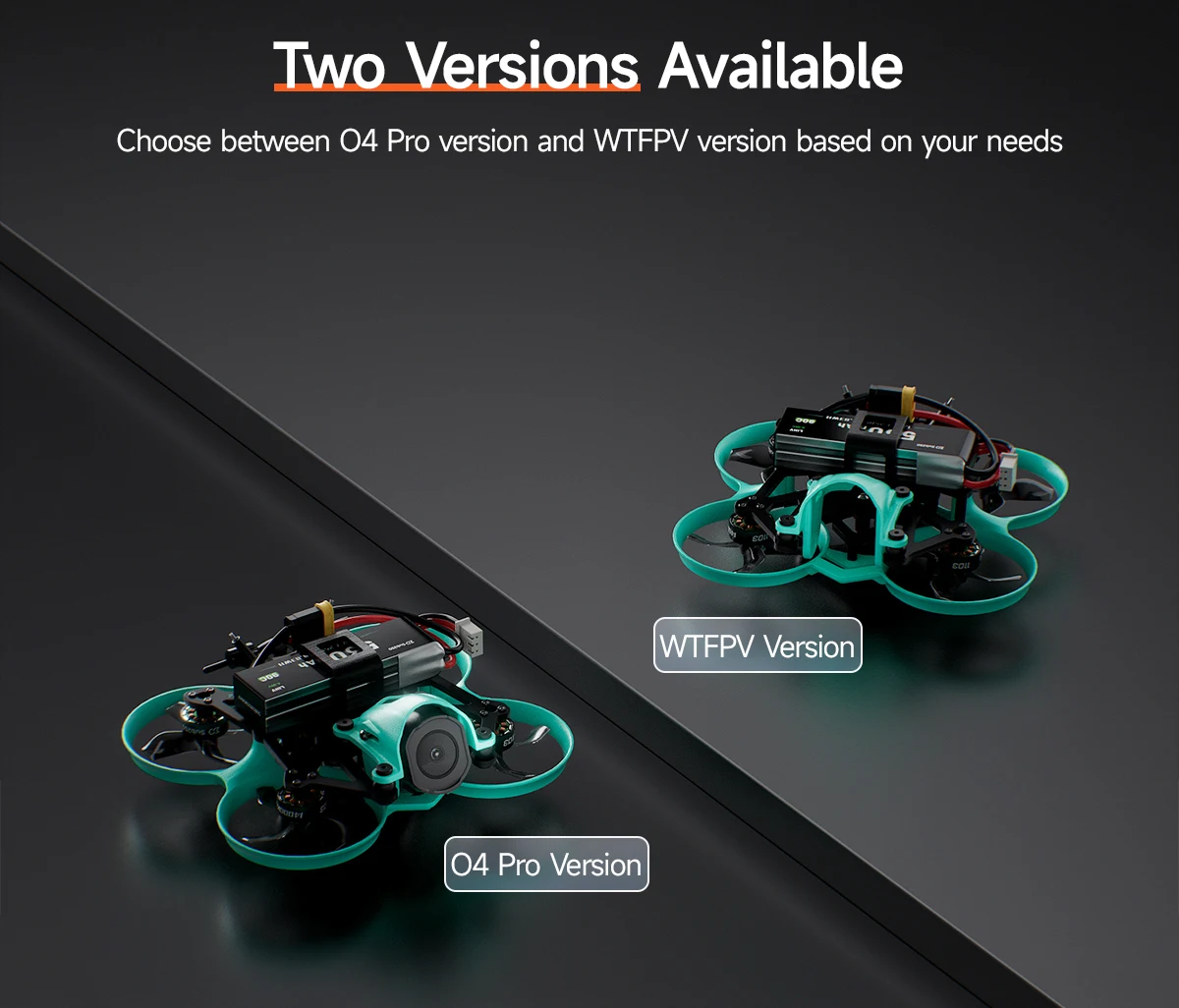

Note: Contents vary by selected WTFPV or O4 Pro specifications.
Note: The WTFPV version does not come with any VTX, Camera

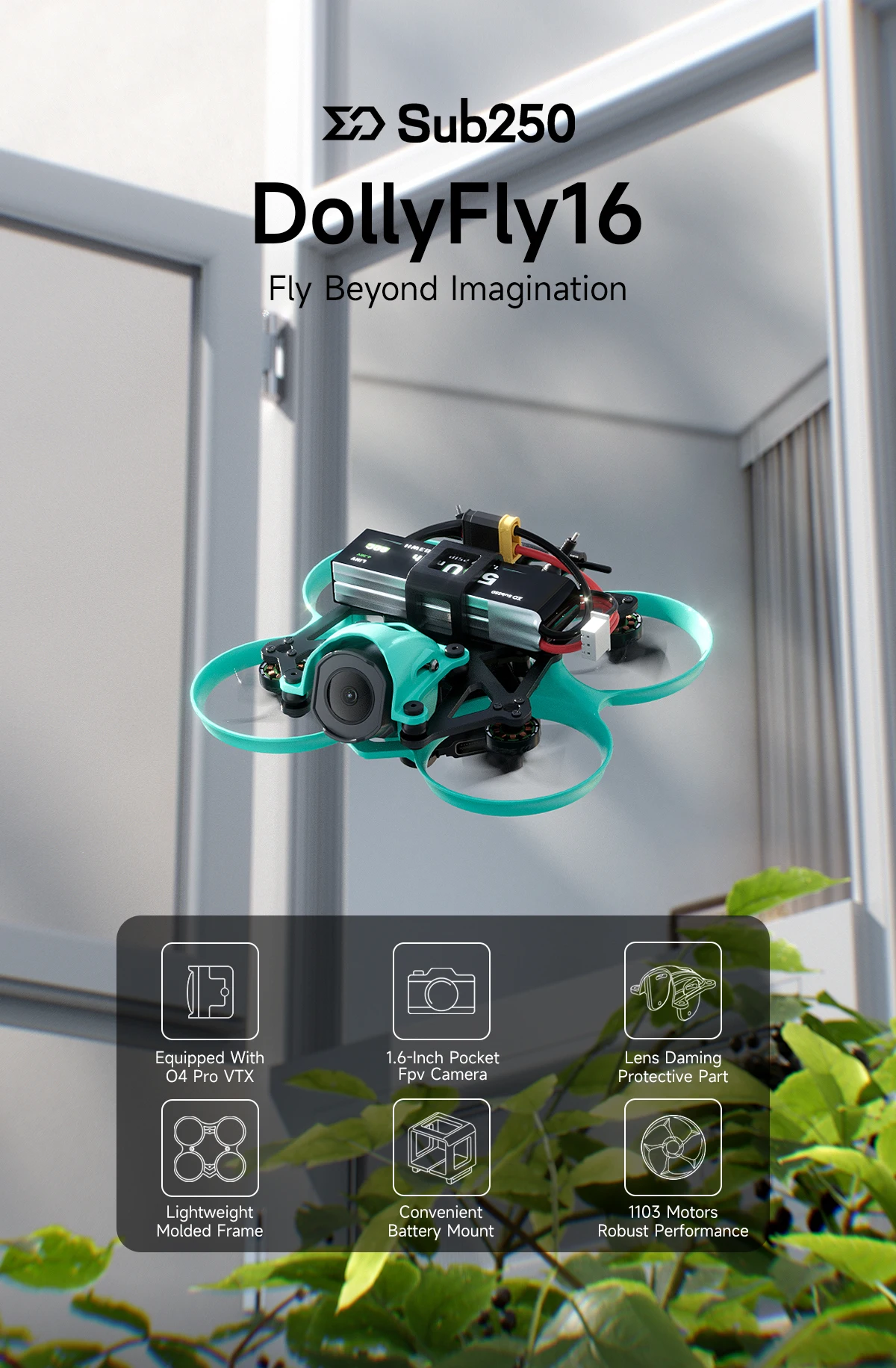

Feature:

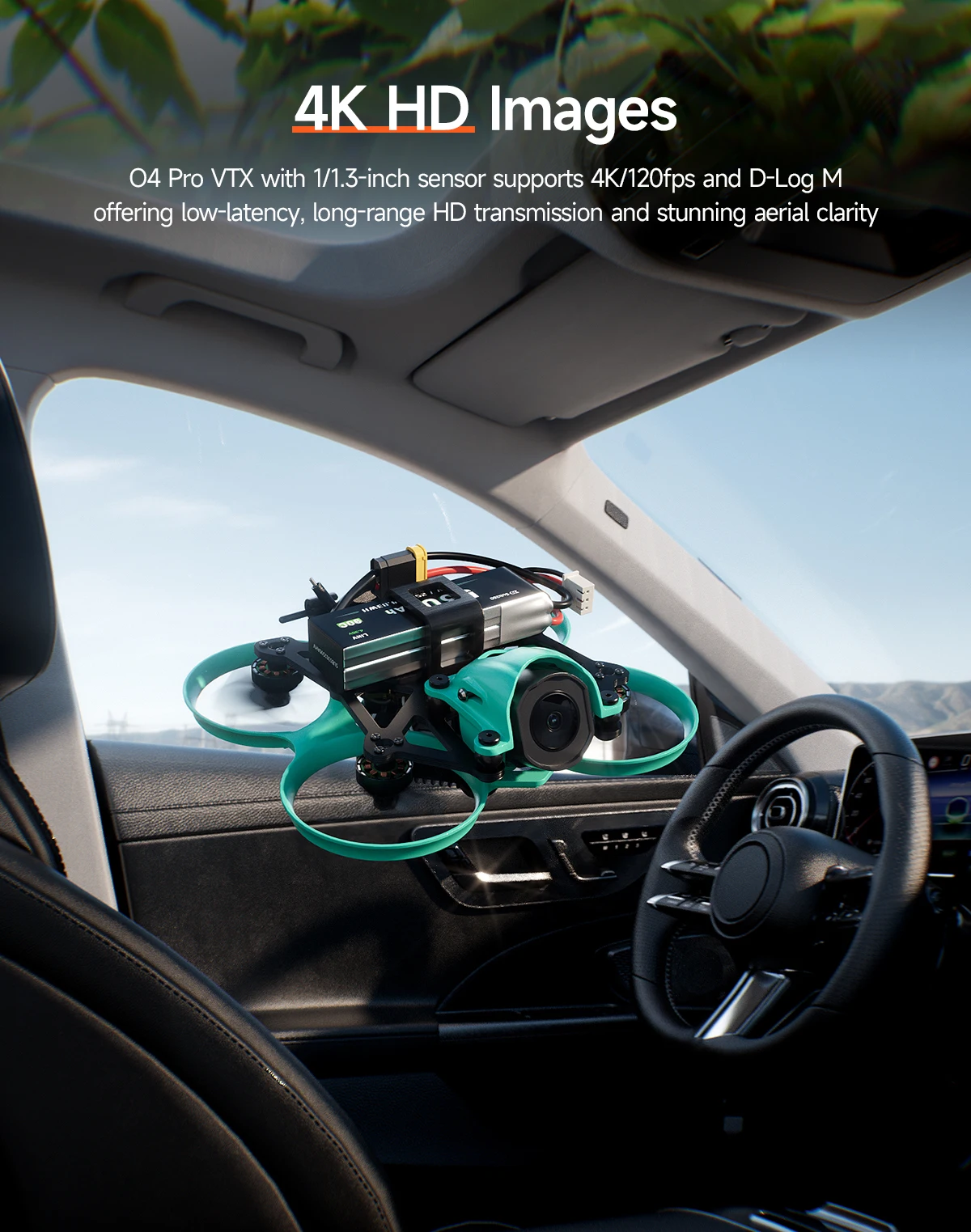

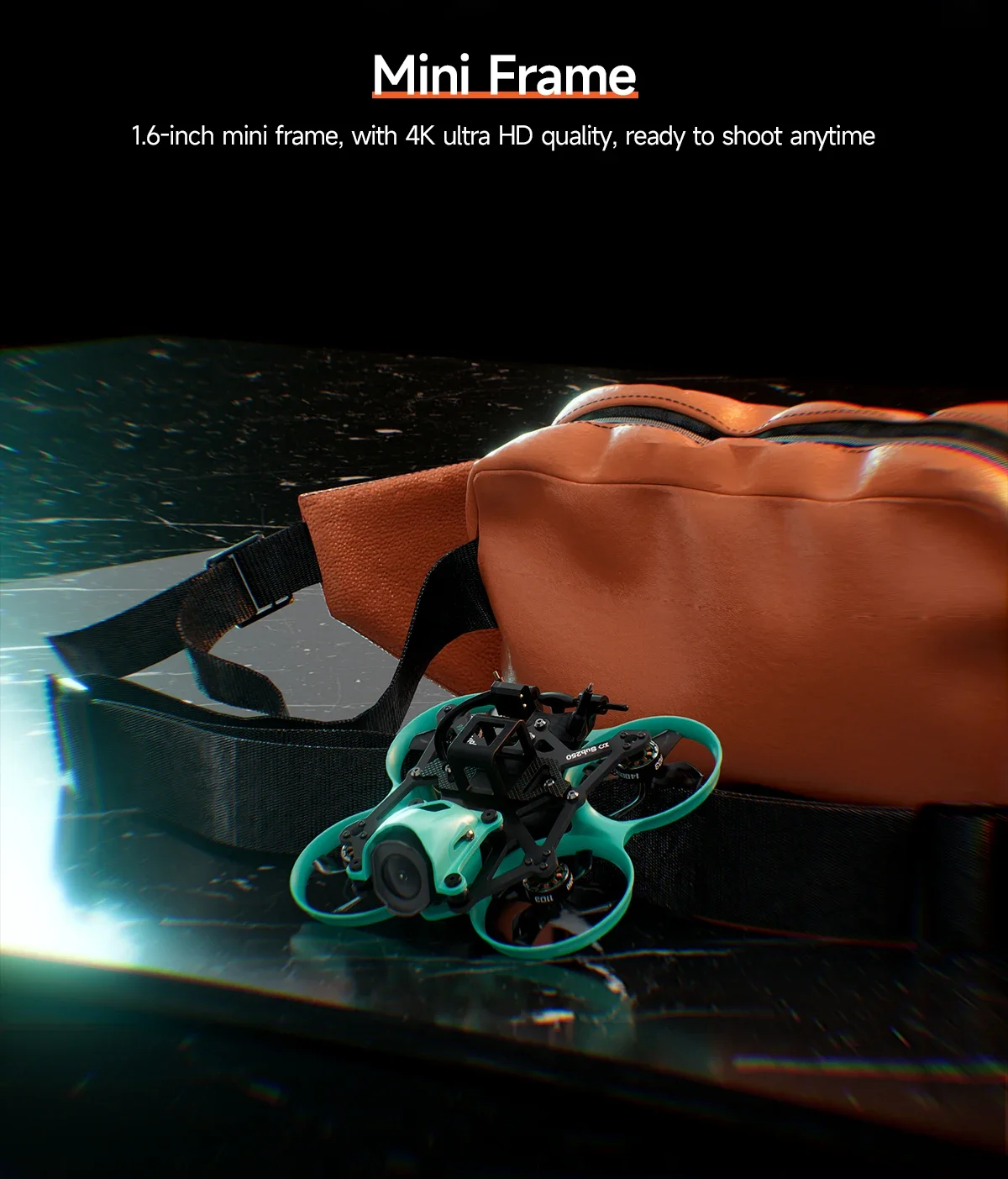

1. Compact 1.6-inch Whoop FPV drone, equipped O4 Air Unit Pro HD VTX, video resolution and frame rate up to 4K 120fps.

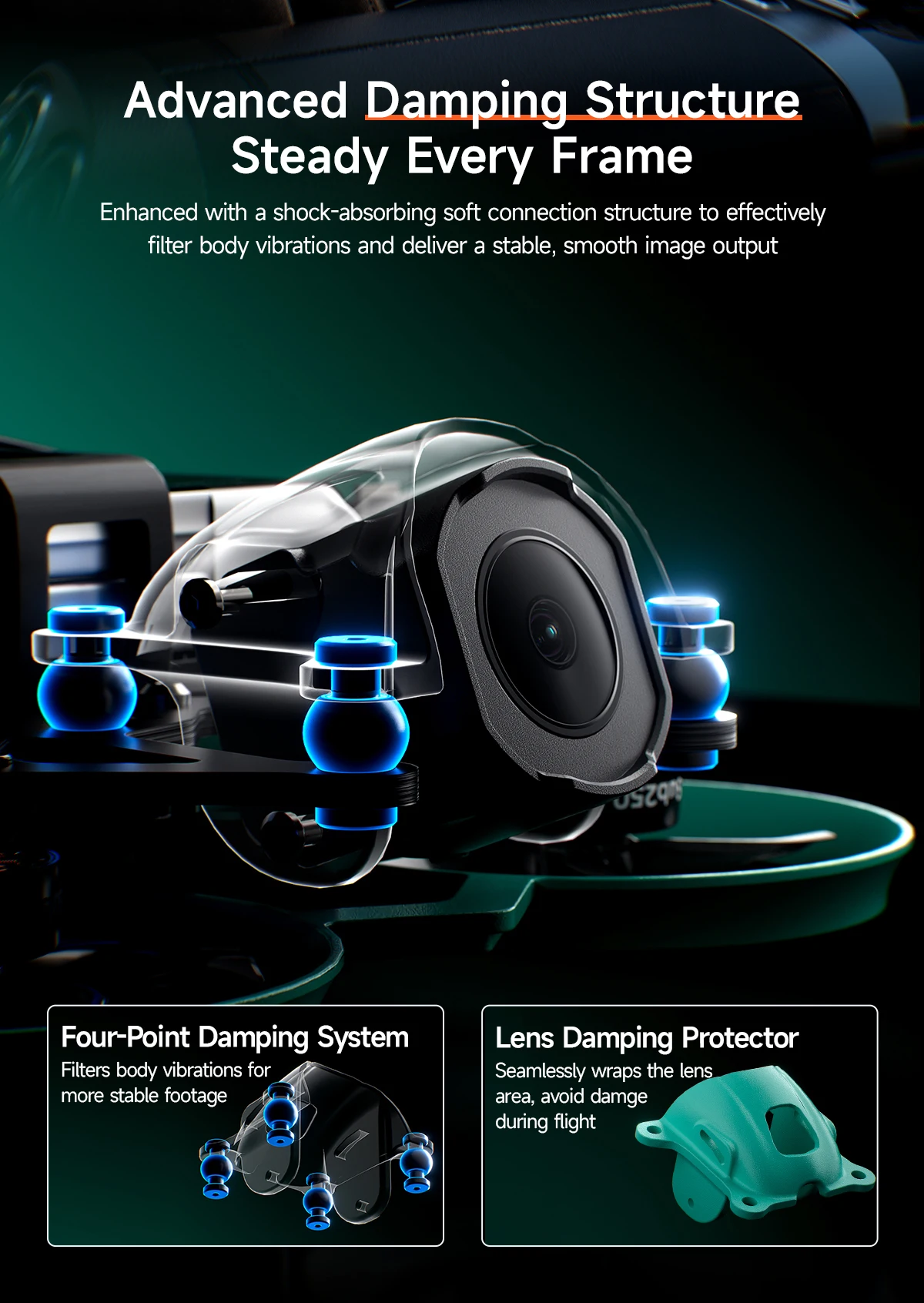

2. Safe and reliable camera vibration-damped cap, effectively reduces frame vibrations, ensuring silky-smooth video while safeguarding your lens during flight.

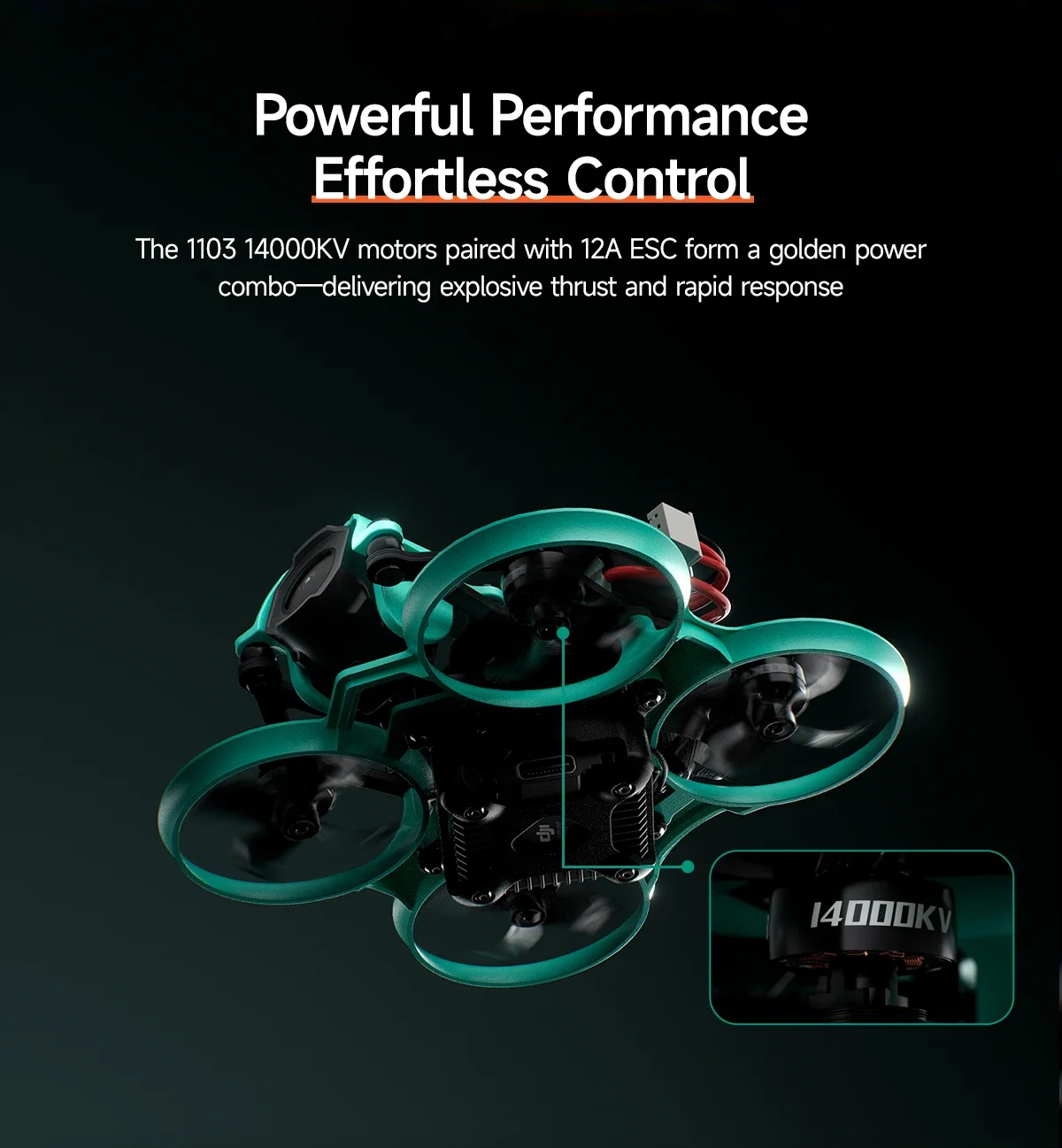

3. Powered by 1103 14000KV motors, delivering ample thrust for agile and sharp responsive flight performance.

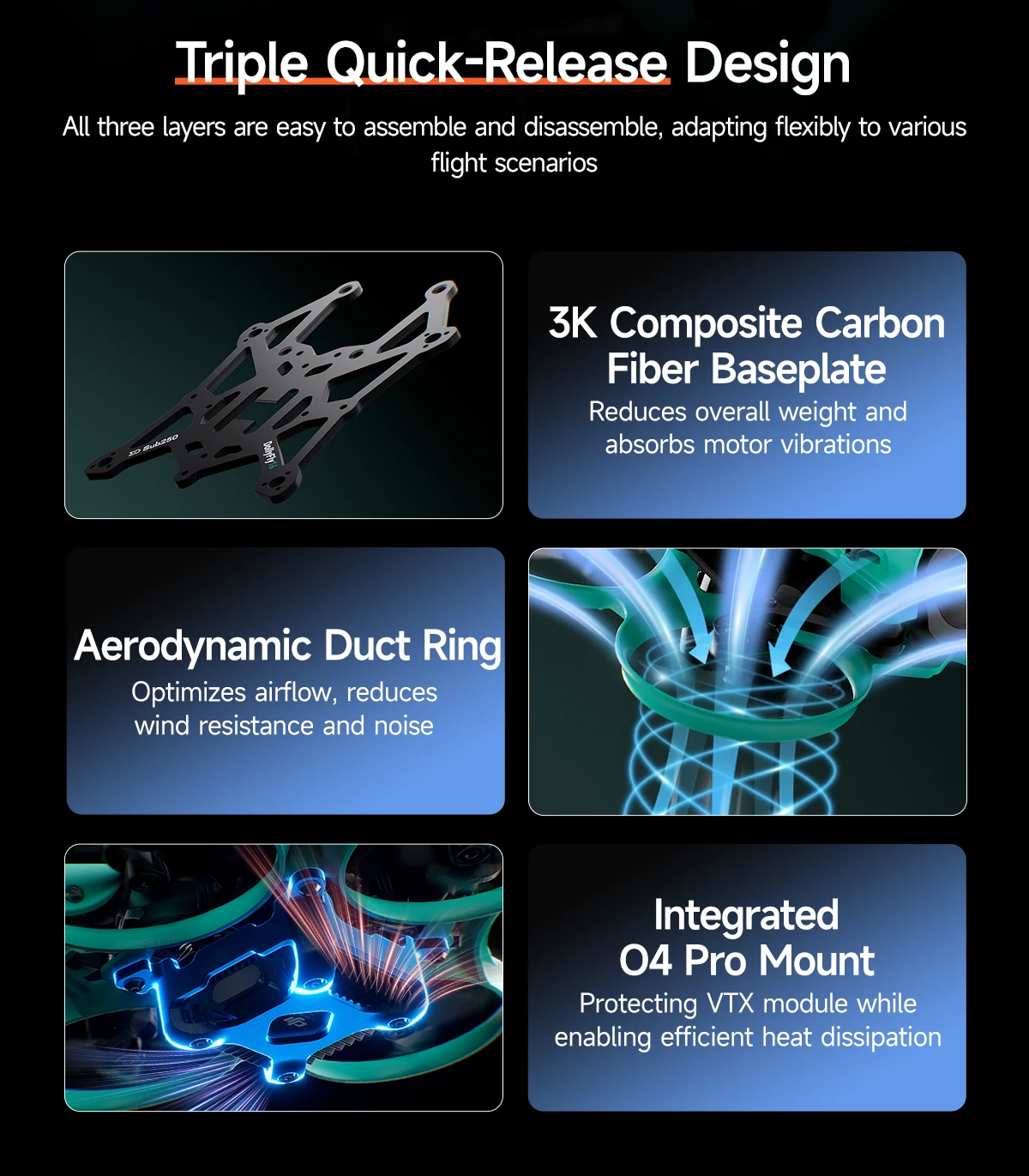

4. Perfect structure and appearance design, featuring an injection-molded protective frame, the overall body is sturdy and stable.

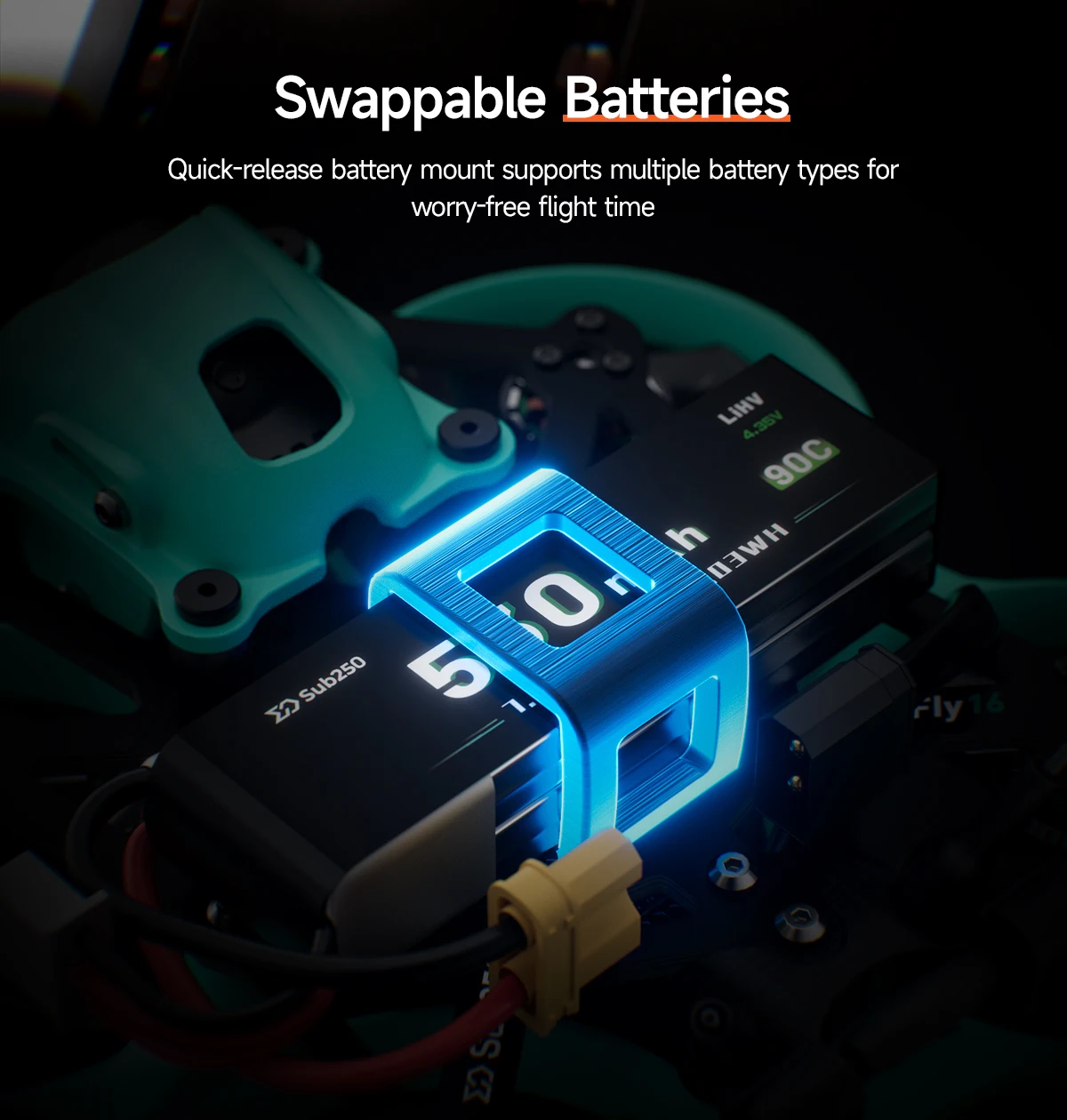

5. Upgrade traditional battery tie fixing method, clever design, convenient battery snap.
6. With O4 Air Unit Pro VTX module custom-fit mounting mount.

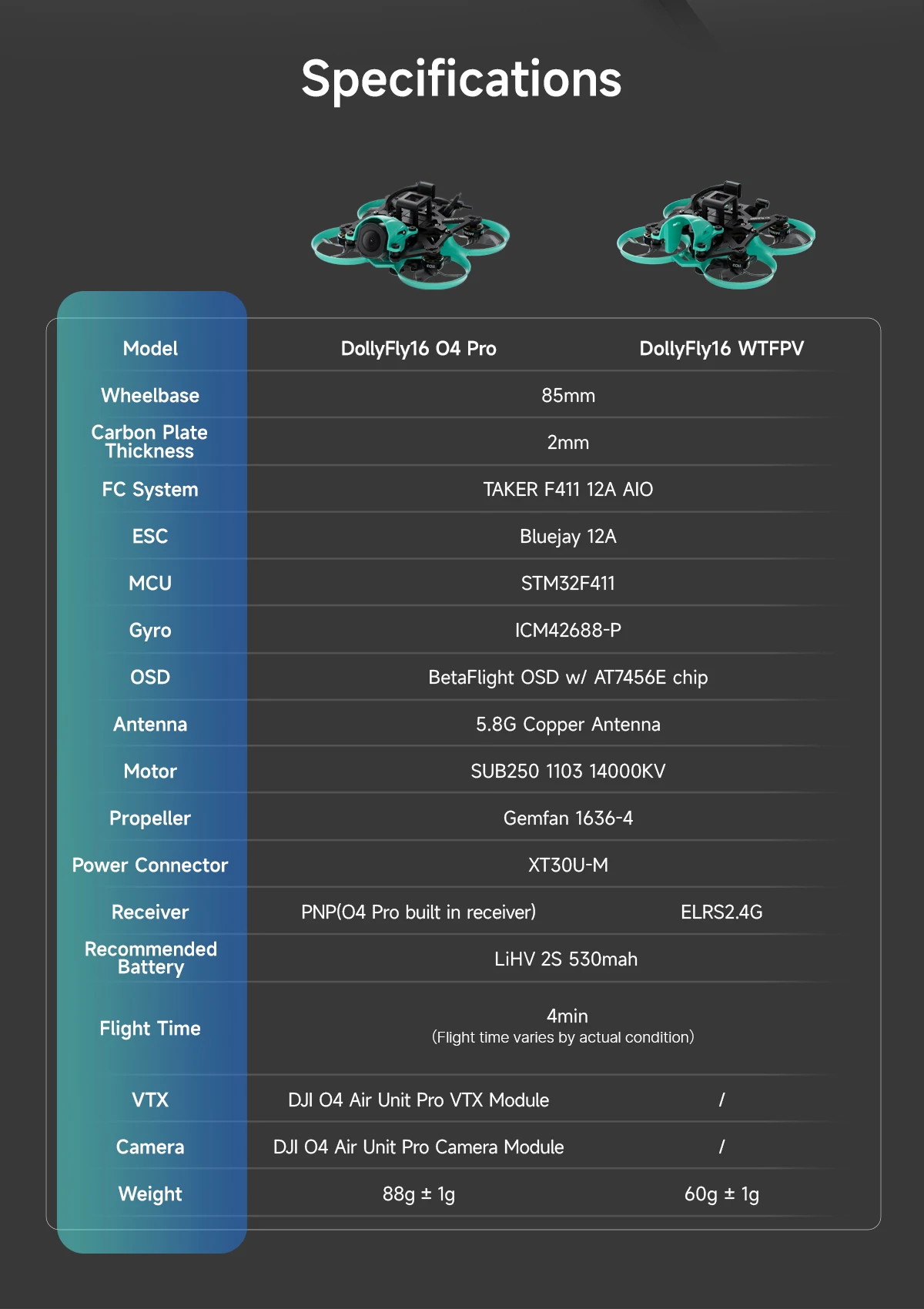

O4 Pro Specifications:
Model: Sub250 DollyFly16 O4 Pro
Wheelbase: 85mm
Carbon Plate Thickness:2mm
Arm Thickness:2mm
FC System: TAKER F411 12A AIO
ESC: Bluejay 12A
MCU: STM32F411
Gyro: ICM42688-P
OSD: BetaFlight OSD w/ AT7456E chip
VTX: O4 Air Unit Pro VTX Module
Camera: O4 Air Unit Pro Camera Module
-
Antenna: 5.8G copper antenna
Motor: Sub250 1103 14000KV
Propeller: Gemfan 1636-4
Power Connector:XT30U-M
Weight: 88g ± 1g

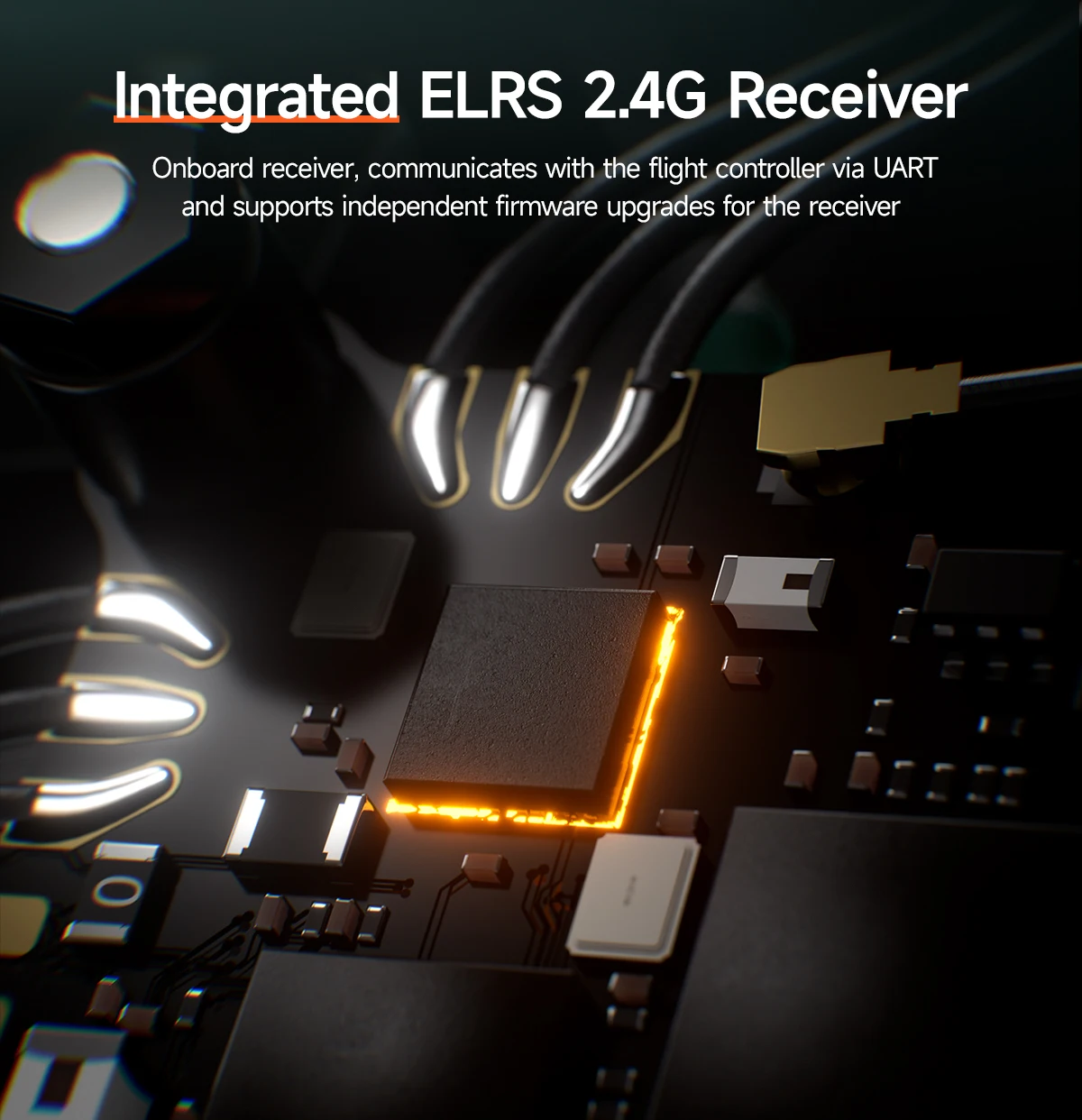

Receiver: PNP(O4 Pro built in receiver） / ELRS2.4G
Recommended battery: LiPo 2S 530mah
Flight time: 4min
WTFPV Specifications:
Model: Sub250 DollyFly16 WTFPV
Wheelbase: 85mm
Carbon Plate Thickness:2mm
Arm Thickness:2mm
FC System: TAKER F411 12A AIO
ESC: Bluejay 12A
MCU: STM32F411
Gyro: ICM42688-P
OSD: BetaFlight OSD w/ AT7456E chip
VTX: /
Camera: /
Antenna: 5.8G copper antenna
Motor: Sub250 1103 14000KV
Propeller: Gemfan 1636-4
Power Connector:XT30U-M
Weight: 60g±1g
Receiver: PNP(no receiver） / ELRS2.4G
Recommended battery: LiPo 2S 530mah
Flight time: 4min

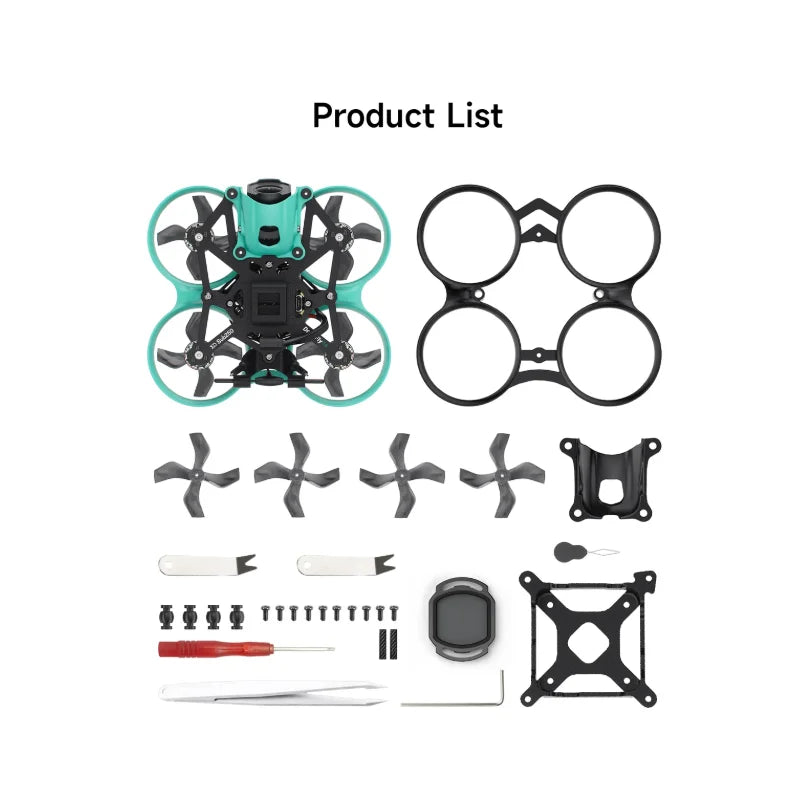

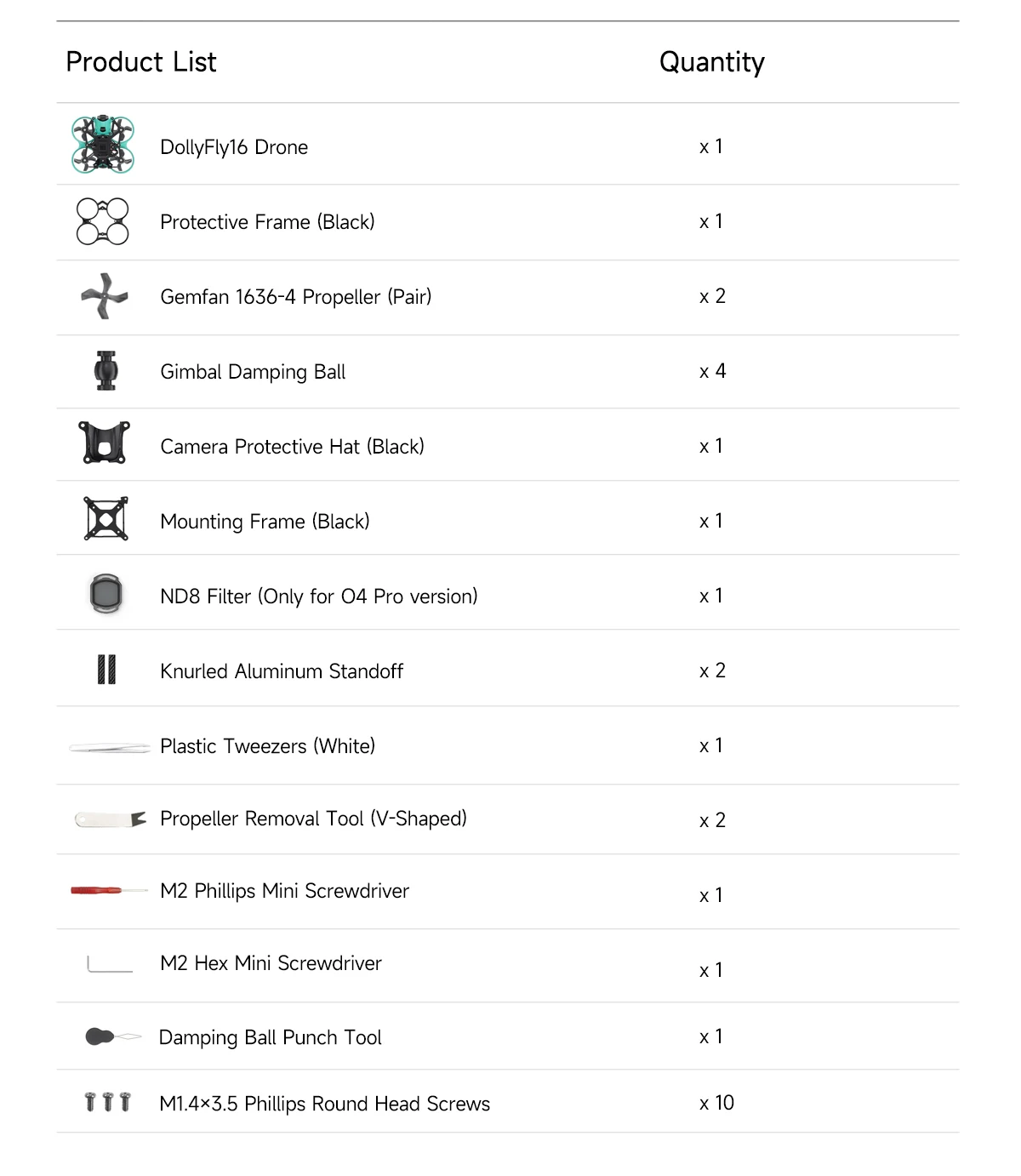

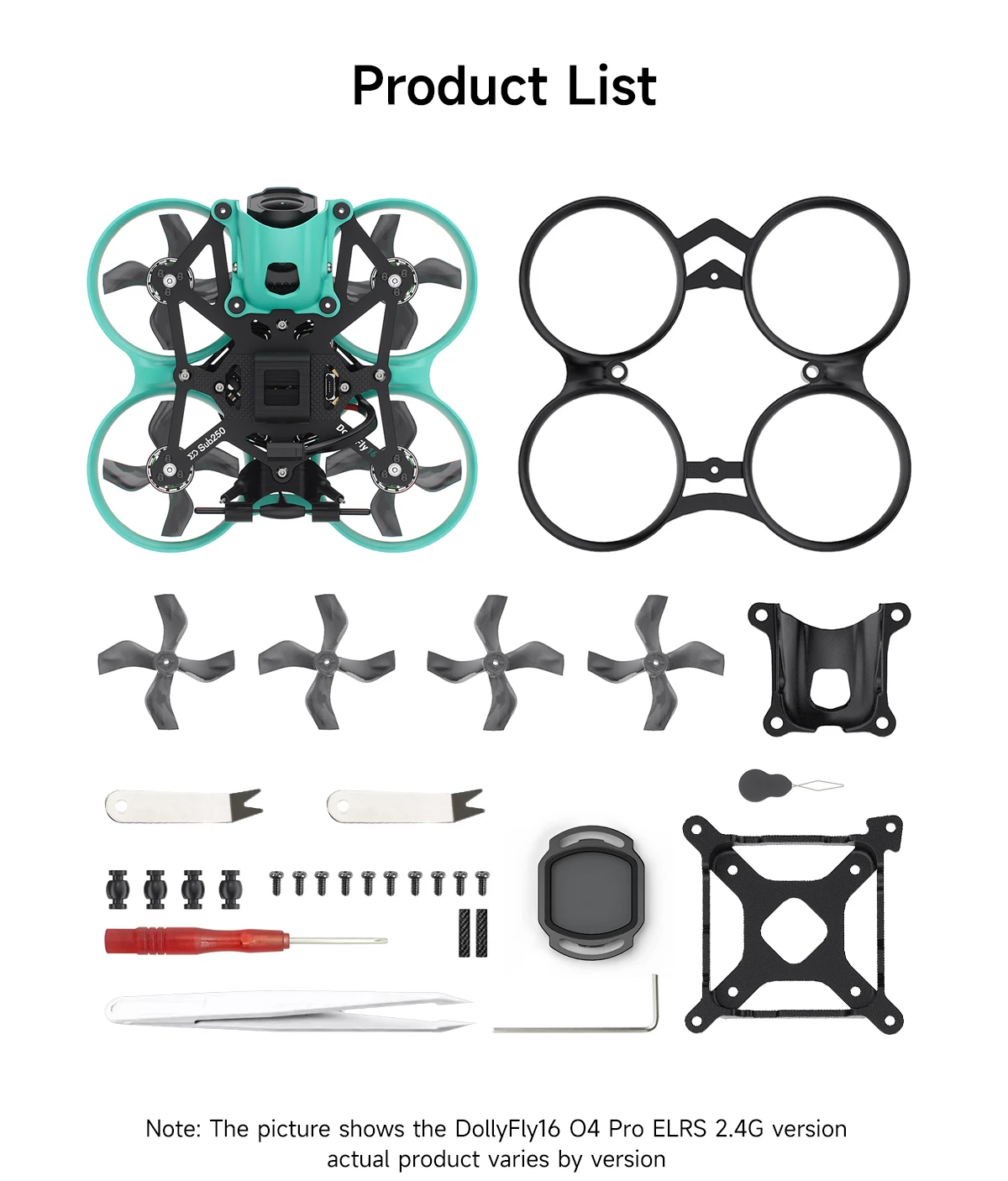

Package Contents:
1 x Sub250 DollyFly16 drone
2 x GHMFAN 1636-4
1 x Phillips screwdriver

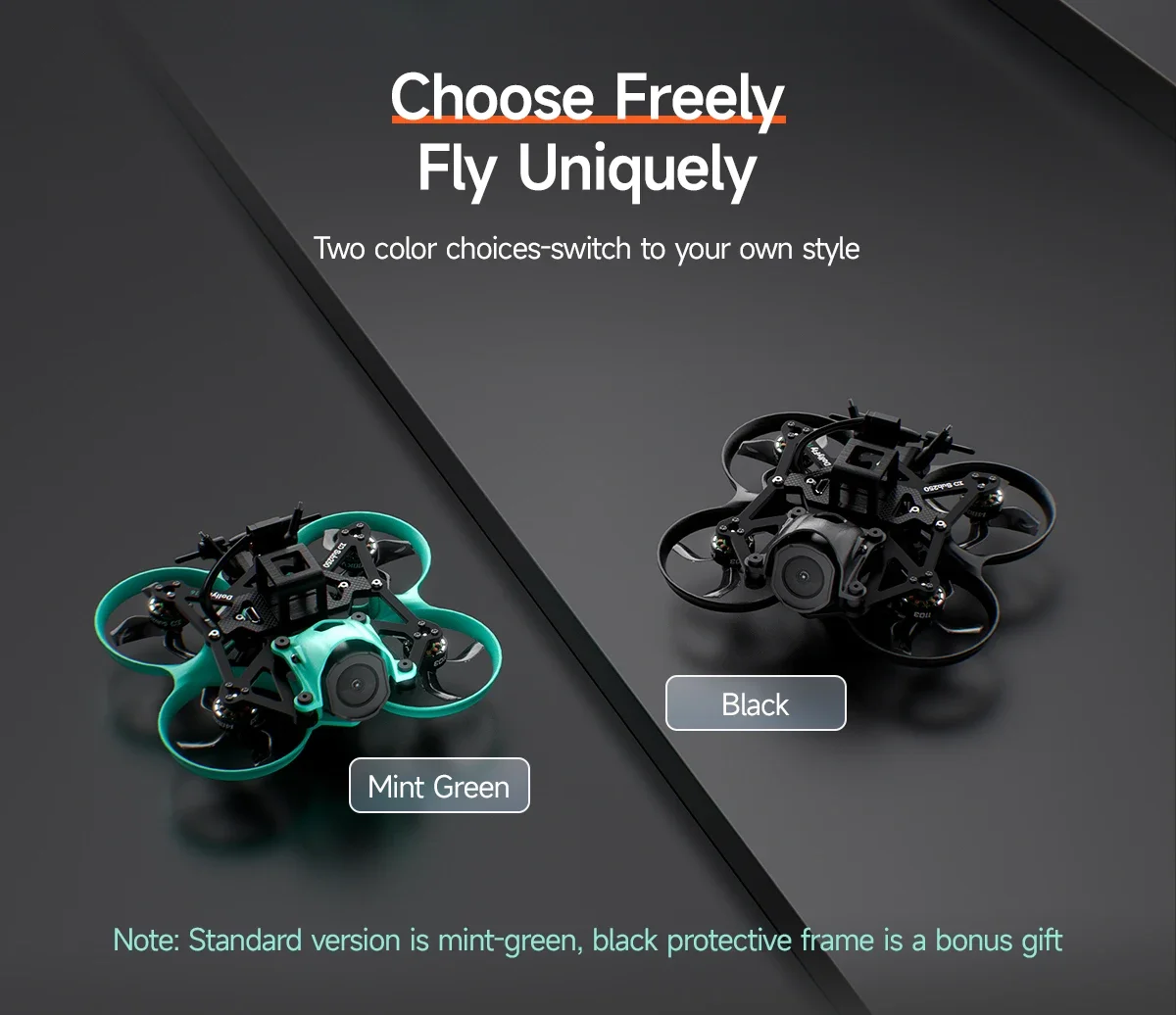

1 x Protective frame (black）

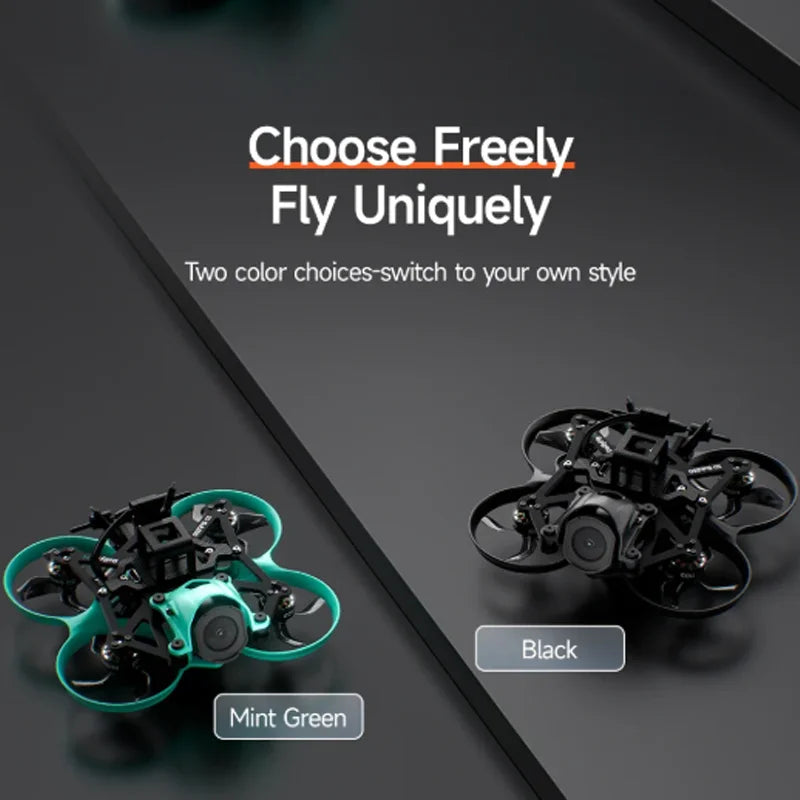

1 x Camera protective cap (Mint green）
1 x Spare screw pack
1 x L-shaped screwdriver (1.5mm)
