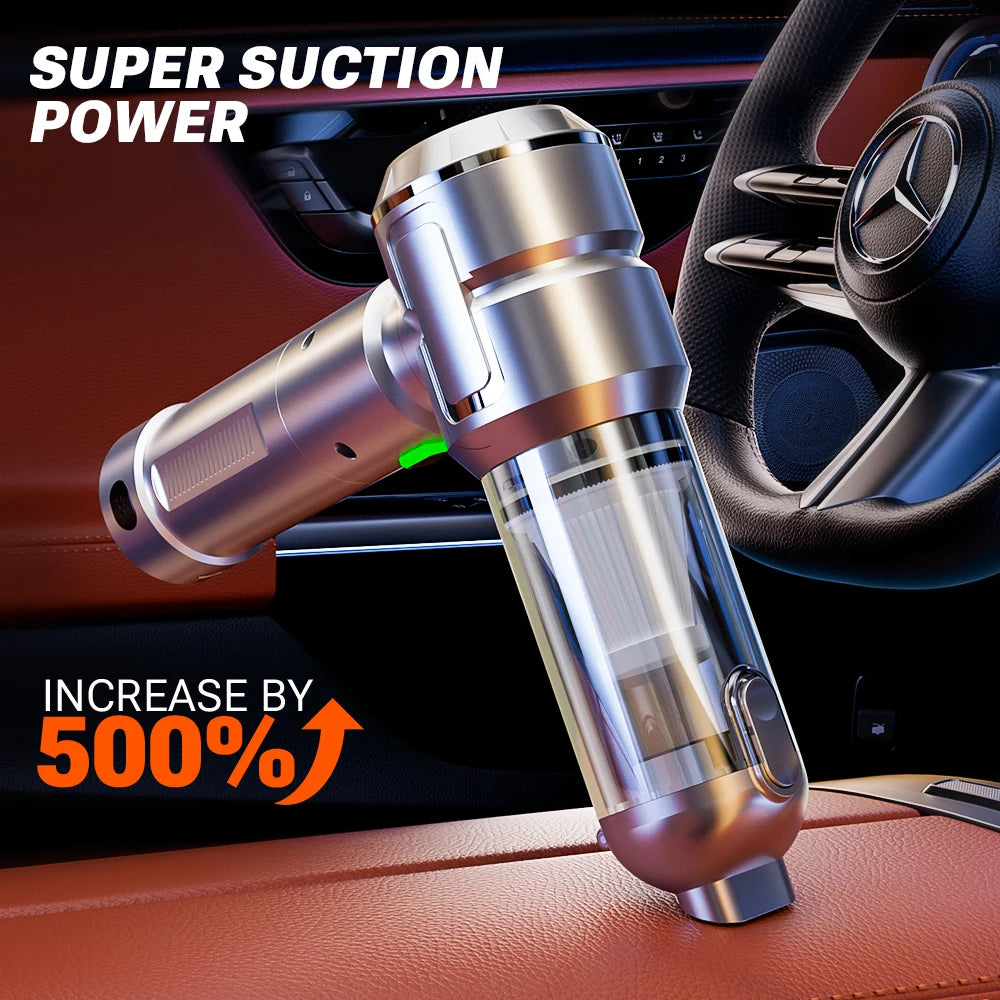

SPECIFICATIONS

1.1 This product is a handheld wireless device with a rated voltage of 11.1V.

1.2 The product has three functions of vacuuming, blowing/inflating, and exhausting.

1.3 The filter adopts HEPA and is washable.

1.4 The motor is 11.1V high-speed brushless motor.

1.5 Fully enclosed turbine blades.

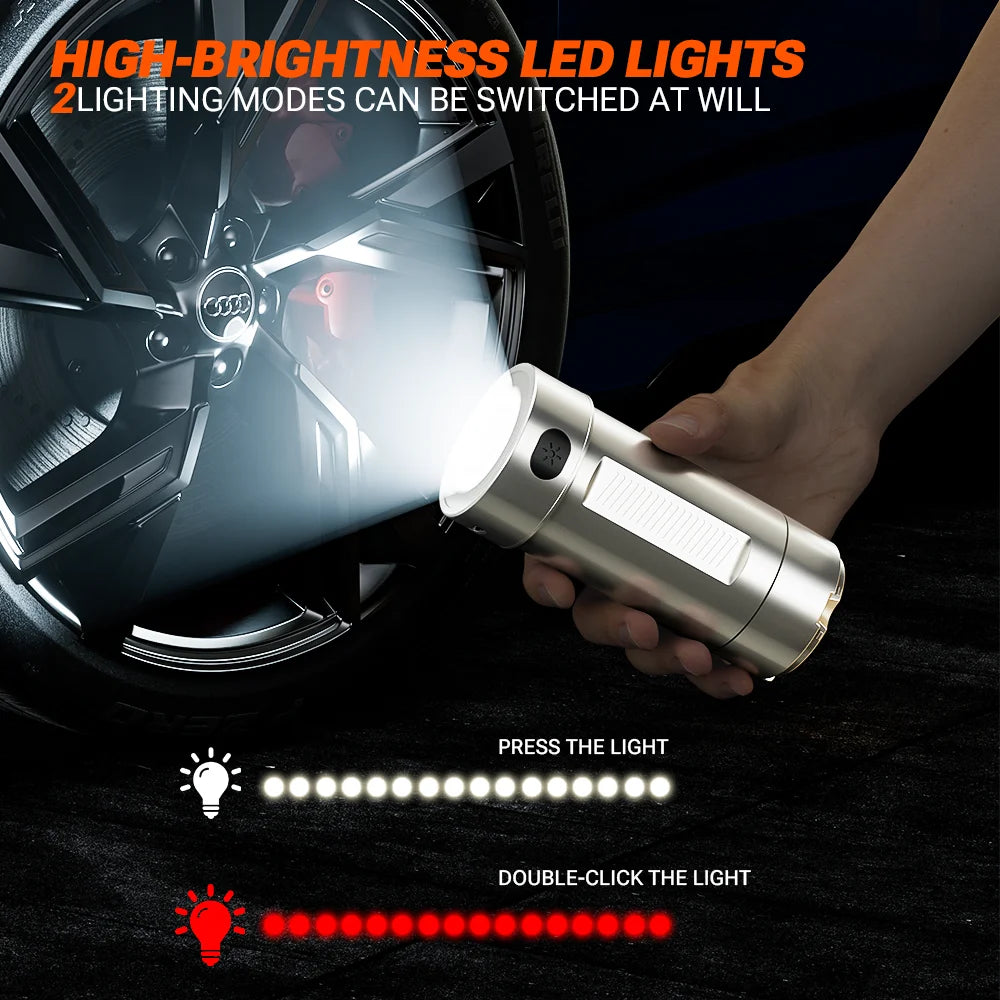

1.6 Equipped with an independent multi-functional battery pack, equipped with lighting, warning lights, and USB output to charge other devices

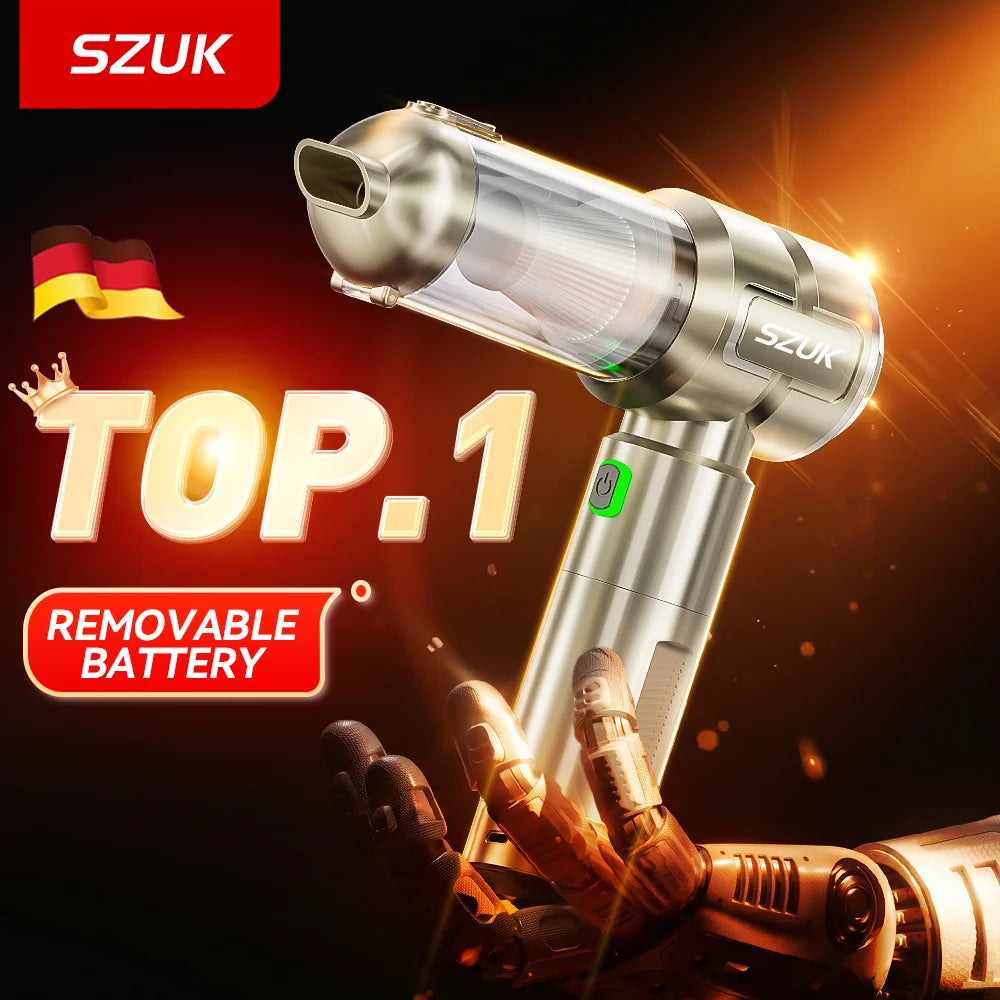

1.7 The multifunctional battery pack is removable and replaceable.

Specifications of key components (refer to BOM, relevant engineering specification paper, and parts inspection and assembly precautions for details)

2.1 Fan blades Fully enclosed turbine fan blades

2.2 Shell material ABS

2.3 Product size 21.8X21.5X6.8 (length x width x height cm)

2.4 Battery 18650*3*2000mAh 11.1V

2.6 Weight 490g (bare metal)

2.7 Motor size 45 brushless motor 100,000 rpm

2.8 Switch High, medium and low three gears (press for 3 seconds to turn on)

2.9 Charging cable Type-C 5V 1.5A

Product parameters and performance

3.1 Rated voltage: DC11.1V

3.2 Rated power: 100W

3.3 Dust cup capacity 0.4L

3.3 Noise: 1m distance noise value about 70dB

3.4 Suction force High 20KPa  Mid 1200KPa  Low 7KPa

3.5 Blowing volume 680L/min maximum

3.6 Suction volume 680L/min maximum

3.7 Inflation pressure 20KPa High

3.8 Exhaust pressure 20KPa High

3.9 Charging time 4-5 hours

4.0 Use time Low vacuuming 30 minutes, mid 18 minutes, high 12 minutes

4.1 Display part description Bottom charging display: charging indicator light, red, green. Switch position: green, red, orange
